sirhot82

Mojave: Intel UHD 630 7 MB (No Acceleration) - Please Help :(

36 posts in this topic

Recommended Posts

My system is:

Motherboard: Gigabyte Z390 UD

CPU: Intel i7 9700K

GPU: Onboard Intel UHD 630



I made the following changes in the Config.plist file from Clover Configurator but after changes my monitor does not open. Here are the pictures shows the settings I made.
I've tried all the models with i7 processor for SMBIOS but I still cannot open my monitor.
SMBIOS I tried: iMAc 14.1; 14.2; 17.1; 18.3; 19; mac mini
What Could be the problem, and how can I fix it?
*Since my monitor is not working, I also attached my clean config.plist, which is at the beginning of driver installation.



Thank you,










config.plist


Edited by sirhot82
System info added

Share this post


Link to post
Share on other sites
Advertisement

-I use Clover Configurator 5.8.00

-I used iMAC 19,1 for SMBIOS as you said, and this time all the empty parts comes with numbers

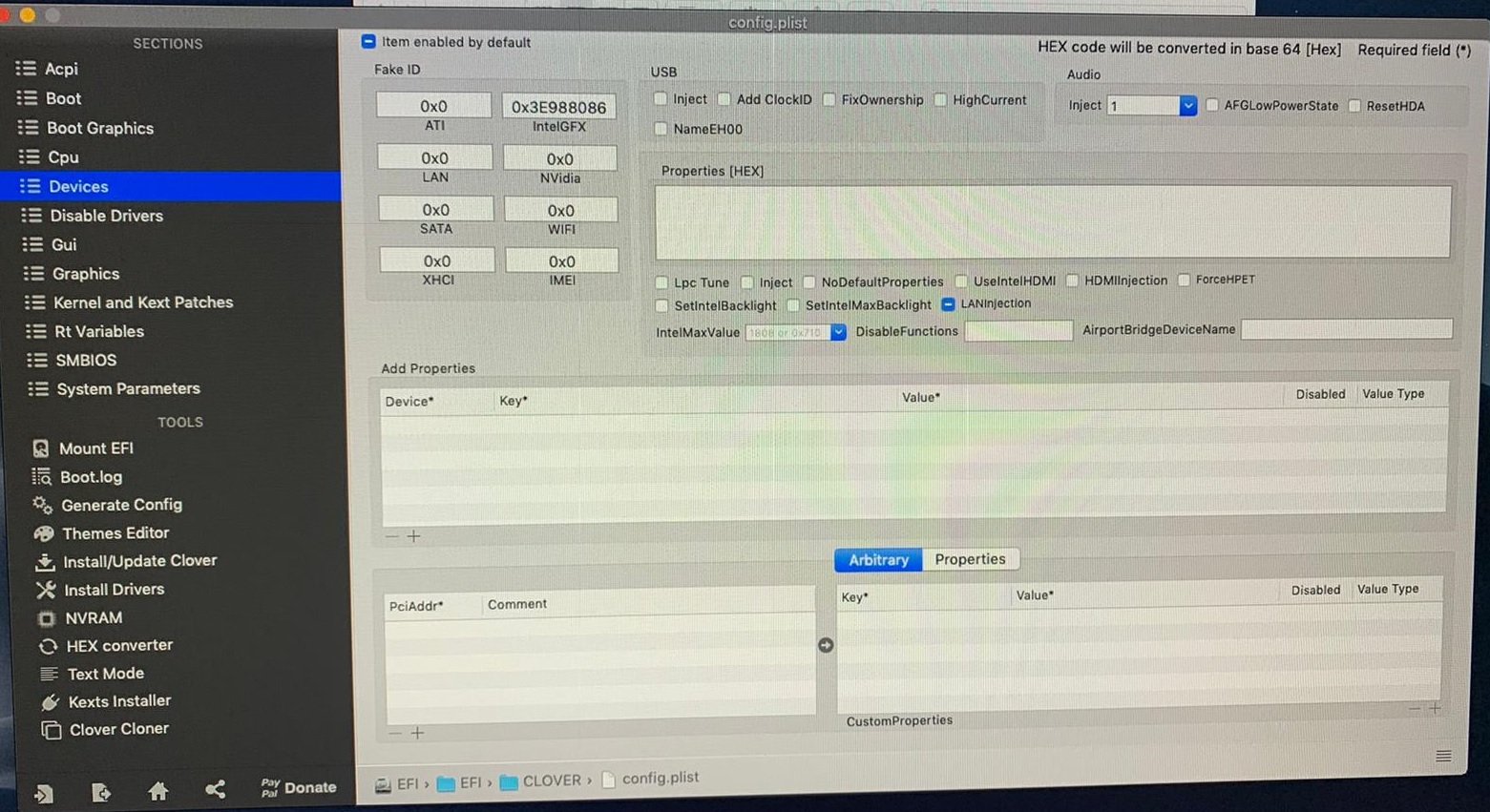

-Removed all of 0x0 from Devices only IntelGFX 0x3E988086 left

-I added lilu.kext and WhatEverGreen.kext into my Library/Extensions

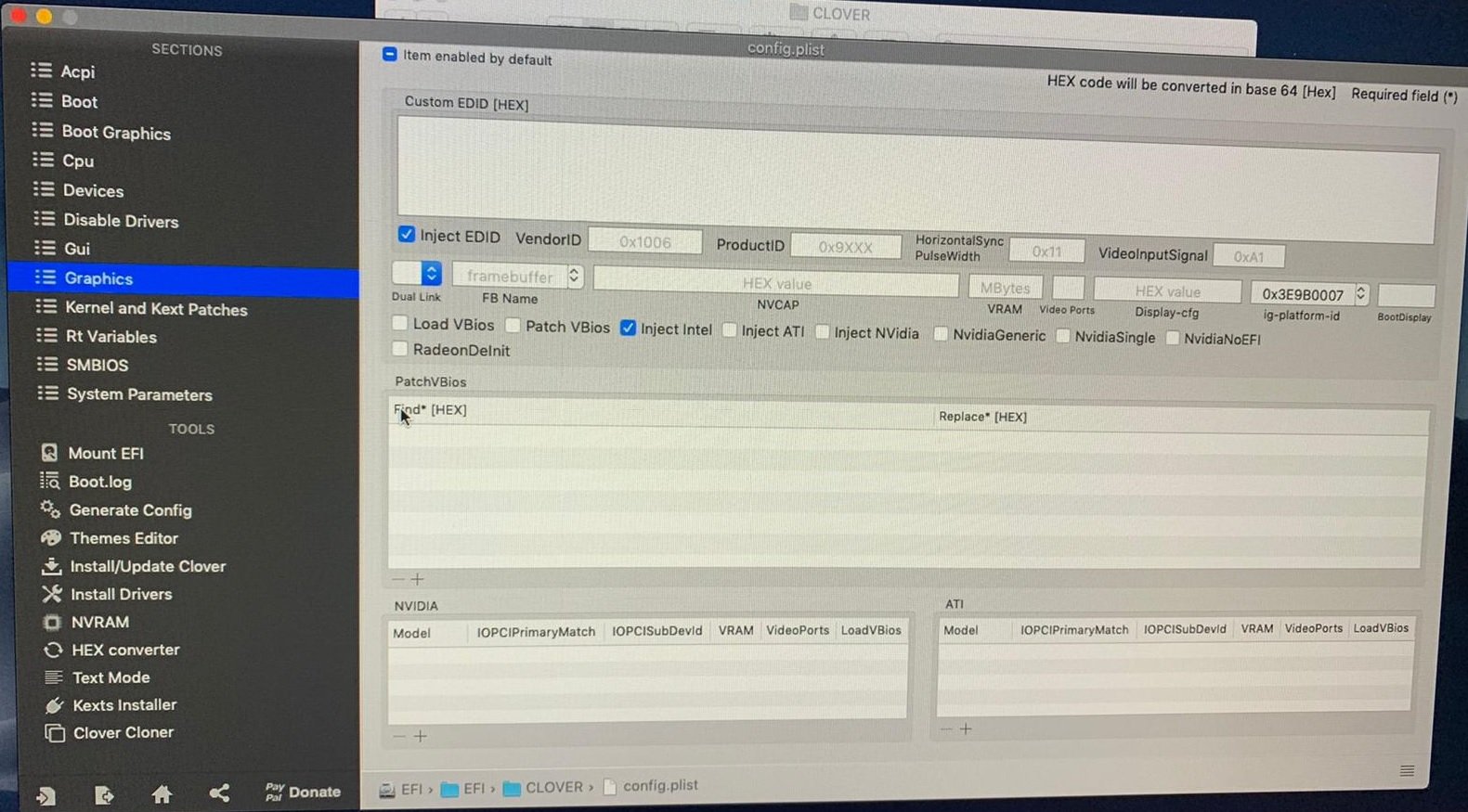

-I tried both 3E980003 with Inject Intel and 3E980007 in Graphics (id-platform)

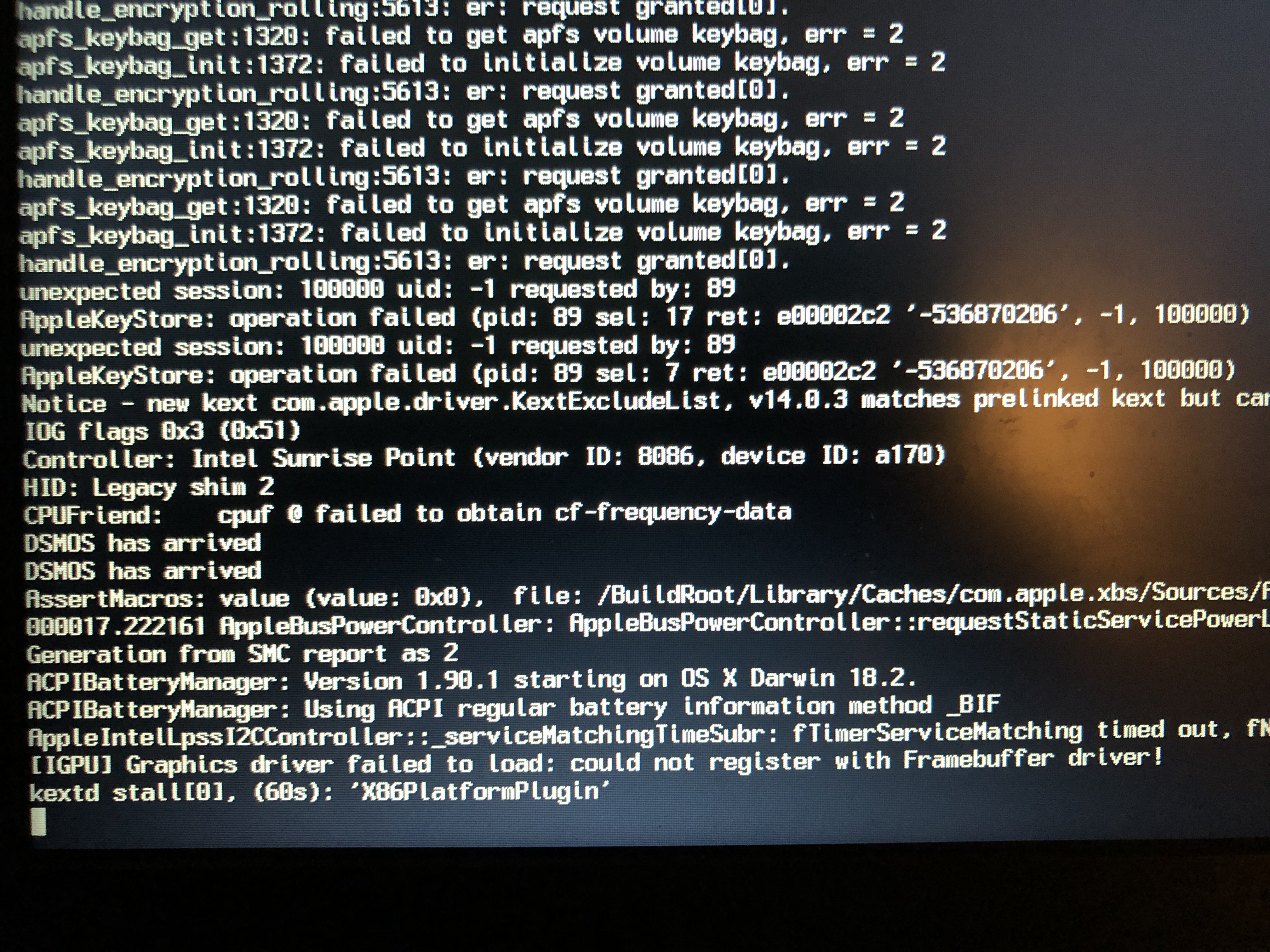

But still no change :( While fans are working my monitor does not open, it is close and the lamb is blinking.



Do I need special setup?



Edited by sirhot82
grammer

Share this post


Link to post
Share on other sites
23 hours ago, Hervé said:

Make sure you use the latest version of Clover Configurator, then revisit all tabs to adjust your config.



For instance, remove all those 0x0 I see listed in all fields of the Devices tab and I really don't see why you would fake your CPU's own iGPU id. i7-9700K's UHD630 does carry id 8086:3E98! Of course, it cannot do any harm, but it's useless and you probably want to avoid any possible confusion.

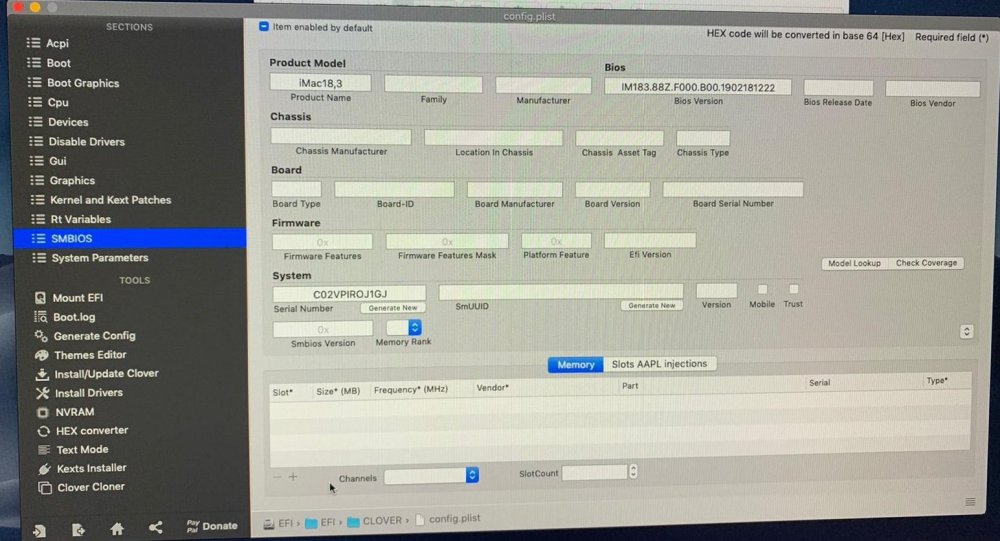

Re: SMBIOS, why is most of the data empty? I would have expected to see something like this once you select the appropriate SMBIOS in the offered list:




Then, iMac18,3 is Kaby Lake and with i7-7700K and HD630 iGPU with id 8085:5912 so I'm tempted to say it's the wrong SMBIOS for your system and you should probably opt for Coffee Lake iMac19,1 especially as i9-9900K carries UHD630 iGPU with id 8086:3E98, i.e. same as your i7-9700K:




If Lilu + WEG do not provide you with graphics acceleration on their own, i.e. without specific settings in Clover, I guess you should then try to select Inject Intel and inject layout-id 3E980003 (rather than 3E980007):






I used SMBIOS 19.1

I entered the IntelGFX e 0x3E988086 and entered ig-platfrom-id 0x07009B3E



My monitor opens but still 7 MB :(

Share this post


Link to post
Share on other sites
47 minutes ago, iCanaro said:



Woow, very very thanks, it is working now :):):)

What was the main problem? Was it wrong SMBIOS?



With this config file its working but do you also suggest me to add lilu.kext and WEG.kext to myLibrary/Extensitons? Or I do not need to add them?

Edited by sirhot82

Share this post


Link to post
Share on other sites
12 hours ago, iCanaro said:

not L/E



LILU & WEG --> EFI :thumbsup_anim:



inject graphics config --> devices --> properties


Sorry, but I did not understand clearly. I will probably need to format my system one day in the future so that I need to learn how to set my config file.



Could you explain it step by step, like talking to an idiot :)

Share this post


Link to post
Share on other sites
Just now, sirhot82 said:


Sorry, but I did not understand clearly. I will probably need to format my system one day in the future so that I need to learn how to set my config file.



Could you explain it step by step, like talking to an idiot :)

Wait till I get home I will help you out

Share this post


Link to post
Share on other sites

sorry but to communicate translators use, I am not a native English speaker. To learn, you need perseverance and reading guides :)

Share this post


Link to post
Share on other sites

Hi Everyone,

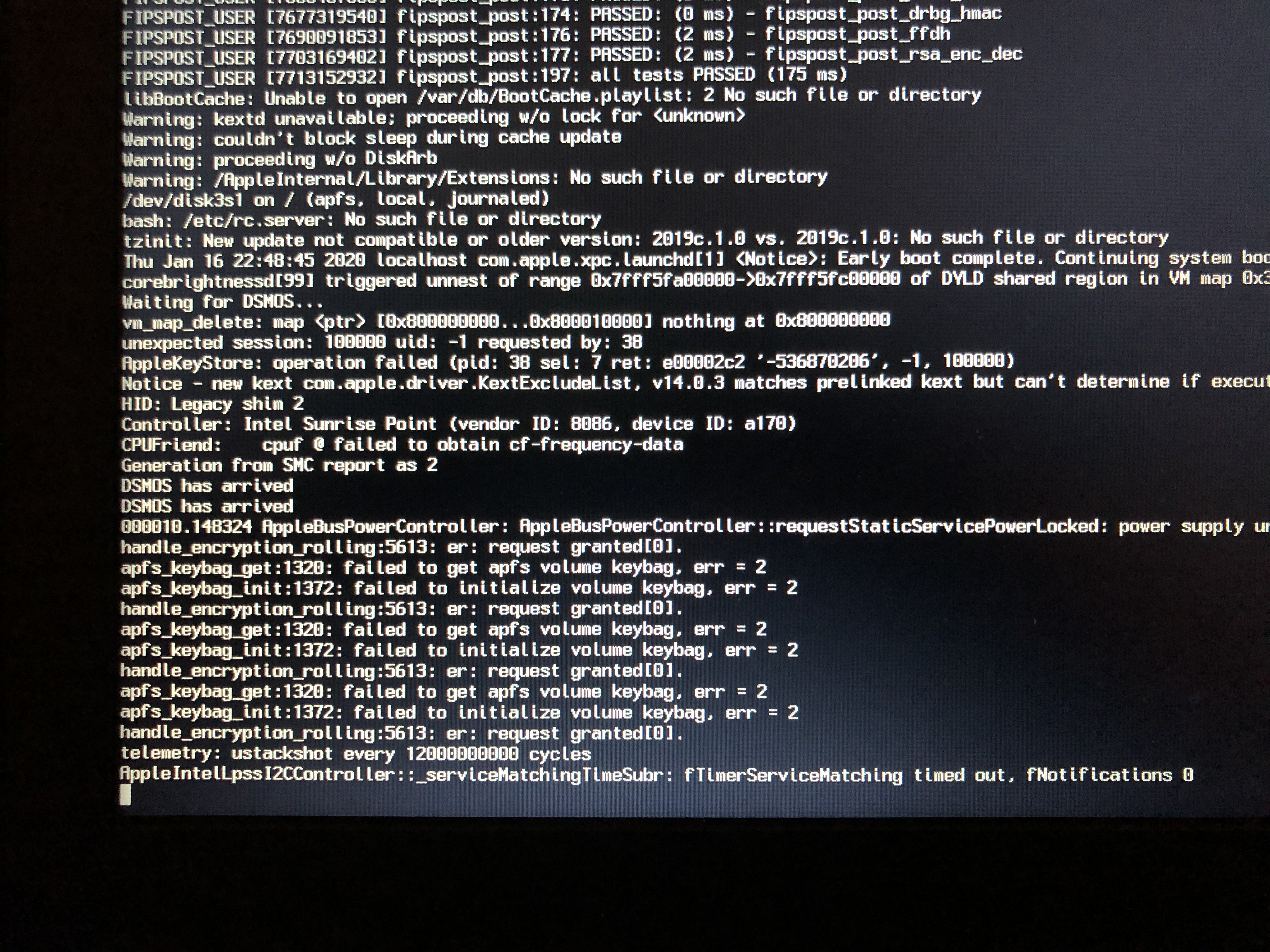

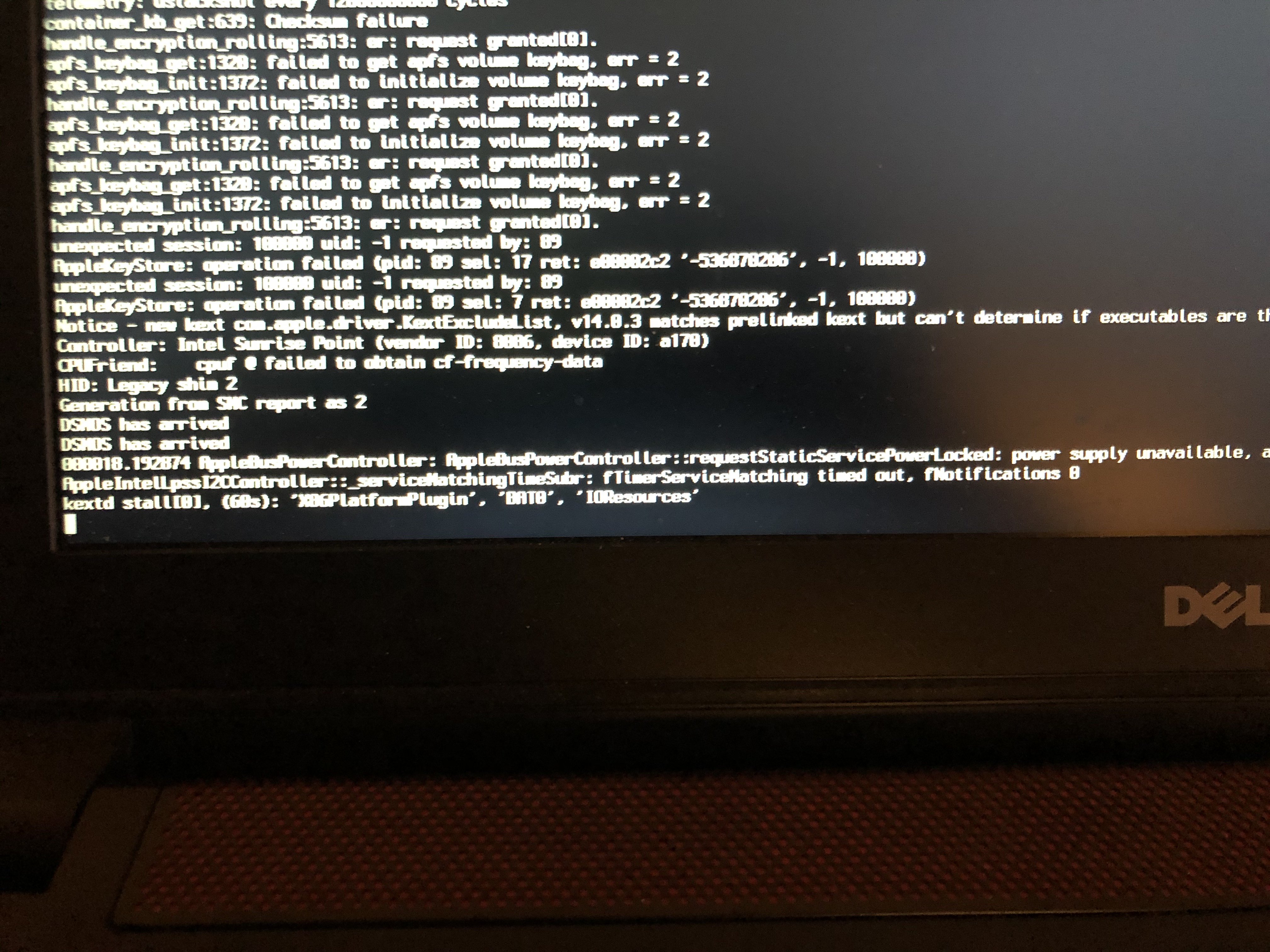

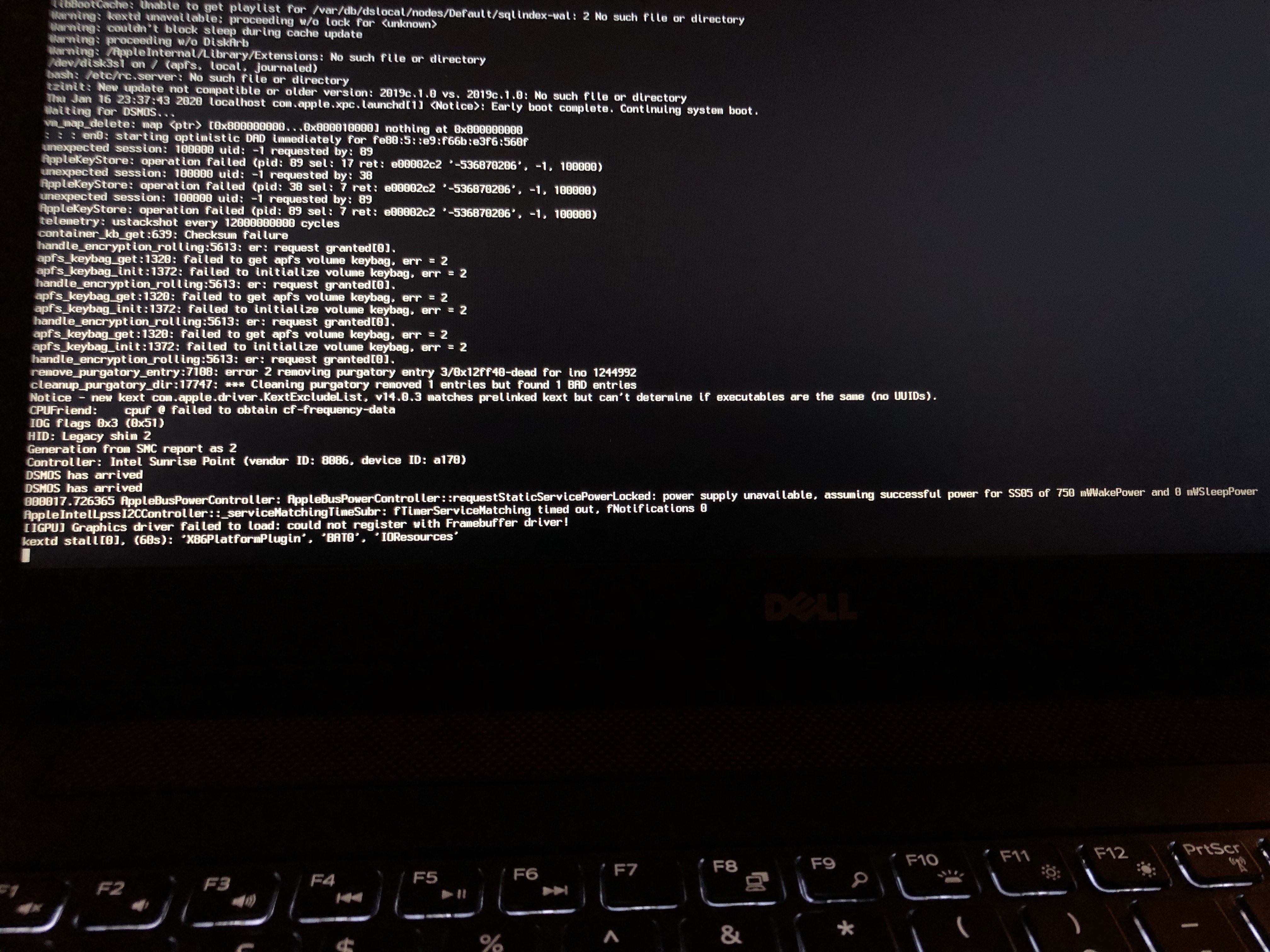

Im new to this and hopefully someone can help me. I have installed Mojave 10.14.1 on my Dell Inspiron 1577 laptop. What ever I do can not get the intel HD graphics 630 to work probably. It see's the intel HD Graphics 630 7MB.

I have select smbois 14.3 in clover configurator. I have tried loads of fixes that I have seen on YouTube from forums with no joy. I have attached my config.plist and a debug file. If someone would be able to have a look for me. I would be most appreciate it.

I have had a friend that has tried to patch the config plist using Hackintool as it was saying I had another graphics card installed. He managed to change it to the Intel HD graphics 630. I have also got whatevergreen and Lilu Kent installed.

config.plist

debug_1420.zip

Share this post


Link to post
Share on other sites
1 hour ago, tomprescott_128 said:

Hi Everyone,

Im new to this and hopefully someone can help me. I have installed Mojave 10.14.1 on my Dell Inspiron 1577 laptop. What ever I do can not get the intel HD graphics 630 to work probably. It see's the intel HD Graphics 630 7MB.

I have select smbois 14.3 in clover configurator. I have tried loads of fixes that I have seen on YouTube from forums with no joy. I have attached my config.plist and a debug file. If someone would be able to have a look for me. I would be most appreciate it.

I have had a friend that has tried to patch the config plist using Hackintool as it was saying I had another graphics card installed. He managed to change it to the Intel HD graphics 630. I have also got whatevergreen and Lilu Kent installed.

config.plist

debug_1420.zip



config-3.plist.zip

Share this post


Link to post
Share on other sites

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md



Intel HD Graphics 610-650 (Kaby Lake processors)

Supported since macOS 10.12.6
KBL framebuffer list:
— 0x591E0000 (mobile, 3 connectors, no fbmem, 35 MB)
— 0x59160000 (mobile, 3 connectors, no fbmem, 35 MB)
— 0x59230000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59260000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59270000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59270009 (mobile, 3 connectors, no fbmem, 39 MB)
— 0x59120000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x591B0000 (mobile, 3 connectors, 39 MB)
— 0x591E0001 (mobile, 3 connectors, no fbmem, 39 MB)
— 0x59180002 (mobile, 0 connectors, no fbmem, 1 MB)
— 0x59120003 (mobile, 0 connectors, no fbmem, 1 MB)
— 0x59260007 (desktop, 3 connectors, 79 MB)
— 0x59270004 (mobile, 3 connectors, no fbmem, 58 MB)
— 0x59260002 (mobile, 3 connectors, no fbmem, 58 MB)
— 0x591B0006 (mobile, 1 connectors, no fbmem, 39 MB)

Spoiler: KBL connectors

Recommended framebuffers: for desktop - 0x59160000 (default), 0x59120000 (recommended); for laptop - 0x591B0000 (default).

Share this post


Link to post
Share on other sites

Thanks for your help. I will have a go after work, it maybe a bit advanced for me but will be a good learning curve. Is there a good pilist editor to use?

Edited by tomprescott_128

Share this post


Link to post
Share on other sites
18 hours ago, iCanaro said:

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md



Intel HD Graphics 610-650 (Kaby Lake processors)

Supported since macOS 10.12.6
KBL framebuffer list:
— 0x591E0000 (mobile, 3 connectors, no fbmem, 35 MB)
— 0x59160000 (mobile, 3 connectors, no fbmem, 35 MB)
— 0x59230000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59260000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59270000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x59270009 (mobile, 3 connectors, no fbmem, 39 MB)
— 0x59120000 (desktop, 3 connectors, no fbmem, 39 MB)
— 0x591B0000 (mobile, 3 connectors, 39 MB)
— 0x591E0001 (mobile, 3 connectors, no fbmem, 39 MB)
— 0x59180002 (mobile, 0 connectors, no fbmem, 1 MB)
— 0x59120003 (mobile, 0 connectors, no fbmem, 1 MB)
— 0x59260007 (desktop, 3 connectors, 79 MB)
— 0x59270004 (mobile, 3 connectors, no fbmem, 58 MB)
— 0x59260002 (mobile, 3 connectors, no fbmem, 58 MB)
— 0x591B0006 (mobile, 1 connectors, no fbmem, 39 MB)

Spoiler: KBL connectors

Recommended framebuffers: for desktop - 0x59160000 (default), 0x59120000 (recommended); for laptop - 0x591B0000 (default).

What do I use to edit these values in the pilist?

Share this post


Link to post
Share on other sites
