xKaoSx Posted August 29, 2019 Share Posted August 29, 2019 (edited) Hello to everyone, My English very bad and I'm sorry for that. I have problem in clover. My HDD or SSD GPT HFS+ not problem this config.plist. I am change GUI name in disk for clover boot. But my HDD or SSD GPT APFS same config not change name in clover boot menu. Only text is "boot macOS from Macintosh". How can I change this "boot macOS from Macintosh" on only macOS High Sierra or any text. <key>GUI</key> <dict> <key>Custom</key> <dict> <key>Entries</key> <array> <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>macOS High Sierra Kurtarma</string> <key>Hidden</key> <false/> <key>Ignore</key> <false/> <key>NoCaches</key> <false/> <key>Type</key> <string>OSXRecovery</string> <key>Volume</key> <string>17181EFF-F411-4C1A-8639-EC3734CCFD3F</string> <key>VolumeType</key> <string>Internal</string> </dict> <dict> <key>Disabled</key> <false/> <key>Ignore</key> <false/> <key>NoCaches</key> <false/> <key>Title</key> <string>macOS High Sierra</string> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>BD47CCCF-602E-432C-8DA8-A956587DA745</string> <key>VolumeType</key> <string>Internal</string> </dict> <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>Windows 10 Professional</string> <key>Ignore</key> <false/> <key>Type</key> <string>Windows</string> <key>Volume</key> <string>51610705-1FF3-4CD1-9E5B-B0597095DFBC</string> <key>VolumeType</key> <string>Internal</string> </dict> </array> </dict> <key>Hide</key> <array> <string>Preboot</string> <string>Windows</string> </array> <key>KbdPrevLang</key> <true/> <key>Language</key> <string>tr:0</string> <key>PlayAsync</key> <true/> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <false/> </dict> Edited August 29, 2019 by xKaoSx Link to comment Share on other sites More sharing options...
iCanaro Posted August 30, 2019 Share Posted August 30, 2019 be aware that if you use custom entries, there is currently a bug in Clover that causes the icon not to be displayed in case of system updates Link to comment Share on other sites More sharing options...
xKaoSx Posted August 31, 2019 Author Share Posted August 31, 2019 On 8/30/2019 at 10:04 AM, Hervé said: You're doing it all wrong and adding Custom Entries in your Clover config is of no use for the purpose in mind! You need to change your actual macOS partition names. If it's not already active, enable "show hard discs" in your Finder's Preferences. You'll then see your OS X/macOS partitions on your desktop. Clover uses those partition names. Click on the partition's names and change them. That's it. Clover will then show/list those new names. -> Simple, eh? You just need to learn a bit more about the OS you run with... You dont understand me. I am dont change my disk name. I can change the clover boot name. normaly clover boot name is “boot macOS from Macintosh”. My disk is GPT HFS+ is not problem I am change is name “Start High Sierra” or any text. but disk is GPT APFS same config not change is name only text “boot macOS from Macintosh” Link to comment Share on other sites More sharing options...
xKaoSx Posted September 1, 2019 Author Share Posted September 1, 2019 Thank you my friend. Thank you so much. My problem is clover configurator problem. My disk UUID is : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 But Clover configurator is : BD47CCCF-602E-432C-8DA8-A956587DA745 Manuel change UUID successful. Thank you. I have a new problem macOS High Sierra Disk UUID : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 macOS Recovery Disk UUID : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 macOS High Sierra disk name "boot macOS from Macintosh" to "any text" no problem all is okay. macOS Recovery disk name "recovery from recovery" not change for same UUID Link to comment Share on other sites More sharing options...
Slice Posted September 1, 2019 Share Posted September 1, 2019 Your problem is Clover Configuration. Forget it. Link to comment Share on other sites More sharing options...
fusion71au Posted September 2, 2019 Share Posted September 2, 2019 (edited) 19 hours ago, xKaoSx said: Thank you my friend. Thank you so much. My problem is clover configurator problem. My disk UUID is : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 But Clover configurator is : BD47CCCF-602E-432C-8DA8-A956587DA745 Manuel change UUID successful. Thank you. I have a new problem macOS High Sierra Disk UUID : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 macOS Recovery Disk UUID : 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 macOS High Sierra disk name "boot macOS from Macintosh" to "any text" no problem all is okay. macOS Recovery disk name "recovery from recovery" not change for same UUID Check out my tutorial on custom entries for APFS volumes. Clover uses little endian form of UUID (without internal dashes) to distinguish between APFS volumes - refer to clean Clover boot log/bdmesg without Custom Entries in config.plist to determine the one for APFS Recovery eg looks like 2:491 0:000 - [08]: Volume: PciRoot(0x0)\Pci(0x11,0x0)\Pci(0x4,0x0)\Sata(0x0,0x0,0x0)\HD(2,GPT, 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 ,0x64028,0x639BFB0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF1E181711F41A4C8639EC3734CCFD3F) where 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 is the UUID of the physical partition (Partition UUID is shared by all your High Sierra APFS volumes ie Preboot, macOS, Recovery and VM) and FF1E181711F41A4C8639EC3734CCFD3F is the unique volume UUID of your APFS High Sierra Recovery in little endian format. Clover configurator incorrectly uses the big endian format for APFS volumes, so need to convert back to little endian without dashes eg in your screenshot, Recovery has big endian Vol UUID 17181EFF-F411-4C1A-8639-EC3734CCFD3F =little endian Vol UUID FF1E1817-11F4-1A4C-8639-EC3734CCFD3F =little endian without dashes FF1E181711F41A4C8639EC3734CCFD3F macOS High Sierra has big endian Vol UUID BD47CCCF-602E-432C-8DA8-A956587DA745 =little endian Vol UUID CFCC47BD-2E60-2C43-8DA8-A956587DA745 =little endian without dashes CFCC47BD2E602C438DA8A956587DA745 Note: The boot path for the Recovery volume includes the UUID (in big endian format) of the main macOS volume eg \UUID\boot.efi To determine this, type in terminal diskutil info diskXsY | grep UUID //where diskXsY refers to your main macOS volume =BD47CCCF-602E-432C-8DA8-A956587DA745 from your Clover configurator screenshot End Result: Custom Entry for High Sierra Recovery using UUIDs from @xKaoSx's values <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>High Sierra Kurtarma</string> <key>Hidden</key> <false/> <key>Ignore</key> <false/> <key>InjectKexts</key> <string>Detect</string> <key>NoCaches</key> <false/> <key>Path</key> <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\boot.efi</string> <key>Type</key> <string>OSXRecovery</string> <key>Volume</key> <string>FF1E181711F41A4C8639EC3734CCFD3F</string> </dict> and Custom Entry for macOS High Sierra <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>macOS High Sierra</string> <key>Hidden</key> <false/> <key>Ignore</key> <false/> <key>InjectKexts</key> <false/> <key>NoCaches</key> <false/> <key>Path</key> <string>\System\Library\CoreServices\boot.efi</string> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>CFCC47BD2E602C438DA8A956587DA745</string> </dict> İyi şanslar (Good Luck)! Edited September 2, 2019 by fusion71au Sample Custom Recovery Entry for @xKaoSx using values from Clover Configurator screenshots 1 Link to comment Share on other sites More sharing options...

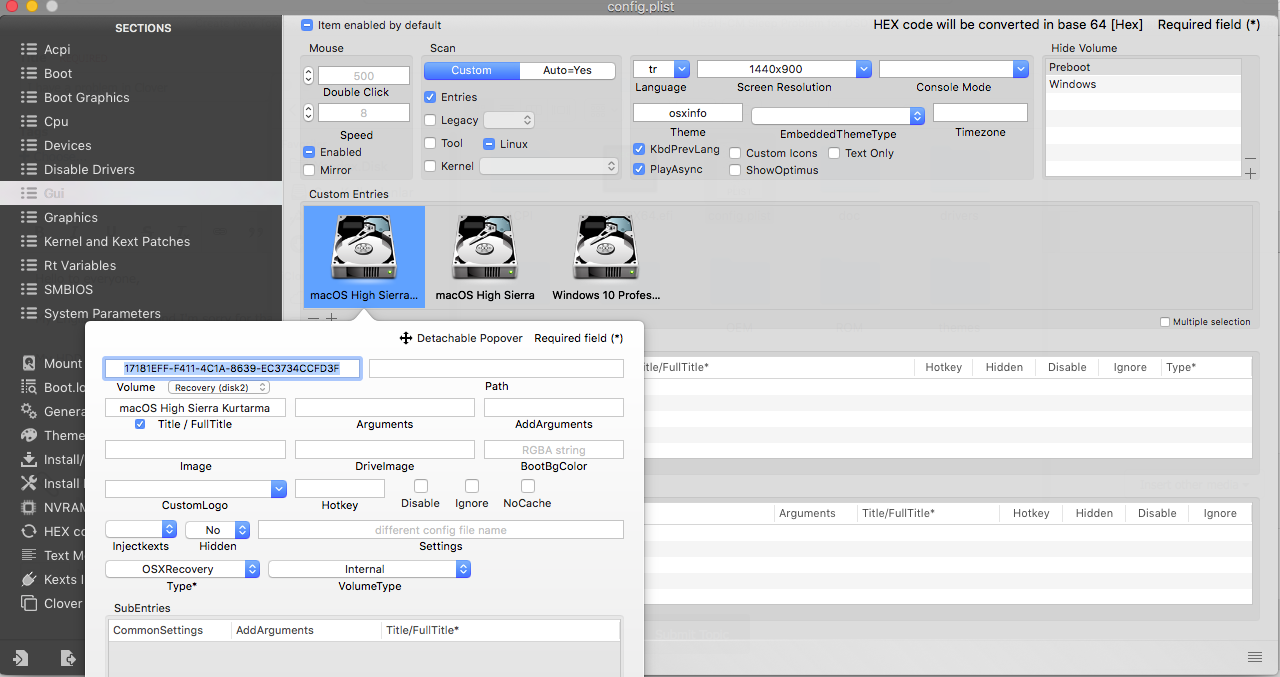

xKaoSx Posted September 2, 2019 Author Share Posted September 2, 2019 12 hours ago, fusion71au said: Check out my tutorial on custom entries for APFS volumes. Clover uses little endian form of UUID (without internal dashes) to distinguish between APFS volumes - refer to clean Clover boot log/bdmesg without Custom Entries in config.plist to determine the one for APFS Recovery eg looks like 2:491 0:000 - [08]: Volume: PciRoot(0x0)\Pci(0x11,0x0)\Pci(0x4,0x0)\Sata(0x0,0x0,0x0)\HD(2,GPT, 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 ,0x64028,0x639BFB0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF1E181711F41A4C8639EC3734CCFD3F) where 8827CB24-740B-4E7B-93AE-A3D45D9A4D04 is the UUID of the physical partition (Partition UUID is shared by all your High Sierra APFS volumes ie Preboot, macOS, Recovery and VM) and FF1E181711F41A4C8639EC3734CCFD3F is the unique volume UUID of your APFS High Sierra Recovery in little endian format. Clover configurator incorrectly uses the big endian format for APFS volumes, so need to convert back to little endian without dashes eg in your screenshot, Recovery has big endian Vol UUID 17181EFF-F411-4C1A-8639-EC3734CCFD3F =little endian Vol UUID FF1E1817-11F4-1A4C-8639-EC3734CCFD3F =little endian without dashes FF1E181711F41A4C8639EC3734CCFD3F macOS High Sierra has big endian Vol UUID BD47CCCF-602E-432C-8DA8-A956587DA745 =little endian Vol UUID CFCC47BD-2E60-2C43-8DA8-A956587DA745 =little endian without dashes CFCC47BD2E602C438DA8A956587DA745 Note: The boot path for the Recovery volume includes the UUID (in big endian format) of the main macOS volume eg \UUID\boot.efi To determine this, type in terminal diskutil info diskXsY | grep UUID //where diskXsY refers to your main macOS volume =BD47CCCF-602E-432C-8DA8-A956587DA745 from your Clover configurator screenshot End Result: Custom Entry for High Sierra Recovery using UUIDs from @xKaoSx's values <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>High Sierra Kurtarma</string> <key>Hidden</key> <false/> <key>Ignore</key> <false/> <key>InjectKexts</key> <string>Detect</string> <key>NoCaches</key> <false/> <key>Path</key> <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\boot.efi</string> <key>Type</key> <string>OSXRecovery</string> <key>Volume</key> <string>FF1E181711F41A4C8639EC3734CCFD3F</string> </dict> and Custom Entry for macOS High Sierra <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>macOS High Sierra</string> <key>Hidden</key> <false/> <key>Ignore</key> <false/> <key>InjectKexts</key> <false/> <key>NoCaches</key> <false/> <key>Path</key> <string>\System\Library\CoreServices\boot.efi</string> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>CFCC47BD2E602C438DA8A956587DA745</string> </dict> İyi şanslar (Good Luck)! Thank you brother. I try now. and you write Turkish wonderful Link to comment Share on other sites More sharing options...
xKaoSx Posted September 2, 2019 Author Share Posted September 2, 2019 Hı @fusion71au, bootlog 8:787 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8827CB24-740B-4E7B-93AE-A3D45D9A4D04,0x64028,0xDDA79F0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3F723BFCDD5A249A874BC3DDCE012DC) 8:788 0:000 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8827CB24-740B-4E7B-93AE-A3D45D9A4D04,0x64028,0xDDA79F0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,CFCC47BD2E602C438DA8A956587DA745) 8:788 0:000 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8827CB24-740B-4E7B-93AE-A3D45D9A4D04,0x64028,0xDDA79F0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,FF1E181711F41A4C8639EC3734CCFD3F) 05 : Preboot 06 : High Sierra 07 : Recovery Terminal output /dev/disk0 (internal, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *240.1 GB disk0 1: EFI EFI 209.7 MB disk0s1 2: Apple_APFS Container disk1 119.0 GB disk0s2 3: Microsoft Basic Data Windows 120.4 GB disk0s3 4: Windows Recovery 491.8 MB disk0s4 /dev/disk1 (synthesized): #: TYPE NAME SIZE IDENTIFIER 0: APFS Container Scheme - +119.0 GB disk1 Physical Store disk0s2 1: APFS Volume Macintosh 49.8 GB disk1s1 2: APFS Volume Preboot 22.1 MB disk1s2 3: APFS Volume Recovery 519.6 MB disk1s3 4: APFS Volume VM 20.5 KB disk1s4 and diskutil info disk1s1 | grep UUID Volume UUID: BD47CCCF-602E-432C-8DA8-A956587DA745 Disk / Partition UUID: BD47CCCF-602E-432C-8DA8-A956587DA745 diskutil info disk1s2 | grep UUID Volume UUID: BF23F7C3-D5CD-49A2-A874-BC3DDCE012DC Disk / Partition UUID: BF23F7C3-D5CD-49A2-A874-BC3DDCE012DC diskutil info disk1s3 | grep UUID Volume UUID: 17181EFF-F411-4C1A-8639-EC3734CCFD3F Disk / Partition UUID: 17181EFF-F411-4C1A-8639-EC3734CCFD3F <key>GUI</key> <dict> <key>Custom</key> <dict> <key>Entries</key> <array> <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>Preboot Girisi</string> <key>Hidden</key> <true/> <key>Ignore</key> <false/> <key>InjectKexts</key> <true/> <key>NoCaches</key> <false/> <key>Path</key> <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\System\Library\CoreServices\boot.efi </string> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>C3F723BFCDD5A249A874BC3DDCE012DC</string> </dict> <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>macOS High Sierra</string> <key>Ignore</key> <false/> <key>InjectKexts</key> <true/> <key>NoCaches</key> <false/> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>CFCC47BD2E602C438DA8A956587DA745</string> </dict> <dict> <key>Disabled</key> <false/> <key>FullTitle</key> <string>macOS Kurtarma</string> <key>Hidden</key> <true/> <key>Ignore</key> <false/> <key>InjectKexts</key> <true/> <key>NoCaches</key> <false/> <key>Path</key> <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\boot.efi </string> <key>Type</key> <string>OSXRecovery</string> <key>Volume</key> <string>FF1E181711F41A4C8639EC3734CCFD3F</string> </dict> </array> </dict> <key>Hide</key> <array> <string>windows</string> <string>legacy</string> </array> <key>KbdPrevLang</key> <true/> <key>Language</key> <string>tr:0</string> <key>PlayAsync</key> <true/> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <false/> <key>Linux</key> <false/> </dict> <key>ScreenResolution</key> <string>1360x768</string> <key>Theme</key> <string>osxinfo</string> </dict> I can now change boot name only "boot macOS form Macintosh" to "macOS High Sierra" But Not change preboot and recovery name and not hide entries where is my mistake ? Link to comment Share on other sites More sharing options...
fusion71au Posted September 2, 2019 Share Posted September 2, 2019 @xKaoSx, You shouldn't have a space after boot.efi in your path: eg for Preboot Path: Should be <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\System\Library\CoreServices\boot.efi</string> not <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\System\Library\CoreServices\boot.efi </string for Recovery Path: Should be <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\boot.efi</string> not <string>\BD47CCCF-602E-432C-8DA8-A956587DA745\boot.efi </string> Please use proper plist editor to edit config.plist and directly enter data (eg XCODE or Clover Configurator), not simple text editor. Here is sample_config.plist with your data for Preboot and Recovery. Link to comment Share on other sites More sharing options...
xKaoSx Posted September 3, 2019 Author Share Posted September 3, 2019 Thank you brother. I am fix it and all entries change name. I thank you so much. Best regards, sincerely. 1 Link to comment Share on other sites More sharing options...
