Dell monitoring by SMM and fan control


Slice
 Share

42 posts in this topic

Recommended Posts

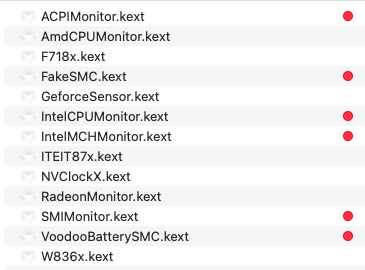

I got it, registered without acpimonitor.kext



2019-11-15 16:04:08.866523+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: Got sigs 44494147 and 44454c4c


2019-11-15 16:04:08.866526+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: Based on I8kfan project adopted to HWSensors by Slice 2014
2019-11-15 16:04:08.866879+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: [Warning] No power status
2019-11-15 16:04:09.211434+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: found fan 0 type -1
2019-11-15 16:04:09.212126+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor:    min speed 2500
2019-11-15 16:04:09.212826+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor:    max speed 4900
2019-11-15 16:04:09.229816+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: found fan 1 type -1
2019-11-15 16:04:09.230378+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor:    min speed 2500
2019-11-15 16:04:09.231072+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor:    max speed 4900
2019-11-15 16:04:09.234111+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 0 type 0
2019-11-15 16:04:09.234766+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 1 type 1
2019-11-15 16:04:09.235420+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 2 type 2
2019-11-15 16:04:09.236075+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 3 type 3
2019-11-15 16:04:09.236725+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 4 type 4
2019-11-15 16:04:09.237379+0700  localhost kernel[0]: (SMIMonitor) SMIMonitor: sensor 5 type 5

hopefully someday I can't monitor the PCH temp,



thank you @Slice

Edited by Regi Yassin
Link to comment
Share on other sites

  • 1 month later...
On 8/12/2019 at 9:22 AM, Slice said:

Big news!

I added an ability to manually set Fan speed.

See how it works:

1. The computer is cool and the fan is stopped

Снимок экрана 2019-08-12 в 18.52.21.png

2. I set Manual Drive

sudo smcwrite F0Md 0100

and then set the fan 0 to low speed

sudo smcwrite F0As 0100

Снимок экрана 2019-08-12 в 19.01.36.png

3. Then I forced the fan to HIGH speed

sudo smcwrite F0As 0200

Снимок экрана 2019-08-12 в 19.01.57.png

OK, I need no more the high speed so I stopped the fan

sudo smcwrite F0As 0000

Or I want to give the computer automatic control on fans

sudo smcwrite F0Md 0000



@vector sigma

Can we add this function to HWMonitorSMC2? I see there is a template for FAN control.

What I need is to set in preferences

Temp01 - a temperature to switch fan from OFF to LOW. (default 50)

Temp12 - from LOW to HIGH (default 70)

Temp21 - from HIGH to LOW (default 60)

Temp10 - from LOW to OFF (default 40)

and a switch manual/auto.

When the Monitor checks CPU Temp it will write SMC keys as shown above.

This is great! it works quite well on my DELL m3800, and I can use it to control the speed. Slice, is the source code of SMIMonitor updated on sf.net to include the change? I'm currently using Rehabman's fakesmc which gives me quick boot time. I used your version of fakesmc, but it gave me random restart when booting into the system. I will be interested to look at the codes, and hopefully integrate your fan control function in Rehabman's fakesmc sets. Thanks!

Edited by roswellian
Link to comment
Share on other sites

3 hours ago, roswellian said:

This is great! it works quite well on my DELL m3800, and I can use it to control the speed. Slice, is the source code of SMIMonitor updated on sf.net to include the change? I'm currently using Rehabman's fakesmc which gives me quick boot time. I used your version of fakesmc, but it gave me random restart when booting into the system. I will be interested to look at the codes, and hopefully integrate your fan control function in Rehabman's fakesmc sets. Thanks!

Take my sources from github. The link is in my signature.

Link to comment
Share on other sites

  • 4 months later...
On 11/16/2019 at 2:09 AM, Regi Yassin said:

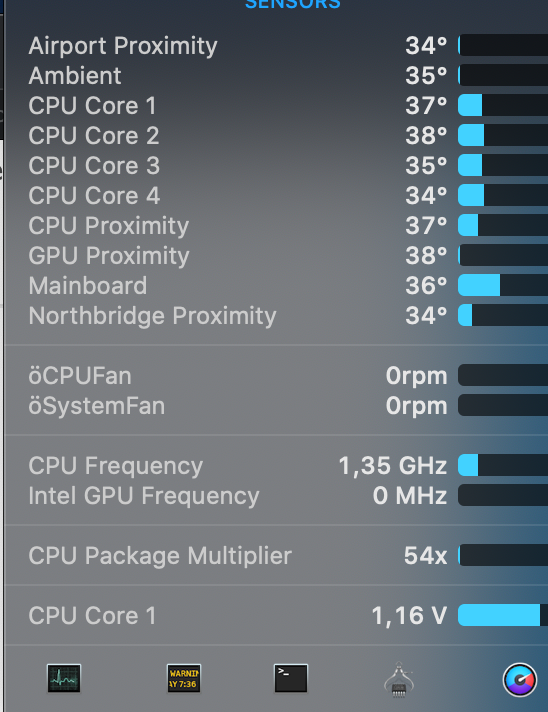

yeah, I see it, but I wonder why multiplier isn't showing the correct value with istatmenus ?

I haven't corrected the name of the temp






EDIT:

got it fixed for multiplier

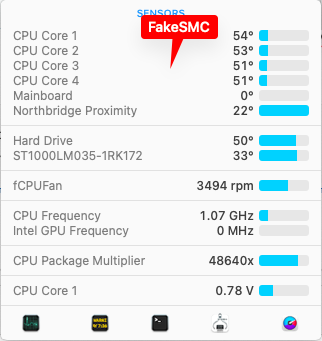

How did you fix the multiplier? I have the value from 1025x to 51200x

Link to comment
Share on other sites

  • 3 months later...
12 hours ago, adiif1 said:

Please help me :/



sudo: unable to execute ./SMC_util3: Bad CPU type in executable



and me only work



sudo ./smcwrite F1Tg 0100



+- 2500 rpm



dell m4800 :/

you have to use smcwrite only. See post #2 in the thread.

Link to comment
Share on other sites

38 minutes ago, Slice said:

Do the follow

sudo smcwrite F0Md 0100

sudo smcwrite F0As 0200

Nothing :/

edit:



sudo smcwrite F0Md 0100

sudo smcwrite F0As 0200

sudo smcwrite F0Tg 0200



 3 commands and then it works

Edited by adiif1
Link to comment
Share on other sites

  • 10 months later...
On 10/3/2020 at 6:20 PM, Slice said:

Do the follow

sudo smcwrite F0Md 0100

sudo smcwrite F0As 0200

@Slice thank you

I've followed your instructions and everything is working great.

Please I'd to keep my fan settings every boot without using terminal every time to set it up ; second how to make the low value for fan more lower , in my case low fan mode is 2300 prm i want it max 1800 prm

Thank you

Link to comment
Share on other sites

10 hours ago, LIMITANT said:

@Slice thank you

I've followed your instructions and everything is working great.

Please I'd to keep my fan settings every boot without using terminal every time to set it up ; second how to make the low value for fan more lower , in my case low fan mode is 2300 prm i want it max 1800 prm

Thank you

It is not possible. I can set {Off, Low, High...}. Other values are out of my control.

About preset values consider to use some script at startup.

  • Like 1
Link to comment
Share on other sites

12 hours ago, Slice said:

It is not possible. I can set {Off, Low, High...}. Other values are out of my control.

About preset values consider to use some script at startup.

Thanks @Slice but i don't know what is script , could you help me please ?



Edited : I've made the script by following one tutorial, it works but i should password every login

Edited by LIMITANT
