Stuck on PCI configuration...

ergot

By ergot,
in OSx86 10.14 (Mojave)

 Share
27 posts in this topic

Recommended Posts

ergot
ergot
Posted
Posted

Hi

I was installing 10.14 from my MacBook Pro to external SSD then move it to my mackintosh using the same EFI folder for my current build 10.13

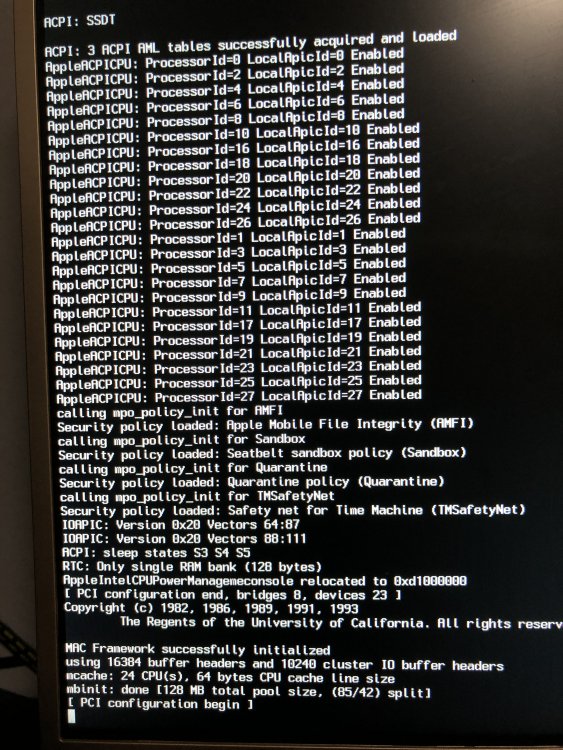

When boot up the 10.14 SSD I am stuck on PCI configurations...anyone know what I should do next?IMG_1493.thumb.JPG.24b063b0afd7209356f292127d21b319.JPG

Link to comment
Share on other sites
ergot
ergot
Posted
  • Author
Posted
1 hour ago, fabiosun said:

check if kernel patch you are using in 10.13 are the same..maybe one of them is different ;)



Hi Fabiosun,

I removed all patches before, still stuck on PCI configuration.

BTW, I don't know if it matters the OS installed on HFS and not APFS

Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)

You have to find new kernel patches

1 hour ago, ergot said:

Hi Fabiosun,



BTW, I don't know if it matters the OS installed on HFS and not APFS

regarding last part of your message

10.14.beta 1 convert during install phase in apfs so you should have in your driver64uefi folder apfs.efi driver



try to see also here

I think new Brumbaer patch is there



Edited by Guest
Link to comment
Share on other sites
ergot
ergot
Posted
  • Author
Posted (edited)

HI All and thank you for your help!

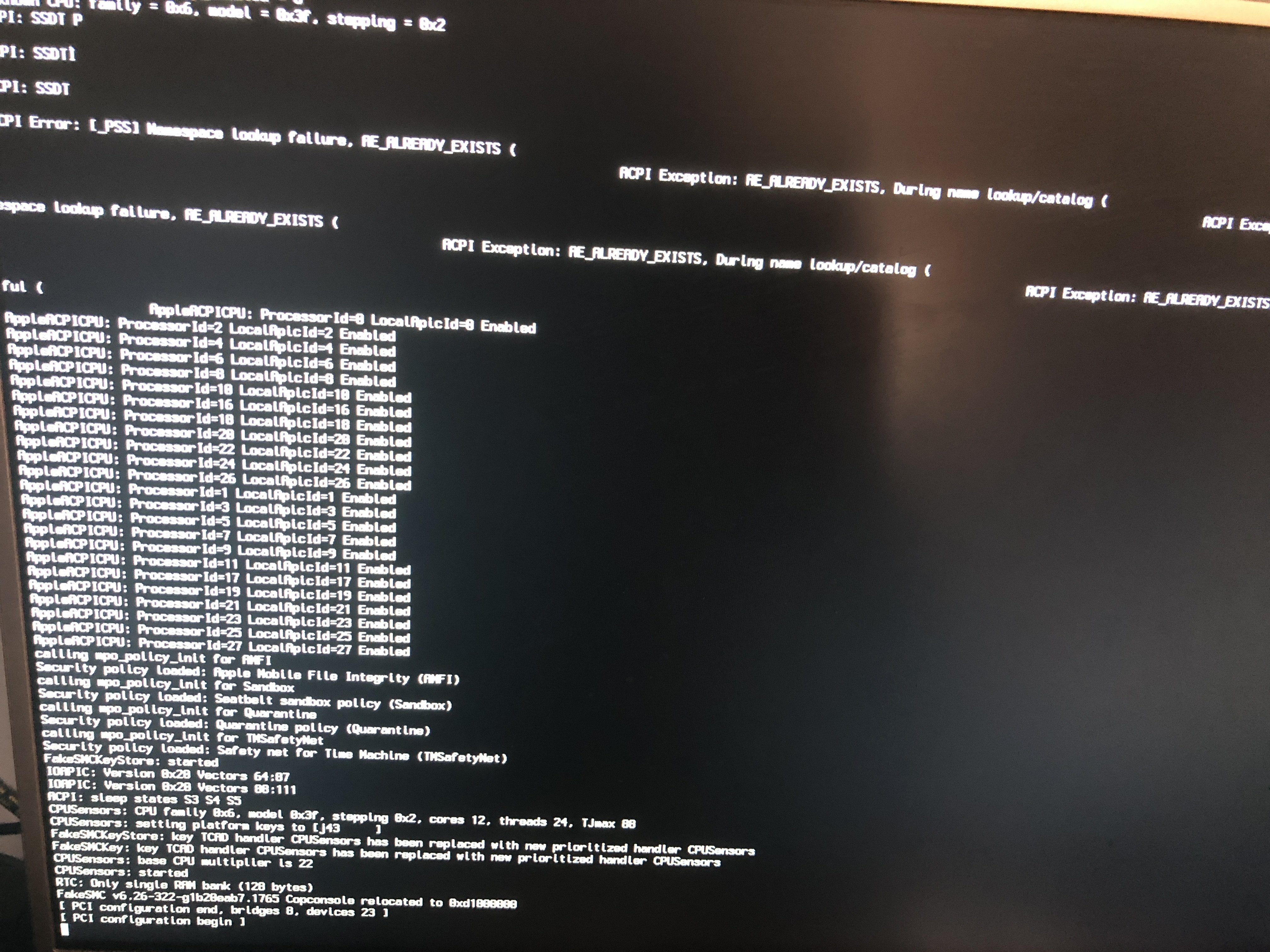

I added IOPCIFamily patch and followed PMHeart instructions still stuck on PCI configurations...I mean the PC will restart when starting PCI configurations


Edited by ergot
Link to comment
Share on other sites
Guest
Guest
Posted
Posted
1 hour ago, ergot said:

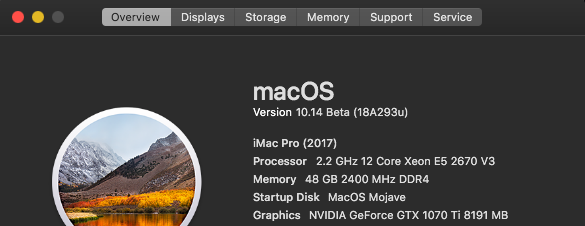

Succeeded !

how to install unsupported GPU Webdrivers?

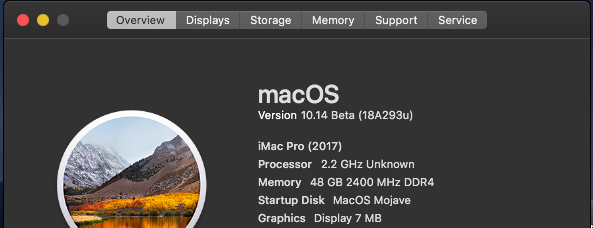

Screen Shot 2018-06-09 at 15.17.44.png

simple way is to use web driver.sh script

search with google and download it

then open a terminal window

and type this:

sudo web driver.sh --list



choose your optimal driver you used before :)

follow simple instructions

Link to comment
Share on other sites
ergot
ergot
Posted
  • Author
Posted
2 minutes ago, fabiosun said:

simple way is to use web driver.sh script

search with google and download it

then open a terminal window

and type this:

sudo web driver.sh --list



choose your optimal driver you used before :)

follow simple instructions

yep I tried that but :]

$ webdriver --list

Unsupported macOS version



Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)

to avoid this error you can try to modify 17 in 18. like this in script

if (( LOCAL_MAJOR != 18 )); then



or better search in nvidiawebdriverhigh Sierra thread chris or ric9090 or Pavo script to modify a Nvidia web driver

remember

for now no acceleration is supported in Mojave for Nvidia

Edited by Guest
Link to comment
Share on other sites
ergot
ergot
Posted
  • Author
Posted (edited)

thank you Fabiosun!

had a small progress :) but still not working, I understand that there is no acceleration but it is just for testing



update*

managed to patch web drivers but boot to black screen :) next search...find how to fix it ;)



Password:

Warning: Executable not found: /usr/local/libexec/webdriver.sh/clover-patcher

Checking for updates...

Current driver: Not installed

Running on: macOS 10.14 (18A293u)





What now? [1-0] : 1



Try again...

Edited by ergot
Link to comment
Share on other sites
  • 4 months later...
sl0wtarget
sl0wtarget
Posted
Posted (edited)

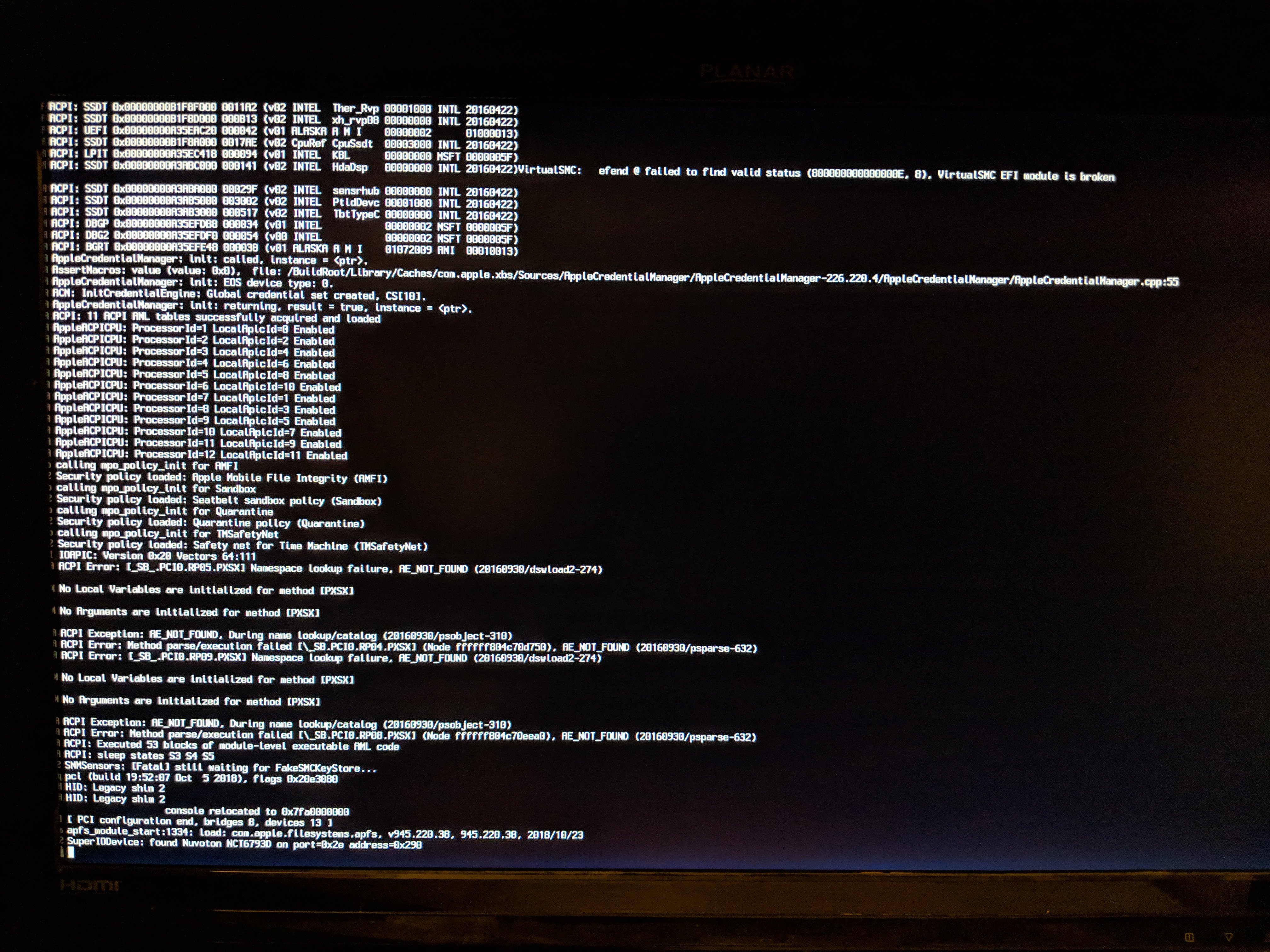

First Hackintosh attempt. I got Mojave installed ONCE then borked it with Multi somehow and had to start again. I keep screwing up somewhere and just can't figure it out. I'm just trying to get to the installer off of the USB stick and it's always hanging. This is the last output where it hangs with -v argument. Without verbose output it's the white Apple logo and the progress bar drags from about 3/4 of the way, eventually makes it to 100% but does nothing.



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>AutoMerge</key>
		<true/>
		<key>DSDT</key>
		<dict>
			<key>#DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<true/>
				<key>Firewire</key>
				<true/>
				<key>HDA</key>
				<true/>
				<key>HDMI</key>
				<true/>
				<key>IDE</key>
				<true/>
				<key>IntelGFX</key>
				<true/>
				<key>LAN</key>
				<true/>
				<key>LPC</key>
				<false/>
				<key>NVidia</key>
				<true/>
				<key>SATA</key>
				<true/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<true/>
				<key>WIFI</key>
				<true/>
			</dict>
			<key>Debug</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP</key>
				<false/>
				<key>AddHDMI</key>
				<false/>
				<key>AddIMEI</key>
				<false/>
				<key>AddMCHC</key>
				<false/>
				<key>AddPNLF</key>
				<false/>
				<key>DeleteUnused</key>
				<false/>
				<key>FakeLPC</key>
				<false/>
				<key>FixACST</key>
				<false/>
				<key>FixADP1</key>
				<false/>
				<key>FixAirport</key>
				<false/>
				<key>FixDarwin</key>
				<false/>
				<key>FixDarwin7</key>
				<false/>
				<key>FixDisplay</key>
				<false/>
				<key>FixFirewire</key>
				<false/>
				<key>FixHDA</key>
				<false/>
				<key>FixHPET</key>
				<false/>
				<key>FixIDE</key>
				<false/>
				<key>FixIPIC</key>
				<false/>
				<key>FixIntelGfx</key>
				<false/>
				<key>FixLAN</key>
				<false/>
				<key>FixMutex</key>
				<false/>
				<key>FixRTC</key>
				<false/>
				<key>FixRegions</key>
				<false/>
				<key>FixS3D</key>
				<false/>
				<key>FixSATA</key>
				<false/>
				<key>FixSBUS</key>
				<false/>
				<key>FixShutdown</key>
				<true/>
				<key>FixTMR</key>
				<false/>
				<key>FixUSB</key>
				<false/>
				<key>FixWAK</key>
				<false/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>MATS</string>
			</dict>
		</array>
		<key>FixHeaders</key>
		<false/>
		<key>HaltEnabler</key>
		<false/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0 darkwake=1</string>
		<key>Debug</key>
		<true/>
		<key>DefaultVolume</key>
		<string>MacHDD</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<integer>1</integer>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x12345678</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>EmbeddedThemeType</key>
		<string>Dark</string>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>ig-platform-id</key>
		<string>0x59120003</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>#FakeCPUID</key>
		<string>0x010676</string>
		<key>AppleIntelCPUPM</key>
		<true/>
		<key>AppleRTC</key>
		<true/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Remove USB port limit in XHCI kext</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g/sPD4MDBQAA
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.usb.AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				g/sPkJCQkJCQ
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>Trust</key>
		<false/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>CustomUUID</key>
		<string></string>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

ROG STRIX Z370

i7-8700K

PowerColor Vega 56 Red


Edited by sl0wtarget
Link to comment
Share on other sites
  • 8 months later...
ergot
ergot
Posted
  • Author
Posted

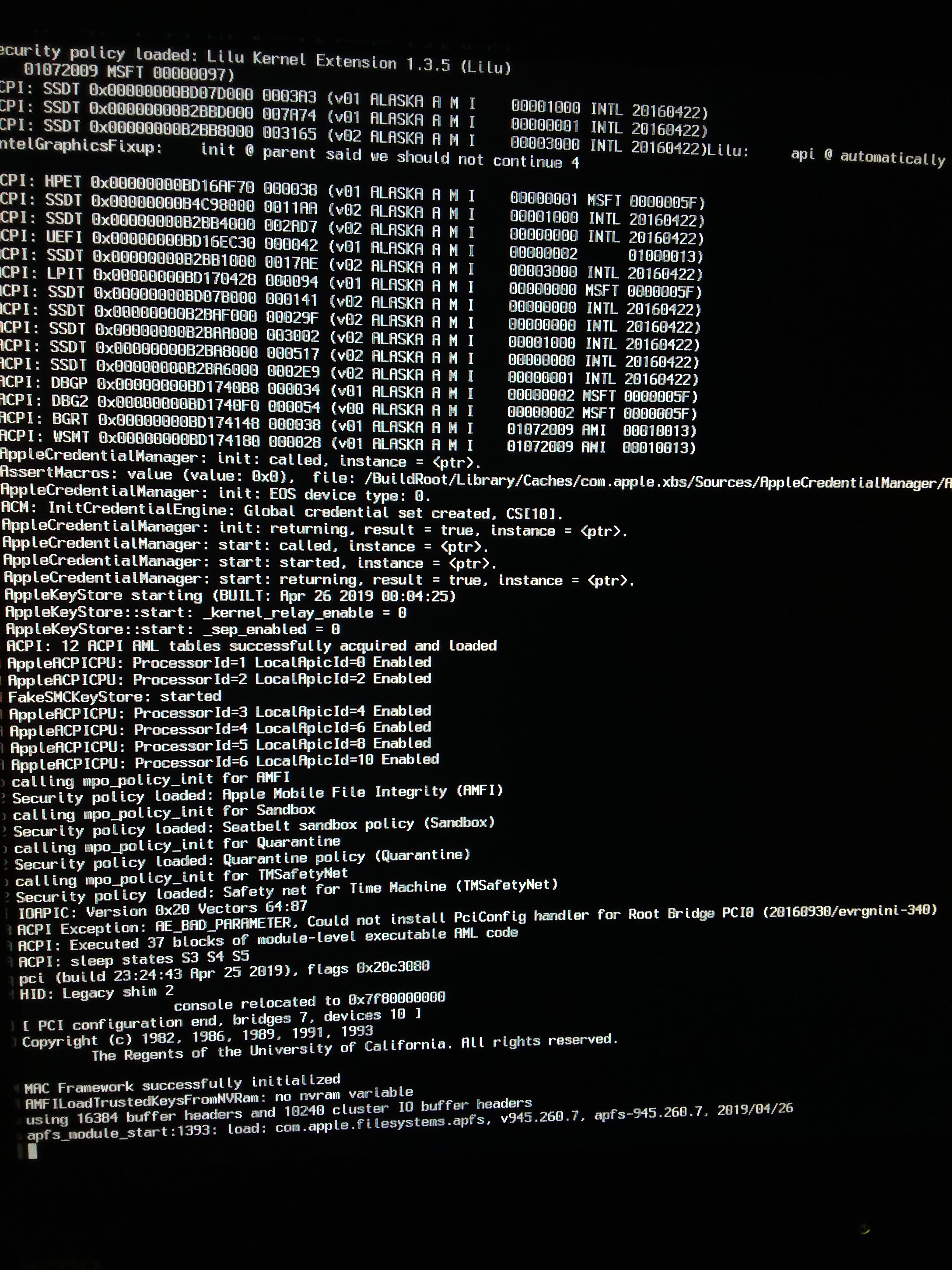

i have same issue please i need help i created macos mojave installer with ##### again

What is your hardware configuration?
Share your EFI folder.


Sent from my iPhone using Tapatalk
i have same issue please i need help i created macos mojave installer with ##### again

What is your hardware configuration?
Share your EFI folder.


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites
i.sohailidrees
i.sohailidrees
Posted
Posted (edited)

Mainboard: GIGABYTE GA-B365M Aorus Elite
CPU: intel 8th gen processor i5 8500
Ram: Kingston DDR4 2666Mhz 8gb
Ram: ADATA DDR4 2400MHz 8gb
SSD: 240GB ADATA
HDD:Western Digital Blue 1tb
GPU: Gigabyte GV-N220oc-1GI 1Gb 128 Bit
Power supply: Cooler Master GX650

EFI.zip

Edited by i.sohailidrees
Link to comment
Share on other sites
