Pink Waters Posted May 31, 2018 Share Posted May 31, 2018 Hello guys, I upgraded to a Radeon R9 380X, and now all I get is loggin into a black screen.I have tried all the work arounds, watevergreen + lilu, latest clover build + enabling RadeonDeInit.nothing works...sadly i don't have an integrated GPU for that specific workaround.. so can anyone help me with this or have insights ?Thanks Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/ Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 2 hours ago, Pink Waters said: Hello guys, I upgraded to a Radeon R9 380X, and now all I get is loggin into a black screen.I have tried all the work arounds, watevergreen + lilu, latest clover build + enabling RadeonDeInit.nothing works...sadly i don't have an integrated GPU for that specific workaround.. so can anyone help me with this or have insights ?Thanks Ty with this patch:  Add it to your config.plist under the Kernel and Kext Patches  Name: AppleGraphicsDevicePolicy Find: 626F6172 642D6964 Replace: 626F6172 642D6978  Which SMBIOS do you use? Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616006 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 (edited) 9 minutes ago, Cyberdevs said: Ty with this patch:  Add it to your config.plist under the Kernel and Kext Patches  Name: AppleGraphicsDevicePolicy Find: 626F6172 642D6964 Replace: 626F6172 642D6978  Which SMBIOS do you use? I am using stock clover latest version default settings for now via a USB stick.. I am sorry I don't know how to put your suggested config inside the config.plist, can you help me with that ? edit, I am on windows right now, cannot boot to my os x Edited May 31, 2018 by Pink Waters Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616008 Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 3 minutes ago, Pink Waters said: I am using stock clover latest version default settings for now via a USB stick.. I am sorry I don't know how to put your suggested config inside the config.plist, can you help me with that ? edit, I am on windows right now, cannot boot to my os x Can you send me your current EFI folder? Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616009 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 1 minute ago, Cyberdevs said: Can you send me your current EFI folder? Here you go, and thank you very much, I really appreciate it! EFI.zip Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616010 Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 (edited) 7 minutes ago, Pink Waters said: Here you go, and thank you very much, I really appreciate it! EFI.zip You're welcome, Try this folder. If you are using macOS High Sierra 10.13.4 installer it should work but if you try to installer older versions you need to have Radeon-DeInit set to true.  EFI-2.zip Edited May 31, 2018 by Cyberdevs 1 Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616011 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 30 minutes ago, Cyberdevs said: You're welcome, Try this folder. If you are using macOS High Sierra 10.13.4 installer it should work but if you try to installer older versions you need to have Radeon-DeInit set to true.  EFI-2.zip Nope, not working at all... black screen still :/ Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616015 Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 1 minute ago, Pink Waters said: Nope, not working at all... black screen still :/ Which connectors on the display are used and how many displays do you have connected to the GPU? How did you create the USB disk? Â Do you use a patched DSDT to use for you system? If so please remove all the DSDT and the SSDT files and these again. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616017 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 1 minute ago, Cyberdevs said: Which connectors on the display are used and how many displays do you have connected to the GPU? How did you create the USB disk? Â Do you use a patched DSDT to use for you system? If so please remove all the DSDT and the SSDT files and these again. I am using the the Upper DVI port, and just 1 display. I created the USB stick with cloverlegacyinstaller tool. I don't use a patched DSDT. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616018 Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 If you can use a DP or an HDMI that would be great but if not put this file under /EFI/Clover/ACPI/patched and try again. SSDT-R9-380X.aml.zip Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616019 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 21 minutes ago, Cyberdevs said: If you can use a DP or an HDMI that would be great but if not put this file under /EFI/Clover/ACPI/patched and try again. SSDT-R9-380X.aml.zip still black screen Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616023 Share on other sites More sharing options...
Cyberdevs Posted May 31, 2018 Share Posted May 31, 2018 2 minutes ago, Pink Waters said: still black screen Well that's unfortunate. I will create another EFI folder for you tomorrow I just have to go now. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616024 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 1 minute ago, Cyberdevs said: Well that's unfortunate. I will create another EFI folder for you tomorrow I just have to go now. ok, thank you very much for your time. I appreciate it. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616025 Share on other sites More sharing options...
zxv Posted May 31, 2018 Share Posted May 31, 2018 4 hours ago, Pink Waters said: Hello guys, I upgraded to a Radeon R9 380X, and now all I get is loggin into a black screen.I have tried all the work arounds, watevergreen + lilu, latest clover build + enabling RadeonDeInit.nothing works...sadly i don't have an integrated GPU for that specific workaround.. so can anyone help me with this or have insights ?Thanks You shouldn't need RadeonInit nor WhateverGreen. 380X works OOTB since at least 10.13.4. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616033 Share on other sites More sharing options...
Pink Waters Posted May 31, 2018 Author Share Posted May 31, 2018 (edited) 17 minutes ago, zxv said: You shouldn't need RadeonInit nor WhateverGreen. 380X works OOTB since at least 10.13.4. Then why I am getting black screen ? I am very confused. Edit: I am on 10.13.3 Edited May 31, 2018 by Pink Waters Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616035 Share on other sites More sharing options...
Cyberdevs Posted June 1, 2018 Share Posted June 1, 2018 Try this folder  Test 01.zip Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616101 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 (edited) 16 minutes ago, Cyberdevs said: Try this folder  Test 01.zip still boots to black screen, but this time it reboots after like 3 seconds. also noticed on the verbose something like: fatal unknown card. when booting. Edited June 1, 2018 by Pink Waters Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616105 Share on other sites More sharing options...
Cyberdevs Posted June 1, 2018 Share Posted June 1, 2018 (edited) 2 hours ago, Pink Waters said: still boots to black screen, but this time it reboots after like 3 seconds. also noticed on the verbose something like: fatal unknown card. when booting. Well that's the folder that I used for my Asus P7H55 rig. I just installed macOS High Sierra (10.13.4) test this folder and it fails make sure your have you BIOS configured correctly.  Do you have access to an HDMI cable to test if you still get the black screen? EFI.zip Edited June 1, 2018 by Cyberdevs Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616126 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 (edited) 22 minutes ago, Cyberdevs said: Well that's the folder that I used for my Asus P7H55 rig. I just installed macOS High Sierra (10.13.4) test this folder and it fails make sure your have you BIOS configured correctly.  Do you have access to an HDMI cable to test if you still get the black screen? EFI.zip No, I don't have a HDMI montor sadly :/ also if it helps my card is the Asus strix R9 380X 4GB one. Will try your folder and report back. Edit: not sure what could be wrong with my BIOS. Edited June 1, 2018 by Pink Waters Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616127 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 Nope, no luck, got: fatal unknown card on verbose, then booted to black screen then reboot. :/ Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616129 Share on other sites More sharing options...
Cyberdevs Posted June 1, 2018 Share Posted June 1, 2018 2 hours ago, Pink Waters said: Nope, no luck, got: fatal unknown card on verbose, then booted to black screen then reboot. :/ Well that's weird! I wonder which card the fatal error refers to! The GPU to any other 3rd party card you installed? Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616138 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 1 hour ago, Cyberdevs said: Well that's weird! I wonder which card the fatal error refers to! The GPU to any other 3rd party card you installed? not really, i will try to take a screenshot of the error. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616149 Share on other sites More sharing options...

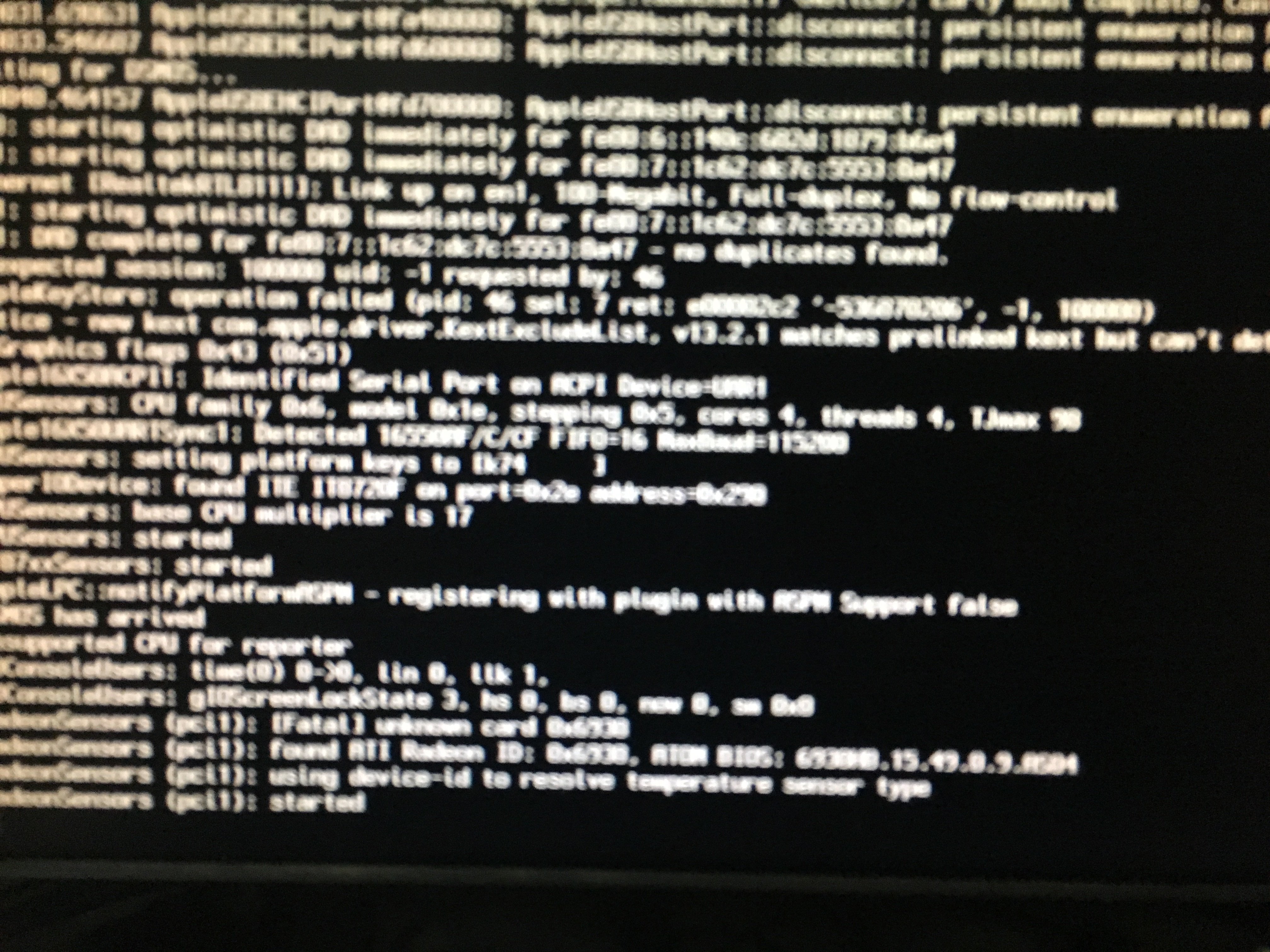

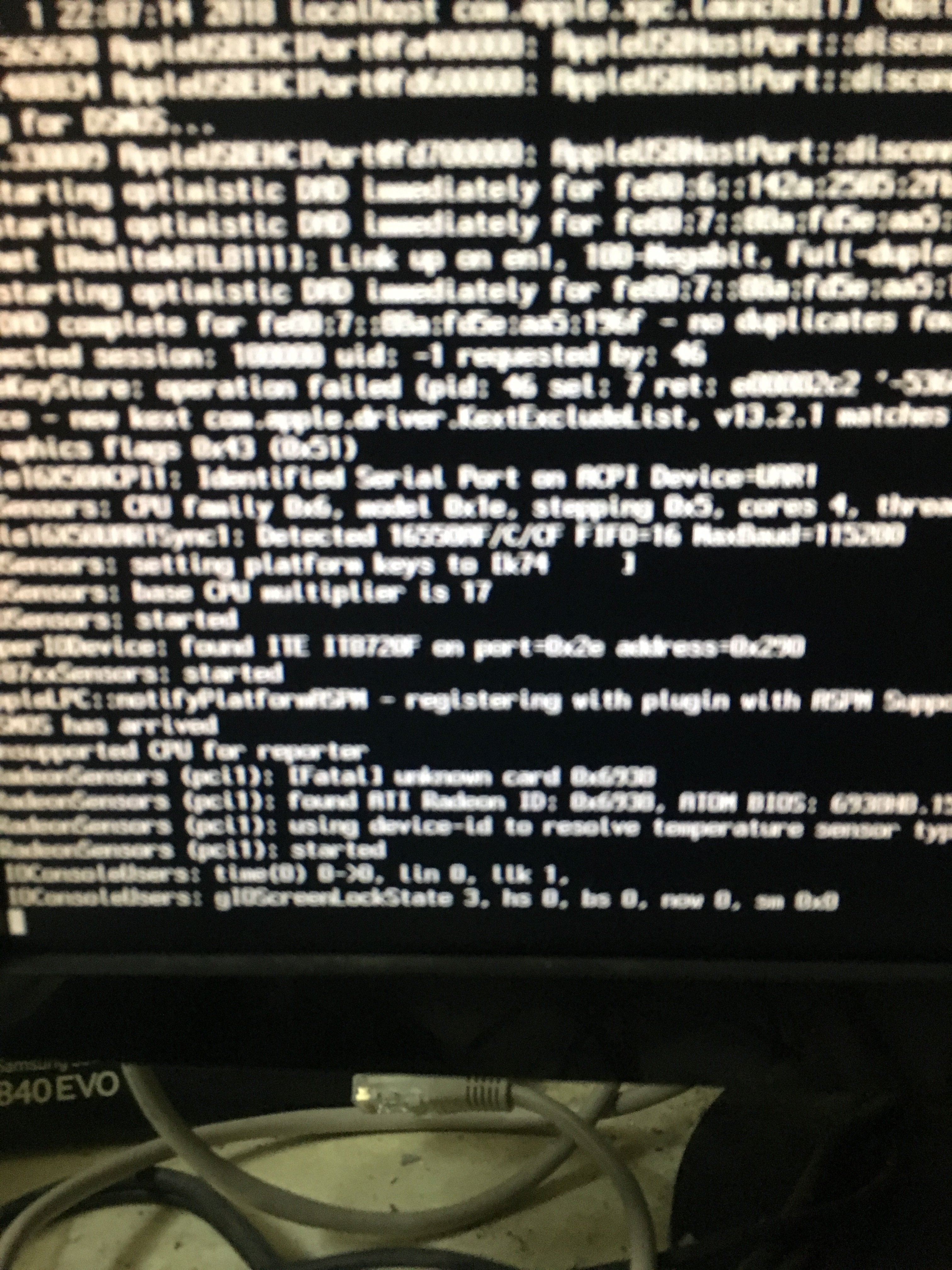

Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 here is a screenshot took with my phone, i cannot get it less blurry than that. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616152 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 I guess that fatal error is related to the sensors... so I don't think it is an indication of anything. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616160 Share on other sites More sharing options...
Pink Waters Posted June 1, 2018 Author Share Posted June 1, 2018 I am going to update to 10.13.4 via virtualbox using physical hdd VM. and see if it will make a difference. Link to comment https://www.insanelymac.com/forum/topic/334254-r9-380x-and-high-sierra-help/#findComment-2616174 Share on other sites More sharing options...
