Dell Optiplex 780, DSMOS has arrived (High Sierra)

30 posts in this topic

Recommended Posts

Hello

I am trying to install Mac OS High Sierra on Dell Optiplex 780 (tower) desktop

Specs are:

Dell Optiplex 780 (tower)
4GB DDR3 Ram
Core2Duo Processor
ATI Radeon HD5450 512MB

I have created Bootable Usb, Clover method, copied kexts, config.plist and DSDT from http://www.insanelymac.com/forum/topic/312656-guide-macos-sierra-1012-dell-optiplex-780-760-755-790-990/and http://www.insanelymac.com/forum/topic/312656-guide-macos-sierra-1012-dell-optiplex-780-760-755-790-990/page-47#entry2484626

I tried using bootflags GraphicsEnabler=Yes/No
npci=0x2000 and npci=0x3000

Replaced kexts and used different versions of FakeSMC but no success. My Screen doesnot stuck at DSMOS has arrived.. After this line, 2 or 3 more lines show up very fast and then display is vanished from screen.

See panics video here:  https://www.facebook.com/groups/hackintosch/permalink/10156304726097446/



Please help..

Share this post


Link to post
Share on other sites
Advertisement

Hello

I am trying to install Mac OS High Sierra on Dell Optiplex 780 (tower) desktop

Specs are:

Dell Optiplex 780 (tower)

4GB DDR3 Ram

Core2Duo Processor

ATI Radeon HD5450 512MB



I have created Bootable Usb, Clover method, copied kexts, config.plist and DSDT from http://www.insanelymac.com/forum/topic/312656-guide-macos-sierra-1012-dell-optiplex-780-760-755-790-990/and http://www.insanelymac.com/forum/topic/312656-guide-macos-sierra-1012-dell-optiplex-780-760-755-790-990/page-47#entry2484626



I tried using bootflags GraphicsEnabler=Yes/No

npci=0x2000 and npci=0x3000



Replaced kexts and used different versions of FakeSMC but no success. My Screen doesnot stuck at DSMOS has arrived.. After this line, 2 or 3 more lines show up very fast and then display is vanished from screen.



See panics video here:  https://www.facebook.com/groups/hackintosch/permalink/10156304726097446/



Please help..

It seems that no one wants to help me.. Or no one is able to help me on this.. Sad..

Share this post


Link to post
Share on other sites

i think the problem is GPU

idk if kext work for u, but u can check here

https://github.com/vit9696/WhateverGreen

I checked WhateverGreen.kext .. Now see what happens



In Verbose:

Screen stucks for 5-10 minutes at following three lines

kextd stall [0] (240s) 'AppleACPICPU'

kextd stall [1] (240s) ...

kextd stall [2] (240s) ...



Then it leads to Black screen with Apple white logo with loader. can you please confirm how can i fix this..



Share this post


Link to post
Share on other sites

i think is a inject kexts problem, u can post ur clover folder inside installer?

Yes here it is .

BUt this time i have removed WhateverGReen.kext  as i am trying other solutions from internet as well.



I am trying on this since last week and i have tried luck on what ever possible. for a list of all kexts that i have used so far, see attached image











CLOVER.zip


Share this post


Link to post
Share on other sites

Find SSE4,1  always at CPU World ➤  Intel Core2Duo e8400

Hello,

I have got two new graphics card

- Gefore GF210

- Asus EN9400GS



I am trying GF210 first using kexts  from this post. http://www.insanelymac.com/forum/topic/324233-mac-os-high-sierra-installation-attempts/page-9



Will let you know, if there is any help needed.





Share this post


Link to post
Share on other sites

Hello,

I have got two new graphics card

- Gefore GF210

- Asus EN9400GS



I am trying GF210 first using kexts  from this post. http://www.insanelymac.com/forum/topic/324233-mac-os-high-sierra-installation-attempts/page-9



Will let you know, if there is any help needed.







Now Very Strange thing is happening.



I boot from USB, used NvidiaGraphicsFixup.kext, VoodooHDA.kext , FAKESMC.kext



Used bootflags:

kex-dev-mode=1 nv_disable=1 -v



Every thing went fine. I have installed MacOS on My HDD, and entire process went very last message : Only One minute remaining or something like that.  and then computer shut down. I restarted computer, and selected HDD for boot



Apple Black screen with logo came in front and loader completed to 80% or somewhat like that..

and then computer restarted itself and showing me MacOS Utilities Screen again..





Share this post


Link to post
Share on other sites

Find SSE4,1  always at CPU World ➤  Intel Core2Duo e8400

Hello,



Please check following Video,

https://www.dropbox.com/s/a1ytgjqy4fwyuuk/VID_20171230_213532.mp4?dl=0



As i described above.. Now it is doing some thing ab normal..

After restart it is showing



The path/System/Installation/Packages/OSInstall.mpkg appears to be missing or damaged. After this it could find OSInstall.mpkg



I have tried this twice and both time i have same error

Share this post


Link to post
Share on other sites

Hello,



Please check following Video,

https://www.dropbox.com/s/a1ytgjqy4fwyuuk/VID_20171230_213532.mp4?dl=0



As i described above.. Now it is doing some thing ab normal..

After restart it is showing



The path/System/Installation/Packages/OSInstall.mpkg appears to be missing or damaged. After this it could find OSInstall.mpkg



I have tried this twice and both time i have same error

with ATI 5450 ? You can not used ATI 5450 on High Sierra if your not have another Injector IGPU

See here Roll Back

thats why people told you try macOS Sierra 10.12

Share this post


Link to post
Share on other sites

with ATI 5450 ? You can not used ATI 5450 on High Sierra if your not have another Injector IGPU

See here Roll Back

thats why people told you try macOS Sierra 10.12

Hello

Thank you for your reply firend.. I have just changed Config.plist and DSDT and removed some kexts and installation is complete now..

Mac is on but i still have two issues.

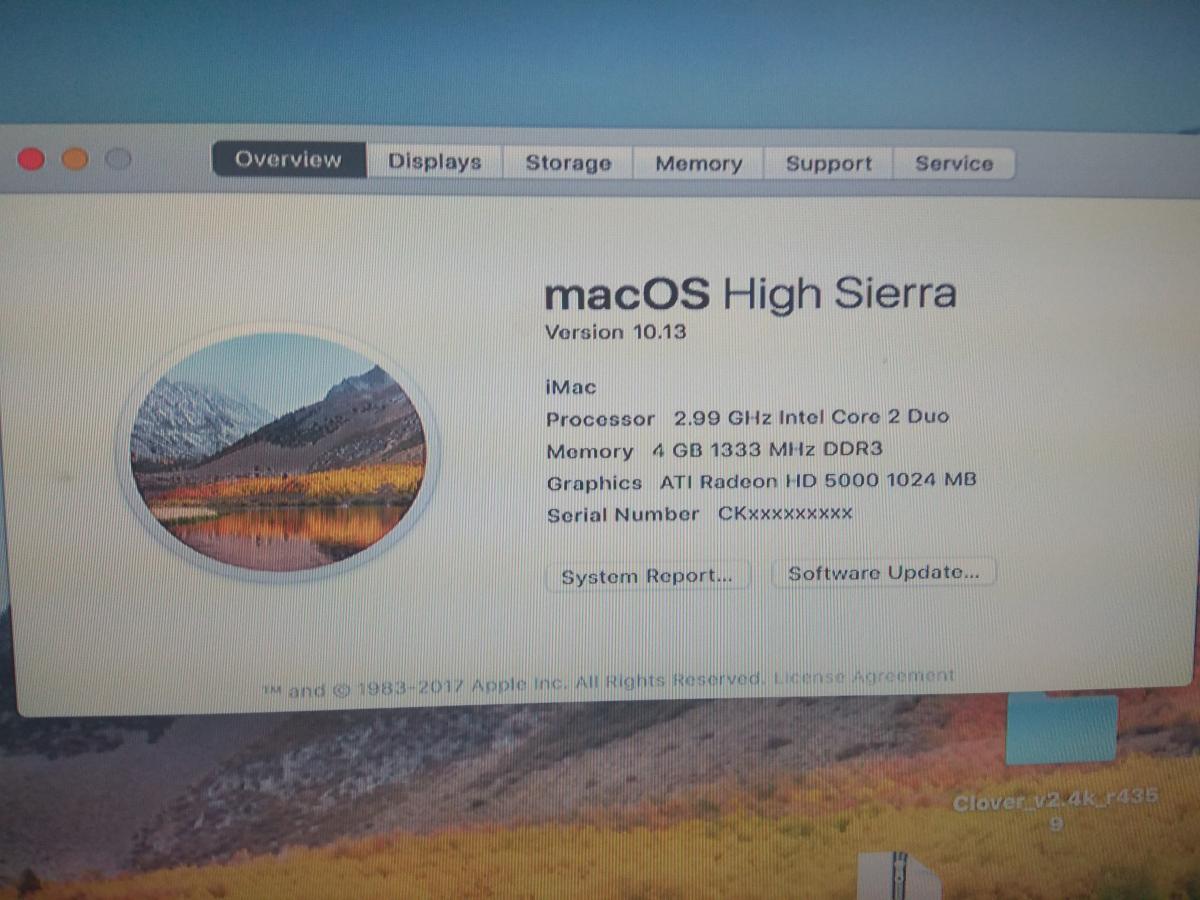

1- Nvidia Graphics are not working. it is showing ATI radeon HD5000 Series

2- System Serial is not showing



I am trying hands with High Sierra, as i need to run latest xCode.



See attached image


Share this post


Link to post
Share on other sites

Hello

Thank you for your reply firend.. I have just changed Config.plist and DSDT and removed some kexts and installation is complete now..

Mac is on but i still have two issues.

1- Nvidia Graphics are not working. it is showing ATI radeon HD5000 Series

2- System Serial is not showing



I am trying hands with High Sierra, as i need to run latest xCode.



See attached image

What is the graphics card ? what kext remove ?

Send me here the config.plist

Share this post


Link to post
Share on other sites

Graphics card is Geforce 210 1GB

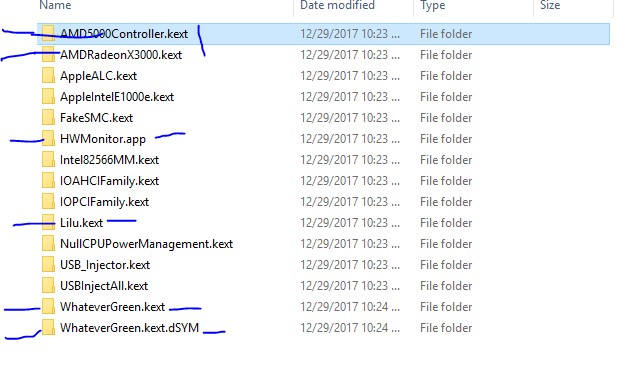

Kexts removed:  See attached file (Removed kext are marked with blue lines)

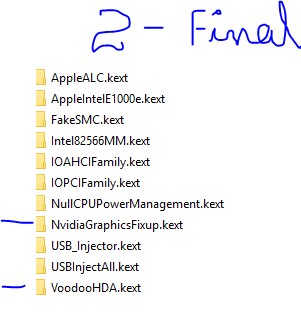

Attched image 2: Image labeled with 2-Final marks current KExts being used

COnfig.plist : see attached



Graphics card is Geforce 210 1GB
Kexts removed:  See attached file (Removed kext are marked with blue lines)
Attched image 2: Image labeled with 2-Final marks current KExts being used

COnfig.plist : see attached


i have opened the same config.plist file in clover configurator (one i sent you above) and tried to generate System IDs. But after copying config.plist in EFI /Clover , System stucks at FakeSMCKeyStore: started

Nvidia Web Drivers are also not installing..



Share this post


Link to post
Share on other sites

Graphics card is Geforce 210 1GB

Kexts removed:  See attached file (Removed kext are marked with blue lines)

Attched image 2: Image labeled with 2-Final marks current KExts being used



COnfig.plist : see attached



i have opened the same config.plist file in clover configurator (one i sent you above) and tried to generate System IDs. But after copying config.plist in EFI /Clover , System stucks at FakeSMCKeyStore: started



Nvidia Web Drivers are also not installing..

attach config.plist

GT 210

used this config don't change nothing

config.plist.zip

Share this post


Link to post
Share on other sites

ok friend i am testing. Also please what kext should i use for LAN and SOund . Lan and SOund also not working

Try to boot first

Share this post


Link to post
Share on other sites

Try to boot first

YEs booting.. its in process.

Try to boot first

Friend.. Graphics card detected.. showing actual graphics card name and model .. Serial No is also showing.

Graphics improved. previously resolution was 800X600 .. Now it is 1024X768





Try to boot first

But i think, still graphics is not fully operational. As Screen colors are not good.

Share this post
