pico joe Posted December 5, 2017 Share Posted December 5, 2017 @Slice .. sea islands Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 5e33Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300e0cFound a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300e0c: 0x 0 Link to comment Share on other sites More sharing options...
chh1 Posted December 5, 2017 Share Posted December 5, 2017 Thank you! XFX RX480 also is working. Link to comment Share on other sites More sharing options...
Slice Posted December 5, 2017 Author Share Posted December 5, 2017 @Slice .. sea islands Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014 Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCI it matched on name "ATY_GPU" 0xc0300014: 0x 5e33 Wow! Test please more with GPUtest as heavy GPU application. Link to comment Share on other sites More sharing options...
pico joe Posted December 5, 2017 Share Posted December 5, 2017 NovaBench Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 6a3aPicos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x b271Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x b674Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x b875Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x bc78 CineBench Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 844aPicos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 864aPicos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 8249Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 9055Picos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 8a4ePicos-Mac-Pro:radeon pico$ ./RadeonDump1 -n 200,c0300014Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX1@0/RadeonPCIit matched on name "ATY_GPU"0xc0300014: 0x 844aPicos-Mac-Pro:radeon pico$ Link to comment Share on other sites More sharing options...
Slice Posted December 5, 2017 Author Share Posted December 5, 2017 OK, I'll make RadeonMonitor with this method today evening. 0x78 = 110 Celsius? May be there is an offset. 1 Link to comment Share on other sites More sharing options...
pico joe Posted December 5, 2017 Share Posted December 5, 2017 Thank You all the best Link to comment Share on other sites More sharing options...
Slice Posted December 5, 2017 Author Share Posted December 5, 2017 Test please and report RadeonMonitor.kext.zip 3 Link to comment Share on other sites More sharing options...
chris1111 Posted December 5, 2017 Share Posted December 5, 2017 This kext Works with Saphire Radeon HD 5570 1gig Link to comment Share on other sites More sharing options...

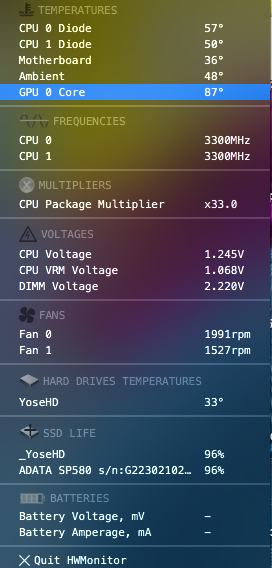

Paksman Posted December 5, 2017 Share Posted December 5, 2017 Test please and report RadeonMonitor.kext.zip Its working ! Thank you Slice ! 1 Link to comment Share on other sites More sharing options...

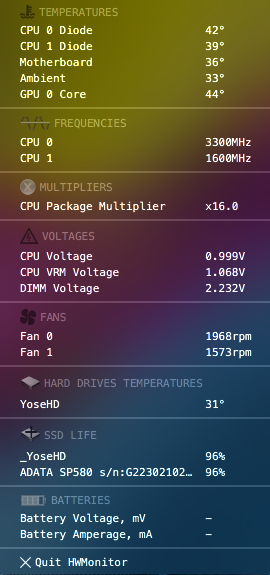

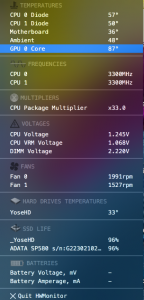

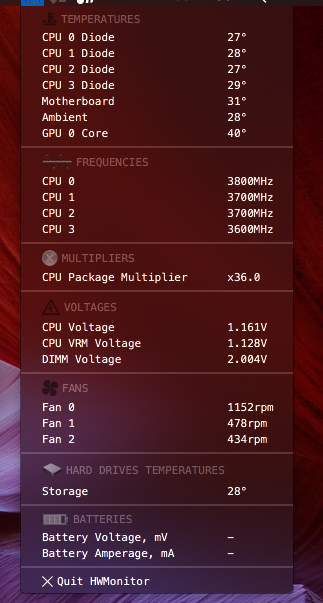

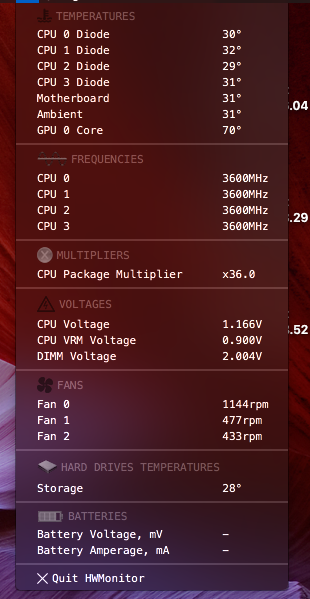

pico joe Posted December 6, 2017 Share Posted December 6, 2017 Wow ... it's Worked .. thanks you Normal Stressing 1 Link to comment Share on other sites More sharing options...
Slice Posted December 6, 2017 Author Share Posted December 6, 2017 Anyone has non-working RadeonMonitor? Link to comment Share on other sites More sharing options...

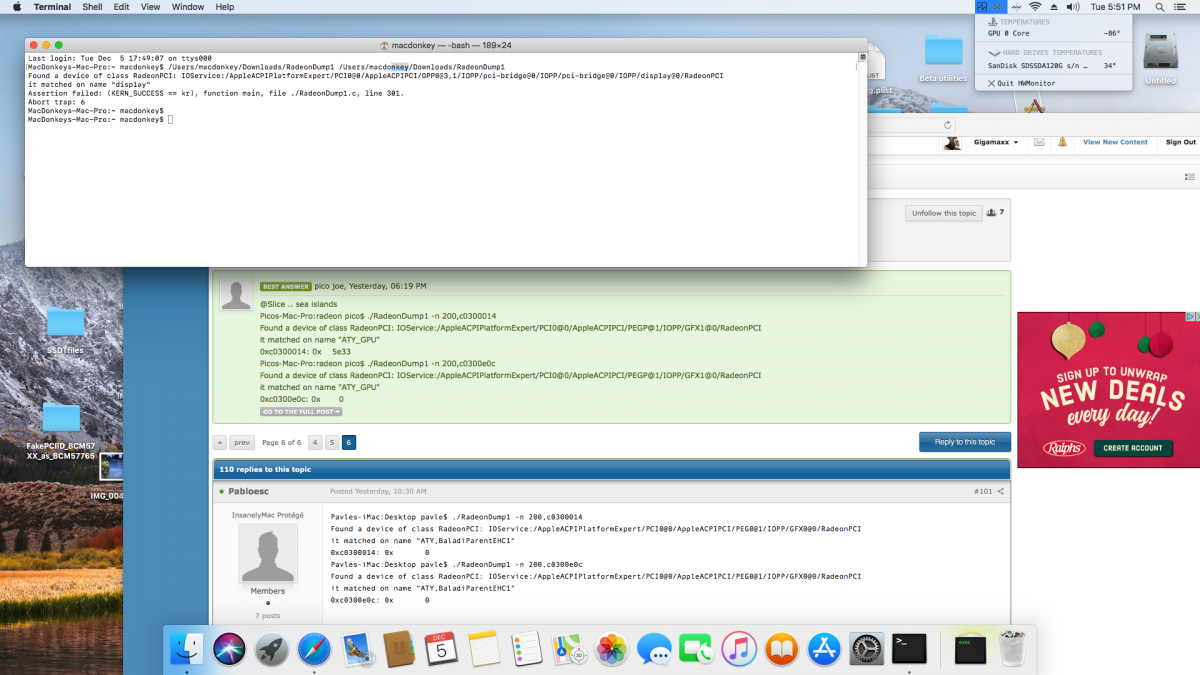

Gigamaxx Posted December 6, 2017 Share Posted December 6, 2017 Anyone has non-working RadeonMonitor? Not working for Ryzen System yet but maybe with a proper SSDT it will work. Dump file script gets kernel error. Ryzen 7 1700 and Vega 64 GPU temp is -86 C, The first boot it showed CPU temp @ 35 C but that disappeared after second start up. Link to comment Share on other sites More sharing options...
keyboardguy Posted December 6, 2017 Share Posted December 6, 2017 Not working for my Sapphire RX570 Nitro+ 4GB Please excuse the noob question, but where exactly are you installing the RadeonMonitor.kext ? I'll attach my SSDT and clover config. Thanks, SSDT-HDMI-AMD-PEG0.aml.zip config.plist.zip Link to comment Share on other sites More sharing options...
mitch_de Posted December 6, 2017 Share Posted December 6, 2017 @Slice: I think not working RadeonMonitor (Slice) can also happen if the user uses the other FakeSMC (HWMONITOR DL, from klozek or REHAB) or am i wrong? More often used because HWMonitor (of that klozek Version) has more funktions / is configurable i think. RadeonMonitor.kext works in Clover / kext.... or /L/E i think. But can not be kextload later. RadeonMonitor needs rigth FakeSMC from Slice (not klozek HWMONITOR DL) .. DL FakeSMC (together with newest RadeonMonitor.kext from here) https://sourceforge.net/projects/hwsensors3.hwsensors.p/files/ If you use RadeonMonitor.kext togehter with FakeSMC (from klozek = HWMONITOR) RadeonMonitor.kext will not be loaded, even rigth installed. You can ceck that by kextstat .... org.netkas.FakeSMC (3.5.0) (means from Slice, klozek or rehab buils may have other Build number & other dev ID) org.slice.RadeonMonitor (1.3.2) ( i use 1.3.2, perhaps now version number is other, newer) 1 Link to comment Share on other sites More sharing options...
keyboardguy Posted December 6, 2017 Share Posted December 6, 2017 Thank you @mitch_de Link to comment Share on other sites More sharing options...
mitch_de Posted December 6, 2017 Share Posted December 6, 2017 slice updated his HWsensors set (Fakesmc, sensors...) http://www.insanelymac.com/forum/topic/299861-hwsensors3/page-21?do=findComment&comment=2545204 1 Link to comment Share on other sites More sharing options...
MattsCreative Posted December 7, 2017 Share Posted December 7, 2017 Link to comment Share on other sites More sharing options...
Slice Posted December 14, 2017 Author Share Posted December 14, 2017 New version supported VEGA RadeonMonitor.kext.zip 2 Link to comment Share on other sites More sharing options...

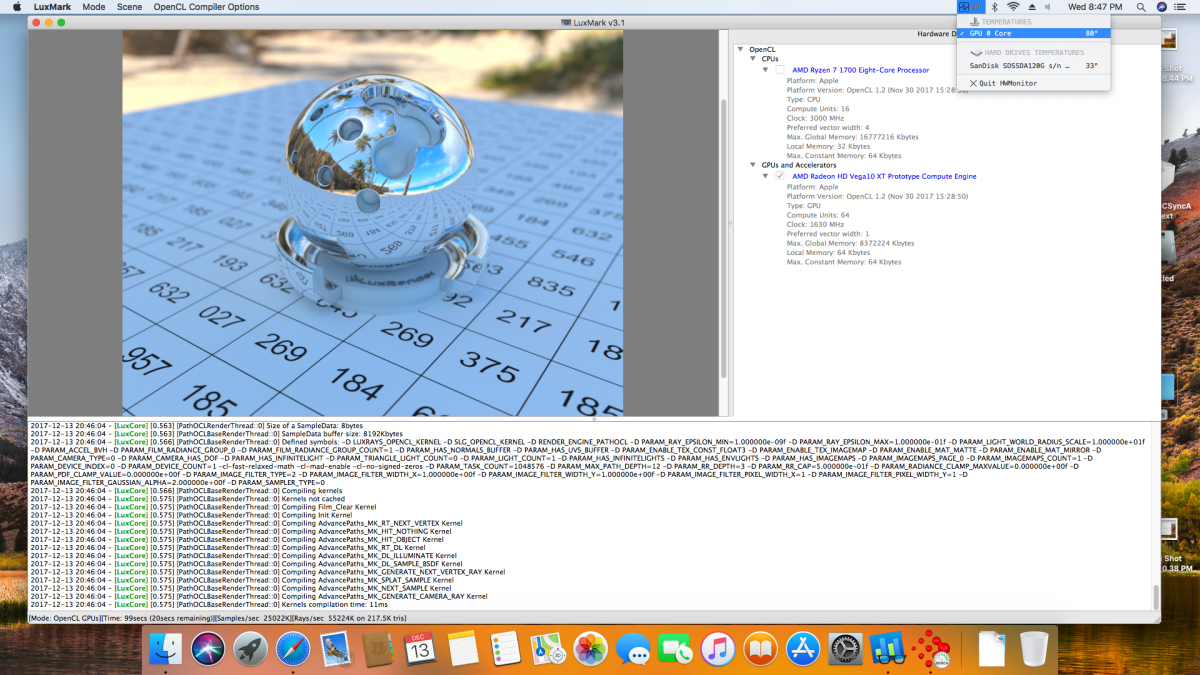

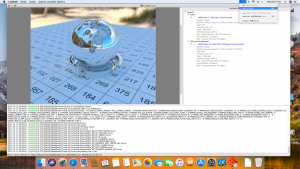

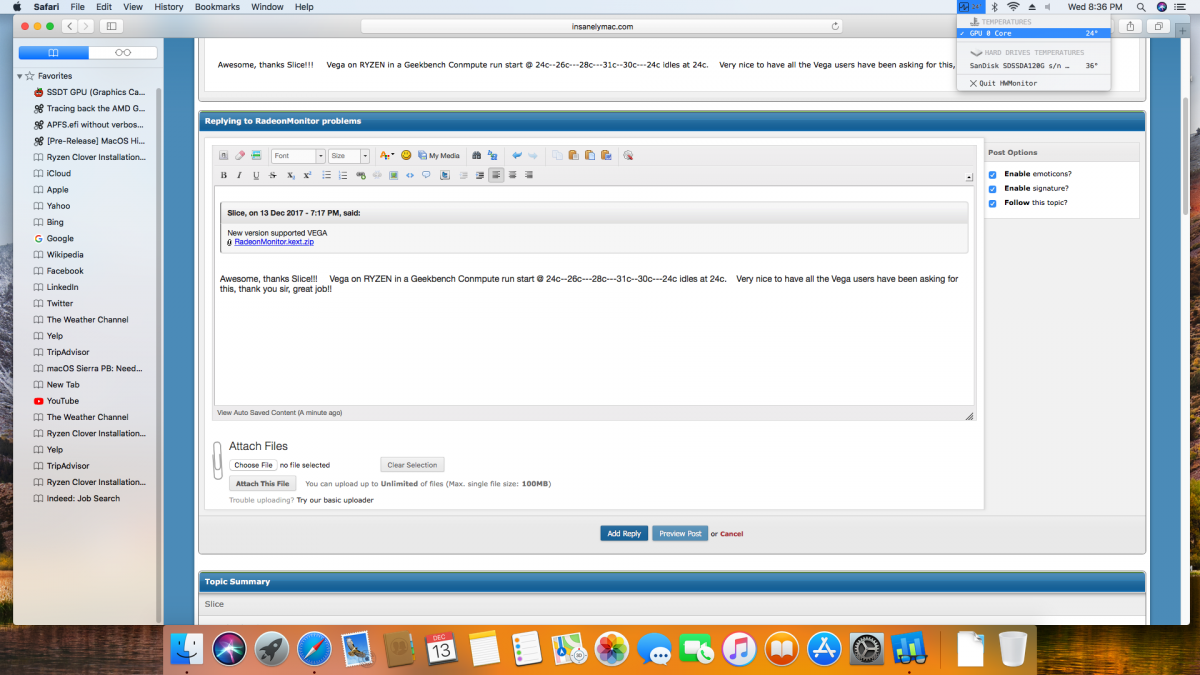

Gigamaxx Posted December 14, 2017 Share Posted December 14, 2017 New version supported VEGA RadeonMonitor.kext.zip Awesome, thanks Slice!!! Vega on RYZEN in a Geekbench Compute run start @ 24c--26c---28c---31c--30c---24c idles at 24c ( 24 seconds), Luxmark Ball 40c @ start up to 81c then dropped to 50c at finish. This scales perfect! Very nice to have all the Vega users have been asking for this, thank you sir, great job!! Now just need to get CPU temps and then Ryzen will be "like" even more cool to hack. 1 Link to comment Share on other sites More sharing options...
Slice Posted December 14, 2017 Author Share Posted December 14, 2017 Awesome, thanks Slice!!! Vega on RYZEN in a Geekbench Conmpute run start @ 24c--26c---28c---31c--30c---24c idles at 24c ( 24 seconds), Luxmark Ball 40c @ start up to 81c then dropped to 50c at finish. This scales correctly, perfect! Very nice to have all the Vega users have been asking for this, thank you sir, great job!! Now just need to get CPU temps and then Ryzen will be "like" even more cool to hack. Screen Shot 2017-12-13 at 8.36.51 PM.png Screen Shot 2017-12-13 at 8.47.44 PM.png Did you try AmdCPUMonitor? What is happen with it? Link to comment Share on other sites More sharing options...
Gigamaxx Posted December 14, 2017 Share Posted December 14, 2017 Did you try AmdCPUMonitor? What is happen with it? Yes, it works for FX and A10 but for Ryzen no luck. Ive tried the suggested first option under AMD Cpu type the numeric option for FX and A10 but I can't get it to work. I tried some of the other options too but no luck. I can give you a Darwin Dump if you like. Let me know what to include and or leave out for space (HTML). Shaneee made a new AMD kernel "open source" that works in HS 10.13 with Ryzen. Its kind of beta at this point but he said its available with notes at GitHub. Link to comment Share on other sites More sharing options...
Slice Posted December 14, 2017 Author Share Posted December 14, 2017 I need the chipset AMD datasheet where I can find the temperature sensor. AMD CPU reported temperature through north bridge. I have one for older AMD CPU but I see something changed. DarwinDump should not include: BIOS, ROM, HTML report, Audio. Link to comment Share on other sites More sharing options...

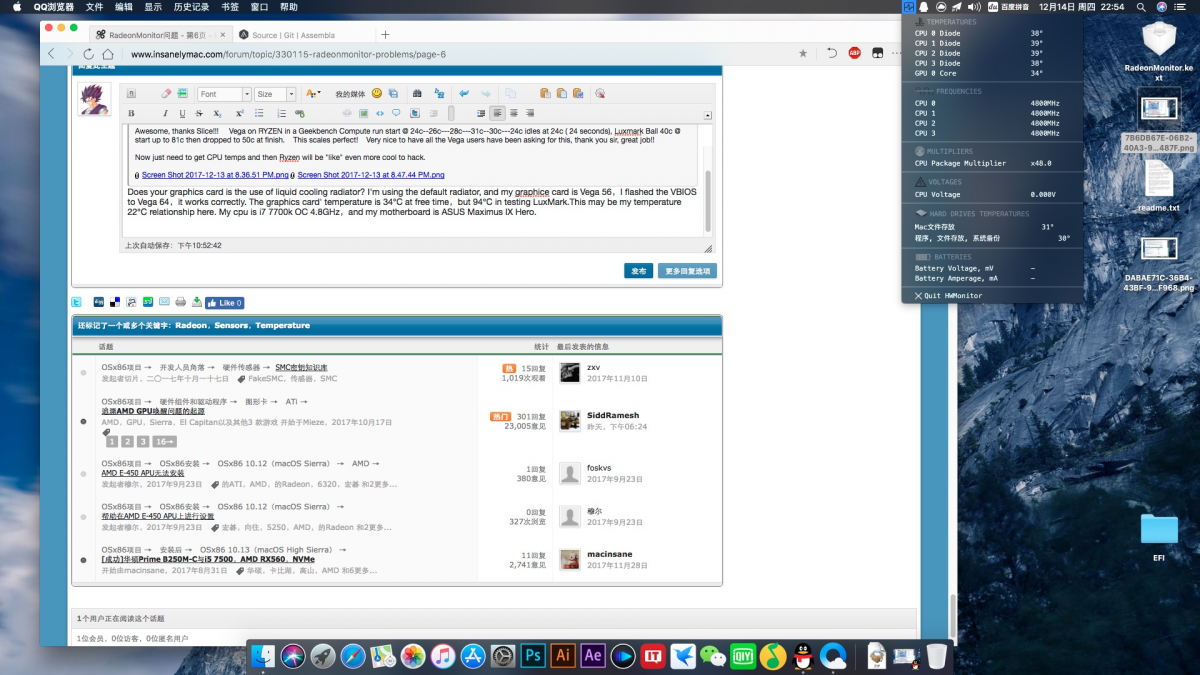

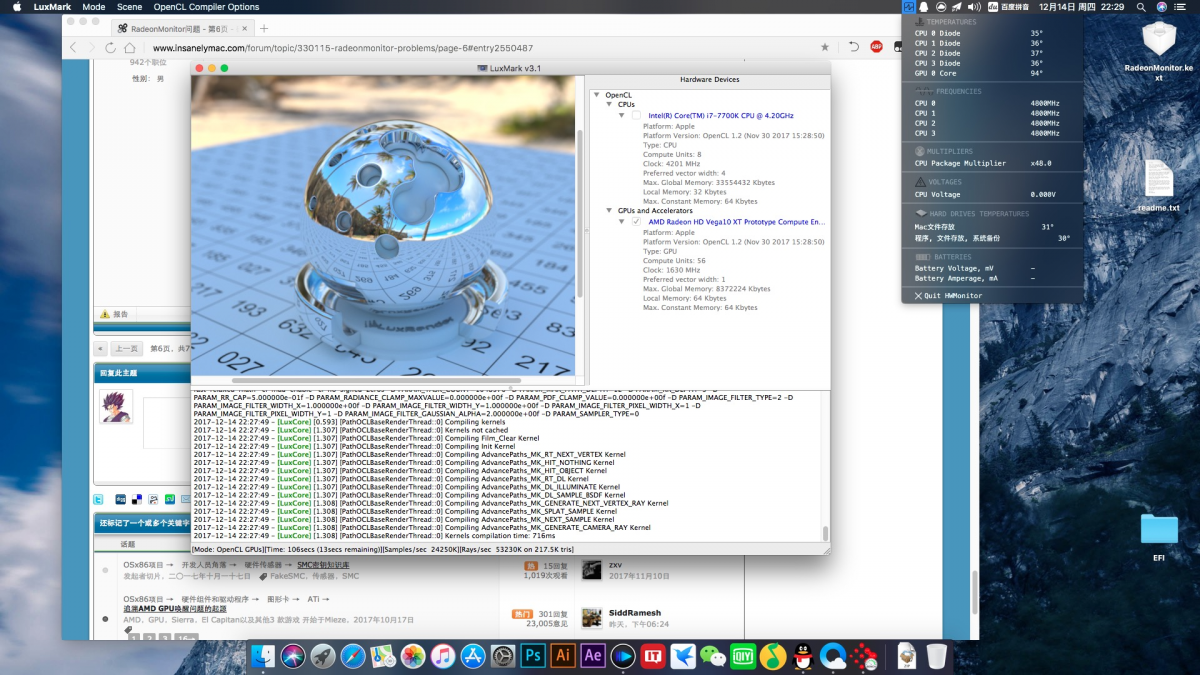

wyhtc Posted December 14, 2017 Share Posted December 14, 2017 Awesome, thanks Slice!!! Vega on RYZEN in a Geekbench Compute run start @ 24c--26c---28c---31c--30c---24c idles at 24c ( 24 seconds), Luxmark Ball 40c @ start up to 81c then dropped to 50c at finish. This scales perfect! Very nice to have all the Vega users have been asking for this, thank you sir, great job!! Now just need to get CPU temps and then Ryzen will be "like" even more cool to hack. Screen Shot 2017-12-13 at 8.36.51 PM.png Screen Shot 2017-12-13 at 8.47.44 PM.png Does your graphics card is the use of liquid cooling radiator? I'm using the default radiator, and my graphice card is Vega 56，I flashed the VBIOS to Vega 64，it works correctly. The graphics card' temperature is 34℃ at free time，but 94℃ in testing LuxMark.This may be my temperature 22℃ relationship here. My cpu is i7 7700k OC 4.8GHz，and my motherboard is ASUS Maximus IX Hero. Link to comment Share on other sites More sharing options...
Gigamaxx Posted December 14, 2017 Share Posted December 14, 2017 I have a reference model Sapphire RX Vega 64 8gb single fan model. Link to comment Share on other sites More sharing options...
duffs Posted December 14, 2017 Share Posted December 14, 2017 Look please in WIndows if Clock Speed ever changed or there are constants. it is changing. gpu clock speed and memory both. Link to comment Share on other sites More sharing options...
