AppleHDA Solution - Work in progress

pilsator · December 3, 2007

@pilsator: To get azalia back simply remove AppleHDA kext and get http://www.cheetha.net/Kext_Helper/Softwar...Helper%20b7.zip .

Then download+install AppleAzalia kext with this tool.

And Taruga simply needs a picture of the back of my computer, or what?

Thrawnhex

Thanks for the Azalia-hint! A computer without sound is a sad thing.

I'm not quite sure what Taruga meant. I thought a native english speaker with some technical understanding would know. Again, he said: "Also, if if show Internal Speaker, that is just the pinsetup that is set that way, it can be everything I wantWe just need to activate/review both speaker and headphone and would be fine.If possible post pics of both your sound inputs and outputs so I can see how it going..."

Mabe he is talking of the way the audio in/out pins on the board (if there is such a thing) are connected to the 6 audio sockets?

cheers, pilsator

jimmy j · December 3, 2007

Has anyone had any luck getting output in Leopard from an Abit AA8XE with the ALC880? I've tried some of the dumps available for the ALC880 and the patcher will say output is detected, but there is none. I've even made my own dump (which I've attached) and it shows nothing detected. So... if anyone can perhaps send some advice my way or even get some use out of my dump that'd be great. I'm just completely stumped at this point.

Thanks

Abit_AA8XE_alc880.txt

pilsator · December 3, 2007

Maybe this is what Taruga asked for:

Found at http://www.asrock.com/manual/ConRoe945G-DVI.pdf

Parisi · December 4, 2007

Is there any success with AsRock Conroe1333-Div or with Conroe 945?
It has Alc 888 and ICH7...

I had no luck trying with your patcher.

I believe i have the same exact ALC888 ICH7 chipset on my Acer ast180, I have managed to get stereo output on the back port of the motherboard using my ALC888 Ubuntu audio dump, but no luck on Headphone front ports and i have not tested Mic In yet, if anyone has any suggestions or tips at all i will love you forever!

My Output on Leopard 10.5.1 w/ Patcher v1.8 + AcerAST180 ALC888 dump = Line Out Stereo Working.

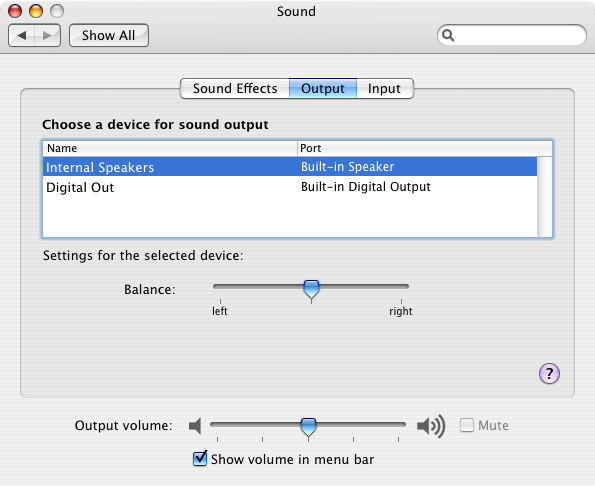

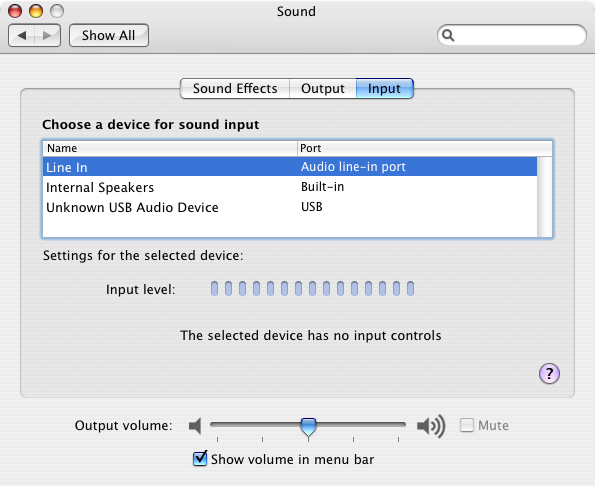

I will post a screenshot of my Sound Panel on Leopard shortly.

-jblp

wmarsh · December 4, 2007

for everyone that can use it. Here is my 9227 dump from an Intel dp965lt board. It works for me on leopard.

Well, your device id matches the Sigmatel 9227 on dell E520.

Unfortunately for me, using this with Taruga's v1.18 patcher in Leopard 10.5.1 creates a kext which loads, but does not show any output devices in sound preferences.

I'd like to do my own Linux codec dump, followed guide with no luck in Suse 10.3 64 bit.

My specs are on my sig if its a help to Taruga or anyone else.

The 9227 testing kext in post #1 works nicely for me in 10.4.10.

CMI8738 still gives sound output .

NYC Coyote · December 4, 2007

I wouldn't want to copy what anyone else has already said, but i currently have the dell 6400/e1505 with sigmatel audio 9200

HDAUDIO\FUNC_01&VEN_8384&DEV_7690&SUBSYS_102801BD&REV_1022

HDAUDIO\FUNC_01&CTLR_VEN_8086&CTLR_DEV_27D8&VEN_8384&DEV_7690&REV_1022

HDAUDIO\FUNC_01&CTLR_VEN_8086&VEN_8384&DEV_7690&REV_1022

HDAUDIO\FUNC_01&VEN_8384&DEV_7690&REV_1022

HDAUDIO\FUNC_01&CTLR_VEN_8086&CTLR_DEV_27D8&VEN_8384&DEV_7690

HDAUDIO\FUNC_01&CTLR_VEN_8086&VEN_8384&DEV_7690

HDAUDIO\FUNC_01&VEN_8384&DEV_7690

HDAUDIO\FUNC_01&CTLR_VEN_8086&CTLR_DEV_27D8&VEN_8384

HDAUDIO\FUNC_01&CTLR_VEN_8086&VEN_8384

HDAUDIO\FUNC_01&VEN_8384

HDAUDIO\FUNC_01&CTLR_VEN_8086&CTLR_DEV_27D8

HDAUDIO\FUNC_01&CTLR_VEN_8086

HDAUDIO\FUNC_01&GF&VEN_8384&DEV_7690&SUBSYS_102801BD&REV_1022

HDAUDIO\FUNC_01

I DO have it sort of working with the hda patcher v1.15 and the 9200.txt (pretty much stereo sound...but no mute or anything else really)

Works in leopard.

I'm very available to test or to get some info back to you if you need it (unless you already have it then...don't need to send you redundant info)

-Q- Master · December 4, 2007

Running the patcher(1.18 on a leopard) would generate

 Dec  3 18:38:45 mcs-mac-pro AppleHDAPatcherv1.18[148]: _CFGetHostUUIDString: unable to determine UUID for host. Error: 35
 Dec  3 18:38:46 mcs-mac-pro AppleHDAPatcherv1.18[148]: NSDocumentController Info.plist warning: The values of CFBundleTypeRole entries must be 'Editor', 'Viewer', 'None', or 'Shell'.
 Dec  3 18:38:52 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: TERM environment variable not set.
 Dec  3 18:38:52 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: 2007-12-03 18:38:52.574 CocoaDialog[193:10b] _CFGetHostUUIDString: unable to determine UUID for host. Error: 35
 Dec  3 18:39:01 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: Reading from  /Volumes/usbd/OSX/Audio/AppleHDAPatcherv1.18.app/Contents/Resources/AppleHDA.kext/Contents/MacOS/AppleHDA...
 Dec  3 18:39:02 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: /tmp/pltpsTmpSecureScptFile: line 989: [: =: unary operator expected
 Dec  3 18:39:02 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: /tmp/pltpsTmpSecureScptFile: line 995: [ : command not found
 Dec  3 18:39:02 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: rm: /tmp/xml_header.tmp: No such file or directory
 Dec  3 18:39:02 mcs-mac-pro [0x0-0x13013].org.taruga.AppleHDAPatcherv1.18[148]: rm: /tmp/xml_header2.tmp: No such file or directory

Does it fails, can it be this the reason my patch is not working ? I posted my device codec few posts above (0x83847691)

chrisando · December 4, 2007

Please help anyone, I am still not able to get sound working.

Hi guys I have tried everything and still no sound on both 10.4.10 and 10.5 I have attached my Linux dump, please help.

Codec: Realtek ALC883
Address: 0
Vendor Id: 0x10ec0883
Subsystem Id: 0x14620349
Revision Id: 0x100002
Default PCM: rates 0x560, bits 0x0e, types 0x1
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
Node 0x02 [Audio Output] wcaps 0x11: Stereo
  PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x03 [Audio Output] wcaps 0x11: Stereo
  PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x04 [Audio Output] wcaps 0x11: Stereo
  PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x05 [Audio Output] wcaps 0x11: Stereo
  PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital
  PCM: rates 0x560, bits 0x1e, types 0x1
Node 0x07 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x08 [Audio Input] wcaps 0x10011b: Stereo Amp-In
  Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1
  Amp-In vals:  [0x00 0x00]
  PCM: rates 0x160, bits 0x06, types 0x1
  Connection: 1
  0x23
Node 0x09 [Audio Input] wcaps 0x10011b: Stereo Amp-In
  Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1
  Amp-In vals:  [0x00 0x00]
  PCM: rates 0x160, bits 0x06, types 0x1
  Connection: 1
  0x22
Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital
  PCM: rates 0x560, bits 0x1e, types 0x1
  Connection: 1
  0x1f
Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In
  Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
  Connection: 10
  0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17
Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
  Amp-Out vals:  [0x00 0x00]
  Connection: 2
  0x02 0x0b
Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
  Amp-Out vals:  [0x00 0x00]
  Connection: 2
  0x03 0x0b
Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
  Amp-Out vals:  [0x00 0x00]
  Connection: 2
  0x04 0x0b
Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
  Amp-Out vals:  [0x00 0x00]
  Connection: 2
  0x05 0x0b
Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x12 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x14 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x00 0x00]
  Pincap 0x083e: IN OUT HP Detect
  Pin Default 0x0121441f: [Jack] HP Out at Ext Rear
 Conn = 1/8, Color = Green
  Pin-ctls: 0xc0: OUT HP
  Connection: 5
  0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x15 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x083e: IN OUT HP Detect
  Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
 Conn = 1/8, Color = Black
  Pin-ctls: 0x20: IN
  Connection: 5
  0x0c 0x0d* 0x0e 0x0f 0x26
Node 0x16 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x083e: IN OUT HP Detect
  Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
 Conn = 1/8, Color = Black
  Pin-ctls: 0x20: IN
  Connection: 5
  0x0c 0x0d 0x0e* 0x0f 0x26
Node 0x17 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x083e: IN OUT HP Detect
  Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
 Conn = 1/8, Color = Black
  Pin-ctls: 0x20: IN
  Connection: 5
  0x0c 0x0d 0x0e 0x0f* 0x26
Node 0x18 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x08173e: IN OUT HP Detect
  Pin Default 0x01a19c30: [Jack] Mic at Ext Rear
 Conn = 1/8, Color = Pink
  Pin-ctls: 0x24: IN
  Connection: 5
  0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x19 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x08173e: IN OUT HP Detect
  Pin Default 0x99a30931: [Fixed] Mic at Int ATAPI
 Conn = ATAPI, Color = Unknown
  Pin-ctls: 0x24: IN
  Connection: 5
  0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x80 0x80]
  Pincap 0x08173e: IN OUT HP Detect
  Pin Default 0x0181343f: [Jack] Line In at Ext Rear
 Conn = 1/8, Color = Blue
  Pin-ctls: 0x20: IN
  Connection: 5
  0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1b [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-Out vals:  [0x00 0x00]
  Pincap 0x08173e: IN OUT HP Detect
  Pin Default 0x99130110: [Fixed] Speaker at Int ATAPI
 Conn = ATAPI, Color = Unknown
  Pin-ctls: 0x40: OUT
  Connection: 5
  0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1c [Pin Complex] wcaps 0x400001: Stereo
  Pincap 0x0820: IN
  Pin Default 0x593301f0: [N/A] CD at Int ATAPI
 Conn = ATAPI, Color = Unknown
  Pin-ctls: 0x00:
Node 0x1d [Pin Complex] wcaps 0x400000: Mono
  Pincap 0x0820: IN
  Pin Default 0x598301f0: [N/A] Line In at Int ATAPI
 Conn = ATAPI, Color = Unknown
  Pin-ctls: 0x00:
Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital
  Pincap 0x0810: OUT
  Pin Default 0x01454120: [Jack] SPDIF Out at Ext Rear
 Conn = Optical, Color = Green
  Pin-ctls: 0x00:
  Connection: 1
  0x06
Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital
  Pincap 0x0820: IN
  Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
 Conn = 1/8, Color = Black
  Pin-ctls: 0x00:
Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono
Node 0x21 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x22 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
  Amp-Out caps: N/A
  Amp-Out vals:  [0x00 0x00]
  Connection: 11
  0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b
Node 0x23 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
  Amp-Out caps: N/A
  Amp-Out vals:  [0x00 0x00]
  Connection: 11
  0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b
Node 0x24 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x25 [Audio Output] wcaps 0x11: Stereo
  PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x26 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
  Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
  Amp-In vals:  [0x00 0x00] [0x00 0x00]
  Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
  Amp-Out vals:  [0x00 0x00]
  Connection: 2
  0x25 0x0b

codec_0.txt

macgirl · December 4, 2007

Anyone knows why an ADI 1983 is working on Leo but not on Tiger?

It have the same kexts (Azalia and AC97)

jjduro · December 4, 2007

Hi Tchow,

Have you tried Taruga's Alfa or Alfa2 driver for ALC861?

These drivers need a small trick to work with Leopard. You need to get Taruga's latest patcher - v.18 - and a codec dump from your system.

Drag and drop you codec Dump on the patcher, and you'll have a working ALCinject.kext. Then, go to your Extensions folder and erase AppleHDA.kext and replace it by one of the Alfas. You can try both, but one at a time.

go to terminal

type

sudo -s

yourpassword

cd /System/Library/Extensions/

and

chown -R root:wheel AppleHDA.kext

chmod -R 755 AppleHDA.kext

Reboot

If you don't have sound, I suggest you get Taruga's Beta4some861/880_models, get the AppleHDa.kext file from there - forget ALCinject -, and drop it on the Extensions folder, after erasing the one you had there before. Don't forget to use the dump and the patcher as I wrote before and

cd /System/Library/Extensions/

and

chown -R root:wheel AppleHDA.kext

chmod -R 755 AppleHDA.kext

Reboot

If it doesn't work, then wait for Taruga's driver. I'll be out soon.

PS

Don't forget to erase Appleazalia.kext from the Extensions folder!

Hi Taruga

I have two computer. one is notebook another is desktop. Both sound card can't work. please help

Notebook is Toshiba A105-S4384. sound chip is ALC861. I am try the speaker working before. Mic is not working.

desktop computer ECS945GCT-M1 mother board. sound chip is ALC883. Speaker and mic not working.

Please tell me How to Patch. I try your patch before. Never success for two computer

Two computer install Leopard 1.5

Edited December 4, 2007 by jjduro

________ · December 4, 2007

b:z, minime07!

Please pm me with how you got your Sigmatel STAC9271D to work.

Any news on the builtin Intel ethernet?

Thanx!

b:z · December 4, 2007

b:z, minime07!

Please pm me with how you got your Sigmatel STAC9271D to work.

Any news on the builtin Intel ethernet?

Thanx!

ok, that's easy.

First, you should download the STAC9271D_xxxx (http://forum.insanelymac.com/index.php?act=attach&type=post&id=18344) in the first post, unzip it and place on your desktop

Then, replace 2 kext files in archived (just download) with current 2 kext files on your workstation (in my example, i just rename them for backup).

# cd /System/Library/Extensions/
# sudo mv -f AppleHDA.kext AppleHDA.kext.old
# sudo mv -f ALCinject.kext ALCinject.kext.old
# sudo cp -Rf /User/Yourusername/Desktop/AppleHDA.kext .
# sudo cp -Rf /User/Yourusername/Desktop/ALCinject.kext .
# cd /System/Library/
# sudo mv -f Extensions.mkext Extensions.mkext.old

Ok, it's time to reboot your system.

Test your speaker :thumbsup_anim:

Hope that help.

________ · December 4, 2007

Hi!

Thanx for the quick reply!

What if i´m in 10.4.10?

I take it that you are in Leopard.

Will this still work in 10.4.10?

ptrubert · December 4, 2007

@Taruga - c.c. codecs@netcabo.pt

subject: 0x10ec0861

ALC861n1212.txt

0x83847680

SigmaTelSTAC9221A1mbp.txt

+++

Airis n1212 - Intel core 2 duo T7200 2Ghz - 2Go ram

ALC861 - Marvell Yukon 88E8053 - Intel 3945 a/b/g (temporarily)

JaS 10.4.8 / JaS 10.4.9 combo update / Netkas 10.4.10 update / custom 10.4.11 update (8.10.1 kernel)

b:z · December 4, 2007

Hi!

Thanx for the quick reply!

What if i´m in 10.4.10?

I take it that you are in Leopard.

Will this still work in 10.4.10?

Sorry, i only test on Leopard, not on 10.4.x, so i am not sure whether it works or not.

________ · December 4, 2007

Hi b:z!

It works in Tiger 10.4.10 too!

Haha!

I have tried patching and even replacing kexts before, but it never worked for me for some reason.

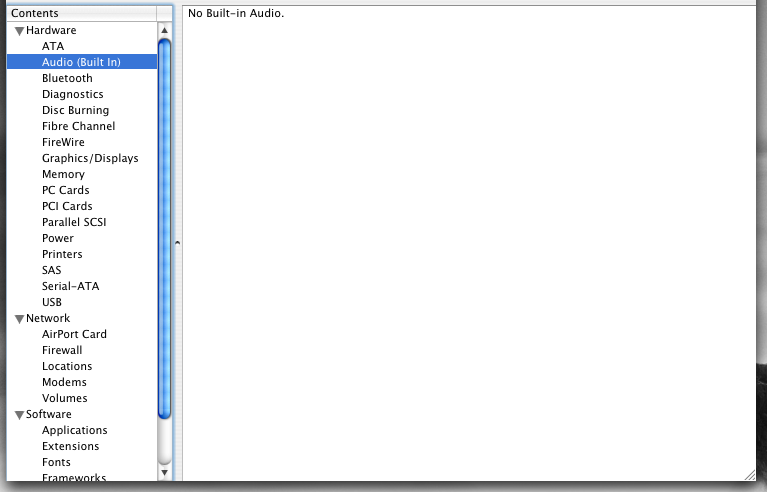

I have also been tricked by my system profiler still now showing no builtin sound, but it works fine both at front and at back!

Thanx man!

Thank you Taruga and everyone else that have had a part in this! I love you all!

Now i wonder why system profiler does not show the builtin sound. haha

Any SMBIOS.kext that will fix this?

I have tried a few from uphuck and netkas so far. Then now all that is left to fix is the builtin Intel ethernetcard.

I have used the JaS 10.4.8 (still the best tiger dvd) that was then update with Koolkals 10.4.10 Comboupdate.

My system is built around the Intel DP35DP Media motherboard.

CPU: Intel Core 2 Quad 2.67Ghz

Ram: 4GB 800 Mhz DDR2 SDRAM

HD´s: 2 Samsung 500GB Spinpoint 166

DVD´s: Samsung DVD-RW-DL Burner SH-S183L

Graphics: NVidia GeForce 7900GS TOP (Factory overclocked)

XBench 1.3 gives me Mac Pro performance of close to 170

Some tasks even beats the real Mac Pro.

I love it!

echo · December 4, 2007

Hey taruga, stac9227 in intel 946gz does not work although it has same vendor id as 965...

Plz HELP....

Also it is unsupported in v1.18

		  AppleHDA Patcher - 2006/2007 by Taruga v1.18

		Leopard Darwin Kernel Version 9.0.0
_______________________________________________________
	  Codec	: SigmaTel STAC9227
   Vendor Id	: 0x83847618
Subsystem Id	: 0x8086a201
_______________________________________________________


* Detected unsupported SigmaTel Codec

Maybe because of different subsystem id...

.ZAWiR · December 4, 2007

Hi TARUGA,,

I have Sigmatel 9221,,

Vendor Id: 0x83847680

Subsystem Id: 0x102801d7

I'm using ToH Leopard RC2 and I use AppleHDAPatcher 1.18 to install the driver,,

but i can't get sound out of my speakers and earplug,,

--------------------------------------------------------------------------------------------------------

I tried to use AppleHDAPatcher 1.16,, I can get the sound out of both speakers and earplug,,

but I can't shutdown properly after installing the patch,,

my display turns off but my power and bluetooth LED keeps on and my notebook fan doesn't stop spinning,,

For ur information,,

I'm using DELL XPS M1210,,

Can somebody help me through this???

Please,, I beg u all,,

Thank You,,

ZAWiR

mikemore · December 4, 2007

But can i use thi kext for Conexant High Definition Audio ?

M'n'M

Fichico · December 4, 2007

I've an Asus P5LD2 (no SE etc etc)

Line out work fine, but i've problem with line in

I see line-in and mic-in but when i try, no voice detected

i've installed patch 1.18 and apple hda

my sound chipset is ALC882

Leopard 10.5 Darwin 9.0.0

psypc2 · December 4, 2007

i have an P5LD2 (no VM se and other stuff) too but i can't fine the right codec for it and btw which is the latest hda installer?

tchow · December 4, 2007

Hi Tchow,

Have you tried Taruga's Alfa or Alfa2 driver for ALC861?

These drivers need a small trick to work with Leopard. You need to get Taruga's latest patcher - v.18 - and a codec dump from your system.

Drag and drop you codec Dump on the patcher, and you'll have a working ALCinject.kext. Then, go to your Extensions folder and erase AppleHDA.kext and replace it by one of the Alfas. You can try both, but one at a time.

go to terminal

type

sudo -s

yourpassword

cd /System/Library/Extensions/

and

chown -R root:wheel AppleHDA.kext

chmod -R 755 AppleHDA.kext

Reboot

If you don't have sound, I suggest you get Taruga's Beta4some861/880_models, get the AppleHDa.kext file from there - forget ALCinject -, and drop it on the Extensions folder, after erasing the one you had there before. Don't forget to use the dump and the patcher as I wrote before and

cd /System/Library/Extensions/

and

chown -R root:wheel AppleHDA.kext

chmod -R 755 AppleHDA.kext

Reboot

If it doesn't work, then wait for Taruga's driver. I'll be out soon.

PS

Don't forget to erase Appleazalia.kext from the Extensions folder!

OK. I will try again. Because I only drop two file into system/libraray/extensions. Only work on the speaking. Mic don't work. Even Alc861 or Alc 883 also. Also I have question. How to create dump text. Please tell me. how to do.

Thanks

fingerr · December 4, 2007

Hi Taruga,

at first thanks for realy great job you've done here !!!

I've tried alc861testing (beta4some doesn't work) with my ALC861:

Vendor Id: 0x10ec0861

Subsystem Id: 0x11791205

Revision Id: 0x100300

and audio out works fine, but Microphone is set to full but I can't hear anything while/after recording (Skype, Audacity).

Any ideas how to fix this?

Thanks in advance and best regards,

fingerr.

Taruga · December 4, 2007

Hi b:z!

It works in Tiger 10.4.10 too!

Haha!

I have tried patching and even replacing kexts before, but it never worked for me for some reason.

I have also been tricked by my system profiler still now showing no builtin sound, but it works fine both at front and at back!

Thanx man!

Thank you Taruga and everyone else that have had a part in this! I love you all!

Now i wonder why system profiler does not show the builtin sound. haha

Any SMBIOS.kext that will fix this?

I have tried a few from uphuck and netkas so far. Then now all that is left to fix is the builtin Intel ethernetcard.

I have used the JaS 10.4.8 (still the best tiger dvd) that was then update with Koolkals 10.4.10 Comboupdate.

My system is built around the Intel DP35DP Media motherboard.

CPU: Intel Core 2 Quad 2.67Ghz

Ram: 4GB 800 Mhz DDR2 SDRAM

HD´s: 2 Samsung 500GB Spinpoint 166

DVD´s: Samsung DVD-RW-DL Burner SH-S183L

Graphics: NVidia GeForce 7900GS TOP (Factory overclocked)

XBench 1.3 gives me Mac Pro performance of close to 170

Some tasks even beats the real Mac Pro.

I love it!

I need to fix the mic, it´s showing as internal speaker...

Edis0n · December 4, 2007

Welcome back man, I ( we -_- ) really missed you!

AppleHDA Solution - Work in progress

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
