neterosensei

Samsung Galaxy Book 12

3 posts in this topic

Recommended Posts

 Hey there !

I would like to install sierra on my Galaxy Book 12 inch!!

Specs

i5 7200u

HD 620

1440p res

SSD sata3

USB c ports

WIFI ATHEROS/QUALCOMM QCA6174



Its a 2 in 1 convertible laptop! So its detachable and also i can use it with a keyboard!



Can i install osx sierra or high sierra on this?

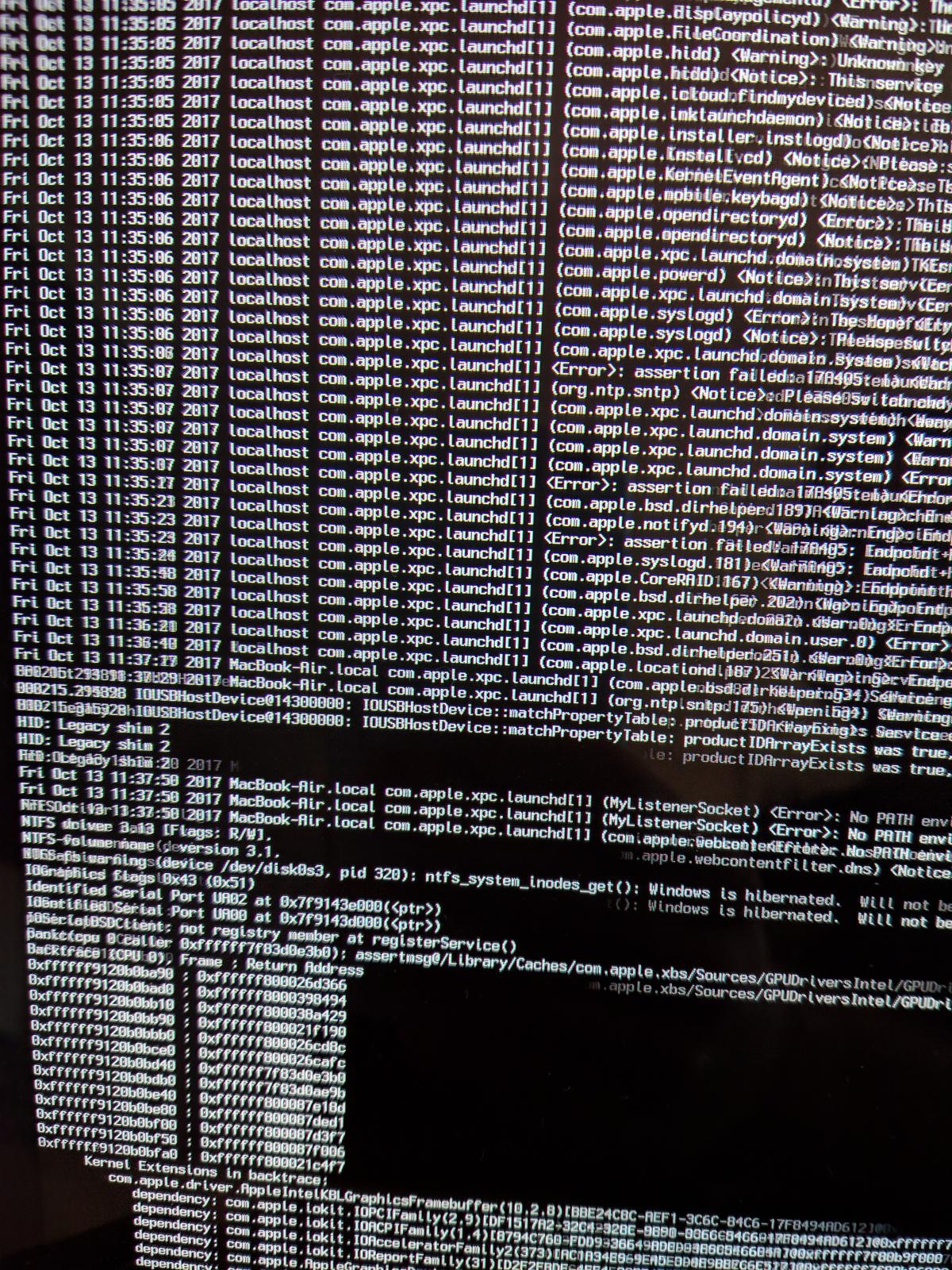

Actually im tryinh to install but i get thoose errors



cartellaEFI.zip




Share this post


Link to post
Share on other sites
Advertisement

Installing HS is quite possible but your configurations is lacking something.

You ave to add apfs.efi in driver64uefi and this kext in other:

IntelGraphicsDVMTFixUP

lilu and IntelGraphicsFixup.kext are outdated, change with the newer versions:

Lilu

IntelGraphicsFixUP

In EFI/CLOVER/ACPI/patched put the attached DSDT and SSDT-

You have to trim your config.plist:

In the ACPI section enable change H_EC to EC

In the Boot section enable  "-disablegfxfirmware"

In the SMBIOS section create a profile for MacBookPro14,1 and click some times on Generate New Serial Number.

Now you can installa HS on your hybrid but remember that other then OS X nothing is working and no solution till now. No audio, backlight, batterymangement, incompatible WiFi

DSDT.aml.zip

SSDT.aml.zip

apfs.efi.zip

Share this post


Link to post
Share on other sites
Posted (edited)

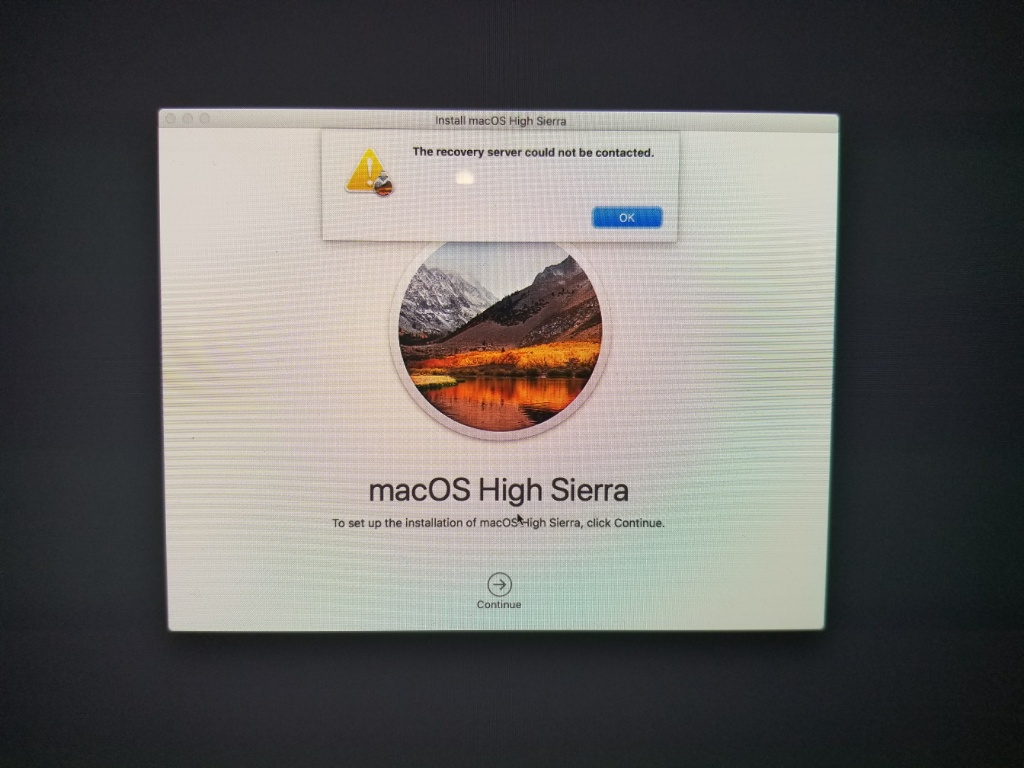

I got to the installation screen here, but then I get the error about recovery server not connected. How do you get past this since this computer can't connect to the internet?




Edited by briwil
Added photo

Share this post


Link to post
Share on other sites
