slapbass_

NO Tengo Audio Para Capitan 10.11.5 ayuda por favor

6 posts in this topic

Recommended Posts

Hola estimados amigos, espero que todo bien por ahí.....



Necesito de su ayuda por favor, para solucionar el audio, en mi portatil, al cual yo le instale capitan 10.11.5   :wallbash:

y mis especificaciones son:



Dell Inspiron 14 5000 series (5458)



- Intel® Core i5-5200U CPU @ 2.20GHz



- Ram 4GB»



- Intel HD Graphics 5500



- Red PCI :

Intel Dual Band Wireless-AC 3160 AC HMC WiFi Adapter

Realtek RTL8139/810x Fast Ethernet Adapter



- Audio

Intel Broadwell HDMI @ Intel Broadwell - Mini HD Audio



Realtek ALC255 @ Intel Wildcat Point-LP PCH High defi.....



El problema es que al revisar el archivo AppleHDA.kext aparece como (no cargado), no se por que, si es original el .app Capitan, por ÉNDE NO tengo audio en mi laptop :-(



Como puedo obtener el sonido original, audio nativo de Apple,

les estare infinitamente agradecido hermanos

estare al tanto de sus aportaciones    :help:



un fuerte abrazo a la distancia

Saludos.

Dios les bendiga

Share this post


Link to post
Share on other sites
Advertisement

hello



u don't need 10 post about the same issue



u have a warning from now .. u should never post so many post about ur issue ..



we are here to help .. but with rules ..



should read about that rules



http://www.insanelymac.com/forum/rules/



     VERY IMPORTANT: PLEASE READ! (ABOUT TONYMACX86 AND iATKOS M / Y / EC / SR)



sorry but I'm sure u don't read nothing about this site



sorry others mod posting here in english



salud



good hack

Share this post


Link to post
Share on other sites

Te recomiendo probar esta excelente guía, si sigues sin hacerla funcionar sube un reporte de DarwinDumper para ver tu sistema en detalle.



Y te aconsejo poner el hardware en tu firma así todos podemos saber de un vistazo que tienes.



Hola estimado amigo
..
muchas gracias por responder a la peticion de ayuda`, YA que son pocas las personas que apoyan al projimo,
te explico, instale el capitan 10.11.5 en mi PC  de escritorio tiene estas especificaciones>
- Placa Gigabyte Z97x UD7 TH
- Procesador Intel i7 4790
- Memoria Crucial 8GBx1600
- Disco Solido Kingston 120GB , SSD Now
- Disco duro 1TB seagate SATA
- Graficos intel HD Graphics 4600
..... Audio > Realtek ALC1150

- algo rraro, la grafica se activo solo tras instalar este capitan, ya que antes tenia instalado yosemite 10.10

/ el problema aqui es, que aun no logro tener audio nativo de apple tampoco el hdmi en mi pc de escritorio,
puedes ayudarme por favor, te dejo el DarwinDumper de mi equipo


ojala puedas brindarme tu apoyo mi estimado amigo
te agradeceria infinitamente
estare al tanto de tu pronta respuesta,
un fuerte abrazo a la distancia
Dios te bendiga hermano.

Share this post


Link to post
Share on other sites

Hola, no lo has aclarado pero voy a asumir que estas usando el sistema de Toleda porque tienes los parches KextsToPatch en el config.plist.



Primero te aconsejo eliminar del config.plist la clave Devices/Audio/Inject porque ya estas usando el DSDT para inyectar el layout-id. Para empeorar el tema no coinciden los números, tienes el 1 en el DSDT y 3 en el config. Al reiniciar debería cargar el layout que indica el DSDT, si sigue sin funcionar crea otro reporte de DarwinDumper.



Por otro lado un requisito indispensable para el sistema de Toleda es el parchado del AppleHDA. No se como verificar si se parcho bien (no se detalla en el Darwin), quizá si lo subes alguien puede decirte si esta ok…

Share this post


Link to post
Share on other sites

Por fin y de manera insolita pude instalar El Capitan a la perfección pero ahora quisiera arreglar 2 cosas

1.- Audio : No tengo audio a pesar de intentar muchas cosas entre ellas “audio_realtekALC-120.command” ejecuto el scrip pero al final dice que hay incompatiblididad

2.- Lan : He hecho de todo para solucionar el problema con la Lan en mi Mobo y es que luego que se ejecuta todo el arranque al llegar a donde meto pi pass para entrar a El Capitan debo reiniciar para que sera reconocida la lan

Mi lan es:

Intel Intel P55 PCHIntel 82578DC

Gigabit (10/100/1000 Mb/s) Ethernet LAN controller

Mi mobo es : DP55WB

Estoy usando el kext : IntelMausiEthernet

Ya he intentado con el AppleIntelE1000e  y nada,  igual

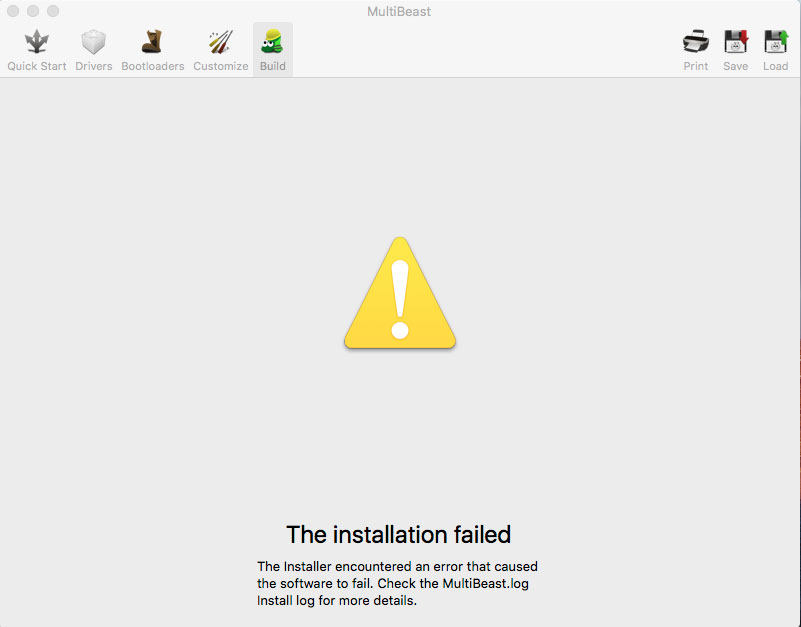

3,- Problemas al usar MB






Ethernet:

  Type:    Ethernet
  Hardware:    Ethernet
  BSD Device Name:    en0
  IPv4 Addresses:    192.168.0.103
  IPv4:
  AdditionalRoutes:
  DestinationAddress:    192.168.0.103
  SubnetMask:    255.255.255.255
  DestinationAddress:    169.254.0.0
  SubnetMask:    255.255.0.0
  Addresses:    192.168.0.103
  ARPResolvedHardwareAddress:
  ARPResolvedIPAddress:    192.168.0.1
  Configuration Method:    DHCP
  ConfirmedInterfaceName:    en0
  Interface Name:    en0
  Network Signature:    IPv4.Router=192.168.0.1;IPv4.RouterHardwareAddress=
  Router:    192.168.0.1
  Subnet Masks:    255.255.255.0
  IPv6:
  Configuration Method:    Automatic
  DNS:
  Domain Name:    cantv.net
  Server Addresses:    192.168.0.1
  DHCP Server Responses:
  Domain Name:    cantv.net
  Domain Name Servers:    192.168.0.1
  Lease Duration (seconds):    0
  DHCP Message Type:    0x05
  Routers:    192.168.0.1
  Server Identifier:    192.168.0.1
  Subnet Mask:    255.255.255.0
  Ethernet:
  MAC Address:
  Media Options:    Full Duplex, Flow Control
  Media Subtype:    100baseTX
  Proxies:
  Exceptions List:    *.local, 169.254/16
  FTP Passive Mode:    Yes
  Service Order:    0

Share this post


Link to post
Share on other sites
