Flashing screen after 10.12.4 update

26 posts in this topic

Recommended Posts

I have been running Sierra for a while now, with no problems whatsoever, but after installing the 10.12.4 update, the graphics got all weird and flashing. I tried updating clover, but then my pc wouldn't boot anymore at all... And of course I was to stubborn to make a backup... Now things look like this:





It constantly switches from that to normal, every time something on the screen moves... Does anybody have any idea?



Specs:



3,19 GHz Intel Core i5

16 GB memory

Sapphire Radeon 6570 2GB

Not sure what motherboard and stuff but thats probably not causing this problem anyway



Edit:

Also, there is no video playback. So definitely something graphics related. Edit 2: Video playback started working again randomly? Still weird flashing though. What seems to be happening with the flashing is, that red and blue constantly switch, but green remains the same.

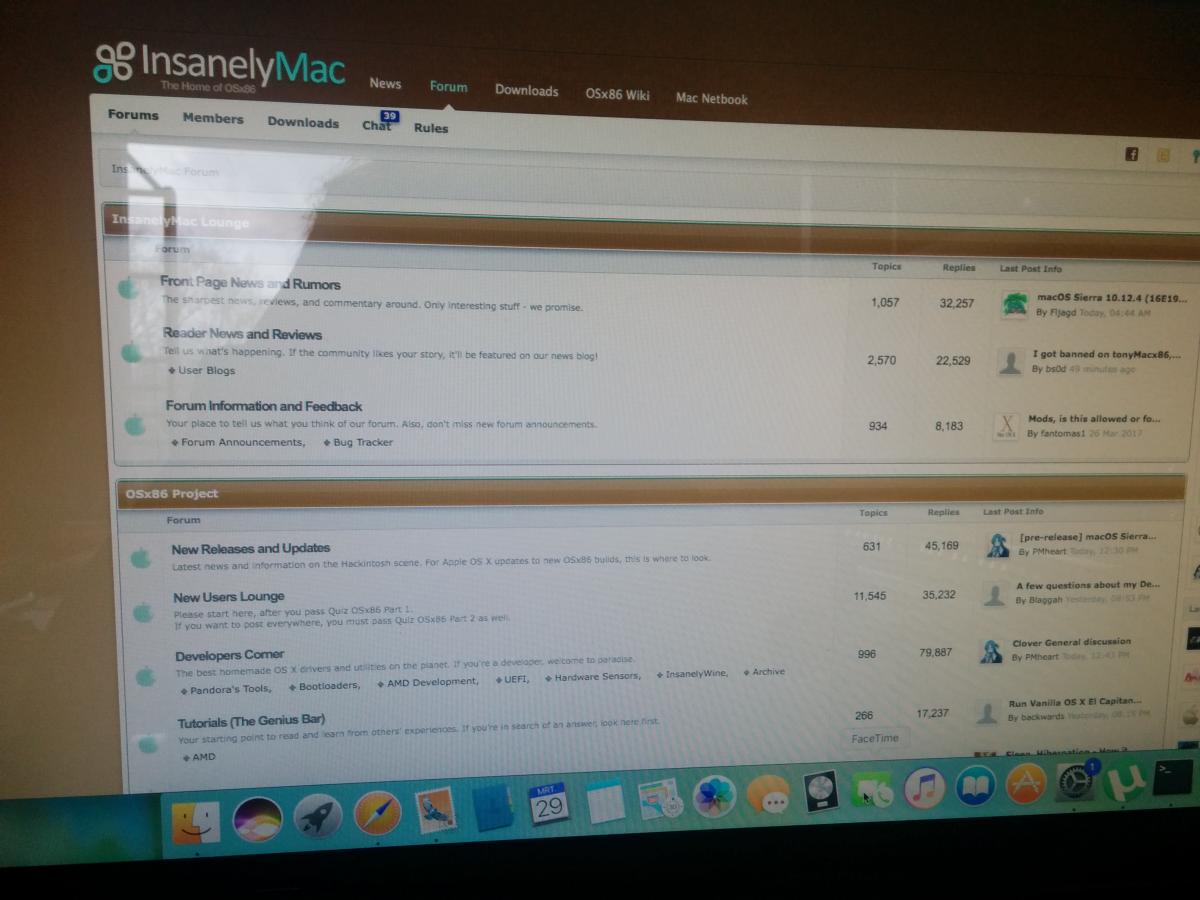

Oops, no picture. Here it is:


Share this post


Link to post
Share on other sites

Well, helps that we're not alone... It's strange because these cards are both supported out of the box, so it kinda seems to me that Apple might've messed up?

Share this post


Link to post
Share on other sites

You're my hero... Saved my Hackintosh :) Is there any way you can set the colour depth in OS X without software? Because this is shareware, so I'm gonna have to pay for it if there's no way to set it in OS X.



Edit: Looks like DisplayMaestro is a good free alternative for people with the same problem.

Share this post


Link to post
Share on other sites

No, this utility only change display resolution and DisplayMaestro same utility. Only SwitchResX have necessary functions. I assume that there is a command of the terminal for switching ARGB2101010 to ARGB8888.

ARGB8888=8 bit=32 bit=millions of colors

ARGB2101010=10 bit=40 bit=billions of colors

disablemonitor=resolutionx32

DELL E2715H=32-Bit Color (ARGB8888)

SwitchResX=millions of colors

DisplayMaestro=?

terminal=?

Share this post


Link to post
Share on other sites

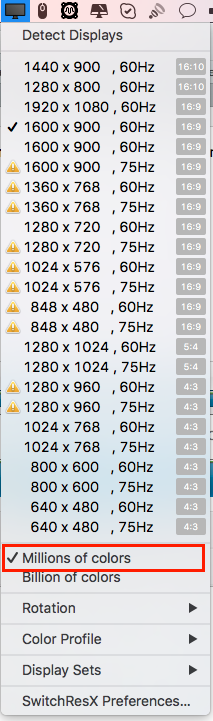

Install SwitchResX and to choose in the menu Millions of colors. Maybe somehow made little app or binary patch to switch from ARGB2101010 to ARGB8888



Thank you buddy you really make my day!

Share this post


Link to post
Share on other sites

ARGB8888=8 bit=32 bit=millions of colors

ARGB2101010=10 bit=40 bit=billions of colors

disablemonitor=resolutionx32

DELL E2715H=32-Bit Color (ARGB8888)

SwitchResX=millions of colors

DisplayMaestro=?

terminal=?

So the ARGB8888 actually means 8+8+8+8, and the ARGB2101010 mean 10+10+10. 8 bits per colour gives 256 gradients and 10 bits give 1024 gradients per color (RGB).

Share this post


Link to post
Share on other sites

Same problem.
I Install Demo from SwitchResX and works perfectly on my HD5770

But we need a permanent solution to change billion color to million color.

Share this post


Link to post
Share on other sites

I'm not sure, but I think that using a MacMini7,1 SMBIOS also works... I was using MacPro6,1and changing to MacMini stopped the flickering after uninstalling SwitchResX... if anyone wanna try...

Share this post


Link to post
Share on other sites

I have this same problem. I took my MSI 5770 out of another working hackintosh and it gave me this issue.

This is the issue described in a youtube video. Shows windows dual boot working fine then Sierra. SO weird!



This did not switch my issue, in fact. I downloaded the Display Maestro and the resolution actually shows mine with Millions of colors already.



I also have a LG Ultrawide 21:9 monitor, could this be it?

Share this post


Link to post
Share on other sites

Anyone have been try to use MacMini as SMBIOS? My hack is working without any thyrd party app.



Could worth to have a look...

Share this post


Link to post
Share on other sites

I must come back to my previous post. I notice after a while my screen freezes and system reboots! Anybody else this phenomenon?

Share this post


Link to post
Share on other sites

same problem here with HD 5870. is there any solution other than switchresx?

Share this post


Link to post
Share on other sites
