quakeN Posted March 19, 2017 Share Posted March 19, 2017 Hello. I have a problem on my first hackintosh. Its a laptop - Acer Aspire 5742g. I will put a video with my problem. I enabled Nvidia WEB drivers but nothing has changed. I patched VBios in clover configurator. https://www.youtube.com/watch?v=b_bZQKlRy2g Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/ Share on other sites More sharing options...
polyzargone Posted March 19, 2017 Share Posted March 19, 2017 I enabled Nvidia WEB drivers but nothing has changed. I patched VBios in clover configurator. You can't use your NVIDIA GPU because of Optimus technology which isn't supported in macOS. You need to disable it with a DSDT/SSDT patch since I doubt you can do it in Bios (I own a Aspire V3-772G and there's no option to do it so I presume it's the same for you). I followed for mine but obviously you'll need to adapt it. Good luck ! Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387471 Share on other sites More sharing options...
quakeN Posted March 19, 2017 Author Share Posted March 19, 2017 You can't use your NVIDIA GPU because of Optimus technology which isn't supported in macOS. You need to disable it with a DSDT/SSDT patch since I doubt you can do it in Bios (I own a Aspire V3-772G and there's no option to do it so I presume it's the same for you). I followed for mine but obviously you'll need to adapt it. Good luck ! I searched for DSDT patch but I cannot find any. Could you help me by any chance? 1 Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387501 Share on other sites More sharing options...
MaLd0n Posted March 19, 2017 Share Posted March 19, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387504 Share on other sites More sharing options...
quakeN Posted March 19, 2017 Author Share Posted March 19, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 Alright, I will do it now. =] -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 There is everything you asked for. I uploaded in mediafire. Download and unzip. http://www.mediafire.com/file/da3sa60d8egl0dc/hackintosh.rar Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387505 Share on other sites More sharing options...
MaLd0n Posted March 19, 2017 Share Posted March 19, 2017 Try, put in clover/acpi/patched DSDT.aml.zip if u use voodoohda, use applehdadisable too AppleHDADisabler.kext.zip what ur audio codec? what ur processor? Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387514 Share on other sites More sharing options...
quakeN Posted March 19, 2017 Author Share Posted March 19, 2017 Try, put in clover/acpi/patched DSDT.aml.zip if u use voodoohda, use applehdadisable too AppleHDADisabler.kext.zip what ur audio codec? what ur processor? My processor is I5-480M , i used voodohda Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387517 Share on other sites More sharing options...
MaLd0n Posted March 20, 2017 Share Posted March 20, 2017 use applehdadisabler in clover/kexts/10.xx Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2387529 Share on other sites More sharing options...
quakeN Posted March 20, 2017 Author Share Posted March 20, 2017 use applehdadisabler in clover/kexts/10.xx I did everything exactly as you said. Nothing has changed / been fixed. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388116 Share on other sites More sharing options...
MaLd0n Posted March 20, 2017 Share Posted March 20, 2017 GPU disable? go to About This Mac / Graphics AppleHdaDisable only avoid problem, no diference Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388146 Share on other sites More sharing options...
quakeN Posted March 20, 2017 Author Share Posted March 20, 2017 GPU disable? go to About This Mac / Graphics AppleHdaDisable only avoid problem, no diference It still shows my nVidia card. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388176 Share on other sites More sharing options...
MaLd0n Posted March 20, 2017 Share Posted March 20, 2017 try DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388224 Share on other sites More sharing options...
quakeN Posted March 20, 2017 Author Share Posted March 20, 2017 try DSDT.aml.zip Still when I go About this MAC > Graphics it shows my Nvidia card. Maybe its like that because I installed a kext for my NVIDIA card. Before that it was saying intel chipset with like 2-3mb. After I installed the kext it started showing my Nvidia gpu. The graphics were still buggy. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388344 Share on other sites More sharing options...
MaLd0n Posted March 20, 2017 Share Posted March 20, 2017 u need to disable NVIDIA and use intel hd dont work in hackintosh need disable in SSDT Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388374 Share on other sites More sharing options...
quakeN Posted March 21, 2017 Author Share Posted March 21, 2017 u need to disable NVIDIA and use intel hd dont work in hackintosh need disable in SSDT Is this guide good? If yes, where can I find aida64 for Mac. The version on iTunes doesn't work for me. http://www.insanelymac.com/forum/topic/295584-disabling-nvidia-optimus-card-on-all-laptops/ Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388509 Share on other sites More sharing options...
MaLd0n Posted March 21, 2017 Share Posted March 21, 2017 press f4 in clover boot screen, all files extracted in folder clover/acpi/origin Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388683 Share on other sites More sharing options...
Allan Posted March 21, 2017 Share Posted March 21, 2017 Post your signature. If you'll use this iGPU (Intel), you'll need read this guide: [GUIDE] 1st Generation Intel HD Graphics QE/CI Just to confirm, you have an Nvidia GT 540M? 1 Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388900 Share on other sites More sharing options...
quakeN Posted March 21, 2017 Author Share Posted March 21, 2017 press f4 in clover boot screen, all files extracted in folder clover/acpi/origin http://www.mediafire.com/file/3l3475096cm6y0h/origin.zipThis is my whole origin folder. Post your signature. If you'll use this iGPU (Intel), you'll need read this guide: [GUIDE] 1st Generation Intel HD Graphics QE/CI Just to confirm, you have an Nvidia GT 540M? Yes, I am pretty sure. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2388995 Share on other sites More sharing options...
MaLd0n Posted March 21, 2017 Share Posted March 21, 2017 Man, i dont see any intel graphics in ioreg i think u need use nvidia, i think ur notebook dont have integrated graphics many 1 and 2 generation dont have u need a web drivers for u GPU Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389038 Share on other sites More sharing options...
quakeN Posted March 22, 2017 Author Share Posted March 22, 2017 Man, i dont see any intel graphics in ioreg i think u need use nvidia, i think ur notebook dont have integrated graphics many 1 and 2 generation dont have u need a web drivers for u GPU I have installed Nvidia driver manager and I'm using web driver instead of original OS X driver. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389151 Share on other sites More sharing options...
MaLd0n Posted March 22, 2017 Share Posted March 22, 2017 u add flag in ur config.plist? Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389271 Share on other sites More sharing options...
polyzargone Posted March 22, 2017 Share Posted March 22, 2017 Post your ACPI/origin folder as asked in post #16 please. And also, uninstall NVIDIA webdrivers since you won't be able to use this GPU. Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389310 Share on other sites More sharing options...
quakeN Posted March 22, 2017 Author Share Posted March 22, 2017 u add flag in ur config.plist? Not sure what flag are you talking about. Post your ACPI/origin folder as asked in post #16 please. And also, uninstall NVIDIA webdrivers since you won't be able to use this GPU. http://www.mediafire.com/file/3l3475096cm6y0h/origin.zip Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389601 Share on other sites More sharing options...
MaLd0n Posted March 22, 2017 Share Posted March 22, 2017 Not sure what flag are you talking about. http://www.mediafire.com/file/3l3475096cm6y0h/origin.zip if u use web drivers, u need a... Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389610 Share on other sites More sharing options...

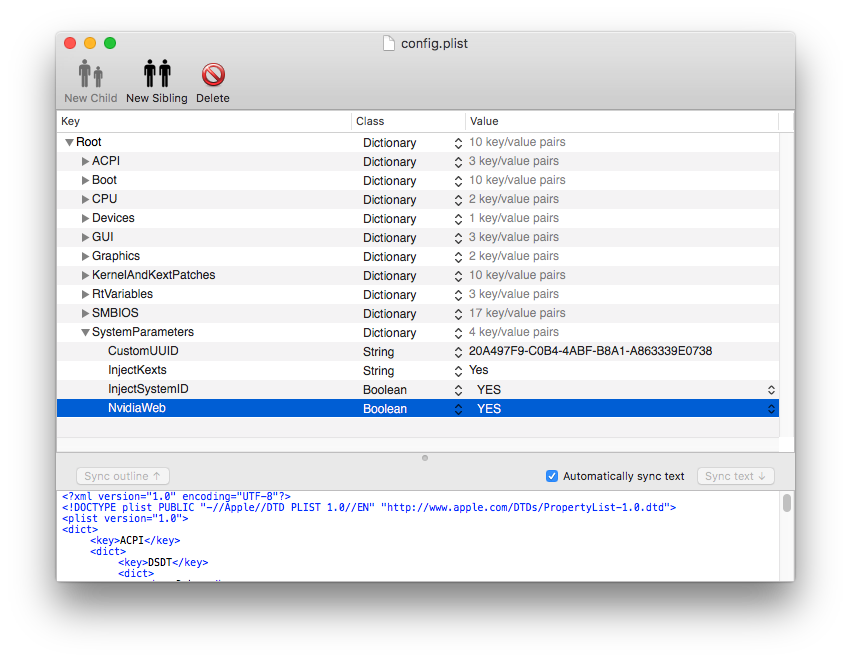

quakeN Posted March 22, 2017 Author Share Posted March 22, 2017 (edited) if u use web drivers, u need a... MaLd0n 2017-03-22 às 17.34.14.png Is this going to do the job? <key>SystemParameters</key> <dict> <key>InjectKexts</key> <string>YES</string> <key>InjectSystemID</key> <true/> <key>NvidiaWeb</key> <true/> </dict Edited March 25, 2017 by Allan Code tag - added Link to comment https://www.insanelymac.com/forum/topic/322029-acer-aspire-5742g-graphics-problem-on-boot-and-when-opening-apps/#findComment-2389625 Share on other sites More sharing options...
