tsunamy35 Posted November 28, 2016 Share Posted November 28, 2016 When I compil a DSDT with MacIASL, I've got 5 errors! I patch 4 errors but they stay a last errors which is: 28510, 6126, syntax error, unexpected PARSEOP_NAMESEG, expecting '(' This line is: Method (_CRS, 0, Serialized) // _CRS: Current Resource Settings { Name (SBFI, ResourceTemplate () { I2cSerialBusV2 (0x0015, ControllerInitiated, 0x00061A80, AddressingMode7Bit, "\\_SB.PCI0.I2C0", 0x00, ResourceConsumer, , Exclusive, Interrupt (ResourceConsumer, Level, ActiveLow, Shared, ,, ) { 0x0000006D, } }) Return (SBFI) } I2cSerialBusV2 (0x0015, ControllerInitiated, 0x00061A80, I didn't find any solution for this errors Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/ Share on other sites More sharing options...
limurphy Posted November 29, 2016 Share Posted November 29, 2016 missing ")" Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326184 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 Where ? Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326209 Share on other sites More sharing options...
SavageAUS Posted November 29, 2016 Share Posted November 29, 2016 How are you decompiling? Post origin folder. Also please add details of pc/laptop in your signature. Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326217 Share on other sites More sharing options...
limurphy Posted November 29, 2016 Share Posted November 29, 2016 At the end of "Exclusive," Suggest you post the original dsdt + ssdt. Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326221 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 I post the original DSDT and SSDT. I try to modify my DSDT for my graphic card Intel HD5500 in my laptop. I've got Asus R540LJ, intel core i5005u, Nvidia 920m, HDD 1to, 8gb ram I've got native resolution but not graphics acceleration. I want to try this tuto Please help me origin.zip Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326245 Share on other sites More sharing options...
SavageAUS Posted November 29, 2016 Share Posted November 29, 2016 I get 2 errors when decompiling altogether which are easy to fix. What are you trying to accomplish with your DSDT/SSDT? That guide is for 10.10? Are you installing Yosemite, El Capitan or Sierra? Your graphics can be done by using the config_HD5300_5500_6000.plist HERE by Rehabman. Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326251 Share on other sites More sharing options...
limurphy Posted November 29, 2016 Share Posted November 29, 2016 Without error, iasl=6.1 origin.zip Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326269 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 how can I know if I use iasl 6,1 please When I write in terminal iasl -v i obtain AirdeSebastien:~ sebastien$ iasl -v Intel ACPI Component Architecture ASL+ Optimizing Compiler version 20161117-64(RM) Copyright (c) 2000 - 2016 Intel Corporation Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326272 Share on other sites More sharing options...

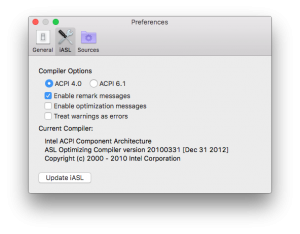

pico joe Posted November 29, 2016 Share Posted November 29, 2016 Preferences --> IASL Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326275 Share on other sites More sharing options...

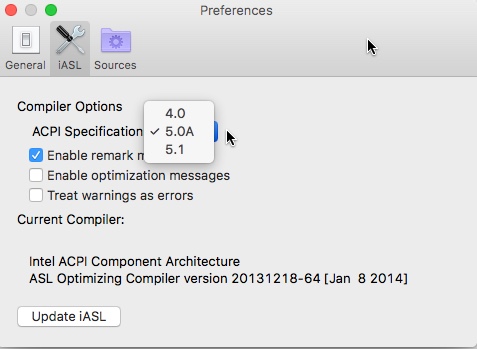

tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 I haven't got this presentation! maybe I've got and old version of MaciASL. in "about maciasl" I've "Version 1.4 (269)" and when I got to MaciASL preference I don't find 6.1 but if I go in application folder, right click on MacIASL.app, contents of the package, contents, macOS I see Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326286 Share on other sites More sharing options...
SavageAUS Posted November 29, 2016 Share Posted November 29, 2016 You need new version. https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/RehabMan-MaciASL-2016-0423.zip Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326292 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 ok thanks! I've download last version of maciasl and now I've got 6.1 I extract new DSDT via clover and f4 at boot. I use iasl in terminal and after open my DSDT.dsl with new macasli, I've got error when I compile! just 2 errors! how can I correct those Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326302 Share on other sites More sharing options...
limurphy Posted November 29, 2016 Share Posted November 29, 2016 Just delete the whole Zero's lines at two error areas. Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326307 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 Ok. now I haven't got errors but 124 warnings 199 remarks 208 optimizations 4 constant folded Normal?? Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326328 Share on other sites More sharing options...
SavageAUS Posted November 29, 2016 Share Posted November 29, 2016 Yes normal. No need to worry about anything except errors. What are you trying to patch? Battery? Backlight? Disable nvidia? Sent from my SM-G930F using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326329 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 ok i replace DSDT with the new and boot OK I want to be able to boot with my graphics board Intel HD graphics 5500. My laptop computer possesses Intel HD graphics 5500 and a card Nvidia geforce 920 and I know that I cannot run 2 graphics boards but I do not manage to make him Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326335 Share on other sites More sharing options...
tsunamy35 Posted November 29, 2016 Author Share Posted November 29, 2016 I get 2 errors when decompiling altogether which are easy to fix. What are you trying to accomplish with your DSDT/SSDT? That guide is for 10.10? Are you installing Yosemite, El Capitan or Sierra? Your graphics can be done by using the config_HD5300_5500_6000.plist HERE by Rehabman. I try config_HD5300_5500_6000.plist. i rename to config.plist et put into efi efi clover and reboot but I've got a kernel panic And laptop reboot Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326409 Share on other sites More sharing options...
SavageAUS Posted November 30, 2016 Share Posted November 30, 2016 Have you made changes to your bios for Mac OS? Sent from my SM-G930F using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326697 Share on other sites More sharing options...
tsunamy35 Posted November 30, 2016 Author Share Posted November 30, 2016 I have make some changes: Disable Secure boot Disable Intel virtualization technology Disable Intel AES-NI Disable VT-D And i can change DVTM of my Graphics card to: 32mb 64mb 128mb 256mb 512mb I try all values but dont work. And By default I put 128mb Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326788 Share on other sites More sharing options...
SavageAUS Posted November 30, 2016 Share Posted November 30, 2016 http://www.insanelymac.com/forum/topic/315118-intel-hd-5500-bios-lock-dvmt-kernel-panic-at-sierra-gm/ Try changing these. ig-platform-id=0x16160002 or 0x16160000 Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326791 Share on other sites More sharing options...

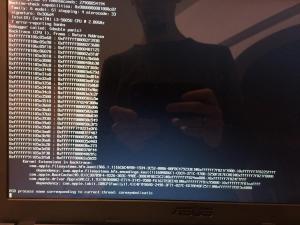

tsunamy35 Posted November 30, 2016 Author Share Posted November 30, 2016 Same problem, when i boot -v just before Kernel panic boot stop at line [iGPU] Scheduller Throttle cap =100ms Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326799 Share on other sites More sharing options...
SavageAUS Posted November 30, 2016 Share Posted November 30, 2016 Have you Googled that error?I only have Haswell graphics in my laptop so broadwell is above my knowledge sorry.Sent from my SM-G930F using Tapatalk http://www.insanelymac.com/forum/topic/311494-os-x-el-capitan-10114-skylake-intel-hd-graphics-general-discussion/ Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2326808 Share on other sites More sharing options...
tsunamy35 Posted November 30, 2016 Author Share Posted November 30, 2016 Yes i've search on Google but no result very interessant An idea ? Link to comment https://www.insanelymac.com/forum/topic/318422-unexpected-parseop_nameseg-expecting/#findComment-2327003 Share on other sites More sharing options...
