paulisthebest3uk Posted November 5, 2016 Share Posted November 5, 2016 Ive been trying for days to get my wifi working under Sierra, using PatchBram2.kext and FakePCIID.kext but no luck. Bluetooth works fine. Anything i should know to get it to work. It used to work in both Yosemite and EL Capitan. OSX Sierra 10.12.0 Thank you Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/ Share on other sites More sharing options...
Denicio Posted November 5, 2016 Share Posted November 5, 2016 Ive been trying for days to get my wifi working under Sierra, using PatchBram2.kext and FakePCIID.kext but no luck. Bluetooth works fine. Anything i should know to get it to work. It used to work in both Yosemite and EL Capitan. OSX Sierra 10.12.0 Thank you Add this to your config.plist on KextsToPatch <dict> <key>Comment</key> <string>BCM94352HMB Sierra Fix (darkvoid)</string> <key>Disabled</key> <false/> <key>Find</key> <data> gflSqgAAdSk= </data> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> gflSqgAAZpA= </data> </dict> And the attached kext to EFI/CLOVER/kexts/10.12 or /other BCM94352Injector.kext.zip Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314341 Share on other sites More sharing options...
paulisthebest3uk Posted November 5, 2016 Author Share Posted November 5, 2016 Darn unfortunately that didn't work either. Driving me nuts lol as I've been at it for days now. THE Vendor is 14E4 and the Device is 43B1. Don't know if thats useful. I can't understand it as it was working ok in EL CAP. Is FakePCIID compatible with Sierra 10.12.0? Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314362 Share on other sites More sharing options...
UltraLaser Posted November 5, 2016 Share Posted November 5, 2016 Darn unfortunately that didn't work either. Driving me nuts lol as I've been at it for days now. THE Vendor is 14E4 and the Device is 43B1. Don't know if thats useful. I can't understand it as it was working ok in EL CAP. Is FakePCIID compatible with Sierra 10.12.0? First delete the kext u have in SLE : - FakePCIID_Broadcom_WiFi.kext - FakePCIID.kext Second : install this file that I enclose Third use this in clover (kexts to patch) Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7065553EB2B Comment : 10.11-BCM94352-5GHz-US-FCC-dv Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7062361EB2B Comment : 10.11-BCM94352-CC=#a-Ramalama Name : AirPortBrcm4360 Find : 6B100000750D Replace : 6B1000009090 Comment : 10.11-BCM94352-Airport-Extreme Name : AirPortBrcm4360 Find : 81F952AA00007529 Replace : 81F952AA00006690 Comment : 10.12-BCM94352-5GHz-US-FCC-dv Name : IOBluetoothFamily Find : 4885FF7447488B07 Replace : 41BE0F000000EB44 Comment : 10.11-BT4LE-Handoff-Hotspot-lisai9093 IO80211Family.kextGIA_PATCH.zip 2 Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314386 Share on other sites More sharing options...
paulisthebest3uk Posted November 6, 2016 Author Share Posted November 6, 2016 Wow UltraLaser thanks a lot, I tried your method with your patched kext and clover patches and have got some success. Wifi now works! But bluetooth still has an issue. No bluetooth hardware found in System Report. Im using SMBIOS MacBook 7,1, don't know if thats revenant Wow UltraLaser thanks a lot, I tried your method with your patched kext and clover patches and have got some success. Wifi now works! But bluetooth still has an issue. No bluetooth hardware found in System Report. Im using SMBIOS MacBook 7,1, don't know if thats revenant Its ok i sorted it. Thanks everyone! Really appreciated! Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314668 Share on other sites More sharing options...
AalphaFox78 Posted November 6, 2016 Share Posted November 6, 2016 First delete the kext u have in SLE : - FakePCIID_Broadcom_WiFi.kext - FakePCIID.kext Second : install this file that I enclose Third use this in clover (kexts to patch) Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7065553EB2B Comment : 10.11-BCM94352-5GHz-US-FCC-dv Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7062361EB2B Comment : 10.11-BCM94352-CC=#a-Ramalama Name : AirPortBrcm4360 Find : 6B100000750D Replace : 6B1000009090 Comment : 10.11-BCM94352-Airport-Extreme Name : AirPortBrcm4360 Find : 81F952AA00007529 Replace : 81F952AA00006690 Comment : 10.12-BCM94352-5GHz-US-FCC-dv Name : IOBluetoothFamily Find : 4885FF7447488B07 Replace : 41BE0F000000EB44 Comment : 10.11-BT4LE-Handoff-Hotspot-lisai9093 I was using the SSDT for wifi but this works too. however, still don't have handoff working correctly. I get handoff from Mac to iPhone, hotspot works, airdrop works, but no handoff from iPhone to Mac. my Apple Watch will cause air drop to pop up in the status bar but when I click it it reports handoff could not be completed. thoughts? Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314824 Share on other sites More sharing options...
whityini Posted November 6, 2016 Share Posted November 6, 2016 I have a different issue. My wifi and BT are working correctly but the Airport is recognised as a Brcm4331 and not as a Brcm4360. My wifi device is 14e4,432b. I haven't find a way to fix this. Anyone can help me? Do you think this method could work also for my wifi device? Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314840 Share on other sites More sharing options...
UltraLaser Posted November 6, 2016 Share Posted November 6, 2016 I have a different issue. My wifi and BT are working correctly but the Airport is recognised as a Brcm4331 and not as a Brcm4360. My wifi device is 14e4,432b. I haven't find a way to fix this. Anyone can help me? Do you think this method could work also for my wifi device? Hmmm.. try this kext, and in clover add this into devices -> WIFI : 0x43a014E4 And add the patch Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7065553EB2B Comment : 10.11-BCM94352-5GHz-US-FCC-dv Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7062361EB2B Comment : 10.11-BCM94352-CC=#a-Ramalama Name : AirPortBrcm4360 Find : 6B100000750D Replace : 6B1000009090 Comment : 10.11-BCM94352-Airport-Extreme Name : AirPortBrcm4360 Find : 81F952AA00007529 Replace : 81F952AA00006690 Comment : 10.12-BCM94352-5GHz-US-FCC-dv Name : IOBluetoothFamily Find : 4885FF7447488B07 Replace : 41BE0F000000EB44 Comment : 10.11-BT4LE-Handoff-Hotspot-lisai9093 IO80211Family.kext.zip Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2314885 Share on other sites More sharing options...

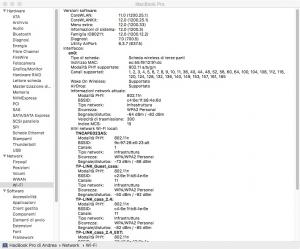

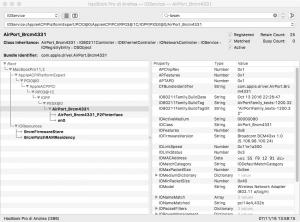

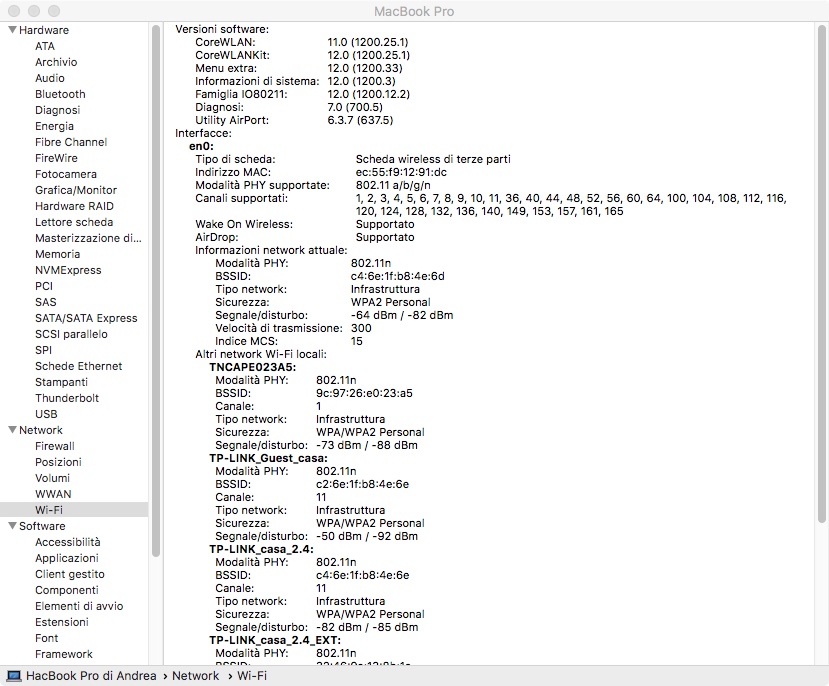

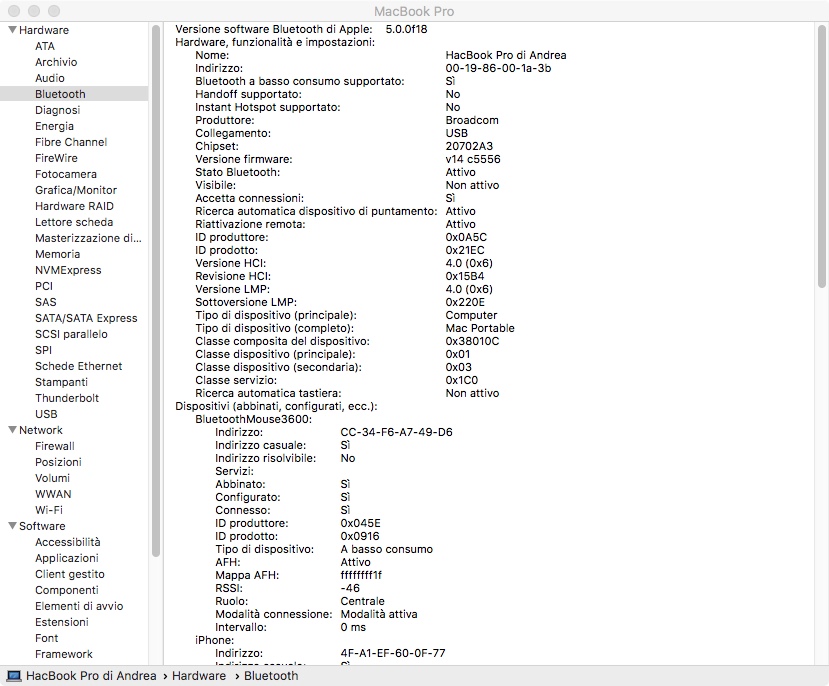

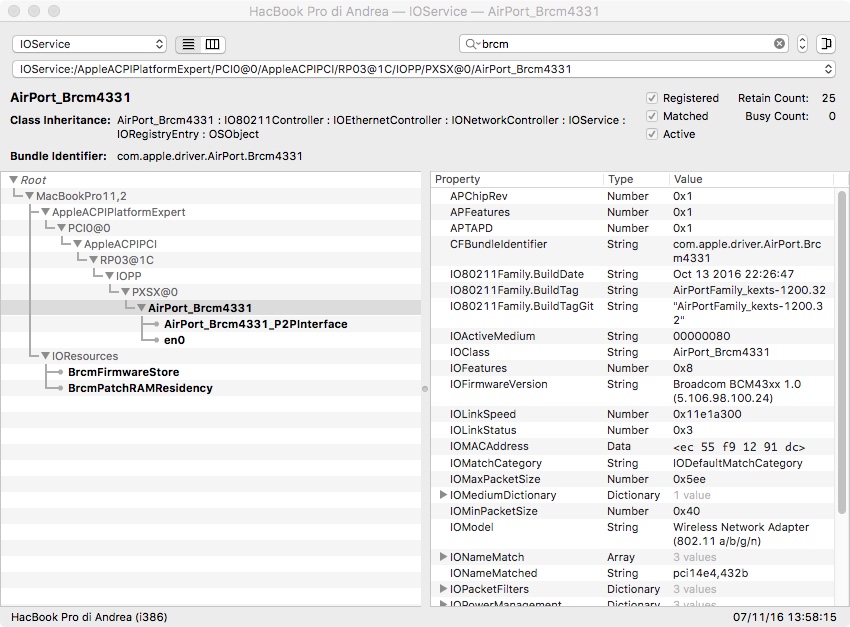

whityini Posted November 7, 2016 Share Posted November 7, 2016 Thank you UltraLaser, I have applied your suggestions and system is working, included wifi and bt, but now my wifi device is recognised into the system information as a third party wireless device while into the IORegistry is again a Brcm4331 (see the attached images, sorry for the Italian language!!). Obviously handoff/hotspot is not working. Do you have any other idea? Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2315091 Share on other sites More sharing options...
toleda Posted November 8, 2016 Share Posted November 8, 2016 IORegistry is again a Brcm4331 Obviously handoff/hotspot is not working. Do you have any other idea? You posted in a 4352 thread; your Wifi is not 4352. All 4352 patches applied to your wifi card are ignored. No idea if CAT patches Airport_Brcm4331.kext Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2315820 Share on other sites More sharing options...
dsreyes1014 Posted April 26, 2017 Share Posted April 26, 2017 First delete the kext u have in SLE : - FakePCIID_Broadcom_WiFi.kext - FakePCIID.kext Second : install this file that I enclose Third use this in clover (kexts to patch) Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7065553EB2B Comment : 10.11-BCM94352-5GHz-US-FCC-dv Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7062361EB2B Comment : 10.11-BCM94352-CC=#a-Ramalama Name : AirPortBrcm4360 Find : 6B100000750D Replace : 6B1000009090 Comment : 10.11-BCM94352-Airport-Extreme Name : AirPortBrcm4360 Find : 81F952AA00007529 Replace : 81F952AA00006690 Comment : 10.12-BCM94352-5GHz-US-FCC-dv Name : IOBluetoothFamily Find : 4885FF7447488B07 Replace : 41BE0F000000EB44 Comment : 10.11-BT4LE-Handoff-Hotspot-lisai9093 Hey Ultralaser I followed these steps and installed the kext in EFI/Clover/kexts/other along with patching in Clover Configurator and got wifi working but I can't get bluetooth working for this card (BCM94352HMB). I'm not very familiar with this so I just started learning how all this works. Link to comment https://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/#findComment-2412572 Share on other sites More sharing options...
