michaelspeed Posted October 15, 2016 Share Posted October 15, 2016 i have a - dell 5559 i3 6100u 8Gb RAM 500GB HDD Intel HD 520 i have created 10.12 installer with pandora's box. build clover configs, boots the installer but cannot detect the internal HDD. I tried a lot of options but cannot figure out. i have attached the Clover config. available here also - https://github.com/michaelspeed/dell-5559-i3-Skylake can anyone help me. Tried AHCIPortInjector.kext (not working) P.S - BIOS configs - Secure Boot = disabled SATA Operation = AHCI SATA Options = SATA-0 and SATA-1(tried all the combinations) LEGACY MODE = enabled/disabled(both boots the installer but cannot detect HDD) CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/ Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Is the hfs.efi in your clover / drivers64 folder? Sent from my SM-G900I using Tapatalk Nevermind I see that it is. Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300097 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Is the hfs.efi in your clover / drivers64 folder? Sent from my SM-G900I using Tapatalk Nevermind I see that it is. Sent from my SM-G900I using Tapatalk I have HFSPlus.efi in Drive64UEFI. although the HDD came with Ubuntu installed. i have not formated it. Diskutil list also does not show the HDD Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300098 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Can you wipe the drive with a Ubuntu live dvd/usb with parted? Create a new partition table (guid) and format to to hfs. Sent from my SM-G900I using Tapatalk If the drive is ext3/4 that could be why you can't see it. Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300101 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 ok will try this Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300104 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Can you wipe the drive with a Ubuntu live dvd/usb with parted? Create a new partition table (guid) and format to to hfs. Sent from my SM-G900I using Tapatalk If the drive is ext3/4 that could be why you can't see it. Sent from my SM-G900I using Tapatalk No luck. full erased the HDD, created a 300Mb efi and 500Gb hfs+. still cannot detect the HDD PS - partition table is GPT Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300110 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Have you got another hdd to test? Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300113 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Have you got another hdd to test? Sent from my SM-G900I using Tapatalk I have a external HDD. let me test Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300119 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Have you tried without SATA-100-series-unsupported.kext? And you dont need kexts in 10.12 and other folder. Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300122 Share on other sites More sharing options...

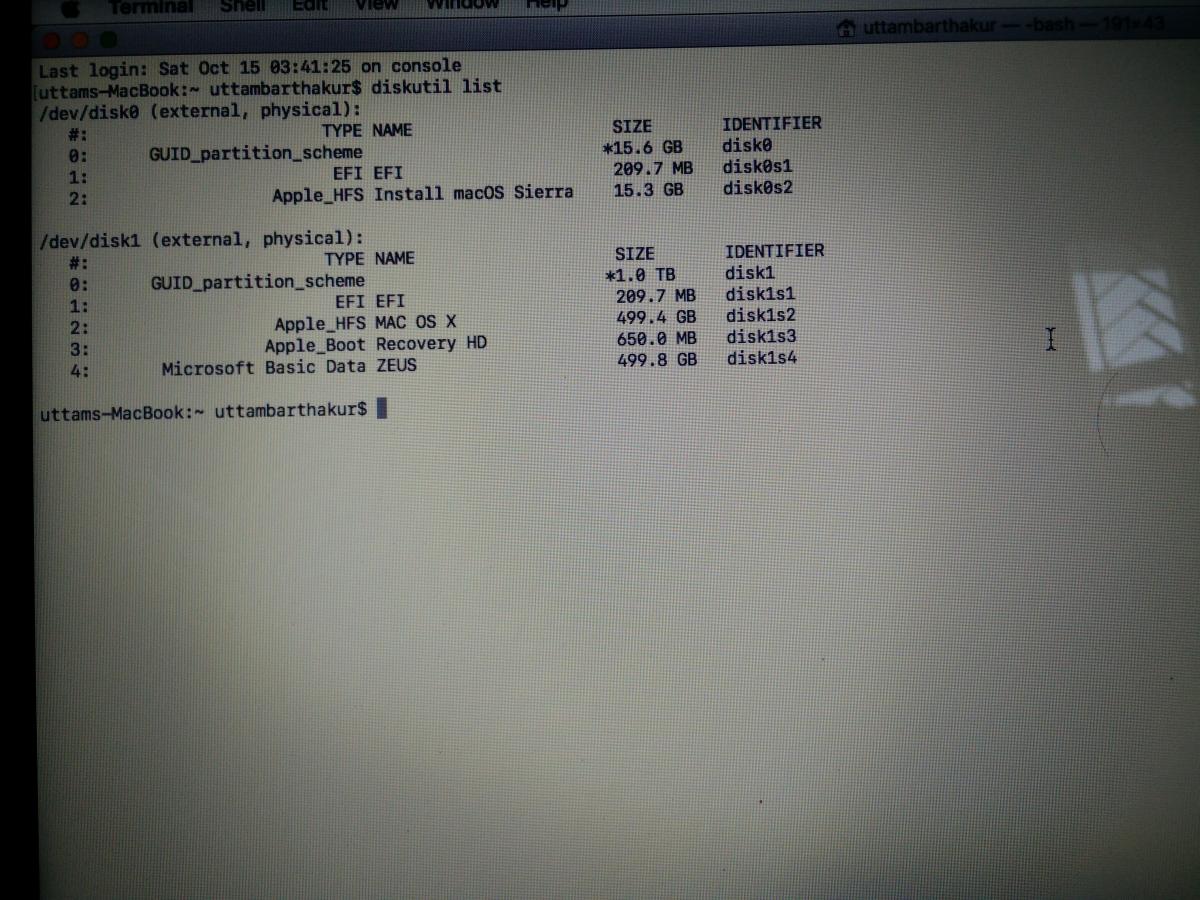

michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Have you got another hdd to test? Sent from my SM-G900I using Tapatalk external HDD detected, but no internal HDD Have you tried without SATA-100-series-unsupported.kext? And you dont need kexts in 10.12 and other folder. where do i put the kext? in the others or in the 10.12? Have you tried without SATA-100-series-unsupported.kext? And you dont need kexts in 10.12 and other folder. remove the SATA-100-series kext but still no HDD Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300125 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 external HDD detected, but no internal HDD where do i put the kext? in the others or in the 10.12? remove the SATA-100-series kext but still no HDD It shouldn't matter which one but pick one, i use 10.12. Also eliminate all un needed kexts except fakesmc and ApplePS2SmartTouchPad and try again Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300133 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 It shouldn't matter which one but pick one, i use 10.12. Also eliminate all un needed kexts except fakesmc and ApplePS2SmartTouchPad and try again i have kernel panic like this, and i cannot read the reason coz the screen just has broken letters(something like a display glitch) but the last line i m pretty sure is "waiting for root device" Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300139 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Ok put back usbinjectall kext with the other 2 and try again. Also check all bios settings again. Serial port disabled, ahci, xhci etc. Sent from my SM-G900I using Tapatalk Also make sure kexts are up to late with the latest ones and update clover if needed. Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300160 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Ok put back usbinjectall kext with the other 2 and try again. Also check all bios settings again. Serial port disabled, ahci, xhci etc. Sent from my SM-G900I using Tapatalk yes i put the usbinjectall and genericUSBXHCI i do not have any serial port disabler in the SATA options i only have AHCI and disabled options. also no mentions on xhci anywhere PS- clover updated and also all kext are up to date Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300163 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 I'm unsure about posting links to other sites on here but maybe google dell 5559 hackintosh. Also read up on skylake hackintosh as they require ioapic patch as well. Also renaming hdas to hdef and the usb patches for skylake. Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300164 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 I'm unsure about posting links to other sites on here but maybe google dell 5559 hackintosh. Also read up on skylake hackintosh as they require ioapic patch as well. Also renaming hdas to hdef and the usb patches for skylake. Sent from my SM-G900I using Tapatalk if you are pointing at rehabman's site i went through it all cannot find any relevance, can you send me any links @. r.changmai@icloud.com Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300167 Share on other sites More sharing options...
artur_pt Posted October 15, 2016 Share Posted October 15, 2016 hello probably u need a ahci injector with ur ahci controller dev id .. maybe is not present in apple kext good hack Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300170 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 hello probably u need a ahci injector with ur ahci controller dev id .. maybe is not present in apple kext good hack can you give me any link to how to do that? although i have tested the default ahci injector it does not work Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300172 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Is your hdd in raid mode? Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300176 Share on other sites More sharing options...
michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Is your hdd in raid mode? Sent from my SM-G900I using Tapatalk i dont think its in raid as the SATA controller has only AHCI or disabled options. NO raid options in bios also Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300179 Share on other sites More sharing options...
artur_pt Posted October 15, 2016 Share Posted October 15, 2016 hello sure it don't work .. is old and don't have ur dev id try edit the injector and insert there ur dev id or try to use the fake id clover feature insert there 0x021E8086 <key>SATA</key> <string>0x25628086</string> good hack Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300184 Share on other sites More sharing options...
SavageAUS Posted October 15, 2016 Share Posted October 15, 2016 Can you post screen shots of all bios pages plz. Sent from my SM-G900I using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300185 Share on other sites More sharing options...

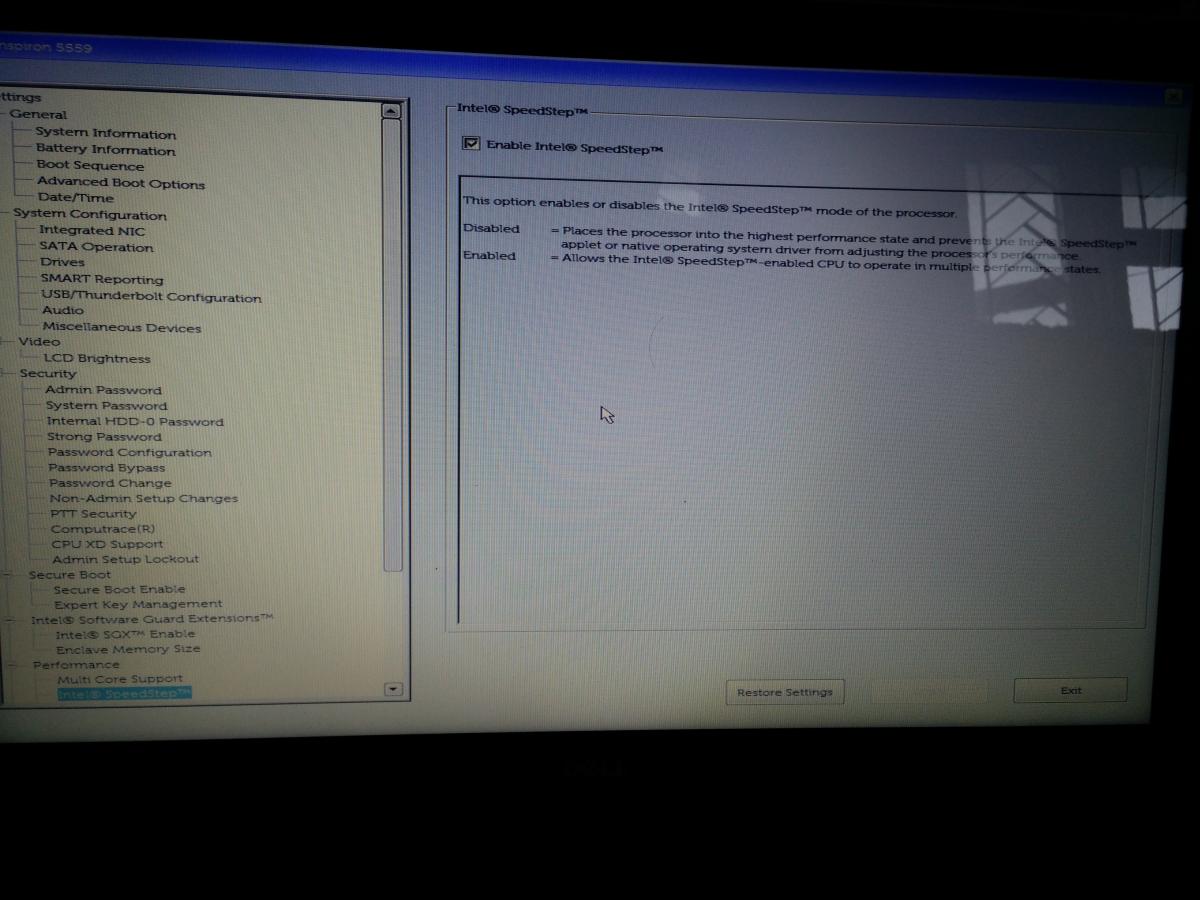

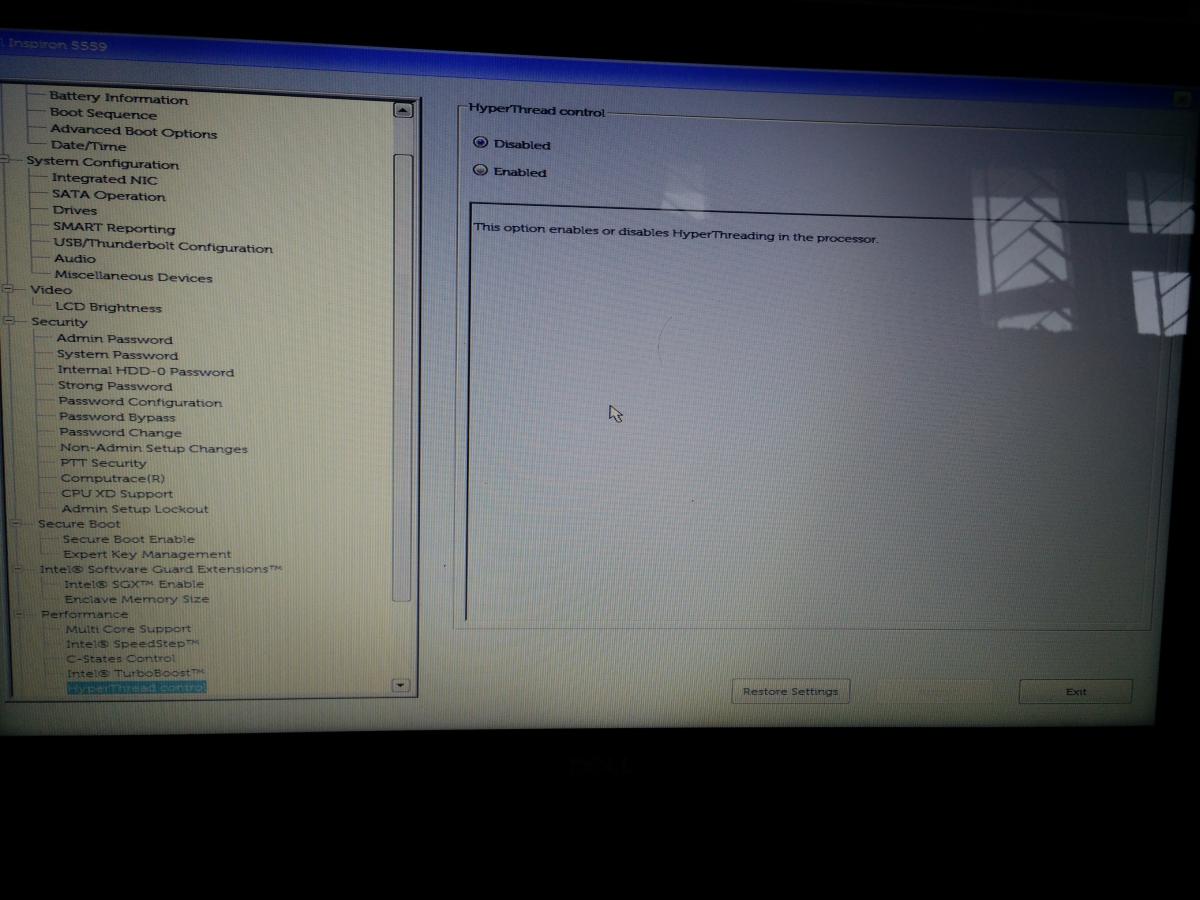

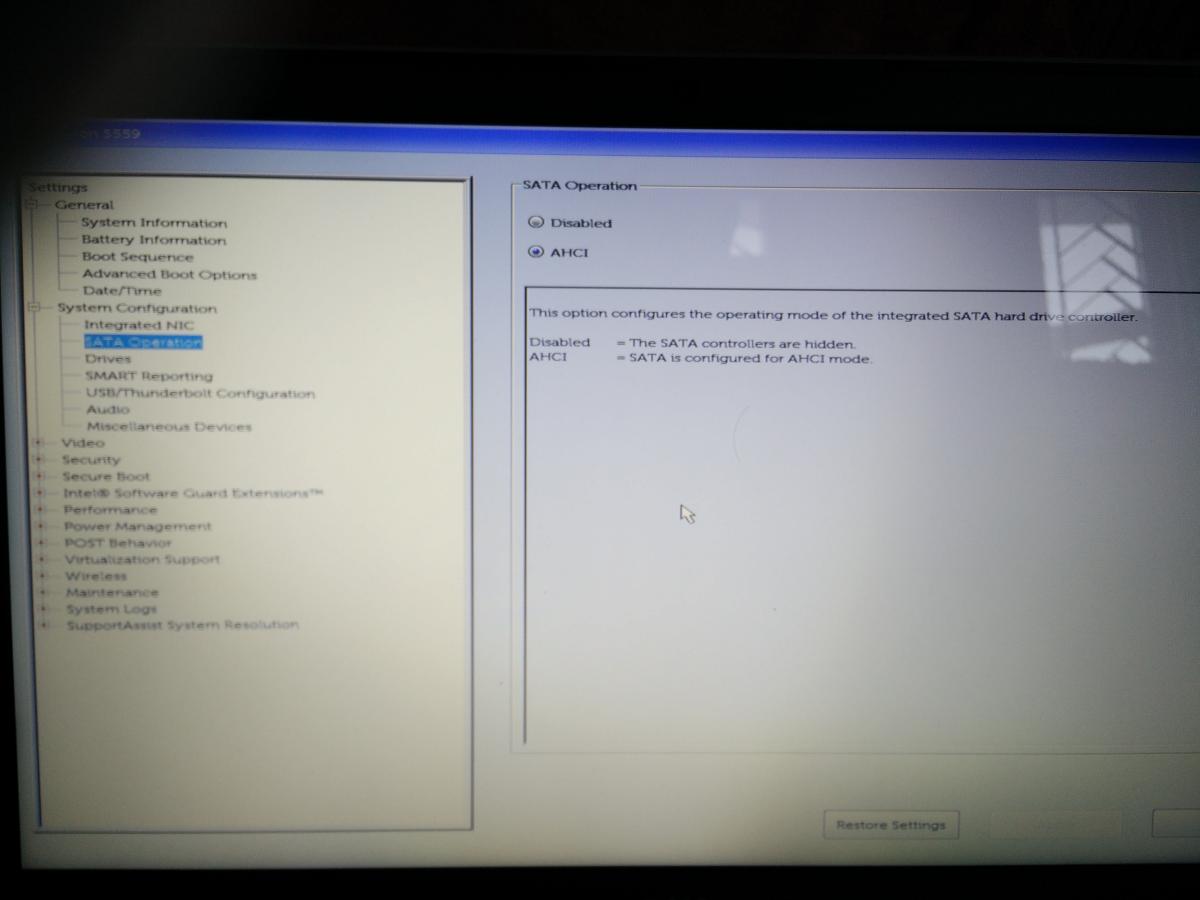

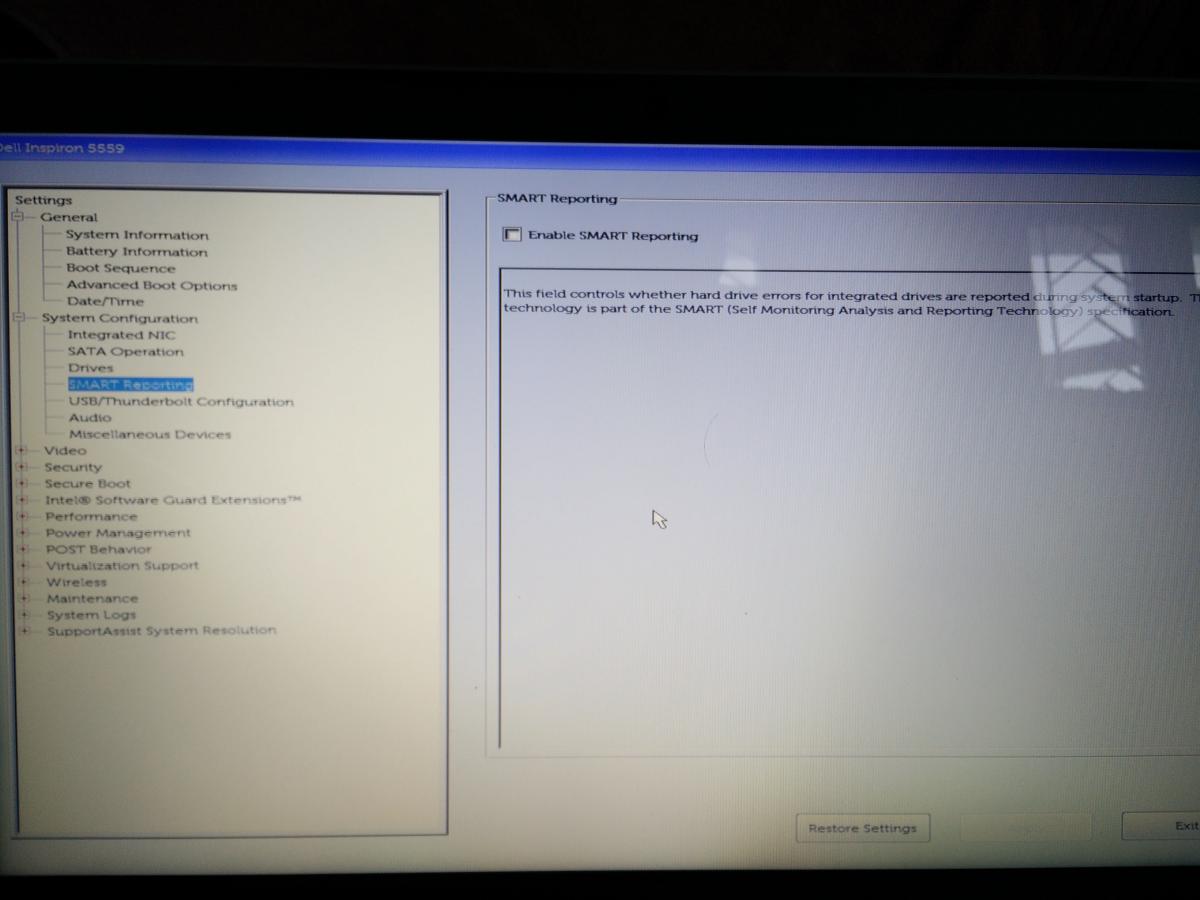

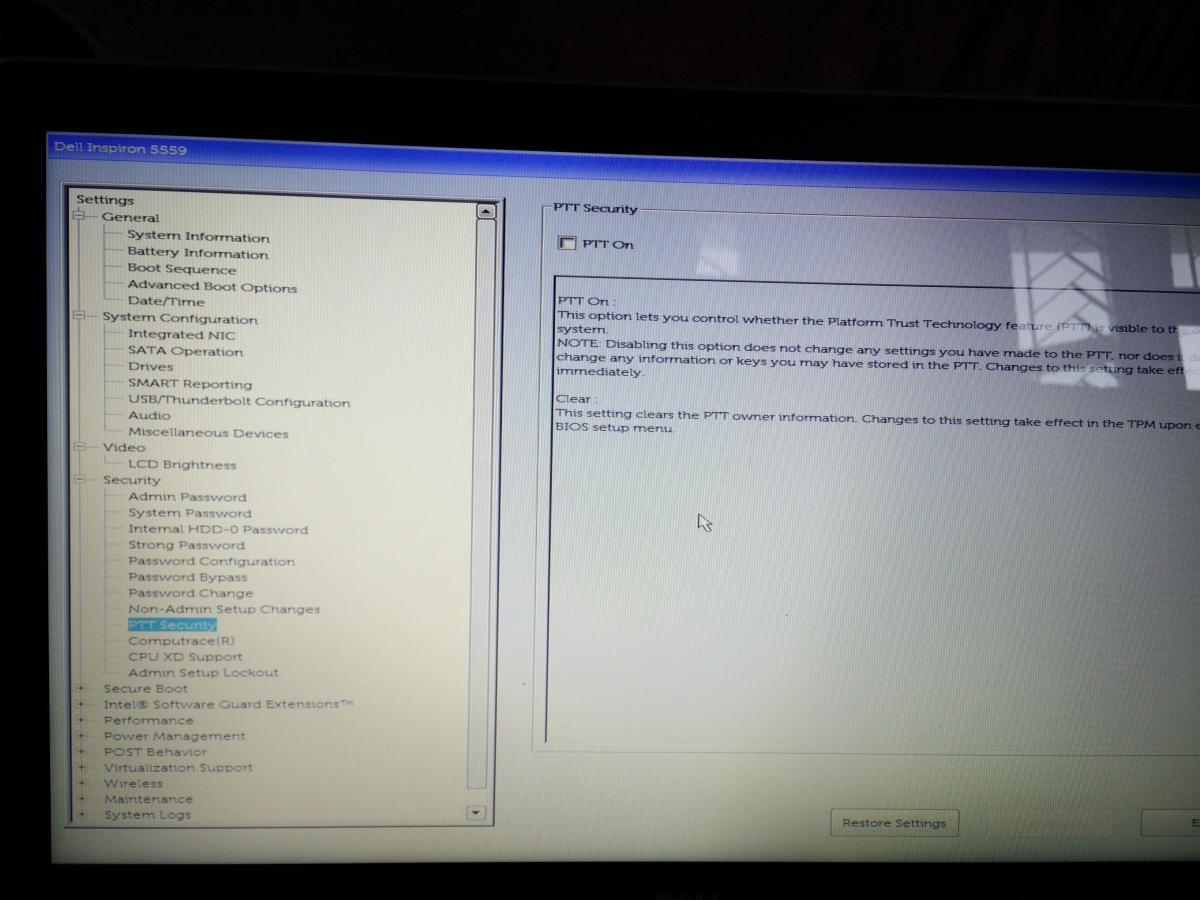

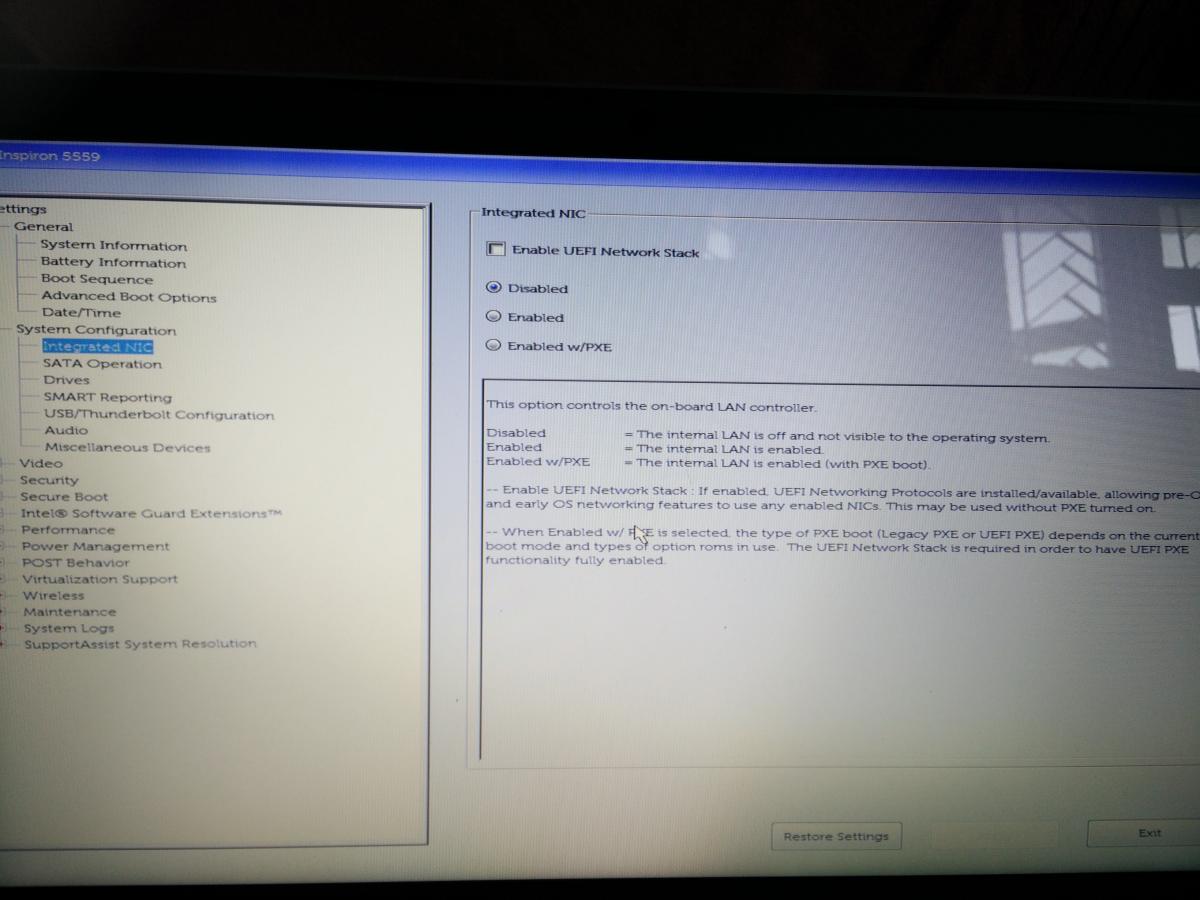

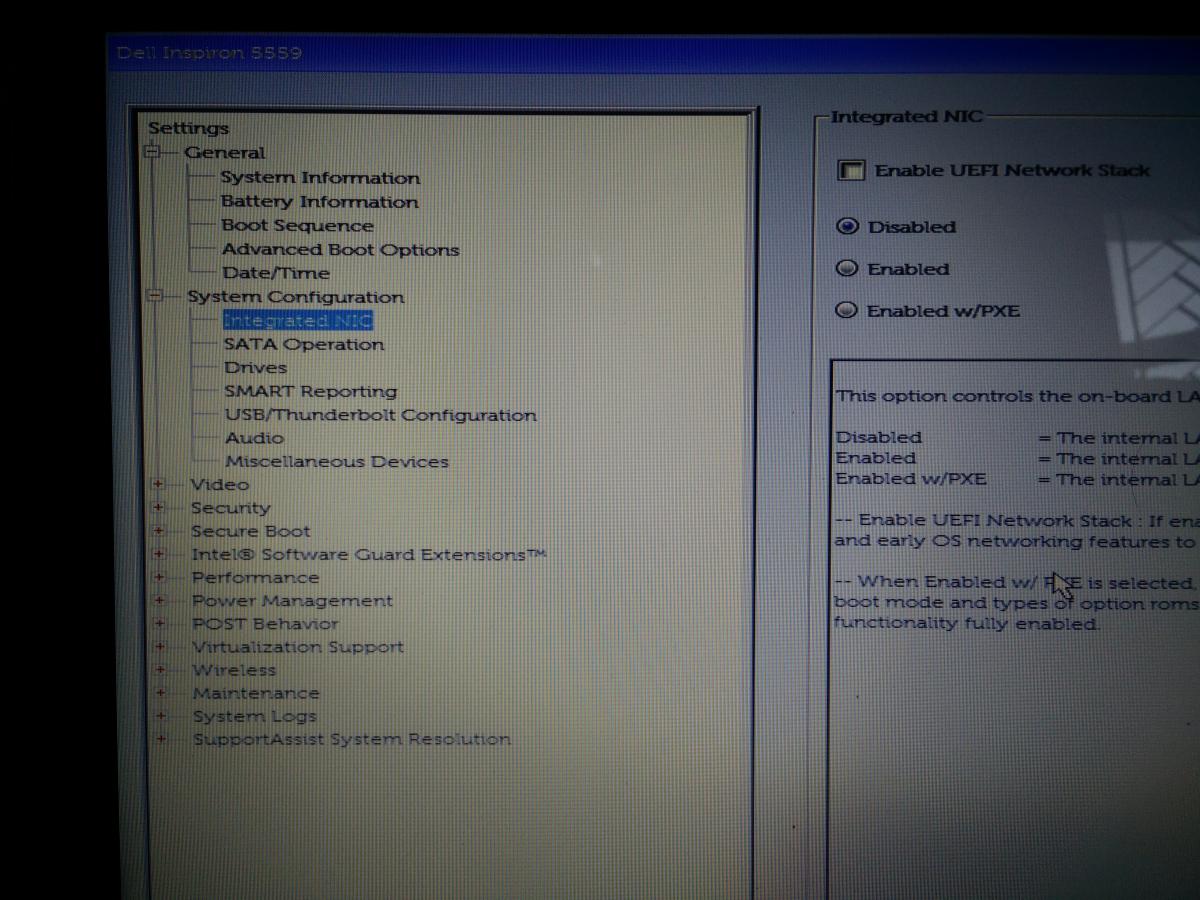

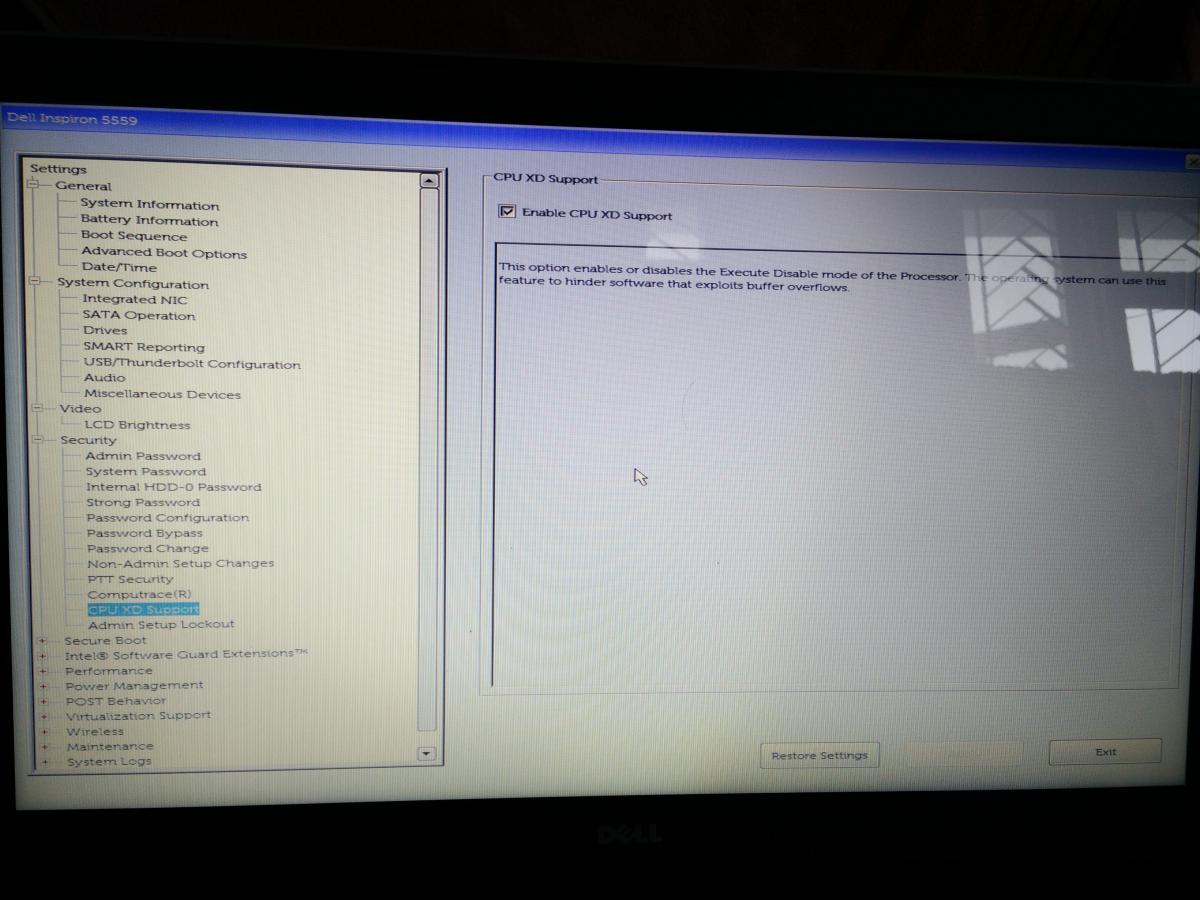

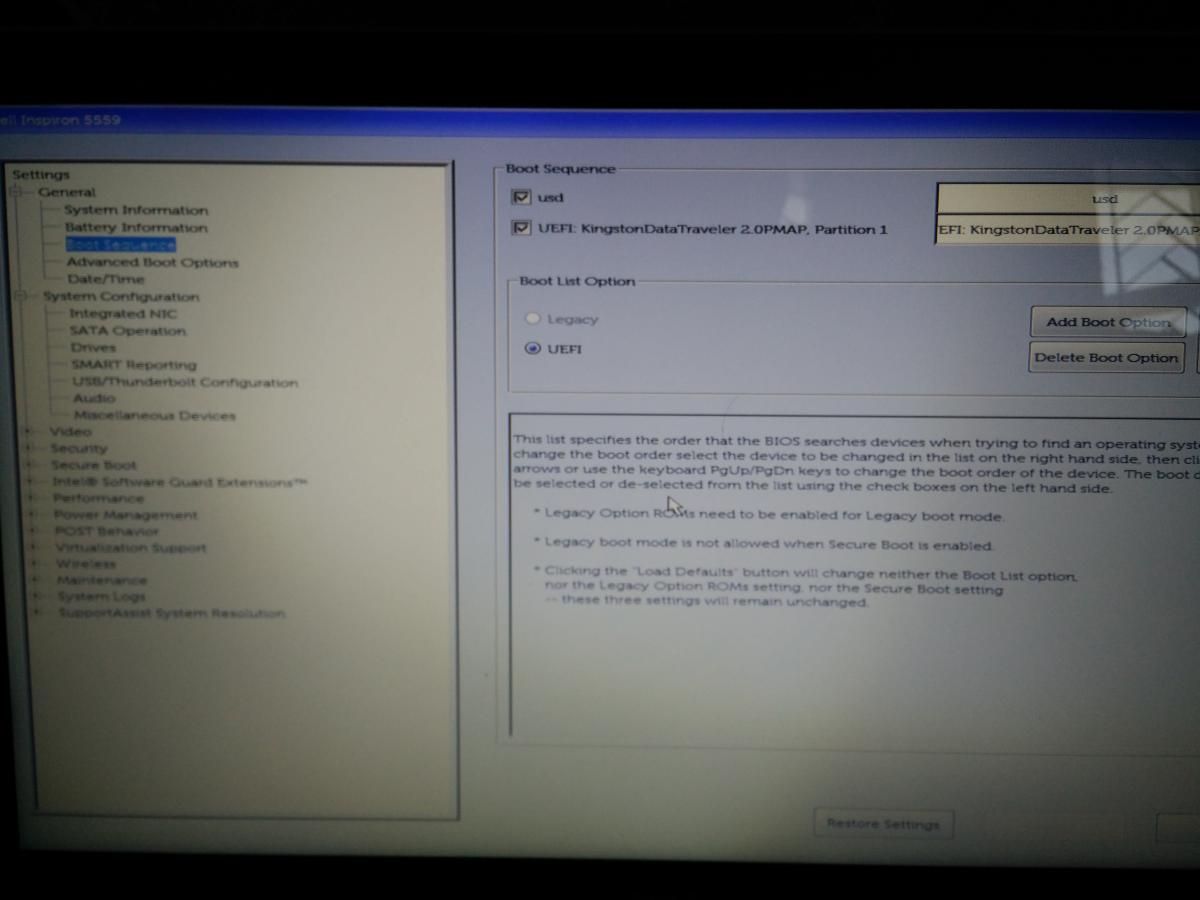

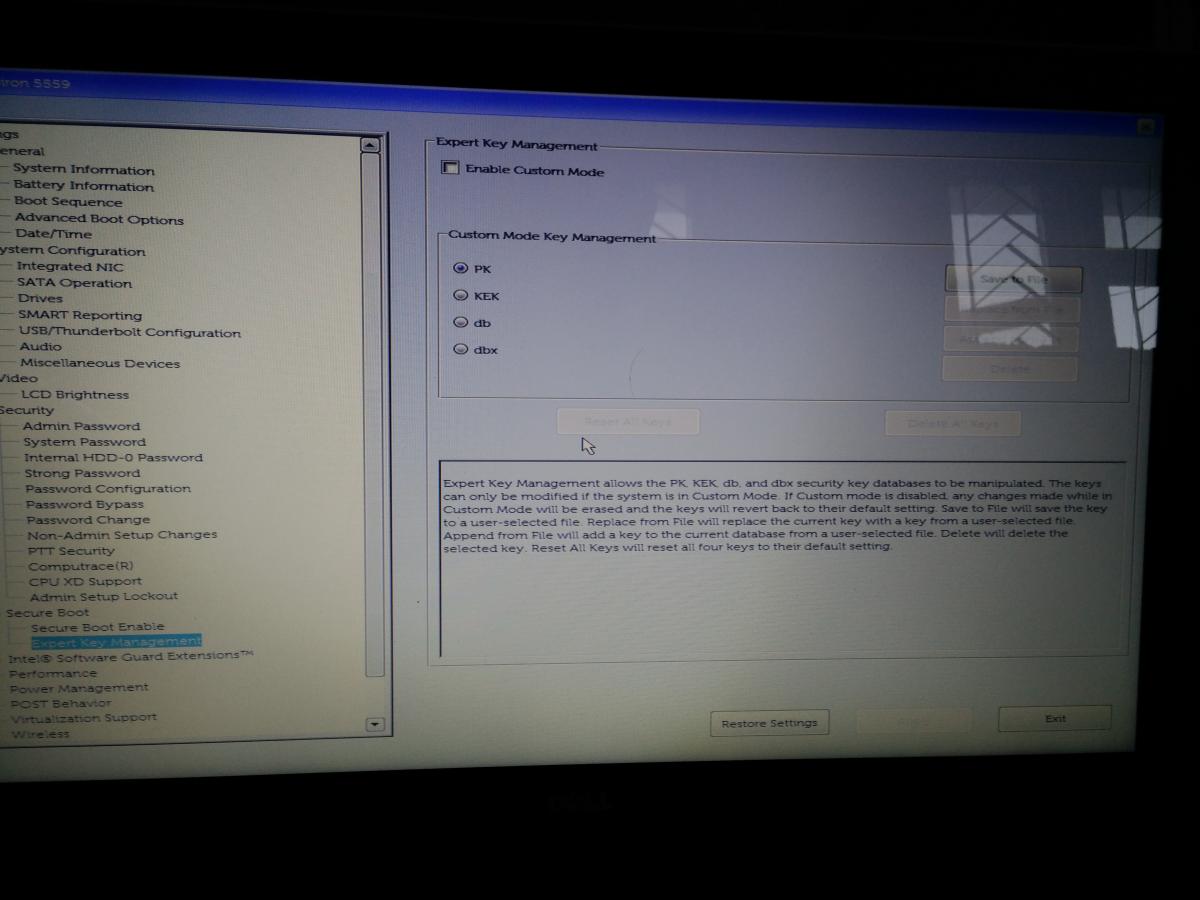

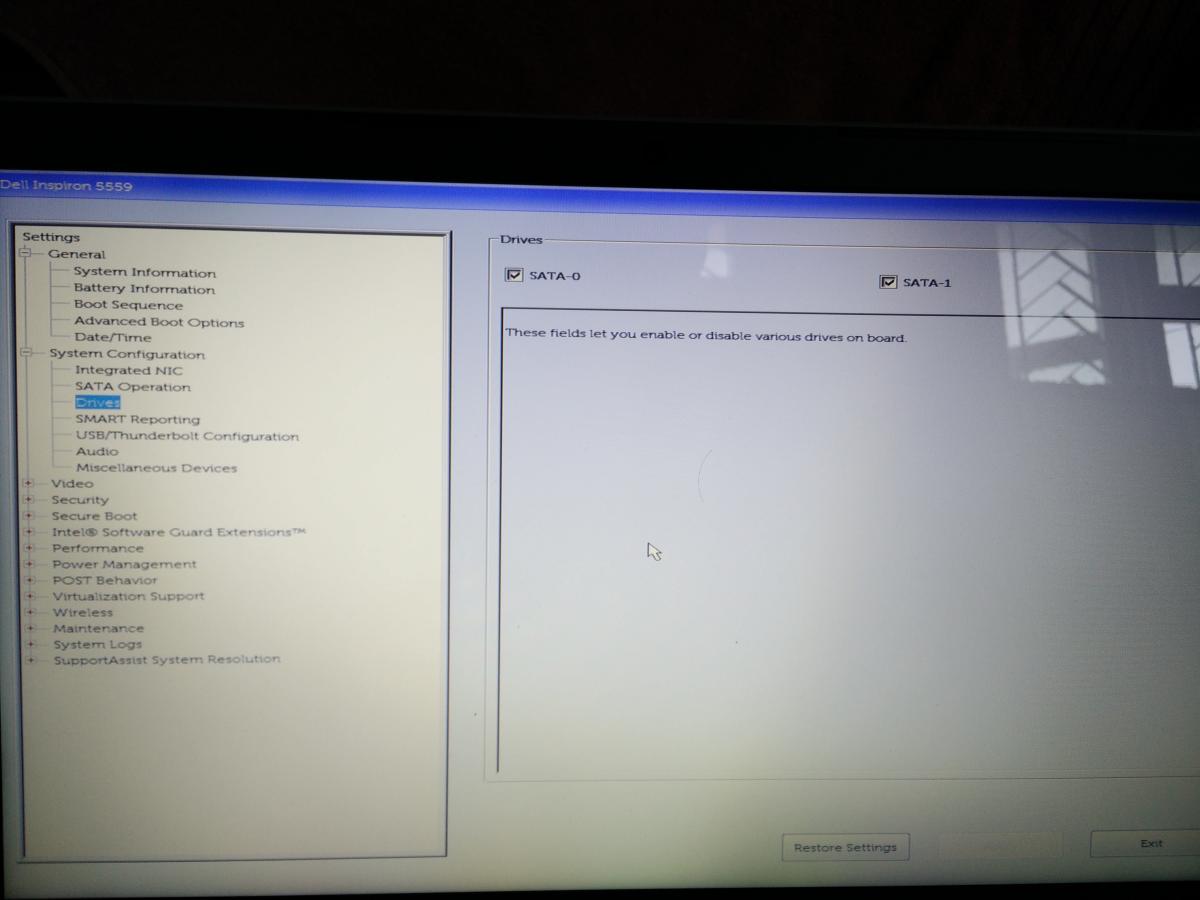

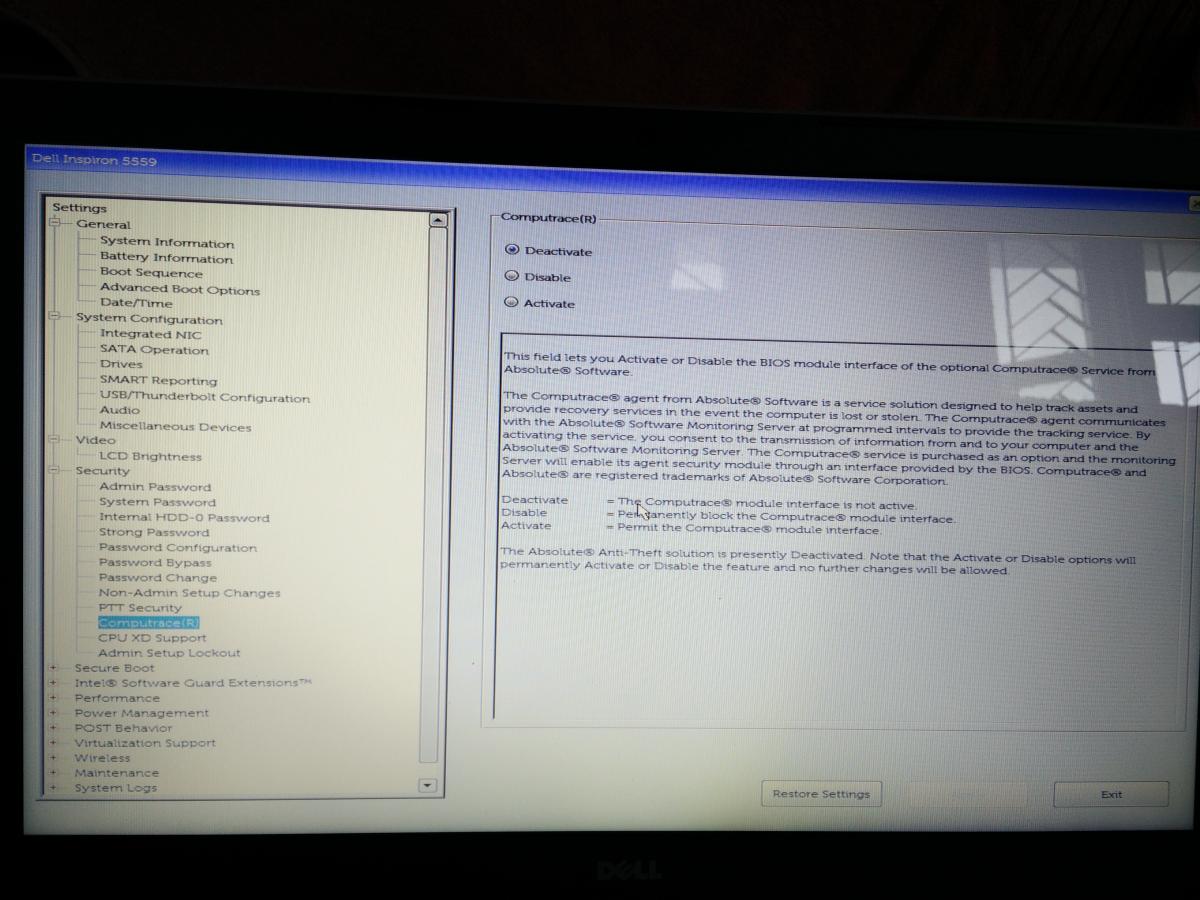

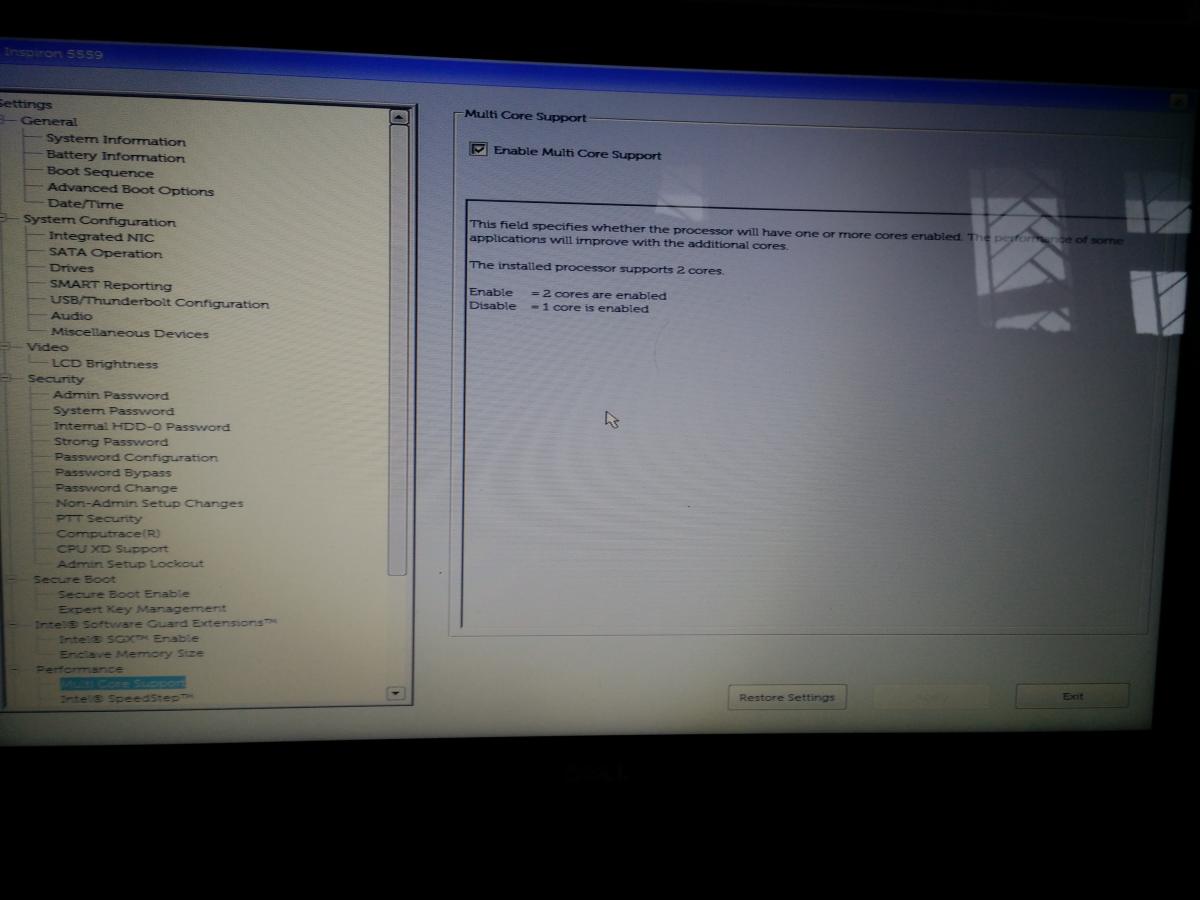

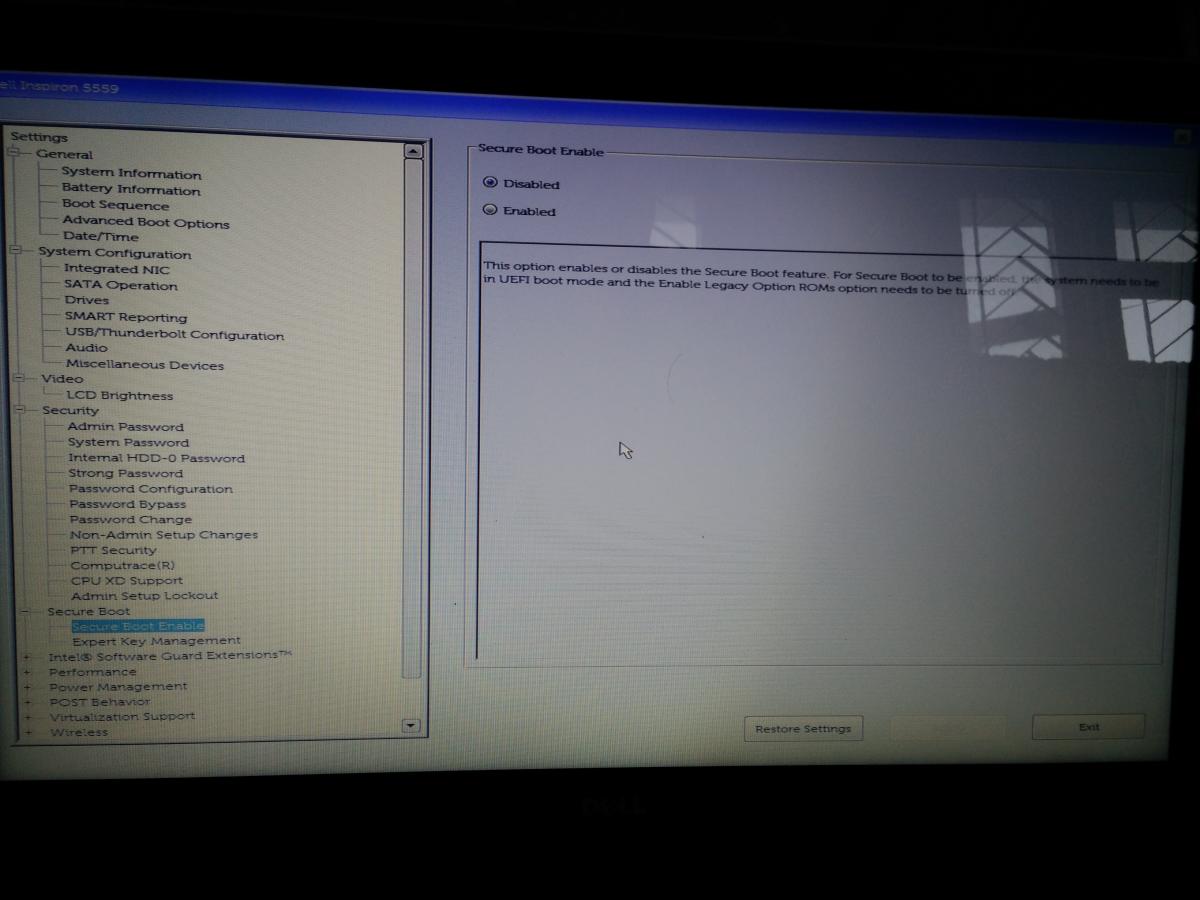

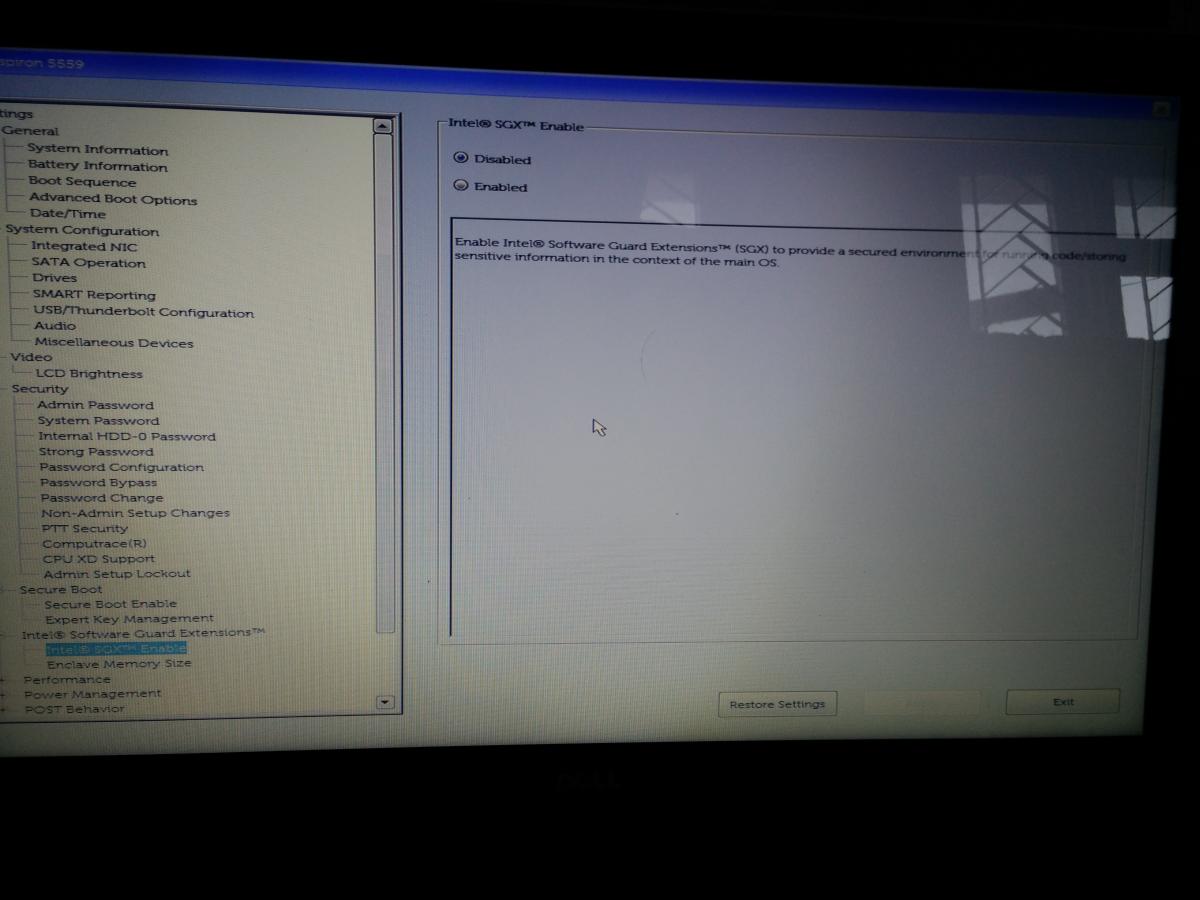

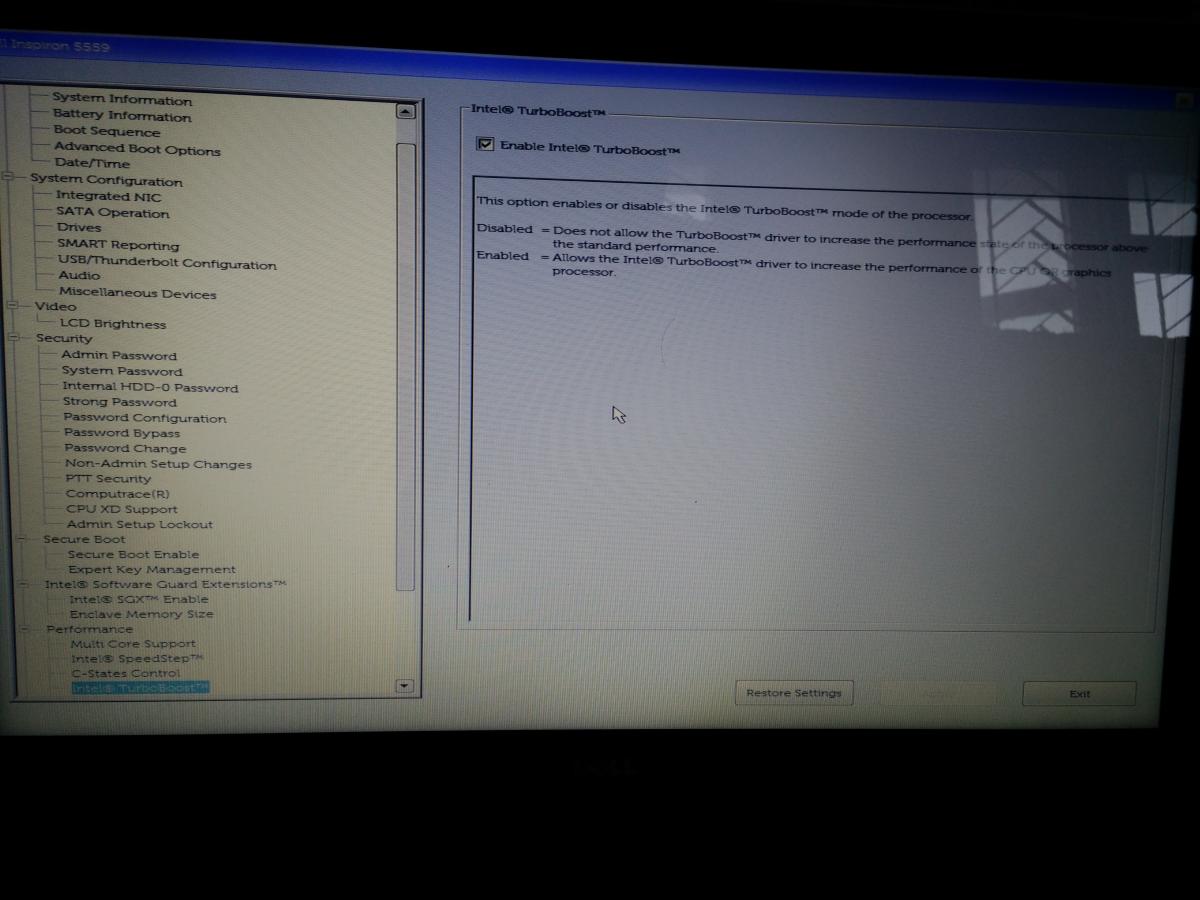

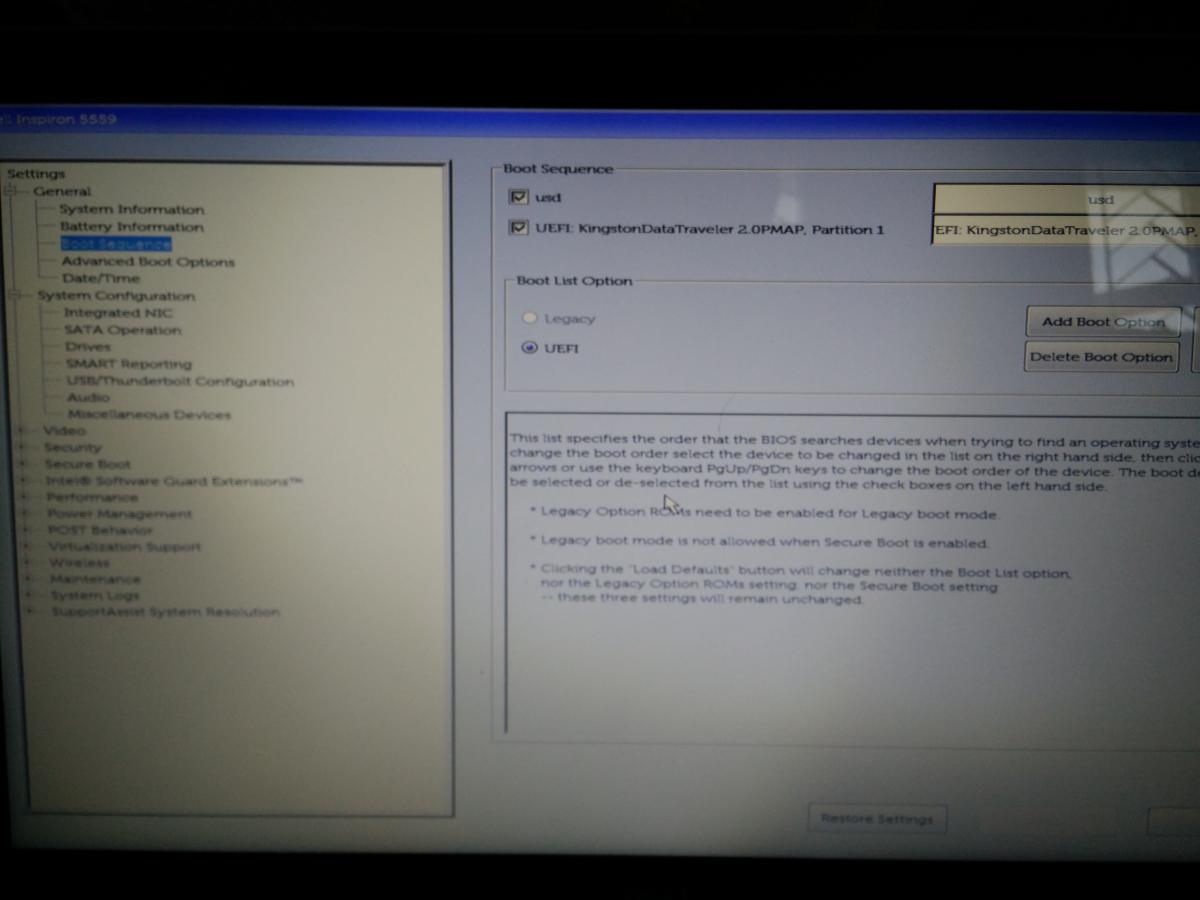

michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 Can you post screen shots of all bios pages plz. Sent from my SM-G900I using Tapatalk here are the screen shots hello sure it don't work .. is old and don't have ur dev id try edit the injector and insert there ur dev id or try to use the fake id clover feature insert there 0x021E8086 <key>SATA</key> <string>0x25628086</string> good hack trying it now here are more hello sure it don't work .. is old and don't have ur dev id try edit the injector and insert there ur dev id or try to use the fake id clover feature insert there 0x021E8086 <key>SATA</key> <string>0x25628086</string> good hack this is not working, i put the kext in 10.12 folder Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300206 Share on other sites More sharing options...
artur_pt Posted October 15, 2016 Share Posted October 15, 2016 hello try this config for sata config.plist.zip remove any injector in 10.12 good hack Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300230 Share on other sites More sharing options...

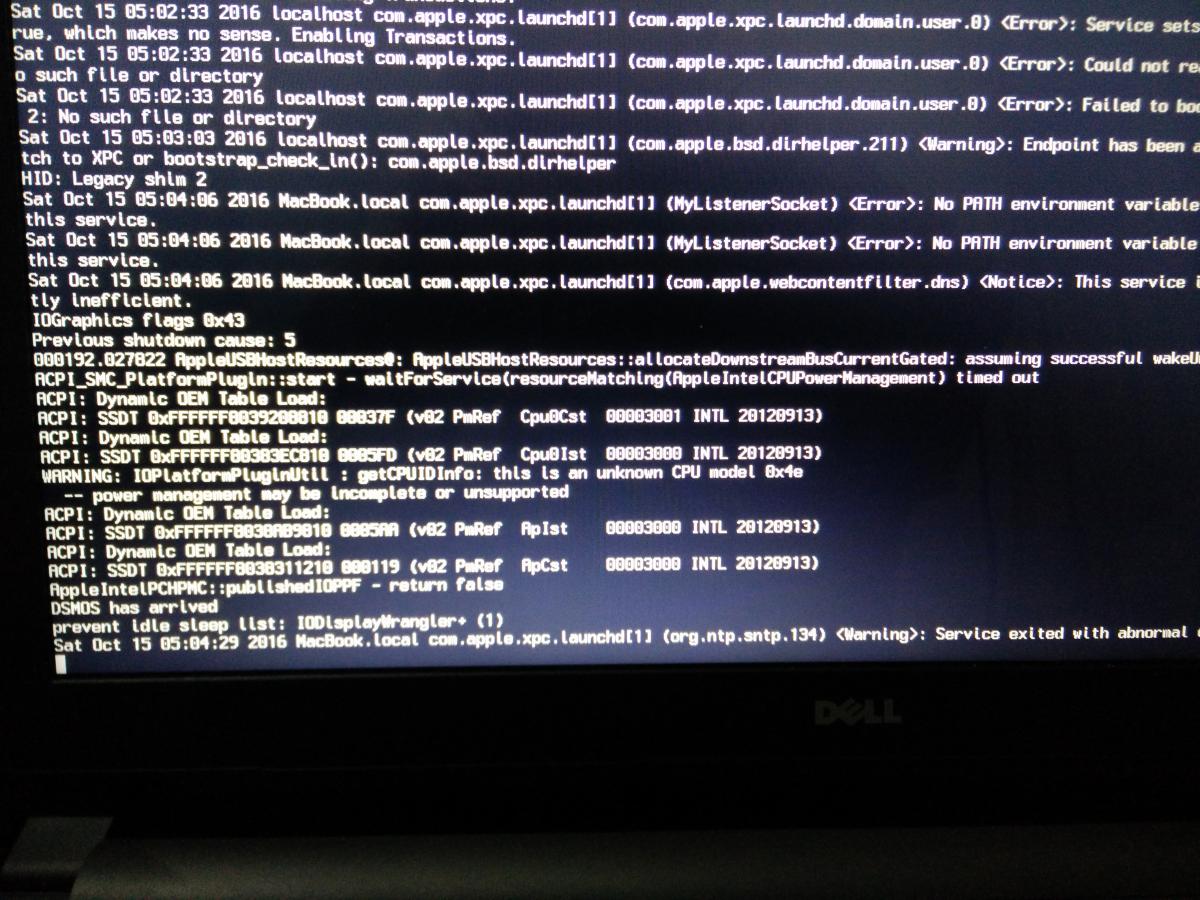

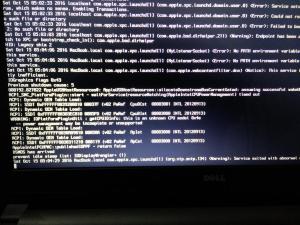

michaelspeed Posted October 15, 2016 Author Share Posted October 15, 2016 this is what it shows with the above code and the last line says service exited with abnormal code: 1 hangs there! no boot edit - usbinjectall is present. should i remove it to? here is an update it says Could not recover SATA after 5 attempts, terminating Link to comment https://www.insanelymac.com/forum/topic/316845-help-dell-15-5559-sierra-installation/#findComment-2300236 Share on other sites More sharing options...
