XenonKilla

Can't change display resolution in macOS Sierra on VMware

15 posts in this topic

Recommended Posts

I've updated to macOS Sierra on VMware Workstation v12.5. I've installed the latest VMware Tools "darwin.iso" v8.5.0 but I'm still unable to change my resolution from 1024x768. I searched the forum and can't seem to find anyone having this issue so I'm wondering if anyone has any ideas on what I can check. Sound is working fine.



Thanks in advance!





***EDIT***



I found a fix for this issue.



- Install VMware Tools

- Reboot

- Open terminal
- Run this command
/Library/Application\ Support/VMware\ Tools/vmware-resolutionSet 1920 1080



You can change the '1920 1080' to whatever resolution you need.

Now your display resolution will remain that size even after you reboot.

Share this post


Link to post
Share on other sites
Advertisement

to make the change stick it must be executed with sudo



so this will work:



sudo /Library/Application\ Support/VMware\ Tools/vmware-resolutionSet 1920 1080



Share this post


Link to post
Share on other sites

When I tried to change the resolution using the above method I receive an error saying "command not found"

CrazyEyes-Mac:~ crazyeye$ ls -la  /Library/Application\ Support/VMware\ Tools/
total 1184
drwxr-xr-x  19 root  wheel     646 Nov 20  2014 .
drwxr-xr-x  11 root  admin     374 Apr 18 22:35 ..
drwxr-xr-x  11 root  wheel     374 Nov 20  2014 Frameworks
drwxr-xr-x   5 root  wheel     170 Nov 20  2014 Plugins
drwxr-xr-x   3 root  wheel     102 Apr 18 22:36 Uninstall VMware Tools.app
-rwxr-xr-x   1 root  wheel   10523 Nov 20  2014 VMware Tools Problem Reporter.tool
-rwxr-xr-x   1 root  wheel    3726 Nov 20  2014 poweroff-vm-default
-rwxr-xr-x   1 root  wheel    3726 Nov 20  2014 poweron-vm-default
-rwxr-xr-x   1 root  wheel    3726 Nov 20  2014 resume-vm-default
drwxr-xr-x   3 root  wheel     102 Nov 20  2014 scripts
-rwxr-xr-x   1 root  wheel    2320 Nov 20  2014 services.sh
-rw-r--r--   1 root  wheel     840 Nov 20  2014 statechange.subr
-rwxr-xr-x   1 root  wheel    3726 Nov 20  2014 suspend-vm-default
drwxr-xr-x   3 root  wheel     102 Nov 20  2014 vmhgfs.kext
-rwxr-xr-x   1 root  wheel  428048 Nov 20  2014 vmmemctl
drwxr-xr-x   3 root  wheel     102 Nov 20  2014 vmmemctl.kext
-rwxr-xr-x   1 root  wheel   18048 Nov 20  2014 vmware-softpowerop-helper
-rwxr-xr-x   1 root  wheel   53344 Nov 20  2014 vmware-tools-cli
-rwxr-xr-x   1 root  wheel   60944 Nov 20  2014 vmware-tools-daemon
CrazyEyes-Mac:~ crazyeye$

resolutionSet is not in the installed VMware Tools



I am using VMware Version 12.1.1 Build 3770994 with base OS being Windows 10 Professional Build 14393



I'm very confused and would appreciate any kind of help I could receive.





EDIT



Found the fix, turns out Sierra needs a special version of Vmware Tools



http://www.wikigain.com/install-vmware-tools-macos-sierra/

Share this post


Link to post
Share on other sites

I run Yosemite on vmware 10.0.4 on Win 8.1. All run fine, i've just one issue with resolution, but just for boot screen and logon screen at 800X600. On the logoff screen there isnt the resolution issue. I've installed vmware tools but I don't remember version. would there be any solution?

Share this post


Link to post
Share on other sites

Not able to install VMware Tools. Installer does not open.



Running macOS 10.12.6 on AMD CPU.

Share this post


Link to post
Share on other sites
On 2/20/2018 at 1:32 AM, Ten13 said:

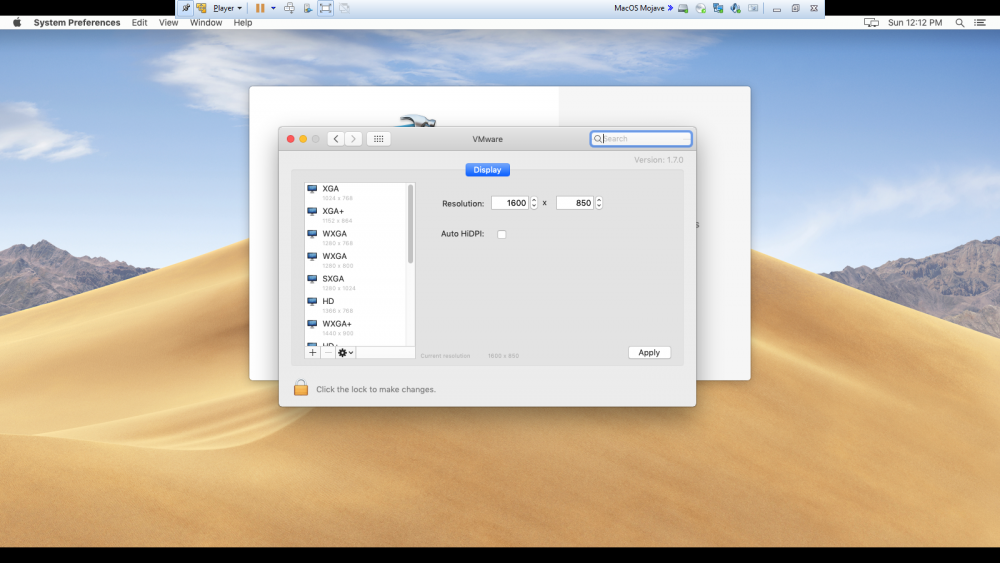

I had the same problem. So I wrote this "System Preferences" pane to help out:



https://github.com/MarLoe/VMware.PreferencePane



It is making use of "vmware-resolutionSet". So the VMware Tools mentioned above must be installed.

Hello mate, highly appreciated your work as this provides a nice solution. I've tried all the darwin.iso files that I could find but all did not seem to work (correctly). I know the tool was installed good and I have got a good display, it is just the resolution was wrong. I am on 10.13

To all it might relate to :D , make sure you have installed VMware Tools before running this Pref Pane.

Share this post


Link to post
Share on other sites
On 2/19/2018 at 10:32 PM, Ten13 said:

I had the same problem. So I wrote this "System Preferences" pane to help out:



https://github.com/MarLoe/VMware.PreferencePane



It is making use of "vmware-resolutionSet". So the VMware Tools mentioned above must be installed.

It works fine for me. But we need to install all necessary tools in order to make it works. I also stuck when apply the PreferencePane it show an error. But no worry just https://pravin517.wordpress.com/2018/01/12/disable-system-integrity-proctection-in-macos/ and it good to go. Don't forget to press windows key + R during reboot the mac os for windows user. Anyway thanks for solution.

Share this post


Link to post
Share on other sites
On 2/19/2018 at 8:32 AM, Ten13 said:

I had the same problem. So I wrote this "System Preferences" pane to help out:



https://github.com/MarLoe/VMware.PreferencePane



It is making use of "vmware-resolutionSet". So the VMware Tools mentioned above must be installed.

I recommend this as well. Worked like a charm for me.

I'm running MacOS Mojave on VMware Workstation Player 14.

8th gen Intel i5, 8gb ram.


Share this post


Link to post
Share on other sites

running Catalina on HP EliteBook 840 G3 16 Gb RAM, SSD SATA Sandisk Ultra 512 Gb (2nd HDD) on VMware Player 15.5 with VMware Tools for Darwin installed



This command works:



sudo /Library/Application\ Support/VMware\ Tools/vmware-resolutionSet 1920 1080



any other options did not work at all, this is the only one

Share this post


Link to post
Share on other sites
10 hours ago, gabblgob said:

running Catalina on HP EliteBook 840 G3 16 Gb RAM, SSD SATA Sandisk Ultra 512 Gb (2nd HDD) on VMware Player 15.5 with VMware Tools for Darwin installed



This command works:



sudo /Library/Application\ Support/VMware\ Tools/vmware-resolutionSet 1920 1080



any other options did not work at all, this is the only one

Please see THIS thread for a better, fuller (re)solution - read all of it:

Works for me! :)

Share this post


Link to post
Share on other sites

So this is a bit of an old thread, but there is new and relevant news relating to Sierra.



There is a VMware-acknolwedged bug in the latest VMware Tools (version 11.0.0, pulled from Fusion 11.5) that prevents the kernel extensions from being used with macOS 10.11 & 10.12. As a result, it's not possible to get accelerated graphics or even adjustable resolutions with the latest Tools.



From the Fusion 11.5 release notes:

Quote

VMware Tools 11.0.0 kernel extensions can not be launched in macOS 10.11 or 10.12 virtual machine.

After installing VMware Tools 11.0.0 on macOS 10.11 or macOS 10.12 virtual machine, running the kextstat | grep vm command in Terminal shows that no VMware Tools kernel extension is launched inside the virtual machine. As a result, all VMware Tools functions are not available, the virtual machine's resolution can not fit to the size of the virtual machine window and shared folders feature does not work.

Workaround: Use VMware Tools 10.3.10 instead.





And this is what you'll get from the console if you try the newest tools.

Quote

Failed to load /Library/Extensions/VMwareGfx.kext - (libkern/kext) link error.

So if anyone else is having a problem, it's not just you! It's a straight-up bug in VMware. You'll need to use the previous version of Tools from Fusion 11.1 for the time being.



Presumably, VMware compiled against too new of an SDK here. They don't support 10.12 as a host anymore, so I'm wondering if they aren't just going to make these "legacy" guests, like 10.10 and earlier already are.

Edited by Nemes

Share this post


Link to post
Share on other sites
