radargb Posted September 4, 2016 Share Posted September 4, 2016 Hi guys, I know that there are different patching solutions available but unfortunately nothing doesnt work for me. Im still on Yosemite (having sleep/shutdown problems on El Capitan), using modified AppleHDA and IOAudioFamily kexts. Sound works ok (doesnt work after sleep but it really doesnt make a problem for me), but currently bought Creative HD webcam and unfortunately biuld in mic is not recognized in Yosemite. When i delete modified IOAudioFamily.kext, webcam microphone is properly recognized but i dont have no sound at all. I tried to patch vanilla AppleHDA using AppleHDA Patcher but still no luck. Can someone have a look at this and help me with patch? I am on Asus U36SD, DPCIManager showes Realtek ALC269 (Audio Device 0x80861C20, Sub Device 0x80861BA3, Codec ID 0x10EC0269, Revision 0x0100). Booting with legacy Clover and patched DSDT. I attach my DSDT below. Thanks in advance! DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/ Share on other sites More sharing options...
crusher Posted September 4, 2016 Share Posted September 4, 2016 Use this DSDT and kext and add in config.plist layout-id=13 1 Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/#findComment-2273868 Share on other sites More sharing options...
radargb Posted September 4, 2016 Author Share Posted September 4, 2016 Use this DSDT and kext and add in config.plist layout-id=13 Thanks for fast response. Unfortunately im having KP on boot when using your DSDT. Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/#findComment-2273877 Share on other sites More sharing options...
Allan Posted September 4, 2016 Share Posted September 4, 2016 Post a pic of your KP. Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/#findComment-2273985 Share on other sites More sharing options...

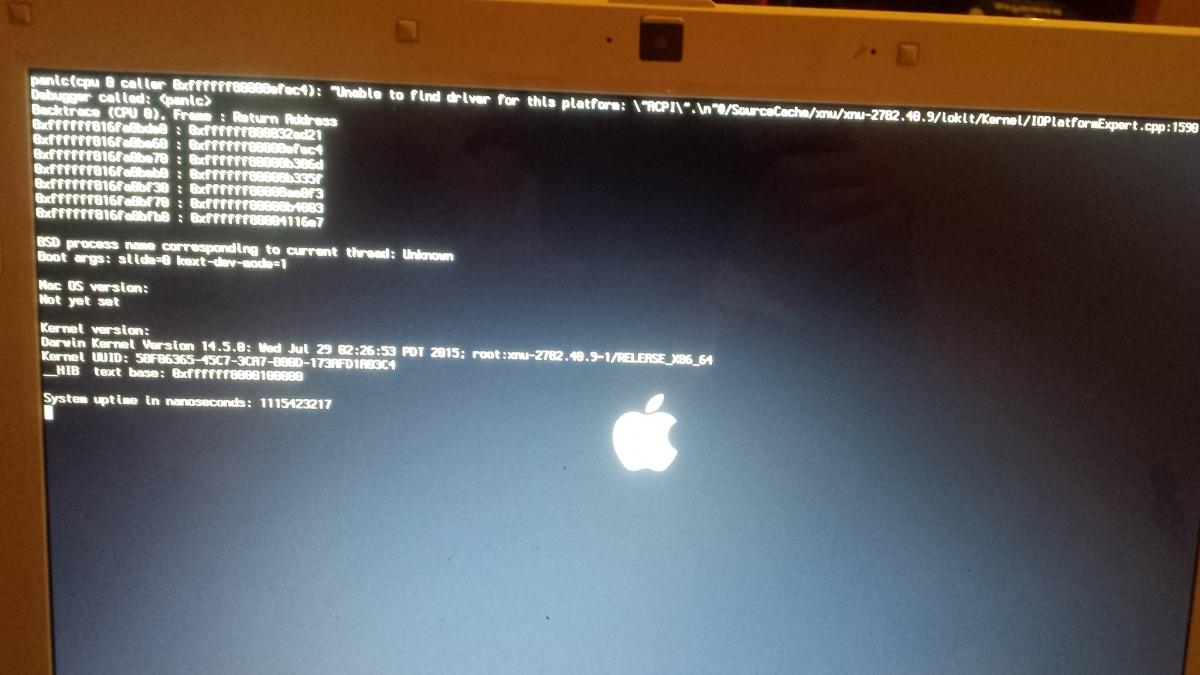

radargb Posted September 6, 2016 Author Share Posted September 6, 2016 I attach KP photo, but i dont think my problem is DSDT related to be honest. I have also checked System Report and found out Audio ID which is 28 under Audio details. Is it normal? Maybe i should change layout-id to 28 instead of 13? Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/#findComment-2274556 Share on other sites More sharing options...
radargb Posted September 18, 2016 Author Share Posted September 18, 2016 UPDATE: Ive managed to make it work using Mirone's AppleHDA kext for ALC269 and manual DSDT edit for layout-id=3. If someone is interested, i attach kext i have used below. Please make sure you edit your HDEF section with proper layout id, otherwise kext won't work. AppleHDA-269.25-ALC269-Universal.zip Link to comment https://www.insanelymac.com/forum/topic/314899-applehda-patching-problem/#findComment-2280037 Share on other sites More sharing options...
