Kernel Panic booting Sierra on HP dv6-3217dx laptop

[gujralam]

Hi All,



Requesting for your help here.



I have been able to install macOS Sierra(10.12) DP on HP Pavilion dv6-3217dx LAPTOP, however when I try to boot it through clover I am getting kernel panic.

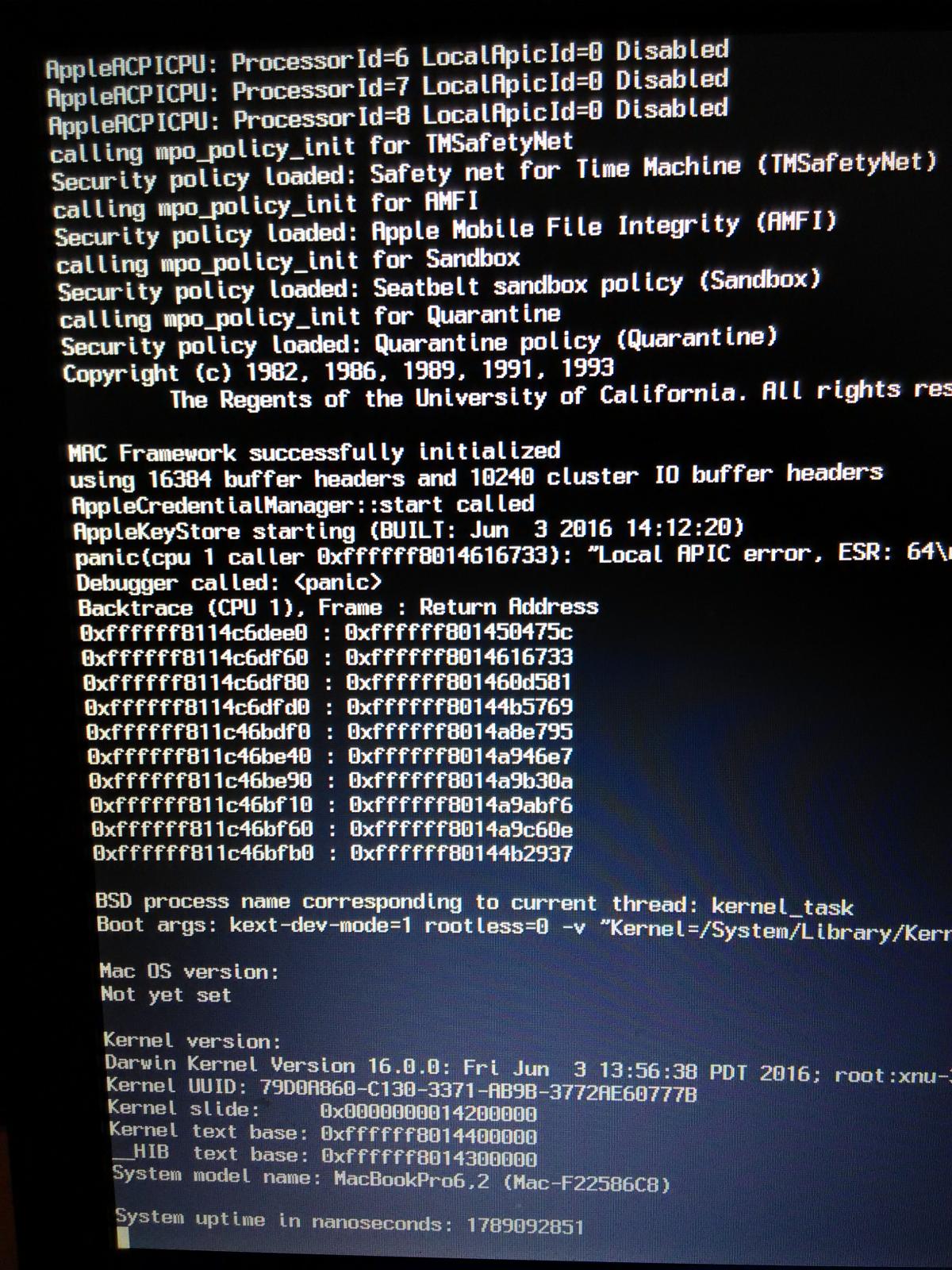

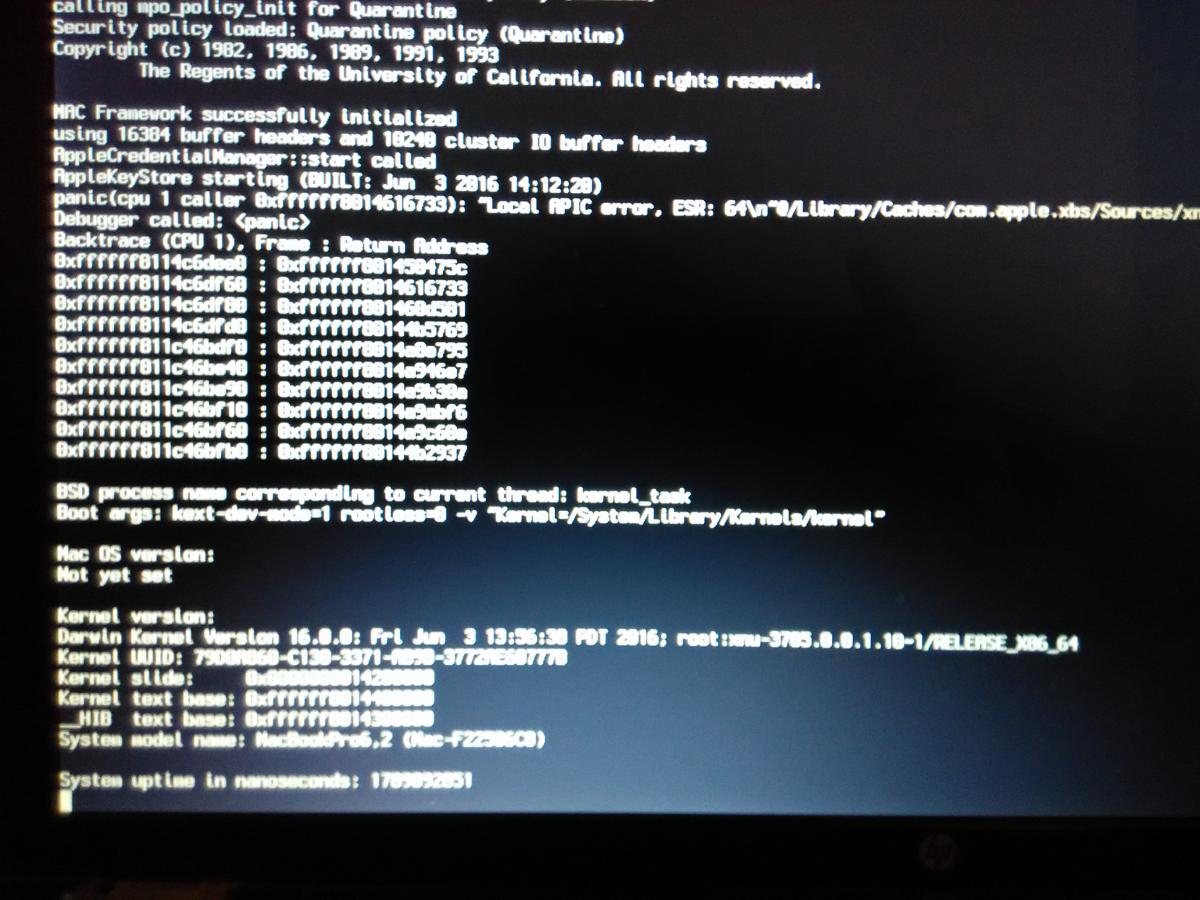

ERROR: panic (cpu 1 caller) "Local APIC error,"



Kindly Note the following details

1.I have created Sierra Installer through latest Pandora box



2.I have installed Sierra on external USB Drive (WD MyPassport Ultra - 2 TB) with partition size 1.5 TB for Sierra. I tried booting Sierra with the installer USB drive but again got a Kernel panic.



3. I have a working EL Capitan (10.11.5) on my laptop internal HD



4.Clover version 3577 on EL Capitan HD through which I am trying to boot Sierra. Boot flags remain the same. While EL CAPITAN is able to boot successfully, Sierra throws a KP



Boot flags::: -v -f cpus=1 dart=0 slide=0 kext-dev-mode=1 rootless=0 npci=0x2000 nv_disable=1 PCIRootUID=1 USBBusFix=Yes UseKernelCache=No



5.My laptop has Insyde bios 3.5, F.10



6. I have added FakeSMC.kext(version - 6.19.1406) and USBInjectAll.kext(version - 0.5.11) in 10.12 folder under "/EFI/Clover/kexts"



7.SMBios is MacBook Pro 6,2



8.I have also attached my laptop specs taken using cpu-z and Speccy tool on windows 10



Kindly let me know if you require any more details.



Thank you for your help.



Regards

CPU-Z 2.rtfd.zip

SPECCY 2.txt

config.txt

dsdt.txt

[Allan]

Reduce this:

Boot flags::: -v -f cpus=1 dart=0 slide=0 kext-dev-mode=1 rootless=0 npci=0x2000 nv_disable=1 PCIRootUID=1 USBBusFix=Yes UseKernelCache=No



For this: -v cpus=1 dart=0 slide=0



Most of the boot-args that you're using is for Chameleon/Chimera.

[crazybirdy]

It seems you have already set KernelLapic=true.

<key>KernelLapic</key>
        <true/>



Try Enoch 2839 with /Extra/kernel.plist as below.

    <key>KernelLapicError</key>
    <string>Yes</string>

[gujralam]

Thanks a lot Allan and crazybirdy (I am sorry I don't know your real name).



I moved Sierra to HDD from external usb using CCC and installed iousbfamily.kext and iousbhostfamily.kext from El Capitan and got it working.



Used clover 3577 to dual boot El Capitan and Sierra.



Appreciate your help !!

[Loller Mann]

Thanks a lot Allan and crazybirdy (I am sorry I don't know your real name).



I moved Sierra to HDD from external usb using CCC and installed iousbfamily.kext and iousbhostfamily.kext from El Capitan and got it working.



Used clover 3577 to dual boot El Capitan and Sierra.



Appreciate your help !!

Hello gujralam can you make a tutorial? I am also having a kernel panic and i cannot fix it.

Thanks.

[FredWst]

Hello gujralam can you make a tutorial? I am also having a kernel panic and i cannot fix it.

Thanks.





And you'll never fixe it because your cpu doesn't support sse4 instruction.

2 others posts about that.



Like we said in France "l'espoir fait vivre"



You need to wait maybe after official release an kernel src release that one guru post a kernel with emu sse4 or something like that.



Fred

[PippoX0]

Yes we are waiting for sse4 fix for all stuff which doesn't have ...

A kernel patched maybe resolve the issue ...
