Installing a El Capitan on Dell Alienware 15r2 - Skylake system

[slayer2333]

Hey Guys, i share the working files for Mac OS X Sierra:

-The EFI folder (you have to generate the serials numbers for the Macbook pro (use Clover COnfigurator)

-The working kexts



What works so far:

-Bluetooth

-Webcam

-Audio (all ports + mic and sound volume control)

-CPU power management

-Boot from Nvme SSD

-Sleep

-Graphics (HD530 for internal display + 980m GTX for HDMI VIdeo out - you have to use the nvidia web drivers)

-Keuboard (i use VoodooPs2 from Rehabman, only tap from trackpad not working but it's not important for me)

-USBs

-Battery

-Brightness control

-Full hardware recognition (RAM, etc.)

-etc



Not working:

-HDMI audio ( i give up for now)

-WIFI ( i have killer 1535, waiting for a broadcom card to be shipped)



If you use these files to boot into the installer, change the boot arguments by removing nvda_drv=1 and putting nv_disable=1 instead).

Enjoy.



Note: Files tested and working with Bios 1.3.6.  I tried with the older Bios (1.2.2) but i could not boot to OSX).



Credits:

@Rehabman (DSDT + general problem solving)

@Mirone (Audio debugging

@Toleda (HDMI audio debugging)

@wern apfel (the creator of the AppleHDA patch for our hardware)

@Mieze for the Atheros kext

@All hackintosh community for everything.

EFI.zip

Kexts.zip

[slayer2333]

For anyone who is trying to hackintosh this laptop, can you please report if the files are working for you and if you have any outstanding issues ?

Also can you please let me know if any of you can see the Nvidia Audio codec in DPCImanager (if so what Bios are you using and how you did manage that).



Thanks.

[Kestrel.Bright]

For anyone who is trying to hackintosh this laptop, can you please report if the files are working for you and if you have any outstanding issues ?

Also can you please let me know if any of you can see the Nvidia Audio codec in DPCImanager (if so what Bios are you using and how you did manage that).



Thanks.



thanks your share. can you tell me how to get 980m GTX for HDMI video work?

[slayer2333]

Use my files, install Nvidia Web Drivers and it works.  Nothing else to do.

[Kestrel.Bright]

Use my files, install Nvidia Web Drivers and it works.  Nothing else to do.

not work, can't enter the system, just turn dark after process bar

[slayer2333]

not work, can't enter the system, just turn dark after process bar

Are you using Macbook Pro 11,1 smbios ?

The nvidia Web Drivers are Installed?

Are you using nvda_drv=1 as a boot argument in clover?

[Kestrel.Bright]

Are you using Macbook Pro 11,1 smbios ?

The nvidia Web Drivers are Installed?

Are you using nvda_drv=1 as a boot argument in clover?

i just used your EFI files and change nothing. by the way,  i found no slot could be found in Nvidia Web Drivers when i was EI Captian.

[Kestrel.Bright]

Are you using Macbook Pro 11,1 smbios ?

The nvidia Web Drivers are Installed?

Are you using nvda_drv=1 as a boot argument in clover?

[slayer2333]


Try these files:

https://mega.nz/#F!hhFT2DIY!OgRJ0bd30kULL8DgjJgWUg



Note: The kexts must but installed in S/L/E (not in Clover/Kexts/Other)

[DriveTheOne]

Hey Guys, i share the working files for Mac OS X Sierra:

-The EFI folder (you have to generate the serials numbers for the Macbook pro (use Clover COnfigurator)

-The working kexts



What works so far:

-Bluetooth

-Webcam

-Audio (all ports + mic and sound volume control)

-CPU power management

-Boot from Nvme SSD

-Sleep

-Graphics (HD530 for internal display + 980m GTX for HDMI VIdeo out - you have to use the nvidia web drivers)

-Keuboard (i use VoodooPs2 from Rehabman, only tap from trackpad not working but it's not important for me)

-USBs

-Battery

-Brightness control

-Full hardware recognition (RAM, etc.)

-etc



Not working:

-HDMI audio ( i give up for now)

-WIFI ( i have killer 1535, waiting for a broadcom card to be shipped)



If you use these files to boot into the installer, change the boot arguments by removing nvda_drv=1 and putting nv_disable=1 instead).

Enjoy.



Note: Files tested and working with Bios 1.3.6.  I tried with the older Bios (1.2.2) but i could not boot to OSX).



Credits:

@Rehabman (DSDT + general problem solving)

@Mirone (Audio debugging

@Toleda (HDMI audio debugging)

@wern apfel (the creator of the AppleHDA patch for our hardware)

@Mieze for the Atheros kext

@All hackintosh community for everything.



WOAH this is a good news!

I will install today,

I'll let you know hows going.



Did you tried a thunderbolt connection?

I've one device and will try it. (Blackmagic Minimonitor with thunderbolt 2 and I'll use with Startech.com to convert to Thunderbol 3 ports.)



Frank

[slayer2333]

WOAH this is a good news!

I will install today,

I'll let you know hows going.



Did you tried a thunderbolt connection?

I've one device and will try it. (Blackmagic Minimonitor with thunderbolt 2 and I'll use with Startech.com to convert to Thunderbol 3 ports.)



Frank

I did not have a chance to test thunderbolt connection but someone else said that it was working.  Make sure to have Bios version 1.3.6, otherwise you won't be able to boot.

Also, install the provided kexts in S/L/E not Clover/Kexts.

Please report on what's working.

[DriveTheOne]

I did not have a chance to test thunderbolt connection but someone else said that it was working.  Make sure to have Bios version 1.3.6, otherwise you won't be able to boot.

Also, install the provided kexts in S/L/E not Clover/Kexts.

Please report on what's working.

Now I have:



selected to nv-disable

only kext nvme driver and fakesmc.

and used serial of iMac skylake (latest version)



It is correct? Can you tell me how have to set my bios? (now I've 1.3.9 bios version) (now: disabled virtualization and usb powershare, set to AHCI mode and UEFI with NO secure boot)



edit: ok, I'm stuck with these options.



info: I've nvme of samsung.



Frank

[slayer2333]

Bios 1.3.9 works ok, no need to have specific options except using UEFI boot and disable Oprom Option.

For install:

-nv_disable=1

-Use Smbios Macbook Pro 11,1



For Post install:

-Install nvidia web drivers

-Use nvda-drv=1



You have to post a screenshot of your boot to understand what the problem is

[DriveTheOne]

Bios 1.3.9 works ok, no need to have specific options except using UEFI boot and disable Oprom Option.

For install:

-nv_disable=1

-Use Smbios Macbook Pro 11,1



For Post install:

-Install nvidia web drivers

-Use nvda-drv=1



You have to post a screenshot of your boot to understand what the problem is



With these option, at the boot of installation:



Still waiting for root device



And with imac smbios it will stuck at "PCI ACPI not found.." I don't remember what was written.



edit: with smbios of imac: Still waiting for root device. I will came back to macbook pro 11,1



F

[slayer2333]

Try to boot in Safe mode, i think your problem is the QHD screen (also make sure that Inject-Intel is activated in clover), once you get to Sierra apply the patch provided here:



http://www.insanelymac.com/forum/topic/312622-dell-xps-13-9343-sierra-installation/?hl=%2B4k+%2Bdell&do=findComment&comment=2245653

[DriveTheOne]

Try to boot in Safe mode, i think your problem is the QHD screen (also make sure that Inject-Intel is activated in clover), once you get to Sierra apply the patch provided here:



http://www.insanelymac.com/forum/topic/312622-dell-xps-13-9343-sierra-installation/?hl=%2B4k+%2Bdell&do=findComment&comment=2245653

no, isn't installed.

I will reinstall clover with this option. (I don't understand what I have to do for 4K retina)



EDIT: yes, it is also checked.



f

[DriveTheOne]

Hi,

I'm using iMac SMBIOS for skylake 'cause if I install SMBIOS of macbook pro I'll get "still waiting for root device.."



I've checked USBInjection and I've this kernel then reboot:



UPDATE: I've added APPLEHDA.kext and result stucked at USBHostdevice.

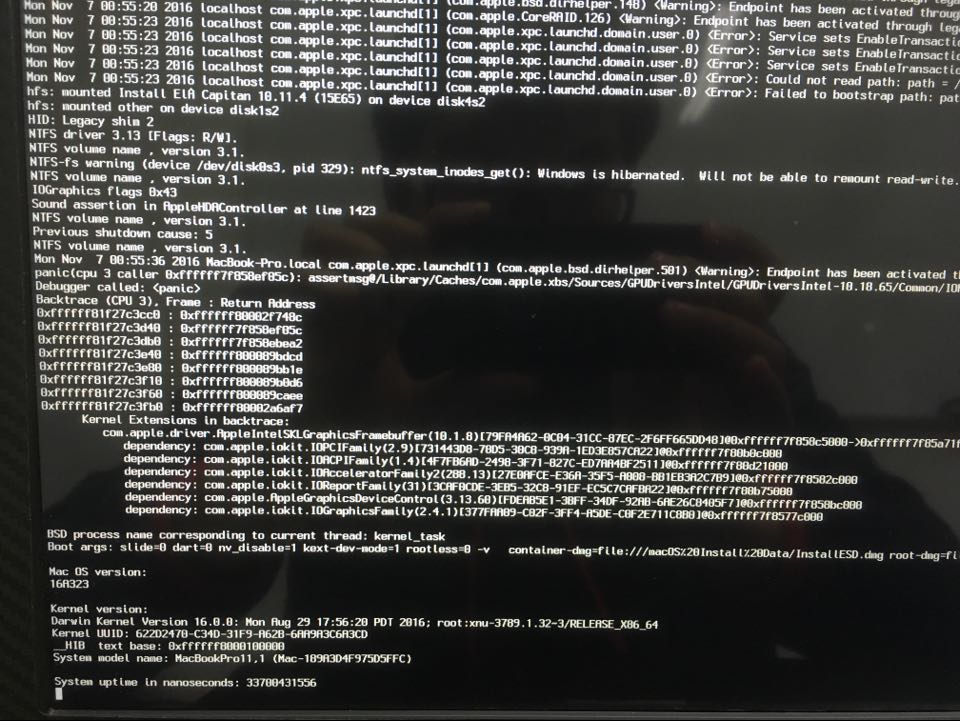

UPDATE1: if set to SafeMode, I'll have kernel panic



[DriveTheOne]



with this photo: while with SMBIOS of Macbookpro 11,1 utilizing post #51 I've got blackscreen with nvda_drv=1.



Now I'm booting with nv_disable=1, hoping....

Uff, this is with nv_disable=1, it goes to blackscreen (like an sleep)



[DriveTheOne]

I've tried to update clover, I will have problem with usb.



So, the one way to go is only with nv_disable=1 and I have error in DRMstatus with 8877652 (it seem graphic problem)



Any ideas?



ah, question: which version of MacOs Sierra do you have ?



F

[DriveTheOne]

now....nope...



I did:



downloaded mac os x Sierra (downloaded by imac mini), used with terminal to install in usb

Installed clover 3911 with option boot efi and OsxAptioFixDrv-64

Copied your EFI (51# post) with only nvme e Fakesmc kext.

Using clover configuration, checked new serial with macbook pro 11,1 and checked disabled_nv=1



bios with 1.3.9 set to uefi with no secure boot and no legacy.



and this is the result:





Then "still waiting for root device"



what's the problem? Can you help me?



Thank you very much!

UPDATE:

I've disabled in bios: virtualization and VT I/O direct

then

Added VoodooHDA.kext, Atheros22.. and ACPI battery.



[DriveTheOne]

Now, I'm so close...



I've set the ig-platform-id to 0x00000000, checked to ResetHDA



It work but!!!



I'd a kernel panic at the middle of installation (I've never touched mouse, maybe problem with sleep? I don't know)



What do you think?

[DriveTheOne]

Hi Slayer, I got finally installed mac os x sierra, with some kext needed to go without kernel, (Then I installed mouse keypad and AppleIntelLpssI2CController.kext).



Can you tell me how to go with post-install? Have you installed with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] or clover then copied EFI from usb installation key?



Thank you!

[slayer2333]

Hi Slayer, I got finally installed mac os x sierra, with some kext needed to go without kernel, (Then I installed mouse keypad and AppleIntelLpssI2CController.kext).



Can you tell me how to go with post-install? Have you installed with ##### or clover then copied EFI from usb installation key?



Thank you!

Post Install is the easy part, once you get into sierra:

-Download the latest clover bootloader.  Make an install by checking the options for UEFI Motherboard.  Also install clover pref panel and RC scripts for Sierra drive and the other ones.

Once the Clover install is done, wipe everything from the EFI partition and copy the content of the USB EFI partition in it.  Important Note: If you have other OS installed (Windows or Linux) make sure to backup the folders Microsoft and Ubuntu before wiping out the partition.  Then once you copy the USB EFI folder, copy Microsoft and Ubunto back inside the EFI folder.

-Install the latest Nvidia Web Drivers

-Install the kexts that i provided here to S/L/E

-Use Clover Configurator to Set Nvidia Web as true (In System Preferences) and delete the boot argument Nv_disable=1

-Make sure that InjectIntel is activated



Reboot and be happy.

[DriveTheOne]

Post Install is the easy part, once you get into sierra:

-Download the latest clover bootloader.  Make an install by checking the options for UEFI Motherboard.  Also install clover pref panel and RC scripts for Sierra drive and the other ones.

Once the Clover install is done, wipe everything from the EFI partition and copy the content of the USB EFI partition in it.  Important Note: If you have other OS installed (Windows or Linux) make sure to backup the folders Microsoft and Ubuntu before wiping out the partition.  Then once you copy the USB EFI folder, copy Microsoft and Ubunto back inside the EFI folder.

-Install the latest Nvidia Web Drivers

-Install the kexts that i provided here to S/L/E

-Use Clover Configurator to Set Nvidia Web as true (In System Preferences) and delete the boot argument Nv_disable=1

-Make sure that InjectIntel is activated



Reboot and be happy.



Okay:

nvidia don't recognised (it name only Display and I see "no kext loaded" when I click on GPU unknow in system panel.) I've installed recently webdriver (ps is it normal if selected on OSX Default Graphics Driver from mac osx?.



F

[slayer2333]

Okay:

nvidia don't recognised (it name only Display and I see "no kext loaded" when I click on GPU unknow in system panel.) I've installed recently webdriver (ps is it normal if selected on OSX Default Graphics Driver from mac osx?.



F

Sorry for the late response, what's the status of your Hackintosh right now ?
