Hello everyone,



so i managed to install yosemite on my vaio,

it is using guide from here.

i just realize everything working, even the camera and the volume is working, however i can't get the battery working.....

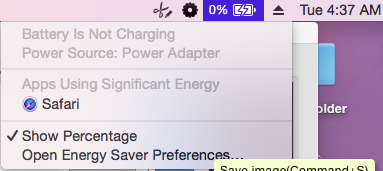

okay so the problem is i can't fix the battery problem, the symptoms is :

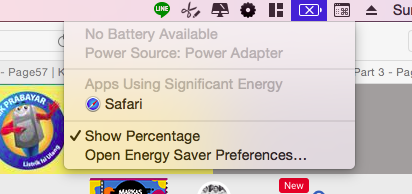

  • sometimes it's just having X logo on battery
  • sometimes it's having plugins but not moving (the electricity logo inside battery icon)
  • and now its just showing 0% and not moving, even when i plugged in to AC adapter

so i want to ask, (and yes this question is in so many forums) how on earth to make my battery working ?

because my prosy is intel 3337u i5 1.8 Ghz, (it's an ivy bridge its a problem right ?, correct me please ?)



i read before that i should do something with acpi battery driver ? but what should i do ? there's no kext file inside the compressed file from rehab.



the problem is that not i want to read, but i just got 0 in coding and stuffs, so guys how can i get easily understand the guide ? or hcan you guys provide for a much simple steps to do the dsdt. i didn't do my ssdt bcs i think that's unnecessary. once again pls correct me if I'm wrong.





for additional information i use clover (latest patch) for my boot loader.

and then i put my patched dsdt in EFI/Clover/acpi/patched and origins

but i don't know how to determine the dsdt that i used currently. bcs before this my dsdt file it's just empty.



okay i know that i should attached the dsdt ? but regarding to my previous statements, idk which one that i am using....



so guys, i would appreciate any kind of helps here. thanks in advance

dsdt.zip

Share this post


Link to post
Share on other sites
Advertisement

For battery icon, you can use RehabMan's kext: ACPIBatteryManager



If even with this kext, you can't see the icon, maybe you'll need apply some patches in your DSDT.

Share this post


Link to post
Share on other sites

For battery icon, you can use RehabMan's kext: ACPIBatteryManager



If even with this kext, you can't see the icon, maybe you'll need apply some patches in your DSDT.

Hello allan, thanks for lighting me up, and if i may ask any question what patches exactly do i need for my dsdt ?



Thanks for your reply

Share this post


Link to post
Share on other sites

Try the kext first...



If DSDT will need to be used, we have a guide for that.



hello again allan, and thanks for your tips, it is showing now.

i tried other ppl dsdt but, it's just made a load of mess....

but it's no fully functional guess i have to do something with dsdt then ?



Thanks for your time allan :D


Share this post


Link to post
Share on other sites
Never use an DSDT from another Hacks, is not the same thing.



For use an DSDT from other PC, you'll need make sure that all Dev/Ven ID is the same, e.g: WiFi controller, Ethernet port, RAM, CPU, etc and etc...



Just try what i told you...

Share this post


Link to post
Share on other sites



Never use an DSDT from another Hacks, is not the same thing.

For use an DSDT from other PC, you'll need make sure that all Dev/Ven ID is the same, e.g: WiFi controller, Ethernet port, RAM, CPU, etc and etc...

Just try what i told you...



Hello allan thanks for your tips again :)



so i should make my own dsdt then ?

so how could i solve this battery problem ?

could you provide me a link ?



thanks before

Share this post


Link to post
Share on other sites
DSDT is necessary for especific things, not for every issue. The amazing thing in Clover, is that you can solve your issues without patch DSDT by yourself.

But first, delete this modified DSDT that you got, and just install the kext that i told you, and let's see if you get the battery icon and status.

If the kext can't do the job alone, you'll extract your DSDT and apply some patches.

For extract DSDT and read all about it, see the links bellow.



DSDT/SSDT: Basic knowledge
DSDT/SSDT: Edit using MacIASL
DSDT/SSDT: Common DSDT patches
DSDT/SSDT: Enable battery by patching your DSDT using pre-made patches ( Laptop-exclusive )

Share this post


Link to post
Share on other sites



DSDT is necessary for especific things, not for every issue. The amazing thing in Clover, is that you can solve your issues without patch DSDT by yourself.

But first, delete this modified DSDT that you got, and just install the kext that i told you, and let's see if you get the battery icon and status.

If the kext can't do the job alone, you'll extract your DSDT and apply some patches.

For extract DSDT and read all about it, see the links bellow.



DSDT/SSDT: Basic knowledge

DSDT/SSDT: Edit using MacIASL

DSDT/SSDT: Common DSDT patches

DSDT/SSDT: Enable battery by patching your DSDT using pre-made patches ( Laptop-exclusive )



thanks allan,

i wilk try it first and i let you know about it :)



i just learn i few things too, maybe i will try to have an experiment with it

Share this post


Link to post
Share on other sites



DSDT is necessary for especific things, not for every issue. The amazing thing in Clover, is that you can solve your issues without patch DSDT by yourself.

But first, delete this modified DSDT that you got, and just install the kext that i told you, and let's see if you get the battery icon and status.

If the kext can't do the job alone, you'll extract your DSDT and apply some patches.

For extract DSDT and read all about it, see the links bellow.



DSDT/SSDT: Basic knowledge

DSDT/SSDT: Edit using MacIASL

DSDT/SSDT: Common DSDT patches

DSDT/SSDT: Enable battery by patching your DSDT using pre-made patches ( Laptop-exclusive )





Hello allan, i am sorry for summoning this thread again.



but i kinda close here



so i follow all the steps

but still nothing happens, except now the brightness fix won't working, i decompile and recompile all the dsdt, ssdt-0, ssdt-5. ( i try the nvidia disabler too)



so if you don't mind, can i ask where i went wrong ?patched DSDT & SSDT.zip

Share this post


Link to post
Share on other sites

hello



try this one



attachicon.gifDSDT.aml.zip



good hack



hello there artur, thanks for helping me out, but unfortunately it's not working.



the battery or the brightness, could you help me ?

i attached the origins and my currently patched dsdt and ssdt.



i attached my config plist, original dsdt (f4 on clover) and my current dsdt now, with the ioreg.



will you take a look and help me and guide me man ? thx for your help man



ORIDSDT 2.zip

Share this post


Link to post
Share on other sites

hello



try this other



attachicon.gifDSDT.aml.zip



for the brightness



use this (ACPIBacklight.kext)



and i see u don't use last version kext for bat



good hack



hello artur, wow works like a charm ? how did u do that ?



and one question if i may, how do u know that i am not using the last version of battery kext ?

right now (based on kext wizard) i use the org.rehabman.AppleSmartBatteryManager (1.53)



i already downloaded from rehab man repo the

RehabMan/OS-X-ACPI-Battery-Driver



but how did i use it ?



thank you artur, you helped me a lot, and i really appreciate it. once again thx mate :D

Share this post


Link to post
Share on other sites

hello



i see by the ioreg u send ..



so replace the bat kext for the last version (but if is working good .. maybe u don't need to replace the kext)



good hack

Share this post


Link to post
Share on other sites

hello



i see by the ioreg u send ..



so replace the bat kext for the last version (but if is working good .. maybe u don't need to replace the kext)



good hack

ups, hehehe i forget about that...

hmmm do you have any related links that can i read for my references artur ?

once again thanks for your kind response :):D



and also do i need to patch appleintelcpupowermanagement ?

because my power states is running flat on 1.8 Ghz (using intel app)




Share this post


Link to post
Share on other sites

hello



u don't need it, just enable this



KernelAndKextPatches

<key>AsusAICPUPM</key>
<true/>

good hack



already know about that...



anyway artier, i fixed it (accidentally), i drained all my battery and then when i plug the ac and start, it's works like charm.



So thanks Arthur and Allan for your help. i really appreciate your times, and energy.

once again the.

Share this post


Link to post
Share on other sites

hello



final post about this issue .. now really not a issue ..



i think u should read about what u are trying to do .. hack os x in a lappy not easy ..



no easy solutions .. u must read about ur hardware .. how to setup ur boot loader .. easy words reading .. googling .. persistency ...



what u are trying to do .. easy words .. is copy a mac hardware .. MacBook Pro.. something .. MacBook Air .. something ..



if u hardware is equal one of that .. u are with luck .. if is not .. u can try and get a hack with limitations ..



something never will work like a mac ..



regards from Portugal



good hack

Share this post


Link to post
Share on other sites
