TheIvanovization

Solucionar audio HDMI HD 4600 Asus B85M-G R2.0

4 posts in this topic

Recommended Posts

Hola a todos  :thumbsup_anim:



¿Alguno de ustedes ha podido solucionar el audio del HDMI en la Intel HD 4600?

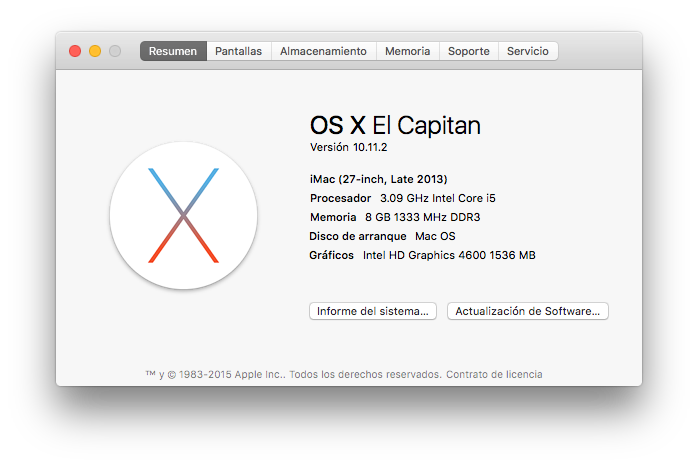

Tengo una PC armada, con un Intel i5 Haswell, gráficos Intel HD Graphics 4600 1536 MB y audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC, la cual la conecto a una pantalla LG mediante un cable HDMI genérico.

Con anterioridad busqué en un forum muy famoso una solución de Toleda y después de leer y leer, y volver a leer el método (en verdad es muy confuso  :wacko: solamente terminé solucionando el audio mediante audífonos pero sin que funcionaran los puertos frontales de la PC (tenía que usar los traseros).



Actualmente tras la actualización de S.O. traté de solucionarlo de nuevo y terminé con un gran problema con los kexts :blush:, sin audio y a veces enciende y otras veces se queda en el logo de Apple.





USO CLOVER.



Estaría completamente agradecido de poder solucionar este problema de una vez. Si deseas ayudarme y necesitan algún dato, archivo o elemento díganmelo :yes: .


DarwinDumper_2.9.9.2_AMI_X64_3330_Cap_ThizMac.zip

Share this post


Link to post
Share on other sites
Advertisement

Amigo prueba con estos patch (solo uno por cada intento), metelos en tu config.plist. Seguro que uno de ellos te dara el audio HDMI :D (El primer patch, el de los 9mb cursor bytes activalo siempre, te hara mucho bien con la HD4600 que tienes. Los otros solo puedes probar uno por cada reinicio. Estoy seguro que lo conseguiras. Un saludo compañero!

<dict>
				<key>Comment</key>
				<string>Enable 9MB cursor bytes, 0x0a260006</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				BgAmCgEDAwMAAAACAAAwAQAAYAA=
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				BgAmCgEDAwMAAAACAAAwAQAAkAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0105, 0x0a260005 0x0a260006, 0x0d220003, 0x0a2e000a, 0x0a26000a</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AQUJAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AQUJAAAIAACHAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0105(12), 0x0a260005 0x0a260006, 0x0d220003, 0x0a2e000a, 0x0a26000a</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AQUJAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AQUSAAAIAACHAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0204(12), 0x0a2e0008, 0x0a16000c, 0x0a2e000d, 0x0a26000d</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AgQJAAAEAAAHAQAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AgQSAAAIAAAHAQAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0105(12), 0x0a2e0008, 0x0a16000c, 0x0a2e000d, 0x0a26000d</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AQUJAAAEAAAHAQAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AQUSAAAIAAAHAQAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0204, 0x0a260005 0x0a260006</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AgQJAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AgQJAAAIAACHAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>HDMI-audio, port 0204(12), 0x0a260005 0x0a260006</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AgQJAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AgQSAAAIAACHAAAA
				</data>
			</dict>
