Typhoon_Master Posted December 30, 2015 Share Posted December 30, 2015 Hello Everyone! :-) I updated my hackintosh from Mavericks to ElCapitan and everything is working so far, but my networking-card isn't. Despite the fact that the web is full of people which have a working network with the same type of NIC. I tried a lot of kexts like this or from this italian thread (i'm not italian and can't read, but i translated with google). I also tried patching the IONetworkingFamily.kext myself, but no matter what i do, my network-card won't appear in the preferences. But as you can see in de clover-bootlog my lan-interfaces are somehow detected. 4:363 0:000 LAN 0, Vendor=11AB, MMIO=F9FFC000 4:363 0:000 LAN 1, Vendor=11AB, MMIO=F9EFC000 Now im at a point, where i no longer know what i could do to solve this problem. It came to my mind, that i maybe set something wrong in my DSDT, or in the clover.plist.It would be nice to get some help for this case. So if anyone has an idea, please share it with me.Thank you.CPU: Core2Quad Q6700Mainbaord: ASUS Maximus II FormulaEthernet: Marvell Yukon 88E8056 bootlog.txt config.plist.zip DSDT.aml.zip Link to comment Share on other sites More sharing options...
gengik84 Posted December 30, 2015 Share Posted December 30, 2015 Try this:http://www.insanelymac.com/forum/files/file/455-marvell-yukon-88e8056-1011/ Link to comment Share on other sites More sharing options...
Typhoon_Master Posted December 30, 2015 Author Share Posted December 30, 2015 Try this:http://www.insanelymac.com/forum/files/file/455-marvell-yukon-88e8056-1011/ Thank you, but as i mentioned in the first Post, this kext does unfortunately not work for me. :-( I tried it per clover-inject and in /S/L/E And the thing is i don't know why. A lot of people successfully tried this kext. Is there something i can debug why my hackintosh isn't using this kext? Link to comment Share on other sites More sharing options...
gengik84 Posted December 30, 2015 Share Posted December 30, 2015 You put the kext in EFI, or S/L/E? Link to comment Share on other sites More sharing options...
Typhoon_Master Posted December 30, 2015 Author Share Posted December 30, 2015 i tried it in S/L/E and via Clover-Inject but had no success with both methodes. Link to comment Share on other sites More sharing options...
gengik84 Posted December 30, 2015 Share Posted December 30, 2015 Download dpcimanager, take a picture at the PCI list, and post it Link to comment Share on other sites More sharing options...

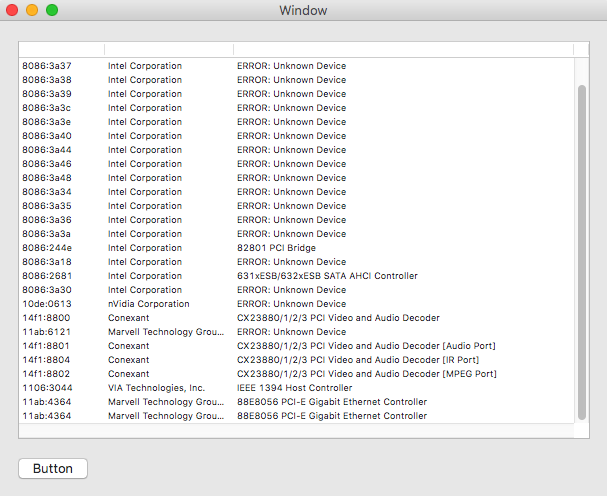

Typhoon_Master Posted December 30, 2015 Author Share Posted December 30, 2015 Download dpcimanager, take a picture at the PCI list, and post it i added the screenshot of dpcimanager. weired thing i just noticed: my nic's are listet in ifconfig, but are not listet in the network-preferrences. i also got them to "status: active" in ifconfig by plugging a networkcable in and do "ifconfig en0 up; ifconfig en1 up", but i can't ping anything in my network. // Edit HELL YEAH I SOLVED IT! :-) I deleted the folder /Library/Preferences/SystemConfiguration and rebootet, so that it got recreated, now my ethernet works! Seems like an update-process-faiur. If anyone knows, i would be very interested what exactly the problem now was. 1 Link to comment Share on other sites More sharing options...
