canapippo Posted August 29, 2015 Share Posted August 29, 2015 Hello everyone, I decided to do a new clean install with clover on my ultrabook, because with chameleon some functions have never works. I post my folder EFI. I managed to install Clover (in Legacy) but there are many things that are not working, and many kext settings config.plist are either unnecessary or do not work properly. If I can help looking information or else tell me as well. EFI.zip My Audio codec codec_dump.txt I took some pictures for my hardware (System Info and Windows Device Manager) Photo Info HW.zip Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/ Share on other sites More sharing options...
Allan Posted August 29, 2015 Share Posted August 29, 2015 For Audio see this: http://www.hackintoshosx.com/files/file/4450-applehda-for-alc269-aio/ I can take a look into your files only when i get home, because at moment i'm in my job IMO is better you wait for final version of El Capitan, the guides per hour is only for Beta version... When the final version is available, you'll get a stable Hackintosh 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164220 Share on other sites More sharing options...
wegface Posted August 29, 2015 Share Posted August 29, 2015 try this config.plist see if its better for you. You didnt say what wasnt working tho.... https://www.dropbox.com/s/hzwhmrckt25q2m4/config.plist?dl=0 For audio see mirones thread but i dont know if he did them for 10.11 yet. 2 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164226 Share on other sites More sharing options...
canapippo Posted August 29, 2015 Author Share Posted August 29, 2015 I still have to do everything, I managed to run only on Wi-Fi. Not works: Mouse, Bluetooth, battery indicator, sleep (standby), USB on the left (3.0), Audio, Microphone, Screen brightness adjustment keyboard. I do not know if there's nothing else to set EDIT: I tried to install the apple hda (that you suggested to me) with appleapciplatform and applesmart battery (looking on google I read that would work for my computer). Now I can not turn on the computer (doesn't boot), even from USB, it give me error System nanoseconds 3289309 ecc. (i tryed to boot with -x too) what can be the solution? how do I fix? Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164288 Share on other sites More sharing options...
wegface Posted August 29, 2015 Share Posted August 29, 2015 Mouse prob needs a touchpad kext, battery indicator and brightness needs dsdt patch, usb 3 needs the generic kext from rehabman, but i think for 10.11 this is more complicated. Why not use voodoohda for sound, as its a fresh install just start from scratch, not much time lost. 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164298 Share on other sites More sharing options...
Allan Posted August 29, 2015 Share Posted August 29, 2015 Try this: EFI.zip 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164300 Share on other sites More sharing options...
canapippo Posted August 30, 2015 Author Share Posted August 30, 2015 Mouse prob needs a touchpad kext, battery indicator and brightness needs dsdt patch, usb 3 needs the generic kext from rehabman, but i think for 10.11 this is more complicated. Why not use voodoohda for sound, as its a fresh install just start from scratch, not much time lost. Try this: EFI.zip I replaced the folder Efi I have posted (I no longer have the config wegface), a difference that is noticed is the percentage of the battery but it works badly or not this marks battery or download, although it is charged. The thing I care most is to try to solve the trackpad. With Voodoo can not drag icons (as drag a file to the trash). I could not find anything looking.They say they utilize voodoo but it's not good Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164434 Share on other sites More sharing options...
Allan Posted August 30, 2015 Share Posted August 30, 2015 Delete the VoodooPS2Controller from EFI/CLOVER/kexts folder, and install in S/L/E. 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164472 Share on other sites More sharing options...
canapippo Posted August 31, 2015 Author Share Posted August 31, 2015 After a reboot, the mouse works I tried to do a test with the audio, even finding files that seem to be right for me, not working. Do you suggestto install Voodoo? I noticed that with Voodoo thanin comparison to Windows Audio feels much lower about half, it is very annoying, I would try to solve with AppleHDA if is possible Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164608 Share on other sites More sharing options...

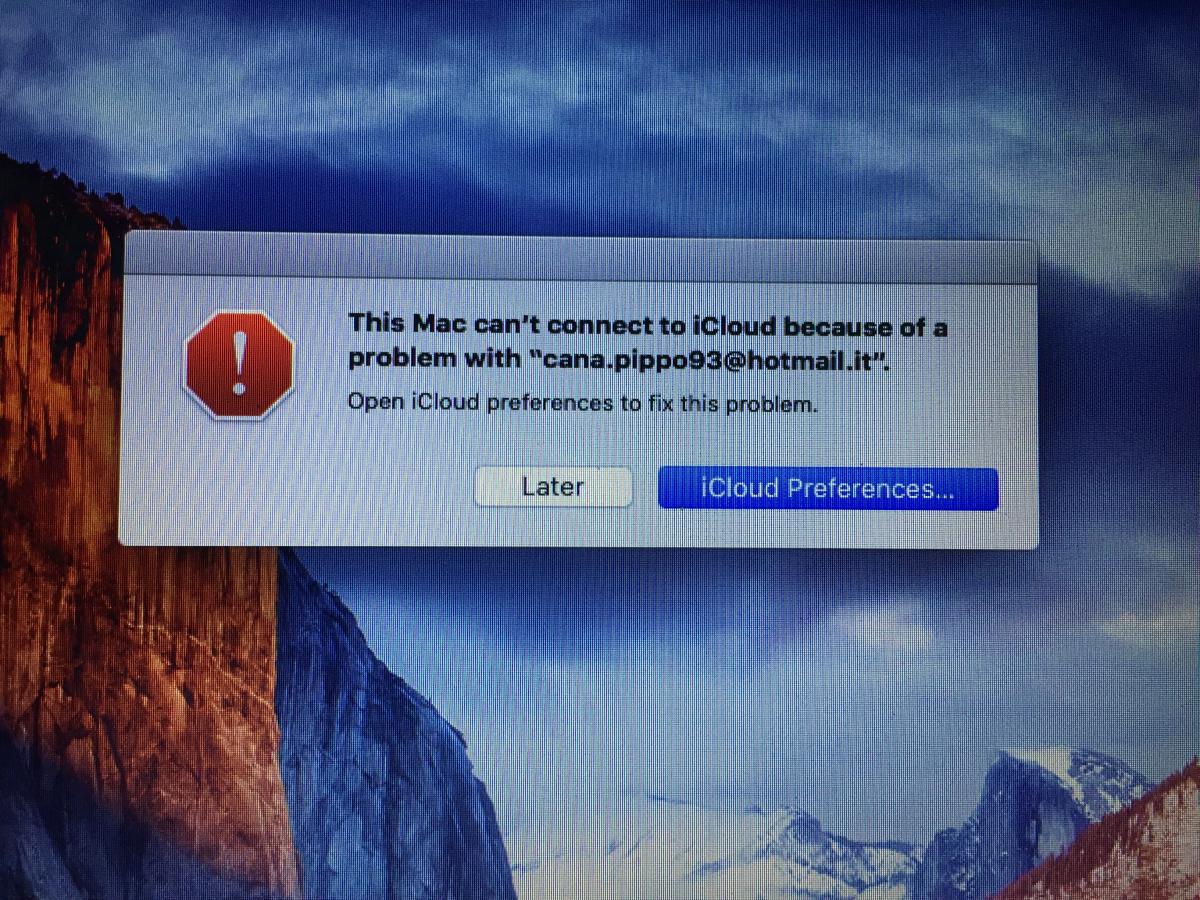

canapippo Posted August 31, 2015 Author Share Posted August 31, 2015 How i could fix it? Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164681 Share on other sites More sharing options...
Allan Posted August 31, 2015 Share Posted August 31, 2015 Is good you learn more about how enable iCloud/iMessage: How to enable iMessage I've never had this problem, but check if your email address is ok with Apple services... Or try change the email. 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164789 Share on other sites More sharing options...
canapippo Posted September 1, 2015 Author Share Posted September 1, 2015 Is good you learn more about how enable iCloud/iMessage: How to enable iMessage I've never had this problem, but check if your email address is ok with Apple services... Or try change the email. I did everything guidance and exchange email imessagge opens but I just try to send a message to me immediately turns green, and even that does not send please check my config.plist config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164873 Share on other sites More sharing options...
Allan Posted September 1, 2015 Share Posted September 1, 2015 Ok, only when i get home, because i'm my job now. 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2164888 Share on other sites More sharing options...
canapippo Posted September 2, 2015 Author Share Posted September 2, 2015 One thing that has nothing to do with the rest. I installed Windows 10 to restart but there was not clover. When I boot from the memory stick there are some mistakes of the keychains and if I try to install clover IT say me installation failed what can I do? Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165037 Share on other sites More sharing options...
Allan Posted September 2, 2015 Share Posted September 2, 2015 About dual boot, check this: [Guide] Dual-boot with Windows 10 - Legacy or UEFI 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165046 Share on other sites More sharing options...
canapippo Posted September 2, 2015 Author Share Posted September 2, 2015 About dual boot, check this: [Guide] Dual-boot with Windows 10 - Legacy or UEFI I could not solve. I think that to have no problems I have two hard drives but I only have one. do you have news about my iMessage? Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165160 Share on other sites More sharing options...
Allan Posted September 2, 2015 Share Posted September 2, 2015 do you have news about my iMessage? Well, for you enable iMessage you'll need use this values: MLB ROM Is very easy for generate the values, just take a good read in the guide that i send to you. And your Apple services will work. 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165163 Share on other sites More sharing options...
canapippo Posted September 2, 2015 Author Share Posted September 2, 2015 Well, for you enable iMessage you'll need use this values: MLB ROM Is very easy for generate the values, just take a good read in the guide that i send to you. And your Apple services will work. I think as you've seen from my config plist that I had posted, I inserted correctly MLB ROM and following the guide Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165202 Share on other sites More sharing options...
Allan Posted September 2, 2015 Share Posted September 2, 2015 Well, in the guides, you'll find that is better use MLB with 13 chars, is most compatible. I had a lot problems to enable using 17 chars, but when i change for 13, i enable Apple services just one time! Also, i called for Apple, and them have validated my serial number. Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2165204 Share on other sites More sharing options...
canapippo Posted September 10, 2015 Author Share Posted September 10, 2015 Well, in the guides, you'll find that is better use MLB with 13 chars, is most compatible. I had a lot problems to enable using 17 chars, but when i change for 13, i enable Apple services just one time! Also, i called for Apple, and them have validated my serial number. it seems to be able to solve everything, but another thing I would fix is the spleep (stan by): When not using the computer for five minutes, I get a black screen and after a few seconds when you turn it off, as I can solve it? beyond that we just have to solve only the battery indicator and bluetooth Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2166679 Share on other sites More sharing options...

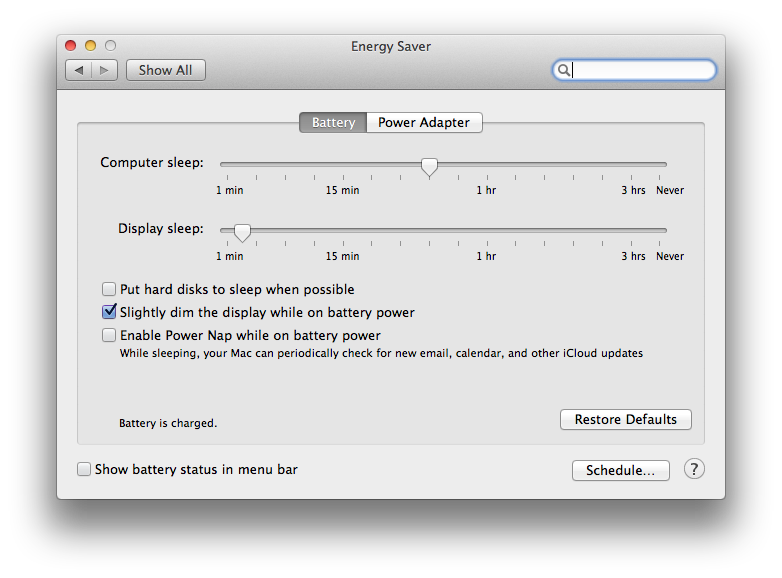

Allan Posted September 10, 2015 Share Posted September 10, 2015 When not using the computer for five minutes, I get a black screen... Try change this values: beyond that we just have to solve only the battery indicator and bluetooth Use VoodooBattery or ACPIBatteryManager (with this kext, maybe you'll need use DSDT patch). 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2166711 Share on other sites More sharing options...
canapippo Posted September 10, 2015 Author Share Posted September 10, 2015 Try change this values: Screen Shot 2015-09-10 at 08.51.20.png Use VoodooBattery or ACPIBatteryManager (with this kext, maybe you'll need use DSDT patch). You give me a solution for saving battery, maybe I explained I hurt: when I lower the screen of my notebook computer after I reopen it remains on only for a few seconds. there is a solution for this? I have already tried with ACPIBatteryManager but does not work (on Yosemite was one of the few things that worked, very strange) how can I fix? can you pass a few files? I also saw that by installing the S / L / E kext I had about Yosemite ACPIBatteryManager etc. did not withdraw more boot (system error gave me 3,285,267 nanoseconds) and had to do a new installation Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2166739 Share on other sites More sharing options...
Allan Posted September 10, 2015 Share Posted September 10, 2015 Google for this guide: [Guide] How to patch DSDT for working battery status 1 Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2166777 Share on other sites More sharing options...
canapippo Posted October 28, 2015 Author Share Posted October 28, 2015 after several attempts by myself It does not work: (I do not know if there's more) Bluetooth, battery indicator, sleep (stand by: when i am not using the computer for five minutes, I get a black screen and after a few seconds when you turn it off, maybe I have to set some settings but do not know which,I changed the settings in System Preferences) another thing that happens to me very annoying, when I turn on my computer the first two times I see a symbol of the prohibition. I have to start it off and on again a couple of times then it starts PS: I can not set the autologin power (on clover) even if the timeout is set in config.plis and if you do not use the computer for a while to power on the screen, the computer turns off after a few seconds Is it possible that they are out of date kext for the battery indicator? on Yosemite It worked on, if I try to install the same kext I had before, clover doesn't start. Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2183034 Share on other sites More sharing options...
Allan Posted October 31, 2015 Share Posted October 31, 2015 Boot with -v, and if stops, take a pic and post here. Link to comment https://www.insanelymac.com/forum/topic/307838-tsinghua-tongfang-co-ltd-model-x46f-el-capitan/#findComment-2184011 Share on other sites More sharing options...
