vandebergz Posted October 14, 2015 Share Posted October 14, 2015 ok, try this AppleHDA_233_v4_2.kext.zip Line In still not capturing. Internal Mic capture quality gets lower but statics is still there, unlike v5 that has no statics Link to comment Share on other sites More sharing options...
MacPeet Posted October 14, 2015 Share Posted October 14, 2015 I do not have a lot of ideas AppleHDA_233_v6.kext.zip Node 25 LineIn do not exist in their codec dump LineIn does not exist in codec_dump Can not you work with the internal mic? Link to comment Share on other sites More sharing options...
vandebergz Posted October 14, 2015 Share Posted October 14, 2015 I do not have a lot of ideas AppleHDA_233_v6.kext.zip Node 25 LineIn do not exist in their codec dump LineIn does not exist in codec_dump Can not you work with the internal mic? Sorry it's another failed attempt.. I think I can but I just want it to be able to switch between internal mic and external with a click of a button Anyway thanks for all the help Link to comment Share on other sites More sharing options...
MacPeet Posted October 15, 2015 Share Posted October 15, 2015 Perhaps it would be interesting even to install VoodooHDA and then see if it goes here and there, then into ioreg and DarwinDumper (Audio) to see for more info. Link to comment Share on other sites More sharing options...
Slyon Posted November 18, 2015 Share Posted November 18, 2015 Hi! I'm successfully using AppleHDA for HP Envy k000 model of post #37 on my HP Envy k111nl ! "try_this_for_mic_line_switch_mode_AppleHDA_ALC290_HP_ENVY_15t_k000.kext.zip" It's great! I was thinking if it would possibile to get Subwoofer to work! It's something obteinable with the AppleHDA? Link to comment Share on other sites More sharing options...
chilinhhacker Posted January 11, 2016 Share Posted January 11, 2016 Hello, I have the same mic problem because of built-in+ComboJack issue. But my device is ALC233 with only 3 verbs(mic, speaker, and headphone). I managed to make internal mic working though. Could you help me to make external mic working? How did u get your internal mic working? Can I have your patched AppleHDA for reference? Link to comment Share on other sites More sharing options...
phuanh004 Posted January 23, 2016 Share Posted January 23, 2016 @phuanh004 also for you a version with switch mode mic / line input Can you rebuild this sir ? I dont know why but headphone sometime not working on Yosemite 10.10.4 and All version of El Capitan. Thanks for your help Link to comment Share on other sites More sharing options...
MacPeet Posted January 24, 2016 Share Posted January 24, 2016 The best method for all versions of OS X is Clover's on the fly. Try this ... ALC290_HP_m6_n015_dx_on_the_fly_Clover_Package.zip 1. Download on the fly Package 2. copy realtekALC.kext to EFI/Clover/Kexts/10.10/ or …/10.11 (depending on the Yosemite or Capitan) 3. copy original AppleHDA.kext (Vanilla) of your current version to Desktop (no patched HDA) 4. copy layout3.zml.zlib and Platforms.zml.zlib to Vanilla Desktop/AppleHDA/Contents/Resources/ 5. add in Clover - config.plist: 6. activate in config.plist Inject kexts to Yes 7. install AppleHDA.kext from Desktop to S/L/E 8. install EAPDFix.kext to S/L/E (for Audio after Sleep) 9. rebuild cache via terminal with: sudo kextcache -prelinked-kernel 10. reboot and have fun 1 Link to comment Share on other sites More sharing options...

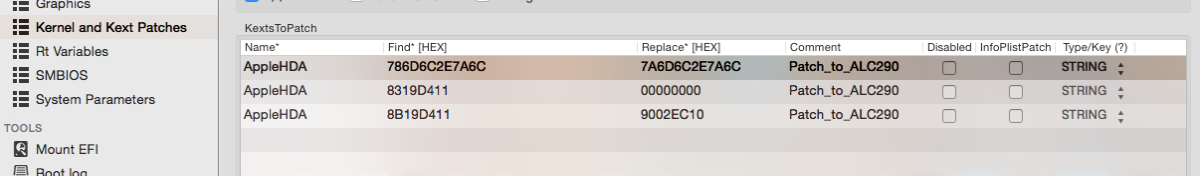

phuanh004 Posted March 11, 2016 Share Posted March 11, 2016 The best method for all versions of OS X is Clover's on the fly. Try this ... ALC290_HP_m6_n015_dx_on_the_fly_Clover_Package.zip 1. Download on the fly Package 2. copy realtekALC.kext to EFI/Clover/Kexts/10.10/ or …/10.11 (depending on the Yosemite or Capitan) 3. copy original AppleHDA.kext (Vanilla) of your current version to Desktop (no patched HDA) 4. copy layout3.zml.zlib and Platforms.zml.zlib to Vanilla Desktop/AppleHDA/Contents/Resources/ 5. add in Clover - config.plist: patch.png 6. activate in config.plist Inject kexts to Yes 7. install AppleHDA.kext from Desktop to S/L/E 8. install EAPDFix.kext to S/L/E (for Audio after Sleep) 9. rebuild cache via terminal with: sudo kextcache -prelinked-kernel 10. reboot and have fun Hi, MacPeet, sorry for my late reply. But Do you missing something ? I have just reinstall my mac for take the vanilla AppleHDA kext and nothing happened, sound is not detected. // I tried use your layout3.zml.zlib and Platforms.zml.zlib files, change the name to layout3.xml and Platforms.xml -> use AppleHDA Patcher v1.1 tool but not work too. Thanks for your help Link to comment Share on other sites More sharing options...
MacPeet Posted March 12, 2016 Share Posted March 12, 2016 3. copy original AppleHDA.kext (Vanilla) of your current version to Desktop 4. copy layout3.zml.zlib and Platforms.zml.zlib to Vanilla Desktop/AppleHDA/Contents/Resources/ (do not change the names of files, not xml, zml.zlib is ok) ok, here is the Capitan Vanilla (only for Capitan) with zml.zlib-Files: AppleHDA.kext.zip 7. install AppleHDA.kext from Desktop to S/L/E not use AppleHDA Patcher 2. copy realtekALC.kext to EFI/Clover/Kexts/10.10/ or …/10.11 (depending on the Yosemite or Capitan) 6. activate in config.plist Inject kexts to Yes !!! 5. add in Clover - config.plist: 8. is optional Link to comment Share on other sites More sharing options...

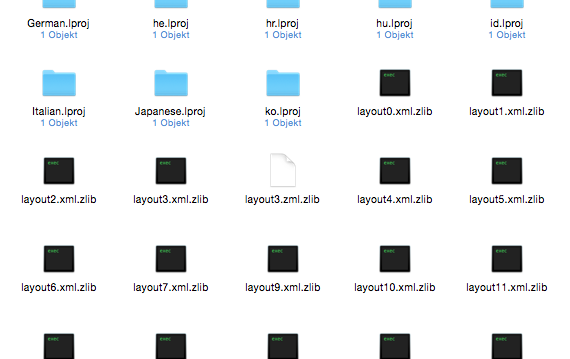

phuanh004 Posted March 14, 2016 Share Posted March 14, 2016 3. copy original AppleHDA.kext (Vanilla) of your current version to Desktop 4. copy layout3.zml.zlib and Platforms.zml.zlib to Vanilla Desktop/AppleHDA/Contents/Resources/ (do not change the names of files, not xml, zml.zlib is ok) vanilla.png ok, here is the Capitan Vanilla (only for Capitan) with zml.zlib-Files: AppleHDA.kext.zip 7. install AppleHDA.kext from Desktop to S/L/E not use AppleHDA Patcher 2. copy realtekALC.kext to EFI/Clover/Kexts/10.10/ or …/10.11 (depending on the Yosemite or Capitan) 6. activate in config.plist Inject kexts to Yes !!! 5. add in Clover - config.plist: 8. is optional I did all that step but nothing happened. Link to comment Share on other sites More sharing options...
MacPeet Posted March 14, 2016 Share Posted March 14, 2016 strange ok 10.10 The uploaded by me was only for El Capitan! Have you placed the files in an original AppleHDA of Yosemite? Cache rebuilt? Link to comment Share on other sites More sharing options...
phuanh004 Posted March 14, 2016 Share Posted March 14, 2016 strange ok 10.10 The uploaded by me was only for El Capitan! Have you placed the files in an original AppleHDA of Yosemite? Cache rebuilt? Sure. I use original AppleHDA and did the sudo command. Link to comment Share on other sites More sharing options...
MacPeet Posted March 14, 2016 Share Posted March 14, 2016 ok, please post last patched AppleHDA that worked well. I look Link to comment Share on other sites More sharing options...
phuanh004 Posted March 14, 2016 Share Posted March 14, 2016 ok, please post last patched AppleHDA that worked well. I look AppleHDA.zip Link to comment Share on other sites More sharing options...
MacPeet Posted March 15, 2016 Share Posted March 15, 2016 Ok, try new realtekALC.kext. realtekALC.kext.zip How is the LayoutID3-Inject? With DSDT, with HDAEnabler or Clover? Link to comment Share on other sites More sharing options...
phuanh004 Posted March 16, 2016 Share Posted March 16, 2016 Ok, try new realtekALC.kext. realtekALC.kext.zip How is the LayoutID3-Inject? With DSDT, with HDAEnabler or Clover? It's still not work sir. I was patched HPET layout 3 on DSDT, and changed config clover too. Link to comment Share on other sites More sharing options...
MacPeet Posted March 16, 2016 Share Posted March 16, 2016 With DSDT Inject and without Clover Inject it does not work? I do not get it. The patch is ok, although it does not go. All my computer work on the fly audio with Clover and DSDT Inject. Why not with you, mmmhhh ... Link to comment Share on other sites More sharing options...
phuanh004 Posted March 18, 2016 Share Posted March 18, 2016 With DSDT Inject and without Clover Inject it does not work? I do not get it. The patch is ok, although it does not go. All my computer work on the fly audio with Clover and DSDT Inject. Why not with you, mmmhhh ... ... !! I give it up, I tried all the way ! May I use old kext. Link to comment Share on other sites More sharing options...
MacPeet Posted March 18, 2016 Share Posted March 18, 2016 Yes, if it does not work , then: delete the config.plist audio patches delete the realtekALC.kext Install again the patched AppleHDA to S/L/E (unfortunately then again after each update) rebuilt cache Link to comment Share on other sites More sharing options...

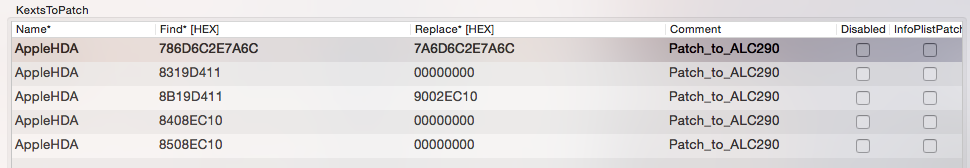

MacPeet Posted March 20, 2016 Share Posted March 20, 2016 I've just seen, in the last patched AppleHDA is blocked also 0885 and 0884 one more try with: and with realtekALC.kext and Vanilla-HDA+zml.zlib´s 1 Link to comment Share on other sites More sharing options...
startergo Posted April 13, 2016 Share Posted April 13, 2016 Thank you sir, but nothing happen. I can't see input device in Sound... So what's wrong? UPDATE!! Internal Mic is fine now! Only External now!!!! Hey babibada. Do you have the pathmaps.xml, layout3.xml and the verbs you used for your patch. I have a very similar setup , but I can't get the headphones to work? Link to comment Share on other sites More sharing options...
nhox.blue Posted December 8, 2016 Share Posted December 8, 2016 HP Envy 15 t k000 sierra. codec alc 290 by MacPeet (https://www.root86.com/topic/7825-root86-applehda-patch-thread/) AppleHDA_ALC290_HP_ENVY_15t_k000_Sierra.kext.zip Link to comment Share on other sites More sharing options...
MacPeet Posted December 11, 2016 Share Posted December 11, 2016 @nhox.blue Please Report! Do all connections work with the new Kext (Speaker / Mic / HP / LineIn)? No subwoofer is configured in the kext. For this I need again a codec_dump of Linux! This requires 2x internal speakers (1st speakers / 2nd subwoofer) and these are connected with Midi-Setup. My laptop works very well with subwoofer. Your codec has only one speaker connector. Therefore, please codec_dump! Link to comment Share on other sites More sharing options...
DAXGr Posted January 28, 2017 Share Posted January 28, 2017 I'm having the same issue on ALC290 on a HP Pavilion 15 StarWars edition an002nv. Currently have internal speaker out working with AppleALC.kext and layout-id of 3 injected via DSDT edit. Link to comment Share on other sites More sharing options...
