vandroiy2012
vandroiy2012
Posted
Posted

OK. Put back this aptiofix2 in EFI/Clover/Drivers6UEFI and delete old one

OsxAptioFix2Drv-64.efi.zip






upd. Well... Watching your log i see that you are using OLD config.plist file!!! Give me log with folder i send you with my config.plist and with OsxAptioFix2Drv attached

Preboot.log is not presented at all in that folder



Should be!!! If your USB flash drive formatted in FAT32!!!

Link to comment
Share on other sites
vandroiy2012
vandroiy2012
Posted
Posted

Using right config now. Booted with debug set to true. Rebooted after 2-3 seconds and no preboot.log in that folder





Skickat från min iPad med Tapatalk





debug.log should be in EFI/Clover/misc if your USB FORMATTED IN FAT32, MBR. In config.plist set Boot->Debug->true... Without logs i can't help you. Sorry...

Link to comment
Share on other sites
vandroiy2012
vandroiy2012
Posted
Posted

I'm already lost in your mess)))

Your log shows



1:238 0:010 Loading OsxAptioFix2Drv-64.efi status=Success

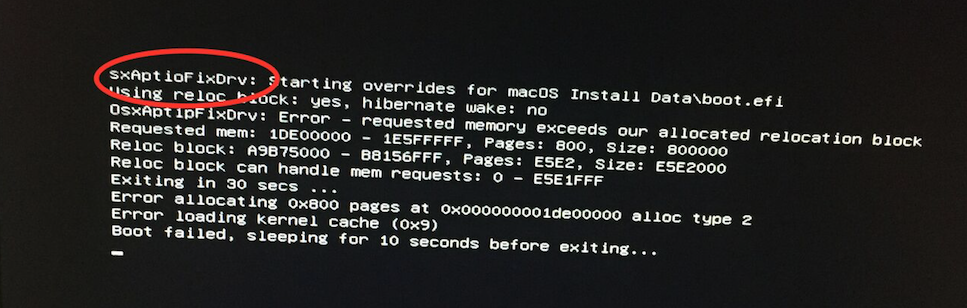

And your photo disprove it :blush:









Also it is NOT legacy mode!!! OsxAptioFix didn't load in Legacy...





Maybe your Install is corrupted. Try to make new PenDrive with createinstallmedia command in terminal...

Sorry. I'm out of options... Simple procedure lasting TWO days :w00t:

Link to comment
Share on other sites
dixipix
dixipix
Posted
Posted

I'm already lost in your mess)))

Your log shows



And your photo disprove it :blush:

attachicon.gifСнимок экрана 2016-09-22 в 22.12.12.png







Also it is NOT legacy mode!!! OsxAptioFix didn't load in Legacy...

Sorry! Im pretty lost myself. I suspect that legacy mode does not work at all then. I think that the files in the USB is correct. Here is the EFI-folder in the USB right now: https://www.dropbox.com/s/uklpp6kcvm6ypxt/EFI.rar?dl=0

Link to comment
Share on other sites
vandroiy2012
vandroiy2012
Posted
Posted

No luck at all :(



https://www.dropbox.com/s/lba6u5lrq4c9j4m/Foto%202016-09-22%2021%2048%2015.jpg?dl=0



Tried one more time with installer located on another flash-drive with same result.



Do you have working for you EFI folder on your SSD? Could you give it to me?



upd. Your install USB located in USB2.0 port? If not - plug it in USB2.0. Also unplug ALL hard drives except the one you are installing at.

Link to comment
Share on other sites
dixipix
dixipix
Posted
Posted

Read update in me previous post

Im only using usb 2.0 since 3.0 tends to be problematic. Only things that are attached is a keyboard and a mouse and the flash-drive with EFI folder on.



I got a internal HDD also used for storage only. Should i disconnect that as well?

Link to comment
Share on other sites
vandroiy2012
vandroiy2012
Posted
Posted

Yeah. Finally some progress. Im trying to install it over el capitan if possible



Then go in El Capitan, copy your Install macOS Sierra.app in Applications, open Disk Utility, choose your System Partition an run First Aid. After that run Install macOS Sierra.app from Applications and proceed with upgrade...




After reboot boot from USB and choose boot Install macOS Sierra from Macintosh SSD (NOT from pen drive) and update will start. Second reboot - boot from USB and choose booting from Macintosh SSD. After login in Sierra REPLACE EFI folder on your SSD with EFI folder from USB and reboot without USB Drive

Link to comment
Share on other sites
dixipix
dixipix
Posted
Posted

Then go in El Capitan, copy your Install macOS Sierra.app in Applications, open Disk Utility, choose your System Partition an run First Aid. After that run Install macOS Sierra.app from Applications and proceed with upgrade...

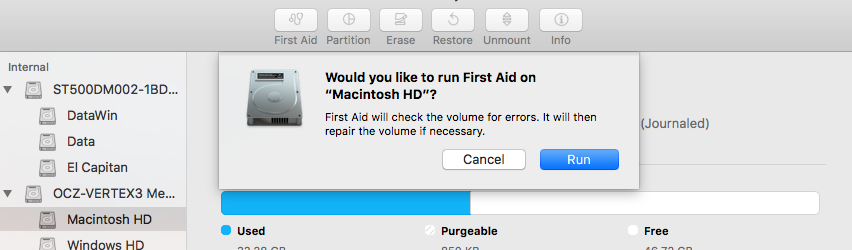

attachicon.gifСнимок экрана 2016-09-22 в 23.32.01.png

Unfortunately i cant do that. When booting el capitan the machine crashes.




Link to comment
Share on other sites
Huckleberry Pie
Huckleberry Pie
Posted
Posted

Give me config.plist



I want to check your config.plist

Alright, here's the plist you requested:



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>MCFG</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>slide=0 dart=0 -xcpm</string>
		<key>Debug</key>
		<false/>
		<key>DefaultLoader</key>
		<string>boot.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>20</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1024x768</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>FakeCPUID</key>
		<string>0x0306A0</string>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
        <key>KernelToPatch</key>
        <array>
            <dict>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                uaABAAAPMg==
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                uaABAAAxwA==
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm on Sierra Haswell Celeron/Pentium</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                g8PEg/si
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                g8PGg/si
                </data>
            </dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>[redacted]</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/04/2012</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.010A.B05.1209042338</string>
		<key>Board-ID</key>
		<string>[redacted]</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>[redacted]</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>iMac13,1</string>
		<key>SerialNumber</key>
		<string>[redacted]</string>
		<key>SmUUID</key>
		<string>[redacted]</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>
Turns out I kinda' did it wrong with the Kernel Patches part hence the panics, but feel free to make any corrections to the plist in case I did something wrong with it.
Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Alright, here's the plist you requested:





<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>MCFG</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>slide=0 dart=0 -xcpm</string>
		<key>Debug</key>
		<false/>
		<key>DefaultLoader</key>
		<string>boot.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>20</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1024x768</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>FakeCPUID</key>
		<string>0x0306A0</string>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
        <key>KernelToPatch</key>
        <array>
            <dict>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                uaABAAAPMg==
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                uaABAAAxwA==
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm on Sierra Haswell Celeron/Pentium</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                g8PEg/si
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                g8PGg/si
                </data>
            </dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>[redacted]</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/04/2012</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.010A.B05.1209042338</string>
		<key>Board-ID</key>
		<string>[redacted]</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>[redacted]</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>iMac13,1</string>
		<key>SerialNumber</key>
		<string>[redacted]</string>
		<key>SmUUID</key>
		<string>[redacted]</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>
Turns out I kinda' did it wrong with the Kernel Patches part hence the panics.
Please attach config.plist. delete your serial and mlb and rom.



And attached ACPI/Patched folder.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
