Experimental 6 channel AppleHDA

[Rodion2010]



  I made two layouts and SoftwareDSP was based on layout70.

Thanks for Your answer.

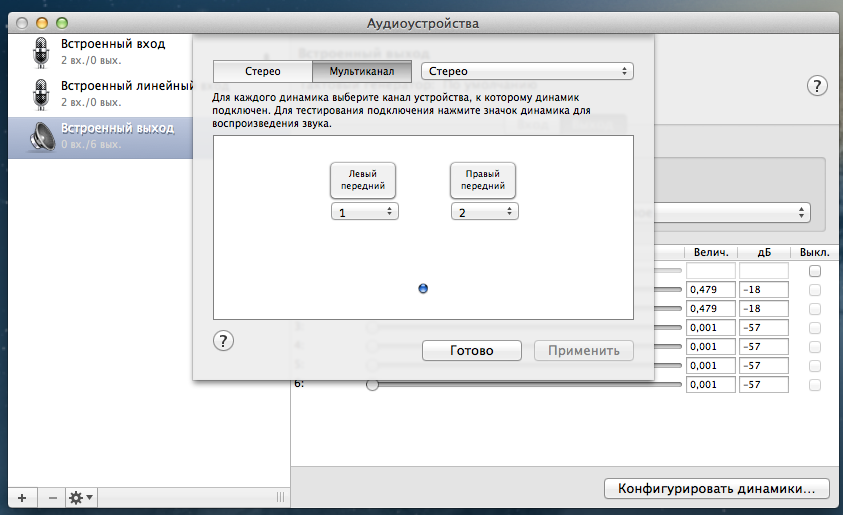

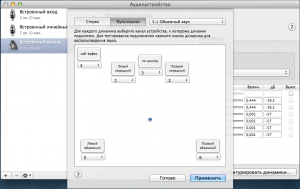

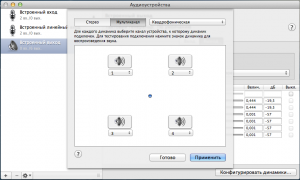

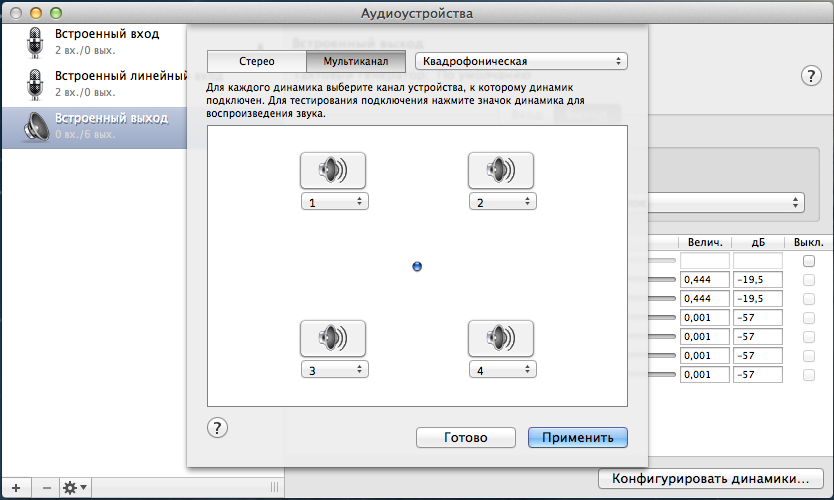

I created Multichannel Device for AD1988b, according to this guide, it seems to be OK with NO DSP functions, I can switch between 2.0, 5.1, 4.0, 6.0 etc

no errors in system log

sound is distorted



when I add any DSP signal processing (Yours, Apple's from different layout*s, my own) I get different Sound Assertions and no sound ((

Platforms.xml.zip

[VCH888]

Can you post layout#.xml.zlib that the one you got 6ch option in Midi Setup?  Thanks.

[Rodion2010]

Can you post layout#.xml.zlib that the one you got 6ch option in Midi Setup?  Thanks.



Nothing special there

works OK with stereo

I tried different SignalProcessing section, Yours, exactly copied from Apple and customized by myself

layout12.xml.zip

[VCH888]

@ Rodion2010



I tried your SignalProcessing and got sound assertions but it's still working.



DSP Sound assertion in DspFuncManager at line 214

DSP Sound assertion in DspFuncManager at line 214







I just was curious how you got 6ch without setting aggregate device.

[Rodion2010]

I just was curious how you got 6ch without setting aggregate device.









I attached Platforms XML with previous message

It has different structure

We can make 3 independent  Audio devices then connect them as Agregate

and

We can make native Multichannel Speaker, it is 5.1 itself

[VCH888]

@ Rodion2010



Thanks.



if multichannel speakers are available in MIDI Setup app,

(testing ALC885, EP35-DS3P)

case 1: there is SoftwareDSP of 6ch in layout -- the sound's distorted if selecting 6ch. If selecting 2ch, SoftwareDSP's working 6ch.

case 2: there is not SoftwareDSP in layout -- the sound's distorted if selecting 2ch or 6ch.



P.S.  It's hard to get the right combination of DSP functions.  If I can find any solution, I will tell you.

[Rodion2010]



P.S.  It's hard to get the right combination of DSP functions.  If I can find any solution, I will tell you.



I can connect _stereo_ functions like DSP Equaliser or DSP Noise reduction

but there is a problem with DSP 6 Channel Output and similar

BTW

 ioclasscount | grep DspFunc

shows the list of available DSPs

.......
DspFuncMultiBandDRC = 0
DspFuncNoiseCanceller = 1
DspFuncPreGain = 0
DspFuncSplineLimiter = 0
,,,,,,,

=1 is loaded and =0 is not loaded
