[HOW TO] Make Radeon {Desktop or Mobility} be working by using Clover

Slice

By Slice,
in ATi

 Share
431 posts in this topic

Recommended Posts

misterphoton
misterphoton
Posted
Posted

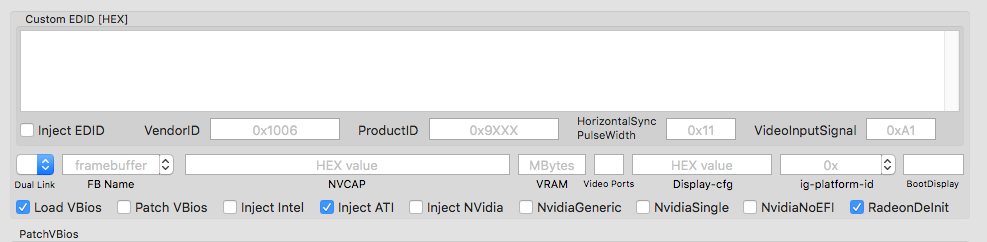

I set load vbios to yes. Resulting in a black screen. thanks again, and if you need any other data, please let me know, Nick



Sierra. Clover EUFI Bootloader.

shaizu
shaizu
Posted
Posted

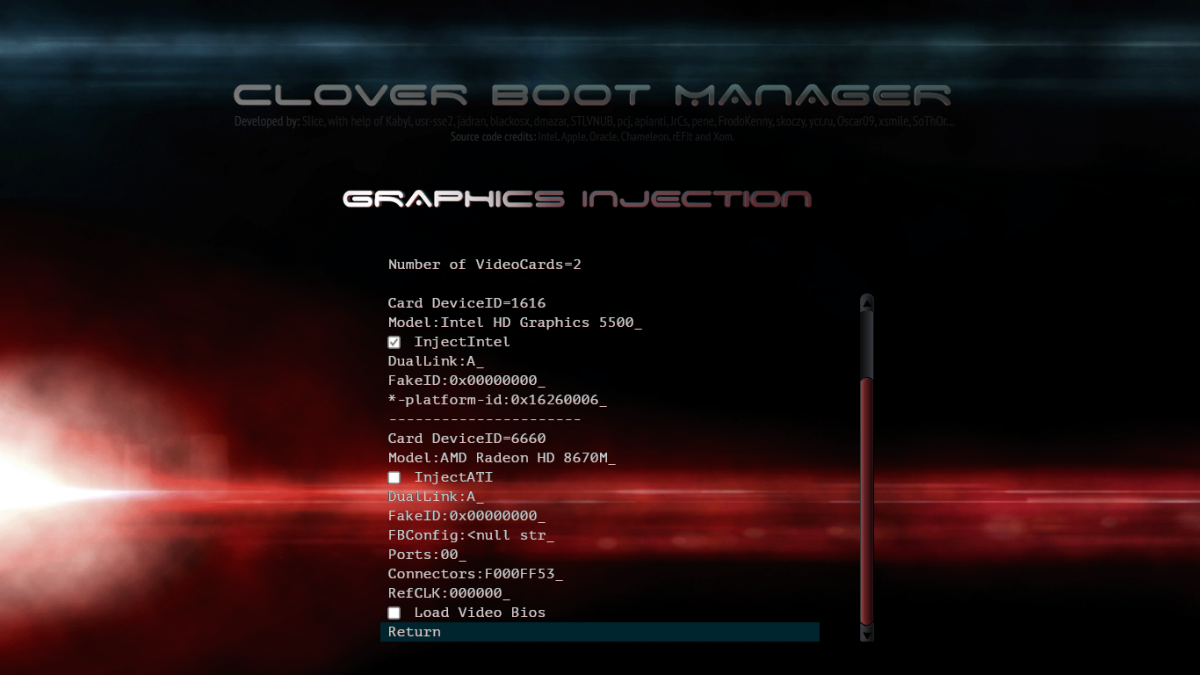

0:100  0:000  PCI (00|0D:00.00) : 1002 6660 class=038000
0:100  0:000   - GFX: Model=AMD Radeon HD 8670M (ATI/AMD)

this shows in preboot.log

and I've AMD Radeon R5 M330 2gb graphics card which doesn't show in system profiler even booting with inject ATI

what should I do to get it work?


misterphoton
misterphoton
Posted
Posted

I'm still trying to figure this out. If you know anyone whom can help, let me know. There are tools to see the rom like darwin dumper, but I do not know what to do after this.

naquaada
naquaada
Posted
Posted

Is a Mobility Radeon 4670 working with Mavericks, Snow Leopard and Leopard? I've actually an GeForce 9600M GT installed and I always get a black screen when I'm not booting in VESA mode.

  • 1 month later...
shaizu
shaizu
Posted
Posted
Device (PXSX)
            {
                Name (_ADR, Zero)  // _ADR: Address
                Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake
                {
                    Return (GPRW (0x69, 0x04))
                }

                Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
                {
                    Store (Package (0x0A)
                        {
                            "class-code",
                            Buffer (0x04)
                            {
                                 0x00, 0x00, 0x03, 0x00                           /* .... */
                            },

                            "AAPL,slot-name",
                            Buffer (0x09)
                            {
                                "Built-In"
                            },
                            "model",
                            Buffer (0x1C)
                            {
                                "AMD Mobility Radeon R5-M330"
                            },

                            "device-id",
                            Buffer (0x04)
                            {
                                 0x5C, 0x66, 0x00, 0x00                           /* \f.. */
                            },

                            "compatible",
                            Buffer (0x10)
                            {
                                "pciclass,030000"
                            }
                        }, Local0)
                    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                    Return (Local0)
                }
            }

I try to inject DSM method to RP05.PXSX and now at About This Mac - > System Reports -> Graphics/Displays show my AMD Graphics. But at DPCIManager i can't see AMD Radeon Card attach to GPU list :(



can you please post the patch I've same graphics card in my laptop

  • 3 weeks later...
SiddRamesh
SiddRamesh
Posted
Posted

@slice sir,



Ive tried everything but no luck, Everyitme ATI is inject i get panic on 10.13.1, its working gr8 on 10.11.6.

N if i ignore ATI Inject, AMD6000 n AMD3000 controller load but no QE/CI.



1.FakeID

2.Mieze DSDT Patch

3.DeInit

4.AMD6000 Controller Patch

5.WhateverGreen

6.replacing 4 kext as u said in one thread..

7.Added devID in AMD6000 kext



m using AMDFrameBufferUtility App



The panic is regarding Legacy AMD ...



SiddRamesh
SiddRamesh
Posted
Posted

Slice sir  sorry to say(didn't wanted to disturb u)  :( but ur method didn't work



 sir can i have ur 4 replaced kext as i m on 10.11.6(maybe not compatible. its says ignoring...)



 can i have this kext from 10.12.5

AMDRadeonX3000.kext

AMDRadeonX3000GLDriver.bundle

IOAccelerator2D.plugin

IOAcceleratorFamily2.kext



1.FakeID

2.Mieze DSDT patch or ur SSDT-AML.aml, as it is not required in clover 4297(DeInit)

3.DeInit

4.InjectATI=No

5.Sir ROM should be injected(I've injected it) !

  • 2 months later...
  • 1 month later...
Slice
Slice
Posted
  • Author
Posted

It's a pity Radeon cards Family NothernIsland will not work in High Sierra. You have to install Sierra or even ElCapitan.

Another way is to replace some AMD kexts by Sierra version.

roadzy
roadzy
Posted
Posted
6 hours ago, Slice said:

It's a pity Radeon cards Family NothernIsland will not work in High Sierra. You have to install Sierra or even ElCapitan.

Another way is to replace some AMD kexts by Sierra version.

So I have another hackintosh running Sierra.  Are you saying to just grab the AMD kexts from it and load them in to High Sierra?  And then once you overwrite these kexts, should I then do the fakeid mentioned above?

roadzy
roadzy
Posted
Posted
On 3/27/2018 at 3:59 AM, Slice said:

It's a pity Radeon cards Family NothernIsland will not work in High Sierra. You have to install Sierra or even ElCapitan.

Another way is to replace some AMD kexts by Sierra version.

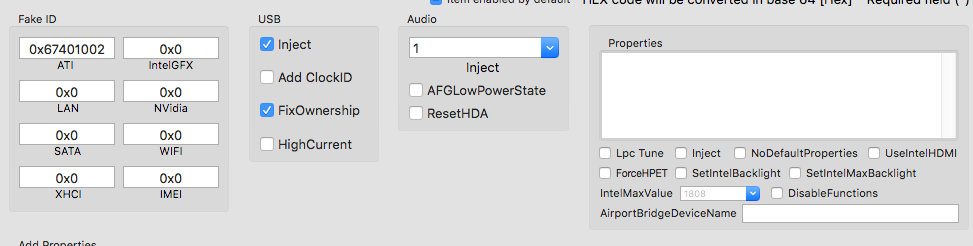

Went to my  sierra hackintosh grabbed all the AMD files Under S/L/E and then used the kext util to load them, rebooted and set the fakeid and loadvbios.  Still no luck.

roadzy
roadzy
Posted
Posted
On 3/27/2018 at 3:59 AM, Slice said:

It's a pity Radeon cards Family NothernIsland will not work in High Sierra. You have to install Sierra or even ElCapitan.

Another way is to replace some AMD kexts by Sierra version.

Downloading Sierra now. I'm going to install that and see if it works.  Still no luck no matter what I try with High Sierra.

roadzy
roadzy
Posted
Posted (edited)
On 3/27/2018 at 3:59 AM, Slice said:

It's a pity Radeon cards Family NothernIsland will not work in High Sierra. You have to install Sierra or even ElCapitan.

Another way is to replace some AMD kexts by Sierra version.

hey @Slice I'm on Sierra.... still no luck any suggestions?

Edited by roadzy
  • 2 months later...
babbenwand
babbenwand
Posted
Posted

Hello,I have Radeon HD 6470m and I can see it in clover in graphics tuning and clicked Inject ATI and load Vbios and I also installed the kexts mentioned above but still I can't see my radeon gnu in system information under graphics . Can anyone help me ?



skyfly555
skyfly555
Posted
Posted (edited)

Hello. I wonder if some of you can help me to get my VBIOS extracted, to be able to patch the AMD framebuffers (the KextsToPatch Clover section).

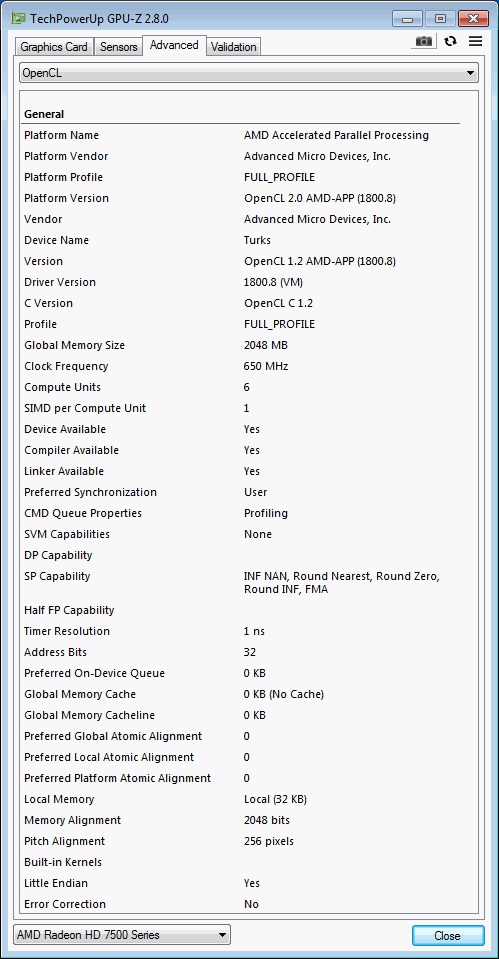

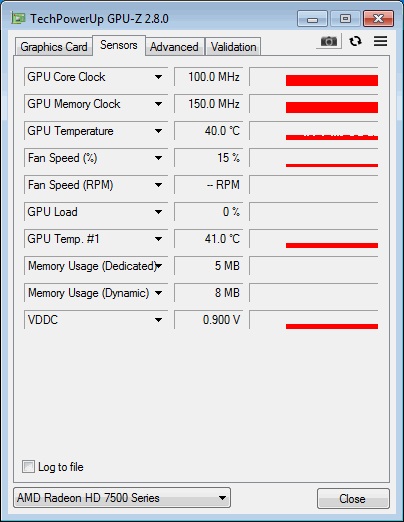

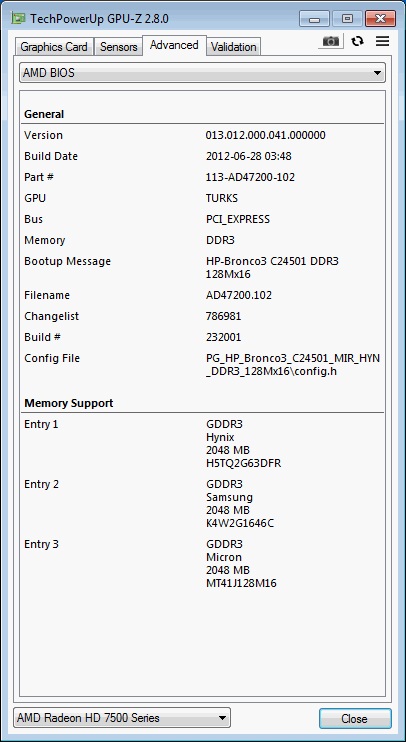

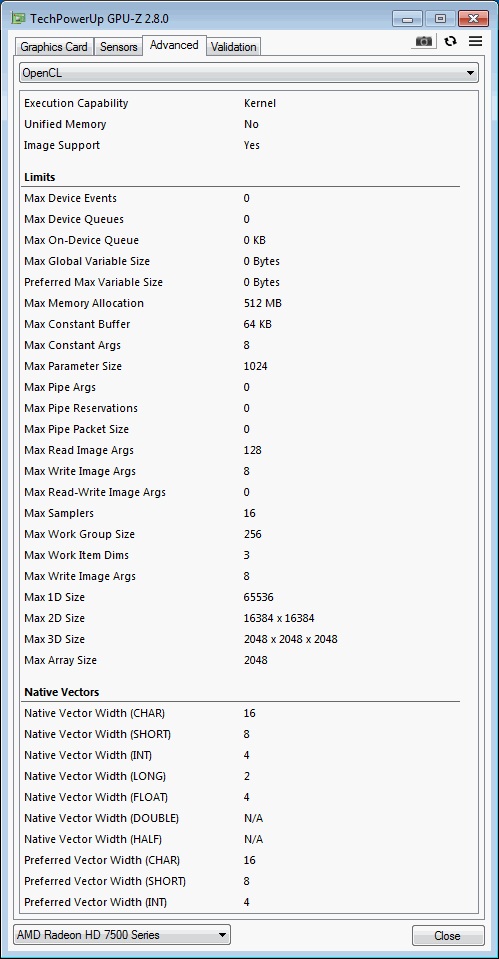

I've tried GPU-Z (Windows), DPCIManager(macOS) and using the PCI sysfs interface to dump the video bios rom (Ubuntu).



It's an AMD Radeon HD 6770M, device id 1002:6740, from an HP Pavilion dv6-6196ss laptop (very similar to an MBP8,3). I'm using HS 10.13.4



I've tried a different approach, to get VBIOS from a Bios update package (called sp55068.exe) using Universal Extractor, Radeon Bios Editor and Phoenix-Insyde-EFI SLIC (Windows). The problem is that "Universal Extractor" reads only the first 64 KB and my VBIOS is 128KB long.



I attach here the BIOS (bin file) that contains the VBIOS, the three VBIOS 64KB files I could get and some images showing the errors I'm facing: https://www116.zippyshare.com/v/SxYDuJL1/file.html



Thank you very much.



Edited by skyfly555
  • 3 weeks later...
skyfly555
skyfly555
Posted
Posted
On 7/13/2018 at 1:41 PM, Slice said:

Radeon Mobility will not work if you have embbedded Intel graphics ON.

Thank you, vBIOS is integrated into the BIOS, so there’s no way to extract it and patch it. Thank you. I will leave it with the HD3000 on.

  • 3 months later...
  • 2 weeks later...
Slice
Slice
Posted
  • Author
Posted
On 11/9/2018 at 9:27 PM, ritikdokania said:

@InsanelyMac V.I.P

My Laptop has R5 Inegrated Graphics

Codename - Beema/Carrizo-L

Which ID shold i use to fake my GPU.

Please help.

Thank You.




I see no compatible card for macOS. You may try to use 0x944A1002 but I have doubt about results.

  • 4 months later...
ford22
ford22
Posted
Posted

hello alll help PCI configuration begin please not signal flags please ASUS TURION X2 UTLRA AMD 4200 kernels please singal please  not extres yes kexts signal clover please  ASUS K51ac series notebook AMD Turion II Ultra M660 graphics amd 4200 help singal or problem PCI configuration begin

  • 4 weeks later...
Slice
Slice
Posted
  • Author
Posted
On 3/31/2019 at 12:28 PM, ford22 said:

hello alll help PCI configuration begin please not signal flags please ASUS TURION X2 UTLRA AMD 4200 kernels please singal please  not extres yes kexts signal clover please  ASUS K51ac series notebook AMD Turion II Ultra M660 graphics amd 4200 help singal or problem PCI configuration begin

Because it is AMD CPU. Go to the intented subforum.
