Rosarioxx

Quale ssd? p5q-e

14 posts in this topic

Recommended Posts

I have the 250GB Samsung 840. Here you can get an idea of how it performed on my P5Q-E, compared to my new SATA 3 motherboard.



Before I got the 840, I had a Seagate ST31000524AS as my OS drive on the P5Q-E. To be honest, the SSD didn't feel that much faster in day to day use. Didn't make me go "wow" or anything.

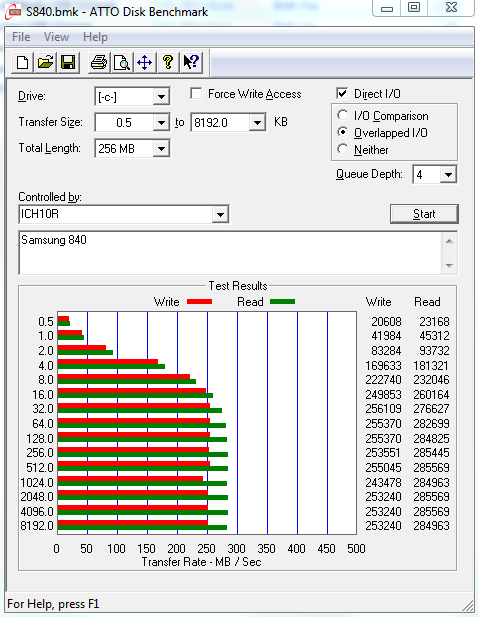

P5Q-E/ICH10R:




But on my new motherboard it feels much faster.

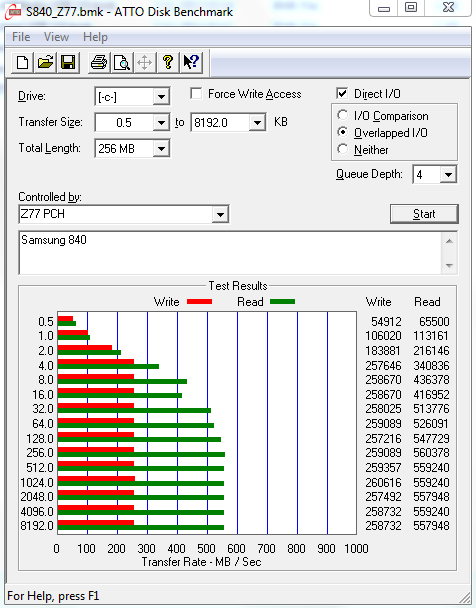

P8Z77V-Pro:




(sorry about the language, i hope this is helpful to you)

Share this post


Link to post
Share on other sites

Sostanzialmente, tradotto in italiano, Gringo Vermelho dice che non vale la pena di acquistare un SSD finché hai quella scheda madre.

Come non vale la pena????? un hd magnetico arriva al massimo 100MB/sec in lettura e meno in scrittura, quì si parla di 250MB/sec in scrittura e 280 in lettura, e 3 volte più veloce!!!

il Sata 3 porta la lettura a 560Mb/sec, direi che e sempre un ottimo investimento e ne vale proprio la pena acquistarlo!

Share this post


Link to post
Share on other sites

io ho un vertex 2 su una p5kc e da quando l'ho montato la divverenza si sente prendilo usato si trovano buoni prezzi non ne vale la pena prenderlo nuovo forse

ciao

Share this post


Link to post
Share on other sites

Io ho acquistato un SSD 840 Samsung da 250gb e montato su una vecchia MSI P35 Platinum con controller sata 2 e fidati se ne vale la pena! Tempi d'avvio ridotti di 3-4 volte, applicazione che si avviano subito, silenzioso, non scalda. Te lo consiglio vivamente.

Share this post


Link to post
Share on other sites

Hi, sorry for language.

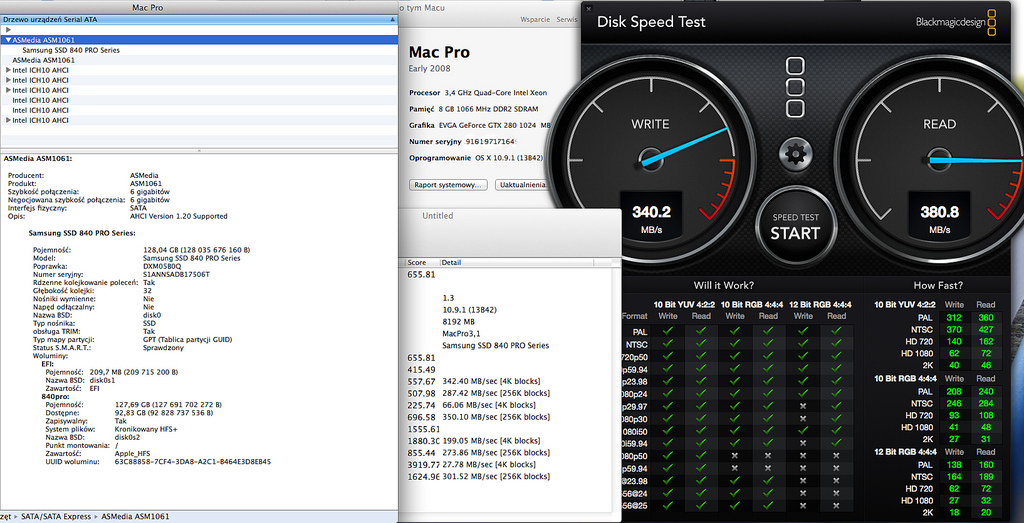

I have new Samsung 840 Pro on my old P5Q-E with SATA 3 and ASM1061 PCIe card for about 12 Euro.

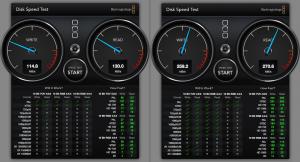

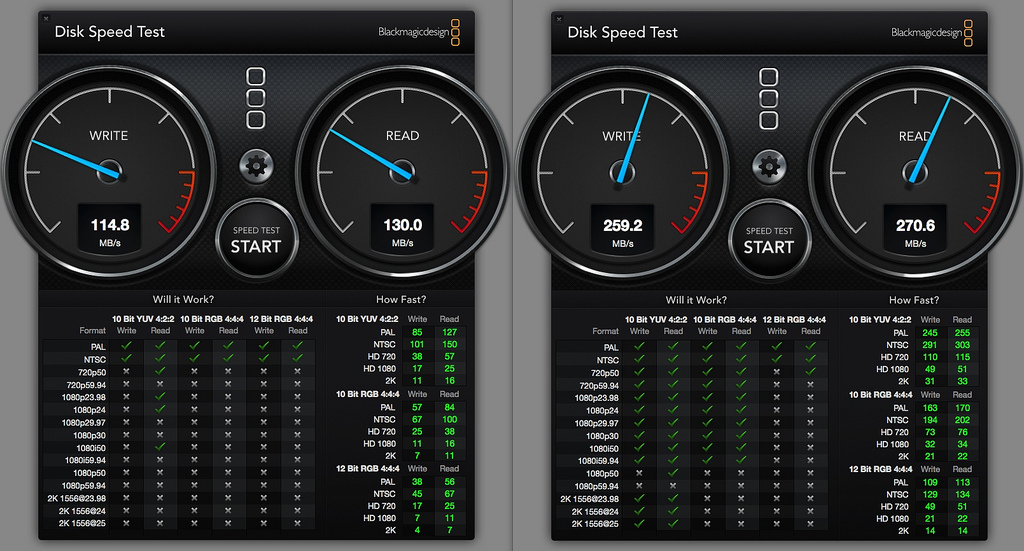

You can check results of Samsung 840 Pro compared with old Vertex 2 on SATA 2




and Samsung 840 Pro on new SATA 3 PCIe card.


Share this post


Link to post
Share on other sites

The P5Q-E is a great board. Mine is still in use, though it's not running OS X anymore. And yeah...you really need SATA 3 to get the full benefit of an SSD.



In the screenshot I posted of course read speeds are faster than a conventional drive on the ICH10R. But that's just a benchmark. I was trying to say that during actual use it did not feel that much faster to me.



If you use a laptop without SATA 3 an SSD is great no matter how fast it is because of the increased battery life. Not to mention that if you happen to drop your laptop it is 90% less likely that you will lose all your data.

Share this post


Link to post
Share on other sites

i sata sono retrocompatibili, quindi puoi mettere tranquillamente un disco sata3 su una scheda madre con sata 2 o sata1 ( la velocità di trasferimento sarà ovviamente limitata dalla porta presente sulla scheda madre), Puoi anche fare il contrario, ovvero mettere un disco sata1 su una scheda madre con sata 3 o sata 2, in questo caso la velocità sarà ridotta in partenza dal disco! Detto questo....un disco ssd sata 2 non lo troverai a cifre tanto dissimili dai sata 3, per cui vale la pena prendere un ssd sata3  e sperare che prima o poi lo collegherai ad una scheda madre con sata3. Ho un samsung 840 pro sata3 da 128 gb che uso per il sistema operativo 10.8.5. e' un gran bel disco, ed ottimizzandolo da il meglio! Per ottimizzazione intendo l'uso di un ramdisk che si carica automaticamente sul desktop e dove risiede la cache utente ( quindi il disco ssd risulta defatigato), la modalità TRIM attiva sull'ssd ( app trim enabler), e l'eliminazione dell'indicizzazione sul disco ssd ( opzioni spotlight). Fatto questo il disco ssd cammina come un razzo !

Share this post


Link to post
Share on other sites
