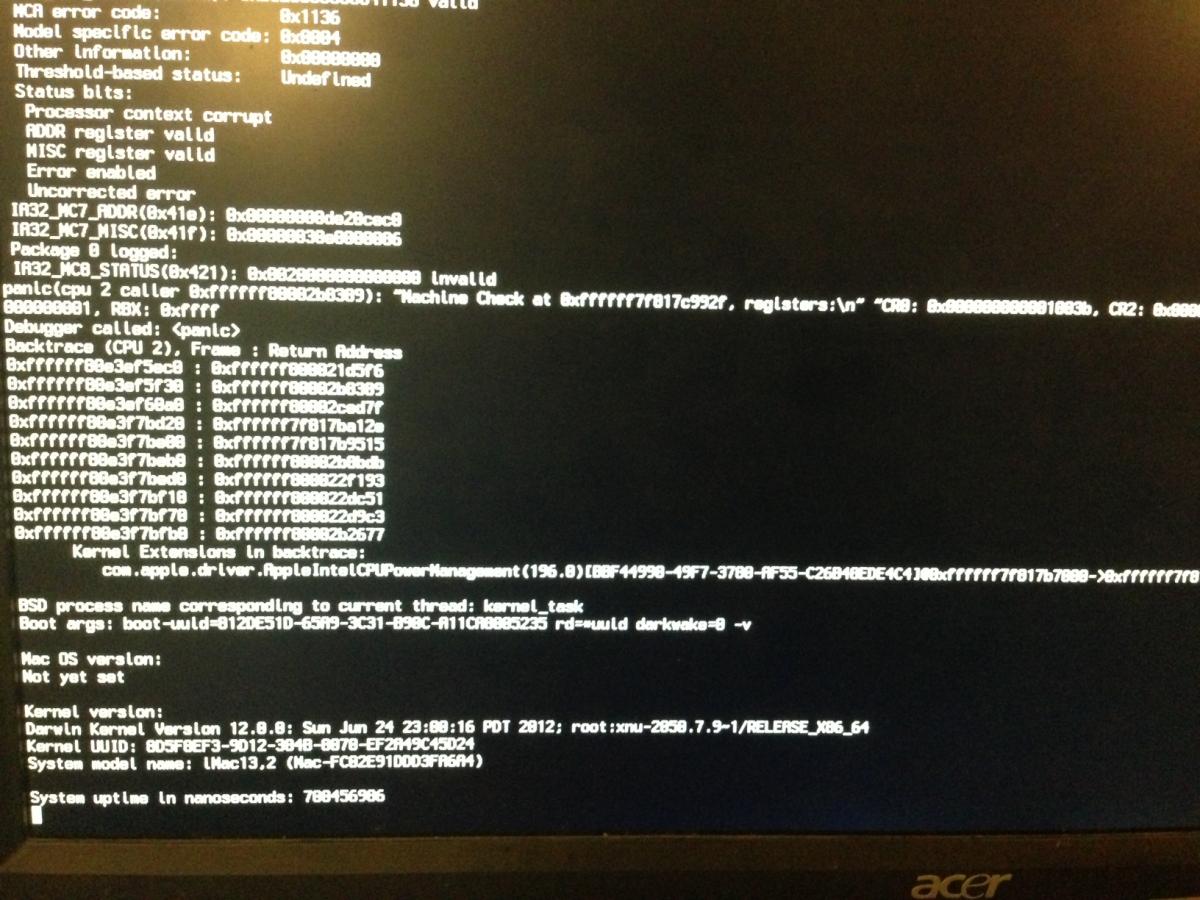

metaphysician Posted May 27, 2013 Share Posted May 27, 2013 hey folks (and especially carbo178!) - continuing a discussion we started on another topic - i'm looking for a DSDT that will enable audio for this board, which uses the ALC889 driver. the current one i have causes a kernel panic in what appears to be AppleIntelCPUPowerManagement.kext. see the enclosed picture. this is a bit odd because i patched power management with a BIOS flashback to version 0606 so my version of AICPM is unpatched. i guess the DSDT overwrites that setting maybe? and maybe the DSDT is set up for a newer unpatched BIOS like mine was before i flashed it ,and instead uses NullCPUPowerManagment or possibly a patched version of AICPM? scott Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/ Share on other sites More sharing options...
carbo178 Posted May 27, 2013 Share Posted May 27, 2013 My bios is patched like your, same version (0606). I don't understand the panic... Patience, about 4/5 hours i upload new dsdt (now i'm not at home) Sorry for my english Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-1918282 Share on other sites More sharing options...
artur_pt Posted May 27, 2013 Share Posted May 27, 2013 hello can u boot without dsdt and nullcpupowermanagement ? if so u bios is already prepared to native powermanagement.. good hack Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-1918283 Share on other sites More sharing options...
carbo178 Posted May 27, 2013 Share Posted May 27, 2013 OK, try this; it's a dsdt with correction errors and warnings and injected ALC889 (use applehda posted in other topic) DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-1918323 Share on other sites More sharing options...
metaphysician Posted May 27, 2013 Author Share Posted May 27, 2013 Awesome! works wonderfully! mille grazie! thank you immensely for all your help! and don't worry about your English. as long as you can speak geek, that's all that matters! best to you, scott Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-1918411 Share on other sites More sharing options...
carbo178 Posted May 28, 2013 Share Posted May 28, 2013 I'm glad it works, but there is something that puzzles me ... we have the same motherboard and the same bios version, despite this there are differences in the dsdt, and I would like to understand why. If you can give me details of bios settings, TPU and EPU switches and method of patching bios (I used PMPatch) or if you found it on the net ... Thank you in advance for the info greetings Marco Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-1918447 Share on other sites More sharing options...
metaphysician Posted August 1, 2014 Author Share Posted August 1, 2014 hey Marco, i'm sorry i did not get back to you regarding your requests. i'd imagine you've moved on by now, and it looks like you're now on 10.9.2. i'm still on 10.8, but recently upgraded to 10.8.4, which of course, killed the audio again. thus i am back, looking for some assistance in troubleshooting. so far i've tried the following: M-ultibeast AppleHDA (latest for ML) a DSDT edit and the patched AppleHDA from toleda's excellent documentation the 6 channel experimental AppleHDA version from shiecldk which you installed successfully with DSDT edits the combination of the AppleHDA Patcher and the Codec kit for ALC889 from Mirone, with DSDT edits so far, absolutely nothing works. the Profiler states i have a generic Intel High Definition Audio, and nothing shows up under the Sound panel. i'm adding my IOreg file, the standard System DSDT and the 6ch edited DSDT in hopes that maybe some light can be shed. any help appreciated. i've tried my best to read these directions but i'm just not getting why my mobo config is so different from typical ALC889s.... best, scott DSDT-6ch.aml.zip System DSDT.aml.zip hackint0sh2.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047264 Share on other sites More sharing options...
carbo178 Posted August 1, 2014 Share Posted August 1, 2014 If you update your system to 10.8.5 put DSDT and the AppleHDA attached P.S. i'm actually on 10.9.4 and Yosemite beta1 AppleHDA.kext.zip DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047267 Share on other sites More sharing options...
metaphysician Posted August 1, 2014 Author Share Posted August 1, 2014 thanks for the quick response! sorry - no joy this time. actually i lost USB too, for a bit after the 10.8.5 update. then i found out the Generic USB 3.0 driver had a new version compatible with 10.8.5. so at least i've got USB again. profiler shows nothing - system prefs sound out shows nothing. i've got no clue why this is being so difficult. could interference from AudioAUUC.kext be the problem? i read somewhere that removing it improved things on some systems, though ALC889 was not mentioned. there was one sort of weird error. both Combo Installers (10.8.4 and 10.8.5) completed but i got a failed message at the very end. however when i rebooted the profiler said it was updated. i had turned off Spotlight for 10.8.4 but i re-enabled it for the 10.8.5 install. did not seem to make a difference. just to verify - i installed the Kext with KextWizard, fixed permissions, rebuilt cache and booted with -f flag. DSDT.aml in /Extra... i need somebody more well versed in AppleHDA patching and DSDT than me. Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047386 Share on other sites More sharing options...
carbo178 Posted August 1, 2014 Share Posted August 1, 2014 You must boot with UseKernelCache=Yes, not with -f. Can you upload your Extra folder, please? I've no problems with USB3, only injected in dsdt and installed caldigit kexts for non-intel USB3 Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047396 Share on other sites More sharing options...
metaphysician Posted August 1, 2014 Author Share Posted August 1, 2014 hi there - enclosed is my current Extra folder, after you gave me your DSDT. i am a little ashamed as it's got a lot of older DSDTs in the ExtraDSDT folder. also there seems to be a 'modules' folder with two dylibs and an NVRAM plist. i think these may be old and outdated, as i'm using HD4000 video, but not totally sure. thanks immensely for your time and expertise, and let me know if you need anything else! ExtraFolder.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047404 Share on other sites More sharing options...
carbo178 Posted August 1, 2014 Share Posted August 1, 2014 Ok, you actually run 10.8.5, right? Please describe exactly your hardware (CPU, RAM, disks, PCI-E graphic card - if present -). My bios setting is default, and i use dart=0 in ocbp, i think you have disabled Intel virtualization. Can you give a try? Replace your Extra folder with the one attached (make a backup of your extra, if you can, make a backup of your system with Time Machine) Boot with -v, and if you have Kernel Panic don't worry, boot with -v DSDT=No. Otherwise if you have stuck at boot after "DSMOS Has Arrived" restart with -v dart=0 If all run fine, install the kext inside the "Kext" folder and reboot Extra.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047465 Share on other sites More sharing options...
metaphysician Posted August 1, 2014 Author Share Posted August 1, 2014 OK- will do. as far as i know, i am running 10.8.5 (in spite of the weird 'failed installation' error). system Profiler is telling me this, and when i checked S/L/E it shows the updated kexts installed there. so it seems like it worked.as for the system: CPU: Core i5 3570K RAM: 8 GB Corsair Vengeance DDR3 SATA SSD: Samsung 840 (240GB) (SATA 3 drive, no Trim, GUID Partition, SMART verified) - this is the system drive SATA HD:1 TB - Model: TOSHIBA DT01ACA100 (GUID Partition) DVD-BluRay Writer - LG Model HL-DT-ST BD-RE WH14NS40 oh and a Firewire card that was natively supported, and is working fine. pretty sure i've disabled Intel virtualization but i can check. Video - Currently using onboard HD4000 video BUT i have a GTX650Ti (PNY brand, 1GB) card that i want to install pretty soon. it is NOT installed yet. that's why i had to update, because 10.8.3 and later natively support the 650Ti cards. i will update the post after i've tried your method. i have backed up Extra so no worries there. more soon... ----------------------------------------------------------------------------- UPDATE - OK - your Extra folder setup definitely doesn't work. immediate Kernel panic on restart. looks like it fails at the beginning - IA32_MC0_STATUS - MC6_STATUS invalid. MC7 is valid, though. panic seems to backtrace to com.apple.driver.AppleACPIPlatform (power management issue?) restarting without DSDT worked but froze USB - not sure why. i restarted in Safe Mode (-x) reverted back to my older Extra folder version, the 10.8.5 vanilla AppleHDA.kext and the original DSDT you gave me that worked in 10.8.0. no audio but at least i got USB back. also it was able to show other USB audio devices where the other DSDT revisions i tried did not. i need to make sure that USB audio devices are visible in AudioMIDI Setup because i use professional interfaces as well as onboard audio. anyway thanks for all your help! let me know if you need more information specifically from me. UPDATE #2 here's an interesting development. i just had a look with System Profiler on my current Audio hardware setup using basically the same DSDT i was using back in 10.8.0 (which you provided me last year) and it shows a lot more information than any of the other methods i've tried. basically it gives the whole audio port input and output setup for Layout #1: Intel High Definition Audio: Audio ID: 1 S/PDIF Optical Digital Audio Output: Connection: Internal Line Output: Connection: 1/8-Inch Jack External Microphone / iPhone Headset: Connection: 1/8-Inch Jack External Microphone / iPhone Headset: Connection: 1/8-Inch Jack Headphone: Connection: 1/8-Inch Jack S/PDIF Optical Digital Audio Output: Connection: Optical HDMI / DisplayPort Output: Connection: Display However, i still see no ability to select a Built-In audio option in System Prefs>Sound, nor does it show up in AudioMIDI Setup as an option. In spite of this, i think this particular DSDT is probably closest to working with my current hardware but obviously still needs some changes - maybe just the AppleHDA.kext needs work? since i sent you my Extra folder the setup i'm showing here is the same as the ExtraDSDT/DSDT-10.8.aml file. i did try patching the AppleHDA but i used a much different DSDT edit at the time. maybe it's worth trying to patch it using this older DSDT as a starting point. hope this makes some sense... scott Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047480 Share on other sites More sharing options...
carbo178 Posted August 2, 2014 Share Posted August 2, 2014 Can you give another try? Delete P-states and C-states strings from the org.chameleon.boot.plist file in the Extra uploaded by me yesterday Replace your Extra folder with mine (with new org.chameleon.boot.plist) and reboot with -v Same recommendations: try dart=0 in case of stuck after DSMOS has arrived, DSDT=No in case of panic Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047747 Share on other sites More sharing options...
metaphysician Posted August 2, 2014 Author Share Posted August 2, 2014 nope - sorry. same situation. immediate Kernel panic on restart, this time in com.Apple.PowerManagement.kext. let me know if you have other solutions to try. sorry this is being difficult.... actually i do have some further questions, but they are BIOS and video card related. i wonder if i should create a new post for this, or is it OK to post it here, since it is related to the same mobo? i will be brief here - i installed the video card but it's not being detected by the BIOS at all. i'm still on version 0606 - have you upgraded your BIOS in order to run your GTX650? i note that version 0606 is a pretty old BIOS - about three years ago. so maybe the 650Ti i have isn't recognized? advice appreciated! Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047778 Share on other sites More sharing options...
carbo178 Posted August 2, 2014 Share Posted August 2, 2014 OK, resume your system, boot without DSDT and open terminal, copy paste this command in terminal window. perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(){ chomp; if($_ =~ /\"DSDT\.?\d?\"=]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }' Compress and send the dsdt.aml file you find in desktop Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047783 Share on other sites More sharing options...
metaphysician Posted August 2, 2014 Author Share Posted August 2, 2014 just to make certain - does it matter which Extra folder i am using to boot from? not sure whether you mean to restart without DSDT using your Extra folder or mine. i'm guessing it does not matter? scott OK - here's the DSDT you requested of my current system. i started with DSDT=No and pasted your script. BTW i'm still on BIOS 0606. maybe i should upgrade, especially for 650Ti video support? dsdt.aml.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047787 Share on other sites More sharing options...
carbo178 Posted August 2, 2014 Share Posted August 2, 2014 OK, try this, with AppleHDA attached EDIT: I forgot USB3 CalDigit in DSDT, but if this work i can add the device later DSDT.aml.zip AppleHDA.kext.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047807 Share on other sites More sharing options...
metaphysician Posted August 2, 2014 Author Share Posted August 2, 2014 nope, sorry. doesn't work. i did get a series of cascading errors after DSMOS arrived: first, several errors claiming that vtables are out of date (i counted around 10): 'kxld[com.apple.iokit.IOHDAFamily]: the super class vtable XXXXXXXXXX for vtable XXXXXXXXX is out of date' next: Kext com.apple.iokit.IOHDAFAmily - link failed Failed to load executable for kext com.apple.iokit.IOHDAFAmily and then because com.apple.iokit.IOHDAFAmily fails to load it seems to break com.apple.driver.AppleHDAController so, i think this means the AppleHDA isn't working or loading correctly. also there's no indication of anything in Profiler - i get an ID-32 in profiler but no port listings or anything. just 'Intel High Definition Audio' can you tell me if you're still using BIOS 0606 on your mobo. if not, which one are you using? let me know what else i can do. sorry i can't be more helpful. i booted using my older Extra folder but using your DSDT. scott Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047818 Share on other sites More sharing options...
carbo178 Posted August 2, 2014 Share Posted August 2, 2014 Yes, i use same bios as your, patched with pm patch. I see differences in dsdt, your file have HPET section, mine file not. I suppose i uploaded you a wrong AppleHDA, tomorrow i attach the right kext. Good night Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047825 Share on other sites More sharing options...
metaphysician Posted August 2, 2014 Author Share Posted August 2, 2014 thanks very much for your help - see you tomorrow! Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047832 Share on other sites More sharing options...
carbo178 Posted August 3, 2014 Share Posted August 3, 2014 Last try, this dsdt (rename it DSDT.aml) and new AppleHDA for 10.8.5 DSDT-1.aml.zip AppleHDA.kext.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047928 Share on other sites More sharing options...
metaphysician Posted August 3, 2014 Author Share Posted August 3, 2014 OK - Slightly closer. I am now able to see the port layout in Profiler, but the driver fails to show. there's still a loading issue it seems on startup: 8/3/14 10:29:03.000 AM kernel[0]: Kext com.apple.driver.AudioAUUC - library kext com.apple.iokit.IOGraphicsFamily not found. 8/3/14 10:29:03.000 AM kernel[0]: Can't load kext com.apple.driver.AudioAUUC - failed to resolve library dependencies. 8/3/14 10:29:03.000 AM kernel[0]: Kext com.apple.driver.AudioAUUC failed to load (0xdc00800e). 8/3/14 10:29:03.000 AM kernel[0]: Failed to load kext com.apple.driver.AudioAUUC (error 0xdc00800e). 8/3/14 10:29:03.000 AM kernel[0]: Couldn't alloc class "AudioAUUCDriver" 8/3/14 10:29:03.000 AM kernel[0]: Kext com.apple.driver.AppleHDAController - library kext com.apple.iokit.IOGraphicsFamily not found. 8/3/14 10:29:03.000 AM kernel[0]: Can't load kext com.apple.driver.AppleHDAController - failed to resolve library dependencies. 8/3/14 10:29:03.000 AM kernel[0]: Kext com.apple.driver.AppleHDAController failed to load (0xdc00800e). 8/3/14 10:29:03.000 AM kernel[0]: Failed to load kext com.apple.driver.AppleHDAController (error 0xdc00800e). 8/3/14 10:29:03.000 AM kernel[0]: Couldn't alloc class "AppleHDAController" now it looks like AudioAAUCDriver depends on IOGraphicsFamily, and possibly AppleHDAController wants IOGraphicsFamily as well. at any rate, it seems both of these fail in loading which is probably the culprit. so why would IOGraphicsFamily be needed by audio anyway? also BTW - i did upgrade my video card fine - it turned out the power connector had a problem where a pin was not contacting. i was really frustrated there for a while... anyway, let me know your thoughts on the situation. there's definitely some progress. best, scott Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2047997 Share on other sites More sharing options...
carbo178 Posted August 3, 2014 Share Posted August 3, 2014 Try, deleted HDA gfx section DSDT-2.aml.zip Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2048002 Share on other sites More sharing options...
metaphysician Posted August 3, 2014 Author Share Posted August 3, 2014 OK - No big errors in loading but nothing visible in SystemPrefs>Sound either. the layout is still visible in Profiler. the only remaining error i see is two sound assertions after DSMOS, but nothing else: 8/3/14 11:15:01.000 AM kernel[0]: Sound assertion in AppleHDADriver at line 1078 8/3/14 11:15:01.000 AM kernel[0]: Sound assertion in AppleHDADriver at line 1053 not sure what's going on here. as far as i know there are no other audio drivers loaded that could interfere. i Googled these two assertions and they seem to be somewhat common, but no direct solutions are available. it seems that at least one of these errors happened for Apple users when upgrading to 10.8.3 from 10.8.2. any ideas? Link to comment https://www.insanelymac.com/forum/topic/288765-dsdt-audio-fix-for-asus-p8z77-v-le-plus-alc889-driver/#findComment-2048018 Share on other sites More sharing options...
