Clover General discussion

[STLVNUB]

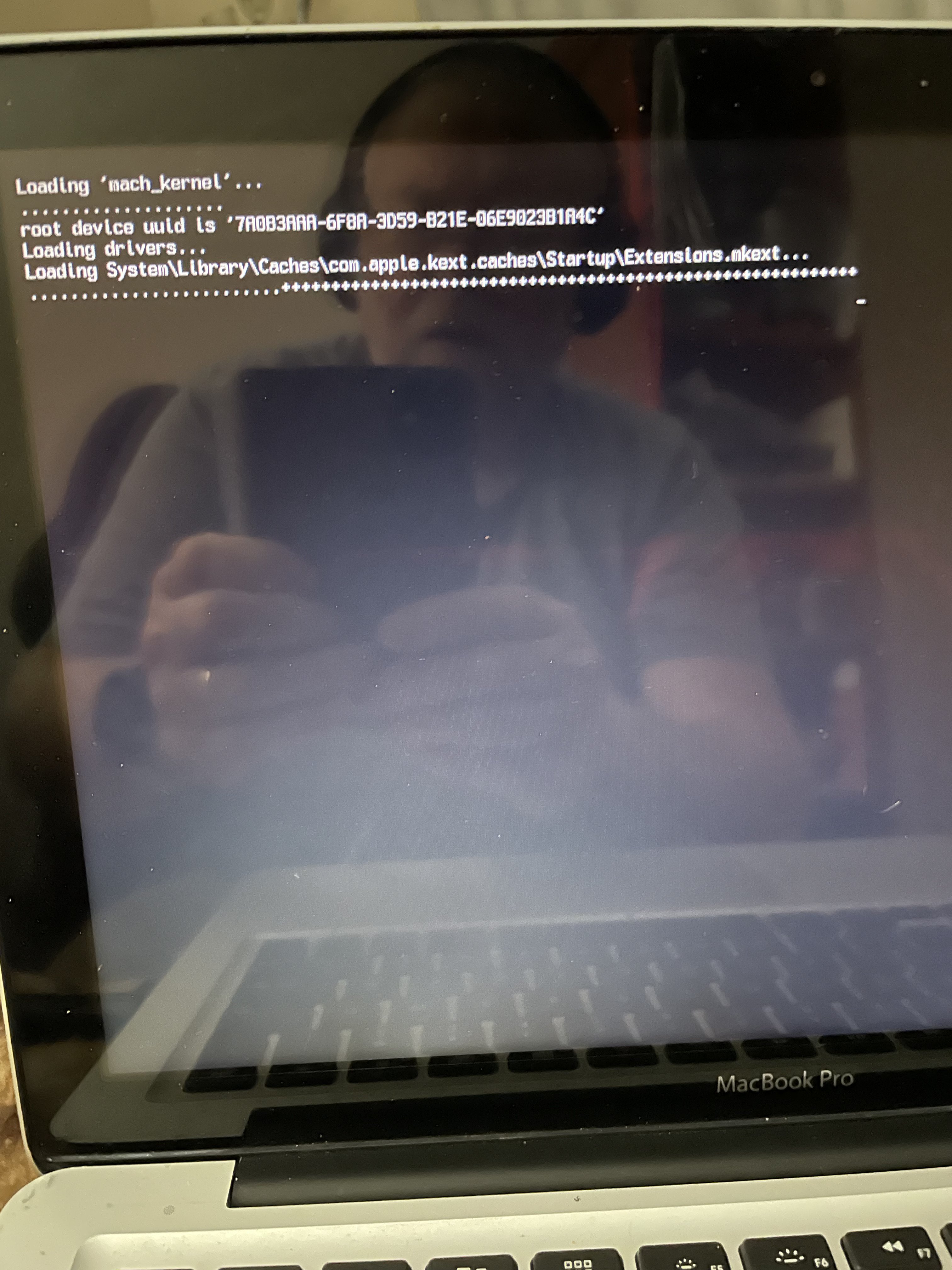

Ok Whats the TRICK on getting Clover past the  stuck at ++++++++++++++++

Trying To Run Snow Leopard using 10.6.7 as the source



Edited August 2, 2022 by STLVNUB

[Slice]

6 hours ago, STLVNUB said:

Ok Whats the TRICK on getting Clover past the  stuck at ++++++++++++++++

Trying To Run Snow Leopard using 10.6.7 as the source



FakeCPUID may be? The system will work with Penryn ID.

[STLVNUB]

I'm able to install SL from my Big Sur By running the OSInstall.mpkg

I got rid of all the stupid printer and language pkgs

Nearly there

8 minutes ago, Slice said:

FakeCPUID may be? The system will work with Penryn ID.

And what would that be?



[Slice]

4 hours ago, STLVNUB said:

I'm able to install SL from my Big Sur By running the OSInstall.mpkg

I got rid of all the stupid printer and language pkgs

Nearly there

And what would that be?



This is exactly Penryn.

[STLVNUB]

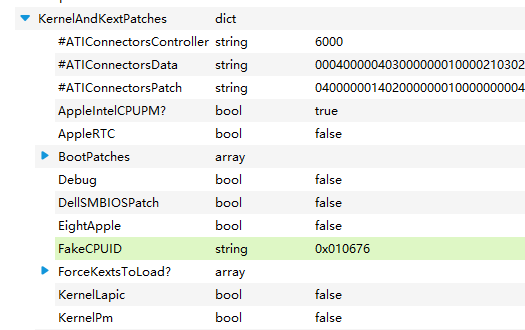

Now Stuck at here, using My MacBook Pro 9,2 with MacBook Pro8,3 SMBios and 10676 fake cpuid

Edited August 3, 2022 by STLVNUB

[STLVNUB]

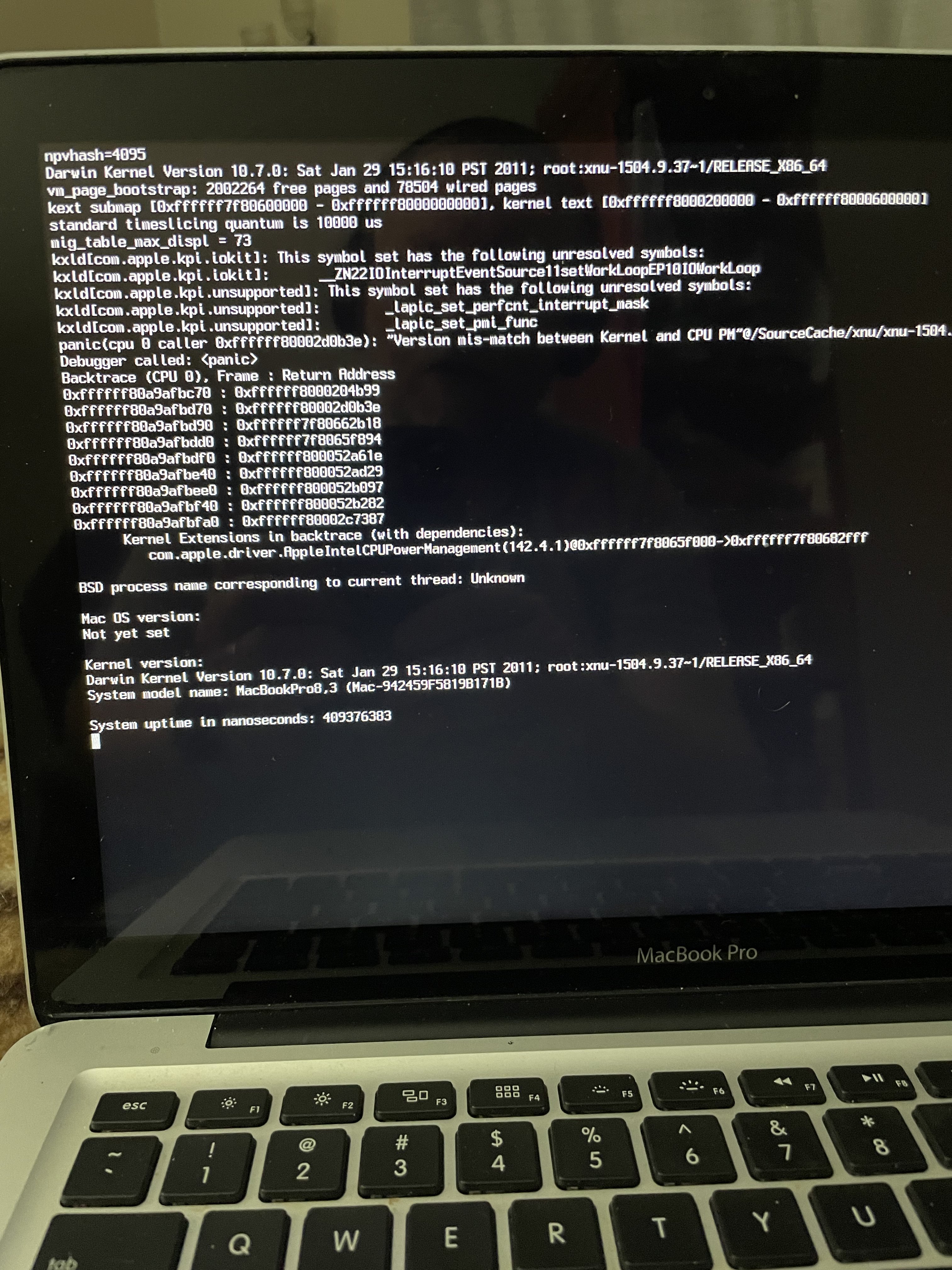

Kernel Panic with applecpupm and 10676 fake cpuid

Edited August 3, 2022 by STLVNUB

[Slice]

I think you should disable AppleIntelCPUPM because the processor is not really Penryn.

[iCanaro]

@Slice regarding this commit

https://github.com/CloverHackyColor/CloverBootloader/commit/7c21ded8c11bd05d902037088a8e3a37d719b283

I don't see this iMacPro1,1 is it a deliberate choice or an oversight?



With this Clover, using smbios iMac19,2 to get the update reported, I upgraded to ventura beta 5 hack Z370 and ryzentosh

[Slice]

6 hours ago, iCanaro said:

@Slice regarding this commit

https://github.com/CloverHackyColor/CloverBootloader/commit/7c21ded8c11bd05d902037088a8e3a37d719b283

I don't see this iMacPro1,1 is it a deliberate choice or an oversight?



With this Clover, using smbios iMac19,2 to get the update reported, I upgraded to ventura beta 5 hack Z370 and ryzentosh

My idea was the Hackintosh has no T2 chip even if we set a model assuming has it. So for iMacPro1,1 which native has the chip I want to report to system that the chip is absent.

But this is just an idea and I still don't know how it works. I have a very few time to experiment.

Have you any thoughts how to do better?

[ameenjuz]

@Slice greetings i m using both of bootloader clover&opencore

Monterey 12 just working fine on opencore

also working fine on clover except one rename patch ADBG to GBDA

when i patch using rename method clover renamed all adbg method to GBDA on under system dsdt

But i don't wont all adbg method to GBDA i want to patch count 1 method adbg to GBDA

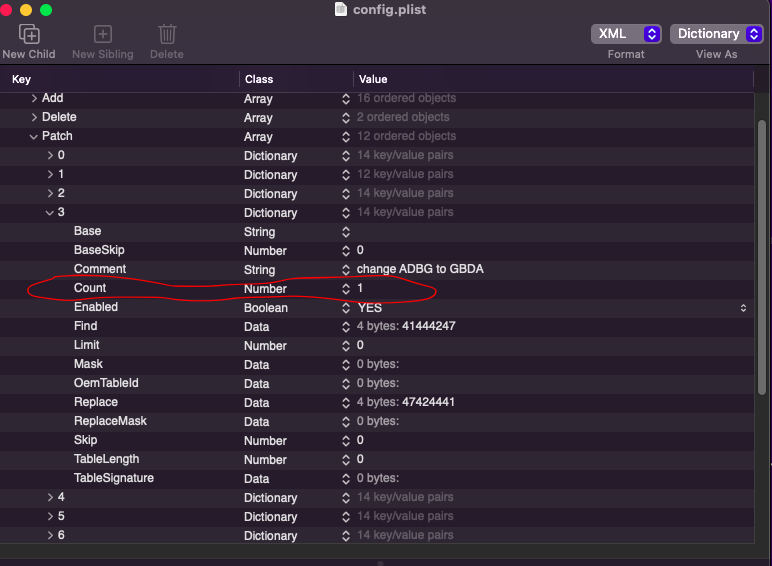

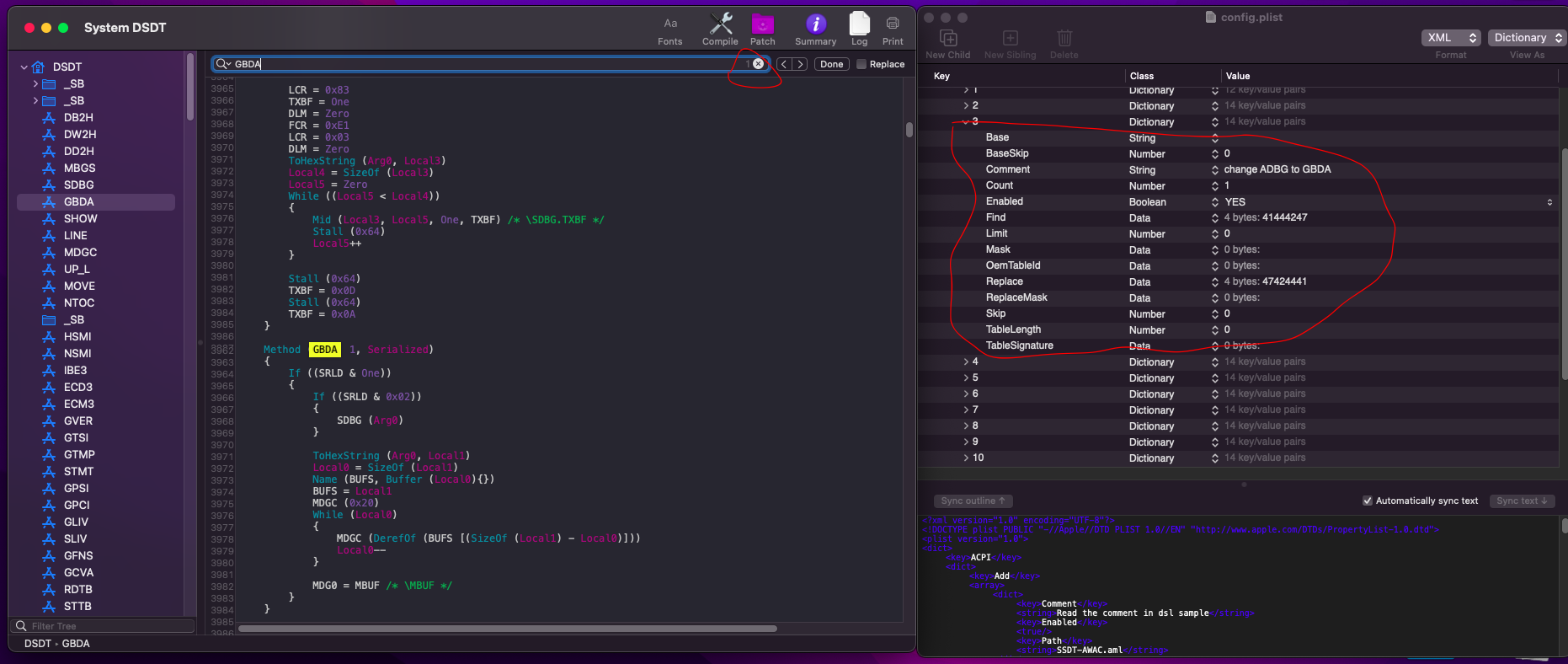

Like following screentshot on opencore  i targeted count 1 patch this is my main point



How to add this on clover count 1 string

Without this patch my laptop do not wake after sleep if i got wake then i faced dim screen

It is possible to add count based patch to clover

Please provide me solution

I think it is possible through TgtBridge method but i don't fimilair about tgt bridge

Edited August 17, 2022 by ameenjuz

[Slice]

May be you should use RenameDevices?

    <key>RenameDevices</key>
    <array>
      <dict>
        <key>_SB.PCI0.LPCB.EC0_._PS0.ADBG</key>
        <string>GBDA</string>
      </dict>

Check the path to the method.

The feature is working as for devices so for methods.

[Slice]

Quote

It is possible to add count based patch to clover

Yes, possible. I will think about.

[ameenjuz]

2 hours ago, Slice said:

May be you should use RenameDevices?

    <key>RenameDevices</key>
    <array>
      <dict>
        <key>_SB.PCI0.LPCB.EC0_._PS0.ADBG</key>
        <string>GBDA</string>
      </dict>

Check the path to the method.

The feature is working as for devices so for methods.

Thanks for reply

Unfortunatly above path  do not work

When i set only ADBG path then clover renamed all ADBG to GBDA

How to find path  look at my above posted dsdt there is not specified path

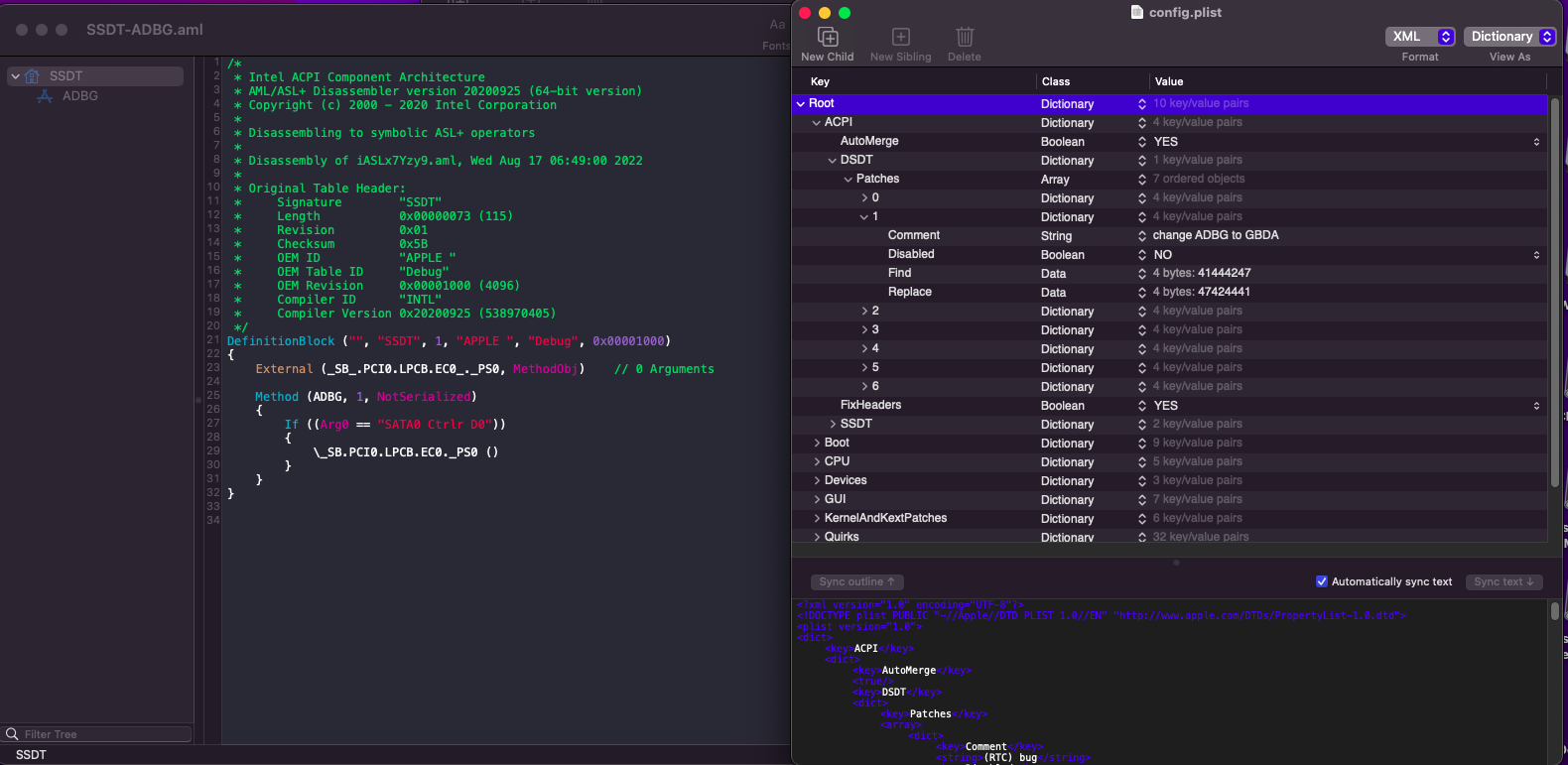

I want to rename First ADBG Method there is no like this  path _SB.PCI0.LPCB.EC0_._PS0.ADBG

please reply me

[Slice]

2 hours ago, ameenjuz said:

Thanks for reply

Unfortunatly above path  do not work

When i set only ADBG path then clover renamed all ADBG to GBDA

How to find path  look at my above posted dsdt there is not specified path

I want to rename First ADBG Method there is no like this  path _SB.PCI0.LPCB.EC0_._PS0.ADBG

please reply me

Upload your full DSDT. I will look where is the method.

[ameenjuz]

32 minutes ago, Slice said:

Upload your full DSDT. I will look where is the method.

Uploaded full unpatched dsdt

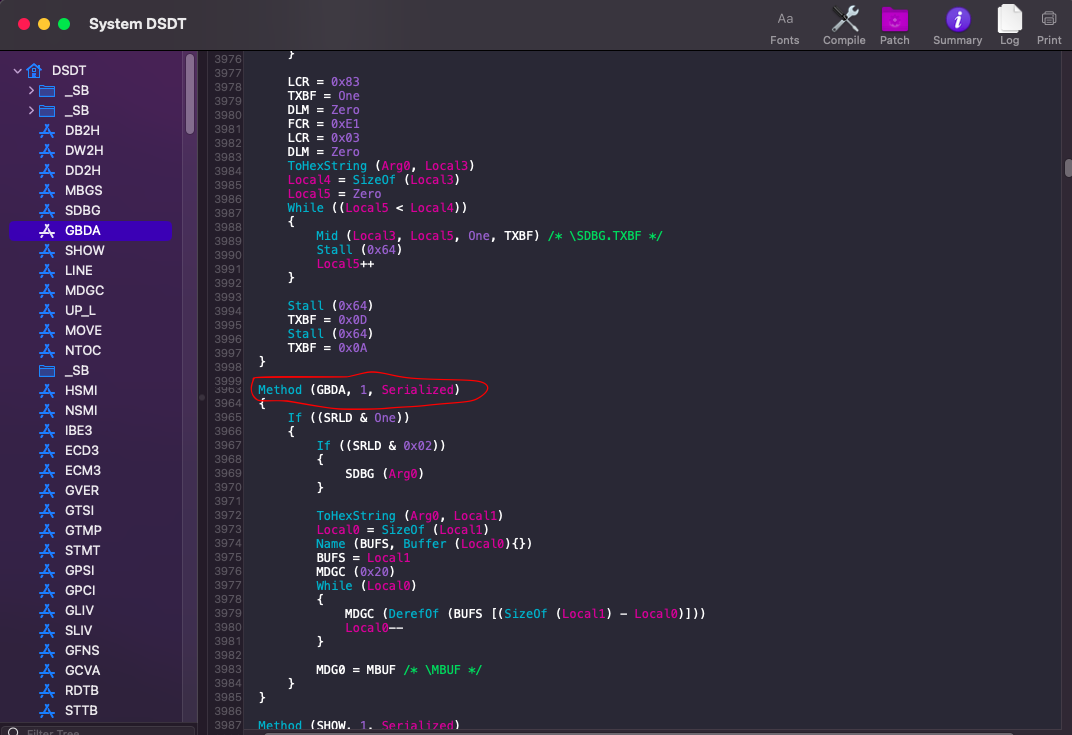

remember find first one ADBG method

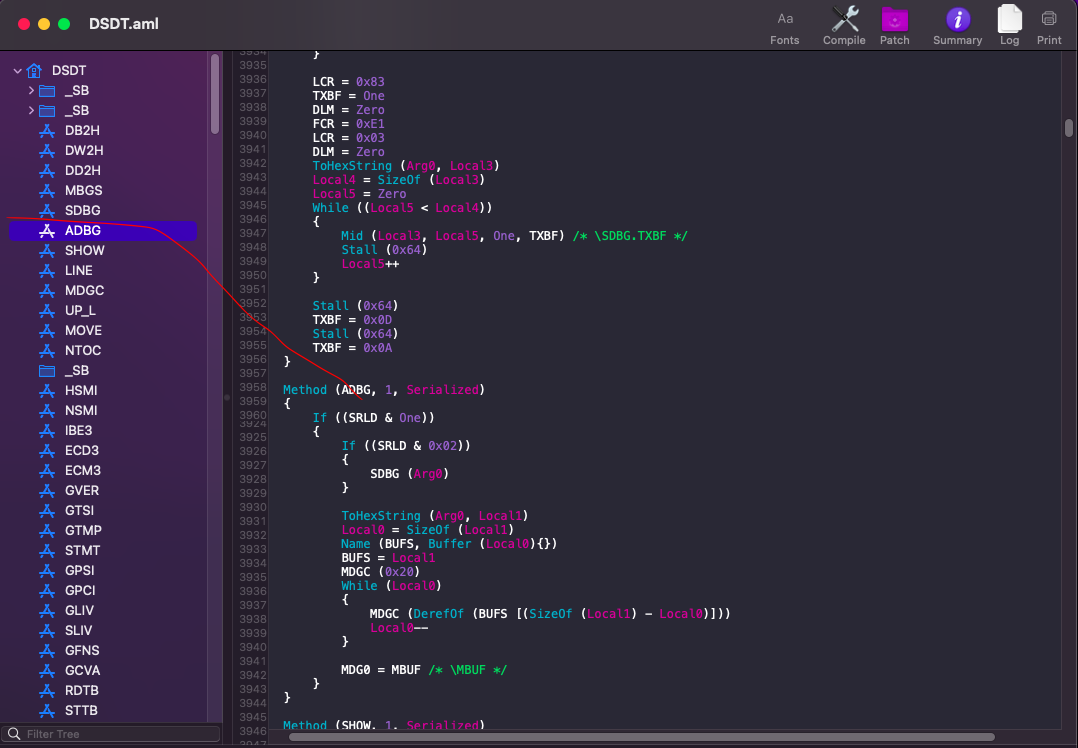

Open dsdt and you can see first one ADBG

No needed scrolling down for finding

DSDT.aml

[Slice]

Yes, the Method(ADBG) is only one and it has not target bridge, no path.  But you have to find a place where to rename the call to it.

The name ADBG presents in the DSDT 369 times. How are you going to calculate the value for Skip key? Something like 278?

You are on the wrong way lead by wrong guide.

If you rename the method then other 368 calls will fail.

Open the DSDT and manually rename/delete the method in the _PS0. Then place the patched DSDT into EFI/CLOVER/ACPI/Patched/

Set FixRegions.



RenameDevices is not applicable in this problem.

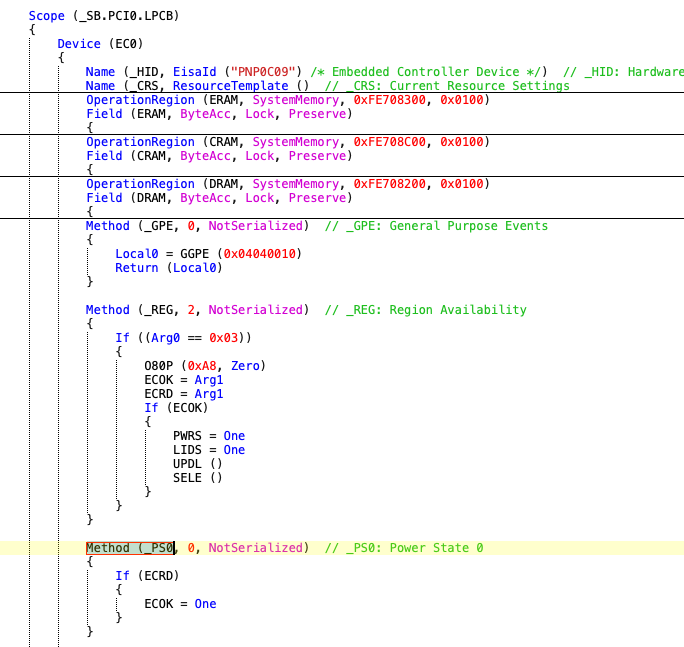

TgtBridge may be _SB.PCI0.LPCB.EC0_._PS0 but ...

I see your DSDT and found

There is no call to ADBG() !!!

What are you trying to do? For a what? What is the guide to do this?



Anyway I made the new feature in Clover to apply Count in DSDT patches.



[Slice]

Use this Clover and add a key Count = 1 in your plist



CLOVERX64.efi-5148-28-g616dbbe14.zip

[FirstCustomac]

3 hours ago, ameenjuz said:

Uploaded full unpatched dsdt

remember find first one ADBG method

Open dsdt and you can see first one ADBG

No needed scrolling down for finding

DSDT.aml 212.49 kB · 3 downloads

Would this also work? Below value matched only once in your DSDT.



Find: 0541444247

Replace: 0547414441







[Slice]

1 hour ago, FirstTimeCustomac said:

Would this also work? Below value matched only once in your DSDT.



Find: 0541444247

Replace: 0547414441







Once?

369 times!



Ah, understand, you added 05. But what is the sense of the action?

[FirstCustomac]

16 minutes ago, Slice said:

Once?

369 times!

Ah.. so what if I add a value in front of 41444247?  In my example, adding 05 to 41444247, would it make the patch specific to that location?

Edited August 17, 2022 by FirstTimeCustomac

[ameenjuz]

5 hours ago, Slice said:

Use this Clover and add a key Count = 1 in your plist



CLOVERX64.efi-5148-28-g616dbbe14.zip 741.41 kB · 2 downloads

Thanks both of guyz you are considering my issue

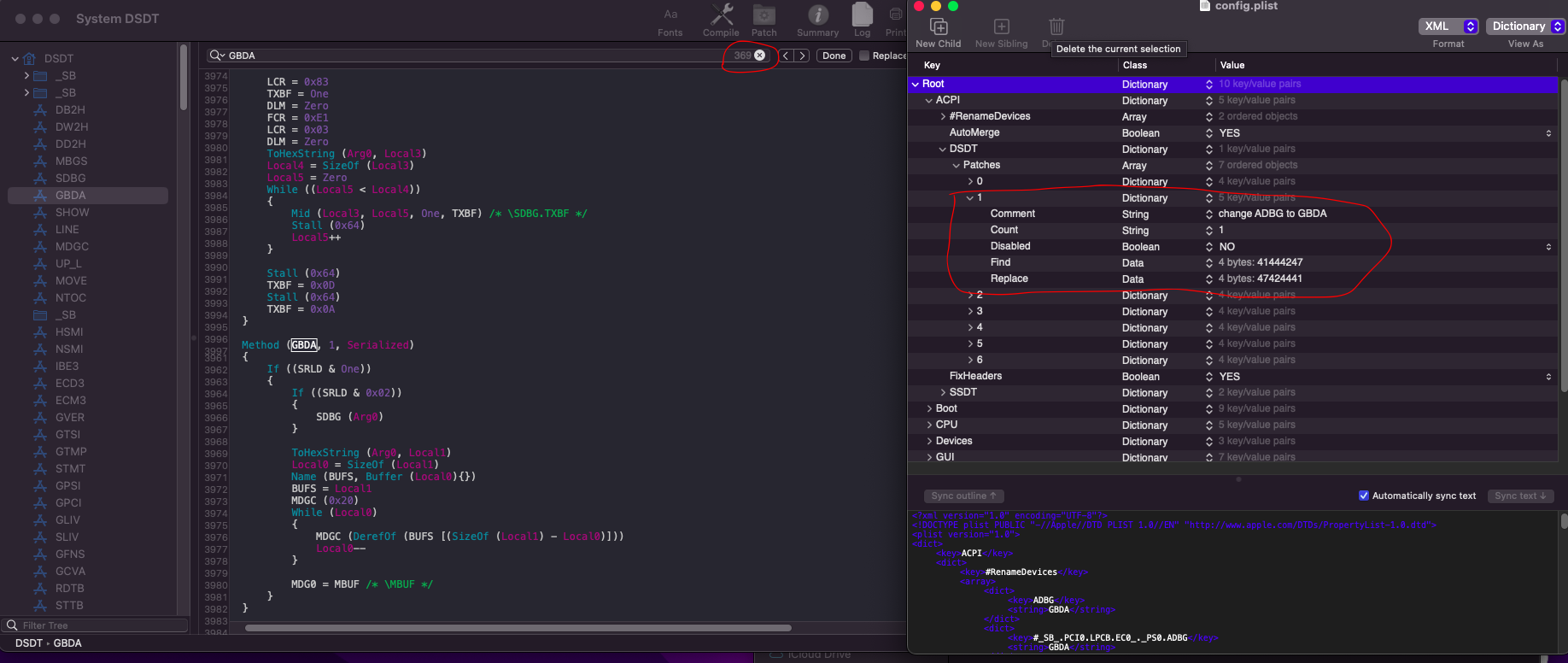

1: CLOVERX64.efi is not targeted specified location it is renamed all 369 ADBG to GBDA it is not work



2: it is OpenCore targeted exact location working already

@FirstTimeCustomac thanks you are found right location it worked for me

now sleep after wake and lid close lid open worked fine like opencore to adding this value

Find: 0541444247

Replace: 0547414441

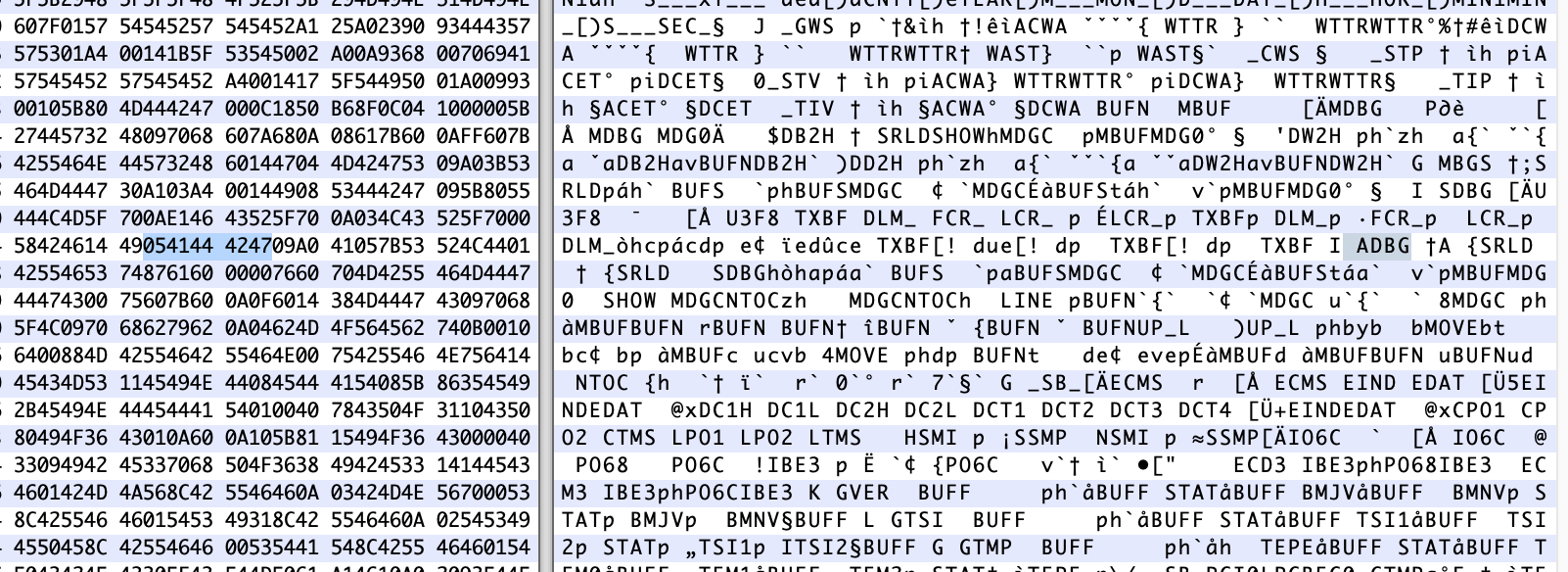

Please explain clearly how to find 05 value and from where is find

I think that you found this value using haxfiend or through binary

Thanks Slice and FirsTimeCustoma

it worked perfectly

Please share your expereince how to find this exact location

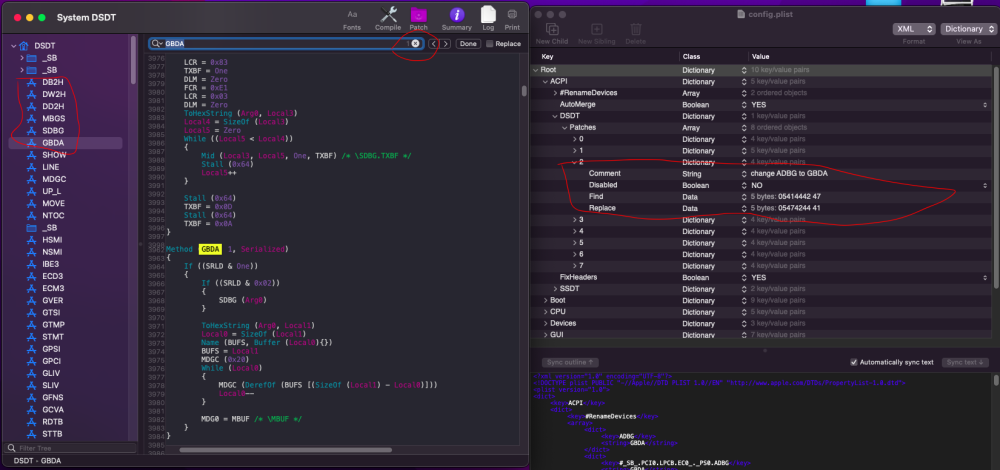

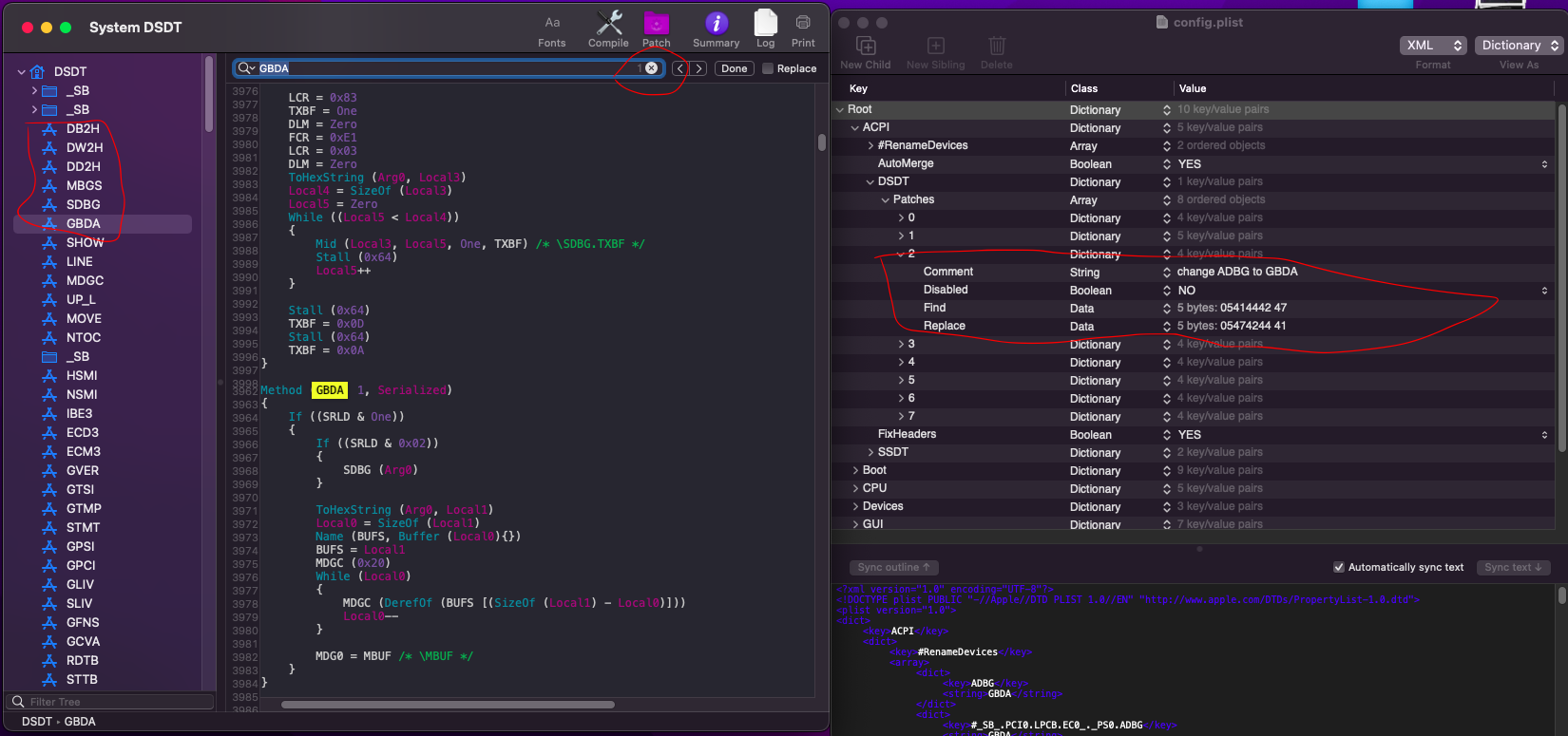

It is proved following screenshot attached

Now my primary bootloader is clover because i m running dual boot macOS & windows11

Clover is boot windows originaly without applying ACPI patch i like it

But OpenCore has not like a option it is boot with applying acpi patch

I think that we should keep or boot windows originaly without applying patch

Edited August 17, 2022 by ameenjuz

[ameenjuz]

@Slice

I want to get debug log of nvmefix.kext where i use nvme ssd

it inject apst or it is enabled or not

I puted debug version of nvmefix.kex and lilu into folder other

Boot arge -nvmefdbg and -liludbgall but i did'nt get debug log

m i something miss?

[Slice]

22 minutes ago, ameenjuz said:

@Slice

I want to get debug log of nvmefix.kext where i use nvme ssd

it inject apst or it is enabled or not

I puted debug version of nvmefix.kex and lilu into folder other

Boot arge -nvmefdbg and -liludbgall but i did'nt get debug log

m i something miss?

Sorry I know nothing about Lilu debug. Never used it.

[ameenjuz]

50 minutes ago, Slice said:

Sorry I know nothing about Lilu debug. Never used it.

How to get nvmefix.kext's log

Is there proper way for geting each kext debug log



[Slice]

38 minutes ago, ameenjuz said:

How to get nvmefix.kext's log

Is there proper way for geting each kext debug log



It is the kext own ability to make debug log. I can tell about VoodooHDA.kext (verbose=1,2,3...)

May be you should look into system.log and filter to messages from the kext?

System.log can be obtained, for example, by DarwinDumper.
