hackintosh1984

Audio ALC888 and 5.1 channels , patch AppleHDA.kext

Recommended Posts

Hello

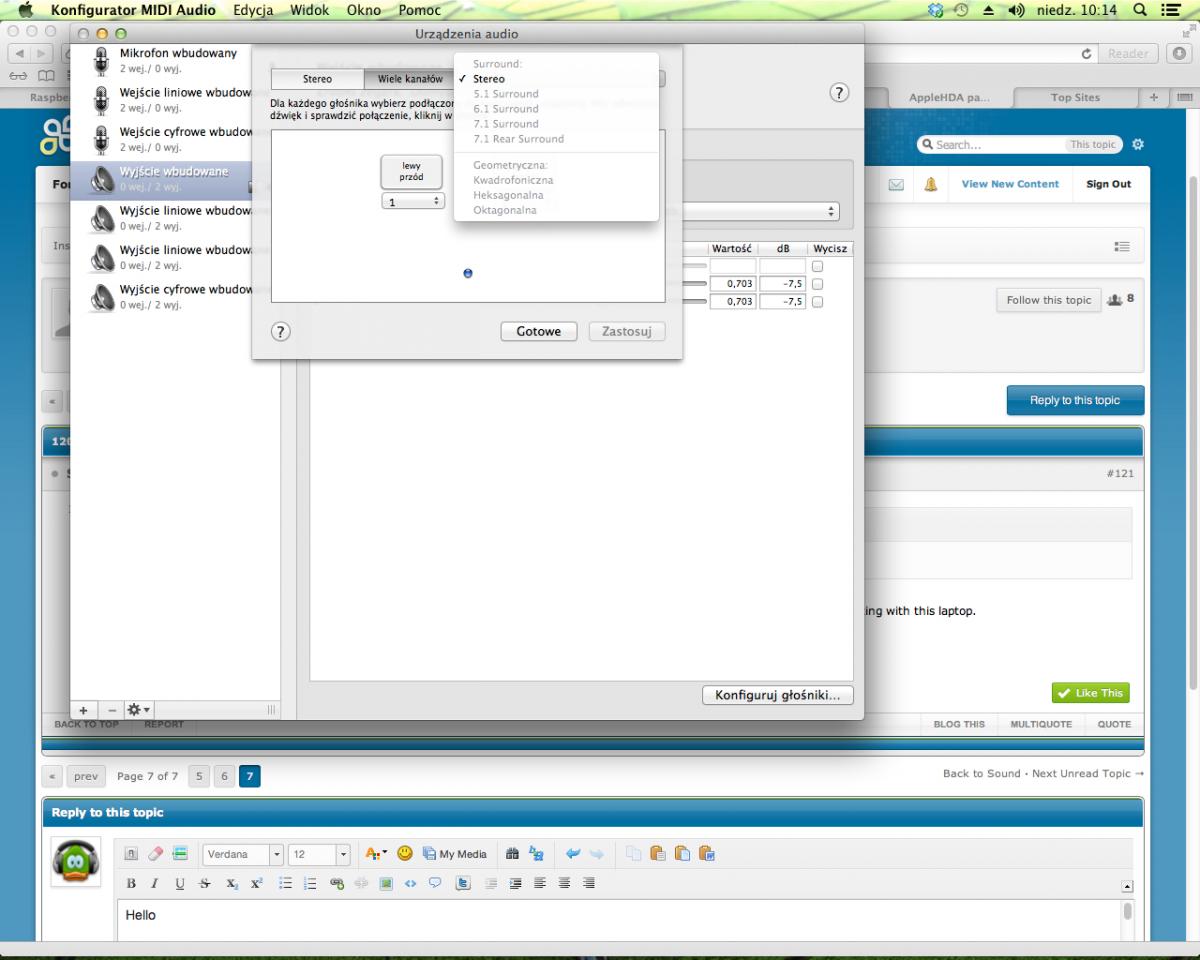

I'm have problem in Mountain Lion with sound on ALC888 in EP41-UD3L and not run audio 5.1. Only 2 channel works - screen photo file I add to this post. Now use this file

https://www.dropbox....pleHDA.kext.zip







In Lion, my sound was working perfectly using only AppleHDA + Plataform.xml + layout888.xml all added with HDA Wizard (link to this files:)

https://www.dropbox....0y9u/alc888.zip









I test more metod:



For Mountain Lion I make this (and not works for me - is't audio):

post_offline.pngVCH888

Posted 29 July 2012 - 04:38 PM





You need to rename layout888.xml to layout12.xml and edit inside layout12.xml to be as following



<key>LayoutID</key>

<integer>12</integer>



get perl script from zlib.pl.zip (by Revogirl, R.I.P.)



(compress)

perl zlib.pl deflate layout12.xml > layout12.xml.zlib





also;

perl zlib.pl deflate Platforms.xml > Platforms.xml.zlib



copy *.xml.zlib to /System/Library/Extensions/AppleHDA.kext/Contents/Resources/







------------------

------------------

And link to oryginal (not patched) AppleHDA.kext for Mountain Lion :



https://www.dropbox....z%20ML%20GM.zip





Please help me. Thanks.
