MaLd0n

Snow Leopard on Gigabyte Mobos

Recommended Posts

[b]G1.Assassin[/b], last modified Feb 2
[b]G1.Guerrilla[/b], last modified Feb 2
[b]G1.Sniper[/b], last modified Feb 2
[b]GA 945G-DS3[/b], last modified Jan 30
[b]GA 945G-S3[/b], last modified Jan 30
[b]GA 945GCM-S2C[/b], last modified Jan 30
[b]GA 945GCM-S2L[/b], last modified Feb 1
[b]GA 945GCMX-S2[/b], last modified Apr 16
[b]GA 945GMC-S2[/b], last modified Jan 30
[b]GA 945GMF-DS2[/b], last modified Jan 30
[b]GA 945GZM-S2[/b], last modified Apr 11
[b]GA 945P-S3[/b], last modified Feb 1
[b]GA 945PL-S3E[/b], last modified Jan 30
[b]GA 945PL-S3G[/b], last modified Feb 1
[b]GA 945PLM-S2[/b], last modified Jan 30
[b]GA 965G-DS3[/b], last modified Jan 30
[b]GA 965G-DS4[/b], last modified Jan 30
[b]GA 965GM-DS2[/b], last modified Jan 30
[b]GA 965GM-S2[/b], last modified Jan 30
[b]GA 965P-DQ6[/b], last modified Jan 30
[b]GA 965P-DS3[/b], last modified Jan 30
[b]GA 965P-DS3P[/b], last modified Jan 30
[b]GA 965P-DS4[/b], last modified Jan 30
[b]GA 965P-S3[/b], last modified Jan 30
[b]GA EG31M-S2[/b], last modified Jan 30
[b]GA EG31MF-S2[/b], last modified Jan 30
[b]GA EG41M-S2H[/b], last modified Jan 30
[b]GA EG41M-US2H[/b], last modified Jan 30
[b]GA EG41MF-S2H[/b], last modified Jan 30
[b]GA EG41MF-US2H[/b], last modified Jan 30
[b]GA EG41MFT-US2H[/b], last modified Jan 30
[b]GA EG43M-S2H[/b], last modified Jan 30
[b]GA EG45M-DS2H[/b], last modified Jan 30
[b]GA EG45M-UD2H[/b], last modified Jan 30
[b]GA EP31-DS3L[/b], last modified Feb 1
[b]GA EP35-DS3[/b], last modified Jan 30
[b]GA EP35-DS3L[/b], last modified Jan 30
[b]GA EP35-DS3P[/b], last modified Jan 30
[b]GA EP35-DS3R[/b], last modified Jan 30
[b]GA EP35-DS4[/b], last modified Jan 30
[b]GA EP41-UD3L[/b], last modified Jan 30
[b]GA EP41-US3L[/b], last modified Jan 30
[b]GA EP41T-UD3L[/b], last modified Jan 30
[b]GA EP41T-USB3[/b], last modified Jan 30
[b]GA EP43-DS3[/b], last modified Jan 30
[b]GA EP43-DS3L[/b], last modified Jan 30
[b]GA EP43-DS3LR[/b], last modified Jan 30
[b]GA EP43-DS3R[/b], last modified Jan 30
[b]GA EP43-S3L[/b], last modified Jan 30
[b]GA EP43-UD3L[/b], last modified Jan 30
[b]GA EP43-US3L[/b], last modified Jan 30
[b]GA EP43C-DS3[/b], last modified Jan 30
[b]GA EP43T-S3L[/b], last modified Jan 30
[b]GA EP43T-UD3L[/b], last modified Jan 30
[b]GA EP43T-USB3[/b], last modified Jan 30
[b]GA EP45-DQ6[/b], last modified Jan 30
[b]GA EP45-DS3[/b], last modified Jan 30
[b]GA EP45-DS3L[/b], last modified Jan 30
[b]GA EP45-DS3LR[/b], last modified Jan 30
[b]GA EP45-DS3P[/b], last modified Jan 30
[b]GA EP45-DS3R[/b], last modified Jan 30
[b]GA EP45-DS4[/b], last modified Jan 30
[b]GA EP45-DS4P[/b], last modified Jan 30
[b]GA EP45-DS5[/b], last modified Jan 30
[b]GA EP45-EXTREME[/b], last modified Jan 30
[b]GA EP45-UD3[/b], last modified Jan 30
[b]GA EP45-UD3L[/b], last modified Jan 30
[b]GA EP45-UD3LR[/b], last modified Jan 30
[b]GA EP45-UD3P[/b], last modified Jan 30
[b]GA EP45-UD3R[/b], last modified Jan 30
[b]GA EP45C-DS3[/b], last modified Jan 30
[b]GA EP45C-DS3R[/b], last modified Jan 30
[b]GA EP45C-UD3R[/b], last modified Jan 30
[b]GA EP45T-DS3[/b], last modified Jan 30
[b]GA EP45T-DS3R[/b], last modified Jan 30
[b]GA EP45T-EXTREME[/b], last modified Jan 30
[b]GA EP45T-UD3LR[/b], last modified Jan 30
[b]GA EP45T-UD3P[/b], last modified Jan 30
[b]GA EP45T-UD3R[/b], last modified Jan 30
[b]GA EP45T-USB3P[/b], last modified Jan 30
[b]GA EQ45M-S2[/b], last modified Jan 30
[b]GA EX38-DQ6[/b], last modified Jan 30
[b]GA EX38-DS4[/b], last modified Jan 30
[b]GA EX38-DS5[/b], last modified Jan 30
[b]GA EX38T-DQ6[/b], last modified Jan 30
[b]GA EX58-DS4[/b], last modified Jan 30
[b]GA EX58-EXTREME[/b], last modified Jan 30
[b]GA EX58-UD3R[/b], last modified Jan 30
[b]GA EX58-UD4[/b], last modified Jan 30
[b]GA EX58-UD4P[/b], last modified Jan 30
[b]GA EX58-UD5[/b], last modified Jan 30
[b]GA G31-S3G[/b], last modified Feb 1
[b]GA G31-S3L[/b], last modified Feb 1
[b]GA G31M-ES2C[/b], last modified Feb 1
[b]GA G31M-ES2L[/b], last modified Feb 1
[b]GA G31M-S2C[/b], last modified Feb 1
[b]GA G31M-S2L[/b], last modified Feb 1
[b]GA G31MF-S2[/b], last modified Feb 1
[b]GA G31MX-S2[/b], last modified Feb 1
[b]GA G33-DS3R[/b], last modified Feb 1
[b]GA G33M-DS2R[/b], last modified Feb 1
[b]GA G33M-S2[/b], last modified Feb 1
[b]GA G33M-S2H[/b], last modified Feb 1
[b]GA G33M-S2L[/b], last modified Feb 1
[b]GA G41M-Combo[/b], last modified Feb 1
[b]GA G41M-ES2H[/b], last modified Feb 1
[b]GA G41M-ES2L[/b], last modified Feb 1
[b]GA G41MT-D3[/b], last modified Feb 1
[b]GA G41MT-ES2H[/b], last modified Feb 1
[b]GA G41MT-ES2L[/b], last modified Feb 1
[b]GA G41MT-S2[/b], last modified Feb 1
[b]GA H55-UD3H[/b], last modified Jan 31
[b]GA H55-USB3[/b], last modified Jan 31
[b]GA H55M-D2H[/b], last modified Jan 31
[b]GA H55M-S2[/b], last modified Jan 31
[b]GA H55M-S2H[/b], last modified Jan 31
[b]GA H55M-S2HP[/b], last modified Jan 31
[b]GA H55M-S2V[/b], last modified Jan 31
[b]GA H55M-UD2H[/b], last modified Jan 31
[b]GA H55M-USB3[/b], last modified Jan 31
[b]GA H55N-USB3[/b], last modified Jan 31
[b]GA H57M-USB3[/b], last modified Jan 31
[b]GA H61M-D2P-B3[/b], last modified Feb 2
[b]GA H61M-USB3-B3[/b], last modified Feb 2
[b]GA H67A-UD3H[/b], last modified Jan 30
[b]GA H67A-UD3H-B3[/b], last modified Feb 2
[b]GA H67M-D2[/b], last modified Jan 30
[b]GA H67M-D2-B3[/b], last modified Feb 2
[b]GA H67M-UD2H[/b], last modified Jan 30
[b]GA H67M-UD2H-B3[/b], last modified Feb 2
[b]GA H67MA-D2H[/b], last modified Jan 30
[b]GA H67MA-D2H-B3[/b], last modified Feb 2
[b]GA H67MA-UD2H[/b], last modified Jan 30
[b]GA H67MA-UD2H-B3[/b], last modified Feb 2
[b]GA HA65M-D2H-B3[/b], last modified Feb 2
[b]GA HA65M-UD3H-B3[/b], last modified Feb 2
[b]GA P31-ES3G[/b], last modified Feb 1
[b]GA P35-DQ6[/b], last modified Jan 31
[b]GA P35-DS3[/b], last modified Jan 31
[b]GA P35-DS3L[/b], last modified Jan 31
[b]GA P35-DS3P[/b], last modified Jan 31
[b]GA P35-DS3R[/b], last modified Jan 31
[b]GA P35-DS4[/b], last modified Jan 31
[b]GA P35-S3[/b], last modified Jan 31
[b]GA P35-S3G [/b], last modified Jan 31
[b]GA P35C-DS3R[/b], last modified Jan 31
[b]GA P41-ES3G[/b], last modified Jan 31
[b]GA P41T-D3[/b], last modified Jan 31
[b]GA P41T-ES3G[/b], last modified Jan 31
[b]GA P41T-USB3L[/b], last modified Jan 31
[b]GA P43-ES3G[/b], last modified Jan 31
[b]GA P43T-ES3G[/b], last modified Jan 31
[b]GA P55-S3[/b], last modified Jan 31
[b]GA P55-UD3[/b], last modified Jan 31
[b]GA P55-UD3L[/b], last modified Jan 31
[b]GA P55-UD3L-TPM[/b], last modified Jan 31
[b]GA P55-UD3P[/b], last modified Jan 31
[b]GA P55-UD3R[/b], last modified Jan 31
[b]GA P55-UD4[/b], last modified Jan 31
[b]GA P55-UD4P[/b], last modified Jan 31
[b]GA P55-UD5[/b], last modified Jan 31
[b]GA P55-UD6[/b], last modified Jan 31
[b]GA P55-UD6-C[/b], last modified Jan 31
[b]GA P55-US3L[/b], last modified Jan 31
[b]GA P55-USB3[/b], last modified Jan 31
[b]GA P55-USB3L[/b], last modified Jan 31
[b]GA P55A-UD3[/b], last modified Jan 31
[b]GA P55A-UD3P[/b], last modified Jan 31
[b]GA P55A-UD3R[/b], last modified Jan 31
[b]GA P55A-UD4[/b], last modified Jan 31
[b]GA P55A-UD4P[/b], last modified Jan 31
[b]GA P55A-UD5[/b], last modified Jan 31
[b]GA P55A-UD6[/b], last modified Jan 31
[b]GA P55A-UD7[/b], last modified Jan 31
[b]GA P55M-UD2[/b], last modified Jan 31
[b]GA P55M-UD4[/b], last modified Jan 31
[b]GA P65A-UD3[/b], last modified Feb 2
[b]GA P67A-UD3[/b], last modified Jan 30
[b]GA P67A-UD3-B3[/b], last modified Feb 2
[b]GA P67A-UD3P[/b], last modified Jan 30
[b]GA P67A-UD3P-B3[/b], last modified Feb 2
[b]GA P67A-UD3R[/b], last modified Jan 30
[b]GA P67A-UD3R-B3[/b], last modified Feb 2
[b]GA P67A-UD4[/b], last modified Jan 30
[b]GA P67A-UD4-B3[/b], last modified Feb 2
[b]GA P67A-UD5[/b], last modified Jan 30
[b]GA P67A-UD5-B3[/b], last modified Feb 2
[b]GA P67A-UD7[/b], last modified Jan 30
[b]GA P67A-UD7-B3[/b], last modified Feb 2
[b]GA PA65-UD3-B3[/b], last modified Feb 2
[b]GA PH67-UD3[/b], last modified Feb 2
[b]GA PH67-UD3-B3[/b], last modified Feb 2
[b]GA PH67A-UD3[/b], last modified Feb 2
[b]GA PH67A-UD3-B3[/b], last modified Feb 2
[b]GA Q35M-S2[/b], last modified Jan 31
[b]GA Q57M-S2H[/b], last modified Jan 31
[b]GA X38-DQ6[/b], last modified Jan 31
[b]GA X38-DS4[/b], last modified Jan 31
[b]GA X38-DS5[/b], last modified Jan 31
[b]GA X38T-DQ6[/b], last modified Jan 31
[b]GA X48-DQ6[/b], last modified Jan 31
[b]GA X48-DS4[/b], last modified Jan 31
[b]GA X48-DS5[/b], last modified Jan 31
[b]GA X48T-DQ6[/b], last modified Jan 31
[b]GA X58-USB3[/b], last modified Jan 31
[b]GA X58A-UD3R[/b], last modified Jan 31
[b]GA X58A-UD5[/b], last modified Jan 31
[b]GA X58A-UD7[/b], last modified Jan 31
[b]GA X58A-UD9[/b], last modified Jan 31



Files for Gigabyte Mobos



-Extra folder



iMac9,1 / Core2Duo 775

Extra_iMac9_1.zip

iMac11,1 / Core i 1156

Extra_iMac11_1.zip

iMac12,1 / Core i 1155

Extra_iMac12_1.zip

MacPro3,1 / Core2Quad 775

Extra_MacPro3_1.zip

MacPro4,1 / Core i 1366

Extra_MacPro4_1.zip

MacPro5,1 / Core i 1366

Extra_MacPro5_1.zip

-Boot CD



HackBoot V5

Darwin Kernel 10.5.0(Core, Core2 e Core i Nehalem)

http://www.sendspace.com/file/ssj81b



HackBoot V7

Darwin Kernel 10.8.0(Core, Core2 e Core i Nehalem e SandyBridge)

http://www.sendspace.com/file/ux28i7



Gigabyte Intel

(Core, Core2)

http://www.mediafire.com/?9lq0il8d0vlra2u



-Retail DVD



Snow Leopard Retail DVD

Snow Leopard Retail



-DSDT



DSDT Auto-Patcher

http://www.insanelymac.com/forum/index.php?showtopic=235523



Installation

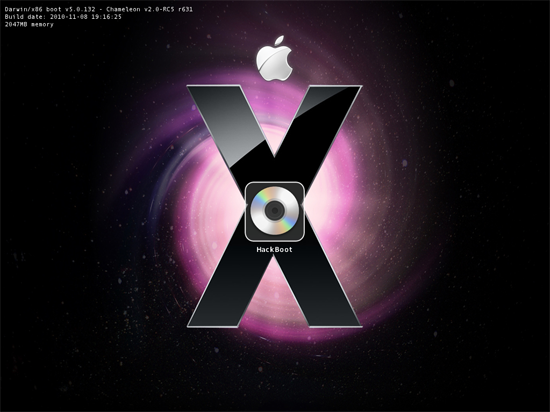

Boot the HackBoot CD


Remove the CD, insert Snow Leopard DVD, wait a few seconds and press F5, then select the DVD and press Enter.

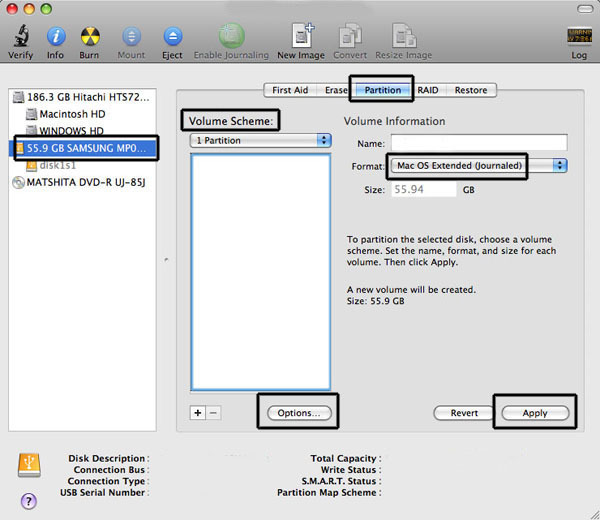

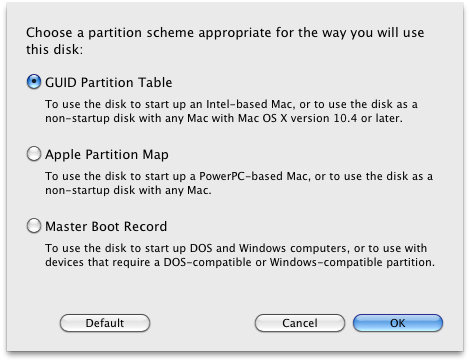

After booting the DVD and selecting your language, wait for the "Install Mac OS X" screen. Go to menu "Utilities --> Disk Utility”, select the HD you want to format and click the "Partition" tab. In the "Volume Scheme" combo, choose how many partitions you want. Below, in "Options", choose "GUID", then select "Mac Os Extended (Journaled)", click the apply button and wait.





With this process done, close Disk Utility.

Select the destination HD and go on with the installation.



After the installation, boot using HackBoot again.



The system is running but it needs HackBoot to start, so we have to install the boot loader (Chameleon), the essential kexts and the patched DSDT.



Post installation

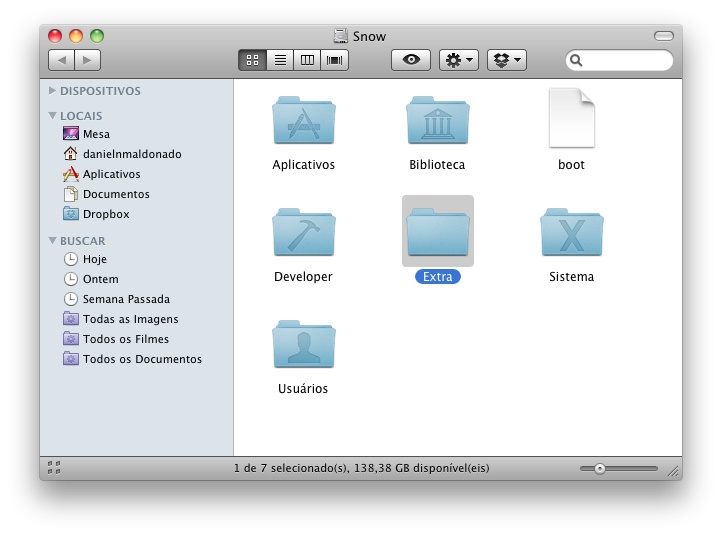

1- Copy the Extra folder to your boot partition

2- Install Chameleon RC5 (in Snow Leopard or EFI partition)

3- Run DSDT Auto-Patcher and copy the generated DSDT to the Extra folder

4- Update the system to 10.6.7



Restart using -v (boot verbose)



Vanilla power management (SpeedStep) and Restart fix Use Chameleon RC5

Added in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>



Realtek RTL81xx Driver

http://lnx2mac.blogspot.com/p/realtekrtl81xx-osx-driver.html



USB 3.0 Driver for Mac OS

http://www.lacie.com/us/more/index.htm?id=10112



LegacyHda

ALC8xxHDA.kext.zip

AppleHda

AppleHDA_10.6.2.kext.zip

PS2

Voodoo Ps2

PS2.zip

If you use VoodooHda, use AppleHdaDisabler in S/L/E

AppleHdaDisabler

AppleHDADisabler.kext.zip


In some motherboards the audio codec may change from one revision to another, so you can use this to apply the correct patch to your revision.

HDEF_Gigabyte.app.zip

Credits and thanks to El Coniglio, oldnapalm and all people in the community who developed the original patches and kexts.

Share this post


Link to post
Share on other sites
Advertisement

@MaLd0n

Thanks for your efforts!



I having issue of reset error. Under certain circumstances, when I restart/shutdown, upon restarting OSX my time clock resets to Dec 31 2009, 6:00pm.



quickspec:

GA-X58A-UD5,  Xeon W3680,  nVidia GTX 470



I notice this ONLY when not connected to internet, so I ***guess*** there could be an issue with DSDT causing clock reset. I will check to see if it reboots my MOBO clock (CMOS, correct?), but I think that it does not and that it remains consistent.



After removing my previous DSDT (extracted and edited per d00d's thread)/ then removing caches (I think) and rebooting with [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] without DSDT, ran auto-patcher and thought new DSDT would be perfect, however I still experience clock resets!@!@



Efforts to "Lock" the SysPref Time Panel are useless.



Also CUDA driver does not load at start-up when this resetting occurs, not sure if it needs a more current date in order to load properly. Also makes me wonder what else might not load or initiate as a result or cause?



When 2 DVI monitors hooked-up, SHUTDOWN hangs and requires holding power-button to turn-off. This almost always causes clock reset in OSX. Not sure if that is to do with the PWB hard-off or 2 monitors? I've not read that anywhere else.



If I restart with internet connected, time displays correctly and CUDA loads. :blink: However I need this to happen without internet too!



Any assistance you could lend, and any information I can provide to help find a solution will be great



Thank you

TY

dsdt.aml.zip

Share this post


Link to post
Share on other sites
Great jobs, Thanks MaLd0n. You are perfect

Hey thanh hoang

You're Welcome

:blink:



If I restart with internet connected, time displays correctly and CUDA loads. ;) However I need this to happen without internet too!



Very strange 01q.png

I Have no idea



The DSDT is ok

Share this post


Link to post
Share on other sites
Hey thanh hoang

You're Welcome

:(







Very strange post-557433-1306352550.png

I Have no idea



The DSDT is ok

Hi MaLd0n, I have a question, Sandy Bridge support full Mac OS?, because I see IMac 2011 work Snow 10.6.7 with Kernel 10.7.4. I have a Gigabyte P67 winth I5 2500=> It's full support? and how to config Bios? Thanks you very much. Wait you...

Share this post


Link to post
Share on other sites
Hi MaLd0n, I have a question, Sandy Bridge support full Mac OS?, because I see IMac 2011 work Snow 10.6.7 with Kernel 10.7.4. I have a Gigabyte P67 winth I5 2500=> It's full support? and how to config Bios? Thanks you very much. Wait you...

NativePM ok in Gigabyte Mobos

Share this post


Link to post
Share on other sites

Nice work MaLdOn.

Can I use Hackboot v6.0 on my EP-45 DS3R? or need the gigabyte intel installer cd? Beside boot cd, do I need to download all files in windows or Mac environment?

Thanks

Share this post


Link to post
Share on other sites
Nice work MaLdOn.

Can I use Hackboot v6.0 on my EP-45 DS3R?

Yep



Beside boot cd, do I need to download all files in windows or Mac environment?

Thanks

Windows or Mac

Save in pen drive

Share this post


Link to post
Share on other sites
MaLd0n, definitely you are the Best insanely Friend here. My sincere words of Gratefulness for all your contributions :unsure:

Hey juanerson

Thanks

You're a great master 01a.png

Share this post


Link to post
Share on other sites

Thanx MaLdOn, I reinstalled it on my EP45-DS3R, and all is working for 10.6.7. i have 9800GS graphic card and getting resolution of 1280x1020, Could u guide me right nvidia drivers package as previously used [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url]+ [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] that include nvidia drivers. Do I need sleepenabler to awake the system from sleep, Haven't tried it yet.

Thanx

Share this post


Link to post
Share on other sites
Do I need sleepenabler to awake the system from sleep, Haven't tried it yet.



dont use sleepenabler



run on terminal and send me

ioreg -lw0 | grep CSTInfo

and

kextstat

Share this post


Link to post
Share on other sites
Just sent u the info.

thanx



EvOreboot.kext, Disabler.kext and NullCPUPowerManagement.kext?????????????

remove

Share this post


Link to post
Share on other sites
You mean these kext are missing, couldn't see them in S/L/E. or to look into somewhere to remove them?

you do not need those kexts

you did not follow the tutorial

Share this post


Link to post
Share on other sites
I searched in finder and couldn't find anywhere on boot volume and efi partition where I have my extra folder.

do you use Extensions.mkext?

Share this post


Link to post
Share on other sites
MaLd0n, definitely you are the Best insanely Friend here. My sincere words of Gratefulness for all your contributions :gun:



+1



I just notice that my S/L/E on my EFI partition extension folder is not allowed permission. I tried to fixed it in disk utility with fix permission but wouldn't let me do it on EFI partition. I followed your guide and downloaded files you mentioned.

Share this post


Link to post
Share on other sites
+1



I just notice that my S/L/E on my EFI partition extension folder is not allowed permission. I tried to fixed it in disk utility with fix permission but wouldn't let me do it on EFI partition. I followed your guide and downloaded files you mentioned.

Use root of the HD


no problem



hide folder if u want

sudo chflags hidden /Extra

and

sudo chflags hidden /boot



*sudo chflags nohidden /...



Vanilla system = is you use a DSDT with everything you need, using the original Apple kexts

You not need use the EFI 01a.png

Share this post


Link to post
Share on other sites

I Installed SL on one volume and all boot, extra folder files on another volume partition. I manage to repair fix permission and do not see Extensions.mkext. In my E/E have.



AHCOportinjector.kext

ALC8xxhDA.kext

ApplehDA.kext

AppleHDAdisabler.kext

com.boot,plist.kext

Faksmc

IOAHCIBlock injector

IONetwotworkfamily in plugin RealteckRTL81xx.kext

Share this post


Link to post
Share on other sites
I Installed SL on one volume and all boot, extra folder files on another volume partition. I manage to repair fix permission and do not see Extensions.mkext. In my E/E have.



AHCOportinjector.kext

ALC8xxhDA.kext

ApplehDA.kext

AppleHDAdisabler.kext

com.boot,plist.kext

Faksmc

IOAHCIBlock injector

IONetwotworkfamily in plugin RealteckRTL81xx.kext

send me a new kextstat



EDIT

look it

16 0 0x4ee95000 0x2000 0x1000 es.osx86.driver.EvOreboot (1.0.3)

17 0 0x5509d000 0x2000 0x1000 net.osrom.kext.Disabler (1.0.1)

18 0 0x550fa000 0x2000 0x1000 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2)



same problem



EFI or E/E or S/L/E or Extensions.mkext

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.



×
