DSDT Auto-Patcher

[MaLd0n]

dsdt.ninjadash.zip

use topic



--------------------------------------------------------------------------------



_T_

into_all all code_regex _T_0 replaceall_matched begin T_0 end

vget, fget, tget

into method label FGET code_regex Return\s\(Zero\) remove_matched;
into method label FGET insert
begin
Return (Zero)
end

aquire( .... 0xFFFF

into_all all code_regex (Acquire\s\(MUTE,\s0x)....\)
replace_matched
begin
%1FFFF)
end

Hpet

into method label _STA parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_STA, 0, NotSerialized)\n
{\n
   Return (0x0F)\n
}
end;
into method label _CRS parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_CRS, 0, NotSerialized)\n
{\n
   Return ([b][color="#FF0000"]ATT3[/color][/b])\n
}
end



into device name_hid PNP0000 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0100 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0B00 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0103 code_regex_not IRQNoFlags code_regex Name\s\(([^,]+),\sResourceTemplate\s\(\)\n\s+\{((?:.|\n)*)\}\) replace_matched
begin
Name (%1, ResourceTemplate ()\n
				{\n
					IRQNoFlags ()\n
						{0}\n
					IRQNoFlags ()\n
						{8}\n
%2
})
end

[MaLd0n]

a complete example



GA P35-DS3



OP REG LPCB

AZAL to HDEF

HDEF ALC889a

EHCI

HID/CID

HPET

IRQs(PIC, TMR, RTC, HPET)

LAN0 PEX4

LPC

MCEH

REMOVE

RENAME

RTC

SMBUS

SHUTDOWN

UHCI

WAK



into method label _DSM parent_adr 0x001F0000 remove_entry;
into device name_adr 0x001F0000 insert
begin
OperationRegion (LPC0, PCI_Config, 0xA4, 0x02)\n
			Field (LPC0, ByteAcc, NoLock, Preserve)\n
			{\n
				AG3E,   1\n
			}
end;
into device name_adr 0x001B0000 set_label
begin
HDEF
end;
into_all all code_regex AZAL replaceall_matched
begin
HDEF
end;
into method label _DSM parent_adr 0x001B0000 remove_entry;
into device name_adr 0x001B0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x0A)\n
	{\n
		"built-in",\n
		Buffer (One)\n
		{\n
			0x01\n
		},\n
		"codec-id",\n
		Buffer (0x04)\n
		{\n
			0x85, 0x08, 0xEC, 0x10\n
		},\n
		"layout-id",\n
		Buffer (0x04)\n
		{\n
			0x75, 0x03, 0x00, 0x00\n
		},\n
		"device-type",\n
		Buffer (0x10)\n
		{\n
			"Realtek ALC889A"\n
		},\n
		"PinConfigurations",\n
		Buffer (0x28)\n
		{\n
			/* 0000 */	0x10, 0x90, 0xA1, 0x01, 0x20, 0x90, 0xA1, 0x02,\n
			/* 0008 */	0x80, 0x30, 0x81, 0x01, 0x90, 0x40, 0x21, 0x02,\n
			/* 0010 */	0x30, 0x40, 0x11, 0x01, 0x40, 0x40, 0x01, 0x01,\n
			/* 0018 */	0x50, 0x60, 0x01, 0x01, 0x60, 0x20, 0x01, 0x01,\n
			/* 0020 */	0x70, 0x61, 0x4B, 0x01, 0xA0, 0x01, 0xCB, 0x01\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label DTGP remove_entry;
into definitionblock code_regex . insert
begin
Method (DTGP, 5, NotSerialized)\n
{\n
If (LEqual (Arg0, Buffer (0x10)\n
		{\n
			/* 0000 */	0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44, \n
			/* 0008 */	0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B\n
		}))\n
{\n
	If (LEqual (Arg1, One))\n
	{\n
		If (LEqual (Arg2, Zero))\n
		{\n
			Store (Buffer (One)\n
				{\n
					0x03\n
				}, Arg4)\n
			Return (One)\n
		}\n
		If (LEqual (Arg2, One))\n
		{\n
			Return (One)\n
		}\n
	}\n
}\n
Store (Buffer (One)\n
	{\n
		0x00\n
	}, Arg4)\n
Return (Zero)\n
}
end;
into method label _DSM parent_adr 0x001D0007 remove_entry;
into device name_adr 0x001D0007 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x04)\n
{\n
"AAPL,clock-id",\n
Buffer (One)\n
{\n
0x01\n
},\n
"device_type",\n
Buffer (0x05)\n
{\n
"EHCI"\n
}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001A0007 remove_entry;
into device name_adr 0x001A0007 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x04)\n
{\n
"AAPL,clock-id",\n
Buffer (One)\n
{\n
0x02\n
},\n
"device_type",\n
Buffer (0x05)\n
{\n
"EHCI"\n
}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _STA parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_STA, 0, NotSerialized)\n
{\n
Return (0x0F)\n
}
end;
into method label _CRS parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_CRS, 0, NotSerialized)\n
{\n
Return (ATT3)\n
}
end;
into device label PWRB code_regex (Name\s\()_HID(\,\sEisaId\s\(\"PNP0C0C\"\)\)) replace_matched begin %1_CID%2 end;
into device name_hid PNP0000 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0100 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0B00 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0103 code_regex_not IRQNoFlags code_regex Name\s\(([^,]+),\sResourceTemplate\s\(\)\n\s+\{((?:.|\n)*)\}\) replace_matched
begin
Name (%1, ResourceTemplate ()\n
				{\n
					IRQNoFlags ()\n
						{0}\n
					IRQNoFlags ()\n
						{8}\n
%2
})
end;
into method label _DSM parent_adr 0x001F0000 remove_entry;
into device name_adr 0x001F0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x16, 0x29, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into scope label _SB insert
begin
Device (MCEH)\n
	{\n
		Name (_HID, EisaId ("APP0006"))\n
		Name (_GPE, 0x17)\n
		Name (_STA, 0x0B)\n
	}
end;
into scope label \_SB insert
begin
Device (MCEH)\n
	{\n
		Name (_HID, EisaId ("APP0006"))\n
		Name (_GPE, 0x17)\n
		Name (_STA, 0x0B)\n
	}
end;
into device label SPKR remove_entry;
into device label FDC remove_entry;
into device label FDC0 remove_entry;
into device label LPT1 remove_entry;
into device label LPTE remove_entry;
into device label ECP1 remove_entry;
into device label PEX3.JMB0 remove_entry;
into device label PEX3.JMB1 remove_entry;
into device label PEX1.JMB0 remove_entry;
into device label PEX1.JMB1 remove_entry;
into device label MEM remove_entry;
into device label ^^RMEM remove_entry;
into device label IDE2 remove_entry;
into device name_hid PNP0B00 code_regex (IO\s\((?:\s*[^,]+,\s*(?:\/\/\s.*)?\s*\n)+\s*)(\dx\d+)(,\s*(?:\/\/\s.*)?\s*\n\s*\)) replace_matched begin %10x02%3 end;
into device name_adr 0x001F0003 parent_label PCI0 remove_entry;
into device label PCI0 insert
begin
Device (SBUS)\n
{\n
Name (_ADR, 0x001F0003)\n
Device (BUS0)\n
{\n
	Name (_CID, "smbus")\n
	Name (_ADR, Zero)\n
	Device (DVL0)\n
	{\n
		Name (_ADR, 0x57)\n
		Name (_CID, "diagsvault")\n
	}\n
}\n
Method (_DSM, 4, NotSerialized)\n
{\n
	Store (Package (0x02)\n
		{\n
			"device-id", \n
			Buffer (0x04)\n
			{\n
				0x30, 0x3A, 0x00, 0x00\n
			}\n
		}, Local0)\n
	DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
	Return (Local0)\n
}\n
}
end;
into method label _PTS code_regex (If\s*\(LEqual\s*\(Arg0,\s*0x05\)\)\s*\n\s*\{\s*\n)(?:[^\n\}]+\n)+(\s*\}) replace_matched
begin
%1
		Store (One, \\_SB.PCI0.LPCB.AG3E)\n
		Store (Zero, SLPE)\n
		Sleep (0x10)\n
}
end;
into method label \_PTS code_regex (If\s*\(LEqual\s*\(Arg0,\s*0x05\)\)\s*\n\s*\{\s*\n)(?:[^\n\}]+\n)+(\s*\}) replace_matched
begin
%1
		Store (One, \\_SB.PCI0.LPCB.AG3E)\n
		Store (Zero, SLPE)\n
		Sleep (0x10)\n
}
end;
into definitionblock code_regex . code_regex_not OperationRegion\s*\(PMRS insert
begin
OperationRegion (PMRS, SystemIO, 0x0430, One)\n
Field (PMRS, ByteAcc, NoLock, Preserve)\n
{\n
	,   4, \n
SLPE,   1\n
}
end;
into method label _DSM parent_adr 0x001D0000 remove_entry;
into device name_adr 0x001D0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001D0001 remove_entry;
into device name_adr 0x001D0001 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001D0002 remove_entry;
into device name_adr 0x001D0002 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001A0000 remove_entry;
into device name_adr 0x001A0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001A0001 remove_entry;
into device name_adr 0x001A0001 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001A0002 remove_entry;
into device name_adr 0x001A0002 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001D0003 remove_entry;
into device name_adr 0x001D0003 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02)\n
	{\n
		"device-id", \n
		Buffer (0x04)\n
		{\n
			0x34, 0x3A, 0x00, 0x00\n
		}\n
	}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _WAK code_regex Return\s\(\s*\n?\s*Package\s*\n?\s*\(0x02\)\s*\n?\s*\{\s*\n?(?:\s*Zero,?\s*\n?){2}\s*\}\s*\n?\s*\) remove_matched;
into method label _WAK insert
begin
Return (Package (0x02)\n
{\n
Zero, \n
Zero\n
})
end;
into method label \_WAK code_regex Return\s\(\s*\n?\s*Package\s*\n?\s*\(0x02\)\s*\n?\s*\{\s*\n?(?:\s*Zero,?\s*\n?){2}\s*\}\s*\n?\s*\) remove_matched;
into method label \_WAK insert
begin
Return (Package (0x02)\n
{\n
Zero, \n
Zero\n
})
end;
into device label FWH set_label begin FWHD end;
into device label MCH set_label begin MCEH end;
into device label PIC set_label begin IPIC end;
into device label DMA1 set_label begin DMAC end;
into device label TMR set_label begin TIMR end;
into device label RTC0 set_label begin RTC end;
into device label COPR set_label begin MATH end;
into device label OMSC set_label begin LDRC end;
into device label IDE1 set_label begin SATA end;
into device label CHN0 set_label begin PRT0 end;
into device label CHN1 set_label begin PRT1 end;
into device label USB0 set_label begin UHC1 end;
into device label USB1 set_label begin UHC2 end;
into device label USB2 set_label begin UHC3 end;
into device label USB3 set_label begin UHC4 end;
into device label USB4 set_label begin UHC5 end;
into device label USB5 set_label begin UHC6 end;
into device label USBE set_label begin EHC1 end;
into device label USE2 set_label begin EHC2 end;
into device label PRIM set_label begin PRT0 end;
into device label SECD set_label begin PRT1 end;
into device label PX40 set_label begin LPCB end;
into_all all code_regex DMA1 replaceall_matched begin DMAC end;
into_all all code_regex TMR replaceall_matched begin TIMR end;
into_all all code_regex RTC0 replaceall_matched begin RTC end;
into_all all code_regex COPR replaceall_matched begin MATH end;
into_all all code_regex OMSC replaceall_matched begin LDRC end;
into_all all code_regex CHN0 replaceall_matched begin PRT0 end;
into_all all code_regex CHN1 replaceall_matched begin PRT1 end;
into_all all code_regex USB0 replaceall_matched begin UHC1 end;
into_all all code_regex USB1 replaceall_matched begin UHC2 end;
into_all all code_regex USB2 replaceall_matched begin UHC3 end;
into_all all code_regex USB3 replaceall_matched begin UHC4 end;
into_all all code_regex USB4 replaceall_matched begin UHC5 end;
into_all all code_regex USB5 replaceall_matched begin UHC6 end;
into_all all code_regex USBE replaceall_matched begin EHC1 end;
into_all all code_regex USE2 replaceall_matched begin EHC2 end;
into_all all code_regex PX40 replaceall_matched begin LPCB end;
into device name_adr 0x001E0000 set_label
begin
PCIB
end;
into_all all code_regex HUB0 replaceall_matched
begin
PCIB
end;
into device name_adr Zero parent_adr 0x001C0004 remove_entry;
into device name_adr 0x001C0004 insert
begin
Device (LAN0)\n
{\n
Name (_ADR, Zero)\n
Method (_DSM, 4, NotSerialized)\n
{\n
	Store (Package (0x08)\n
		{\n
			"AAPL,slot-name", \n
			Buffer ()\n
			{\n
				"Slot-2"\n
			}, \n
			"model", \n
			Buffer ()\n
			{\n
				"RTL8111/8168B PCI Express Gigabit Ethernet"\n
			}, \n
			"built-in", \n
			Buffer ()\n
			{\n
				0x00\n
			}, \n
			"device_type", \n
			Buffer ()\n
			{\n
				"Ethernet Controller"\n
			}\n
		}, Local0)\n
	DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
	Return (Local0)\n
}\n
 }
end

[stuckwithme247]

Hey MaLd0n,



When you have moment would you please take another look at the DP55WB DSDT? I am trying to get native power management working. I tried the HPET patch method you suggested and it still won't boot without NullCPUPowerManagment. Thanks.

[MaLd0n]

Hey MaLd0n,



When you have moment would you please take another look at the DP55WB DSDT? I am trying to get native power management working. I tried the HPET patch method you suggested and it still won't boot without NullCPUPowerManagment. Thanks.



I do not know a solution for that

unfortunately

I hope someone can help you there

[polia]

Maldon hello, you were great, now I'm sorry if I ask you something else,

I noticed that things have changed, so this is my DSDT?



I've seen as I have never used the DSDT.aml,

I want to understand how to install it in the folder .. or with the extra

DSDTAuto-Patcher?

I'm sorry but I would understand better, also because 'so

less bother,

I also efistring extracted from windows, I wanted to know if you need to add it to the DSDT, and if so how?. you reference the DSDT.aml you did to me, together you also upload the video bios NVIDIA GT220, in case you need them



thanks for your very kind,



poly



attachment=84570:polia4you.zip]

polia4you.zip

[h00ligan]

P5K_VM_original_DSDT.rar

send me original DSDT

extract from Windows or Linux

http://www.insanelymac.com/forum/index.php?showtopic=225991





Hi, MaLd0n.



My original DSDT in attachment.



P5K_VM_original_DSDT.rar

[Daylights]

Send me original DSDT



use -v

see the error

post a photo



Hi MaLd0n,

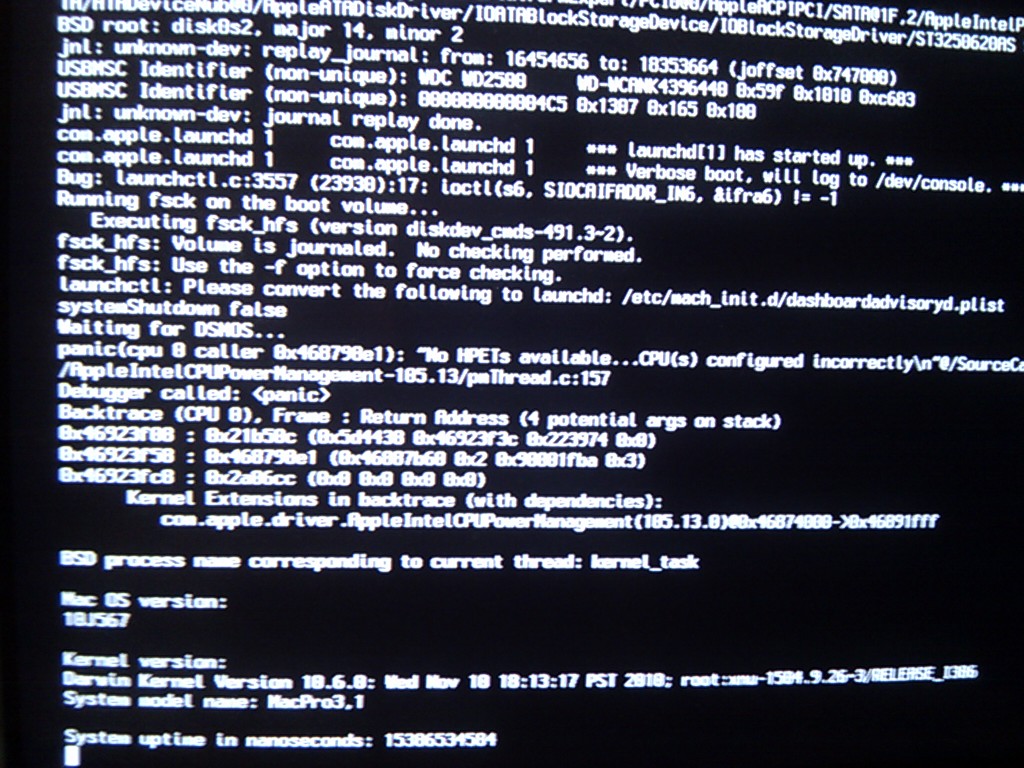

Here's my original DSDT, extracted in Windows by Everest. I also booted with -v and took the picture. I hope it's clear enough?



Thanks!

GA_945GM_S2_original_DSDT.zip

[buoo]

Thanks MaLd0n

[MaLd0n]

Maldon hello, you were great, now I'm sorry if I ask you something else,

I noticed that things have changed, so this is my DSDT?



I've seen as I have never used the DSDT.aml,

I want to understand how to install it in the folder .. or with the extra

DSDTAuto-Patcher?

I'm sorry but I would understand better, also because 'so

less bother,

I also efistring extracted from windows, I wanted to know if you need to add it to the DSDT, and if so how?. you reference the DSDT.aml you did to me, together you also upload the video bios NVIDIA GT220, in case you need them



thanks for your very kind,



poly



attachment=84570:polia4you.zip]



DSDT in "Extra" folder or Root HD



Video use GE, String or Kext

[Mystroe]

I'm soon to start working on a asus P6X58D-E anyone have a dsdt, or should I wait until it's installed and run send_me



Also anyone have sata 600 and usb 3 working?

[Tommy76]

As someone suggested i chose S3 state in my BIOS and with my old dsdt.aml when i run system with -v i saw that it chose S3 state. Now with your dsdt it always chooses a S0 state.

I'll look into it

wait

Did you check it ?

[polia]

Maldon thanks!



you're great!

[MaLd0n]

P5K_VM_original_DSDT.rar





Hi, MaLd0n.



My original DSDT in attachment.



P5K_VM_original_DSDT.rar



HDEF ALC883

DTGP

UHCI

IRQs

LAN

LPC

REMOVE

RENAME

SMBUS

SHUTDOWN

FIX WARNINGS

dsdt.h00ligan.zip

[LatinMcG]

SUCCESS on the Wireless connection timeout.!

the patch

				Device (PXS2)
			{
				Name (_ADR, Zero)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x02)
						{
							"built-in",
							Buffer (One)
							{
								0x00
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}

				[b]OperationRegion (SVID, PCI_Config, 0x40, 0xC0)
				Field (SVID, DWordAcc, NoLock, Preserve)
				{
							Offset (0x2C),
					SUBS,   32
				}[/b]
			}

			Name (_PRW, Package (0x02)
			{
				0x09,
				0x03
			})

in RP02 and 1 rocked my world! i had 0xF0 on other version instead of 0xC0. now both leo and snow connect wireless in my wll4080 rebranded to

IBM pci 168c:1014 sub 1014:058a and added to atheros kext.

i didnt see any PINI in dsdt so the rp02 is not locked to subvendor 106b

THANK YOU MALDON!

if u need more testing send me a msg!

[MaLd0n]

I'm soon to start working on a asus P6X58D-E anyone have a dsdt, or should I wait until it's installed and run send_me



Also anyone have sata 600 and usb 3 working?



send me



Hi MaLd0n,



Here's my original DSDT, extracted in Windows by Everest. I also booted with -v and took the picture. I hope it's clear enough?



Thanks!

try it

dsdt.Daylights.zip



I hope it works

but I'm not sure

we need to test



SUCCESS on the Wireless connection timeout.!

the patch

				Device (PXS2)
			{
				Name (_ADR, Zero)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x02)
						{
							"built-in",
							Buffer (One)
							{
								0x00
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}

				[b]OperationRegion (SVID, PCI_Config, 0x40, 0xC0)
				Field (SVID, DWordAcc, NoLock, Preserve)
				{
							Offset (0x2C),
					SUBS,   32
				}[/b]
			}

			Name (_PRW, Package (0x02)
			{
				0x09,
				0x03
			})

in RP02 and 1 rocked my world! i had 0xF0 on other version instead of 0xC0. now both leo and snow connect wireless in my wll4080 rebranded to

IBM pci 168c:1014 sub 1014:058a and added to atheros kext.

i didnt see any PINI in dsdt so the rp02 is not locked to subvendor 106b

THANK YOU MALDON!

if u need more testing send me a msg!



let's do the auto-patcher?

[MaLd0n]

I'll look into it

wait



Did you check it ?



what does not work?



I do not understand your concern?

[MaLd0n]

dsdt.D_an_W.zip

OP REG LPCB

AZAL to HDEF

HDEF ALC889a

EHCI

HID/CID

HPET

IRQs(PIC, TMR, RTC, HPET)

LAN0 PEX4

LPC

MCEH

REMOVE

RENAME

RTC

SMBUS

SHUTDOWN

WAK

[LatinMcG]

after sleep wireless returned timeout issue. i probably had to add to _GPE ?

[Daylights]

try it

dsdt.Daylights.zip



I hope it works

but I'm not sure

we need to test



No luck

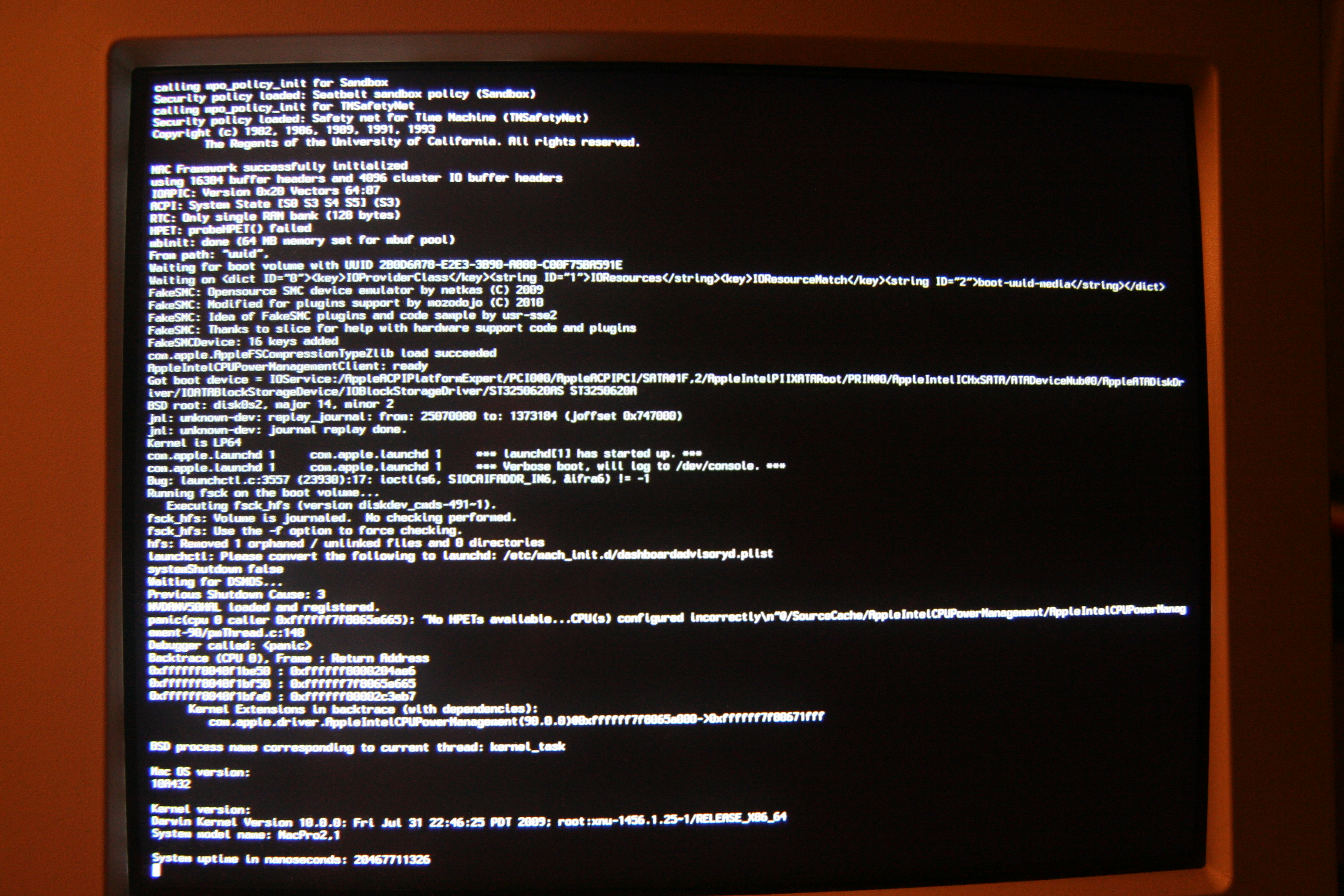

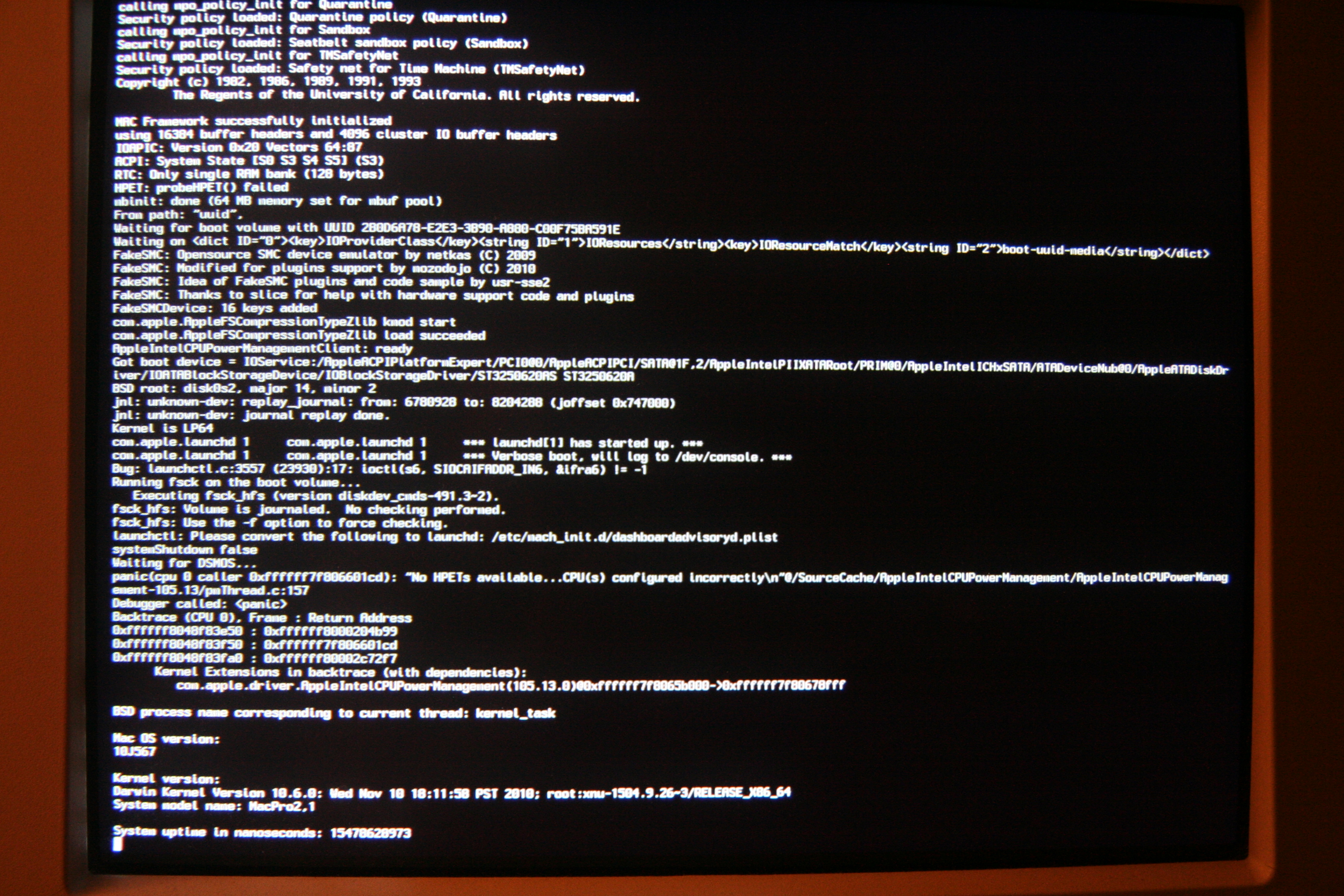

I've made 2 pictures, first after a clean install 10.6.0, second after update 10.6.6.

After the first 10.6.0 KP I'm still able to boot in OSX with your boot CD, but after update 10.6.6 that's not possible anymore (KP).

[LatinMcG]

daylights try making a usb with bootfiles. and dsdt

make sure u have hpet 64 in bios if thats option.

u did try to boot with -v -x -f ?

[juanerson]

@Daylights, In the picture "No HPETs available..." is your problem, I mean bad HPET (High Precision Event Timer) in the DSDT (probably), so "maybe" you need to replace it, the entire Device (HPET), with this simplified code (by Master Chief):

                Device (HPET)
               {
                   Name (_HID, EisaId ("PNP0103"))
                   Name (_STA, 0x0F)
                   Name (_CRS, ResourceTemplate ()
                   {
                       IRQNoFlags ()
                           {0}
                       IRQNoFlags ()
                           {8}
                       Memory32Fixed (ReadOnly,
                           0xFED00000,         // Address Base
                           0x00000400,         // Address Length
                           )
                   })
               }

EDITED: Apart of LatinMcGyver75 said about the BIOS parameter, is a very important step.

[MaLd0n]

he DSDT no has the device HPET

I added

still not solved

This fix is standard for all gigabytes

but not solved

I can not really solve it





Hi juanerson

you are very welcome

I'm a Fan



look at bios(3)

[José Rodríguez]

Hi Can you send me dsdt.aml patched for my laptop please?

My data are:



Thank you

send_me.zip

[MaLd0n]

Hi Can you send me dsdt.aml patched for my laptop please?

My data are:



Thank you



Chipset?

Processor?

etc

[Daylights]

daylights try making a usb with bootfiles. and dsdt

make sure u have hpet 64 in bios if thats option.

u did try to boot with -v -x -f ?



Unfortunately there's no HPET option in de BIOS, -v -x -f gives me the same HPET error.



What can I do? Read something about using a Disabler.kext to disable Power Management and I will probably need SleepEnabler.kext also. That was the way my previous installation (DVD by Hazard) worked, but I was hoping for a more clean install
