This guide is:

1. Split into sections and sub-sections for ease of following and adding to....

2. A "live guide" that will evolve with both Snow Leopard and time (with some inevitable typo corrections, additions, deletions etc.).......

So, please read the current online "live" guide before attempting to follow it, even if you had previously followed a printed-out static version successfully.....

********************************************************************
Good reasons for needing/having a working Leopard OS X installation already on the PC that you want to install Snow Leopard onto:
********************************************************************

1. Since the DSDT.aml gets patched by the BIOS before loading it for OS X to use, you need to extract the DSDT.aml from a RUNNING OS on your PC.

For example, when you extract the dsdt.dsl file from a BIOS set to S1(POS) sleep you see:

Name (\_S1, Package (0x04)

followed byName (\SS3, Package (0x04)

whereas when you extract the dsdt.dsl file from a BIOS set to S3(STR) sleep you see:

Name (\SS1, Package (0x04)followed byName (\_S3, Package (0x04)

So, extract your PC's BIOS DSDT.aml file using Leopard and patch it as required for later use by Snow Leopard.......

2. Easy installation of the Chameleon (or other) bootloader using an installer package (or, manually if you prefer) on your PC's target SL OS X volume and set up the /Extra/Extensions directory on the target SL OS X volume as well........

3. Generating an EFI string for your graphics card(s)

Quote from aqua-mac

QUOTE PLEASE NOTE - SNOW LEOPARD When making your output file - that must be done booted from Leopard only. Snow Leopard gives the wrong info in the output file and you WILL NOT get QE/CI working! GFX strings will work fine on snow leopard once they are made, but the part where you translate the input file into the output file only works if made with Leopard. If you make that in snow it will give an incorrect one and you will not get Quartz Extreme or Core Image which makes OSX pretty useless. So you will need a Leo install on a laptop or someone with a Leo install at present. To reset permissions after you re-install the file, just run Disk Utility - Repair Permissions.

4. You will have a fully working OS X system that will enable you [a] to identify any special kexts needed for video, network and/or audio and/or BIOS settings for USB or Firewire etc., and to easily fix any problems with your subsequent Snow Leopard installation that may be preventing it from booting and/or causing kernel panics etc., run installer packages to install stuff on SL when it is not booted, e.g. the OS X Combo Update Installer etc........

*************************************************************
HOW TO USE THIS GUIDE
*************************************************************

NOTA BENE 1.

Everyone without a fully AHCI-compliant nForce MCP MOBO, first read the INTRODUCTION and BREAKING NEWS sections and then read and follow PART A and PART B.

To determine if your nForce chipset MOBO MCP is fully-AHCI compliant, see here.

Regarding MeDevil's original AppleNForceATA.kext and AppleNForceATA_TEST.kext, as well as its later variants by slashack, AnV, aryajuanda, note the following quote from MeDevil (I have put AHCI-compliant device IDs in bold):



I've re-fixed the driver. Some users where still not detecting sata and/or pata drives, so this version should solve some problems. Below, a list of device+vendor id for supported pata/sata chipsets by this kext:

PATA: 0x01bc10de 0x006510de 0x008510de 0x00d510de 0x00e510de 0x003510de 0x005310de 0x026510de 0x036e10de 0x03ec10deSATA: 0x008e10de 0x00e310de 0x00ee10de 0x003610de 0x003e10de 0x005410de 0x005510de 0x026610de 0x026710de 0x037e10de 0x037f10de 0x03e710de 0x03f610de 0x03f710de 0x045c10de 0x045d10de 0x045e10de 0x045f10de

Know AHCI SATA enabled chipset device+vendor id: 0x044c10de 0x044d10de 0x044e10de 0x044f10d 0x055010de 0x055110de 0x055210de 0x055310de 0x056010de 0x055410de 0x058410de

Know AHCI PATA chipsets device+vendor id: 0x056010de 0x056010de 0x056c10de 0x075910de

If your chipset is in the "Know AHCI SATA enabled chipsets" then you CANNOT USE THIS KEXT!

If your chipset is in the "Know AHCI PATA enabled chipsets" then you can try to use this kext for the pata handling, but this is not tested, so try at your own risk!

If it is AND/OR you find after following NOTA BENE 1., that the AppleNForceATA.kext DOES NOT WORK for you, e.g. you still get a "waiting for root device" error with AppleNForceATA.kext installed, then go to NOTA BENE 2. below......

You then need to decide whether to use

EITHER the USB flash drive installation method to install from an image file of your Retail Mac OS X Snow Leopard Install DVD to a GPT/HFS+ partition/volume or a MBR/HFS+ partition/volume,

OR

my nForceSLBoot132DVD installation method to install from your Retail Mac OS X Snow Leopard Install DVD disc to a GPT/HFS+ partition/volume.

NOTE: HFS+ means Mac OS Extended (Journaled) while GPT stands for GUID Partition Table and MBR stands for Master Boot Record in this guide.....

Read PART C if you want to produce a USB flash drive installer employing an image file of your Retail Mac OS X Snow Leopard Install DVD......and THEN

Read PART D if you want to install from a USB flash drive to a GPT HDD volume.....

OR

Read PART E if you want to install from a USB flash drive to a MBR HDD volume.....

BUT

Read PART F if you want to install from a Retail Snow Leopard Mac OS X Install DVD disc to a GPT HDD volume using my nForceSLBoot132DVD......

THEN

Read PART I if you want to be able to boot into Snow Leopard from your Leopard Chameleon bootloader screen......

FINALLY

After successful installation, read PART G to PART K regularly/periodically to keep up to date with the development of non-Apple Snow Leopard 32bit/64bit kexts and their operation (e.g. audio, sleep etc.) and/or DSDT modding on nForce chipset/Intel CPU MOBOs.......

NOTA BENE 2:

Everyone with a fully AHCI-compliant nForce MCP73 630i chipset MOBO can follow Krisha21's nForce 630i MCP73 chipset MOBO-specific Snow Leopard Install guide here.........it may also work for other fully AHCI-compliant nForce MCP MOBOs......such as those mentioned here.....

NOTA BENE 3:

All Asus P5N-E SLI 650i chipset MOBO owners may be interested in this.........successful SATA DVDRW read/write functioning...........

See this post by Curtis8523, who has a P5N-E SLI MOBO with 2.5 GB RAM (1 x 1 GB stick, 3 x 512 MB Stick), Nvidia Gforce 210 512 MB Video Card, 750 GB SATA HDD, Samsung 22x SATA SH-S223C/BEBE DVDRW, 2 x 40 GB ATA HDD RAID to show an 80 GB HDD, Netgear WN311T PCI Wireless card showing as airport extreme. He is using the P5N-E SLI BIOS 1406 with stock settings except AI overclock to 20%.He is booting in 32bit mode and using the AppleNForceATA.kext from the iATKOS S3 v2 Install DVD distro......

I have a TSSTcorp CDDVDW SH-S223B SATA DVDRW on an Asus P5N32-E SLI Plus (650i with 6GB RAM with OCd CPU (3GHz) and RAM (800MHz) but have not been able to read/write reliably using the SATA DVDRW with any AppleNForceATA kext........

This still remains the case for me when using the AppleNforceATA kext from the iATKOS DVD and with/without maxmem=2048........my SATA DVDRW does not even mount a commercial DVD movie.......... :wallbash:

I think the reason may be the chipset differences:

ASUS P5N-E SLI

Chipset: NVIDIA 650i SPP (C55) + 650i MCP (nF430)Onboard SATA/RAID: 4 SATA 3Gbps Ports - 650i MCP (RAID 0,1, 0+1, 5, JBOD)1 e-SATA 3Gbps Port - JMicron JMB361Onboard IDE: 2 ATA133/100/66 Port (4 drives) - 650i MCP

ASUS P5N32-E SLI Plus

Chipset: NVIDIA 650i SPP (C55) + 570 SLI MCP (MCP55P)Onboard SATA/RAID: 6 SATA 3Gbps Ports - 570 SLI MCP (RAID 0, 1, 0+1, 5, JBOD)Onboard IDE: 1 ATA133/100/66 Port (2 drives) - 570 SLI MCP

*************************************************************
INTRODUCTION
*************************************************************

Remember that despite nForce chipset MOBOs now being able to run the Snow Leopard kernel, you still are dealing with the nForce chipset and OS X.......

So:

[1] Check your BIOS settings against the recommended settings for OS X........depending on your MOBO nForce chipset, check in either my OS X Leopard on Series 7 nForce chipset + Intel CPU MOBOs thread or in my OS X Leopard on Pre-Series 7 nForce chipset + Intel CPU MOBOs thread......

Ensure that your IDE/SATA settings are set correctly e.g. enabling the SATA Controller or AHCI Mode depending on your BIOS options, and setting HPET Function/Support to [Enabled]....

[2] Despite a number of vanilla install guides for Snow Leopard saying that a SATA DVDRW is recommended/best/required for installing Snow Leopard.......this is not generally the case with nForce chipset MOBOs (unless the nForce MCP is fully AHCI compliant e.g. MCP73......see here)......

If the nForce MCP is not fully AHCI compliant, then a PATA (IDE) DVDRW is preferred/recommended to avoid issues with the now infamous "still waiting for root device" error.....

This is because we have to use the AppleNForceATA.kext.......unless the nForce MCP is fully AHCI compliant e.g. MCP73......see here)......

Furthermore, while slashhack's v0.1 AppleNForceATA.kext (32bit) supports 64bit memory addressing enabling the use of > 3GB RAM, some SATA DVDRWs may have problems with this kext......e.g. not being recognized; a SAM Multimedia: Read or Write failed.....error; not being able to burn CDs/DVDs....

So, if this is the case you will need to use MeDevil's AppleNForceATA_Test.kext BUT this kext can only be used with maxmem=3072 in com.apple.Boot.plist or with > 3GB RAM as it does not support 64bit memory addressing.....you may still have issues with not being able to burn CDs/DVDs.......

Until very recently, the AppleNForceATA.kext's currently available appeared from most reports to be only fully functional as 32bit compiled......the 32bit/64bit compiled variants that are now appearing for Snow Leopard, e.g. by AnV, aryajuanda, etc. do not appear to enable successful booting into 64bit kernel mode on nForce chipset + Intel CPU MOBOs, EXCEPT imk's newly 64bit compiled AnV AppleNforceATA.kext (AFAIK a variant of slashack's AppleNForceATA.kext)...........see BREAKING NEWS section below......... :thumbsup_anim:

[3] If you are using a IDE HDD and/or IDE DVDRW, then the IDE cable connections are very important.......80-wire IDE cable with end Master connector and middle Slave connectorIDE HDD/DVDRW :IDE HDD jumper set as Slave with IDE DVDRW jumper set as MasterSATA HDD/IDE DVDRW :IDE DVDRW jumper set as MasterIDE HDD/SATA DVDRW :IDE HDD jumper set as Master

[4] The following issue identified by d00m42 may apply to nForce chipset MOBOs too



“Found a BIG issue for those running a drive or partition with windows 7 installed and formated with NTFS!Remove or disconnect your Windows 7 drive, or you will be getting OSX crashes, *ntfs corruption*, possible KP's”

So be sure that you disconnect all your Windows hard drives before installing OS X Snow Leopard and then reconnect after the installation is complete.

*************************************************************
BREAKING NEWS LISTED FIRST (IN REVERSE ORDER FOR EASY ADDITION)
*************************************************************

11. FURTHER PROGRESS on a fully functional 64bit AppleNForceATA.kext

imk has taken the AnV 64bit AppleNforceATA.kext and make it load properly into the 64bit vanilla kernel........ :)However, it is unlikely to work with SATA DVD drives because the AnV 64bit AppleNforceATA.kext does not.......see PART K. Developers/Contributors Corner, Item 6.

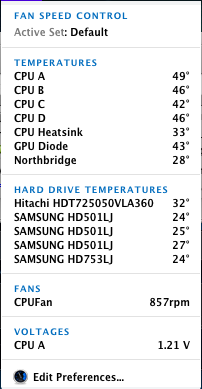

10. Sensor Monitoring via FakeSMC (CPU/MOBO temperatures and fan speeds)I have now tried and successfully got Sensor Monitoring via Slice et al.'s modifed netkas FakeSMC in conjunction with iStat Menus (or in my humble opinion less usefully with iStat Pro)...........see PART K. Developers/Contributors Corner, Item 5.

9. UPDATE on nForceLAN kext use

I have found that in order for the nForceLAN kext to function properly and connect you to your network/router/ modem and hence to the internet, the nForceLAN kext MUST be physically located in /System/Library/Extensions/, OR in Extensions.mkext in /System/Library/Caches/com.apple.kext.caches/Startup/, OR in both /System/Library/Extensions/ and Extensions.mkext.

This is true, regardless of whether you use either the nForceLAN.0.64.5.kext included in my Snow_Support_Files_v2.4) or the nForceLAN.kext that is installed by eno's nForceLAN_0.64.5.mpkg installer in /S/L/E/, because they are the same kext.......

To ensure that the nForceLAN kext in /S/L/E/ is also included in the Extensions.mkext file in n /System/Library/Caches/com.apple.kext.caches/Startup/, go to the Terminal and type:



sudo kextcache -v 1 -t -m /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext /System/Library/Extensions/

If, once you have sorted out the nForceLAN kext location(s), you are still having problems, nvenet.kext may be the problem..........in which case:

1. Put the modified IONetwokingFamily.kext that I included in my Snow_Support_Files_v2.4 in /E/E/2. Create a symbolic link in /S/L/E/ for it



cd /Extra/Extensions/
sudo ln -s IONetwokingFamily.kext /System/Library/Extensions/
ls -l /System/Library/Extensions/
exit

3. Rename the vanilla IONetworkingFamily.kext in /S/L/E/CODE



cd /System/Library/Extensions/
sudo mv IONetworkingFamily.kext IONetworkingFamily.kext.orig
ls -l
exit

8. I have uploaded my latest Snow_Support_Files_V2.4 to SendSpace.

Likewise, my nForceSLBoot132DVD.iso and nForceSLBoot132DVD_for_SATA_DVDRW.iso, as well as EFIStudio v1.1 and OSx86Tools will n

Note: As of Snow_Support_Files_V2.4, I am not including any kernels.......this is because [a] we are already up t0 OS X 10.6.8 and there are non-Vanilla kernels out for all vanilla kernel versions as well.......

7. AppleNForceATA 1.0.4 optimized for SL 32/64bit, AppleNForceATA fixed up for SL by AnV........see here.....according to AnV



Same as AppleATIATA I made...It has no deprecation nor warnings and has correct dependencies for loading out in 32 and 64 bit mode.If the other drivers didn't work for you in 64 bit mode, try this one...Does it fix the Sata DVD problem that Medevil's kext has?It should yes... it uses routines from AppleIntelPIIXATA (latest version, new style ATA driver coding).I however have no nForce chipset mobo around so no way to test it...I would say test it, it should work fine (I made this one for a friend).

If you test it, please post your success or otherwise in this thread, when booting in 32bit mode and when booting in 64bit mode and if you have a SATA DVDRW, whether or not it allows you to read/write to discs.......

6. Aqua-mac has kindly provided a Snow Leopard HUD style ("transparent") "About this Mac" window fix.....see PART K.

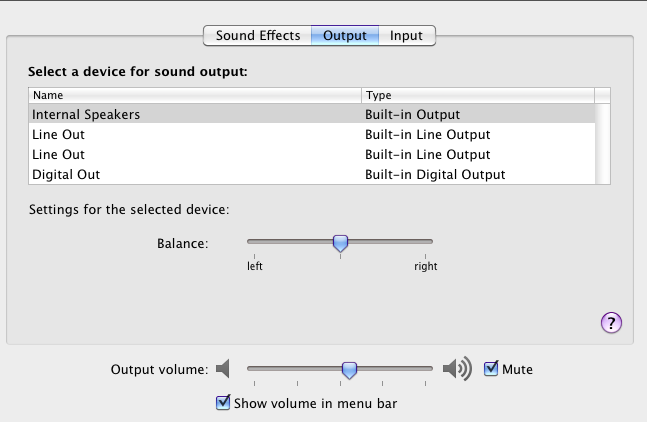

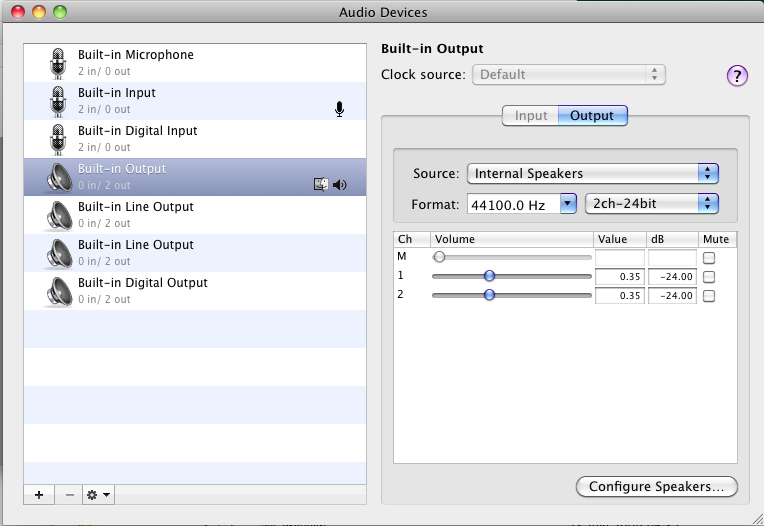

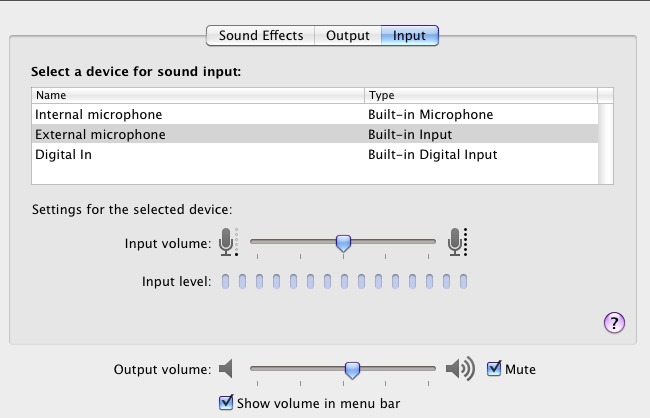

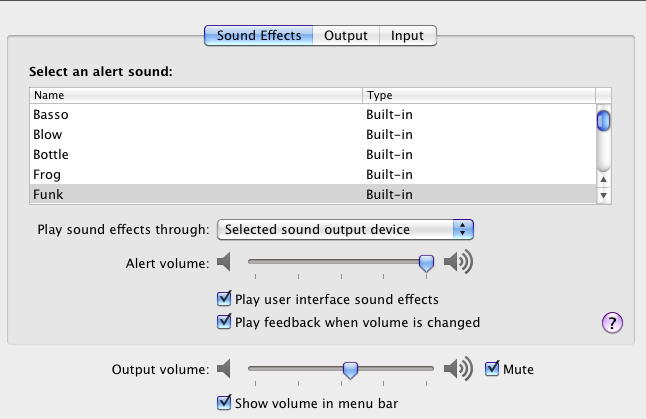

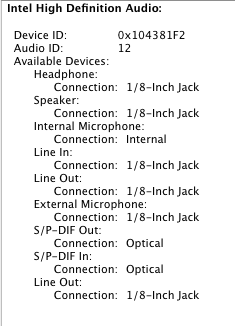

5. Audio has now been fixed for the Asus P5N32-E SLI Plus MOBO Asus SupremeFX audio card (except for Front Panel Headphones).....see post #2 in this thread......

4. Booting into Snow Leopard from your Leopard volume's Chameleon 2.0 RC3 bootloader screen.....using netkas' PC-EFI v10.3 boot file......see Part I......

3. Two versions of my nForceSLBoot132DVD.iso files are available:



  • One using slashack's v0.1 AppleNForceATA.kext for PATA DVDRW (v1)
  • One using MeDevil's AppleNForceATA_Test.kext for SATA DVDRW (v1)

For links to both versions and user instructions, please see Part F. below…...

N.B. Burn either .iso to DVD at the slowest possible speed ≤ x4

Please report any problems/issues with either .iso in this thread.......

2. An original kext/modified kext/driver "Developers/Contributors Corner" has been set up in Part K (the originator/developer is acknowledged together with the contributor when the developer is known...if any reader can add such information please post the information so that the developers can be properly credited.......

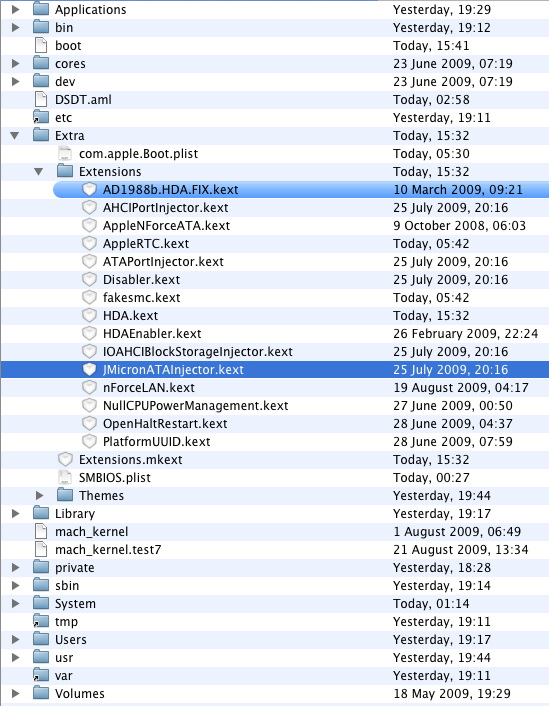

1. Extensions.mkext for /Extra/Extensions/: Many forum readers are having problems with the /Extra/Extensions/ cache file, i.e. Extensions.mkext, not loading/working properly, with the result that key kexts in /Extra/Extensions/ are not being loaded into the kernel.......hence

[1] Delete the Extensions.mkext cache file from /Extra on your USB flash drive OS X Installer AND from /Extra on your target OS X volume.....

[2] Copy "fresh" extensions across from LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links) into the /Extra/Extensions directories

AppleNForceATA.AnV or AppleNForceATA.slash

fakesmc.V2 or fakesmc.V1

NullCPUPowerManagement

OpenHaltRestart

PlatformUUID (although even different UUIDs in SMBIOS.plist and PlatformUUID Info.plist does not appear to cause any problems because according to Superhai the UUID in SMBIOS is not used for anything.....)

Note: With Chameleon 2.0 RC4 PlatformUUID.kext is not needed

If an Extensions.mkext file is not present in /Extra the kexts in /Extra/Extensions will be loaded directly......the Extensions.mkext cache file being more of a convenience than a necessity at bootup in terms of a somewhat reduced bootup time; being a cached version of all the kexts in the Extensions folder, resulting in faster loading of the extensions at boot.

OS X continues to use the Extensions.mkext file until its modified date is different from that of the Extensions folder itself; at which point, it reverts to loading them from the Extensions folder and then re-creates the Extensions.mkext file......

In Leopard (BUT NOT Snow Leopard at present AFAIK) booting with -f forces the kexts to be loaded from the Extensions folder at bootup and then recreates the Extensions.mkext file....However, you can use the Terminal to recreate the Extensions.mkext file for /Extra/Extensions/


sudo kextcache -v 1 -t -m /Extra/Extensions.mkext /Extra/Extensions/

*************************************************************
DOWNLOAD LINKS:

*************************************************************

SendSpace:

Snow_Support_Files_V2.4

I will re-upload the following ONLY if request via a post to me in this topic:

nForceSLBoot132DVD.iso

nForceSLBoot132DVD_for_SATA_DVDRW.iso

EFIStudio v1.1

OSx86Tools


*************************************************************

OS X SNOW LEOPARD RETAIL INSTALLATION REQUIREMENTS

*************************************************************

PART A. How much of a "64bit" OS is Snow Leopard?

See this interesting and useful article.Key points:



  • Snow Leopard is completely backwards-compatible with 32bit applications
  • Snow Leopard runs 64bit applications regardless of whether it boots into a 64bit or a 32bit kernel
  • Not all Macs boot by default into the 64bit kernel......see here for details
  • Only a CPU with SSSE3 can run 64bit kernel and 64bit applications

A Core 2 Duo or better multicore CPU (will become the Core i3 family)......or a Core iX (X= 3, 5, 7, 9....) multicore CPU.....is nominally required for GCD

BUT note that other Intel dual core CPUs such as Pentium Dual Core series e.g. E5200 are reported to also work with Snow Leopard…….

nVidia GeForce 8600 GT or better......nVidia Quadro FX.......ATI Radeon 4850, Radeon 4870.....etc. for OpenCL

*************************************************************
NVIDIA GPUs supported in Snow Leopard
*************************************************************

Note this very useful list compiled by thorazine74 elsewhere online:

*************************************************************
Getting an nVidia graphics card working in Snow Leopard

*************************************************************

The 3 easiest methods for getting an nVidia graphics card working in Snow Leopard are as follows (easiest first).

1. Chameleon 2.0 GraphicsEnabler option via com.apple.Boot.plist

<key>GraphicsEnabler</key>
<string>Yes</string>

2. Hexadecimal graphics string option via com.apple.Boot.plist:

<key>device-properties</key>
<string>"for example, 6c0200000100000001000000600200000d00000002010c.." </string>

where the graphics string is generated by EFIStudio v1.1 or OSx86Tools.....

3. NVEnabler injector kext, Injector kext, which enables TV-OUT and injects 2nd display operation very well......

The NVEnabler.kext (32bit/64bit) is not just another injector kext because it does on-the-fly ROM patching to give a more stable output configuration.......but you still need to insert your graphics card(s) Device ID into the Info.plist files of the NVDAResman.kext and the NVDANV40hal.kext or NVDANV50hal.kext (to see which of these kexts you need to modify to suit your graphics card(s), look at the list of Snow Leopard supported nVidia cards in post 1.......the older NVDANV30Hal, NVDANV20Hal and NVDANV10Hal kexts are not present in Snow Leopard.....).

Finally, if you are familiar with DSDT modding, you can choose to modify your DSDT.aml file with information on your NVCap values obtained via IORegistry Editor, which is the newest method but also the cleanest, most "vanilla" method because it is DSDT-based, rather than involving com.apple.Boot.plist changes, or using a non-vanilla kext.......

NOTE: The methods above are mutually exclusive......use only one.

The situation is a bit more complicated with the nVidia GeForce GTX and GTS series graphics cards ...... it may be necessary to insert the graphics card(s) Device ID directly into the appropriate vanilla kexts, as well as using a compatible enabler.....

*************************************************************
Getting an ATI graphics card working in Snow Leopard
*************************************************************

Two methods for getting an ATI graphics card working in Snow Leopard are:

1. Hexadecimal graphics string option via com.apple.Boot.plist:

<key>device-properties</key>
<string>"for example, 6c0200000100000001000000600200000d00000002010c.." </string>

where the graphics string is generated by EFIStudio v1.1 or OSx86Tools.....BUT there are far fewer built-in options than for nVidia graphics cards.......

2. EVOenabler.kext (32/64bit) injector kext

NOTE: The methods above are mutually exclusive......use only one.

The situation with ATI graphics cards is invariably more complicated than for nVidia graphics cards, e.g. the ATI Radeon HD48xx series.......Google the regularly updated information from netkas.org.......it may be necessary to insert the graphics card(s) Device ID directly into the appropriate vanilla kexts, as well as using an enabler.....

*************************************************************
Indications that Core Image (CI) and Quartz Extreme (QE) are both enabled in Snow Leopard
*************************************************************

If CI and QE are not fully enabled for your graphics card(s), then you will probably experience so-called mouse pointer "tearing", display-screen artifacts such as horizontal dashes, poor display refresh-rates, fixed screen-resolution etc.

In Leopard, going to System Profiler and selecting Graphics/Displays would directly indicate this because Core Image would be shown as "Hardware Accelerated" and Quartz Extreme as "Supported"

BUT this is no longer the case in Snow Leopard.

However, there are 3 key ways to confirm that the Core Image functioning is hardware accelerated and that Quartz Extreme functioning is supported:

1. The top-menu bar is transluscent i.e. the underlying Desktop image is visible through the menu bar

2. When you run the Front Row app, it opens and functions fully....

3. If, when you click on the Dashboard icon in Dock or run the Dashboard app and add a widget, either via the LHS "+" button and clicking on a widget icon in the bottom widgets bar, or by 'dragging and dropping' a widget, you should see a "real-time" water-ripple effect as the new widget is "dropped" into the Dashboard.......

*************************************************************
Generating an EFI Graphics String for Snow Leopard
*************************************************************

If you can boot into 64bit mode you can try using in place of the EFI graphics string, either NVinject (64bit) or NatitSilent.kext (64bit) or, if not, try EVOenabler.kext (32/64bit)........but check in the Info.plist for

"VRAM,totalsize"

add if not present, and use appropriate data value against VRAM,totalsize for your graphics card VRAM

Data Value -------- VRAM (MB) ---------- String Value (Hexadecimal)

<00000002>-------------32------------------<0x02000000>
<00000004>-------------64------------------<0x04000000>
<00000008>------------128------------------<0x08000000>
<00000010>------------256------------------<0x10000000>
<00000014>------------320------------------<0x14000000>
<00000020>------------512------------------<0x20000000>
<00000028>------------640------------------<0x28000000>
<00000030>------------768------------------<0x30000000>
<00000038>------------896------------------<0x38000000>
<00000040>-----------1024 (1.0GB)--------<0x40000000>
<00000050>-----------1280 (1.28 GB)------<0x50000000>
<00000060>-----------1500 (1.5 GB)-------<0x60000000>
<00000080>-----------2000 (2.0 GB)-------<0x80000000>


using, for example, Property List Editor (available in XCode > Developer > Applications > Utilities) .......


Alternatively, if you want to continue using an "EFI graphics string", then you can:

1. Create a folder on your Leopard Desktop called GFXStringMod

I say this because according to aqua-mac:



PLEASE NOTE - SNOW LEOPARD When making your output file - that must be done booted from Leopard only. Snow Leopard gives the wrong info in the output file and you WILL NOT get QE/CI working! GFX strings will work fine on snow leopard once they are made, but the part where you translate the input file into the output file only works if made with Leopard. If you make that in snow it will give an incorrect one and you will not get Quartz Extreme or Core Image which makes OSX pretty useless. So you will need a Leo install on a laptop or someone with a Leo install at present. To reset permissions after you re-install the file, just run Disk Utility - Repair Permissions.


*************************************************************

2. Save your hexadecimal EFI graphics string as a GFXString.hex file to GFXStringMod (using either EFIStudio v1.1 or OSx86Tools)....

Yes....I know you can save the string as a .hex, or as a .xml (i.e. .plist) file using either EFIStudio v1.1 or OSX86Tools.....but I am using gfxutil v0.71b for a consistent approach.......AND By the way EFIStudio v1.1 itself uses gfxutil v0.71b...... topic/263931-nforce-os-x-lion-107-app-store-download-install-guide-on-a-series-6-or-7-nforce-chipset-intel-cpu-mobo/style_emoticons/default/wink_anim.gif

3. Use gfxutil v0.71b to convert GFXString.hex to GFXString.plist as follows:

Copy downloaded gfxutil to GFXStringMod

In Terminal type (leave Terminal window open, as you will use it again)

cd /Users/"Username"/Desktop/GFXStringMod
./gfxutil -s -n -i hex -o xml ./GFXString.hex ./GFXString.plist

4. Use 'Property List Editor' (available in XCode > Developer > Applications > Utilities) to modify your settings by changing the number to the appropriate value for your VRAM:

VRAM,totalsize Data 00000080

5. Use gfxutil to convert from GFXString.plist to GFXString.hex as follows:

In Terminal type



./gfxutil -i xml -o hex ./GFXString.plist ./GFXString.hex

6. Copy the string in the new VRAM,totalsize-modified GFXString.hex file to /Library/Preferences/SystemConfiguration/com.apple.Boot.plist under/against <key>device-properties</key>


System Requirements according to Apple



  • 1GB of memory
  • 5GB of available disk space
  • DVD drive for installation......(or bootable USB flash drive and USB device booting BIOS)

*************************************************************
PART B. Generating and modifying the DSDT.aml file specifically for your MOBO:
*************************************************************

A modified DSDT.aml is required to fix the CMOS reset bug as discovered by Stellarola; namely to edit the RTC section in the file so as to decrease the length of the IO segment from 4 to 2.

The steps you have to go through will generate a dsdt.aml file that is specific to your PC, which then needs to be de-compiled to the corresponding dsdt.dsl file, that you can then edit using the Terminal nano editor......

You can use its search function or keyboard arrow keys to find your dsdt.dsl file's device (RTC) section and change the two or one IO segment length value(s) you see to 0x02.....then save the modified dsdt.dsl file, which is then re-compiled to give you your modified dsdt.aml file, that you then copy/rename as DSDT.aml file to later use in your / directories on the USB stick and HDD......

For this you need Leopard running on the PC onto which you plan to install Snow Leopard.....

To create the DSDT.aml file and modify to fix the CMOS reset issue, proceed as follows:

Stage 1. Generating dsdt.aml, dsdt.dsl files:

1. Copy fassl's DSDT_Patcher1.0.1e.zip file to the Desktop and double click it to extract it.

2. Open a Terminal window (go to Applications and select Utilities) and then type the following commands


cd ~/Desktop/DSDT_Patcher1.0.1e
./DSDT\ Patcher

Please do not forget the \ after DSDT and the space before Patcher

3. At this point a question about which platform you wish to emulate will appear. Choose 0 (zero) to emulate Darwin.The program will then generate a number of files in folders within the DSDT_Patcher1.0.1e directory on the Desktop, and also may issue a few warnings that can be ignored safely at this stage.

Stage 2. To edit the dsdt.dsl file:

4. Type in the same Terminal window:



nano Debug/dsdt.dsl

5. This will open an editor window to enable you to decrease the length of the IO segment parameter in the Device (RTC) section in the dsdt.dsl file from 4 to 2.Note that your dsdt.dsl file Device (RTC) section may not look the same as the example below (from my 650i Asus P5N32-E SLI Plus MOBO)......some MOBOs do not have a ATT1, ResourceTemplate, only a ATT0, ResourceTemplate and/or the IO segment length may be 0x08 rather than 0x04

Device (RTC)
{
Name (_HID, EisaId ("PNP0B00"))
Name (ATT0, ResourceTemplate ()
{
IO (Decode16,
0x0070, // Range Minimum
0x0070, // Range Maximum
0x00, // Alignment
0x04, // Length -> change 0x04 to 0x02
)
})
Name (ATT1, ResourceTemplate ()
{
IO (Decode16,
0x0070, // Range Minimum
0x0070, // Range Maximum
0x00, // Alignment
0x04, // Length -> change 0x04 to 0x02
)


Change 0x04 to 0x02
When you have finished the editing, press Control-O (i.e. press the Control key plus the letter "O" at the same time) and then RETURN to save the file. Then press Control-X to exit the nano text editor.

6. Back in the Terminal window, type:

./DSDT\ Patcher Debug/dsdt.dsl

Please do not forget the \ after DSDT and the space before PatcherWhich will create a file in the current directory called dsdt.aml but in doing so, you may see a few errors about pre-existing files; you can safely ignore these.

Stage 3. To produce the DSDT.aml file

7. Copy this dsdt.aml file (and rename it as DSDT.aml) to the Desktop

cp dsdt.aml /Users/"your username"/Desktop/DSDT.aml

Please note that DSDT must be in uppercase for the file to be loaded/work.NOTE: The same procedure can be used to edit/modify the CMOS reset fix modded DSDT.aml file further as required........


*************************************************************



PART C. Making a bootable GPT partition USB flash drive OS X 10.6 Installer



*************************************************************



1. You will need:



(1) Access to a working Mac or Hack x86 OS X Leopard system



(2) A 8GB USB flash drive (memory stick)



(3) Your new Retail Mac OS X 10.6 Install DVD from which to make its .dmg image file, OR a pre-existing Retail Mac OS X 10.6 Install DVD .dmg/.iso image file.......



To make the OS X Install DVD image [.dmg] (or indeed any CD or DVD image) in Disk Utility by highlighting the disk in the sidebar, and selecting File, and then New Disk Image from diskXsY (Mac OS X Install DVD)....leaving Image Format as Compressed and Encryption as None.......

(4) A DSDT.aml file generated for your MOBO/system (e.g. e.g. fassl's DSDT Patcher)


5) The Chameleon 2.0 RC1 Installer, or RC2 Installer, or an RC3 or RC4 Unofficial Installer (see below)



2. Procedure to follow:



In Leopard OS X, you should

(1) Plug in the USB flash drive and then using Disk Utility, partition/format it as a single GPT/HFS+ volume named OSX_10.6_USB_Installer (or your chosen name without spaces)To partition/format it as a single GPT/HFS+ volume, go to Disk Utility and in the sidebar highlight your USB flash drive device icon, and then in the main window, click on the Partition tab and select to partition as 1 volume, with a name with no spaces and format as Mac OS Extended (Journaled) and then click on Options button and select GUID Partition Table (GPT), and then click Apply.......

(2) Use Disk Utility to get the UUID for the OSX_10.6_USB_Installer volume by going to Info tab in top menu bar after highlighting the OSX_10.6_USB_Installer volume in the side bar........you need to highlight the USB GPT/HFS+ volume icon NOT the USB device icon in the Disk Utility side bar........

The UUID number is against the Universal Unique Identifier : CF2E12F1-2459-3DAF-B3D5-CA05B4B65A52Your USB UUID will be in this format but obviously different!

(3) Run the Chameleon 2.0 RC1 Installer"The Chameleon 2.0 RC1 bootloader with the netkas PC_EFI v10.1 boot file (and using -x32 kernel flag) is still a tried and tested method (that I personally have used) to use and/or fall back on should the following alternatives be problematic on your MOBO/system; e.g. failed installation, kernel panics, "bombing" of the system etc.....ESPECIALLY for the USB Flash drive OS 10.6. Installer which you definitely want to boot and work reliably......

Search using Google for Chameleon 2.0 RC1 Installer and netkas PC_EFI v10.1 - v10.6 boot file - cannot post active links here......

OR

Alternative 1: Run the Chameleon 2.0 RC2 Installer

OR

Alternative 2: Use Dr. Hurt's UNOFFICIAL Installer for RC3 to install Chameleon 2.0 RC3

NOTE: Dr. Hurt's UNOFFICIAL Installer for RC4 can only install Chameleon 2.0 RC4 on the volume that is running OS X.....however, if the RC4 Installer says you cannot install to the chosen volume, then you can first run Dr. Hurt's UNOFFICIAL RC3 installer, followed by Dr. Hurt's UNOFFICIAL RC4 installer to install Chameleon 2.0 RC4.....

OR

Alternative 3: Run dj nitehawk's Pre-Install Automator v1.1 script just to install Chameleon 2.0 RC3 completely

OR

Alternative 4: Just use the Chameleon 2.0 RC3 or RC4 boot file as explained below.... and after installing whichever Chameleon bootloader you have chosen, i.e. RC1 or RC2 or RC3, in the / or /Extra directory of the OSX_10.6_USB_Installer volume, you will see, either with the "hidden and system files" unhidden (see below how to do this) or listed in Terminal using

cd /Volumes/OSX_10.6_USB_Installer
ls

the following:

boot file
Extra folder
Library folder
usr folder
plus some ."name" files.....

(4) Now depending on what Chameleon 2.0 bootloader you have installed, you will have to choose the appropriate boot file to use and install it if not already installed......the boot file is normally a hidden file but you can unhide it, or use Terminal commands to overwrite it with a replacement boot file when you change from the "username" directory to the directory containing the replacement boot file....

***********************************************************
UNHIDING HIDDEN FILES:

The Terminal commands to show/hide hidden and system files are:

To show hidden and system files:

defaults write com.apple.finder AppleShowAllFiles TRUE

killall Finder

To hide hidden and system files

defaults write com.apple.finder AppleShowAllFiles FALSE
killall Finder

or you can download and run TinkerTool......

***********************************************************

Either delete the now visible Chameleon 2.0 RC1 boot file and then drag and drop the PC_EFI v10.1 (RECOMMENDED ONLY if Chameleon 2.0 RC1 has been installed) into the / directory.....and use the -x32 kernel flag in com.apple.Boot.plist.....

OR

If you have installed Chameleon 2.0 RC2, or prefer to install Chameleon 2.0 RC1 overlaid with the Chameleon 2.0 RC3 or RC4 boot file, then go to the Chameleon website.....and look under Latest Releases for Chameleon-2.0-RC3-r658-bin.tar.gz [736.38KB]).......or Chameleon-2.0-RC4-r684-bin.tar.gz [744.10KB]

Download and unarchive Chameleon-2.0-RC3-r658-bin.tar.gz to Chameleon-2.0-RC3-r658-bin and copy the RC3 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....

Or, download and unarchive Chameleon-2.0-RC4-r684-bin.tar.gz to Chameleon-2.0-RC4-r684-bin and copy the RC4 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....

***********************************************************
EXAMPLE OF OVERWRITING THE HIDDEN BOOT FILE

To copy the RC3 boot file across into the / directory of the OSX_10.6_USB_Installer (see below), open Terminal, type the following commands ($ being the default shell prompt - DO NOT TYPE!)

cd followed by a space, and then drag and drop the i386 folder into the Terminal window

cp -f boot /Volumes/OSX_10.6_USB_Installer/

***********************************************************

OR

If you have installed Chameleon 2.0 RC3 or RC4, then you can choose to use the installed RC3 or RC4 boot file, or you can overwrite it with the netkas PC_EFI v10.3 - v10.6 boot file....and use the arch=i386 kernel flag in com.apple.Boot.plist.....in my humble opinion the Chameleon 2.0 RC2 bootloader is not to be recommended -

So, USE ONLY Chameleon 2.0 RC1 bootloader + PC_EFI v10.1 boot file.....

OR

Chameleon 2.0 RC3 or RC4 bootloader with the RC3 or RC4 boot file, respectivelyORChameleon 2.0 RC1 bootloader + RC3 or RC4 boot file......ORChameleon 2.0 RC3 or RC4 bootloader with the netkas PC_EFI v10.3 - v10.6 boot file.....as RC2 seems to only work with only a few PCs....

Interesting comment from Kabyl at netkas.org: People were having issues with the pkg installer in RC2, and it wasn't fixed yet, so until then there is no pkg installer for RC3.

You can use the old installers and replace /boot if you don't want to install manually, and if you already are using Chameleon, you don't need the installer at all, just replace /boot with the new one.

BUT remember that to boot the mach_kernel into 32bit mode using the Chameleon 2.0 RC3 or RC4 boot file requires you to use the arch=i386 kernel flag rather than -x32 as used with the netkas PC_EFI v10.1 boot file.....If you have any problems booting from your HDD partition, then put either arch=i386 if using RC3 or RC4 bootfile, or -x32 if using PC_EFI v10.1 or V10.2 under Kernel Flags in /Library/Preferences/SystemConfiguration/com.apple.Boot.plist as well....

So, later in/Extra/com.apple.Boot.plist and in /Library/Preferences/SystemConfiguration/com.apple.Boot.plist find:

<key>Kernel Flags</key>
<string>-x32</string>

and change it to

<key>Kernel Flags</key>
<string>arch=i386</string>

(5) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....henceIf in the /Extra/Extensions, you installed all the kexts included in Chameleon 2.0 RC1 or RC2 or RC3 or RC4 /Extra/Extensions,OR if you only loaded one or two kexts in order for the /Extra/Extensions/ directory to be set up by the Chameleon Installer,then delete them and from the downloaded LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links)that I have conveniently compiled in one folder for myself (NOTE: ALL CREDIT goes the developers of the included applications/kexts/bootloaders and boot files etc.; David Elliott, netkas, Superhai, Psystar, eno, slashack, AnV, Dr. Hurt.....),copy across the following kexts:

ESSENTIAL

fakesmc.kext (32bit and 64bit compatible) - emulates SMC to provide the information required for the Don't Steal Mac OS X.kext to decrypt the Apple encrypted files"Choose either V2 or V1.......whichever "works" for you.......see Changelog for V2.1 onwards...."

NullCPUPowerManagement.kext (32bit and 64bit compatible) - A problem with running OS X running on non-Apple hardware (both physically and in VM) is that the AppleIntelCPUPowerManagement.kext invariably causes a kernel panic or at bootup generates endless messages regarding the HPET and links to the CPU. AFAIK the NullCPUPowerManagement.kext plays a couple of tricks with the IOKit service registration process to take over the role of the AppleIntelCPUPowerManagement.kext, essentially disabling it. Also it deals with heat issues.....

OpenHaltRestart.kext (32bit and 64bit compatible) - fixes reboot and shutdown on PC-based machines without binary patching or recompiling the kernel

LESS ESSENTIAL

PlatformUUID.kext (32bit and 64bit compatible) - Fixes some Time Machine related errors by providing a UUID from bootup (fixes UUID 35 errors)

Note: With Chameleon 2.0 RC4 this kext is not needed

ESSENTIAL FOR nForce Chipset MOBOs

AppleNForceATA.kext (32bit only kext proven to work at present - slashack's v0.1 kext or AnV's kext) - but see BREAKING NEWS

OPTIONAL FOR nForce Chipset MOBOs

Modified IONetworkingFamily.kext (from Snow Leopard but with nvenet.kext in Plugins renamed) - found in LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links)

IF YOU ARE USING THE ONBOARD LAN (Enabled in BIOS), then install the nForceLAN.kext (64bit - eno's kext) in /System/Library/Extensions/

Other kexts (32bit or 32/64bit or 64bit) if/when available may be used and/or essential if they work on nForce chipset + Intel multicore CPU MOBOs with OS X 10.6......e.g. for enabling sleep, audio, graphics etc......

(6) Drag and drop your previously modded and saved DSDT.aml file into the / directory

(7) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the SMBIOS.plist template included in the LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links), to suit your system hardware/RAM etc.......

A further modification is to insert your OSX_10.6_USB_Installer volume UUID number under/against SMUUID......and save the modified SMBIOS.plist (renamed from SMBIOS_MacPro21.plist if you are using this file, i.e. only if you wish to rename it.....) and put it in /Extra

(8) Then go to PlatformUUID.kext, and Show Package Contents and select Contents, and then select Info.plist.....use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the Info.plist and go to IOKitPersonalitiesand select PlatformUUID and insert your OSX_10.6_USB_Installer volume UUID number under/against PlatformUUID and save the modified Info.plist file

Note: With Chameleon 2.0 RC4 PlatformUUID.kext is not needed

(9) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....hence

If you get a kernel panic during booting as follows:

Kernel Extensions in backtrace (with dependencies):com.apple.driver.AppleIntelCPUPowerManagement) and then some random numbers and letters or with references to HPET not being assigned to the CPU etc.
BSD process name corresponding to current thread: kernel_task

this indicates that for some reason NullCPUPowerManagement.kext is not taking over from the AppleIntelCPUPowerManagement.kext, as it should be, by being loaded into the kernel before the AppleIntelCPUPowerManagement.kext residing in /System/Library/Extensions and cached in the Extensions.mkext file in the /System/Library/Caches/com.apple.kext.caches/Startup/directory......

This is because the Kext Utility.app did not build the the Extensions.mkext cache file pathway to NullCPUPowerManagement.kext in /Extra/Extensions properly properly (although it is probably setting the kext permissions correctly which is important).....so that NullCPUPowerManagement.kext is not being loaded into the kernel from Extenstions.mkext.....

Advice:

1. Delete the Extensions.mkext cache file from /Extra on your USB flash drive OS X Installer AND from /Extra on your target OS X volume.....

2. Copy "fresh" extensions across from LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links) into the /Extra/Extensions directories

AppleNForceATA.AnV or AppleNForceATA.slash

fakesmc.V2 or fakesmc.V1

NullCPUPowerManagement

OpenHaltRestart

PlatformUUID (although even different UUIDs in SMBIOS.plist and PlatformUUID Info.plist does not appear to cause any problems because according to Superhai the UUID in SMBIOS is not used for anything.....)

Note: With Chameleon 2.0 RC4 PlatformUUID.kext is not needed



If an Extensions.mkext file is not present in /Extra the kexts in /Extra/Extensions will be loaded directly......the Extensions.mkext cache file being more of a convenience than a necessity at bootup in terms of a somewhat reduced bootup time; being a cached version of all the kexts in the Extensions folder, resulting in faster loading of the extensions at boot.



OS X continues to use the Extensions.mkext file until its modified date is different from that of the Extensions folder itself; at which point, it reverts to loading them from the Extensions folder and then re-creates the Extensions.mkext file......



In Leopard (BUT NOT Snow Leopard at present AFAIK) booting with -f forces the kexts to be loaded from the Extensions folder at bootup and then recreates the Extensions.mkext file....



However, you can use the Terminal to recreate the Extensions.mkext file for /Extra/Extensions/

sudo kextcache -v 1 -t -m /Extra/Extensions.mkext /Extra/Extensions/

(10) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the com.apple.Boot.plist template included in the LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links) to boot the kernel into 32bit mode using either the arch=i386 kernel flag with the Chameleon 2.0 RC3 or RC4 boot file OR the -x32 kernel flag with the PC_EFI v10.1 boot file (ONLY RECOMMENDED if Chameleon 2.0 RC1 has been installed) and save the modified com.apple.Boot.plist and put it in /Extra....



(11) Now use Disk Utility and select Restore function to load the Retail Mac OS X 10.6 Install DVD (or its .dmg/.iso image file) onto the OSX_10.6_USB_Installer volume.....



Leave the Erase destination checkbox UNCHECKED.......

*************************************************************
PART D. Installing OS X to your target HDD volume partitioned/formatted as GPT/HFS+
*************************************************************

(1) Use Disk Utility to partition/format your target HDD volume for OS X 10.6 as GPT/HFS+ volume named OSX_10.6_GPT_A (or your chosen name without spaces)

(2) Use Disk Utility to get the UUID for the OSX_10.6_GPT_A volume by going to Info tab in top menu bar after highlighting the OSX_10.6_GPT_A volume in the side bar, and making a careful note of the Universal Unique Identifier number:It will be in this format (but obviously different!): CF2E12F1-2459-3DAF-B3D5-CA05B4B65A52

****************************************************
VERY IMPORTANT TO CHECK : OS X target HDD ownership
****************************************************

Right-click on the target OS X HDD volume icon on your Desktop and select Get Info. If the checkbox next to "Ignore ownership on this volume" is checked then click on padlock symbol to authenticate and UNCHECK the checkbox.

Then to ensure that the target OS X HDD volume's root directory is owned by the root user, go to Terminal and type: (note that using 0:0 is equivalent to using root:wheel)



sudo chown 0:0 /Volumes/"your target OS X HDD volume name"

This is to make certain that the permissions are not scrambled after the installation of OS X.....and hence that you are able to boot from the OS X 10.6 hard drive........

(3) Run EFIStudio or OSx86Tools to generate the graphics string for your graphics card assuming that it is OpenCL compatible.....save to clipboard (or in a text file) for later use in Section D Part 11B on modifying the com.apple.Boot.plist file......

(4) Run the Chameleon 2.0 RC1 Installer"Presently in my humble opinion Chameleon 2.0 RC1 bootloader with the netkas PC_EFI v10.1 boot file (and using -x32 kernel flag) is still the tried and tested method (that I personally have used) to use and/or fall back on should the following alternatives be problematic on your MOBO/system; e.g. failed installation, kernel panics, "bombing" of the system etc.....ESPECIALLY for the USB Flash drive OS 10.6. Installer which you definitely want to boot and work reliably......

Search using Google for Chameleon 2.0 RC1 Installer and netkas PC_EFI v10.1 - v10.6 boot file - cannot post links here......

OR

Alternative 1: Run the Chameleon 2.0 RC2 Installer

OR

Alternative 2: Use Dr. Hurt's UNOFFICIAL Installer for RC3 to install Chameleon 2.0 RC3

NOTE: Dr. Hurt's UNOFFICIAL Installer for RC4 can only install Chameleon 2.0 RC4 on the volume that is running OS X.....however, if the RC4 Installer says you cannot install to the chosen volume, then you can first run Dr. Hurt's UNOFFICIAL RC3 installer, followed by Dr. Hurt's UNOFFICIAL RC4 installer to install Chameleon 2.0 RC4.....

OR

Alternative 3: Run dj nitehawk's Pre-Install Automator v1.1 script just to install Chameleon 2.0 RC3 completelyOR Alternative 4: Just use the Chameleon 2.0 RC3 or RC4 boot file as explained below.... and after installing whichever Chameleon bootloader you have chosen, i.e. RC1 or RC2 or RC3, in the / directory of the OSX_10.6_GPT_A volume, you will see, either with the "hidden and system files" unhidden (see below how to do this) or listed in Terminal using


cd /Volumes/OSX_10.6_GPT_A volume
ls

the following:boot fileExtra folderLibrary folderusr folderplus some ."name" files.....

(5) Now depending on what Chameleon 2.0 bootloader you have installed, you will have to choose the appropriate boot file to use and install it if not already installed......the boot file is normally a hidden file but you can unhide it, or use Terminal commands to overwrite it with a replacement boot file when you change from the "username" directory to the directory containing the replacement boot file....

***********************************************************
UNHIDING HIDDEN FILES:

The Terminal commands to show/hide hidden and system files are:

To show hidden and system files:

defaults write com.apple.finder AppleShowAllFiles TRUE

killall Finder

To hide hidden and system files

defaults write com.apple.finder AppleShowAllFiles FALSE
killall Finder

or you can download and run TinkerTool......

***********************************************************


Either delete the now visible Chameleon 2.0 RC1 boot file and then drag and drop the PC_EFI v10.1 (RECOMMENDED ONLY if Chameleon 2.0 RC1 has been installed) into the / directory.....and use the -x32 kernel flag in com.apple.Boot.plist.....

OR

If you have installed Chameleon 2.0 RC2, or prefer to install Chameleon 2.0 RC1 overlaid with the Chameleon 2.0 RC3 or RC4 boot file, then go to the Chameleon website.....and look under Latest Releases for Chameleon-2.0-RC3-r658-bin.tar.gz [736.38KB]).......or Chameleon-2.0-RC4-r684-bin.tar.gz [744.10KB]

Download and unarchive Chameleon-2.0-RC3-r658-bin.tar.gz to Chameleon-2.0-RC3-r658-bin and copy the RC3 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....

Or, download and unarchive Chameleon-2.0-RC4-r684-bin.tar.gz to Chameleon-2.0-RC4-r684-bin and copy the RC4 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....

***********************************************************

EXAMPLE OF OVERWRITING THE HIDDEN BOOT FILE

To copy the RC3 boot file across into the / directory of the OSX_10.6_USB_Installer (see below), open Terminal, type the following commands ($ being the default shell prompt - DO NOT TYPE!)

cd followed by a space, and then drag and drop the i386 folder into the Terminal window

cp -f boot /Volumes/OSX_10.6_GPT_A volume

***********************************************************

OR

If you have installed Chameleon 2.0 RC3 or RC4, then you can choose to use the installed RC3 or RC4 boot file, or you can overwrite it with the netkas PC_EFI v10.3 - v10.6 boot file....and use the arch=i386 kernel flag in com.apple.Boot.plist.....in my humble opinion the Chameleon 2.0 RC2 bootloader is not to be recommended -so, USE ONLY Chameleon 2.0 RC1 bootloader + PC_EFI v10.1 boot file.....

OR

Chameleon 2.0 RC3 or RC4 bootloader with the RC3 or RC4 boot file, respectivelyORChameleon 2.0 RC1 bootloader + RC3 or RC4 boot file......

OR

Chameleon 2.0 RC3 or RC4 bootloader with the netkas PC_EFI v10.3 - v10.6 boot file.....as RC2 seems to only work with only a few PCs....Interesting comment from Kabyl at netkas.org

People were having issues with the pkg installer in RC2, and it wasn't fixed yet, so until then there is no pkg installer for RC3. You can use the old installers and replace /boot if you don't want to install manually, and if you already are using Chameleon, you don't need the installer at all, just replace /boot with the new one.

BUT remember that to boot the mach_kernel into 32bit mode using the Chameleon 2.0 RC3 or RC4 boot file requires you to use the arch=i386 kernel flag rather than -x32 as used with the netkas PC_EFI v10.1 boot file.....

If you have any problems booting from your HDD partition, then put either arch=i386 if using RC3 or RC4 bootfile, or -x32 if using PC_EFI v10.1 or V10.2 under Kernel Flags in /Library/Preferences/SystemConfiguration/com.apple.Boot.plist as well....

So, later in /Extra/com.apple.Boot.plist and in /Library/Preferences/SystemConfiguration/com.apple.Boot.plist find:

<key>Kernel Flags</key>
<string>-x32</string>

and change it to

<key>Kernel Flags</key>
<string>arch=i386</string>

(6) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....hence

If in the /Extra/Extensions directory, you installed all the kexts included in Chameleon 2.0 RC1 or RC2 or RC3 or RC4 /Extra/Extensions,

OR if you only loaded one or two kexts in order for the /Extra/Extensions directory to be set up by the Chameleon Installer, then delete them and from the downloaded LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links), that I have conveniently compiled in one folder for myself (NOTE: ALL CREDIT goes the developers of the included applications/kexts/bootloaders and boot files etc.; David Elliott, netkas, Superhai, Psystar, eno, slashack, AnV, Dr. Hurt.....), copy across the following kexts:

ESSENTIAL

fakesmc.kext (32bit and 64bit compatible) - emulates SMC to provide the information required for the Don't Steal Mac OS X.kext to decrypt the Apple encrypted files"Choose either V2 or V1.......whichever "works" for you.......see Changelog for V2.1 onwards...."

NullCPUPowerManagement.kext (32bit and 64bit compatible) - A problem with running OS X running on non-Apple hardware (both physically and in VM) is that the AppleIntelCPUPowerManagement.kext invariably causes a kernel panic or at bootup generates endless messages regarding the HPET and links to the CPU. AFAIK the NullCPUPowerManagement.kext plays a couple of tricks with the IOKit service registration process to take over the role of the AppleIntelCPUPowerManagement.kext, essentially disabling it. Also it deals with heat issues.....

OpenHaltRestart.kext (32bit and 64bit compatible) - fixes reboot and shutdown on PC-based machines without binary patching or recompiling the kernel

LESS ESSENTIAL

PlatformUUID.kext (32bit and 64bit compatible) - Fixes some Time Machine related errors by providing a UUID from bootup (fixes UUID 35 errors)

ESSENTIAL FOR nForce Chipset MOBOs

AppleNForceATA.kext (32bit only kext proven to work at present - slashack's v0.1 kext or AnV's kext) - but see BREAKING NEWS

OPTIONAL FOR nForce Chipset MOBOs

Modified IONetworkingFamily.kext (from Snow Leopard but with nvenet.kext in Plugins renamed) - found in Snow_Support_Files_v2.4

IF YOU ARE USING THE ONBOARD LAN (Enabled in BIOS), then install the nForceLAN.kext (64bit - eno's kext) in /System/Library/Extensions/

Other kexts (32bit or 32/64bit or 64bit) if/when available may be used and/or essential if they work on nForce chipset + Intel multicore CPU MOBOs with OS X 10.6......e.g. for enabling sleep, audio, graphics etc......

(7) Drag and drop your previously modded and saved DSDT.aml file into the / directory

(8) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the SMBIOS.plist template included in the LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links), to suit your system hardware/RAM etc.......

A further modification is to insert your OSX_10.6_GPT_A volume UUID number under/against SMUUID......and save the modified SMBIOS.plist (renamed from SMBIOS_MacPro21.plist if you are using this file, i.e. only if you wish to rename it.....) and put it in /Extra

(9) Then go to PlatformUUID.kext, and select Show Package Contents and then Contents, and then Info.plist.....use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the Info.plist and go to IOKitPersonalities and select PlatformUUID and insert your OSX_10.6_GPT_A volume UUID number under/against PlatformUUID and save the modified Info.plist file

(10) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....henceIf you get a kernel panic during booting as follows:

Kernel Extensions in backtrace (with dependencies): com.apple.driver.AppleIntelCPUPowerManagement) and then some random numbers and letters or with references to HPET not being assigned to the CPU etc.
BSD process name corresponding to current thread: kernel_task

this indicates that for some reason NullCPUPowerManagement.kext is not taking over from the AppleIntelCPUPowerManagement.kext, as it should be, by being loaded into the kernel before the AppleIntelCPUPowerManagement.kext residing in /System/Library/Extensions and cached in the Extensions.mkext file in the /System/Library/Caches/com.apple.kext.caches/Startup/directory......
This is because the Kext Utility.app did not build the the Extensions.mkext cache file pathway to NullCPUPowerManagement.kext in /Extra/Extensions properly properly (although it is probably setting the kext permissions correctly which is important).....so that NullCPUPowerManagement.kext is not being loaded into the kernel from Extenstions.mkext.....

Advice:

1. Delete the Extensions.mkext cache file from /Extra on your USB flash drive OS X Installer AND from /Extra on your target OS X volume.....

2. Copy "fresh" extensions across from LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links) into the /Extra/Extensions directories

AppleNForceATA.AnV or AppleNForceATA.slash

fakesmc.V2 or fakesmc.V1

NullCPUPowerManagement

OpenHaltRestart

PlatformUUID (although even different UUIDs in SMBIOS.plist and PlatformUUID Info.plist does not appear to cause any problems because according to Superhai the UUID in SMBIOS is not used for anything.....)

If an Extensions.mkext file is not present in /Extra the kexts in /Extra/Extensions will be loaded directly......the Extensions.mkext cache file being more of a convenience than a necessity at bootup in terms of a somewhat reduced bootup time; being a cached version of all the kexts in the Extensions folder, resulting in faster loading of the extensions at boot.

OS X continues to use the Extensions.mkext file until its modified date is different from that of the Extensions folder itself; at which point, it reverts to loading them from the Extensions folder and then re-creates the Extensions.mkext file......

In Leopard (BUT NOT Snow Leopard at present) booting with -f forces the kexts to be loaded from the Extensions folder at bootup and then recreates the Extensions.mkext file....

However, you can use the Terminal to recreate the Extensions.mkext file for /Extra/Extensions/



sudo kextcache -v 1 -t -m /Extra/Extensions.mkext /Extra/Extensions/

(11) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the com.apple.Boot.plist 32bit template included in the LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links)
to:

A. Boot the kernel into 32bit mode by entering either the arch=i386 kernel flag with the Chameleon 2.0 RC3 boot file installed OR the -x32 kernel flag with the PC_EFI v10.1 boot file installed under/against Kernel Flags in com.apple.Boot.plist

B. Provide graphics functionality for your PCI-E graphics card place the graphics string for your graphics card under/against device-properties in com.apple.Boot.plist

(12) Now save the modified com.apple.Boot.plist and put it in /Extra....The folders/files present (including normally hidden ."name" files) prior to installing OS X 10.6 are:PreOSX_Folders.png ( 27.76K )

(13) Now close all open windows on the Desktop and any open applications...

(14) Reboot your PC and press the F8 key (or whichever key you need to) IMMEDIATELY after the message "Press DEL to enter SETUP, Press TAB to display BIOS POST message" or similar appears on-screen, in order to bring up the message "Loading Boot Menu......"

(15) When the PC BIOS "Boot Menu" window appears on-screen, select the USB flash drive from the list of bootable drives presented in the "Boot Menu", and press Enter......ORChoose from the list of bootable volumes presented by the Chameleon bootloader.....I have given these two options because I have Chameleon bootloaders installed on different HDDs and OS X volumes......BUT the Leopard OS X systems are using mach_kernel.voodoo in com.apple.Boot.plist, whereas the Snow Leopard OS X systems are using the vanilla mach_kernel in com.apple.Boot.plist........That is different /Extra directories need to be used by Chameleon depending on the volume being booted from........hopefully Chameleon 2.0 RC3 can address this situation successfully......

(16) The Green Chameleon should appear together the text "Darwin loading"......and hopefully the Apple boot image......When the OS X Installer window opens REMEMBER to open the Installer Log window too........and choose Show Errors and Progress......or Show All Logs......it is GOOD PRACTICE to do so when running any Installer package.....

(17) Thereafter follow the OS X Installer on-screen instructions and choose your required installation components in the Customize menu....and be careful about using Migration Assistant to migrate across from Leopard to Snow Leopard because I have found that non-Apple or 3rd Party kexts or renamed kexts (folders) such as kext.orig, kext.bad etc. are copied across into /S/L/E.....if this happens you will need to weed them out !I thus recommend that after booting into 10.6, you type in Terminal

kextstat

to see the kexts currently loaded into the kernel......to see if there are any unwanted kexts.....(18) When the installation has finished successfuly, restart......and boot successfully into OS X 10.6.....run Disk Utility to repair permissions......then auto Software Update to 10.6.1.......

****************************************************

Note: If during installation of OS X 10.6, the Installer fails to complete successfully

****************************************************

If during installation, the Installer fails to complete successfully due to a package extraction problem (as happend during my first attempt at installation), when an Installer Log listing similar to:

Sep 4 19:02:04 ubuntu-quadcore payloadExtractor[1834]: Initializing new flat-package receipt.Sep 4 19:02:04 ubuntu-quadcore payloadExtractor[1834]: Extracting...Sep 4 19:02:07 ubuntu-quadcore payloadExtractor[1834]: BomFileError 13: Permission denied - /Volumes/OS_X_10.6//System/Library/Extensions/hp_Photosmart_io_enabler.kextSep 4 19:02:07 ubuntu-quadcore payloadExtractor[1834]: 179 of 179 files written in 2.61 seconds.Sep 4 19:02:07 ubuntu-quadcore payloadExtractor[1834]: 28852 kilobytes installed at 10.8 MB/s.Sep 4 19:02:07 ubuntu-quadcore payloadExtractor[1834]: Error extracting archive.Sep 4 19:02:07 ubuntu-quadcore payloadExtractor[1834]: pkgExtractor exited with error 1 while processing package '/Volumes/Mac OS X Install DVD/System/Installation/Packages/HP_Photosmart.pkg'Sep 4 19:02:07 ubuntu-quadcore Installer[1440]: Install failed: The Installer could not install some files in ¾ï¿½ï¿½' ‚º/Volumes/OS_X_10.6 '¢ï¿½ï¿½ï¿½ï¿½â €šContact the software manufacturer for assistance.Sep 4 19:02:07 ubuntu-quadcore Installer[1440]: IFDInstallController 68C7BA0 state = 7Sep 4 19:02:07 ubuntu-quadcore Installer[1440]: Displaying 'Install Failed' UI.Sep 4 19:02:07 ubuntu-quadcore Installer[1440]: 'Install Failed' UI displayed message:'The Installer could not install some files in ¾ï¿½ï¿½' ‚º/Volumes/OS_X_10.6 '¢ï¿½ï¿½ï¿½ï¿½â €š Contact the software manufacturer for assistance.'.then re-run the Installer BUT DO NOT choose any Printer options in the Installer Customize menu.......these can be installed after your OS X 10.6 installation by re-running the Installer from within your running OS X 10.6 system.......If even this does not work, then I have personally found the following to also work:

1. Install to an external USB single partition GPT/HFS+ HDD and install Chameleon 2.0 RC3 either try using Dr. Hurt's Installer, or run dj nitehawk's Pre-Install Automator v1.1 script just to install Chameleon 2.0 RC3 completely, or just use its /boot file as explained earlier......it is still best that you sort out your DSDT.aml file and extensions in /Extra, as well as com.apple.Boot.plist and SMBIOS.plist because this script is geared towards full vanilla (Intel) MOBOs rather than towards nForce MOBOs.....

2. Do not keep any generated Extension.mkext files in /Extra on your USB flash driver installer or on your target OS X 10.6.x HDD /Extra directories......

3. The HDD kexts in /Extra are:

AppleNForceATA.AnV or AppleNForceATA.slash

fakesmc.V2 or fakesmc.V1

NullCPUPowerManagement

OpenHaltRestart

PlatformUUID (although even different UUIDs in SMBIOS.plist and PlatformUUID Info.plist does not appear to cause any problems because according to Superhai the UUID in SMBIOS is not used for anything.....)

4. When installing OS X 10.6 choose only the base system in the Customize menu5. Once you have booted into OS X 10.6 on your HDD, use Disk Utility to repair permissions.....then auto Software update to 10.6.1......and only then run the Retail OS X DVD in your DVDRW to run the Optional Installs.mpkg to install Additional fonts, Language Translations, Printers, X11, Rosetta and/or Quicktime 7......

*************************************************************
E. Installing OS X to your target HDD volume partitioned/formatted as MBR/HFS+

*************************************************************

Procedure 1. (No pre-existing Snow Leopard OS installation)

In order for you to install or upgrade OS X 10.6 on MBR partitioned hard drive volumes you need a modified OSInstall.mpkg and OSInstall Unix executable file....to obtain these, I can do no better than point you to the links from Prasys' Blog....

There are two versions of OSInstall.mpkg......

Version 1. Prasys believes this version was made by Kabyl, modbin and ToH crew....

Version 2. This version removes checks on CPU , RAM requirements and other things as well, i.e. essentially skips all checks......

The procedure is as follows:

1. Unhide the hidden and systems files on your USB flash drive OSX_10.6_USB_Installer (or your chosen name without spaces) using Terminal commands or Tinker Tool (see Part C.)

2. Go to Terminal and type

cd /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Installation/Packages/

sudo mv OSInstall.mpkg OSInstall.mpkg.GPT

cd /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A

sudo mv OSInstall OSInstall.GPT

exit

I have renamed the original files as shown, as a reminder if ever you wish to revert back to the original GPT installer versions......simply rename the original files by removing the .GPT extensions again via Terminal :

cd /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Installation/Packages/

sudo mv OSInstall.mpkg.GPT OSInstall.mpkg

cd /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A/

sudo mv OSInstall.GPT OSInstall

exit

3. Then either drag and drop (or use cp command via Terminal) the chosen version of OSInstall.mpkg into /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Installation/Packages/

4. Then drag and drop (or use cp command via Terminal) OSInstall into /Volumes/"OSX_10.6_USB_Installer (or your chosen name without spaces)"/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A/

5. Close all windows.......and then boot from the USB flash drive as normal......

Procedure 2. (Pre-existing Snow Leopard OS installation)

1. Simply use Disk utility or Carbon Copy Cloner 3.3 to clone a OX 10.6. system installed on a GPT/HFS+ HDD (e.g. external USB HDD) to your internal HDD MBR/HFS+ OS X volume........

2. Install the Chameleon RC3 bootoader + PC_EFI V10.3 files to your SL MBR/HFS+ partition after cloning SL to it3. Boot into the SL MBR/HFS+ partition with -v -f.....

*************************************************************
F. Installing OS X to your target HDD volume partitioned/formatted as GPT/HFS+ using verdant's nForceSLBoot132DVD.iso burned to DVD-R or DVD+RW using Disk Utility
*************************************************************

1. Points to Note:

{a} My nForceSLBoot132DVD.iso is still a Beta version and my nForceSLBoot132DVD_for_SATA_DVDRW.iso is still an Aplha version until I get many reports of their being reliably successful on different nForce chipset MOBOs........so please post your experience (successful or otherwise [with helpful details for debug purposes........]) in this thread......

{b} The nForceSLBoot132DVD.iso when burned to a DVD-R or DVD+RW will produce a Boot132 DVD named Legacy Boot CD.......this is because I have decided to use Trauma!'s BootCDMaker v1.1f, which is a simple BUT fantastic utility application to create a Chameleon BootCD as the basis for my nForceSLBoot132DVD.iso....

See here for a description of BootCDMaker in English......

N.B. Burn the DVD at the slowest possible speed ≤ x4

A key reason for choosing BootCDMaker is its great looking custom boot volume theme which includes on-screen boot prompt instructions and the fact that it saved me some time when sorting out what was needed for a successful, i.e. modified nForceSLBoot132DVD, which is different from the .ISO's produced as standard by BootCDMaker......

So, remember to write "nForceSLBoot132DVD" on the DVD disk.......

{c} Since not all nForce MOBOs have the same DSDT.aml file loaded from /Extra, the nForceSLBoot132DVD.iso DOES NOT include a DSDT.aml file and hence DOES NOT include the DSDT CMOS reset fix........

{d} I have included kexts that are compiled for x86_x64 architecture (i.e. Snow Leopard only) to hopefully allow the use of a PS/2 keyboard and PS/2 mouse (BUT I could not test if they work because I have a USB keyboard and USB mouse)......so please let me know if you are able to use a PS/2 keyboard and PS/2 mouse when typing after booting from the nForceSLBoot132DVD.......

2. Procedure to follow: ( Same as Part D from step (1) to step (13) )

(1) Use Disk Utility to partition/format your target HDD volume for OS X 10.6 as GPT/HFS+ volume named OSX_10.6_GPT_A (or your chosen name without spaces)

(2) Use Disk Utility to get the UUID for the OSX_10.6_GPT_A volume by going to Info tab in top menu bar after highlighting the OSX_10.6_GPT_A volume in the side bar, and making a careful note of the Universal Unique Identifier number:It will be in this format (but obviously different!): CF2E12F1-2459-3DAF-B3D5-CA05B4B65A52

****************************************************

VERY IMPORTANT TO CHECK : OS X target HDD ownership

****************************************************

Right-click on the target OS X HDD volume icon on your Desktop and select Get Info. If the checkbox next to "Ignore ownership on this volume" is checked then click on padlock symbol to authenticate and UNCHECK the checkbox.

Then to ensure that the target OS X HDD volume's root directory is owned by the root user, go to Terminal and type: (note that using 0:0 is equivalent to using root:wheel)

sudo chown 0:0 /Volumes/"your target OS X HDD volume name"

This is to make certain that the permissions are not scrambled after the installation of OS X.....and hence that you are able to boot from the OS X 10.6 hard drive........

(3) Run EFIStudio or OSx86Tools to generate the graphics string for your graphics card assuming that it is OpenCL compatible.....save to clipboard (or in a text file) for later use in Section F Part 11B on modifying the com.apple.Boot.plist file......

(4) Run the Chameleon 2.0 RC1 Installer"Presently in my humble opinion Chameleon 2.0 RC1 bootloader with the netkas PC_EFI v10.1 boot file (and using -x32 kernel flag) is still the tried and tested method (that I personally have used) to use and/or fall back on should the following alternatives be problematic on your MOBO/system; e.g. failed installation, kernel panics, "bombing" of the system etc.....ESPECIALLY for the USB Flash drive OS 10.6. Installer which you definitely want to boot and work reliably......

Search using Google for Chameleon 2.0 RC1 Installer and netkas PC_EFI v10.1 - v10.6 boot file - cannot post links here......

OR

Alternative 1: Run the Chameleon 2.0 RC2 Installer

OR

Alternative 2: Use Dr. Hurt's UNOFFICIAL Installer for RC3 to install Chameleon 2.0 RC3

NOTE: Dr. Hurt's UNOFFICIAL Installer for RC4 can only install Chameleon 2.0 RC4 on the volume that is running OS X.....however, if the RC4 Installer says you cannot install to the chosen volume, then you can first run Dr. Hurt's UNOFFICIAL RC3 installer, followed by Dr. Hurt's UNOFFICIAL RC4 installer to install Chameleon 2.0 RC4.....

OR

Alternative 3: Run dj nitehawk's Pre-Install Automator v1.1 script just to install Chameleon 2.0 RC3 completelyOR Alternative 4: Just use the Chameleon 2.0 RC3 boot file as explained below.... and after installing whichever Chameleon bootloader you have chosen, i.e. RC1 or RC2 or RC3 or RC4, in the / directory of the OSX_10.6_GPT_A volume, you will see, either with the "hidden and system files" unhidden (see below how to do this) or listed in Terminal using

cd /Volumes/OSX_10.6_GPT_A volume
ls

the following:boot fileExtra folderLibrary folderusr folderplus some ."name" files.....

(5) Now depending on what Chameleon 2.0 bootloader you have installed, you will have to choose the appropriate boot file to use and install it if not already installed......the boot file is normally a hidden file but you can unhide it, or use Terminal commands to overwrite it with a replacement boot file when you change from the "username" directory to the directory containing the replacement boot file....

***********************************************************

UNHIDING HIDDEN FILES:

The Terminal commands to show/hide hidden and system files are:

To show hidden and system files:

defaults write com.apple.finder AppleShowAllFiles TRUE
killall Finder

To hide hidden and system files

defaults write com.apple.finder AppleShowAllFiles FALSE
killall Finder

or, you can download and run TinkerTool......

***********************************************************

Either delete the now visible Chameleon 2.0 RC1 boot file and then drag and drop the PC_EFI v10.1 (RECOMMENDED ONLY if Chameleon 2.0 RC1 has been installed) into the / directory.....and use the -x32 kernel flag in com.apple.Boot.plist.....ORIf you have installed Chameleon 2.0 RC2, or prefer to install Chameleon 2.0 RC1 overlaid with the Chameleon 2.0 RC3 or RC4 boot file, then go to the Chameleon website.....and look under Latest Releases for Chameleon-2.0-RC3-r658-bin.tar.gz [736.38KB]).......orChameleon-2.0-RC4-r684-bin.tar.gz [744.10KB]Download and unarchive Chameleon-2.0-RC3-r658-bin.tar.gz to Chameleon-2.0-RC3-r658-bin and copy the RC3 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....Or, download and unarchive Chameleon-2.0-RC4-r684-bin.tar.gz to Chameleon-2.0-RC4-r684-bin and copy the RC4 boot file from the i386 folder over either the Chameleon 2.0 RC2 boot file or the Netkas PC_EFI v10.1 boot file in the / directory......and use the arch=i386 kernel flag in com.apple.Boot.plist.....

***********************************************************
EXAMPLE OF OVERWRITING THE HIDDEN BOOT FILE

To copy the RC3 boot file across into the / directory of the OSX_10.6_GPT_A volume (see below), open Terminal, type the following commands ($ being the default shell prompt - DO NOT TYPE!) cd followed by a space, and then drag and drop the i386 folder into the Terminal window

cp -f boot /Volumes/OSX_10.6_GPT_A volume/

***********************************************************

OR

If you have installed Chameleon 2.0 RC3 or RC4, then you can choose to use the installed RC3 or RC4 boot file, or you can overwrite it with the netkas PC_EFI v10.3 - v10.6 boot file....and use the arch=i386 kernel flag in com.apple.Boot.plist.....in my humble opinion the Chameleon 2.0 RC2 bootloader is not to be recommended -so, USE ONLY Chameleon 2.0 RC1 bootloader + PC_EFI v10.1 boot file.....

OR

Chameleon 2.0 RC3 or RC4 bootloader with the RC3 or RC4 boot file, respectivelyORChameleon 2.0 RC1 bootloader + RC3 or RC4 boot file......

OR

Chameleon 2.0 RC3 or RC4 bootloader with the netkas PC_EFI v10.3 - v10.6 boot file.....as RC2 seems to only work with only a few PCs....Interesting comment from Kabyl at netkas.org

People were having issues with the pkg installer in RC2, and it wasn't fixed yet, so until then there is no pkg installer for RC3.

You can use the old installers and replace /boot if you don't want to install manually, and if you already are using Chameleon, you don't need the installer at all, just replace /boot with the new one.

BUT remember that to boot the mach_kernel into 32bit mode using the Chameleon 2.0 RC3 or RC4 boot file requires you to use the arch=i386 kernel flag rather than -x32 as used with the netkas PC_EFI v10.1 boot file.....If you have any problems booting from your HDD partition, then put either arch=i386 if using RC3 or RC4 bootfile, or -x32 if using PC_EFI v10.1 or V10.2 under Kernel Flags in /Library/Preferences/SystemConfiguration/com.apple.Boot.plist as well....

So, later in/Extra/com.apple.Boot.plist and in /Library/Preferences/SystemConfiguration/com.apple.Boot.plistfind:

<key>Kernel Flags</key>
<string>-x32</string>

and change it to

<key>Kernel Flags</key>
<string>arch=i386</string>

(6) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....henceIf in the /Extra/Extensions, you installed all the kexts included in Chameleon 2.0 RC1 or RC2 or RC3 or RC4 /Extra/Extensions,OR if you only loaded one or two kexts in order for the /Extra/Extensions directory to be set up by the Chameleon Installer,then delete them and from the downloaded LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links), that I have conveniently compiled in one folder for myself (NOTE: ALL CREDIT goes the developers of the included applications/kexts/bootloaders and boot files etc.; David Elliott, netkas, Superhai, Psystar, eno, slashack, AnV, Dr. Hurt.....), copy across the following kexts:

ESSENTIAL

fakesmc.kext (32bit and 64bit compatible) - emulates SMC to provide the information required for the Don't Steal Mac OS X.kext to decrypt the Apple encrypted files

"Choose either V2 or V1.......whichever "works" for you.......see Changelog for V2.1 onwards...."

NullCPUPowerManagement.kext (32bit and 64bit compatible) - A problem with running OS X running on non-Apple hardware (both physically and in VM) is that the AppleIntelCPUPowerManagement.kext invariably causes a kernel panic or at bootup generates endless messages regarding the HPET and links to the CPU. AFAIK the NullCPUPowerManagement.kext plays a couple of tricks with the IOKit service registration process to take over the role of the AppleIntelCPUPowerManagement.kext, essentially disabling it. Also it deals with heat issues.....

OpenHaltRestart.kext (32bit and 64bit compatible) - fixes reboot and shutdown on PC-based machines without binary patching or recompiling the kernel

LESS ESSENTIAL

PlatformUUID.kext (32bit and 64bit compatible) - Fixes some Time Machine related errors by providing a UUID from bootup (fixes UUID 35 errors)

ESSENTIAL FOR nForce Chipset MOBOs

AppleNForceATA.kext (32bit only kext proven to work at present - slashack's v0.1 kext or AnV's kext) -

but see BREAKING NEWS

OPTIONAL FOR nForce Chipset MOBOs

Modified IONetworkingFamily.kext (from Snow Leopard but with nvenet.kext in Plugins renamed) -

found in LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links)

IF YOU ARE USING THE ONBOARD LAN (Enabled in BIOS), then install the nForceLAN.kext (64bit - eno's kext) in /System/Library/Extensions/

Other kexts (32bit or 32/64bit or 64bit) if/when available may be used and/or essential if they work on nForce chipset + Intel multicore CPU MOBOs with OS X 10.6......e.g. for enabling sleep, audio, graphics etc......

(7) Drag and drop your previously modded and saved DSDT.aml file into the / directory

(8) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the SMBIOS.plist template included in the LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links), to suit your system hardware/RAM etc.......

A further modification is to insert your OSX_10.6_GPT_A volume UUID number under/against SMUUID......and save the modified SMBIOS.plist and put it in /Extra

(9) Then go to PlatformUUID.kext, and select Show Package Contents and then Contents and then Info.plist.....use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the Info.plist and go to IOKitPersonalities and select PlatformUUID and insert your OSX_10.6_GPT_A volume UUID number under/against PlatformUUID and save the modified Info.plist file

(10) MODIFIED ADVICE: Many forum readers are having problems with the /Extra/Extensions cache file, i.e. Extensions.mkext not loading/working properly.....hence

If you get a kernel panic during booting as follows:

Kernel Extensions in backtrace (with dependencies):com.apple.driver.AppleIntelCPUPowerManagement) and then some random numbers and letters or with references to HPET not being assigned to the CPU etc.
BSD process name corresponding to current thread: kernel_task

this indicates that for some reason NullCPUPowerManagement.kext is not taking over from the AppleIntelCPUPowerManagement.kext, as it should be, by being loaded into the kernel before the AppleIntelCPUPowerManagement.kext residing in /System/Library/Extensions and cached in the Extensions.mkext file in the /System/Library/Caches/com.apple.kext.caches/Startup/directory......

This is because the Kext Utility.app did not build the the Extensions.mkext cache file pathway to NullCPUPowerManagement.kext in /Extra/Extensions properly properly (although it is probably setting the kext permissions correctly which is important).....so that NullCPUPowerManagement.kext is not being loaded into the kernel from Extenstions.mkext.....

Advice:

1. Delete the Extensions.mkext cache file from /Extra on your USB flash drive OS X Installer AND from /Extra on your target OS X volume.....

2. Copy "fresh" extensions across from LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links) into the /Extra Directories

AppleNForceATA.AnV or AppleNForceATA.slash

fakesmc.V2 or fakesmc.V1

NullCPUPowerManagement

OpenHaltRestart

PlatformUUID (although even different UUIDs in SMBIOS.plist and PlatformUUID Info.plist does not appear to cause any problems because according to Superhai the UUID in SMBIOS is not used for anything.....)

If an Extensions.mkext file is not present in /Extra the kexts in /Extra/Extensions will be loaded directly......the Extensions.mkext cache file being more of a convenience than a necessity at bootup in terms of a somewhat reduced bootup time; being a cached version of all the kexts in the Extensions folder, resulting in faster loading of the extensions at boot.

OS X continues to use the Extensions.mkext file until its modified date is different from that of the Extensions folder itself; at which point, it reverts to loading them from the Extensions folder and then re-creates the Extensions.mkext file......

In Leopard (BUT NOT Snow Leopard at present) booting with -f forces the kexts to be loaded from the Extensions folder at bootup and then recreates the Extensions.mkext file....

However, you can use the Terminal to recreate the Extensions.mkext file for /Extra/Extensions/

sudo kextcache -v 1 -t -m /Extra/Extensions.mkext /Extra/Extensions/

(11) Use TextEdit, Property List Editor, TextMate or your favourite .plist file text editor to modify the com.apple.Boot.plist 32bit template included in the Snow Support Files to:A. Boot the kernel into 32bit mode by entering either the arch=i386 kernel flag with the Chameleon 2.0 RC3 boot file installed OR the -x32 kernel flag with the PC_EFI v10.1 boot file installed under/against Kernel Flags in com.apple.Boot.plistB. Provide graphics functionality for your PCI-E graphics card place the graphics string for your graphics card under/against device-properties in com.apple.Boot.plist

(12) Now save the modified com.apple.Boot.plist and put it in /Extra....

(13) Now close all open windows on the Desktop and any open applications...

(14) Download my nForceSLBoot132DVD.iso (Beta version) for PATA DVDRW

OR

my nForceSLBoot132DVD_for_SATA_DVDRW.iso (Alpha version)......

and use Disk Utility to burn either .iso file to a DVD-R or DVD+RW disk (because these are what I had and they worked......) and when the DVDRW tray containing the burned DVD opens, close the DVDRW tray again.....

N.B. Burn the DVD at the slowest possible speed ≤ x4


(15) Reboot your PC and press the F8 key (or whichever key you need to) IMMEDIATELY after the message "Press DEL to enter SETUP, Press TAB to display BIOS POST message" or similar appears on-screen, in order to bring up the message "Loading Boot Menu......" and when the PC BIOS "Boot Menu" window appears on-screen, select your DVDRW drive containing the Legacy Boot CD, i.e. nForceSLBoot132DVD from the list of bootable drives presented in the "Boot Menu", and press Enter......

(16) When the custom boot volume theme appears follow the onscreen instructions........namely when the Legacy Boot CD icon appears framed to the left of the display.........remove the nForceSLBoot132DVD from the DVDRW tray.......insert your Retail Snow Leopard Mac OS X Install DVD in the DVDRW tray and close...........wait for the initial DVDRW activity to occur (flashing DVDRW light) for a while to allow the DVD to be recognised......then press F5..........the Mac OS X Install DVD icon should then appear "framed" to the right of the display...

(17) Now type -v (space) -f at the boot: prompt that will appear (as usual with the Chameleon bootloader) in the bottom lefthand corner of the display.......I have asked to you use -v so that you can see what is happening (even though it messes up the friendly green Chameleon desktop)

AND YOU MUST PRESS -f too.......

boot: -v -f


(18) After all the kexts have been loaded in the kernel, the OS X boot process should occur as normal and boot the Retail Snow Leopard Mac OS X Install DVD into the Installer screen..........where you can select your install destination and make you Customize menu choices.......

(19) REMEMBER that when you reboot your PC after install OS X, the BIOS in the CMOS memory will be reset to the default BIOS settings.......so press Del to enter your BIOS Setup and reload your custom BIOS settings into CMOS (hopefully from a saved BIOS profile......)

(20) When the PC reboots again into the Chameleon bootloader, choose the HDD volume onto which you have just installed Snow Leopard OS X 10.6 to boot from and your DSDT.aml file (with the CMOS reset fix) in /Extra will be loaded.......enjoy Snow Leopard.........

*************************************************************
PART G. Points to note about running Snow Leopard (SL)
*************************************************************

If choosing to do the following, first please note the advice about NOT generating an Extensions.mkext cache file for the kexts in /Extra/Extensions on the USB flash drive OS X Installer nor for the kexts in /Extra/Extensions on the OS X 10.6 installation(s) on your HDD(s)......

The number of kexts in /Extra/Extensions is small enough to have no significant impact on boot times but the benefits of loading the kexts directly from /Extra/Extensions are evident; e.g avoiding problems with kextcaching to generate the Extensions.mkext cache files properly, resulting in essential kexts not being loaded, such as NullCPUPowerManagement.kext......

However, if you wish to, nonetheless, you can use the Terminal to recreate the Extensions.mkext file for /Extra/Extensions/

sudo kextcache -v 1 -t -m /Extra/Extensions.mkext /Extra/Extensions/

Once you have installed and can boot SL on your HDD.......

1. If you, for whatever reason, have added a kext to /System/Library/Extensions, then to make sure that all your kext dependencies will be included in the /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext, re-create your /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext by booting into single user mode with:-x32 -s or arch=i386 -s (whichever one you are using), and at the prompt:


mount -uw /

kextcache -v 1 -t -l -m /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext /System/Library/Extensions

exit



"Type kextcache command line all in one line"

2. To ensure that all your kext dependencies will be included in the /Extra/Extensions.mkext, re-create your /Extra/Extensions.mkext by booting into single user mode with:x32 -s or arch=i386 -s (whichever one you are using), and at the prompt:



mount -uw /

kextcache -v 1 -t -l -m /Extra/Extensions.mkext /Extra/Extensions /System/Library/Extensions

exit

"Type kextcache command line all in one line"

Or if both steps are required....


mount -uw /

kextcache -v 1 -t -l -m /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext /System/Library/Extensions

kextcache -v 1 -t -l -m /Extra/Extensions.mkext /Extra/Extensions /System/Library/Extensions

exit

"Type each of the kextcache command lines all in one line"



*************************************************************
H. nForce chipset MOBO issues, including 32bit versus 64bit driver (kext) compatibility/availability
*************************************************************

1. If you have a SATA DVDRW rather than a PATA DVDRW, and you have have some problems getting it to work......you could substitute MedDevil's AppleNForceATA Test kext for slashack's AppleNForceATA v0.1 kext or AnV's modified slashack AppleNforceATA kext to see if it works for you......

2. nForceLAN.kext may be problematic.......if you find that your installed OS X system has a kernel panic when booting, then reboot in verbose mode (-v flag) and look for problems linked to nForceLAN.kext loading....e.g. could not load early enough in boot process etc....

Check that you have installed the nForceLAN.kext (64bit - eno's kext) in /System/Library/Extensions/........this can be done manually, or you can use eno's Installer Package.......and that you have repaired its ownership and permissions if it was installed manualy..........to repair ownership and permissions after a manual install of the nForceLAN.kext, do it manually:


sudo chown -R root:wheel /System/Library/Extensions/nForceLAN.0.64.5.kext
sudo chmod -R 755 /System/Library/Extensions/nForceLAN.0.64.5.kext
sudo touch /System/Library/Extensions
exit

or use Kext Helper b7, or see here for Kext Utility v2.4.2........and here.........If there are still problems with the nForceLAN.kext, then first rebuild Extensions.mkext, as explained Part G. above.........go to the Terminal and type:

sudo kextcache -v 1 -t -m /System/Library/Caches/com.apple.kext.caches/Startup/Extensions.mkext /System/Library/Extensions/

and be aware of the nvenet.kext (which is apparently a kext for Nvidia ethernet on MCP73/MCP79 systems) which can be problematic for some MOBOs......this because nvenet loads even when another Ethernet/LAN kext has already been loaded for the hardware.In 10.5.7, and 10.5.8 and 10.6, it is located in/System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns....

So, take a COPY of the IONetworkingFamily.kext from Snow Leopard, and go to its PlugIns folder to either remove nvenet.kext or rename it to nvenet.kext.bad.....then put this IONetworkingFamily.kext in /Extra/Extensions/....

Alternatively,

1. Put the modified IONetwokingFamily.kext that I included in my Snow_Support_Files_v2.3 in /E/E/

2. Create a symbolic link in /S/L/E/ for it


cd /Extra/Extensions/
sudo ln -s IONetwokingFamily.kext /System/Library/Extensions/
ls -l /System/Library/Extensions/
exit

3. Rename the vanilla IONetworkingFamily.kext in /S/L/E/


cd /System/Library/Extensions/
sudo mv IONetworkingFamily.kext IONetworkingFamily.kext.orig
ls -l
exit

Note, however, that some nForce chipset MOBOs appear to work succesfully with nvenet.kext and not with nForceLAN.kext...........

Finally, the Netgear GA311 PCI NIC (Realtek RTL8169S chipset) works OTB giving instant internet/network access.....

Other OS X supported Gigabit (10/100/1000) Ethernet PCI NICs reported to work OTB are:

TP-Link TG-3269
Trendnet TEG-PCITXR
Attansic L1
Broadcom 5721
NetXtreme NIC
Dynex DX-PCIGB
Planet ENW-9605 (Realtek 8169SC)

3. If you are having unexplained kernel panics, then try netkas' Snow Leopard dsmos.kext and Kabyl's Leopard Disabler.kext in place of fakesmc.kext (v1 or v2) and NullCPUPowerManagement.kext.......they are in

LATEST VERSION Snow_Support_Files (see BREAKING NEWS for links)


4. Audio has now been fixed for the Asus P5N32E SLI Plus MOBO Asus SupremeFX audio card (except for Front Panel Headphones).....see post #2 in this thread......

5. Sleep is still an issue to be dealt with......watch this space......


*************************************************************
PART I. Booting Snow Leopard from Leopard volume Chameleon 2.0 RC3 bootloader screen
*************************************************************

Here is my procedure for booting SL from a Leopard volume Chameleon bootloader screen......

1. Install Chameleon 2.0 RC3 onto your Leopard volume using Dr. Hurt's Installer or run dj nitehawk's Pre-Install Automator v1.1 script just to install Chameleon 2.0 RC3

2. Google search for netkas' PC_EFI v10.3 boot file and download it

3. Replace the Chameleon 2.0 RC3 boot file with netkas' PC_EFI v10.3 boot file

4. In your Leopard volume, you will now have an /Extra directory, containing an Extensions folder (containing Disabler.kext.....?) and a Themes folder (as usual when installing the Chameleon bootloader.....)

5. Now into the /Extra directory on your Leopard volume, add a new folder named 10.6

6. Inside 10.6 add a folder named Extra, and inside this folder add a folder named Extensions

7. Inside /Extra/10.6/Extra/Extensions, place copies of the kexts from the /Extra/Extensions folder on your SL volume

8. Inside /Extra on your Leopard volume, place a copy of the com.apple.boot.plist from the /Extra directory on your SL volume, which should contain the graphics EFI string for your video card to enable full functioning with hardware acceleration, multiple resolutions and resolution switching etc. in SL.......

Note: When booting into Leopard, the com.apple.Boot.plist file in Library/Preferences/SystemConfiguration is loaded over this com.apple.Boot.plist......this is my guess......

You should now have something similar to this (although you may have additional kexts as required for your MOBO....):10.6_in_Extra.png ( 25.54K )

9. To boot into your Leopard volume......do so as normal.......the Leopard volume icon will be framed.......so just press Return.....

10. To boot into your SL volume, use your arrow keys to frame the SL icon.....then press Return

To see what is happening, you can boot with -v......

IF you have error messages and/or KPs appearing then boot with

mach_kernel arch=i386

(the KP may have occured because you are running Leopard with the Voodoo kernel......the bootloader will/may look for mach_kernel.voodoo...... it depends how your Leopard com.apple.Boot.plist has been set up to load the Voodoo kernel.......also arch=i386 will ensure that SL boots in 32bit mode.......)

so that the boot: prompt appears in the bottom left-hand corner of the screen....

boot: mach_kernel arch=i386
then press Return......

Hopefully, you will now boot into SL from your Leopard volume's Chameleon bootloader.

ALTERNATIVELY if you don't like typing in the "mach_kernel arch=i386" boot flags to boot SL, then you can install, set up and use (hopefully successfully....) xiezhy's Boot Think (version 2.3.18 currently......), which is an alternative bootloader to Chameleon 2.0.....

*************************************************************
PART J. Previous Versions of Snow_Support_Files
*************************************************************

Snow_Support_Files (V1.0)Snow_Support_Files_V1.1 (includes Changelog V1.1)
Snow_Support_Files_V2.0 (includes Changelog V2.0)
Snow_Support_Files_V2.1 (includes Changelog V2.1)
Snow_Support_Files_V2.2 (includes Changelog V2.2)

*************************************************************
PART K. Developers/Contributors Corner
*************************************************************
1. aqua-mac / aqua-mac : Transparent "About This Mac"

By the way, here is a link to the Snow Leopard fixed HUD style "About this Mac" window as I see a few of you have asked the question - is it available. There is a backup of the original file as well as some that I made. Thanks to Toastido.The modified AboutThisMac.nib file will make your "About this Mac" window "transparent".....

2. Giorgio_multi / Giorgio_multi NVinject_SLI : Dual Equal RAM Graphics Cards woking under SL (32bit)

I send you my modified nvinject.kext working with 2 Graphics card in Snow. (only 32 bit)It works also with 1 graphic card and in Leopard.I'm working for 64 bit version, but I have some problems.If you want add this kext to your guide, there is no problem.The 2 graphics cards must have the same amount of RAM, but can have different CPUs (i.e a 8500GT and a 9600GT)

3. Developer....? / j o e l http://rapidshare.co...upsl_nforce.zip : Speed up booting I managed to speed up the boot time by using this nForceIOATAFamily.kext

I think the kext is 32bit so you would need to use arch=i386 or -x32 when booting, depending on your bootloader....

Installation:

Place nForceIOATAFamily.kext in the same folder as AppleNForceATA.kext (Unix executable file in the folder is not run)

Note: I have compared the Info.plist of nForceIOATAFamily.kext with that from the IOATAFamily.kext from 10.5.6.....the only apparent difference is in the OSBundleRequired property value.....

IOATAFamily.kext from 10.5.6 value is Local-Root

nForceIOATAFamily.kext value is Root

Usage of OSBundleRequired property value:

Root - This KEXT is required to mount root, regardless of where root comes from; for example, platform drivers and families, PCI, or USB.

Network-Root - This KEXT is required to mount root on a remote volume; for example, the network family, Ethernet drivers, or NFS.

Local-Root - This KEXT is required to mount root on a local volume; for example, the storage family, disk drivers, or file systems.

Console - This KEXT is required to provide character console support (single-user mode); for example, keyboard drivers or the ADB family.

Safe Boot - This KEXT is required even during safe-boot (unnecessary extensions disabled); for example, mouse drivers or graphics drivers.

BUT be aware that when a kext's OSBundleRequired property is set to “Root”, it will always be loaded by BootX, even in single-user or safe-boot modes.....so, should the kext panic, the system itself may panic, requiring reinstallation of the OS or booting off the Mac OS X Install DVD.....therefore, unless a KEXT is absolutely required to mount root, its OSBundleRequired property should not be set to 'Root'.....

Plus that in PlugIns of nForceIOATAFamily.kext you have:

nForceAppleGenericPCATA.kext
nForceAppleIntelPIIXATA.kext
nForceIOATABlockStorage.kext
nForceIOATAPIProtocolTransport.kext

all with their OSBundleRequired property value set as 'Root', whereas in PlugIns of the 10.5.6 IOATAFamily.kext you only have:

AppleIntelPIIXATA.kext
IOATABlockStorage.kext
IOATAPIProtocolTransport.kext

all with their OSBundleRequired property value set as 'Local-Root'.....Nevertheless, the nForceIOATAFamily.kext reduces the boot time to about 30 seconds on my SL system.....

4. MeDevil / aryajuanda http://www.mediafire...php?2mnxd0j44mf

Alternative AppleNForceATA.kext compiled for Snow Leopard

its a applenforceATA.kext i recompile in xcode 3.2 for 10.6 os

User verdict from haroot

i use the one by Arya, everything is stable as long as u don't run a sata dvd apparently lol, large file transfers work fine, im transfering a 26gb dmg from an ntfs partition no problem

5. Netkas / Slice & Mozo & usr-sse2 http://www.projectos...?... : Sensor Monitoring using FakeSMC in conjunction with iStat Menus (or in my humble opinion less usefully with iStat Pro)

First of all thanks to Netkas for the new era in Hackintoshes - FakeSMC.Now we joined our efforts to make a tool for monitoring temperatures, fans and other sensors or parameters.Mozo - maintainer, me and usr-sse2 - team members.The project is based on Netkas's 2.5 version but with plugin support. It is opensource and located at www.assembla.com.Sources can be obtained by SVN svn co http://subversion.as...com/svn/fakesmc Plugins created:

IntelThermal - Intel CPU temperature monitoring.
LPCMonitor - temperatures and fans from ITE,
Winbond and Fintek controllers. - now replaced by SuperIO plugin
TZplugin - temperature from ACPI device "Thermal Zone" - now excluded by ACPI monitor replacement NVidia GPU temperature and FAN Intel X3100 temperature Radeon temperature
ACPI monitor - temperatures, fans, voltage, current - all that you can find in your DSDT. Manual DSDT modifying required.

A. HOW TO INSTALL FIRST TIME

1. Do not install plugin separately!

2. Do not install FakeSMC or any its plugins into /Extra!

3. Delete any other existing fakesmc.kext.
Before installing FakeSMC.kext

4. Remove X3100 if you have no IntelX3100 graphics.

5. Remove ACPImonitor if you don't know what to do with it.

6. Remove nVidia plugin if you have no nVidia graphics.

7. Remove IntelThermal if you have an AMD CPU and then type the following Terminal commands:


sudo -s
cp -r -v FakeSMC.kext /System/Library/Extensions/
rm -r -v /System/Library/Caches/com.apple.kernelcaches/*

8. Reboot.

9. Remove SuperIO plugin if it doesn't find any supported chip.

10. If you get a KP, reboot once more. You may need to reboot up to three times.

Then hopefully, in your kernel.log you will see something similar to:

Jul 28 19:50:30 kernel[0]: IntelThermal: CPU family 0x6, model 0xf, stepping 0xbJul 28 19:50:30 kernel[0]: IntelThermal: Found 4 cores 0 threadsJul 28 19:50:30 kernel[0]: IntelThermal: Manually CPU Tjmax 100Jul 28 19:50:30 kernel[0]: SuperIO: Probing NSCJul 28 19:50:30 kernel[0]: SuperIO: Probing ITEJul 28 19:50:30 kernel[0]: NTFS volume name Win7_Pro_64, version 3.1.Jul 28 19:50:31 kernel[0]: SuperIO: Detected ITE IT8718F on 0x290Jul 28 19:50:31 kernel[0]: DSMOS has arrivedJul 28 19:50:31 kernel[0]: PTKawainVi: startedJul 28 19:50:31 kernel[0]: Vendor ID: 10de, Device ID: 402Jul 28 19:50:31 kernel[0]: Architecture: 40000Jul 28 19:50:31 kernel[0]: nVidia Geforce 8600GTJul 28 19:50:32 kernel[0]: SuperIO: Binding key Th0HJul 28 19:50:32 kernel[0]: SuperIO: Binding key TN0PJul 28 19:50:32 kernel[0]: SuperIO: Binding key VC0CJul 28 19:50:32 kernel[0]: SuperIO: CPU Fan name is associated with hardware Fan0Jul 28 19:50:32 kernel[0]: SuperIO: Binding key F1Ac

I have installed iStat Menus 3.03 on a 14 day trial and now see:
as the iStat Pro 4.92 Desktop widget does not show all 4 core temperatures........I entered 'CPU Fan' for the FakeSMCSuperIO.kext Info.plist 'Name' for Fan0.

If you have ITE chip you can replace SuperIO plugin by SMCITEController plugin for use with smcK utility: smcK_Stat_i.app.zip because SuperIO supports ITE, Winbond, Fintek; whereas SMCITEController supports only ITE but covers more functions than SuperIO.
FakeSMC.kext changelog26.07.2010New revision rev391* Add Radeon support* Add NSC support* Add CPU freq monitor for use with smcK utility.* different enhancements28.07.2010Bugs corrected, new devices added

B. IF YOU HAVE PREVIOUSLY INSTALLED rev218Remove rev218 completely. Clear kernelcache.Remove unnecessary plugins from rev391 as above. Remove ACPImonitor if you are not intending to use it and/or know what to do with it.Install rev391 into /System/Library/Extensions/ via terminal commands as shown aboveReboot.If you get a KP, reboot once more. You may need to reboot up to three times.

6. MeDevil & Slashack & AnV / imk AppleNForceATA_Snow.zip ( 728.29K )

A functional 64bit AppleNForceATA.kext

For those unfamiliar with XCode and it folders, I (that is verdant) have uploaded the kext here for your convenience......

Quote from imk's post here:

This likely doesn't fix SATA DVD drives. All I did was take AnV's driver above and make it load under 64-bit. Any chipset support or features would have been provided by him (or in the original MeDevil drivers).I have an EVGA 680i board (MCP55) and decided to test out this kext.Upon booting, I noticed that it had an unresolved symbol for “__ZN14AppleNForceATA17activateDMAEngineEv”.I took a look at the included source code and saw that AppleNForceATA::activateDMAEngine() did not exist.This was a simple fix.activateDMAEngine() comes from IOPCIATA, so I looked at Apple's source and simply copied their function:void AppleNForceATA::activateDMAEngine(void) { // clear error bit prior to starting. *_bmStatusReg = (UInt8) mBMStatusError | mBMStatusInt | (_currentCommand-&--#62;getUnit() == 0 ? mBMStatusDrv0 : mBMStatusDrv1); OSSynchronizeIO(); // set the address pointer. *_bmPRDAddresReg = OSSwapHostToLittleInt32((UInt32) _prdTablePhysical); OSSynchronizeIO(); // activate the DMA engine. UInt8 theCommand = (_currentCommand-&--#62;getFlags() & mATAFlagIORead) ? mBMCmdStartInput : mBMCmdStartOutput; *_bmCommandReg = theCommand; OSSynchronizeIO(); }

I compiled it and it loaded with no problem and works just fine.

<div class="codemain">Darwin Ishimura.local 10.4.0 Darwin Kernel Version 10.4.0: Thu Jul 29 00:26:49 EDT 2010; dopefish:xnu-1504.7.4/BUILD/obj/RELEASE_X86_64 x86_64</div>

It has been noted by myself and other users that the boot time is increased when using this 64bit AppleNForceATA.kext, even if you use the 32bit and 64bit patched ioatafamily.kext patched for fast boot times (posted by scififan68).......even when I changed the OSBundleRequired property value in the Info.plist file of the 64bit IOATAFamily.kext and of the kexts in PlugIns from Local-Root to Root.

To boot into 64bit kernel mode, you should use arch=x86_64 under Kernel Flags in com.apple.Boot.plist.........

BUT REMEMBER that ALL YOUR KEXTS in /Extra/Extensions/ and in /System/Library/Extensions/ MUST BE EITHER Universal 32bit/64bit OR 64bit kexts AND NOT 32bit ONLY kexts........

To immediately confirm that you have booted the 64bit kernel, boot in verbose mode using -v and look for the boot screen message: "Kernel is LP64"..............

You can also check via the Desktop by going to System Profiler and selecting Software; you should see "64-bit Kernel and Extensions: Yes"............

You can also check via the Terminal command


uname -a

and if you have booted the 64bit kernel, you should see "RELEASE_X86_64 x86_64" rather than "RELEASE_I386 i386".........



Share this post


Link to post
Share on other sites
Advertisement

**********************************************

Snow Leopard 10.6.4 on the Asus P5N32-E SLI Plus MOBO

**********************************************



NEWS UPDATES: (In reverse order for easy addition)

6. Investigation of SLEEP:



I have investigated the functioning of sleep under Leopard 10.5.6 and found that when the CPU and/or RAM is overclocked, sleep stops functioning properly.......this may be true of 10.6.x, assuming I get sleep to function via DSDT patching.......if it is, then I will keep the overclocking and forget about sleep.........







5. Patched DSDT.aml for Asus P5N-32E SLI Plus MOBO that includes the RTC CMOS Reset Fix, new DSDT HDAEnabler audio patch (based that posted by THe KiNG in the Project OSX Forum) but with the Asus P5N-32E SLI Plus MOBO Audio Device ID 1043:81f2 inserted by me......and a AD1998b.FIX.kext (based the AD2000b kext by THe KiNG as modified by Phoenix Wright in the Project OSX Forum that no longer gives the single "sound assertion" error) but with the AD1998b CodecID 299112843 inserted by me.....







4. Updating to 10.6.4 (as did updating to 10.6.3) "breaks" the audio fix using the AD1988B.Fix.kext (i.e. Legacy audio kext) Solution:



In /System/Library/Extensions/, rename the 10.6.4 AppleHDA.kext to AppleHDA.kext10.6.4.orig and install the 10.6.2 AppleHDA.kext (in Snow_Support_Files_V2.3), then repair ownership and permissions of the Extensions folder........using Conti's pfix v3.0 or cVAD's Kext Utility v2.4.2.......or if you prefer using Terminal:

sudo chown -R root:wheel /System/Library/Extensions/AppleHDA.10.6.2.kext
sudo chmod -R go-w /System/Library/Extensions/AppleHDA.10.6.2.kext
sudo touch /System/Library/Extensions/
exit

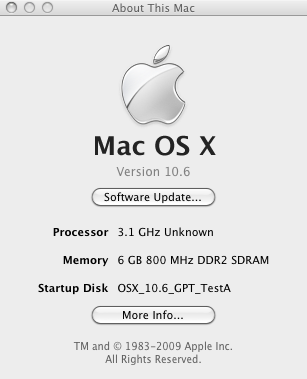

3. About This Mac CPU Speed reporting a CPU speed of 3.0GHz as 3.1GHz



Update 2:



For some as yet unfathomed reason, the issue of mis-reporting disappears when the CPU speed is raised to 3.20GHz in BIOS.........a CPU speed of 3.20GHz in BIOS is then reported as 3.20 GHz in System Profiler and 3.2GHz for the About This Mac CPU Speed...... :huh:



Thus, it is no longer necessary to put superhai's SMBIOSResolver.kext in /Extra/Extensions....... :)



I have again checked the CPU frequency reporting using both sysctl hw.cpufrequency and system_profiler SPHardwareDataType | grep Speed, and obtain the following outputs:



sysctl hw.cpufrequency

hw.cpufrequency: 3204000000



sysctl hw.cpufrequency_max

hw.cpufrequency_max: 3204000000



sysctl hw.cpufrequency_min

hw.cpufrequency_min: 3204000000



system_profiler SPHardwareDataType | grep Speed

Processor Speed: 3.20 GHz

Bus Speed: 1.42 GHz

CPU-Z reports the CPU speed as 3201.7 MHz

Update 1:



Issue resolved by including superhai's SMBIOSResolver.kext in /Extra/Extensions but its Info.plist was edited by myself to match my SMBIOS.plist data for my RAM and a MacPro3,1 data rather than iMac9,1 data......a CPU speed of 3.0GHz in BIOS is then reported as 3.00 GHz in System Profiler and 3GHz for the About This Mac CPU Speed...... :)



I have now checked the CPU frequency reporting using both sysctl hw.cpufrequency and system_profiler SPHardwareDataType | grep Speed, and obtain the following outputs:

$ cd /usr/sbin

$ sysctl hw.cpufrequency

hw.cpufrequency: 3000000000



$ sysctl hw.cpufrequency_max

hw.cpufrequency_max: 3000000000

$ sysctl hw.cpufrequency_min

hw.cpufrequency_min: 3000000000

$ system_profiler SPHardwareDataType | grep Speed

Processor Speed: 3 GHz

Bus Speed: 1.33 GHz



$ sysctl -n machdep.cpu.brand_string

Intel® Core™2 Quad CPU Q6600 @ 2.40GHz

Note sysctl hw.cpufrequency is not reporting a real number AFAIK but a constant value passed to the system on bootup by the fakeSMC. The kernel and fakeSMC will determine the actual speed on-the-fly based on core loadings and the Energy Saver settings in System Preferences, which sysctl does not return......sysctl hw.frequency_max reports the maximum possible frequency the fakeSMC thinks that the processor is capable of achieving when you boot it.....



I have checked under Vista using CPU-Z v1.52.2 and the application shows that the reported CPU frequency is varying between 2999.9 MHz and 3000.1 MHz, typically showing 3000.0 MHz.......so OS X is simply reporting the average.....



If you want About This Mac to report a different number you need to edit the SMBIOS.plist entry here:



<key>SMmaximalclock</key>
	  <string>Your CPU max speed in MHz</string>



e.g. putting in 3000 will report 3 GHz in About This Mac (at least it does for me)......







2. AUDIO is now FIXED (except for Front Panel Headphones)......ONLY SLEEP remains to be sorted......

Audio Fix:



This requires the use of the AD1988B.Fix.kext, which is a pseudo-kernel extension i.e. a pseudo-kext (as it contains only an Info.plist file) via lancelotu from XyZ, that needs two DSDT patches.....



This kext is available as a 64bit kext and as a 32bit kext (at least I think so.......and may also not give as high a microphone signal?.......since it was classed as obsolete by lancelotu .....anyhow, this is the one I have used first......both work.........but I will be testing and comparing both when I have more time.....)



They are here.......whichever AD1988B.Fix.kext is chosen, it should be placed in /Extra/Extensions.........

Together these two "devices", i.e. the pseudo-kext (i.e. legacy kext or plist kext) and the DSDT patching, enable sound from the Asus SupremeFX audio card (with the AD1988B chipset) in Snow Leopard.....except for the Front Panel Headphones......



In his post lancelotu says that "Note that this has no front panel headphones working (trying to figure that out) but at least microphone is working great now"......meaning the AD1988b.Fix.kext......hence, I do appear to have front mic but no Front Panel Headphones with Front Panel Audio set to HD Audio in BIOS......with no apparent change when switching to Legacy AC97.....



However, rather than the DSDT patches from lancelotu, which I believe may be specific for the Asus P5K series MOBOs.....see here, I have used THe KiNG's generic audio DSDT patches which should work for all audio codecs.......



On my Asus P5N32E SLI Plus MOBO DSDT, the audio device is on _ADR, 0x000F0001, so find the Name (_ADR, 0x000F0001) and change Device (AZAD) to Device (HDEF).......BUT KEEP the line Name (_ADR, 0x000F0001) in the DSDT...



If the device is not present it must be added......according to THe KiNG, in most other cases the audio device is apparently in DSDT on _ADR 0x001B0000 and the device is often named Device (AZAL)......or Device (AZA). Remember to replace XXXX where XXXX is AZA, AZAL, or AZAD with HDEF in "Notify (\_SB.PCI0.XXXX, 0x02)" to give "Notify (\_SB.PCI0.HDEF, 0x02)"





In the as-yet non-audio patched "CMOS reset fix" patched DSDT file, you will see:

Near to the top of the file:



GP49, 8

}



Name (VSTA, 0x01)

Name (OSFX, 0x01)

Name (OSFL, 0x01)

Method (STRC, 2, NotSerialized)



where the DTGP method patch needs to be inserted between Name (OSFL, 0x01) and Method (STRC, 2, NotSerialized), and



Around the middle of the file:



Device (AZAD)

{

Name (_ADR, 0x000F0001)

Name (_PRW, Package (0x02)

{

0x15,

0x05

})

}



Device (MMAC)



where the lines in blue need to be replaced with the _DSM patch......



Hence, after patching with the code in red, you should see:

Name (OSFL, 0x01)



Method (DTGP, 5, NotSerialized)

{

If (LEqual (Arg0, Buffer (0x10)

{

/* 0000 */ 0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44,

/* 0008 */ 0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B

}))

{

If (LEqual (Arg1, One))

{

If (LEqual (Arg2, Zero))

{

Store (Buffer (One)

{

0x03

}, Arg4)

Return (One)

}



If (LEqual (Arg2, One))

{

Return (One)

}

}

}



Store (Buffer (One)

{

0x00

}, Arg4)

Return (Zero)

}



Method (STRC, 2, NotSerialized)



and



Device (HDEF)

{

Name (_ADR, 0x000F0001)

Method (_DSM, 4, NotSerialized)

{

Store (Package (0x04)

{

"layout-id",

Buffer (0x04)

{

0x0C, 0x00, 0x00, 0x00

},



"PinConfigurations",

Buffer (Zero) {}



}, Local0)

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))

Return (Local0)

}

}



Device (MMAC)



I had to force compile the dsdt.dsl file to generate the dsdt.aml file, which I then renamed to DSDT.aml......



I guess there are some layout/syntax errors in the patching; BUT if the compiling goes wrong, it does not always mean the patching is incorrect.......some OEMs just ship a poorly written DSDT in their BIOS......



But as you can force the dsdt.dsl file to compile, even if there are errors, using fassl's DSDT Patcher : /path/to/DSDT\ Patcher -f dsdt.dsl



To show that audio is now working (except for Front Panel Headphones), see:



post-200327-1253845257_thumb.png post-200327-1253845696_thumb.png



post-200327-1253845280_thumb.png post-200327-1253845289_thumb.png










1. Lowering CPU Core Temperatures



Rename via Terminal using sudo mv command.......



AppleIntelCPUPowerManagement.kext to AppleIntelCPUPowerManagement.kext.bad



AppleIntelCPUPowerManagementClient.kext to AppleIntelCPUPowerManagementClient.kext.bad



to lower the CPU core temperatures to Leopard temperatures, as Snow Leopard appears to cause the core temperatures to increase by about 10°C or so in my experience.....

*********************************************************





SUCCESS!!!!!!......... :thumbsup_anim:



Now typing from either:



1. My OS X 10.6.3 system installed using a USB flash drive Mac OS X DVD Installer onto a GPT/HFS+ volume on a portable 2.5" USB2.0 External HDD enclosure.......or



2. My OS X 10.6.3 system cloned from the portable 2.5" USB2.0 External IDE HDD enclosure onto a MBR/HFS+ volume on an eSATA/USB 2.0 External SATA HDD enclosure......



3. My OS X 10.6.3 system installed using my nForceSLBoot132DVD onto a GPT/HFS+ volume on a USB 2.0/eSATA External SATA HDD enclosure......

Auto updated to 10.6.1 and then installed optional packages direct from Retail OS X Install DVD without any problems........then using the standalone Combo Updaters, I updated to 10.6.2 and now to 10.6.3 without any problems......

All my SL systems are using the vanilla kernel and 32bit mode via arch=i386 Kernel Flag in com.apple.Boot.plist......with my Netgear GA311 PCI NIC (Realtek RTL8169S chipset) working OTB giving me instant internet/network access.....



Time Machine works.....as did Migration Assistant, transferring all my Applications, User settings and files/documents etc. across from my Leopard 10.5.6 system on my OS_X_Backup volume (MBR/HFS+)..... :)

Sleep is not working properly......display goes black......but PC fans stay on and display cannot be woken up.......needs investigating....... :(


Share this post


Link to post
Share on other sites
-x32



I assumed it loaded 32bit by default but will try with -x32.....thanks.... :huh:



UPDATE: Same result attempting to run with mach_kernel.....and mach_kernel.test7....... :(



I will repair permissions on kexts and generate a new Extensions.mkext......



UPDATE: Same result attempting to run with mach_kernel..... :thumbsup_anim:

Share this post


Link to post
Share on other sites

I haven't start updating my P5N-E SLI. still with 10.5.7. Still waiting for 64bit AppleNForceATA.kext.

But I am running 10.6 on a new rig (GA-P35-DS3R), works like a charm...

Share this post


Link to post
Share on other sites
I haven't start updating my P5N-E SLI. still with 10.5.7. Still waiting for 64bit AppleNForceATA.kext.

But I am running 10.6 on a new rig (GA-P35-DS3R), works like a charm...



It seems that as usual the 650i chipset does not like vanilla kernels......without a 10.0.0 kernel that the 650i likes, a 64bit AppleNforceATA will not make a difference...... ;)



I am running 10.5.6 currently because my updates to 10.5.7 and 10.5.8 resulted in the loss of my 100% working sleep function in 10.5.6 and all previous versions back to 10.5.1.... :)

Share this post


Link to post
Share on other sites
remove that appleintelcpupowermanagement.kext and applehpet.kext



I had removed cpupowermanagement but not applehpet.....will try that.....thanks..... ;)



BTW what kernel are you running in 10.5.7?



UPDATE: Still no sleep with 10.5.7 and 10.5.8......

Share this post


Link to post
Share on other sites

I'm writing from a full working SL (expect sleep which has never worked even on leopard) on a 790i MB. You have to update to update to PC EFI 10.1 (based on Chamaleon RC1), Normal Chamaleon RC1/RC2 gives a KP. Vanilla kernel works even with 4 cores, hdaenabler doesn't work, you have to inject it through dsdt. Boot with -x32 because applenforceata doesn't support yet 64 bit.

Share this post


Link to post
Share on other sites
I'm writing from a full working SL (expect sleep which has never worked even on leopard) on a 790i MB. You have to update to update to PC EFI 10.1 (based on Chamaleon RC1), Normal Chamaleon RC1/RC2 gives a KP. Vanilla kernel works even with 4 cores, hdaenabler doesn't work, you have to inject it through dsdt. Boot with -x32 because applenforceata doesn't support yet 64 bit.



I have installed Chameleon 2.0 RC1 and then replaced its boot file with PC_EFI v10.1 boot file and have -x32 cpus=1 maxmem=3072 in com.apple.Boot.plist in /Extra......set to load mach_kernel



I have fakesmc.kext in /Extra/Extensions/ currently but previously had dsmos.kext (but fakesmc.kext does not work well with Voodoo kernel, so may revert back to dsmos.kext when Voodoo 10.0.0 comes out......unless it no longer blocks Dont steal mac os.kext...)






......still the same result.....

Share this post


Link to post
Share on other sites

Try this kernel from modbin http://rapidshare.com/files/276040586/mach...modbin.zip.html that's the one I used at the first boot before trying vanilla. I'm also using AppleNForceATA by Anv, maybe that can make the difference. You also have to copy the SL partition uuid taken from disc utility into platformuuid.kext info.plist. Also you could try to remove DSDT.aml, maybe it's the problem.



EDIT: Still no sleep even with vanilla AppleIntelCPUPowerManagment and AppleHPET loaded.

Share this post


Link to post
Share on other sites
Try this kernel from modbin http://rapidshare.com/files/276040586/mach...modbin.zip.html that's the one I used at the first boot before trying vanilla. I'm also using AppleNForceATA by Anv, maybe that can make the difference. You also have to copy the SL partition uuid taken from disc utility into platformuuid.kext info.plist. Also you could try to remove DSDT.aml, maybe it's the problem.



EDIT: Still no sleep even with vanilla AppleIntelCPUPowerManagment and AppleHPET loaded.



I will do....thanks..... ^_^



I have already got the SL volume UUID in my SMBIOS in /Extra and in Info.plist of PlatformUUID.kext......



I use DSDT.aml for the cmos reset fix by modifying the RTC IO segment length from 4 to 2.......



Device (RTC)
			  {
				  Name (_HID, EisaId ("PNP0B00"))
				  Name (ATT0, ResourceTemplate ()
				  {
					  IO (Decode16,
						  0x0070,			 // Range Minimum
						  0x0070,			 // Range Maximum
						  0x00,			   // Alignment
						  0x02,			   // Length
						  )



but I will try each of your suggestions.....



UPDATE:



Despite ensuring that the chosen kernel was loaded during bootup by specifying the kernel in the com.apple.Boot.plist file in /Extra and in /Library/Preferences/SystemConfiguration....trying with and without DSDT.aml.......and also trying with AnV's AppleNForceATA.......same result:



Mac OS version:

Not yet set

Share this post


Link to post
Share on other sites

Why do have applertc in E/E if you have already patched dsdt? Try to remove all the kekts that are not strictly needed and leave just nullcpupm, openhalt, applenforce, uuid and fakesmc; you can also try to update to pc efi 10.2.



Are you injecting video with efi strings? Because i read somewhere that it could be required.



Last thing you can try to see if you can atleast boot retail DVD simply copying it into an empty partition with disk utility and then installing pcefi plus all the required kekts on it.



I'm also booting from a usb guid partioned drive with pcefi installed, dunno if it's important but maybe can change something.

Share this post


Link to post
Share on other sites
Why do have applertc in E/E if you have already patched dsdt? Try to remove all the kekts that are not strictly needed and leave just nullcpupm, openhalt, applenforce, uuid and fakesmc; you can also try to update to pc efi 10.2.



Are you injecting video with efi strings? Because i read somewhere that it could be required.



Last thing you can try to see if you can atleast boot retail DVD simply copying it into an empty partition with disk utility and then installing pcefi plus all the required kekts on it.



I'm also booting from a usb guid partioned drive with pcefi installed, dunno if it's important but maybe can change something.



AppleRTC is a recent addition......I did not have it in originally.....just put it in case I had a cmos reset when trying without the modded DSDT.aml.....I will be removing it again....and trying with only nullcpupm, openhalt, applenforce, uuid and fakesmc....



AFAIK PCI_EFI v10.2 Beta has only been tested on Intel chipset MOBOs.....?



Yes I am using a graphics string in my com.apple.Boot.plist in /Extra......



I am using a USB GPT partitioned HDD with Chamelon 2.0 RC1 + PCI_EFI v10.1 boot file, onto which I installed OS X......



UPDATE:



I now believe my problems are related to the OSInstall.mkpg method which appears to cause installation problems (see here).....rather than to a 650i kernel issue.....since the 790i can boot from the vanilla kernel......



So, I will



A. Restore the Retail Mac OS X 10.6 Install DVD to a USB flash drive partitioned/formatted as GPT/HFS+ single volume (volume name with no spaces) with the Chameleon 2.0 RC1 bootloader + PC_EFI v10.1 boot file.....plus my cmos reset fix DSDT.aml plus the Extensions directory and Extensions.mkext file from my 18GB USB HDD partitioned/formatted as GPT/HFS+ single volume (volume name with no spaces).....



B. Hopefully boot the Retail Mac OS X 10.6 Install DVD on the USB flash drive and reinstall OS X 10.6 (with all Customize options, including printers now chosen....) the 18GB USB HDD without going via Leopard.......

Share this post


Link to post
Share on other sites

verdant, you are doing a great job, good luck with it! I was also trying to install SL, but don't have enough understanding with dsdt, smc..... So, I'm sure you will make SL run on P5N32-E Sli plus, and I hope, I will be the second :(

Share this post


Link to post
Share on other sites
verdant, you are doing a great job, good luck with it! I was also trying to install SL, but don't have enough understanding with dsdt, smc..... So, I'm sure you will make SL run on P5N32-E Sli plus, and I hope, I will be the second :)



I will keep you updated.......busy with it now........ :)



UPDATE:



I have not reported back yet because I have been:



1. Transferring my successful USB OS_10.6_Installer setup from a 16GB USB 2.0 flash drive to a 8GB USB 2.0 flash drive......



2. Transferring my test install from an external USB 2.0 18GB HDD to a eSATA/USB2.0 JBOD enclosure with two HDDs.....

one set up as 3 GPT 77GB test volumes for 10.6 and

the other as 3 MBR 77 GB test volumes for 10.6......

this way I can test out installation procedures/systems for SATA/USB on GPT and on MBR volumes........ :)



Only problem it is that USB being slower than SATA means that it is taking some time......

Share this post


Link to post
Share on other sites

Happy that you got it working :( Now I'm trying to get sleep working, but I haven't understood yet what's the problem. Something that changed from 10.5.6 to 10.5.7 now prevents sleep from working.. Maybe something related to appleacpiplatform?

Share this post


Link to post
Share on other sites
Happy that you got it working :D Now I'm trying to get sleep working, but I haven't understood yet what's the problem. Something that changed from 10.5.6 to 10.5.7 now prevents sleep from working.. Maybe something related to appleacpiplatform?



Thanks.....the fact that you were running OK on the vanilla kernel made me look elsewhere for the problem which I appreciate......that is the OSInstall.mkpg method, which I may encounter again when I do my MBR install guide sometime after I finish the GPT install guide.......



I will be looking at sound and sleep problems as soon as I have finished my install guide......I am getting PMs asking how soon it will be finished....... :unsure:

Share this post


Link to post
Share on other sites

thanks so much verdant!

your such a beast at this, you should make your own distro!





i cant wait for you to finish it so i can install SL!

Share this post


Link to post
Share on other sites

I got sound working with usual legacy kext and following this guide by The KiNG http://www.projectosx.com/forum/index.php?...entry2395 that explain how to emulate hdaenabler through dsdt; just pay attenction to keep your original audio _ADR address, which will probably different from the one in the guide (mine is _ADR, 0x000F0001) and if you don't find a device AZAL, it may be that it's called AZAD (it was on my system). About sleep, I found that disabling usb legacy support in bios and enabling vanilla intelcpupm (or installing sleepenabler.kext) brings sleep back :unsure:. However when the system wakes up it becomes terribly slow and totally unusable.. Maybe it's something related to non patched usb kekts?

Share this post


Link to post
Share on other sites
I got sound working with usual legacy kext and following this guide by The KiNG http://www.projectosx.com/forum/index.php?...entry2395 that explain how to emulate hdaenabler through dsdt; just pay attenction to keep your original audio _ADR address, which will probably different from the one in the guide (mine is _ADR, 0x000F0001) and if you don't find a device AZAL, it may be that it's called AZAD (it was on my system). About sleep, I found that disabling usb legacy support in bios and enabling vanilla intelcpupm (or installing sleepenabler.kext) brings sleep back :D . However when the system wakes up it becomes terribly slow and totally unusable.. Maybe it's something related to non patched usb kekts?



Thanks.......you have saved me time by sorting your sound out while I have been writing the installation guide because previously THe KiNG's approach to audio worked the best with my Asus Supreme FX audio card so was planning to follow his approach to audio on Snow Leopard too......



I am still worried how badly the system reacts upon waking from sleep...... ;)



So, I will focus on the audio side first....... :)

Share this post


Link to post
Share on other sites
thanks so much verdant!

your such a beast at this, you should make your own distro!





i cant wait for you to finish it so i can install SL!



No problem......please PM me with any points, sections, procedures etc. that you think need clarifying or more explanation......as this has been written on the fly whilst carrying out the procedures described......writing the guide on a real Mac whilst installing Snow Leopard on my hack..... ;)

Share this post


Link to post
Share on other sites

I'm currently running Snow Leopard on 64bit mode. I've been tried your method before but it's weird. During installation, KP happening and i can't continue my progress. Anyone suggetion?

Share this post


Link to post
Share on other sites
I'm currently running Snow Leopard on 64bit mode. I've been tried your method before but it's weird. During installation, KP happening and i can't continue my progress. Anyone suggetion?



If you have a nForce chipset + Intel CPU MOBO with a non-AHCI compliant nForce chipset (meaning you need to use an AppleNForceATA.kext that is currently ONLY 32bit compatible), then you need to boot the kernel into 32bit mode NOT 64bit mode using either -x32 or arch=i386 as the Kernel Flag.......

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By verdant
      nForce OS X El Capitan (OS X 10.11.6) APP STORE DOWNLOAD INSTALL GUIDE
      on a Series 6 or 7 nForce chipset / Intel CPU MOBO
      (and some other BIOS-based MOBOs as well, e.g. Asus P5Q, P5Q Pro, P5Q-E, P5Q Deluxe)

      *************************************************************
      INTRODUCTION
      *************************************************************

      A. Motherboard and Chipset Applicability:

      1. Series 6 or 7 nForce chipset / Intel CPU MOBOs

      This guide is primarily focussed on installing and running OS X El Capitan on a Series 6 or 7 nForce chipset / Intel CPU BIOS-based MOBOs with an nVidia graphics card.

      {a} This is simply because I have an Asus P5N32-E SLI Plus  650i nForce chipset + Intel Q6600 CPU MOBO + GeForce 9800GT 512MB graphics card........but what works for the 650i should and invariably does work for the 650i Ultra, 680i, 750i, 780i, 790i, and 790i Ultra.....hence my topic tags....

      {b} Note that in my topic tags, I say that this guide may only possibly be applicable to the 630i chipset.
      This is because it is still my current understanding is that the following nForce chipsets are not fully AHCI compliant and so can be used with imk's 64bit version (or subsequent versions of the AppleNForceATA.kext, such Tora Chi Yo's AppleNforceATA 1.0.6 version based on the AnV 1.0.4 32/64 Version etc.):

      nForce 430/410 (MCP51),
      nForce 590/570/550/680i/650i/780i/750i/790i (MCP55)
      nForce 430/405/400 (MCP61); nForce 560/520 (MCP65)
      nForce 630a (MCP67)

      Furthermore, the MOBOs using one of these nForce chipsets usually have the BIOS option to set the enable nForce SATA Controller and require SATA RAID to be Enabled (implicitly enabling AHCI mode) even when not running a RAID system, for the NForceATA.kext to work.
      In contrast, the following nForce chipsets are/may be fully-AHCI compliant and so do not/may not work with the AppleNForceATA.kext:
      nForce 560/520 (MCP65) and nForce 630a (MCP67); nForce 630i/620i/610i (MCP73), nForce 730a/720a/710a (MCP78) and nForce ION (MCP79) nForce chipsets (MCP65 and higher) support the advanced SATA features in the AHCI standard, such as NCQ etc.
      The MOBOs using one of these nForce chipsets usually have the BIOS option to set the nForce SATA Controllers to "AHCI Mode" instead of "IDE Mode".

      {c} As I use an nVidia graphics card, the guide is naturally written from an nVidia perspective; nevertheless, I hope that owners of a Series 6 or 7 nForce chipset / Intel CPU MOBO with an ATI graphics card will use it too.

      For help with:
      (i) AMD/ATI graphics cards, IM is your friend......
      (ii) For help with mixed multiple AMD/ATI and/or nVidia graphics cards and /or multiple displays, Google is your friend......e.g. aqua-mac, netkas, and later others.......


      2. Non-nForce chipset + Intel CPU MOBOs

      Non-nForce chipset + Intel CPU MOBOs users may also be able to use the guide, or at least also find it interesting and even helpful in places too.......

      I say this because:

      {a} Each reader's MOBO brand/model typically has to have its own custom setup for DSDT/audio/networking/video etc.

      {b} It is primarily the need for the AppleNForceATA.imk64bit.kext in /Extra/Extensions/ or in /System/Library/ Extensions/ and nForceLAN.0.64.5.kext in /System/Library/ Extensions/, as well not being able to use a SleepEnabler.kext and having issues with sleep that distinguishes nForce chipset + Intel CPU MOBOs from non-nForce chipset + Intel CPU MOBOs rather than the basic procedures for installing OS X.........

      Hence,  I have also used my USB installer (produced using this guide) with just a DSDT.aml file swap (as any nForce chipset-specific kexts in /System/Library/Extensions are not loaded into the kernel when OS X is running on a non-nForce chipset MOBO) to suit each MOBO, to install OS X 10.11.6 onto my Asus P5Q, P5Q Pro, P5Q-E and P5Q Deluxe MOBOs......


      3. Bootloader Choice

      Firstly, may I say that I am very pleased with all the parallel progress being made with the Clover and Enoch (Chameleon) boot loaders as they both allow OS X El Capitan and Mac OS Sierra etc. to be booted on PCs.......

      However,  as the user of multiple BIOS-based 'legacy LGA775' MOBOs, I am especially thankful for the efforts of ErmaC and Micky1979 (not forgetting the original efforts of all the Chameleon team) in continuing to develop the Enoch (Chameleon) boot loader to the extent that it can successfully boot OS X El Capitan (and Mac OS Sierra) on BIOS MOBOs, and it is the boot loader (r2839) that I am currently using for OS X El Capitan.

      My primary reason for using the Enoch (Chameleon) boot loader to boot OS X 10.11.6 is that I previously used the Chameleon boot loader itself to boot OS X 10.5.8 through to OS X 10.10.5 (to which OS X 10.11.5 has now been added) all on a single MBR HDD and mostly mirrored on a single GPT HDD, along with Windows 7 and Linux on my Asus P5N32-E SLI Plus  650i MOBO.

      Nevertheless, if and when time allows, I will investigate the use of the Clover bootloader in legacy mode for comparison and interest.

      ***************************************************************************************

      This will be a "live guide" that will evolve in length depending on:

      (i) my very limited free time (hence my only finding some free time now to install OS X 10.11.6 as my 'real life' is so busy    ) and

      (ii) the continued level of interest and need via posts in this topic from other 'die-hard' nForce chipset + Intel CPU MOBO users (whose nForce MOBOs simply refuse to 'die', preventing an upgrade excuse!    ), especially IM members who have followed my previous nForce install guides...

      So, please read the current online "live" guide before attempting to follow it, even if you had previously followed an earlier version successfully.....

      UNDER CONSTRUCTION......via OS X El Capitan on nForce

      Stage 1 construction will commence upon IM member request - I need to determine the level of 'need' for this guide before spending my time on it - I hope IM members understand....

      Part #1 DOWNLOADS and TOOLS USED

      Part # 2 Making a Bootable GPT Partitioned USB Flash Drive GPT/MBR OS X El Capitan(OS X 10.11.6) Installer

      Part # 3 Installing a Bootable OS X El Capitan (OS X 10.11.6) System on either a GPT Partitioned Hard Drive Volume OR a MBR Partitioned Hard Drive Volume Using a Bootable GPT/MBR USB Flash Drive OS X El Capitan (OS X 10.11.6) Installer

      Part #4 Cloning a Bootable OS X El Capitan (OS X 10.11.6) System installed on a GPT/HFS+ HDD (e.g. external USB HDD) to your internal HDD MBR/HFS+ OS X target volume

      Potentially Stage 2 only by IM member request and as my time permits

      Part #5 OS X El Capitan (OS X 10.11.6) Installation / Boot / Operation Issues

      Part #6 How to Enable Natural Power Management ("vanilla SpeedStepping") in OS X El Capitan (OS X 10.11.6) on an nForce chipset + Intel CPU MOBO

      Part #7 Getting Audio Working in OS X El Capitan (OS X 10.11.6
    • By verdant
      nForce OS X Yosemite (OS X 10.10) APP STORE DOWNLOAD INSTALL GUIDE
      on a Series 6 or 7 nForce chipset / Intel CPU MOBO

      (and some other BIOS-based MOBOs as well, e.g. P5Q, P5Q Pro, P5Q-E.....)


      *************************************************************

      INTRODUCTION

      *************************************************************


      A. Guide Structure:

      The guide is split into sections and sub-sections (from post #1 to post #6) for ease of following and adding to....


      Post #1 DOWNLOADS


      Post # 2 Making a Bootable GPT Partitioned USB Flash Drive GPT/MBR OS X Yosemite 10.10 Installer


      Post # 3 Installing a Bootable OS X Yosemite (OS X 10.10) System on either a GPT Partitioned Hard Drive Volume OR a MBR Partitioned Hard Drive Volume Using a Bootable GPT/MBR USB Flash Drive OS X Yosemite (OS X 10.10) Installer


      Post #3 Cloning a Bootable OX Yosemite 10.10 system installed on a GPT/HFS+ HDD (e.g. external USB HDD) to your internal HDD MBR/HFS+ OS X target volume


      Post #4 OS X Yosemite Installation / Boot / Operation Issues

      Issue 1. [PCI configuration begin] bootup error

      Issue 2. Booting via the Chameleon boot loader installed on an Advanced Format (AF) hard drive


      Post #5 How to Enable Natural Power Management ("vanilla SpeedStepping") in OS X Yosemite on an nForce chipset + Intel CPU MOBO


      Post #6 Getting Audio Working in OS X Yosemite


      It is a "live guide" that will evolve with both Yosemite and time (with some inevitable typo corrections, additions, deletions etc.).......

      So, please read the current online "live" guide before attempting to follow it, even if you had previously followed an earlier version successfully.....


      A. Guide applicability:

      1. Series 6 or 7 nForce chipset / Intel CPU MOBOs

      This guide is primarily focussed on installing and running OS X Yosemite on a Series 6 or 7 nForce chipset / Intel CPU BIOS-based MOBOs with an nVidia graphics card.

      {a} This is simply because I have a 650i nForce chipset + Intel Q6600 CPU MOBO + Inno3D GeForce 9800GT 512MB graphics card........but what works for the 650i should and invariably does work for the 650i Ultra, 680i, 750i, 780i, 790i, and 790i Ultra.....hence my topic tags....

      {b} Note that in my topic tags, I say that this guide may only possibly be applicable to the  630i chipset.

      This is because it is still my current understanding is that the following nForce chipsets are not fully AHCI compliant and so can be used with imk's 64bit version of the always mentioned nForceATA.kext:
      nForce 430/410 (MCP51), nForce 590/570/550/680i/650i/780i/750i/790i (MCP55) and nForce 430/405/400 (MCP61); nForce 560/520 (MCP65) and nForce 630a (MCP67)

      Furthermore, the MOBOs using one of these nForce chipsets usually have the BIOS option to set the enable nForce SATA Controller and require SATA RAID to be Enabled (implicitly enabling AHCI mode) even when not running a RAID system, for the NForceATA.kext to work.

      In contrast, the following nForce chipsets are/may be fully-AHCI compliant and so do not/may not work with the AppleNForceATA.kext:

      nForce 560/520 (MCP65) and nForce 630a (MCP67); nForce 630i/620i/610i (MCP73), nForce 730a/720a/710a (MCP78) and nForce ION (MCP79) nForce chipsets (MCP65 and higher) support the advanced SATA features in the AHCI standard, such as NCQ etc.

      The MOBOs using one of these nForce chipsets usually have the BIOS option to set the nForce SATA Controllers to "AHCI Mode" instead of "IDE Mode".

      {c} As I use an nVidia graphics card, the guide is naturally written from an nVidia perspective; nevertheless, I hope that owners of a Series 6 or 7 nForce chipset / Intel CPU MOBO with an ATI graphics card will use it too.

      For help with:

      (i) AMD/ATI graphics cards, IM is your friend......

      (ii) For help with mixed multiple AMD/ATI and/or nVidia graphics cards and /or multiple displays, Google is your friend......as are aqua-mac, netkas, and others.......


      2. Non-nForce chipset + Intel CPU MOBOs

      Non-nForce chipset + Intel CPU MOBOs users may also be able to use the guide, or at least also find it interesting and even helpful in places too.......

      I say this because:

      {a} Each reader's MOBO brand/model typically has to have its own custom setup for DSDT/audio/networking/video etc.

      {b} It is primarily the need for the AppleNForceATA.imk64bit.kext in /Extra/Extensions/ and nForceLAN.0.64.5.kext in /System/Library/ Extensions/, as well not being able to use a SleepEnabler.kext and having issues with sleep that distinguishes nForce chipset + Intel CPU MOBOs from non-nForce chipset + Intel CPU MOBOs rather than the basic procedures for installing OS X.........

      Hence,  I have also used my USB installer (produced using this guide) with just a DSDT.aml file swap (as any nForce chipset-specific kexts in /System/Library/Extensions are not loaded into the kernel when OS X is running on a non-nForce chipset MOBO) to suit each MOBO, to install OS X 10.10 onto my Asus P5Q Pro MOBO and my Asus P5Q E MOBO...... .


      *************************************************************

      ACKNOWLEDGEMENTS

      *************************************************************

      PLEASE NOTE that ALL CREDIT goes (in no particular order and both historically and currently) the original developers of the included applications/kexts/bootloaders and boot files etc:


      In /System/Library/Extensions/

      NullCPUPowerManagement.kext - David Elliott
      AD1998b.FIX.kext - THe KiNG
      AppleNForceATA.imk64bit.kext - MeDevil for original kext AND imk for the working 64bit version
      EvOreboot.kext - EvO Team
      FakeSMC.kext – netkas, Slice
      nForceLAN.0.64.5.kext – eno
      VoodooHDA patched for AD1988B (also works with AD2000B) - oldnalpalm

      In boot sector, / and in /Extra/

      Chameleon 2.3 svn r2401

      Thanks to everyone involved in the development of Chameleon 2.2 svn r2401, making it a compatible bootloader for Yosemite......!

      Yosemite boot support starting from Chameleon revision 2381
      Credits to:
      - Pike R. Alpha
      - ErmaC
      - Bungo
      - blackosx
      - Micky1979
      - crazybirdy
      - oldnapalm
      - janek202
      - MinusZwei
      - Andy Vandijck
      Credits to Chameleon Team http://forum.voodooprojects.org

      Thanks also to MaLd0n for the MacPro3,1 SMBIOS.plist

      Thanks also to oldnapalm for the Yosemite MBR Patch 10.10 (14A389)

      Apologies to anyone I have forgotten, or do not know to mention, or have yet to mention in the above credits......


      *************************************************************

      DOWNLOADS

      *************************************************************

      Insanelymac Download Link for verdant_Yosemite_Support_Files_v1.0

      verdant_Yosemite_Support_Files_v1.0.zip

      verdant_Yosemite_Support_Files_v1.0 Contents

      >> 64bit Kexts for /System/Library/Extensions/
      ACPIMonitor.kext
      AD1998b.FIX.kext
      AppleHDA.1062.kext
      AppleNForceATA.imk64bit.kext
      AppleRTC.Yosemite.Patched.kext (using patch by Marchrius)
      EvOreboot.kext
      FakeSMC.kext
      IntelCPUMonitor.kext
      IntelThermal.kext
      nForceLAN.0.64.5.kext
      NullCPUPowerManagement.kext
      NVClockX.kext
      NVEnabler 64.kext
      SuperIOFamily.kext
      VoodooHDA.kext (patched for AD1988B by oldnapalm)

      >> Applications
      Chameleon Wizard
      Kext Wizard
      SMC Monitor

      >> Chameleon Bootloader
      Chameleon Bootloader Insanelymac Download Link

      >> Changelog for verdant_Yosemite_Support_Files_v1.0.rtf

      >> EFI Graphics String Apps
      EFIStudio_GTX.zip
      EFIStudio.1.1.zip
      OSX86Tools_1.0.150.zip
      plist_gfxutil.zip

      >> FakeSMC
      FakeSMC (3.1.0) - Revision 493. Made by mojodojo
      Release 10.6 - only use the HWSensor kexts appropriate for your hardware
      SMC_Stat_i - this is a SMC monitor menu bar app

      >> MaLd0n Extra Folder
      Extra_Folder.zip - this is the .zip file for MaLd0n's Extra Folder.pkg

      >> Pure 64bit Extra Kexts
      AHCIPortInjector.kext
      AppleACPIPS2Nub.kext
      ApplePS2Controller.kext
      ApplePS2Keyboard.kext
      ApplePS2Mouse.kext
      ApplePS2Trackpad.kext
      ATAPortInjector.kext
      AtherosFix.kext
      FakeSMC.kext
      JMicron36xATA.kext
      JMicron36xSATA.kext
      NullCPUPowerManagement.kext
      OpenHaltRestart.kext
    • By verdant
      nForce OS X Mavericks (OS X 10.9) APP STORE DOWNLOAD INSTALL GUIDE
      on a Series 6 or 7 nForce chipset / Intel CPU MOBO


      *************************************************************

      GUIDE CONTENTS

      *************************************************************

      OS X Mavericks 10.9 FREE RETAIL is now running on my Asus P5N32-E SLI Plus nForce 650i MOBO, after installing to both MBR and GPT internal HDDs via my USB flash drive set up for GPT or MBR installation....

      So, my Install Guide is now UNDER CONSTRUCTION starting with Post #1......being typed from OS X Mavericks.......

      Apologies for the slow completion of the guide but I have little free time and that is only on weekends......

      Thanks
      verdant

      NOTE - Text in Black in this Install Guide is not to be followed yet as part of the Install Guide as it is subject to re-writing and/or removal where no longer valid or relevant etc.

      Post #1 - How to Prepare for Installing OS X Mavericks on a HDD

      Introduction

      Download Links

      Acknowledgements

      Methods for

      [1] Enabling the download of OS X Mavericks 10.9 FREE RETAIL from the Apple App Store - to follow

      [2] Making a USB Flash Drive GPT/MBR Installer for OS X Mavericks 10.9:

      Part A. Enabling Snow Leopard running in 64bit mode, or Lion or Mountain Lion running in default 64bit mode on an nForce MOBO for downloading OS X Mavericks FREE RETAIL from the Apple App Store



      Part B. Making a Bootable GPT Partitioned USB Flash Drive OS X Mavericks 10.9 GPT/MBR Installer


      Post #2 - How to Install OS X Mavericks on a HDD

      USB and DVD Installer Methods for Installing OS X Mavericks on a HDD Volume (GPT or MBR):

      Part C. Installing a Bootable OS X Mavericks (OS X 10.9) System on either a GPT Partitioned Hard Drive Volume OR a MBR Partitioned Hard Drive Volume Using a Bootable GPT/MBR USB Flash Drive Installer

      Part D. Cloning a Bootable OX Mavericks 10.9 system installed on a GPT/HFS+ HDD (e.g. external USB HDD) to an internal HDD MBR/HFS+ OS X target volume

      Part E. Installing a Bootable OS X Mavericks 10.9 system on either a GPT Partitioned Hard Drive Volume OR a MBR Partitioned Hard Drive Volume Using verdant's OS X Mavericks 10.9 Dual Layer DVD GPT/MBR Installer


      Post #3 - nVidia Graphics Card Operation in OS X Mavericks

      Getting an nVidia graphics card working in Mavericks

      Generating and Modifying an EFI Graphics String for Mavericks

      Indications that Core Image (CI) and Quartz Extreme (QE) are both enabled in Mavericks

      Obtaining the NVCAP data string from your nVidia graphics card BIOS via Windows

      Inserting nVidia Graphics Card Hardware Matching Device ID into nVidia Graphics Kexts


      Post #4 - Generating and Modifying the OS X Mavericks DSDT.aml File for Your Own nForce MOBO

      Device (RTC) fix for the CMOS Reset issue

      DTGP Method patch to enable use of other patches in the DSDT.aml file

      Device (HPET) fix to enable the removal of NullCPUPowerManagement.kext from /Extra/Extensions/ or /System/Library/Extensions/ and the loading of AppleIntelCPUPowerManagement.kext

      Device (LPCB) patch insertion into the DSDT.aml file to enable Native Power Management in OS X Mavericks

      Device (TMR) and Device (PIC) fixes to prevent audio "stuttering" when Native Power Management in OS X is enabled, i.e. after SpeedStepping with C-states is enabled


      Post #5 - How to Enable Natural Power Management ("vanilla SpeedStepping") in OS X Mountain Lion (and OS X Lion and OS X Snow Leopard) on an nForce chipset + Intel CPU MOBO


      Post #6 - OS X Mavericks Installation / Boot / Operation Issues

      Issue 1. [PCI configuration begin] bootup error - proposed solutions

      Issue 2. Setting up Builtin Ethernet manually / LAN0 / (en0) - proposed solutions


      Post #7 - Getting Audio Working in OS X Mavericks

      Asus SupremeFX II Audio Card (Analog Devices AD1988B 8-Channel High Definition Audio chipset/CODEC)


      Post #8 - Peripheral Devices on nForce chipset + Intel CPU MOBOs

      Device 1. Asmedia 106x SATA Controller Ver 0.95 AHCI Mode

      Issue 1. Displayed in System Report as "Generic AHCI Standard Controller:" and "Vendor: Generic"
      Issue 2. Updating the ASM1061 firmware from version 0.89 to version 0.95 and then 0.95.1
      Issue 3. Resolvable Issues when the Asmedia SATA Controller is connected to one or more SATA Optical Drives


      *************************************************************

      INTRODUCTION

      *************************************************************


      *************************************************************

      DOWNLOADS

      *************************************************************

      Insanelymac Download Link for verdant_Mavericks_Support_Files_v1.0

      verdant_Mavericks_Support_Files_v1.0.zip


      verdant_Mavericks_Support_Files_v1.0 Contents

      >> 64bit Kexts for /System/Library/Extensions/
      ACPIMonitor.kext
      AD1998b.FIX.kext
      AppleHDA.1062.kext
      AppleNForceATA.imk64bit.kext
      AppleRTC.Mavericks.Patched.kext
      EvOreboot.kext
      FakeSMC.kext
      IntelCPUMonitor.kext
      IntelThermal.kext
      nForceLAN.0.64.5.kext
      NullCPUPowerManagement.kext
      NVClockX.kext
      NVEnabler 64.kext
      SuperIOFamily.kext
      VoodooHDA.kext (patched for AD1988B by oldnapalm)

      >> Applications
      Chameleon Wizard
      Kext Wizard
      SMC Monitor

      >> Chameleon Bootloader
      Chameleon Bootloader Insanelymac Download Link

      >> Changelog for verdant_Mountain_LIon_Support_Files_v1.0.rtf

      >> CUDA 5.5.28
      cudadriver-5.5.28-macos.dmg - this is the image file for v5.5.28 CUDADriver.pkg

      >> EFI Graphics String Apps
      EFIStudio_GTX.zip
      EFIStudio.1.1.zip
      OSX86Tools_1.0.150.zip
      plist_gfxutil.zip

      >> FakeSMC
      FakeSMC (3.1.0) - Revision 493. Made by mojodojo
      Release 10.6 - only use the HWSensor kexts appropriate for your hardware
      SMC_Stat_i - this is a SMC monitor menu bar app

      >> MaLd0n Extra Folder
      Extra_Folder.zip - this is the .zip file for MaLd0n's Extra Folder.pkg

      >> Pure 64bit Extra Kexts
      AHCIPortInjector.kext
      AppleACPIPS2Nub.kext
      ApplePS2Controller.kext
      ApplePS2Keyboard.kext
      ApplePS2Mouse.kext
      ApplePS2Trackpad.kext
      ATAPortInjector.kext
      AtherosFix.kext
      FakeSMC.kext
      JMicron36xATA.kext
      JMicron36xSATA.kext
      NullCPUPowerManagement.kext
      OpenHaltRestart.kext


      *************************************************************

      ACKNOWLEDGEMENTS

      *************************************************************

      PLEASE NOTE that ALL CREDIT goes (in no particular order and both historically and currently) the original developers of the included applications/kexts/bootloaders and boot files etc:


      In /System/Library/Extensions/

      NullCPUPowerManagement.kext - David Elliott
      AD1998b.FIX.kext - THe KiNG
      AppleNForceATA.imk64bit.kext - MeDevil for original kext AND imk for the working 64bit version
      EvOreboot.kext - EvO Team
      FakeSMC.kext – netkas, Slice
      nForceLAN.0.64.5.kext – eno
      VoodooHDA patched for AD1988B - oldnalpalm

      In boot sector, / and in /Extra/

      Chameleon 2.2 svn r2266

      Thanks to everyone involved in the development of Chameleon 2.2 svn r2266, making it a compatible bootloader for Mavericks......!

      Chameleon Developers Team : http://forum.voodooprojects.org

      zef, Turbo, dfe, netkas, mackerintel, mercurysquad, fassl, Kabyl, Crazor, Dense, kaitek, iNDi, munky, JrCs, asereBLN, rekursor, mozodojo, meklort, AnV, valv, AzimutZ, Slice, cosmo1t, cparm, Conti

      With thanks to :

      bumby, kalyway, Krazubu, Eddie11c, JaS, fassl, XyZ, SMF, flama, Galaxy, sckevyn, MasterChief, smith@@, blackosx, DHP, nawcom, scorpius, macman, dmazar

      Chameleon 2.2 svn r2266 Package :

      kalyway, AzimutZ, blackosx, ErmaC (who submitted the Chameleon 2.2 svn r2266 Installer PKG and Binaries format (Manual install) to IM Downloads), scrax, JrCs


      Thanks also to MaLd0n for the MacPro3,1 SMBIOS.plist

      Thanks also to oldnapalm for the Mavericks MBR patch 10.9 GM (13A603)

      Apologies to anyone I have forgotten, or do not know to mention, or have yet to mention in the above credits......


      *************************************************************




      *************************************************************

      Part B. Making a Bootable GPT Partitioned USB Flash Drive GPT/MBR OS X Mavericks 10.9 Installer

      *************************************************************

      Stage 1 - Making a Bootable GPT Partitioned USB Flash Drive GPT OS X Mavericks 10.9 Installer

      1. You will need:

      [1] Access to a working Mac or Hack x86 OS X Snow Leopard 10.6.x or OS X Lion 10.7.x or OS X Mountain Lion 10.8.x

      (I am assuming that you already have OS X Snow Leopard 10.6.8 or OS X Lion 10.7.5 or OS X Mountain Lion 10.8.5 installed and running)

      [2] A 8GB USB flash drive (memory stick)

      [3] To be able to download OS X Mavericks (FREE RETAIL) from the Apple App Store. See Part A.

      [4] To download my "verdant_Mavericks_Support_Files_v1.0.zip" folder

      The “Install OS X Mavericks.app” installer app icon will show up in the Dock.

      If it does, then the installer should also show up in your Applications folder.

      * DO NOT click on the icon NOR right-click on the icon and select Open
      * DO NOT double-click on its icon in the Applications folder


      2. Extracting Necessary Files from Mavericks Installer App

      [1] Boot into Snow Leopard or OS X Lion or OS X Mountain Lion and go to the Applications folder and find Install OS X Mavericks.app WITHOUT clicking on the icon NOR right-click on the icon and selecting Open

      [2] Unhide all files via a Terminal command:

      ***********************************************************

      Terminal commands to show/hide hidden and system files:

      To show hidden and system files:

      defaults write com.apple.finder AppleShowAllFiles TRUE
      killall Finder


      To hide hidden and system files:

      defaults write com.apple.finder AppleShowAllFiles FALSE
      killall Finder

      ***********************************************************

      Or, you can download and run TinkerTool ......select the Finder options: 'Show hidden and system files' option and then click Relaunch Finder to unhide......and deselect the Finder options: 'Show hidden and system files' option and then click Relaunch Finder to hide......

      [3] Right-click on the Install OS X Mavericks.app installer icon and select Show Package Contents.

      Open the Contents folder and the SharedSupport folder within it, and look for InstallESD.dmg

      [4] Open i.e. mount InstallESD.dmg and look for BaseSystem.dmg……LEAVE the Mac OS X Install ESD window open…….


      3. Preparing the USB flash drive as a Mac bootable device volume

      [1] Plug in the USB flash drive and then using the Snow Leopard or Lion or Mountain Lion Disk Utility, partition/format it as a single GPT/HFS+ volume named OSX_Lion_USB_Installer (or your chosen name without spaces) as follows:

      In the Disk Utility sidebar, highlight your USB flash drive device icon

      In the Disk Utility main window, click on the Partition tab and select to partition as 1 volume, using a name with no spaces and format as Mac OS Extended (Journaled)……

      Then click on Options button -> select GUID Partition Table (GPT) -> click Apply

      Doing this will make the USB flash drive bootable on a Mac. Note that this operation will erase everything on the drive.


      4. Installing necessary /Extra/ and directory files and the Chameleon 2.2 svn r22662 bootloader onto the partitioned/formatted USB flash drive

      [1] In the Disk Utility main window, click on the Restore tab to load the BaseSystem.dmg onto the OSX_Mavericks_USB_Installer volume.....doing this puts a base OS X Mavericks system on the USB flash drive volume……

      Choose the BaseSystem.dmg file as the Source by 'drag and dropping' it from the Mac OS X Install ESD window into the Source Window (note that a '+ in green circle' appears momentarily)

      Choose your USB flash drive volume icon as the Destination by 'drag and dropping' it from the Disk Utility sidebar into the Destination window (note that a '+ in green circle' appears momentarily).

      Click the Apply button and it will create your bootable USB drive. Note that Erase destination checkbox will be ticked by default, or applied by default.

      The USB flash drive device name will be automatically changed to OS X Base System in the sidebar……

      [2] On the USB flash drive volume, open the System folder and double-click on the Installation folder within it…..this opens an Installation folder window….

      Right-click on the Packages alias icon and select Move to Trash

      Go to the open Mac OS X Install ESD window and 'drag and drop' the Packages folder in the window into the open Installation folder window……the 4.8 GB Packages folder will take about 10 or so minutes to copy over……

      Now go to the open Mac OS X Install ESD window and open the Packages folder in the window, and locate the BaseSystemBinaries.pkg.

      Use Pacifist (current version is Pacifist 3.2.2) to extract the mach_kernel file from the BaseSystemBinaries.pkg to the root directory, i.e. / of the OS X Base System USB flash drive volume....i.e. into the open OS X Base System Window……

      [3] Note that the USB flash drive OS X Base System volume /System/Library/Extensions/ folder does not contain all the graphics kexts that the installed OS X Mavericks /System/Library/Extensions/ does. The OS X Base System volume /System/Library/Extensions/ folder is missing the following kexts, bundles and plugins:




      Thus, depending on your installed graphics card i.e. nVidia or ATI, you may need to use Pacifist to extract the relevant kexts, bundles and plugin from /Volumes/OS\ X\ Install\ ESD/Packages/Essentials.pkg into the USB flash drive OS X Base System volume /System/Library/Extensions/ folder, in order for your GPU and display to function properly when booting from the Bootable GPT Partitioned USB Flash Drive OS X Mavericks 10.9 Installer, i.e. not present you with a black display screen at worst, or less worse, an incorrect and fixed display resolution, on reaching the OS X Mavericks Installer window.

      Since I have an Inno3D GeForce 9800GT 512MB graphics card, I had to extract the following files into my USB flash drive OS X Base System volume /System/Library/Extensions/ folder, so that booting the USB installer did not just present me with a black display screen on reaching the OS X Mavericks Installer window:

      GeForce.kext
      GeForceGA.plugin
      GeForceGLDriver.bundle
      GeForceVADriver.bundle

      Please be note that being able to use GraphicsEnabler=Yes in org.chameleon.Boot.plist for the same graphics card under different OS X versions via different Chameleon bootloader versions/revisions is not a given.

      For example, with my Inno3D GeForce 9800GT 512MB graphics card, to get full CI/QE and changeable display resolutions, the situation is as follows:

      OS X Leopard 10.5.8 - GraphicsEnabler=No and NVEnabler.kext
      OS X Snow Leopard 10.6.8 - GraphicsEnabler=Yes and so no NVinjector kext such as NVEnabler64.kext
      OS X Lion 10.7.5 - GraphicsEnabler=No and NVEnabler64.kext
      OS X Mountain Lion 10.8.5 - GraphicsEnabler=No and either a <key>device-properties</key> custom hex entry in org.chameleon.Boot.plist, that I generated using OSX86 Tools, or NVEnabler 64.kext, or DSDT GFX0 section patch.
      OS X Mavericks 10.9 - GraphicsEnabler=No and a DSDT GFX0 section patch.

      For help with:

      1. ATI graphics cards go here

      2. nVidia graphics cards go to post #3 in this topic for single nVidia graphics card use

      3. Multiple nVidia graphics card(s) and/or displays go here.

      4. For help with mixed multiple ATI and/or nVidia graphics cards and /or multiple displays, Google is your friend......as are aqua-mac, netkas, and others.......

      [4] Run the Chameleon 2.2 svn r2266.pkg installer (download from link given above) and click on the Continue button in the Chameleon 2.2 svn r22662 Bootloader Installer window…….then click Continue and Continue again and Agree…..then in the Standard Install window click Change Install Location and select the USB flash drive OS X Base System volume in the Select a Destination window and click Continue……then click Install…..after a hopefully successful install, click Close....

      [5] Go back to the open OS X Base System Window……the Chameleon bootloader installer should have created the /Extra/ folder……BUT you may have to create them manually afterward (as I did)……

      [6] Copy across from your running 64bit mode Snow Leopard, or Lion, or Mountain Lion system, your MOBO's OS X DSDT.aml file into the open target HDD OS X Mavericks window, i.e. the target HDD volume's root i.e. / directory…….

      [7] Copy across from your running 64bit mode Snow Leopard, or Lion, or Mountain Lion system, or from the verdant_Mavericks_Support_Files_v1.0 folder, into /Extra/ on the USB flash drive Mac OS X Base System volume, the following .plist files:

      smbios.plist for MacPro3,1 (use the one from MaLd0n's Lion installation via USB stick using Chameleon, DP4, GM and FINAL topic…….), or whatever MacProx,y designation matches your CPU....

      org.chameleon.Boot.plist (assuming that you are using a recent/current Chameleon boot loader version later than v2.0 r11xx, or a version 2.1 or 2.2 revision)

      modules folder (containing e.g. FileNVRAM.dylib)

      Also copy across (if you wish) your Chameleon bootloader Themes folder from your running 64bit mode Snow Leopard, or Lion, or Mountain Lion system......

      [8] Copy the following kexts in /Extra/Extensions/ on your running 64bit mode Snow Leopard, or in /System/Library/Extensions/ on your Lion system, or Mountain Lion System, or from the verdant_Mavericks_Support_Files_v1.0 folder, into /System/Library/Extensions on the USB flash drive OS X Base System volume...

      FakeSMC.kext
      EvOreboot.kext
      NullCPUPowerManagement.kext - ONLY if you are NOT booting your USB OS X Base System Flash Drive installer with your MOBOs DSDT.aml file, that is patched for OS X Natural Power Management, in the root directory
      AppleRTC.Mavericks.Patched.kext
      AppleNForceATA.imk64bit.kext
      AD1998b.FIX.kext or VoodooHDA.kext (for AD1998b) - ONLY if this is the audio chipset/codec of your nForce chipset + Intel CPU MOBO

      You may also have AppleHDA.10.6.2.kext, FakeSMC.kext and nForceLAN.0.64.5.kext in in /Extra/Extensions/ on your running 64bit mode Snow Leopard, or in /System/Library/Extensions/ on your Lion system, or Mountain Lion System....

      Note the later versions/revisions of FakeSMC.kext v3.0 and later by mojodojo can function from /Extra/Extensions/ or from /System/Library/Extensions/ but be aware that earlier versions/revisions of FakeSMC.kext can only function from /System/Library/Extensions/ - hence step [9] below:

      [9] If you have AppleHDA.10.6.2.kext, FakeSMC.kext and nForceLAN.0.64.5.kext in /System/Library/Extensions/ on your running 64bit mode Snow Leopard, or Lion, or Mountain Lion system, then these need to copied from there, or from the verdant_Mavericks_Support_Files_v1.0 folder, into /System/Library/Extensions/ on the USB flash drive OS X Base System volume……

      [10] Having added AppleHDA.10.6.2.kext, FakeSMC.kext and nForceLAN.0.64.5.kext to /System/Library/Extensions/ on the USB flash drive OS X Base System volume, you need to use Terminal to reset the kexts ownership and permissions and rebuild the kernelcache file etc.....alternatively, you can use janek202's Kext Wizard for a Terminal-free life.......

      In Terminal type:
      sudo chown -R root:wheel /Volumes/OS\ X\ Base\ System/System/Library/Extensions sudo chmod -R 755 /Volumes/OS\ X\ Base\ System/System/Library/Extensions sudo touch /Volumes/OS\ X\ Base\ System/System/Library/Extensions followed by
      sudo chflags nouchg /Volumes/OS\ X\ Base\ System/System/Library/CoreServices/boot.efi [11] Close all open folders within the OS X Base System folder and in the Terminal type:
      sudo chown -R 0:0 /Volumes/OS\ X\ Base\ System [12] Close Terminal and then go to /System/Library/Caches/com.apple.kext.caches/Startup and delete all the files within Startup, e.g. kernelcache

      [13] Close the OS X Base System Window and boot from the USB flash drive OS X Base System volume by pressing F8 at boot-up to bring up the PC BIOS "Boot Menu", then selecting the USB OS X Base System Flash Drive and pressing Enter.

      [14] At the Chameleon boot prompt, type -v -f and press Enter.

      [15] If you experience the [PCI configuration begin] error on booting from the USB OS X Base System Flash Drive installer, then see post #4, which gives four proposed solutions to this error.......
        Stage 2 - Making a Bootable GPT Partitioned USB Flash Drive GPT/MBR OS X Mavericks 10.9 Installer

      The following procedure assumes that you have already followed "Part B. Making a Bootable GPT Partitioned USB Flash Drive GPT/MBR OS X Mavericks 10.9 Installer" Stage 1 of this guide, and so now have a working bootable GPT USB Flash Drive GPT OS X Mavericks 10.9 Installer......

      In order for you to install OS X Mavericks 10.9 onto your target HDD volume partitioned/formatted as MBR/HFS+, you need to use a modified OSInstall.mpkg package and OSInstall Unix executable file in place of the ones that the OS X Mavericks Installer on your bootable GPT USB Flash Drive Installer uses for installing OS X Mavericks to a target HDD volume partitioned/formatted as GPT/HFS+ ......

      I have used as the starting point, the OSInstall.mpkg and OSInstall framework which have been MBR patched for OS X Mavericks by oldnapalm (based on nawcom's preceding work).

      However, I have then modified the OSInstall.mpkg in order to remove the Board-ID and RAM checks, and add some Custom Install Options too.

      verdant Patched oldnapalm MBR Modified OS X Mavericks OSInstall Package.zip

      Step 1. Inserting the verdant patched oldnapalm MBR modified OS X Mavericks OSInstall.mpkg package and the oldnapalm MBR modified OS X Mavericks OSInstall Unix executable file in place of the ones included in the downloaded OS X Mavericks Installer on your bootable GPT USB Flash Drive Installer.

      Download and unarchive

      (i) the Mavericks MBR patch 10.9 GM (13A603) ….the unarchived folder contains the MBR modified OS X Mavericks OSInstall.mpkg package and OSInstall Unix executable file, and

      (ii) the verdant Patched OSInstall.mpkg Mavericks v2.zip file.....the unarchived folder contains the verdant patched oldnapalm MBR modified OS X Mavericks OSInstall.mpkg package.

      The procedure for installing the verdant patched oldnapalm MBR modified OS X Mavericks  OSInstall.mpkg package and the oldnapalm MBR modified OSInstall Unix executable file on your bootable GPT USB Flash Drive Installer in place of the original OS X Mavericks Installer versions is as follows:

      1. Unhide the hidden and systems files on your OS X Mountain Lion USB Flash Drive Installer, named OS X Base System, using Terminal commands or Tinker Tool (see Part C. above)

      2. Go to Terminal and then:

      [1] Either type:
      cd /Volumes/OS\ X\ Base\ System/System/Installation/Packages or type
      cd and press the 'Space Bar', and then having navigated to System, then to Installation, then to Packages, 'drag and drop' the Packages folder into Terminal……

      [2] Type the following:
      sudo mv OSInstall.mpkg OSInstall.mpkg.GPT ls Note that you have now renamed the original file as shown by the 'ls' command…..

      [3] Either type:
      cd /Volumes/OS\ X\ Base\ System/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A or type
      cd and press the 'Space Bar', and then having navigated to System, then to Library, then to PrivateFrameworks, then to Install.framework, then to Frameworks, then to OSInstall.framework, then to Versions, and finally to the A folder, 'drag and drop' the A folder into Terminal……

      [4] Type the following:
      sudo mv OSInstall OSInstall.GPT ls exit Note that you have now renamed the original file as shown by the 'ls' command…..

      ****************************************************

      As a reminder if ever you wish to revert back to the original GPT installer versions......simply rename the original files by removing the .GPT extensions after having renamed the patched files with the .MBR extension, via Terminal:
      cd /Volumes/OS\ X\ Base\ System/System/Installation/Packages sudo mv OSInstall.mpkg OSInstall.mpkg.MBR sudo mv OSInstall.mpkg.GPT OSInstall.mpkg followed by
      cd /Volumes/OS\ X\ Base\ System/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A sudo mv OSInstall OSInstall.MBR sudo mv OSInstall.GPT OSInstall exit ****************************************************

      3. Then either 'drag and drop' the chosen version of OSInstall.mpkg into /Volumes/OS\ X\ Base\ System/System/Installation/Packages .....(or use the 'cp' command via Terminal):
      sudo cp -p -R /Users/"User Name"/Desktop/verdant\ Patched\ oldnapalm\ MBR\ Modified\ OS\ X\ Mavericks\ OSInstall\ Package/OSInstall.mpkg /Volumes/OS\ X\ Base\ System/System/Installation/Packages 4. Then 'drag and drop' OSInstall into /Volumes/OS\ X\ Base\ System/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A......(or use the 'cp' command via Terminal):
      sudo cp -p -R /Users/"User Name"/Desktop/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A/OSInstall /Volumes/OS\ X\ Base\ System/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A 5. Close all windows.......

      6. Now follow Part C. in Post #2 to install OS X Mavericks onto your target HDD volume partitioned/formatted as either GPT/HFS+ or as MBR/HFS+ :


      *************************************************************
×
