JiriBenes Posted November 4, 2009 Share Posted November 4, 2009 Hi can you help me? I need a small tutorial how to install mac os x. I installed from USB drive exacly from there: http://lifehacker.com/5351485/how-to-build...start-to-finish and everything is ok. But if i will install this drivers 965P_DS4_Extra.zip got a kernel panic. Something is wrong. here is my instalation step by step: 1) installation of mac os x retail (from usb drive) 2) install chameleon botloader 3) 3.1) extract 965P_DS4_Extra.zip 3.2) copy extensions and kextutility to desktop -> make a extensions.mkext 3.3) copy extensions folder and new extensions.mkext into Extra (in root of mac os drive) 3.4) use the EfiStudio to get my Geforce 8800 GT 512(G92) xml file => this file paste to com.apple.Boot.plist i think here is the problem, can anyone send here working com.apple.Boot.plist 4) Kernel panic !!!! please help, what is wrong??? Thanks Sorry for my english. :-) btw: My motherboard is GA-965P-DS3 (but its almost the same like DS4) Link to comment Share on other sites More sharing options...
Innerz Posted November 4, 2009 Share Posted November 4, 2009 In my case, both EHCI and UHCI are already recognized as built in but I still dont get wake by mouse and/or keyboardBy the way, my keyboard is the old apple one and it is recognized as USB 1.1 You should compare your .dsl, with some posted here UHCI/EHCI Built in with dsdt fix . (I've a USB 2.0 keyboard, and it's not working. USB 1.1 should). On another side: have you got any idea why a GFX DSDT entry which works on a DSDT.aml if copied and pasted onto your DSDT.aml without graphic section stops working correctly? And by this I mean that at time I lose one of the screens (dual dvi) and QE/CI... Could you post your DSDT.dsl, i'll take a look. 3.4) use the EfiStudio to get my Geforce 8800 GT 512(G92) xml file => this file paste to com.apple.Boot.plist i think here is the problem, can anyone send here working com.apple.Boot.plist You paste the whole .xml ? You only need to paste the HEX string. <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Kernel</key> <string>mach_kernel</string> <key>Timeout</key> <string>8</string> <key>device-properties</key> <string>6c0200000100000001000000600200000d00000002010c00d041030a01000000010106000001 0101060000007fff04001e00000072006f006d002d007200650076006900730069006f006e0000002 e0000006e5669646961204765466f7263652038383030204754204f70656e474c20456e67696e6520 5b4546495d22000000400030002c006400650076006900630065005f00740079007000650000000b0 00000646973706c6179100000004e00560043004100500000001800000004000000000003000c0000 0000000007000000000e0000006e0061006d00650000000b000000646973706c61791400000040003 0002c006e0061006d0065000000120000004e5644412c446973706c61792d41100000006d006f0064 0065006c0000001a0000006e5669646961204765466f72636520383830302047540e0000004e00560 050004d00000020000000010000000000000000000000000000000000000000000000000000001400 0000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d42200000004 00031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d61 63220000005600520041004d002c0074006f00740061006c00730069007a006500000008000000000 0002020000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e56 44412c4e564d616322000000400031002c006400650076006900630065005f0074007900700065000 0000b000000646973706c61791c0000006400650076006900630065005f0074007900700065000000 0f0000004e5644412c506172656e74</string> <key>Graphics Mode</key> <string>1680x1050x32</string> <key>Kernel Flags</key> <string></string> </dict> </plist> Link to comment Share on other sites More sharing options...
Innerz Posted November 5, 2009 Share Posted November 5, 2009 "965P_DS4_Extra.zip" has been updated with a new DSDT.aml. Wake from sleep with USB1.1 Keyboard and/or mouse is now working DSDT.aml.zip Link to comment Share on other sites More sharing options...
tisi Posted November 5, 2009 Share Posted November 5, 2009 try disabling your jmicron if you get a kernel panic (esp. in 64bit)... Link to comment Share on other sites More sharing options...
ila81 Posted November 5, 2009 Share Posted November 5, 2009 @innerz: well done!! I will try it as soon as I get home What did u change? Link to comment Share on other sites More sharing options...
Innerz Posted November 5, 2009 Share Posted November 5, 2009 For each USB device, just add/change the code in RED. Device (USB0) { Name (_ADR, 0x001D0000) Method (_S3D, 0, NotSerialized) { If (LEqual (OSFL, 0x02)) { Return (0x02) } Return (0x03) } Name (_PRW, Package (0x02) { 0x03, One }) } Device (USB0) { Name (_ADR, 0x001D0000) Method (_S3D, 0, NotSerialized) { If (LEqual (OSFL, 0x02)) { Return (0x02) } Return (0x03) } [color="#FF0000"]Method (_DSM, 4, NotSerialized) { Store (Package (0x02) { "device-id", Buffer (0x04) { 0x34, 0x3A, 0x00, 0x00 } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) }[/color] Name (_PRW, Package (0x02) { 0x03, [color="#FF0000"]0x03[/color] }) } Link to comment Share on other sites More sharing options...
ila81 Posted November 5, 2009 Share Posted November 5, 2009 Innerz: you rock It now wakes up on both keypress from keyboard and double click of the mouse! and if I press the power button it goes into sleep..brilliant! Moreover, I was also finally able to add my video card to the DSDT and get QE/CI working together with full dual DVI support...yeaaaaaaaah So I can confirm: this DSDT works fine also for a GA-965P-DS3P v3.3 Great work! Link to comment Share on other sites More sharing options...
ila81 Posted November 6, 2009 Share Posted November 6, 2009 Ok...one minor thing: now the system does not go to sleep automatically. I can put it to sleep, but it is not able to sleep after 5 minutes of inactivity (from the configuration on system energy). It was before the last change On a general topic: it is possible to know if your card has QE/CI enabled: the field is called "Rotation:supported" in snow leopard A stupid question now instead: has anybody had any problem with the system working fine and then doing a sudo reboot from console and the system halts afterwards? I dunno how to exlpain it better but basically it was really...working and rebooting with no problems up to one moment when it instead hangs after having found the wireless card and loaded the NV50HAL...I have 2 installations (which are dd clones of each other) on 2 different hdds: one was used to test changes to the DSDT.aml before applying them. Both of them are stopping at the same point: so i dont think it could be software issue Link to comment Share on other sites More sharing options...
Innerz Posted November 6, 2009 Share Posted November 6, 2009 Ok...one minor thing: now the system does not go to sleep automatically. I can put it to sleep, but it is not able to sleep after 5 minutes of inactivity (from the configuration on system energy). It was before the last change Try with just : Device (USB0) { Name (_ADR, 0x001D0000) Method (_S3D, 0, NotSerialized) { If (LEqual (OSFL, 0x02)) { Return (0x02) } Return (0x03) } Name (_PRW, Package (0x02) { 0x03, [color="#FF0000"]0x03[/color] }) } The remove part is useless i think. Link to comment Share on other sites More sharing options...
JiriBenes Posted November 7, 2009 Share Posted November 7, 2009 You paste the whole .xml ? You only need to paste the HEX string. Hi, thanks for reply. Now works my 8800GT 512 perfectly. But this is not main problem. I installed chameleon with netkas boot. Then copy DSDT and com.apple.Boot.plist from your Extra folder to / and edit com.apple.Boot.plist for my graphic card. If i use extensions.mkext from my usb snow leopard installation system boots up (without audio and network), but if i use your extensions.mkext (generated from kext utility) i got this screen: http://img171.imageshack.us/i/dsc0001tw4.jpg/ i made my installation usb exacly like here: http://lifehacker.com/5351485/how-to-build...start-to-finish What i make wrong?? Where is the problem. I dont understand this: Don't forget either to add your UUID in com.apple.Boot.plist and in the "info.plist" of "PlatformUUID.kext" again sorry for my english .... please help me my mainboard is GA-965p-DS3 but there is diference only in ICH8(DS3) and ICH8R(DS4) Link to comment Share on other sites More sharing options...
Innerz Posted November 7, 2009 Share Posted November 7, 2009 "DSDT.aml" and "com.apple.Boot.plist" must be in the /Extra folder. And you should rebuild the "Extensions.mkext" with the Snow Leopard version of "Kext Utility.app" (v2.3.0) Link to comment Share on other sites More sharing options...
JiriBenes Posted November 7, 2009 Share Posted November 7, 2009 Sorry, i have "DSDT.aml" and "com.apple.Boot.plist" in Extra folder. Now iam not at home, i will check my version of Kext Utility and will write. Link to comment Share on other sites More sharing options...

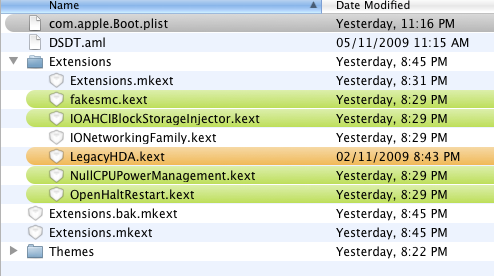

JiriBenes Posted November 7, 2009 Share Posted November 7, 2009 ok my kext utility version is 2.3.2 (this is the latest snow leopard version) ... i generate extensions.mkext from your latest extensions folder ....... then copy Extensions folder and Extensions.mkext file to my /Extra/ folder. If i restart my hackintosh got the same screen like here :-( http://redirectingat.com/?id=292X457&u...c0001tw4.jpg%2F still using your com.apple.Boot.plist and DSDT.aml files. list of my /Extra/ folder: com.apple.Boot.plist DSDT.aml Extensions.mkext Extensions Link to comment Share on other sites More sharing options...
Makimba Posted November 7, 2009 Share Posted November 7, 2009 Boot in verbose (-v), so you could know precisely what's the problem. Link to comment Share on other sites More sharing options...
JiriBenes Posted November 8, 2009 Share Posted November 8, 2009 Hi, if i boot in verbose, i got this screen. Any idea? Link to comment Share on other sites More sharing options...
tisi Posted November 9, 2009 Share Posted November 9, 2009 @JiriBenes maybe issues with your JMICRON IDE? Try disabling it in the BIOS and see if problem remains... Link to comment Share on other sites More sharing options...
Innerz Posted November 9, 2009 Share Posted November 9, 2009 I finally found a "JMicronATA.kext" that works well under Snow Leopard, with the "965P-DS4" motherboard. JMicronATA.kext_x86_x64.zip Link to comment Share on other sites More sharing options...
JiriBenes Posted November 10, 2009 Share Posted November 10, 2009 @Innerz: Thanks, now working perfectly. Link to comment Share on other sites More sharing options...
laatmaarzien Posted November 10, 2009 Author Share Posted November 10, 2009 Blah updated to 10.6.2 and that threw my GEForce 7600GT into a tizzy. Got Kernel panics with GeForce 6.0.6 errors. Link to comment Share on other sites More sharing options...
laatmaarzien Posted November 10, 2009 Author Share Posted November 10, 2009 There were some people who recommended installing an injector, but I replaced the GEForce.kext in /S/L/E with one from 10.6.1 and all works as it should in x64. Link to comment Share on other sites More sharing options...
Innerz Posted November 10, 2009 Share Posted November 10, 2009 No problem at all with the 10.6.2 update. Just have to replace "SleepEnabler.kext". There were some people who recommended installing an injector, but I replaced the GEForce.kext in /S/L/E with one from 10.6.1 and all works as it should in x64. No problem either with 10.6.2 "GEForce.kext" (8800GTS). Link to comment Share on other sites More sharing options...
Zakaria Posted November 15, 2009 Share Posted November 15, 2009 OMG OMG HELP! Im new to hackintosh and I did alot of research and tried to installed one today. I've did everything I could following the tutorial from Lifehacker and abit from here and I got the same screen as JiriBenes. http://img171.imageshack.us/i/dsc0001tw4.jpg/ Im using a 965P DS3. I've followed the tutorial from http://www.timothevs.net/2009/09/03/snow-l...-a-brief-guide/ Only to use these kexts First. OpenHaltRestart.kext NullCPUPowerManagement.kext fakeSMC.kext Im using a 965P DS3 rev 2.2 with a Intel Core2duo E6300 1.8Ghz 4gb dd2 800 rams Leadtek 7900gs one more thing why does the Bios gets stucked at Memory when the USB is plugged in. When taken out then it'll load the bios like usual? Link to comment Share on other sites More sharing options...
akker Posted November 21, 2009 Share Posted November 21, 2009 There were some people who recommended installing an injector, but I replaced the GEForce.kext in /S/L/E with one from 10.6.1 and all works as it should in x64. Hi! I have same problem, but I dont have GEForce.kext from 10.6.1. Is it possible, you can upload it to somewhere? Link to comment Share on other sites More sharing options...
adam23 Posted November 23, 2009 Share Posted November 23, 2009 Thanks for your DSDT! works great with my GA-965P-DS3. But there are 2 things that don't seem to work fine. 1. My internal SATA drives have a orange icon 2. About this Mac shows "Intel Core 2 Solo" but i have a Core 2 Duo someone knows a solution for that ? Link to comment Share on other sites More sharing options...
leopard69 Posted December 10, 2009 Share Posted December 10, 2009 Just come across this thread and been able to successfully install and run Snow Leopard on my v1.0 GA-965P-DS4. Thanks guys! All seems to work but sleep, auto sleep kills the screen but the fans keep spinning, whilst forcing sleep from the menu causes a machine that doesn't wake. Is this typical for the 965-DS4 or are others able to get their Hacks to sleep? Link to comment Share on other sites More sharing options...
