badaxe2 Posted June 24, 2009 Share Posted June 24, 2009 Ok here goes - **update - vanilla kernel works fine, so you can leave the kernels unchecked** Download Iatkos V7 and burn to dvd Boot into your bios and turn all disk options to ahci and turn of all powersaving features on the cpu Boot into Iatkos V7 and press f8 to enter startup option Type without speechmarks "-v cpus=1 busratio=20" and hit enter Open disk utility and partition your disk using GUID (I havent tried MBR maybe its works) Click continue and customize Uncheck everything Now Check the following iAtkos v7 Main System Chameleon V2 Extra Directory DSDT DSMOS 9.7.0 Kernel Voodo APIC Driver Disabler OHR Remove TyMCE AHCI Intel Sata/IDE JMicron Sata/IDE Voodo HDA Driver Realtek R1000 Post Install Actions Click contine and install It will stick for a little while at the beginning of the install whilst it verefies tha packages but just be patient. After about Twenty minutes install will finsish and it will let you reboot. Once rebooted you will be presented with the chameleon loader and you can select Leopard and boot straight into 10.5.7 and follow the setup wizard. All four cores will be working with hyperthreading. This install method gives me a very fast and stable install. All you have to do now is find your graphics drivers. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/ Share on other sites More sharing options...
Royston Koh Posted June 24, 2009 Share Posted June 24, 2009 Ok here goes - Download Iatkos V7 and burn to dvd Boot into your bios and turn all disk options to ahci and turn of all powersaving features on the cpu Boot into Iatkos V7 and press f8 to enter startup option Type without speechmarks "-v cpus=1 busratio=20" and hit enter Open disk utility and partition your disk using GUID (I havent tried MBR maybe its works) Click continue and customize Uncheck everything Now Check the following iAtkos v7 Main System Chameleon V2 Extra Directory DSDT DSMOS 9.7.0 Kernel Voodo APIC Driver Disabler OHR Remove TyMCE AHCI Intel Sata/IDE JMicron Sata/IDE Voodo HDA Driver Realtek R1000 Post Install Actions Click contine and install It will stick for a little while at the beginning of the install whilst it verefies tha packages but just be patient. After about Twenty minutes install will finsish and it will let you reboot. Once rebooted you will be presented with the chameleon loader and you can select Leopard and boot straight into 10.5.7 and follow the setup wizard. All four cores will be working with hyperthreading. This install method gives me a very fast and stable install. All you have to do now is find your graphics drivers. Sweet. I'm gonna try it on Rampage II Extreme. I'm in the process of making a Retail install off my USB HDD then I saw your post. Didn't know v7 was out. Still I'd like to try a retail install (Never done it before) to learn Hopefully it'll work else I'd just use iAtkos Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1184629 Share on other sites More sharing options...
crassy Posted June 25, 2009 Share Posted June 25, 2009 (sorry, my engish skill sucks..) i have a question i did exactly same thing of those typed word but didnt working on my pc .. (i spend all my time .. last night .. now .. i have a red eye ..) -------------------------------------------------------------------------------------------------------------------------------- problem... when i complished install, reboot -> chameleon 2 screen -> and finally apple mark -> and doom .. screen freezed .. , i think problem is my graphic card (4850), so i select ati option before the setup ... and doom again .. my god..... -------------------------------------------------------------------------------------------------------------------------------- my pc info i7 920 d0(3.4ghz) ex58 ud3r ddr3 6gb(Triple) ati 4850 512mb and.. that's all now.. what i can to do .. i have all type of hackintoshi iso images.. am i try to change a KERNEL ? .. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1185396 Share on other sites More sharing options...
guckl Posted June 25, 2009 Share Posted June 25, 2009 Thx badaxe2 - for me its working fine with ur guide on Gigabyte EX58-Extreme - I get OsX installed - however I do not get my grafik card working - neither a Evga 9800GT 512MB , nor a Evga GTS250 512MB Ram. I always get a black screen after the apple boot screen - (I then can remove GFX strings and Natit and then I get it booting without Quartz support ) Tried many installs - with the also with the included NVIDIA GT200 drivers (the Evga and the normal ones) and Natit and DVI-DVI Enablers (gfx-strings) - also changed the gfx-strings as per aquamarks guide . Also tried at first to install without grafic drivers, enablers or injectors and installed NVIDIA_Retail_Mac_Driver_Installer_18.5.2f16.mpkg.zip . Tried also the new Enabler_for_Nvidia_and_multiple_ATI_cards.pkg with and without injector. Also tried the same on my 9800GT ... Further I tried as well my PCI-Express x16 Slot1 and also x16 Slot2 as suggested in one threat by aquamark when he spoke about an other gigabyte board- but also no change (I of course updated the gfxstrings after changing the Slot) In iatkos 5i I got it working, but with an old kernel and a bit buggy - crashed from time to time - when playing 3D games or doing GoogleEarth . So I hoped iAtkos7 will change it- but for now it didnt. (On my other PC with an ASUS P5E-VM D0 with Q35 and ICH9DO v7 works with the 9800gt) Did you get a NVIDIA g92b running with this settings on a Gigabyte X58? And if with what drivers etc-. Please give me a hand - what I could further try - thx in advance. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1185407 Share on other sites More sharing options...
RetroRen Posted June 25, 2009 Share Posted June 25, 2009 sorry, wrong thread - mod please delete Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1185510 Share on other sites More sharing options...
badaxe2 Posted June 25, 2009 Author Share Posted June 25, 2009 I have a gtx 280 and i selected the gt200 update (not the evga one) and i also selected the natit enabler. Sorry i dont know about Amd gpus becaus ive never had one. Thx badaxe2 - for me its working fine with ur guide on Gigabyte EX58-Extreme -I get OsX installed - however I do not get my grafik card working - neither a Evga 9800GT 512MB , nor a Evga GTS250 512MB Ram. I always get a black screen after the apple boot screen - (I then can remove GFX strings and Natit and then I get it booting without Quartz support ) Tried many installs - with the also with the included NVIDIA GT200 drivers (the Evga and the normal ones) and Natit and DVI-DVI Enablers (gfx-strings) - also changed the gfx-strings as per aquamarks guide . Also tried at first to install without grafic drivers, enablers or injectors and installed NVIDIA_Retail_Mac_Driver_Installer_18.5.2f16.mpkg.zip . Tried also the new Enabler_for_Nvidia_and_multiple_ATI_cards.pkg with and without injector. Also tried the same on my 9800GT ... Further I tried as well my PCI-Express x16 Slot1 and also x16 Slot2 as suggested in one threat by aquamark when he spoke about an other gigabyte board- but also no change (I of course updated the gfxstrings after changing the Slot) In iatkos 5i I got it working, but with an old kernel and a bit buggy - crashed from time to time - when playing 3D games or doing GoogleEarth . So I hoped iAtkos7 will change it- but for now it didnt. (On my other PC with an ASUS P5E-VM D0 with Q35 and ICH9DO v7 works with the 9800gt) Did you get a NVIDIA g92b running with this settings on a Gigabyte X58? And if with what drivers etc-. Please give me a hand - what I could further try - thx in advance. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1185553 Share on other sites More sharing options...
AppleIIGuy Posted June 26, 2009 Share Posted June 26, 2009 Why Voodoo 10.5.7? Vanilla 10.5.7 Kernel works with Core i7 just fine Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1186071 Share on other sites More sharing options...
badaxe2 Posted June 26, 2009 Author Share Posted June 26, 2009 Why Voodoo 10.5.7?Vanilla 10.5.7 Kernel works with Core i7 just fine Vanilla kernel is {censored} :-) Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1186102 Share on other sites More sharing options...
efluon Posted June 26, 2009 Share Posted June 26, 2009 Vanilla kernel is {censored} :-) why is that? Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1186221 Share on other sites More sharing options...
guckl Posted June 29, 2009 Share Posted June 29, 2009 I have a gtx 280 and i selected the gt200 update (not the evga one) and i also selected the natit enabler. Sorry i dont know about Amd gpus becaus ive never had one. Thank you badaxe2 - I found the error- although I am a bit ashamed, but I guess its good to tell you in case someone has same problem. My Monitor Samsung TFT 2493HM was not able to display the standard resoltion and I guess especially the refresh rate... I guess that was the cause that I always got a black screen ... what it fixed it for me was that I set the boot resolution in /Library/Preferences/SystemConfiguration/com.apple.boot.plist <key>Graphics Mode</key> <string>1024x768x32</string> and in OsX I was able to set 1900x1200x32 @60Hz and now all is working fine- thank you very much for the guide ... Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1187925 Share on other sites More sharing options...
krypto Posted June 29, 2009 Share Posted June 29, 2009 I tried the exact same steps except - I didnt choose Voodoo Kernel. (Hence Vanilla Kernel installed ) I got a kernel panic saying CPU not configured properly! Am on a Gigabyte EX-58-UD5 board. Any one got Vanilla Kernel working? ok just booted off iatkos dvd and installed only the Voodoo kernel and this works...... Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1188215 Share on other sites More sharing options...
edy paredes Posted June 29, 2009 Share Posted June 29, 2009 wow thx found perfect gigabite x58 ud5 run faster and chameleon boot v2 perfect Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1188373 Share on other sites More sharing options...

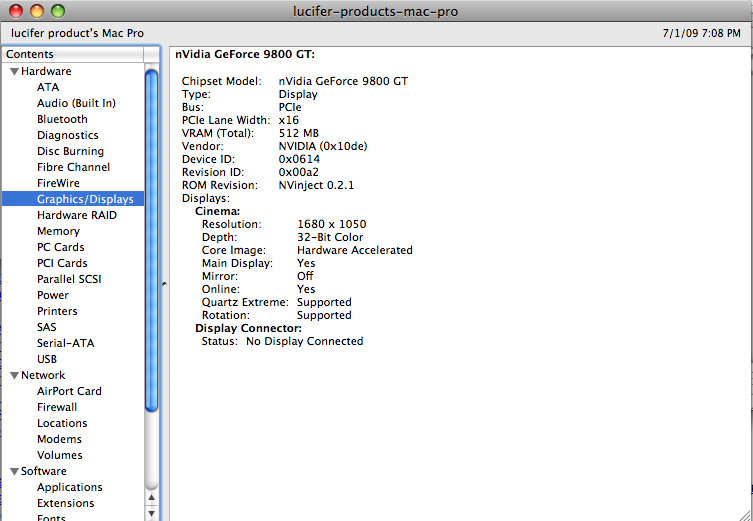

lucifer_product Posted July 1, 2009 Share Posted July 1, 2009 Thx Ask you 1 question , Badaxe2 Do you try TimeMachine ? I haven't succeed in TimeMachine setup in iAtkos V7 ( but no problem in iDeneb 10.5.6 ) My board is ASUS P5K-E that almostly compatible and nearly completely run OSx86 esp iDeneb 10.5.6 ( only sleep is main problem and forever proplem in iAtkos. For nVidia 9800GT, I use DVI/DVI and old Enerbler as NVinjected ,it works well Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1189828 Share on other sites More sharing options...
badaxe2 Posted July 1, 2009 Author Share Posted July 1, 2009 Time machine doesnt work for me, no idea why something about cant find network adapter, if anybody has succes let me know how you got it to work. I got my gtx 280 working by installing the evga package and then then installing netkas latest enabler. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1190032 Share on other sites More sharing options...
oasked Posted July 1, 2009 Share Posted July 1, 2009 Ok here goes - Download Iatkos V7 and burn to dvd Boot into your bios and turn all disk options to ahci and turn of all powersaving features on the cpu Boot into Iatkos V7 and press f8 to enter startup option Type without speechmarks "-v cpus=1 busratio=20" and hit enter Open disk utility and partition your disk using GUID (I havent tried MBR maybe its works) Click continue and customize Uncheck everything Now Check the following iAtkos v7 Main System Chameleon V2 Extra Directory DSDT DSMOS 9.7.0 Kernel Voodo APIC Driver Disabler OHR Remove TyMCE AHCI Intel Sata/IDE JMicron Sata/IDE Voodo HDA Driver Realtek R1000 Post Install Actions Click contine and install It will stick for a little while at the beginning of the install whilst it verefies tha packages but just be patient. After about Twenty minutes install will finsish and it will let you reboot. Once rebooted you will be presented with the chameleon loader and you can select Leopard and boot straight into 10.5.7 and follow the setup wizard. All four cores will be working with hyperthreading. This install method gives me a very fast and stable install. All you have to do now is find your graphics drivers. Brilliant! After months of no success with OSX, I'm finally running it with no problems at all! Even my 8800GT works first time. I just used the default latest nVidia driver that came on the dvd (i.e. I checked the box for the latest one, can't remember what it was called - but it mentions that its the latest one). I'm currently running the following hardware: Intel i7 920 Gigabyte EX58-UD5 Corsair 6Gb DDR3 Seagate 7200.10 320Gb SATA drive IDE DVD-RW (NEC 3550) Thanks for the advice again. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1190211 Share on other sites More sharing options...
lucifer_product Posted July 2, 2009 Share Posted July 2, 2009 Time machine doesnt work for me, no idea why something about cant find network adapter, if anybody has succes let me know how you got it to work. I got my gtx 280 working by installing the evga package and then then installing netkas latest enabler. Thx a lot I'd try it with old patch but not success. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1190356 Share on other sites More sharing options...
badaxe2 Posted July 2, 2009 Author Share Posted July 2, 2009 Would like to know how to get cuda enabled, i have the evga package installed with latest netkas enabler, i have downoaded the cuda package from nvidia and the cuda profiler but it tells me there in no cuda hardware available. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1190458 Share on other sites More sharing options...
VAD3R1 Posted July 6, 2009 Share Posted July 6, 2009 HI there Badaxe2 & guys, I successfully installed my system, Iatkos V7, Chameleon v2 I7 920, EX58 - UD3R Patriot Dominator ram 1600 - 6GB DDR3 EVGZ 9800 GX2 ( installed via NV dvi/dvi and NATIT Driver ) shows up correct in About mac as 2 separate GX2 cards! 500Gb seagate Drive sound works ok, but driver shows as Unknown. 1. When I Change resolution on my Display .. the kernel changes the resolution then crashes, once i reboot its ok! Is this because the display is set wrong, or is this more of a Video card issue ? 2. In the About Mac it shows up as a MAC pro 2.1 ... not 4.1 ??? bus speed is running 550 mhz ? and ram is running at 667 mhz .... Any ideas on how to get the Fsb up maybe to 800 or more ? Also would be nice to get the ram running at about 1066 at least ? is this possible to boost ? cheers for any Ideas ? Also any other sound drivers that work better for ALC888 ? cheers for your replies :pirate2: Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1193478 Share on other sites More sharing options...
Keith Monday Posted July 6, 2009 Share Posted July 6, 2009 Ok here goes - **update - vanilla kernel works fine, so you can leave the kernels unchecked** Download Iatkos V7 and burn to dvd Boot into your bios and turn all disk options to ahci and turn of all powersaving features on the cpu Boot into Iatkos V7 and press f8 to enter startup option Type without speechmarks "-v cpus=1 busratio=20" and hit enter Open disk utility and partition your disk using GUID (I havent tried MBR maybe its works) Click continue and customize Uncheck everything Now Check the following iAtkos v7 Main System Chameleon V2 Extra Directory DSDT DSMOS 9.7.0 Kernel Voodo APIC Driver Disabler OHR Remove TyMCE AHCI Intel Sata/IDE JMicron Sata/IDE Voodo HDA Driver Realtek R1000 Post Install Actions Click contine and install It will stick for a little while at the beginning of the install whilst it verefies tha packages but just be patient. After about Twenty minutes install will finsish and it will let you reboot. Once rebooted you will be presented with the chameleon loader and you can select Leopard and boot straight into 10.5.7 and follow the setup wizard. All four cores will be working with hyperthreading. This install method gives me a very fast and stable install. All you have to do now is find your graphics drivers. This is the best install I have had since V1 now if I could just get it to start without having the disk in the drive that would be great Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1193675 Share on other sites More sharing options...
bossent20 Posted July 9, 2009 Share Posted July 9, 2009 Hi thank you for the help on this I have one problem however... After successful installation using the exact same settings you have guided us to use in the list; everything shows just fine OS 10.5.7 installed perfectly, my graphics card is just great, with everything showing up in the mac info window. im using the gtx 275 i followed all steps, but as soon as I select the update the OS, it installs fine, but upon restart this is what happens: the apple splash screen loads fine as it is about to go into the OS but then a blank screen appears (black) shortly after this only the mouse cursor appears onscreen and is movable then the screen turns light blue and the usual loading multicoloured circle appears on this blue screen it stays this way forever i do not know why it does this i tried many installs now. i have tried with default kernels and een the voodoo kernels it keeps doing the same thing any ideas please would greatly appreciate the help many thanks PS - to try and fix the issue i went into bios on my ud5 m/b and disabled AHCI this made OS X boot up once again after the update but upon a new retsart of the system it went back to that blank halt screen, then blue screen, etc... please can ANYONE help on this. greatly appreciate it. oh, and i selected the netat enabler for the gtx 200 card upon installation. when i selected only the gtx driver by itself the system would not work. thank you Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1196394 Share on other sites More sharing options...
bossent20 Posted July 9, 2009 Share Posted July 9, 2009 anyone that can help please? been trying this all day now must have gone through 12 installs already i keep getting the blank screens after first retsart of successfull OS installation first time bootup into OSX works fine and all drivers for GPu and Sound seem to work but the first restart messes things up anyone that can help on this please? i am using the same mobo and gpu as most of you i have practially the same system. corei7 gtx 275 6gb corsair ram thank you for any help Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1196517 Share on other sites More sharing options...
fernandogerman Posted July 19, 2009 Share Posted July 19, 2009 Thanks for the post I follow the steps.....everything when smooth and work except for the audio. I did like seven system install, working around the sounds kexts. Using the included voodoo hda... and not installing any driver at all for the sound and trying to resolve de sound post instalation. Using the included voodoo audio drivers i got audio support in que sound control panel, but no real audio output (try headsed, digital out....) nothing worked. my system is just like the one in the post. X58 UD3R i7 920 6gb DDR OCZ OCZ3G1333LV6GK 4870 Vapor-X I could by an imic and solve the sound problem, but i have been using hackintosh for almost two years without that little device, i think i would be a matter of time to solve the sound issue or maybe i am doing something wrong in the installation... If someone have some information let me know, thanks a lot Fernando Germán ps Sorry for my english... Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1204069 Share on other sites More sharing options...
tonik23 Posted July 26, 2009 Share Posted July 26, 2009 thanks for the tutorial. I can confirm that this works on mu UD5. Cheers Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1209525 Share on other sites More sharing options...
Gespenst Posted July 31, 2009 Share Posted July 31, 2009 So, what about sound and lan, do they work out of the box? Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1214349 Share on other sites More sharing options...
hobhayward Posted August 1, 2009 Share Posted August 1, 2009 Should if you have a UD3R. You install the proper kext's etc. during the custom install. I have a completely separate question though. I have an asrock x58 extreme. I followed this guide to a certain point (tried a few differences in sound and stuff seeing as the audio, and LAN chipsets are different, I figure that can be dealt with later). The real problem though is that after the install it refuses to boot without cpus=1 busratio=20. Any ideas on ways to fix that, because it's really all I need to get working. Link to comment https://www.insanelymac.com/forum/topic/172097-how-to-working-1057-on-ex58-ud3r-with-iatkos-v7/#findComment-1214957 Share on other sites More sharing options...
