Hi,

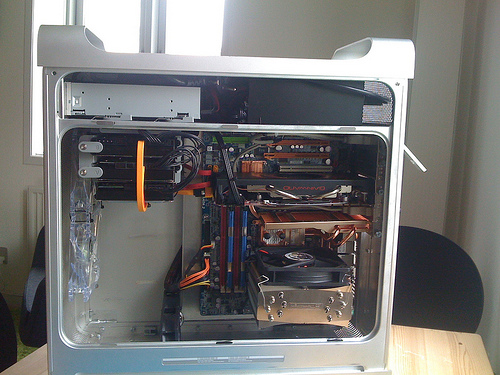

Just what to share my photos of my Hackintosh mod. the front panel works also :hysterical:



Spec:

PowerMac G5 Case

Intel Q9550 2.81 (Speedstep)

GA-EP45T-Extreme (Intel P45, ICH10R, ALC889a(DSDT patch), Realtek 8111C(Bonjour fix)

4Gb DDR3 1333Mhz

500Gb(system) + 320Gb(Windows)

GeForce 9800GTX+ (EFI String)

Retail OSX 10.6.4(64Bit) + Chameleon 2 RC4



To come:

SAS disks, need the controller

Infrared





Photos: http://www.flickr.com/photos/ilovecode/set...4562487/detail/



My Extra folder v1 (SL 10.6.1 - 64/32bit - bonjour fix(only in 32Bit)):

Extra_2.zip

My Extra folder v2 (SL 10.6.2 - 64bit - Bonjour fix, CPU Throttle ):

Extra.zip


Link to comment
https://www.insanelymac.com/forum/topic/170112-powerhack-g5/
Share on other sites

  • 3 weeks later...

some more pic.



The back of the case.

It's missing the power plug but put it where its normal will be.







Used an lian li motherboard tray






My disksbay

The to front fans is strip the the HD cage to provent redundancy




Here you can se the small rubber rings


  • 1 month later...

which PSU are you using??? and would most standard PSU's fit because i am just about to get a case, and am just clearing up little details...





I have seen the Antec Phantom 500W on macmaniac's mod... Do you think that would suffice?



I plan on using my existing EP45-UD3 sig rig with either my thermaltake 480W PSU, if it were to fit, or a new one!, with either the mobo tray linked in this thread, or the one with the fan hole incorporated!



http://www.performance-pcs.com/catalog/ind...oducts_id=21886





Thanks





BTW, your mod is nice, and looks simple to do...

which PSU are you using??? and would most standard PSU's fit because i am just about to get a case, and am just clearing up little details...





I have seen the Antec Phantom 500W on macmaniac's mod... Do you think that would suffice?



I plan on using my existing EP45-UD3 sig rig with either my thermaltake 480W PSU, if it were to fit, or a new one!, with either the mobo tray linked in this thread, or the one with the fan hole incorporated!



http://www.performance-pcs.com/catalog/ind...oducts_id=21886





Thanks





BTW, your mod is nice, and looks simple to do...



The psu i use is a "NorthQ - NQ-4775-650-FLEX, 650 Watt" Dimensions:150*86*160mm(W*H*L)

Its a real tight fit so there is no need to tape, screw the psu in place, its held by the top of the case and the plate inside the case



Hmm I think the motherboard try you link to might be to width. but don't have proff.



but look at my backplate its all most the hole width of the case

i think you are right about the mobo tray being too wide. It appears to be 2.5 to 3 cm wider...



Your PSU appears to be almost the same size as my Thermaltake 430NP-A2... but i need a new PSU anyway... Would you be able to roughly measure that empty space near the front of the case? i could end up putting my current one there until i get another one.



Thanks a lot!

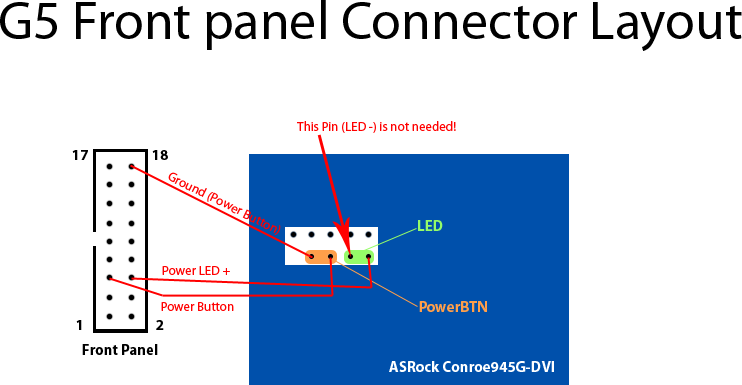

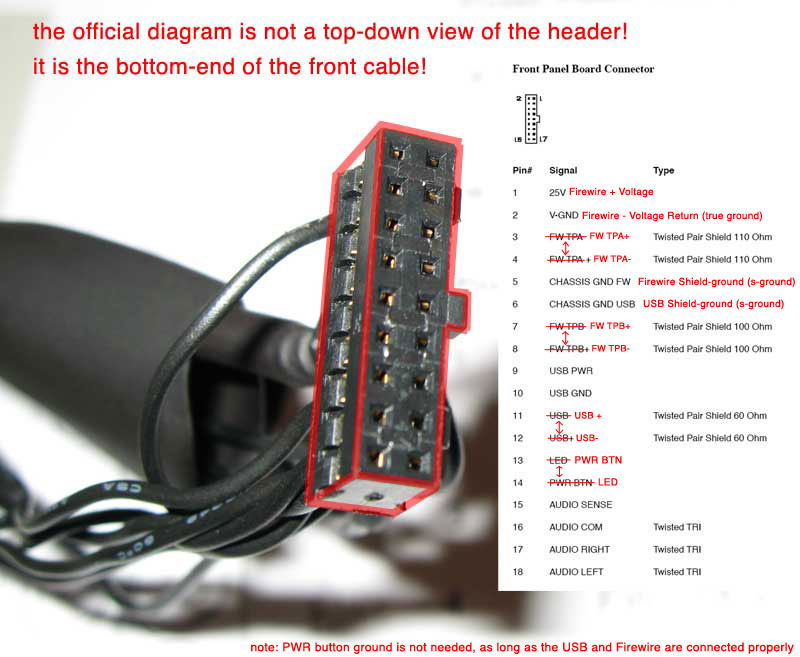

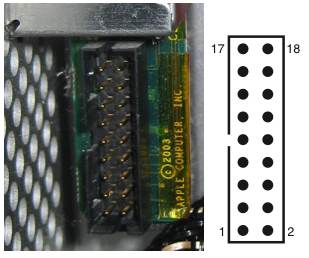

Also, how did you get the front panel / headers to work.... Is there a guide here?

i think you are right about the mobo tray being too wide. It appears to be 2.5 to 3 cm wider...



Your PSU appears to be almost the same size as my Thermaltake 430NP-A2... but i need a new PSU anyway... Would you be able to roughly measure that empty space near the front of the case? i could end up putting my current one there until i get another one.



Thanks a lot!





Also, how did you get the front panel / headers to work.... Is there a guide here?



Hi,



I'm not sure what space we a talking about ?

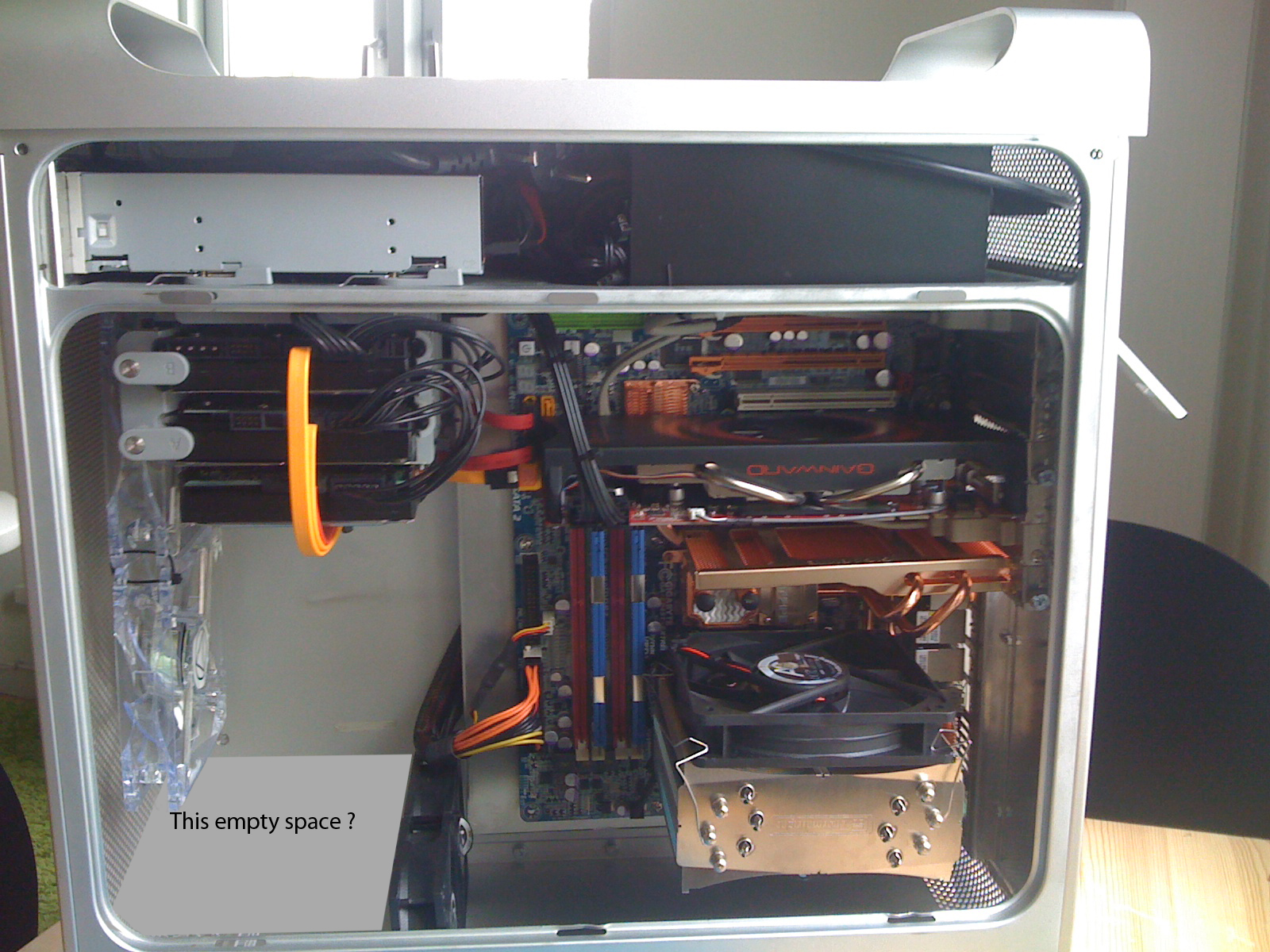

Is it this ?

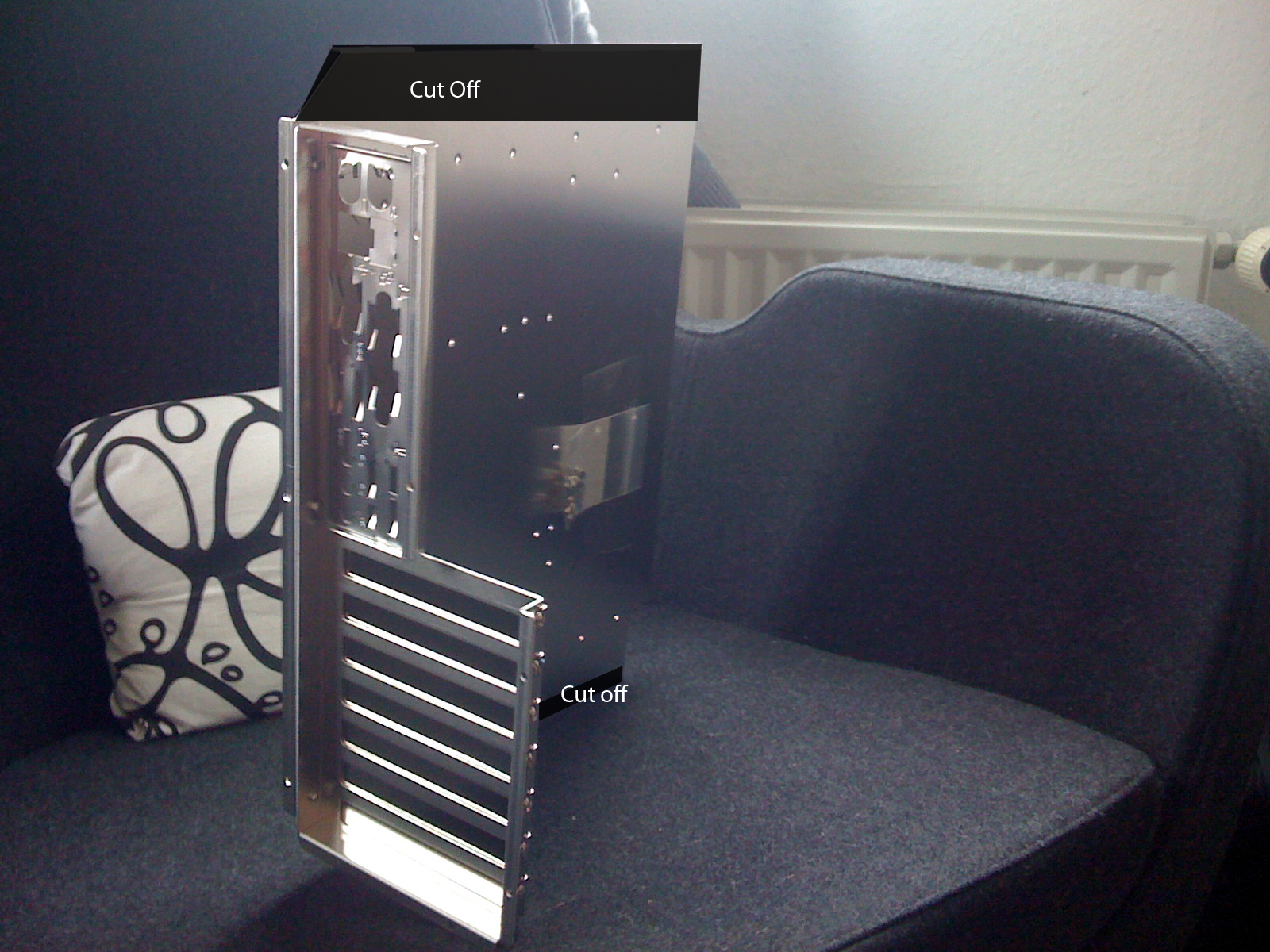

Also the tray to get it to fit you have to cut this off.


Hi.

Nice work. I am, myself, looking to do something very similar. One question - did you have to modify the Lian-Li motherboard tray at all or did you use it as you bought it?



Thanks



Read :)



http://www.insanelymac.com/forum/index.php...t&p=1226607



I made the Alu backplate my self out of 0.8mm Alu

×
×
