AlainTox714 Posted November 5, 2008 Share Posted November 5, 2008 UPDATE: v3 release I guess the Layout is not the best for this Codec so i swap to LayoutID 2 and PathMapID 1 for v3 release. IMPORTANT: REMOVE the old HDAEnabler.kext and use the new one. the new one use a different Layout. STAC9227.v3.zip UPDATE: v2 release v2 Will normaly display correct labels in Audio System Preferences and in Audio System Profiler. STAC9227.v2.zip STAC9227 codec is used by: - DQ965GF - DQ965CO - DG965MS - DG965SS - DP965LT - DQ963FX - D946GZAB - D946GZTS - D946GZIS Intel Motherboards and should works with its. What i will try to get is a fully working codec: - Selection between Outputs: Headphone (front) and Line Out (rear). - Selection between Inputs: Microphone and Line In. - Mute button. - Complete report in Audio System Profiler. Currently you will have erroneous label in Audio System Preferences, but selection is working*. Only a very concise report* in Audio System Profiler (3 lines). Normally you will have Microphone, Line In and Headphones working*. * Tested by wayover, thanks to him. Check if you are using another AUDIO injector like EFI strings or ALCinject and remove it otherwise it will not works. If you are using HDAEnabler.kext REMOVE IT and use the new one (different LayoutID). AppleHDA.kext version is 1.2.4a21 from 10.4.9 and MUST stay in S/L/E otherwise it won't works. If someone like to try here is the first release for test: STAC9227.v1_toTest.zip Please report as i didn't own any of these mobos,i can't obviously test it. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/ Share on other sites More sharing options...
krrr Posted November 5, 2008 Share Posted November 5, 2008 I wonder if this will work from my Custom Desktop 945GMX board (details in sig) and HP laptop For Internal MIC . Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-956127 Share on other sites More sharing options...
AlainTox714 Posted November 5, 2008 Author Share Posted November 5, 2008 I wonder if this will work from my Custom Desktop 945GMX board (details in sig) and HP laptop For Internal MIC . Sorry definitely not, 945GMX board use Realtek ALC888 audio codec. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-956218 Share on other sites More sharing options...
RogerSt Posted November 6, 2008 Share Posted November 6, 2008 How to me to connect the headphones, what contacts need to be used for connection? thankful in advance Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-957194 Share on other sites More sharing options...
AlainTox714 Posted November 6, 2008 Author Share Posted November 6, 2008 How to me to connect the headphones, what contacts need to be used for connection? thankful in advance I am talking about the first pick (yellow one) [5] = Headphone Right. [7] = ground shield common left and right. [9] = Headphone Left. for the second pick don't know as i have never use it. here is what the doc says: Connecting to the HD Audio Link Header See Figure 22, A for the location of the HD Audio Link header. Table 9 shows the pin assignments for the header. Table 11. HD Audio Link Header Signal Names Pin Signal Name Pin Signal Name 1 BLCK 2 Ground 3 RST 4 3.3V/1.5V I/O 5 SYNC 6 Ground 7 SDO 8 3.3V_CORE 9 SDI 10 +12V 11 No connection 12 Key (no pin) 13 No connection 14 3.3V/1.5V STBY 15 No connection 16 Ground Hope this help. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-957249 Share on other sites More sharing options...
RogerSt Posted November 7, 2008 Share Posted November 7, 2008 I am talking about the first pick (yellow one) [5] = Headphone Right. [7] = ground shield common left and right. [9] = Headphone Left. for the second pick don't know as i have never use it. here is what the doc says: Connecting to the HD Audio Link Header See Figure 22, A for the location of the HD Audio Link header. Table 9 shows the pin assignments for the header. Table 11. HD Audio Link Header Signal Names Pin Signal Name Pin Signal Name 1 BLCK 2 Ground 3 RST 4 3.3V/1.5V I/O 5 SYNC 6 Ground 7 SDO 8 3.3V_CORE 9 SDI 10 +12V 11 No connection 12 Key (no pin) 13 No connection 14 3.3V/1.5V STBY 15 No connection 16 Ground Hope this help. i will try later, quality of a sound will be different? Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-958189 Share on other sites More sharing options...
wayover Posted November 9, 2008 Share Posted November 9, 2008 i tested STAC9227.v1_toTest.zip in GarageBand, work fine! It is necessary to correct appearance in settings only. Thanks Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-960080 Share on other sites More sharing options...
AlainTox714 Posted November 10, 2008 Author Share Posted November 10, 2008 i tested STAC9227.v1_toTest.zip in GarageBand, work fine! It is necessary to correct appearance in settings only. Thanks Look at post#1 please v2 is out. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-960747 Share on other sites More sharing options...
wayover Posted November 10, 2008 Share Posted November 10, 2008 There is a question on frequency. Whether really it works with frequency 96kHz 24 bit output? Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-961114 Share on other sites More sharing options...

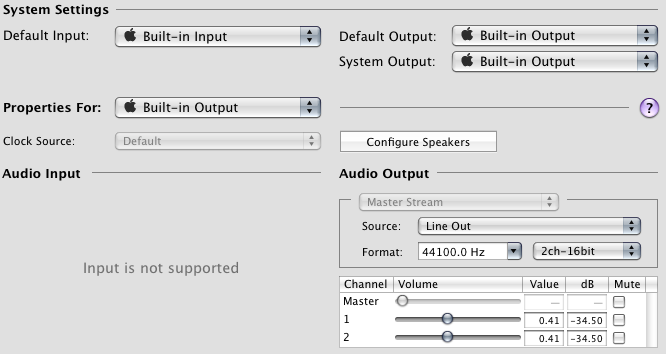

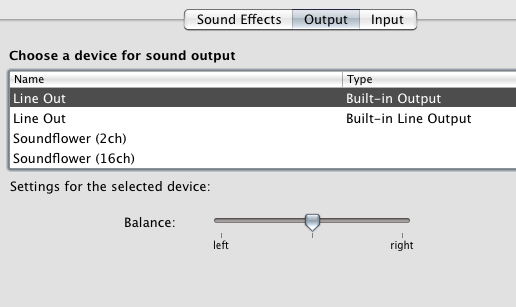

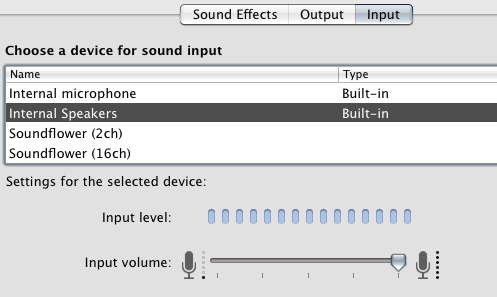

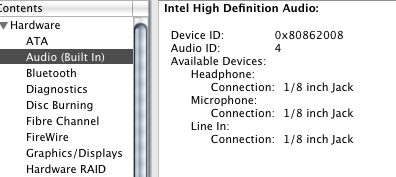

wayover Posted November 10, 2008 Share Posted November 10, 2008 Subjectively, it became better sound, has varied positions of a toddler of loudness in the big side. Mute button, mic, line-in work! HDAEnabler work too, now shows in system profiler headphone, mic and linein connection. In system options on Input tab when the cursor is on LineInput (InternalSpeakers?), it is visually visible that passes a signal from a microphone if to speak. On record it is not audible.. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-961231 Share on other sites More sharing options...

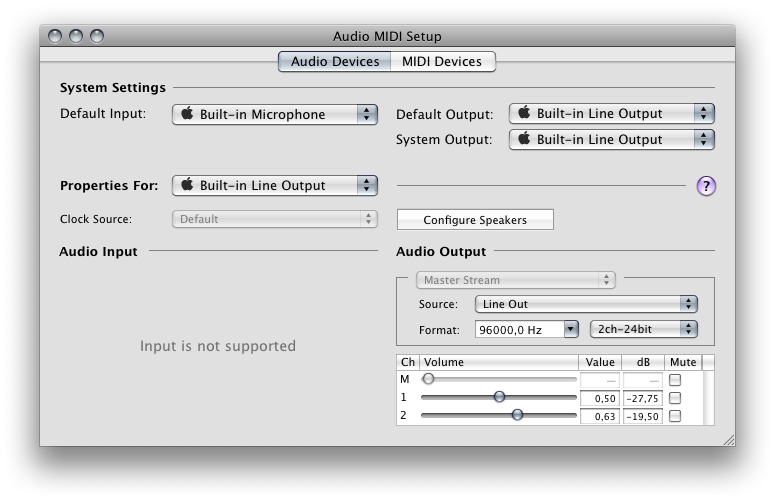

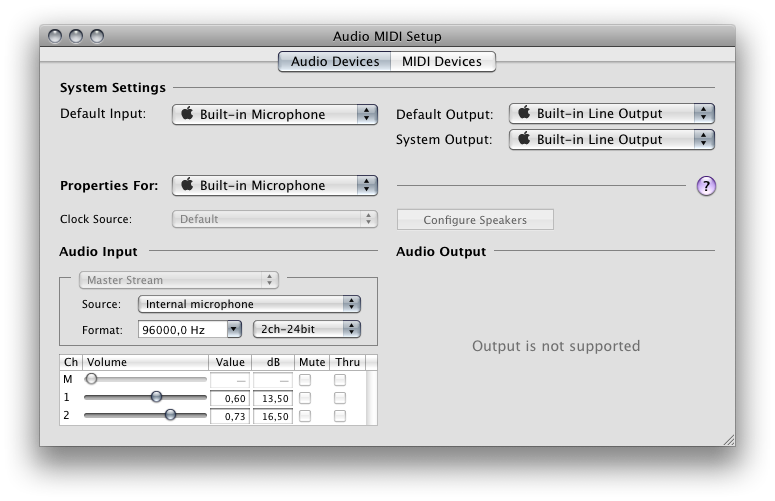

AlainTox714 Posted November 10, 2008 Author Share Posted November 10, 2008 There is a question on frequency. Whether really it works with frequency 96kHz 24 bit output? I guess so, but can test as i don't use and have any Midi device. Here are the pic's of my BadAxe2: On both pic's Input and Output 96Khz 24 bits are available. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-961509 Share on other sites More sharing options...
c0lt Posted November 10, 2008 Share Posted November 10, 2008 Thank you very much for your help... Merci beaucoup Now i have sound... Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-961632 Share on other sites More sharing options...
wayover Posted November 12, 2008 Share Posted November 12, 2008 UPDATE: v3 release I guess the Layout is not the best for this Codec so i swap to LayoutID 2 and PathMapID 1 for v3 release. IMPORTANT: REMOVE the old HDAEnabler.kext and use the new one. the new one use a different Layout. Attached File STAC9227.v3.zip ( 288.19K ) Number of downloads: 9 v3 doesn't work for me Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-963470 Share on other sites More sharing options...
AlainTox714 Posted November 12, 2008 Author Share Posted November 12, 2008 v3 doesn't work for me Sorry, but what is not working? Can you upload as usual some pics please. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-963623 Share on other sites More sharing options...
wayover Posted November 12, 2008 Share Posted November 12, 2008 im try in leo and tiger, in system pref no input/output devices. System profiler also zero connections, but in logs: localhost kernel[0]: HDAEnabler: Copyright (c) 2008 by Kabyl localhost kernel[0]: HDAEnabler: Added SPAudio support LayoutID:2 kexstat: 69 0 0x3f7d6000 0x4b000 0x4a000 com.apple.driver.AppleHDA (1.2.4a21) <67 63 5 4 3 2> Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-963652 Share on other sites More sharing options...
AlainTox714 Posted November 12, 2008 Author Share Posted November 12, 2008 im try in leo and tiger, in system pref no input/output devices. System profiler also zero connections, but in logs: localhost kernel[0]: HDAEnabler: Copyright (c) 2008 by Kabyl localhost kernel[0]: HDAEnabler: Added SPAudio support LayoutID:2 kexstat: 69 0 0x3f7d6000 0x4b000 0x4a000 com.apple.driver.AppleHDA (1.2.4a21) <67 63 5 4 3 2> OK thanks, will try to figure out where i did a mistake! Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-963699 Share on other sites More sharing options...
dnoyeb Posted November 12, 2008 Share Posted November 12, 2008 Not sure what I'm doing wrong here so i figured I'd post... I'm building out a new quad core with a a DQ965GF motherboard... The only thing that I seem to be lacking is the sound.. So, I got v3, used Kext Helper B7, did both KEXT's at the same time in there, rebooted... now in "about this mac" under audio, it says Device ID 0x80862008 audio id: 4 and then Availible devices, it has nothing. On my other hackintoshs, my normal sound test is to change the volume and listed for the beep... I am not getting any sound from any ports on this unit. So, I also tried v2, installed both KEXT files with KEXT helper, still a no go after reboot. am I missing something obvious? with all my other hackintoshes, the audio just happened to work, so this wasn't a big issue... Any help you guys can give is mucho appreciated. btw, using a brand new install of itakos 4.1i 10.5.4. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-963993 Share on other sites More sharing options...
AlainTox714 Posted November 13, 2008 Author Share Posted November 13, 2008 Not sure what I'm doing wrong here so i figured I'd post... I'm building out a new quad core with a a DQ965GF motherboard... The only thing that I seem to be lacking is the sound.. So, I got v3, used Kext Helper B7, did both KEXT's at the same time in there, rebooted... now in "about this mac" under audio, it says Device ID 0x80862008 audio id: 4 and then Availible devices, it has nothing. On my other hackintoshs, my normal sound test is to change the volume and listed for the beep... I am not getting any sound from any ports on this unit. So, I also tried v2, installed both KEXT files with KEXT helper, still a no go after reboot. am I missing something obvious? with all my other hackintoshes, the audio just happened to work, so this wasn't a big issue... Any help you guys can give is mucho appreciated. btw, using a brand new install of itakos 4.1i 10.5.4. Check if you are using another AUDIO injector like EFI strings or ALCinject and remove it otherwise it will not works. Go with v2 forgot v3 it's not working. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-964169 Share on other sites More sharing options...
AlainTox714 Posted November 24, 2008 Author Share Posted November 24, 2008 Hi everyone, I like to go further and have a working 10.5.x AppleHDA.kext working but i need some help. I am looking for ioreg dump of MacBook pro 1st generation and 2sd generation with Sigmatel STAC9221 Codec. I mean a full dump with in terminal: ioreg -lw0 > ~/Desktop/MacbookXXX.txt If someone can get this i will be very grateful to him. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-976410 Share on other sites More sharing options...
wayover Posted November 25, 2008 Share Posted November 25, 2008 i'm find only STAC9220 http://forum.insanelymac.com/index.php?act...st&id=14407 http://forum.insanelymac.com/index.php?act...st&id=14404 Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-977115 Share on other sites More sharing options...
valearc Posted November 25, 2008 Share Posted November 25, 2008 Thanks but my sound dont work i use 3 zip files but no one run correctly UPDATE: v3 release I guess the Layout is not the best for this Codec so i swap to LayoutID 2 and PathMapID 1 for v3 release. IMPORTANT: REMOVE the old HDAEnabler.kext and use the new one. the new one use a different Layout. STAC9227.v3.zip UPDATE: v2 release v2 Will normaly display correct labels in Audio System Preferences and in Audio System Profiler. STAC9227.v2.zip STAC9227 codec is used by: - DQ965GF - DQ965CO - DG965MS - DG965SS - DP965LT - DQ963FX - D946GZAB - D946GZTS - D946GZIS Intel Motherboards and should works with its. What i will try to get is a fully working codec: - Selection between Outputs: Headphone (front) and Line Out (rear). - Selection between Inputs: Microphone and Line In. - Mute button. - Complete report in Audio System Profiler. Currently you will have erroneous label in Audio System Preferences, but selection is working*. Only a very concise report* in Audio System Profiler (3 lines). Normally you will have Microphone, Line In and Headphones working*. * Tested by wayover, thanks to him. Check if you are using another AUDIO injector like EFI strings or ALCinject and remove it otherwise it will not works. If you are using HDAEnabler.kext REMOVE IT and use the new one (different LayoutID). AppleHDA.kext version is 1.2.4a21 from 10.4.9 and MUST stay in S/L/E otherwise it won't works. If someone like to try here is the first release for test: STAC9227.v1_toTest.zip Please report as i didn't own any of these mobos,i can't obviously test it. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-977145 Share on other sites More sharing options...
AlainTox714 Posted November 25, 2008 Author Share Posted November 25, 2008 i'm find only STAC9220http://forum.insanelymac.com/index.php?act...st&id=14407 http://forum.insanelymac.com/index.php?act...st&id=14404 Thank's for trying, i already look around in forum and on the net and didn't find anything, what i am looking for is MacBook2,1, macbook3,1 din't use sigmatel. So if you have a friend which own a macbook which fit that should be OK. Thanks but my sound dont work i use 3 zip files but no one run correctly More info please what mobo what OSX revision and so on, i am in the dark and can't help, read the forum i often ask different reports and see which one you could provide. Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-977255 Share on other sites More sharing options...
wayover Posted November 25, 2008 Share Posted November 25, 2008 Thank's for trying, i already look around in forum and on the net and didn't find anything, what i am looking for is MacBook2,1, macbook3,1 din't use sigmatel. So if you have a friend which own a macbook which fit that should be OK. sorry, i see "AppleHDAWidgetSTAC9220" strings in body, incorrect way.. MA609LL, MA610LL, MA611LL in them this codec is established? Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-977264 Share on other sites More sharing options...
AlainTox714 Posted November 25, 2008 Author Share Posted November 25, 2008 sorry, i see "AppleHDAWidgetSTAC9220" strings in body, incorrect way..MA609LL, MA610LL, MA611LL in them this codec is established? Thank's for helping. notice that AppleHDAWidgetSTAC9220 is 0 "AppleHDAWidgetSTAC9220"=0 if you look further: +-o IOHDACodecDevice@0 <class IOHDACodecDevice, registered, matched, active, busy 0, retain 6> | | | | { | | | | "IOHDACodecVendorID" = 283904133 | | | | "IOHDACodecRevisionID" = 1048835 IOHDACodecVendorID is 283904133 and that is Realtek Codec. What we are looking for is (STAC9220): decimal -2088470912 2206496384 hex 0x83847680 Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-977694 Share on other sites More sharing options...
wayover Posted November 26, 2008 Share Posted November 26, 2008 http://cruzdrew.googlepages.com/mini.html ? Link to comment https://www.insanelymac.com/forum/topic/134879-intel-hda-audio-codec-stac9227-for-dq965xx-dp965lt-dq963fx-d946gzxx-intel-board-sound-working-micheadphone/#findComment-978570 Share on other sites More sharing options...
