fatalbert18 Posted March 21, 2006 Share Posted March 21, 2006 This will be my first time building an Intel computer with SSE3 and I just want to know if this motherboard is perfectly working for you guys? I need things like Line In on the onboard sound, accellerated video and Firewire/USB. Do those all work without editing kexts etc.? Â I'm thinking of going with... Â Â Asus P5LD2-VM mobo ~3 ghz Celeron D 1gb DDR2 RAM GMA950 onboard onboard sound Lite On DVDRW That I already have. Â Â Â Will this be an ideal setup for a person that has barely ever used MacOSX before? I don't want to really deal with much of the kexts and stuff. And I don't want to buy a Mac Mini either as this will be much cheaper (300 bucks). Â Â Â Let me know. Â Â Â Thanks. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/ Share on other sites More sharing options...
atae Posted March 21, 2006 Share Posted March 21, 2006 Im running one and everything runs native. I had to patch the audio and i have not tried the line in. The graphics are no problem and i had 0 trouble getting everything up and running. Even detected my SATA drive natively. I purcahsed a D-link DWL-G520 and it was detected as an airport extreme so i have not tried using the onboard ethernet. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-80340 Share on other sites More sharing options...
MacApprentice Posted March 21, 2006 Share Posted March 21, 2006 Same here, everything works just perfect, just stereo out after editing the azalia kext. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-80457 Share on other sites More sharing options...
marliwahoo Posted March 22, 2006 Share Posted March 22, 2006 I just checked and I don't think this board has firewire. Please let me know if I'm wrong. I'm thinking of building a box myself. Right now my choice is the Intel 945GNTLKR. It has 950 graphics, firewire etc. and everything works. Please, if the Asus board has built-in firewire, intel graphics and a working network card l would like to know. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81077 Share on other sites More sharing options...
atae Posted March 22, 2006 Share Posted March 22, 2006 The board does not have firewire. But everything else works fine except audio line in. With some kext updating of course. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81114 Share on other sites More sharing options...
MacApprentice Posted March 23, 2006 Share Posted March 23, 2006 If you want FW just buy a cheap FW card, those work fine. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81492 Share on other sites More sharing options...
_loosh_ Posted March 23, 2006 Share Posted March 23, 2006 Does this motherboard have EFI? Are there any EFI-supporting motherboards that work well with OSX? Â _loosh_ Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81655 Share on other sites More sharing options...
MacApprentice Posted March 23, 2006 Share Posted March 23, 2006 No EFI. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81670 Share on other sites More sharing options...
declan Posted March 23, 2006 Share Posted March 23, 2006 MacApprentice, does any firewire card work, as thats the only thing missing from my setup. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-81693 Share on other sites More sharing options...
MacApprentice Posted March 24, 2006 Share Posted March 24, 2006 I haven't tried FW yet (I got several FW HDD) but I'll try a standard FW PCI card and let you know. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-82141 Share on other sites More sharing options...
Mary Donna Posted March 24, 2006 Share Posted March 24, 2006 MacApprentice, does any firewire card work, as thats the only thing missing from my setup. Â I am using Adaptec DuoConnect with Asus P5LD2-VM and it works great Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-82164 Share on other sites More sharing options...
simisimisimi Posted March 24, 2006 Share Posted March 24, 2006 hey guys, i just bought that asus p5ld2-vm too, and it now i'm reading your posts and it seems like it was the right thing to do! cool! Â however, i have some questions still: Â 1) i have an IDE harddrive around somewhere. what installation method should i use? or should i get a SATA drive right away and install everything on a sata drive? i was thinking of using vinc0rs DD method, i would just put the ide drive into a windows pc, copy the tiger-x86.tar.gz2 image on it (following the guide) and then put it into my new hackintosh-box. would everything work then? Â 2) you have to know that my windows pc i currently have (not my future hackintosh, but the pc i would have used to copy the image to the spare IDE drive) does not support SATA. Â 3) 10.4.3 is sufficient for me, but 10.4.5 would be cool too. how could i achieve a 10.4.5 install that works? maybe even on a sata drive, without much hassle? would it maybe be possible to take the IDE drive out of my existing windows pc and put it into my new hackintosh, and it will boot? because if that worked, i may get a SATA drive and use vinc0rs method, and copy stuff on the SATA from windows. Â 4) or: can you just tell me the easiest way to put 10.4.5 on my brand new box, preferrably on SATA - would be cool. Â 5) is RAID possible? Â thanks! Â simon Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-82446 Share on other sites More sharing options...
simisimisimi Posted March 26, 2006 Share Posted March 26, 2006 anyone? Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-83300 Share on other sites More sharing options...
star2king Posted March 27, 2006 Share Posted March 27, 2006 I will buy the mainboard in my city ,but dearler tell me : none ,so i hope i own the mainboard ,i am using asus p4p800s-x everything woking fine~but cpu is low ,p4 2.4g~ Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-83581 Share on other sites More sharing options...
star2king Posted March 27, 2006 Share Posted March 27, 2006 hey guys, i just bought that asus p5ld2-vm too, and it now i'm reading your posts and it seems like it was the right thing to do! cool! however, i have some questions still:  1) i have an IDE harddrive around somewhere. what installation method should i use? or should i get a SATA drive right away and install everything on a sata drive? i was thinking of using vinc0rs DD method, i would just put the ide drive into a windows pc, copy the tiger-x86.tar.gz2 image on it (following the guide) and then put it into my new hackintosh-box. would everything work then?  2) you have to know that my windows pc i currently have (not my future hackintosh, but the pc i would have used to copy the image to the spare IDE drive) does not support SATA.  3) 10.4.3 is sufficient for me, but 10.4.5 would be cool too. how could i achieve a 10.4.5 install that works? maybe even on a sata drive, without much hassle? would it maybe be possible to take the IDE drive out of my existing windows pc and put it into my new hackintosh, and it will boot? because if that worked, i may get a SATA drive and use vinc0rs method, and copy stuff on the SATA from windows.  4) or: can you just tell me the easiest way to put 10.4.5 on my brand new box, preferrably on SATA - would be cool.  5) is RAID possible?  thanks!  simon Asus P5LD2-VM sata is woking fine ,don't modify you bios,but fat32 subarea is not be spoted ,so suggest you to use ntfs try it~~maybe ,my osx86 is 10.4.3 Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-83590 Share on other sites More sharing options...

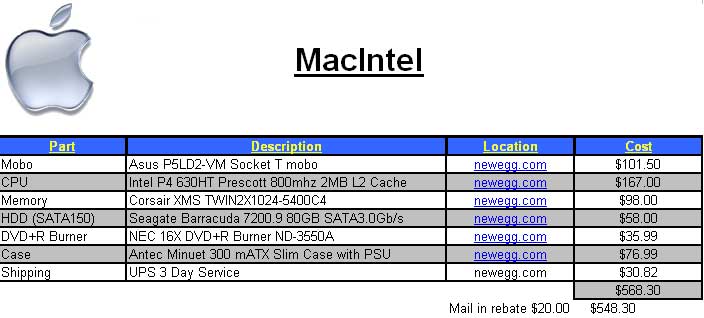

kernalzero Posted March 31, 2006 Share Posted March 31, 2006 I took the plunge and ordered from newegg 5 minutes ago...hope the Asus P5LD2-VM gives me as much joy as it's given you guys! I look forward to be running 10.4.5 in about 4 days Spreadsheet of components attached below in JPG form Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-86518 Share on other sites More sharing options...
Amethyst Posted March 31, 2006 Share Posted March 31, 2006 I have some question about this mobo  1 Can anyone confirm that I can use asus DVI-ADD2 N with this mobo 2 Can I connect 20" Apple Cinema Display to DVI-ADD2 card and boot properly.. 3 Can I use SATA Raid0 with this mobo  Thank you very much Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-86553 Share on other sites More sharing options...
jdxxx Posted April 1, 2006 Share Posted April 1, 2006 1 Can anyone confirm that I can use asus DVI-ADD2 N with this mobo no - no drivers for OSX. To use, you need the drivers, which are available only for Win.  2 Can I connect 20" Apple Cinema Display to DVI-ADD2 card and boot properly.. no  3 Can I use SATA Raid0 with this mobo no. Read a little - no Raid in OSX. And this board does not offer RAID. Has ICH7 -- you need ICH7R for RAID. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-86893 Share on other sites More sharing options...
simisimisimi Posted April 1, 2006 Share Posted April 1, 2006 hey guys, Â this motherboard is perfect, i used myzars dvd and everything worked perfect and realliy fast. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-86940 Share on other sites More sharing options...
kernalzero Posted April 3, 2006 Share Posted April 3, 2006 Does anybody have an xbench score for this mobo, a Pentium 630HT, and 1 GB (2x512) pc-5400 DDR2 using a SATA3.0??? The parts are on their way and was just wondering how this setup stacks up...Thanks Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88405 Share on other sites More sharing options...
92GTA Posted April 4, 2006 Share Posted April 4, 2006 Are the audio jacks on this board reversed??????? Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88467 Share on other sites More sharing options...
OPTiK Posted April 4, 2006 Share Posted April 4, 2006 Not that I know of.. but if you want sound input, this board is not for you! Hopefully it'll get fixed in later versions Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88910 Share on other sites More sharing options...
92GTA Posted April 4, 2006 Share Posted April 4, 2006 I just care about the audio out being correct, I don't want to switch jacks when I boot Windows... Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88923 Share on other sites More sharing options...
kernalzero Posted April 4, 2006 Share Posted April 4, 2006 the orientation of the jacks is hardware based not software or OS based...the audio out is always audio out not matter if you run linux, osx or windows. If the jack works under windows you may want to check out the topics about getting the audio to work on this board http://forum.osx86project.org/index.php?act=ST&f=2&t=11758 Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88931 Share on other sites More sharing options...
declan Posted April 4, 2006 Share Posted April 4, 2006 One word of warning about this board, if you want to use DDR2 667, make sure its listed in the manual, as it is a picky board and you might end up with the ram running at only 400 or 533 speeds. Link to comment https://www.insanelymac.com/forum/topic/12690-asus-p5ld2-vm-the-perfect-motherboard/#findComment-88932 Share on other sites More sharing options...
