10.5.5 OSX86 Tutorial From a Mac n00b (P45s like P5Q Pro)

MiahX

By MiahX,
in OSx86 10.5 (Leopard)

 Share
54 posts in this topic

Recommended Posts

lezard
lezard
Posted
Posted

Hi guys,



I'm trying to install Kalyway 10.5.2 on a P5Q Pro ( latest bios 1306 ), but with no success. ( P5Q PRO, E8600, SATA drives, expect DVD IDE ).

I have a Kernel panic after nfs_boot_init failed ... disk1s2 ... do not know what it means ( my DVD is disk0s1 ).

Any idea, suggestion, knowing that I tried every possible tip ( options -x/cpus=1/..., and bios configurations ) mentioned in this forum?

Link to comment
Share on other sites
Sipheren
Sipheren
Posted
Posted

Follow this for sound.

Cheers





with plist editor, open /System/Library/Extensions/ALCInject.Kext/Contents/Info.plist



He added the string "<string>pci8086,3a3e</ string>" as shown in the picture






Closes plist editor and save it when you ask.



Now open with plist editor /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext/Contents/Info.plist



And in "IOPCIPrimaryMatch" adds your audio device as shown in the picture "0x3a3e808"






Closes plist editor and save it when you ask.



If you want to go disk utility and repair permissions, but you do not have.



reboot and check, Already, and you did not work?



the truth is that it also was tested AppleHDAPatcher and codec 0888, if you're not working this may have to do



Do not I can confirm right now.



Saludos.

Link to comment
Share on other sites
juzzi
juzzi
Posted
Posted

iDeneb v1.3 10.5.5 for IntelAMD ( SSE2SSE3) (iDeneb)[multi](september 2008) - fork fine, direct boot from native Marvell.



After install:



[00:00.0 Host bridge [0600]: Intel Corporation Eaglelake DRAM Controller [8086:2e20] (rev 02)

00:01.0 PCI bridge [0604]: Intel Corporation Eaglelake PCI Express Root Port [8086:2e21] (rev 02)

00:1a.0 USB 000:00.0 Host bridge [0600]: Intel Corporation Eaglelake DRAM Controller [8086:2e20] (rev 02)

00:01.0 PCI bridge [0604]: Intel Corporation Eaglelake PCI Express Root Port [8086:2e21] (rev 02)

00:1a.0 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37]

00:1a.1 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38]

00:1a.2 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39]

00:1a.7 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c]

00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e]

00:1c.0 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 1 [8086:3a40]

00:1c.4 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 5 [8086:3a48]

00:1c.5 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 6 [8086:3a4a]

00:1d.0 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34]

00:1d.1 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35]

00:1d.2 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36]

00:1d.7 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a]

00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev 90)

00:1f.0 ISA bridge [0601]: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller [8086:3a16]

00:1f.2 SATA controller [0106]: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22]

00:1f.3 SMBus [0c05]: Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30]

01:00.0 VGA compatible controller [0300]: nVidia Corporation NV43 [GeForce 6600 GT] [10de:0140] (rev a2)

02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)

03:00.0 IDE interface [0101]: Marvell Technology Group Ltd. 88SE6121 SATA II Controller [11ab:6121] (rev b2)



Hardware detial:






Link to comment
Share on other sites
MiahX
MiahX
Posted
  • Author
Posted
Hi MiahX, i'm about to buy a newboard: MSI P45 Platinum or Asus P5Q Pro



i need some info on P5Q, is everything working properly (like o/b sound, o/b network, 4 cores etc.)

And i think you mentioned that the last bios update was usable unmodded.



If you have time please return me some answer, this would be a life saver for me.



Any help appreciated, thanks in advance :)



Read the thread, it answers everything you PMed me about. :rolleyes:

Link to comment
Share on other sites
MiahX
MiahX
Posted
  • Author
Posted

New instructions to update from 10.5.2 directly to 10.5.5 have been added to the guide!



Here are the old instructions for updating from 10.5.2 to 10.5.4 (for archiving purposes):

7. How to update to 10.5.3:

Download here: http://insanelymac.blogspot.com/2008/08/ho...52-to-1053.html

The instructions are correct, but to clarify:

1. Install the Comboupdate, but DON'T CLICK RESTART AT THE END!

2. Install kalyway kernel pkg (2nd file)

3. IMPORTANT: Reboot and at boot press F8 key and type "update -v" then hit enter. It will reboot again, then let it boot like normal.



How to update from 10.5.3 to 10.5.4(must update to .3 first):

Simply download and install the Delta update (88mb), not the Combo update: http://www.apple.com/support/downloads/macosx1054update.html

Link to comment
Share on other sites
winnimac
winnimac
Posted
Posted
iDeneb v1.3 10.5.5 for IntelAMD ( SSE2SSE3) (iDeneb)[multi](september 2008) - fork fine, direct boot from native Marvell.



After install:



[00:00.0 Host bridge [0600]: Intel Corporation Eaglelake DRAM Controller [8086:2e20] (rev 02)

00:01.0 PCI bridge [0604]: Intel Corporation Eaglelake PCI Express Root Port [8086:2e21] (rev 02)

00:1a.0 USB 000:00.0 Host bridge [0600]: Intel Corporation Eaglelake DRAM Controller [8086:2e20] (rev 02)

00:01.0 PCI bridge [0604]: Intel Corporation Eaglelake PCI Express Root Port [8086:2e21] (rev 02)

00:1a.0 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37]

00:1a.1 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38]

00:1a.2 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39]

00:1a.7 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c]

00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e]

00:1c.0 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 1 [8086:3a40]

00:1c.4 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 5 [8086:3a48]

00:1c.5 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Port 6 [8086:3a4a]

00:1d.0 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34]

00:1d.1 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35]

00:1d.2 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36]

00:1d.7 USB Controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a]

00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev 90)

00:1f.0 ISA bridge [0601]: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller [8086:3a16]

00:1f.2 SATA controller [0106]: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22]

00:1f.3 SMBus [0c05]: Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30]

01:00.0 VGA compatible controller [0300]: nVidia Corporation NV43 [GeForce 6600 GT] [10de:0140] (rev a2)

02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)

03:00.0 IDE interface [0101]: Marvell Technology Group Ltd. 88SE6121 SATA II Controller [11ab:6121] (rev b2)



Hardware detial:






does your marvel 88SE6121 work? and when yes how you do it?

Link to comment
Share on other sites
juzzi
juzzi
Posted
Posted

Not I do it. It does it iDeneb v1.3 10.5.5 for IntelAMD ( SSE2SSE3) (With English and other languages included). The system is established without adapters directly with DVD (with Marvel 88SE6121) - the Marvel chip in BIOS is enabled. All options processor in BIOS are enabled. RAM works on native frequency 1066 Mgz. Installation very simple. If after installation at you: "Do you already own a mac"



startup the PC with "F8" ,type "-s"

and type





/sbin/fsck -fy

/sbin/mount -uw /

passwd root  > tupe your password

touch /var/db/.AppleSetupDone

reboot

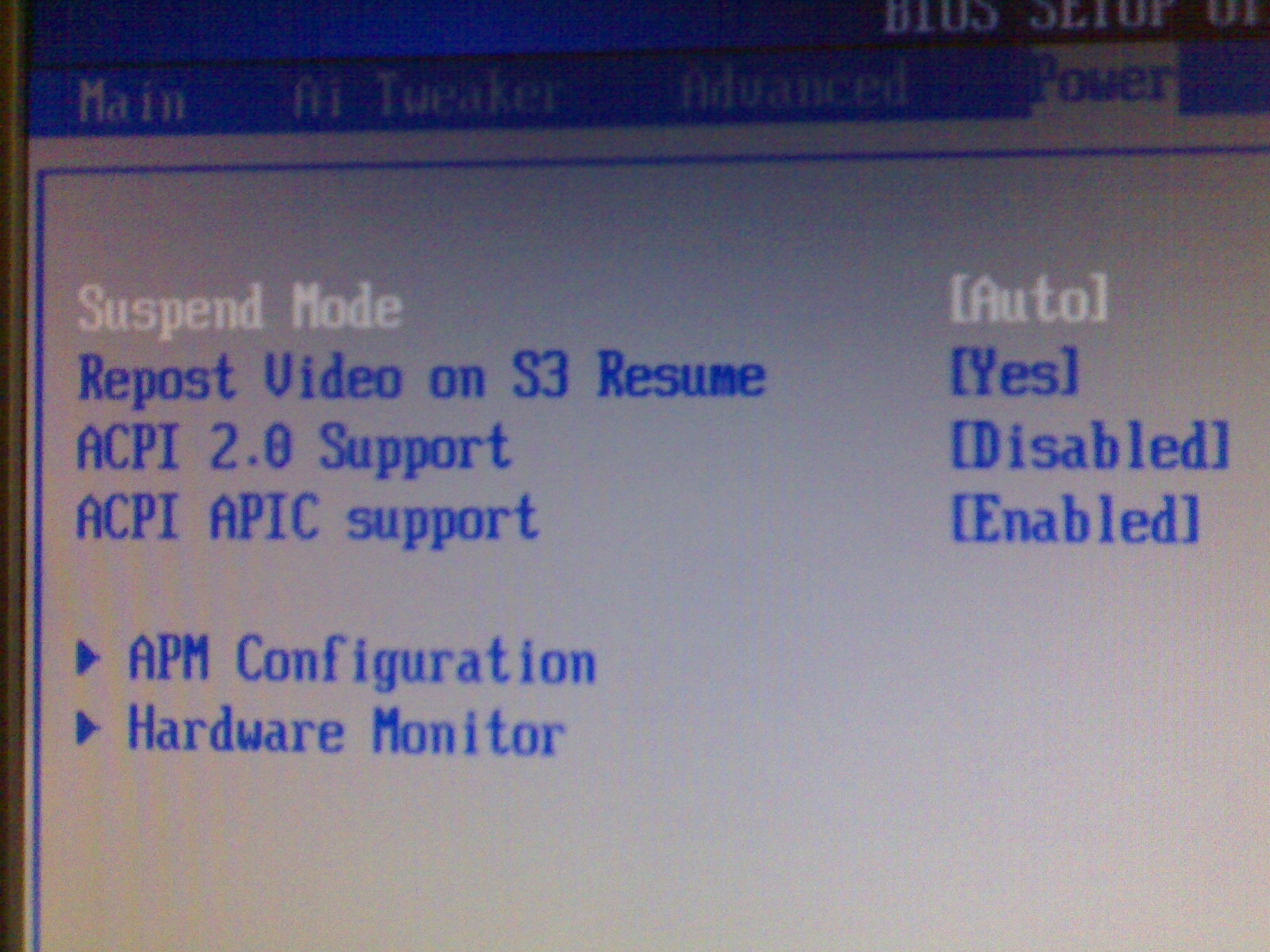

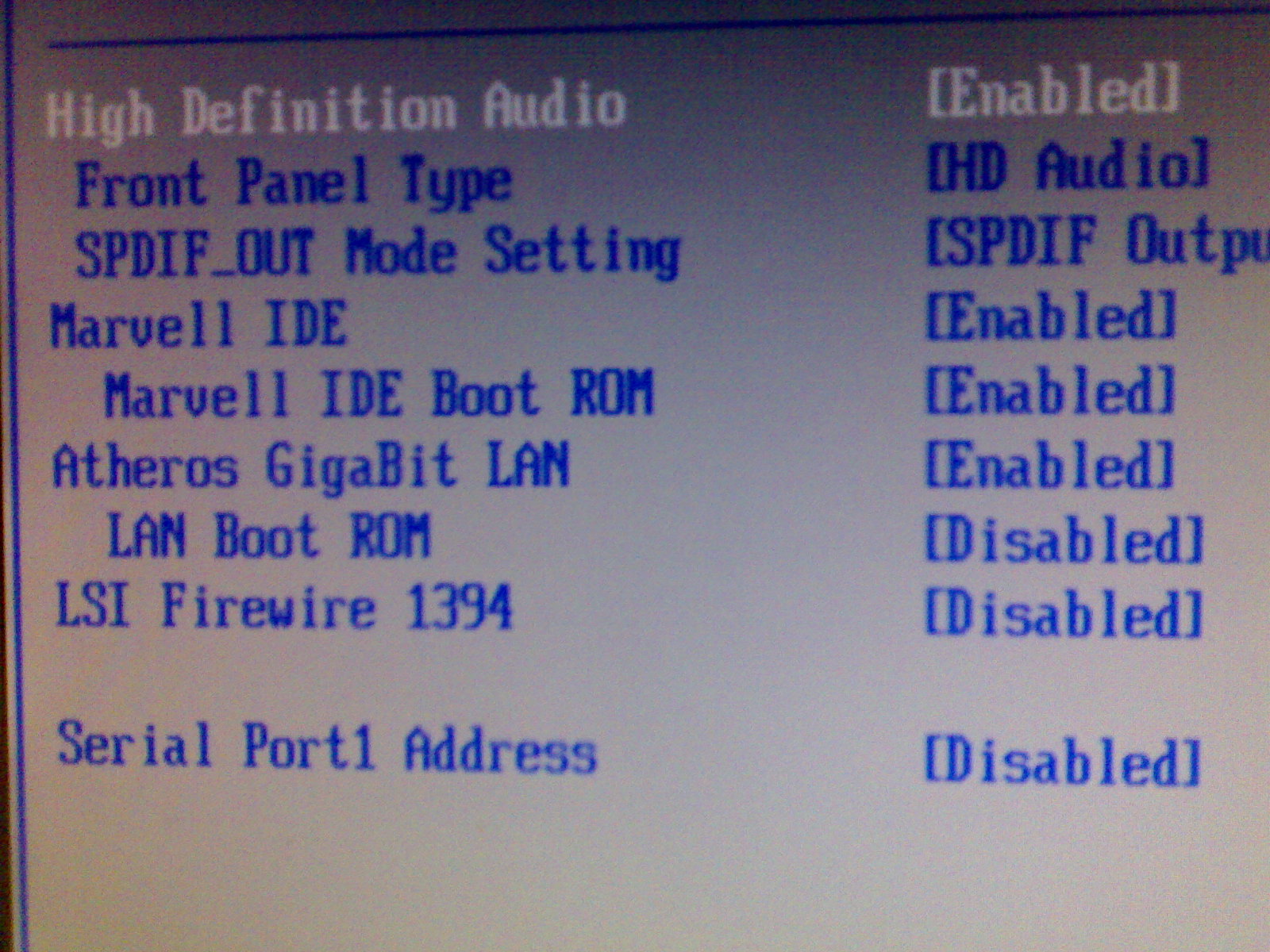

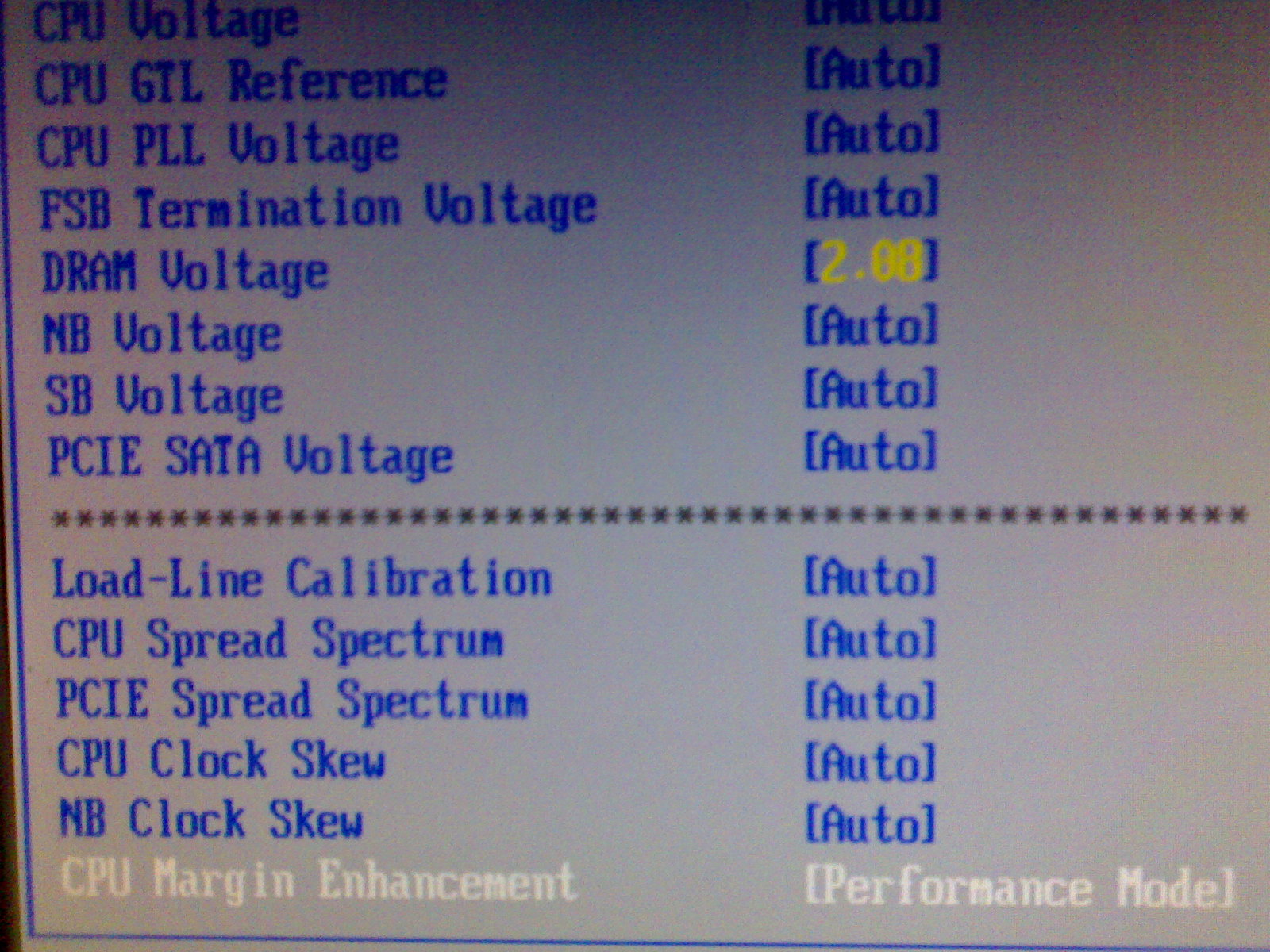

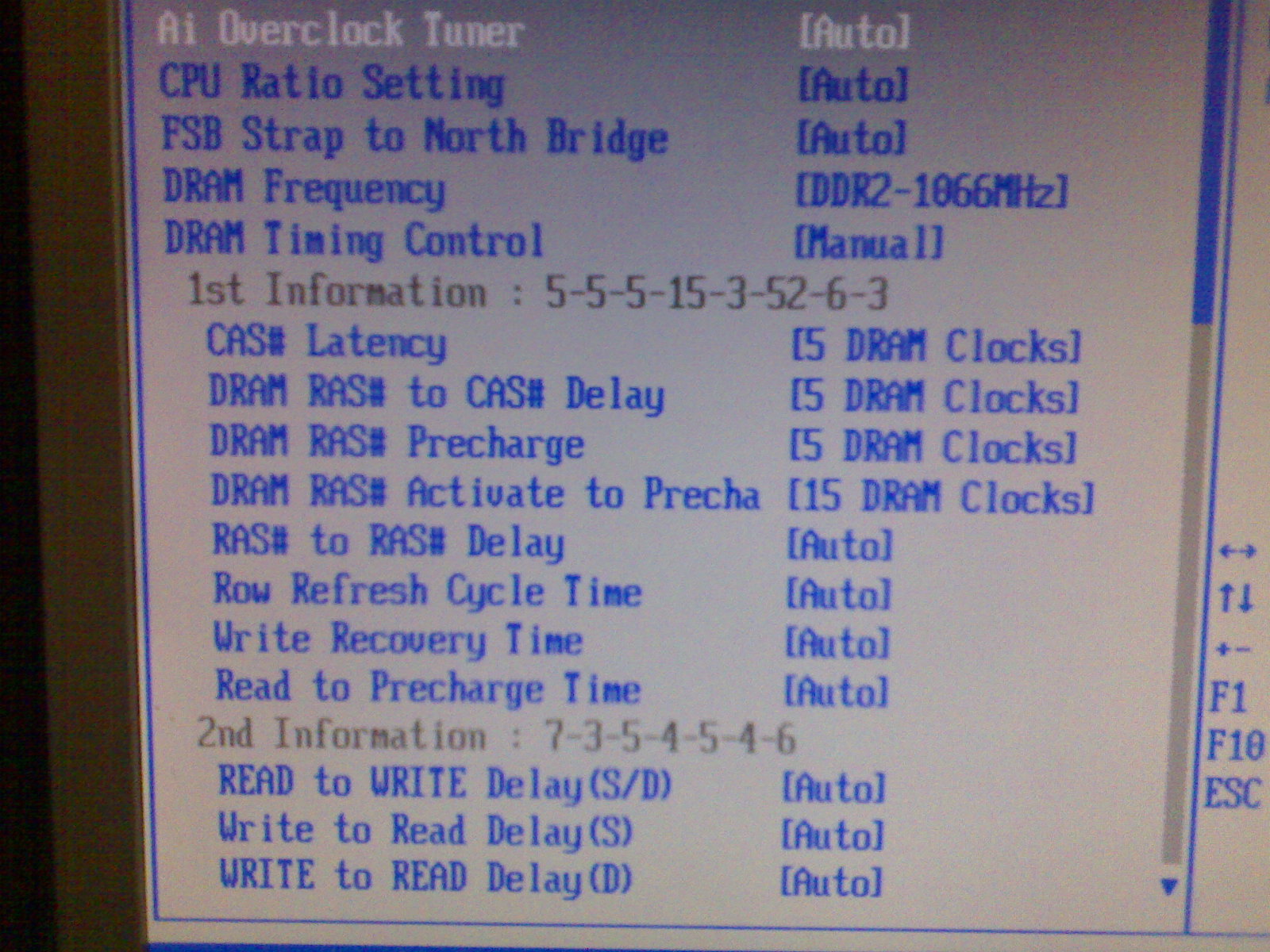

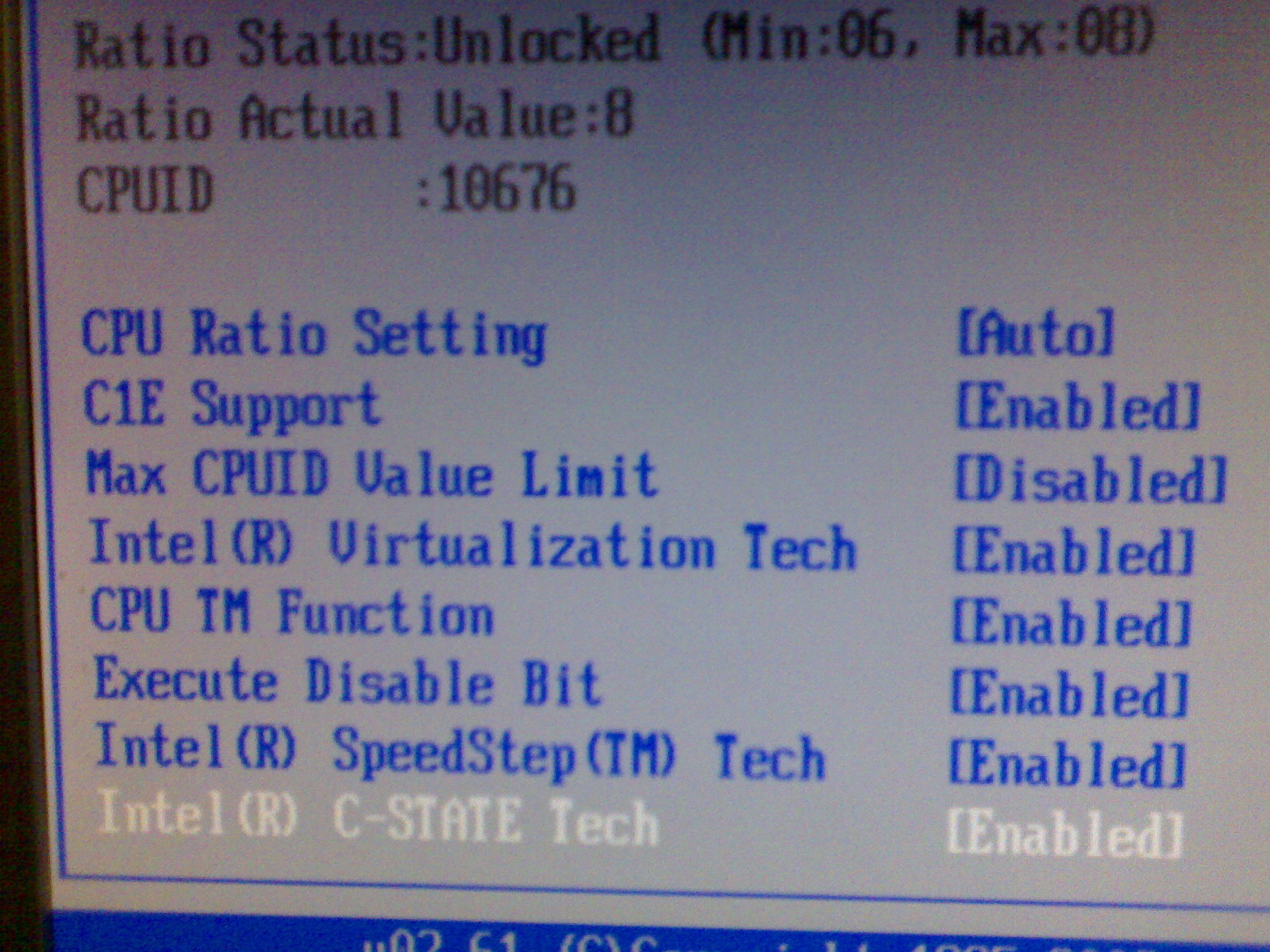

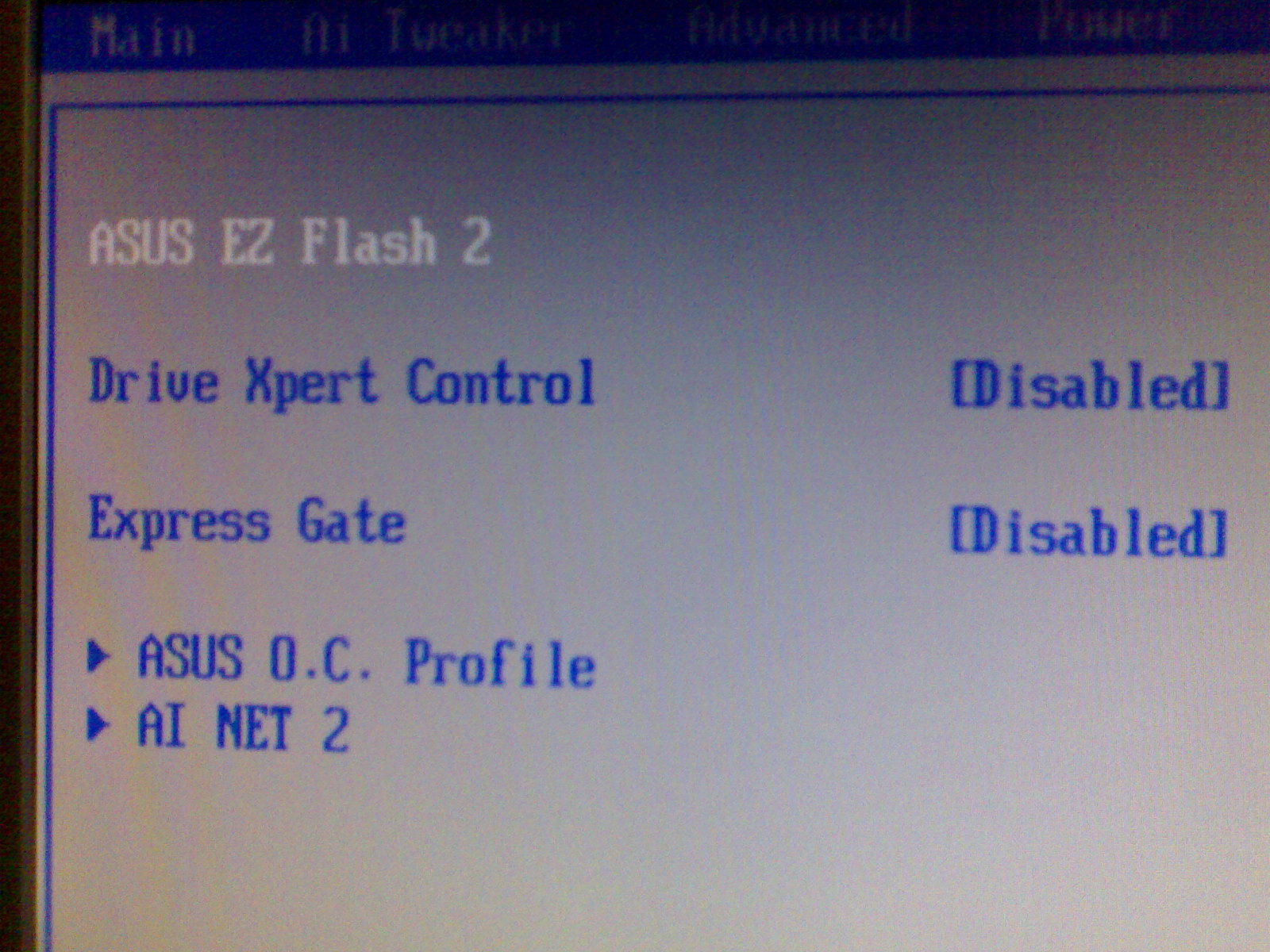

My BIOS:





AppleBCM5751Ethernet.kext.zip

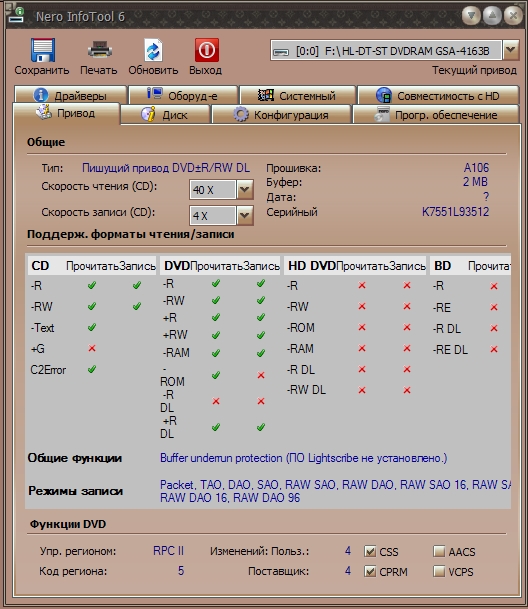

My DVD-RW LG

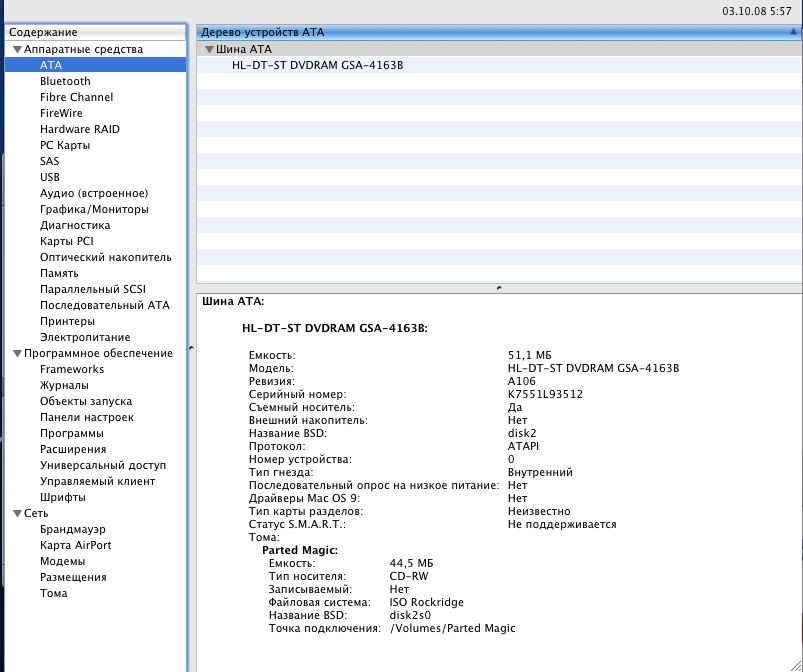

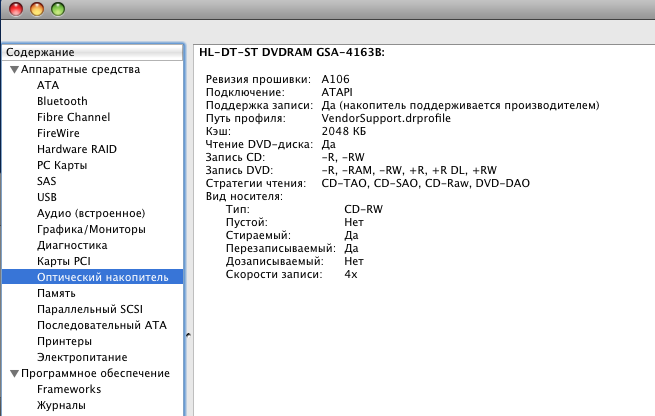

My DVD-RW in Mac after install (full support)

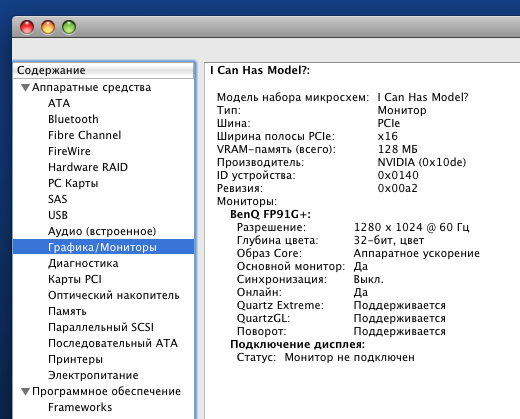

My video card ASUS EN6600GT TOP after installation completely works, at the first loading of system shows video "Welcome". I put only one kext at installation iDeneb v1.3 10.5.5 for IntelAMD ( SSE2 SSE3) it last in section "NVidia".post-290475-1223031692_thumb.png

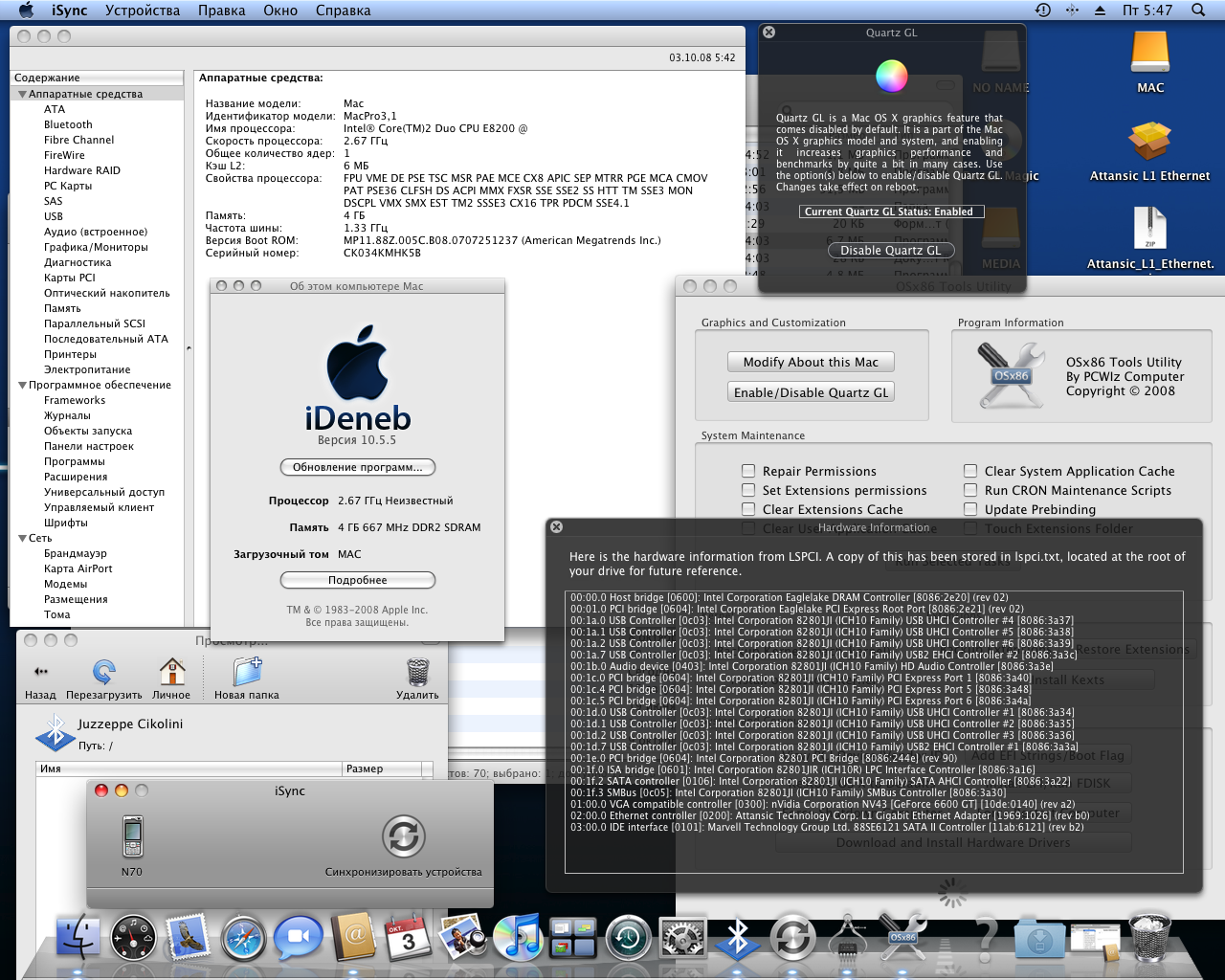

My Mac after install:






The network does not work for me (see next post)



(02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)).



Speak while there is no driver. Whether the truth it? :P



And I yet did not adjust sound ALC1200 (see next post)



(00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e])



If someone prompts as it correctly to make, I will be grateful. ;)

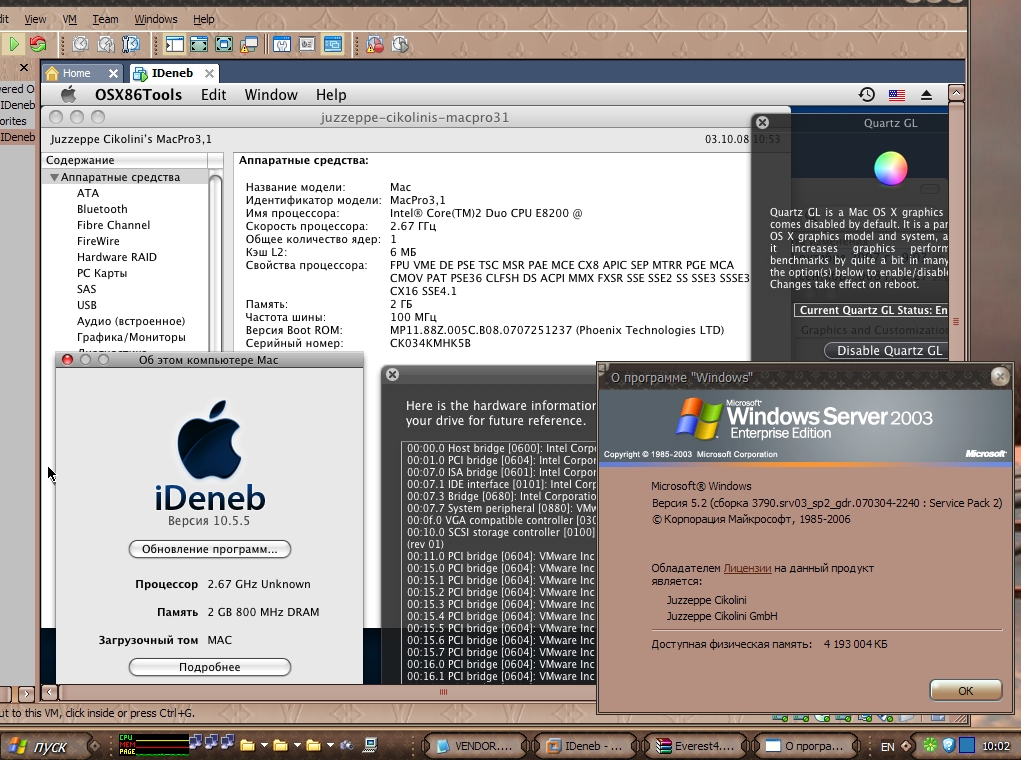

Also DENEB 10.5.5 perfectly works in VMware Workstation 6.5.118166. (There the network is at once). Also it is possible to mount in a mode read-write any section of a hard disk (including NTFS by means of the program paragon-ntfsmac65: paragon_ntfsmac65.part1.rarparagon_ntfsmac65.part2.rarparagon_ntfsmac65.part3.rar)






I have more recently put to myself MAC, but I wish to instal on P5Q PRO Mac OS X Leopard 10.5.4 9E25 Retail.dmg (7.01 Gb) if who that has councils on this theme, I will be very grateful.



Here  you also can look or help council.



Excuse for my bad English, but I from Ukraine.


Link to comment
Share on other sites
  • 2 weeks later...
freakds
freakds
Posted
Posted

I am about to buy P5Q Pro in couple of days. I have read all this thread but somehow got confused. Which hack of Leopard DVD I shall use for the best results and stability??



Kalyway, Jas, iDENEB or anything else??



On board LAN working with any of above ?



Please let me know with its latest available version.



Thanks in advance. ;)

Waiting for reply...

Link to comment
Share on other sites
MiahX
MiahX
Posted
  • Author
Posted
Did you install Leopard on Asus P5Q Pro with modded BIOS ? Is everything working perfect ?



1) onboard audio ? (yes/no)

2) LAN ?(yes/no)

3) IDE ? (yes/no)

4) Sata ? (yes/no)



**Kalyway Leopard 10.5.2 works on it ?

**Any other version I shall use? (please specify)

**Is the system stable ?

**Which BIOS did you use ?



Thanks in advance. :)

Reply.



All of this was answered in the original post and in the post above this one. I am all about helping people that at least TRY to help themselves. I didn't write the guide for nothing.

Link to comment
Share on other sites
freakds
freakds
Posted
Posted
All of this was answered in the original post and in the post above this one. I am all about helping people that at least TRY to help themselves. I didn't write the guide for nothing.





Installation of an original Mac OS X Leopard 10.5.4 9E25 Retail - the best choice. Details.



I want to dual boot Leopard Retail and Vista on Asus P5Q Pro. I will follow the method by juzzi. Can you people help me solving some of my queries? -



1) ***Im installing both operating systems on a completely fresh, newly bought computer. So shall I first install Vista or Leopard Retail ?

2) ***I read something that dual boot is only possible when Vista installed in AHCI mode. Im a newbie. I don't know what is RAID and AHCI and how to enable/disable it.

This article on wikipedia says, "Enabling AHCI in a system BIOS on installations of Windows XP or Windows Vista will cause SATA Optical drives to disappear. A Hotfix for Windows Vista is available under the title: "SATA optical drives are not available after you start a Windows Vista-based computer". This problem was fixed in Vista SP1". So shall I install Vista SP1 only?



Can you people help me with this?



3) ***I have to have sata DVD drive? Currently I've IDE. Will it work or I have to change??



Please I need to get myself clear with this. Looking forward for your support. :D



THanks in advance.

Waiting for reply...

Link to comment
Share on other sites
freakds
freakds
Posted
Posted
freakds, some people should just buy a Mac.



No, I think again the money matters. I can get Mac Pro equivalent config at less than half the cost. My friend can you please answer my previous post ? :thumbsup_anim:

Link to comment
Share on other sites
justgeeking
justgeeking
Posted
Posted

LEO4all ver3 10.5.2

ON GIGABYTE GA-EP45-DS3R

4gigs of ram pny DDR2 667

Q6600 QUAD CHIP ALL 4 ARE WERKING

ALC 889A WAS PATCHED WITH TARUGAS PATCH

2 SATA'S HITACHI 500 & 200 GIG DRIVE RIPPED FROM A NON WERKING IMAC

THE DVD BURNER IS SATA ALSO

ATI HD 2600 XT

BOTH LAN ARE WERKING

BASICALLY EVERYTHING IS STABLE AND WERKING FROM THE MB PROFILER IS CORRECT...

Would of liked to hit 10.5.5 but the video card gets artifacts....

whish evrybody on here thre best of luck with there builds...

Stelios .T

JustGeeking

Link to comment
Share on other sites
voodoo3dfx
voodoo3dfx
Posted
Posted

freakds, get the sata dvd drive.

solves much of the problems.



after going crazy for 5 days i managed to get mine working. This guide seem to appear just in time for me to start haha.



audio graphic and hd all working.

network i'm using a 3g modem, so that's done as well.



major prob, i'm facing right now is only 1 core is detected.



Used iDeneb + P5Q Pro + Q9450

Any help on how to ensure all my 4 cores are detected ?

Link to comment
Share on other sites
MiahX
MiahX
Posted
  • Author
Posted
after going crazy for 5 days i managed to get mine working. This guide seem to appear just in time for me to start haha.



audio graphic and hd all working.

network i'm using a 3g modem, so that's done as well.



major prob, i'm facing right now is only 1 core is detected.



Used iDeneb + P5Q Pro + Q9450

Any help on how to ensure all my 4 cores are detected ?



If you just used the Kalyway like the guide says, you wouldn't have to ask here why all 4 cores aren't working :D

Link to comment
Share on other sites
freakds
freakds
Posted
Posted

Guys why is not anyone answering my queries??? Just some simple questions-



1) while flashing the BIOS, shall i remove all the installed OS?



2) Vista works with the modded BIOS ? I mean can I dual boot Leopard-Vista on modded BIOS?



(mobo- P5Q pro)

Link to comment
Share on other sites
Belgian Newbie
Belgian Newbie
Posted
Posted

Hi People,



Last few days I spent a lot on this forum trying to find the best way to get OSx86 on my PC.

My configuration:

MB: Asus P5Q ( with modified bios 1306)

CPU: Intel Q9300

Ati 3650 graphics

2GB Ram

Sata DVD

Sata HD

Both Sata on ICH10R

Bios setting: AHCI is ok for Sata,Disabled Speedstep, C1E, TM Function etc. and enable 'Execute Disable'



I followed the install instructions from MiahX. Everything went fine during install. I deleted the original partition (via the disk utility, and formatted the new (HFS+).

Installation went fine, but once after the installation, when the PC restarts, the screen gives some errors (disk write protected etc. - don't know if this is ok or not) and after a few seconds the PC really reboots.

After passing the bios, it goes wrong.



The only screen I see tells following error code:



Darwin/x86 boot v5.0.132

2047 MB memory

vesa v3.0 16MB (ATI Amibios)



EBIOS read error: Device Timeout

Block 1 sectors 64



After a while I get the option to select the startup volume.

Here comes only the option hd(128,0) ethernet PXE Client



I also have the possibility to type -v

The respons is "system config file '/com.apple.Boot.plist' no found





Can somebody helps me here?



Thx,



Chris

Link to comment
Share on other sites
Sipheren
Sipheren
Posted
Posted
Guys why is not anyone answering my queries??? Just some simple questions-



1) while flashing the BIOS, shall i remove all the installed OS?



2) Vista works with the modded BIOS ? I mean can I dual boot Leopard-Vista on modded BIOS?



(mobo- P5Q pro)



No you dont have to uninstall your OS, in fact you use the BIOS flash app inside Windows to Flash the BIOS.



This modded BIOS makes no difference to Windows. Yes you can dual boot Vista-Leopard, you can even triple boot Linux-OSX-Windows if you want.



Cheers

Link to comment
Share on other sites
  • 2 weeks later...
frogster
frogster
Posted
Posted

Someone above mentioned that the network card for P5Q is Attansic



(02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)).



I tried to install the latest Attansic L1 drivers but didn't work.



Anyone have any luck with getting onboard P5Q NIC to work?

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
