IO80211Family modif 1.0.0

1 Screenshot

About This File

Modified IO80211Family.kext especially who use device based on Atheros40 (the idea came from CtlnaAHCIPort.kext) so we don't need to touch /S/L/E just inject via OpenCore, and we can running Big SUr without open Sealed (no need remove/delete vanilla IO80211Family.kext in /S/L/E)


I'm not try in Mojave or Catalina but I'm sure is worked too


1. just put 2 kext HS80211Family.kext & AirPortAtheros40.kext  .../OC/Kexts and make sure inject via config.plist

  do not inject IO80211NetBooter in the plist (must do research so i leave there in plugin),  I remove IO80211NetBooter from plugin so as not to confuse

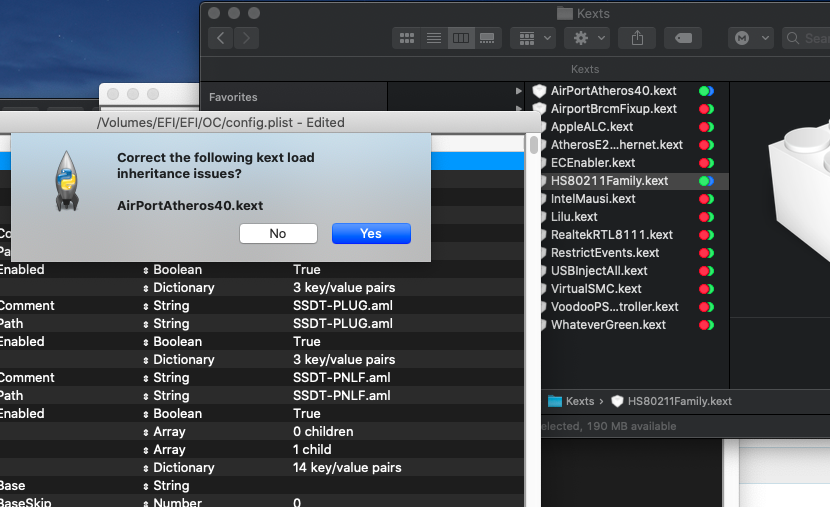

see my pict below just add 2 value



2. you can add value manually VendorID in IONameMatch (atheros40) if your ID not present


3. refer to @MaLd0n guide in olarila for working Wifi Atheros AR9565, AR9462, AR9463, AR9485

here is the modification (no need injector)

AR9565 AirPortAtheros40-9565.kext.zip

AR9462 AirPortAtheros40-9462.kext.zip

AR9463 AirPortAtheros40-9463.kext.zip

AR9485 AirPortAtheros40-9485.kext.zip


Additional : Fake Locale & Country Code


Use this kext WifiLocFix.kext.zip to fix Locale & Country Code (Fake AirPort Location Interface)




You can change it inside WifiLocFix.ket depend on your location

and don't forget to inject in your config.plist


 Card Type: AirPort Extreme  (0x168C, 0x3112)

  Firmware Version: Atheros 9380:


  Locale: ETSI

  Country Code: ID

  Supported PHY Modes: 802.11 a/b/g/n

  Supported Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64

  Wake On Wireless: Supported

  Status: Connected



What's New in Version 1.0.0   See changelog


No changelog available for this version.

  • Like 14
  • Thanks 15

User Feedback

Recommended Comments

On 7/15/2021 at 8:51 PM, SPYAM said:

I installed Big Sur 11.4
But I have a WiFi problem
Do you have a video on YouTube that I install according to the video of the WiFi driver?
Because according to this text tutorial, I can not install in the topic and I am a beginner.
My WiFi model is also 9565.

attach your EFI so I check and load you what you need to activate wifi

  • Like 1
Link to comment
Share on other sites

On 10/12/2020 at 11:52 AM, pico joe said:

no need just put 2 kext HSxxxx+atheros40

I got same card and do same steps but cannot find wifi when start the system

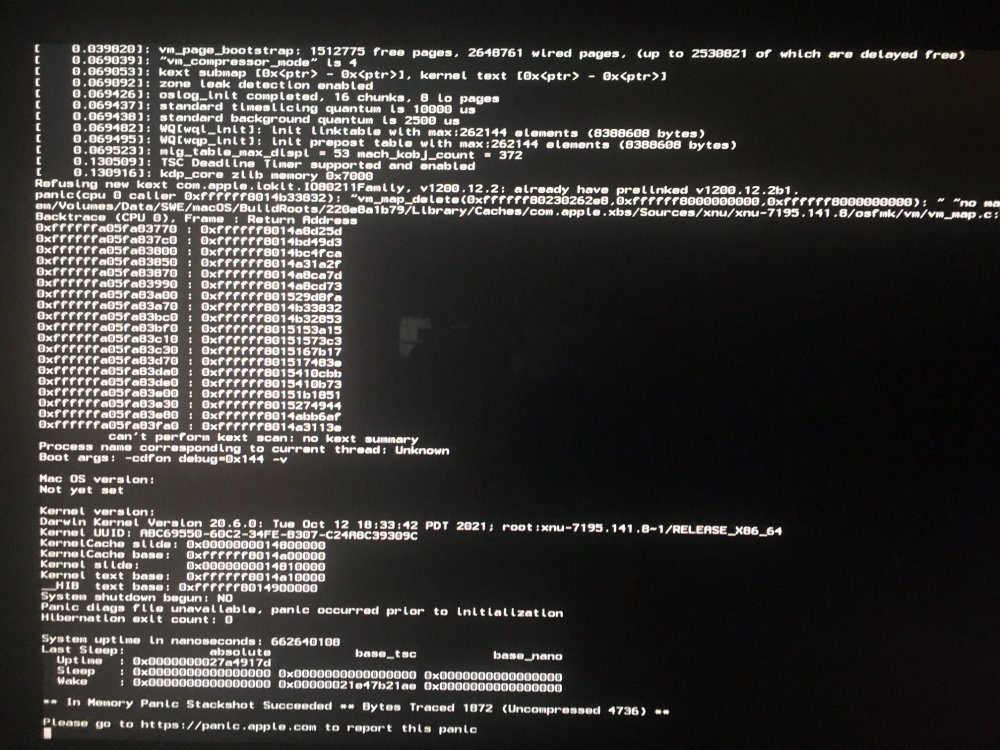

Should i leave io80211family kext in my opencore efi? because if i leave this i cannot but, also removing netboot still kernel panic.

Link to comment
Share on other sites

TL-WDN4800 Atheros: 9380 still doesn't have any news in Monterey?

Edited by MacWill
Link to comment
Share on other sites

Screen-Shot-2021-08-03-at-6-24-50-PM.pngHi, I almost installed a good hack, but with the help of my good teacher, Allan, they really helped me a lot.
I want to know how to install AR9596 for my Wi-Fi because every tutorial I go through does not recognize Wi-Fi!
Only this tutorial is left that I did not test.
Well, I have a clover, you can check it, I really do not have only Wi-Fi ..


Edited by SPYAM
Link to comment
Share on other sites

It still does not work with the beta 6 or Monterey I thint it is time to change it for  a fenvi
