Flashing screen after 10.12.4 update


  • Please log in to reply
25 replies to this topic

#1
lol_kip

lol_kip

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts

I have been running Sierra for a while now, with no problems whatsoever, but after installing the 10.12.4 update, the graphics got all weird and flashing. I tried updating clover, but then my pc wouldn't boot anymore at all... And of course I was to stubborn to make a backup... Now things look like this:





It constantly switches from that to normal, every time something on the screen moves... Does anybody have any idea?



Specs:



3,19 GHz Intel Core i5

16 GB memory

Sapphire Radeon 6570 2GB

Not sure what motherboard and stuff but thats probably not causing this problem anyway



Edit:

Also, there is no video playback. So definitely something graphics related. Edit 2: Video playback started working again randomly? Still weird flashing though. What seems to be happening with the flashing is, that red and blue constantly switch, but green remains the same.

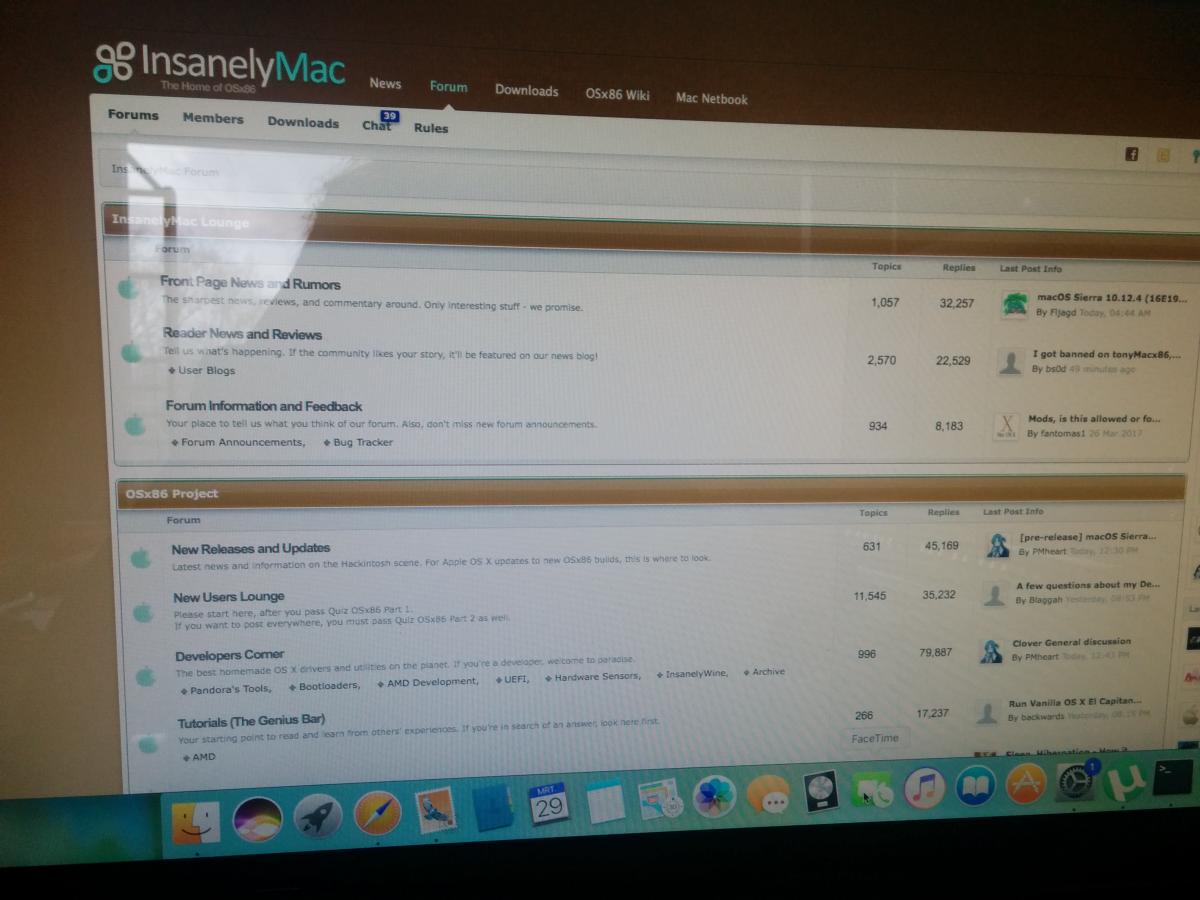

Oops, no picture. Here it is:

Attached Files



#2
Moviemakergr

Moviemakergr

    InsanelyMac Sage

  • Donators
  • 427 posts
  • Gender:Male

I had the same problem with HD 5770 but unfortunately not found a solution. :(



#3
lol_kip

lol_kip

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts

Well, helps that we're not alone... It's strange because these cards are both supported out of the box, so it kinda seems to me that Apple might've messed up?



#4
Ukr55

Ukr55

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 101 posts
  • Gender:Male

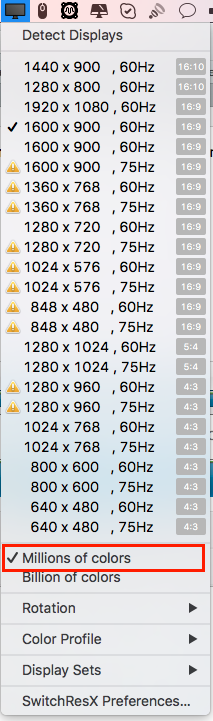

Install SwitchResX and to choose in the menu Millions of colors. Maybe somehow made little app or binary patch to switch from ARGB2101010 to ARGB8888

Attached Files

  • Attached File  1.png   128.89KB   66 downloads


#5
lol_kip

lol_kip

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts

You're my hero... Saved my Hackintosh :) Is there any way you can set the colour depth in OS X without software? Because this is shareware, so I'm gonna have to pay for it if there's no way to set it in OS X.



Edit: Looks like DisplayMaestro is a good free alternative for people with the same problem.



#6
yakus27

yakus27

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
  • Location:france

Merci



#7
cuthead

cuthead

    InsanelyMac Legend

  • Donators
  • 646 posts
  • Gender:Male
  • Location:Port Edward
  • Interests:Whistle

https://github.com/Eun/DisableMonitor



#8
Ukr55

Ukr55

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 101 posts
  • Gender:Male

No, this utility only change display resolution and DisplayMaestro same utility. Only SwitchResX have necessary functions. I assume that there is a command of the terminal for switching ARGB2101010 to ARGB8888.



#9
cuthead

cuthead

    InsanelyMac Legend

  • Donators
  • 646 posts
  • Gender:Male
  • Location:Port Edward
  • Interests:Whistle

No, this utility only change display resolution and DisplayMaestro same utility. Only SwitchResX have necessary functions. I assume that there is a command of the terminal for switching ARGB2101010 to ARGB8888.

ARGB8888=8 bit=32 bit=millions of colors

ARGB2101010=10 bit=40 bit=billions of colors

disablemonitor=resolutionx32

DELL E2715H=32-Bit Color (ARGB8888)

SwitchResX=millions of colors

DisplayMaestro=?

terminal=?



#10
elkotur

elkotur

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts
  • Gender:Male

Install SwitchResX and to choose in the menu Millions of colors. Maybe somehow made little app or binary patch to switch from ARGB2101010 to ARGB8888



Thank you buddy you really make my day!



#11
Ukr55

Ukr55

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 101 posts
  • Gender:Male

ARGB8888=8 bit=32 bit=millions of colors

ARGB2101010=10 bit=40 bit=billions of colors

disablemonitor=resolutionx32

DELL E2715H=32-Bit Color (ARGB8888)

SwitchResX=millions of colors

DisplayMaestro=?

terminal=?

So the ARGB8888 actually means 8+8+8+8, and the ARGB2101010 mean 10+10+10. 8 bits per colour gives 256 gradients and 10 bits give 1024 gradients per color (RGB).



#12
jalex19100

jalex19100

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

I hit this same issue, and I think I have the same video card as lol_kip.  I'll try this out. Thanks!



#13
prcmelo

prcmelo

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 105 posts
  • Gender:Male
  • Location:Rio de Janeiro

No clover patch for that? Or a terminal fix?



#14
Mendiaco

Mendiaco

    InsanelyMac Protégé

  • Members
  • PipPip
  • 86 posts
  • Gender:Male
  • Location:Spain

Same problem.
I Install Demo from SwitchResX and works perfectly on my HD5770

But we need a permanent solution to change billion color to million color.



#15
prcmelo

prcmelo

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 105 posts
  • Gender:Male
  • Location:Rio de Janeiro

I'm not sure, but I think that using a MacMini7,1 SMBIOS also works... I was using MacPro6,1and changing to MacMini stopped the flickering after uninstalling SwitchResX... if anyone wanna try...



#16
gachogavacho

gachogavacho

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Los Angeles, CA
  • Interests:Tech, Sustainability, and being an Entrepreneur

I have this same problem. I took my MSI 5770 out of another working hackintosh and it gave me this issue.

This is the issue described in a youtube video. Shows windows dual boot working fine then Sierra. SO weird!



This did not switch my issue, in fact. I downloaded the Display Maestro and the resolution actually shows mine with Millions of colors already.



I also have a LG Ultrawide 21:9 monitor, could this be it?



#17
Ukr55

Ukr55

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 101 posts
  • Gender:Male

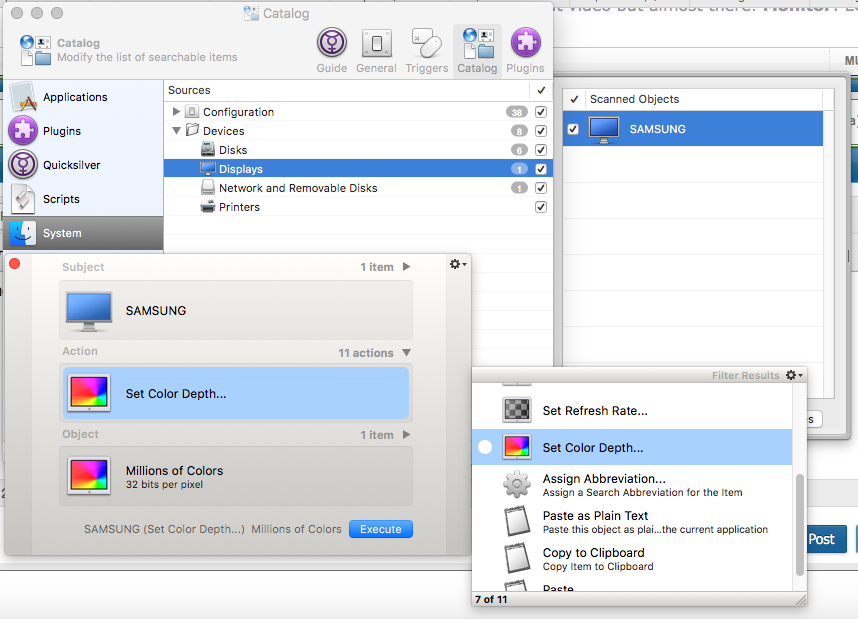

I found open source project Quicksilver



Attached File  display.png   217.61KB   17 downloads



#18
prcmelo

prcmelo

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 105 posts
  • Gender:Male
  • Location:Rio de Janeiro

Anyone have been try to use MacMini as SMBIOS? My hack is working without any thyrd party app.



Could worth to have a look...



#19
dolan

dolan

    InsanelyMac Protégé

  • Members
  • Pip
  • 48 posts
  • Gender:Male
  • Location:London

Can someone tell me why this problem suddenly occurred? Why did this update do this to us??





How I fixed it:



SwitchResX - http://www.madrau.co...d/download.html



And a serial from pirate bay.


Edited by carlo_67, 21 April 2017 - 11:09 AM.
This is not allowed by the regulation, pirate spam


#20
cuthead

cuthead

    InsanelyMac Legend

  • Donators
  • 646 posts
  • Gender:Male
  • Location:Port Edward
  • Interests:Whistle

I found open source project Quicksilver

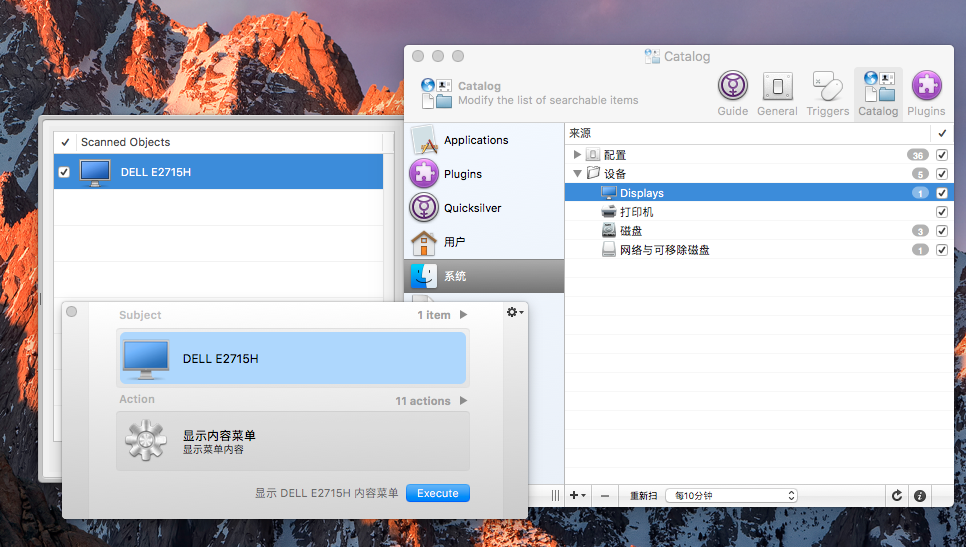

I can not see set color depth in my option,can you share your option?

Attached Files
