Project: OLD SCHOOL

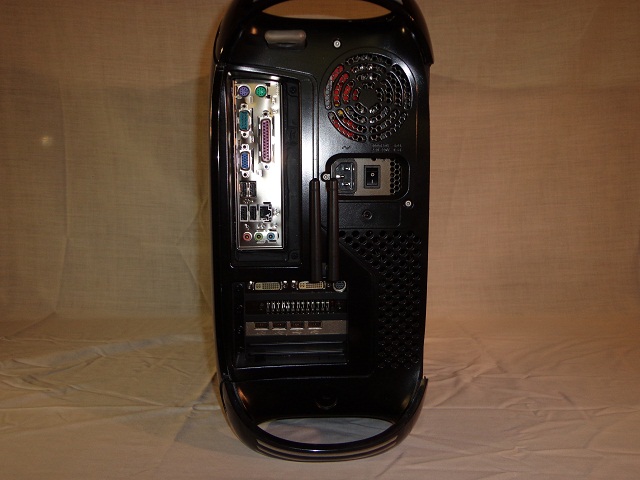

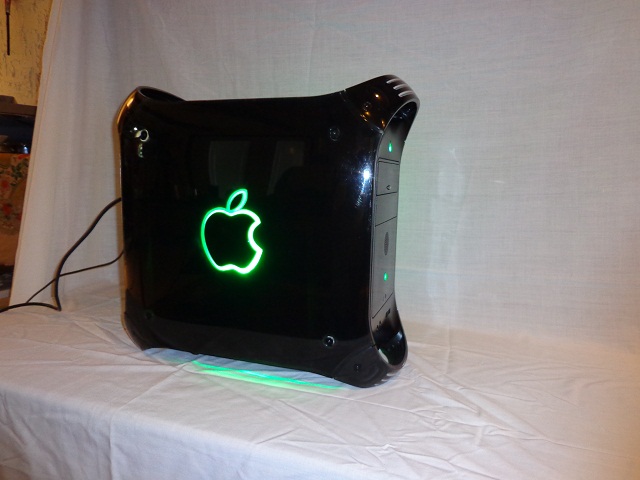

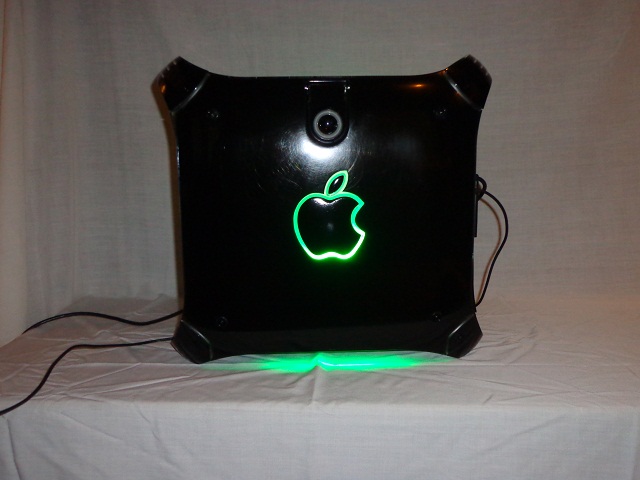

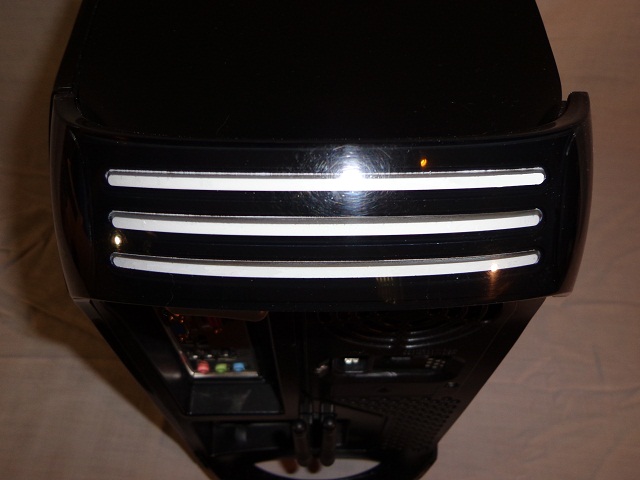

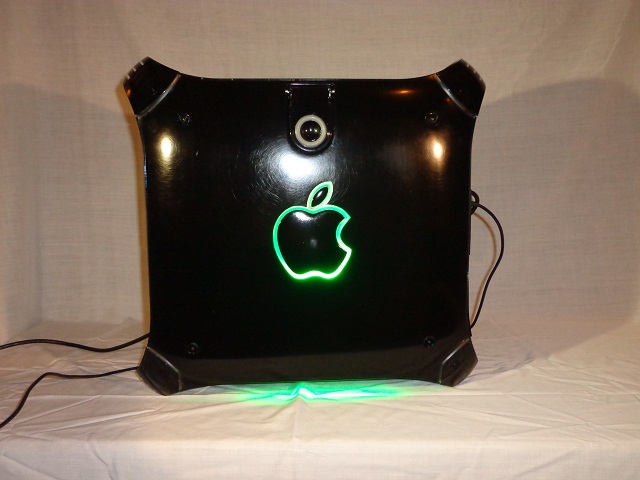

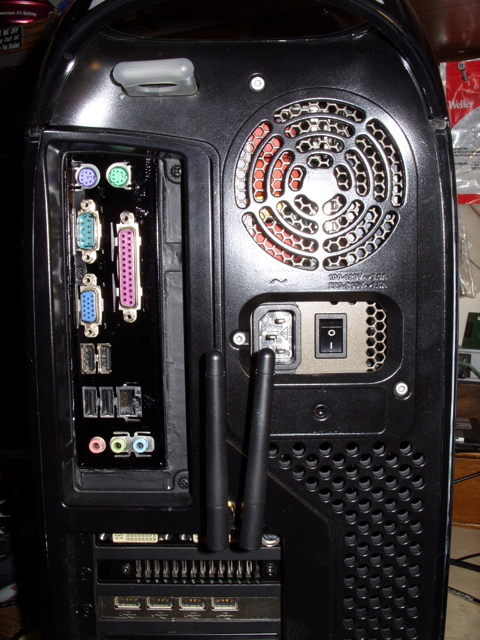

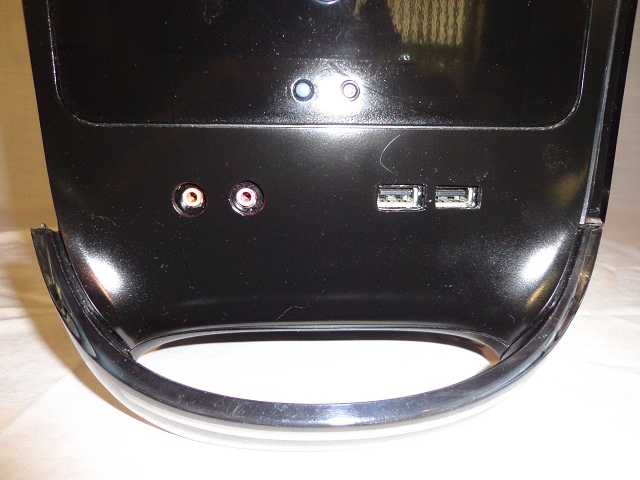

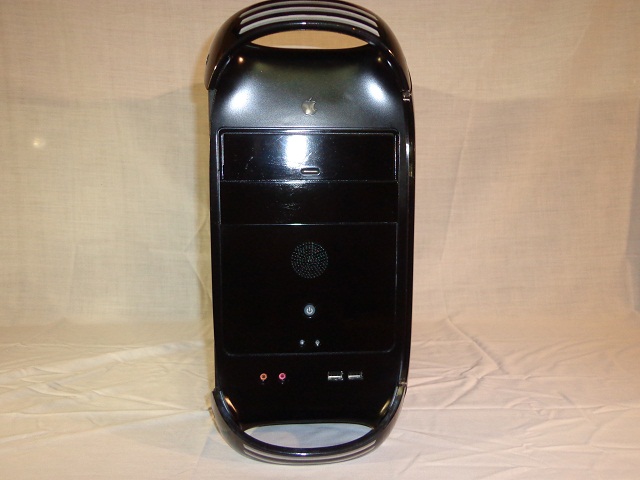

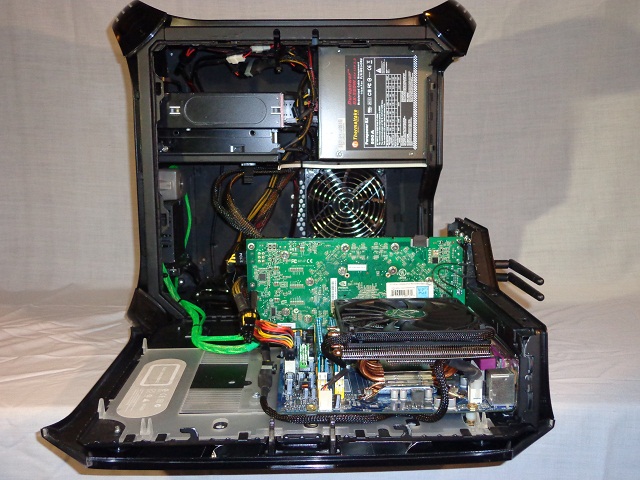

I started this MOD as a result of my desire to utilize an iconic case and my desire to run OSX. It took some serious thought, a lot of hard work and a lot of time consuming elbow grease, as there were several factors that came into play with the formulation and completion of this MOD. (No true MOD is ever really completed. It is, and always will be an ongoing project)
I started out with an PowerMac G4 case (Yes, I know it has been done perhaps a thousand times before, BUT not in this fashion) as I liked the design and it has attained the reputation as almost a work of art. My feelings were that Apple may have missed the mark slightly by not offering any “Bling” or customization on this case. All of the cases that I have come across browsing the web that were painted had the paint applied to the outside of the case. Nice, but it took away from the depth of the appearance of the case. I fixed this. All it took was countless hours (over 65) of wet sanding and polishing of the original polycarbonate case. (No… you cannot use paint strippers or lacquer thinner or other such chemicals as it would fog the plastic almost instantly) I took the 4 corner pieces and cleaned them masked off the “inset stripe” areas and shot them with high gloss white and then covered it with high gloss black IMRON. (All of the painting was done to the inside of the components.) I applied 1/8th pin striping tape to the area around the relief for the apple appliqué and masked it off. I shot the rest of the inside with the same gloss black paint as before and removed the masking and the pin stripe tape and shot it with a “frost” paint to give the area a frosted look. (This is the area around the apple and leaf appliqué) so that I could give it some indirect backlighting. That was the hard part. Now I was ready for the easy stuff. I removed all of the interior components, trimmed off a corner of the CD/DVD carrier (that would interfere with the placement of the new motherboard), removed the original motherboard stand offs in lieu of new ones placed to meet the requirements of the new motherboard. I shot all of the interior and exterior metal components with flat black paint as well as the rear plastic panel. The front plastic panel was painted in both high gloss and satin black paints to give a slight contrast. Green LED’s were placed behind the front apple logo as well as on the original power button. (Both the power button and the reset button are functional with the modding to the circuit I did) Holes were drilled and cut outs made to accommodate a front panel audio out / line in ports as well as 2 USB ports. (Got this nifty little setup from an old HP that was laying around) After placement of the new motherboard standoffs and cutting out for the back plate I modded the white plastic closures slide for the new standoffs. After determining the location of the fans I made the cut outs for them and airbrushed them gloss black) (Yeah, Noctua fans are normally a hideous tan and bone color) The plastic back cover was trimmed by the power plug to allow the use of my power supply and holes were made in the plastic cover to accommodate the wireless antennas. Perform touch up paint on the case, sleeve the wiring, mod the Hard drive mount on the bottom to accommodate the SSD, Protect the wires and cables inside the box with rubber and plastic edge guard moldings, Detail cable and zip tie the whole works after installing 2 green 4”CCF lights on the exterior metal sides ONLY after installing reflective foil tape on the sides. (To reflect the green lighting to the outside)

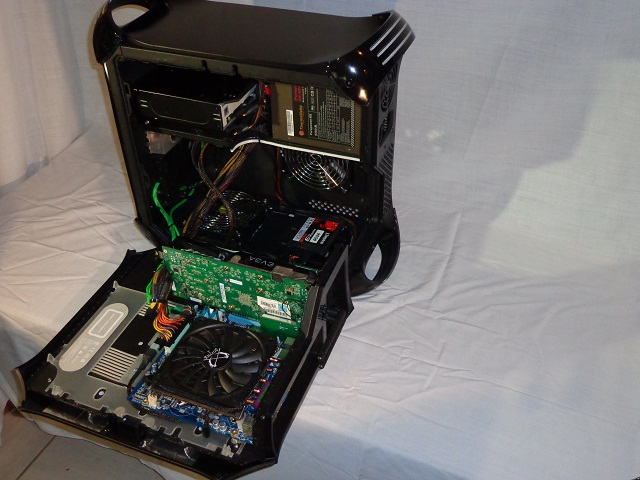

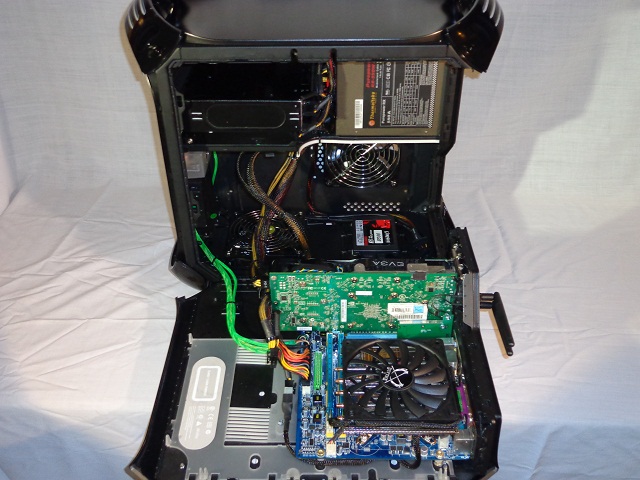

That was the looks … as for the hardware; I used what I had as I am on a budget until I find employment, so it is truly Old School Retro with the components as listed below.

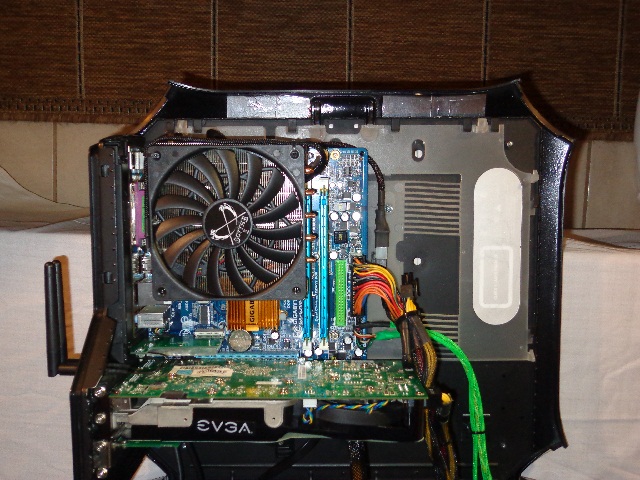

Motherboard: Gigabyte GA-G33M-S2L
Processor: Intel E8600 (Overclocked @ 4GHz.)
Memory: 4GB GSKILL DDR2 PC2-8500
Video: NIVIDIA 8800GTS 512
Drives: HDD1=Kingston V100 96GB SATA SSD (OSX install)
HDD2= WD1.5TB SATA HD (Windows 7 install)
Optical= Toshiba SATA CD/DVD

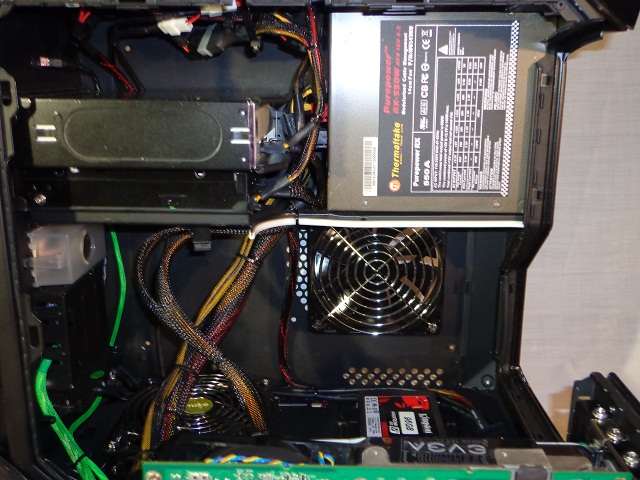

Power supply: Thermaltake Purepower RX-550
Processor cooling: Scythe Big Shrunken 2 Rev. B

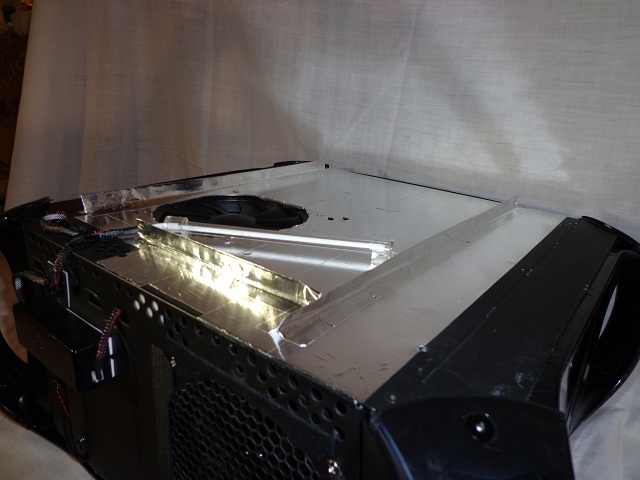

Case Cooling: Noctua NF-P12-1300 120mm Fans
Wireless: Mini PCI-E to PCI-E adaptor with Atheros AR8131 chipset
USB: 10 ports (2 Front, 4 Rear + 4 via PCI interface card)
Audio: Front: Lline out and Mic in, Rear Line out and Mic in.

I run it a 4GHz (1.33125Volts Vcore1.3160) all the time and idle temp is 33C and at 100% load (Orthos 6 hours) it goes to 54C. (@26C ambient temp) It pulls an 11.809 1M calculation in superpi-mod v1.5. It is pretty snappy with 10.6.8 and Windows 7 x64 Pro.
Install method for OSX was found here on Insanely Mac : http://www.insanelym...e-ga-ep45-ds3l/ with the necessary changes to work on my specific motherboard as well as a custom modded DSDT.

This is not the fastest or the most powerful system here, BUT it is affordable and it meets the criteria of a MODDED BOX. IMHO a mod is not just spending tons of money bolting together a bunch of hardware of the latest and greatest to get a supercomputer that will more than likely be underutilized but rather the customization of a system that has your own signature on it and it works well when you need it to and does what you want it to.

There are systems here that would make Apple itself drool as they are very impressive and they cost substantially less than an Apple equivalent and they are exquisite in their own way. My goal was to make an affordable system that will work well with what 90% of all Mac users utilize their systems for.

I had 10.7 installed as well as a problematic 10.8 on this originally but neither performs as well as the 10.6; and as the almighty Apple goes, the newer software is almost forcing you to buy (Their) newer hardware. It is Apple’s way of perpetuating sales of their hardware. I will now get off my soapbox….. and ask What’s your MOD?

Attached Files

  • Attached File  1.jpg   75.99KB   337 downloads
  • Attached File  2.jpg   94.09KB   351 downloads
  • Attached File  3.jpg   107.2KB   327 downloads
  • Attached File  4.jpg   83.35KB   313 downloads
  • Attached File  6.jpg   82.84KB   323 downloads
  • Attached File  7.jpg   94.09KB   338 downloads
  • Attached File  8.jpg   128.29KB   350 downloads
  • Attached File  9.jpg   92.67KB   343 downloads
  • Attached File  10.JPG   85.64KB   346 downloads
  • Attached File  12.jpg   83.27KB   400 downloads
  • Attached File  13.jpg   159.22KB   469 downloads
  • Attached File  14.jpg   143.96KB   470 downloads
  • Attached File  15.jpg   142.71KB   447 downloads
  • Attached File  16.jpg   126.82KB   448 downloads
  • Attached File  17.jpg   115.09KB   406 downloads
  • Attached File  18.jpg   78.57KB   384 downloads
  • Attached File  19.jpg   77.8KB   440 downloads
  • Attached File  20.jpg   113.03KB   437 downloads


#2
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 279 posts
  • Gender:Male
  • Location:uk
Very nice work

#3
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA
Thanks BALDY_MAN, It was a lot of work. When I was a kid I was a hot rodder who had a 14 second 4 cylinder street driven car, and I learned one thing at that time; The devil is in the details. Thanks again.

#4
Riley Freeman

Riley Freeman

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 887 posts
  • Gender:Male
  • Location:The Streets
I've considered modding one of these cases for a while as I always preferred them over the cheesegrater. Did you have to do anything special for the IO panel at the rear? The pics are a bit small to make it out.

I noticed that the PowerMac boards tended to have the IO ports extended a little from the rest of the board, making it difficult to just drop in a standard PC board.

#5
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA

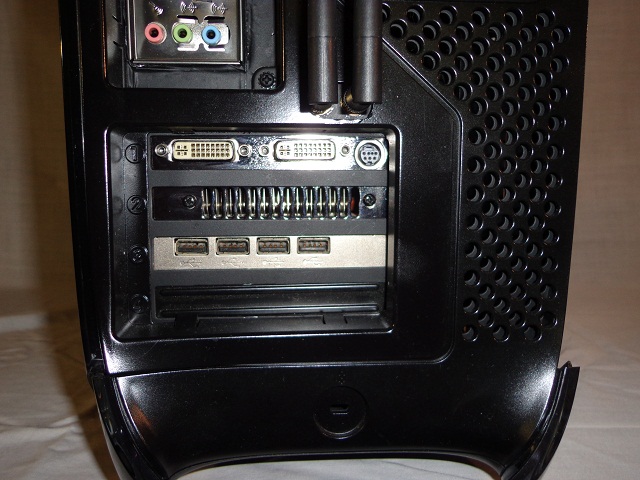

I am unaware that one can just drop in a standard PC board as the mounting stand-offs for the motherboard are in the wrong location for an mATX board. (It would have made the build go a little easier had it been so.) On my build I wound up driving the old stand-offs out, then using 1/4" (6.35mm) spacers under my motherboard i located where my motherboard had to be placed for my motherboard backplate and my pci/pci-e slots to line up properly. I then marked out the area on the case "backplate area" for cutting to install my backplate. I then cut out the area with a dremel to install my backplate and inserted it. Keeping the spacers under the motherboard i then marked out the location for holes to be drilled for the mounting of the motherboard. Then using machine screws, lock nuts and nylon spacers I was able to mount the motherboard at the proper height and location. I encountered no problems with the IO ports needing any kind of extension.

#6
Riley Freeman

Riley Freeman

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 887 posts
  • Gender:Male
  • Location:The Streets
Thanks for the details. I'll have to dig out my G3s and have a closer look at them. I'm working from memory but I think there were variations between the G3, G4 and MDD cases as far as IO ports and PCI slots go. The MDD case seeming to be the most difficult to work with. Which is a pity as I have a dead MDD that would have been a good hackintosh candidate. Still, I prefer the G3 case colours.

#7
3.14r2

3.14r2

    The Round One

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,333 posts
  • Location:Molvania
Nice and elegant! Though you could probably paint the I/O back plate in black too. IMO it "sticks out" from mainly black back surface of the case.

#8
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA

Nice and elegant! Though you could probably paint the I/O back plate in black too. IMO it "sticks out" from mainly black back surface of the case.


Hmmmmmmmmm you are right. Well as I said before. You are never really done with a MOD. Thanks for the suggestion. I post an updated pix as soon as it is done.

#9
Mr.D.

Mr.D.

    There are those who call me...

  • Local Moderators
  • 545 posts
  • Gender:Male
  • Location:Wyoming
  • Interests:Music editing/Remixing, hiking, orienteering, 4 wheeling, reading (yes like books and such), and...
You get my vote!! - A modded mac?!? Whoda thunk it?

I will always vote for somebody who mods a mac over a custom build. Not only is it a G4, but its a very well done G4. Kudos on a excellent modded mac.

#10
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA
Thanks Mr. D. I appreciate it. I am in the process of removing the motherboard so that I can paint the backplate black as suggested by 3.14r2. I agree that it would look better black. I will repost a new and improved back picture as soon as I can. Thanks again.

#11
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 279 posts
  • Gender:Male
  • Location:uk
what can i say. its not what you use but the way you use it. (alot of time and thought as gone it this build) without braking the bank. and looks stunning
you have got my vote

#12
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA

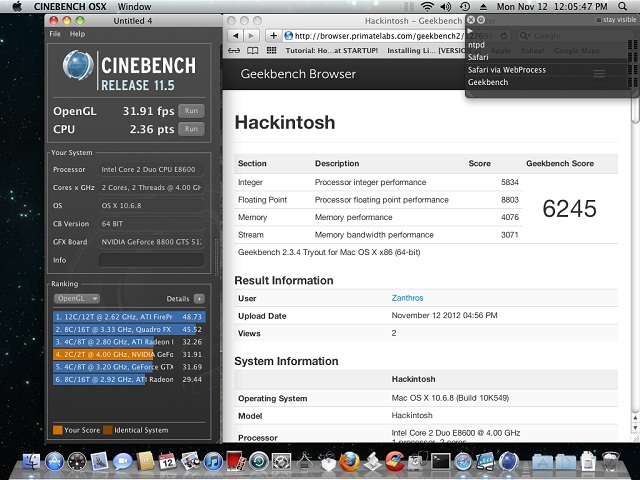

Thank you BALDY_MAN I appreciate it. After some very minor tweaking I was able to get a slightly higher Geekbench score. The link is : http://browser.prima...kbench2/1303818. Not a big difference but I am having some overclocking difficulties with OSx. Win7 overclocks fine and stable to 4.5GHz on air. but in OSx with -x -v @ boot it shows a freeze with the USB and wake from sleep state. I believe that I need to look at my DSDT for the answer. I did get the backplate painted and for the moment it is done. (A temporary state as with all mods) The picture is below. Thanks again.
