Best tool to make a harddisk image?


Hansaplast
 Share

15 posts in this topic

Recommended Posts

I have my Hackintosh running in Dual-boot with Windows XP (Ultimate/retail) and would like to make a disk image of that drive - as a backup.

I tried Acronis (9) but it keeps coming back with an unknown error ...



Anyone have experience with making an image like this and actually got it to work?

Link to comment
Share on other sites

Is there nobody out there that made an image of their hard disk after a successful setup? :(

If you boot from an OSX DVD, select install then you can use DiskUtilty to create an image. I back up to a USB drive formatted to HFS+. You can restore it again using DiskUtility to another partition of a different size if necessary. Running it under VMWare is less successful - I get an error that "The asr helper task has failed", but running native works fine.

Link to comment
Share on other sites

First i did use hiren's boot with norton ghost 11 for backing my disk up...but , image was created from whole partition not just used disk spase. So from 4gb of files (clean install) was 30gb image ;) BTW Acronics will do the same



The best way is like was wrote be4.....disk utilities > new image ..etc

Link to comment
Share on other sites

Thanks guys! :D



I tried Acronis Trueimage Home 10.0, and it made a full backup of my HDD (MBR, partitions, the works) and yes it didn't compress the MacOSX partition (identifies it as a ShagOS swap disk?). So I'm having a 40 something Gb backup file sitting on a USB disk.



I'll try disk utility, but can it completely backup my entire hdd? or just per partition? :)

Link to comment
Share on other sites

Prepare your partiton right!



Optional : monolingual, defrag



essential: remove trash (secure), clear the free space using disk-util! remove swapfile (applejack, Onyx,...)



acronis will copy each bit if a sector is not filled with zero's!



Pesonaly did a backup of a fresh install to 140 GB, backup consumpted ca. 4 GB.



Search the german forum if you are familar with.

Edited by tuxuser33
Link to comment
Share on other sites

@tususer33; how do I set unused sectors on a used partition to zero?

Acronis indeed copies the entire partition - kind-a big for a backup.



Would disk-utility be able to restore the entire disk, including mbr?

Like I said; I have a nice setup, OS X / Vista, with dual boot ... and would like to be able to restore that in the future ...

Link to comment
Share on other sites

I'm talking about Acronis TrueImage 10.0 HomeEdition EDS



Purchased directly at Acronis Website, did not make me a poor man.



received the downloadlink. Made the CD by myself.

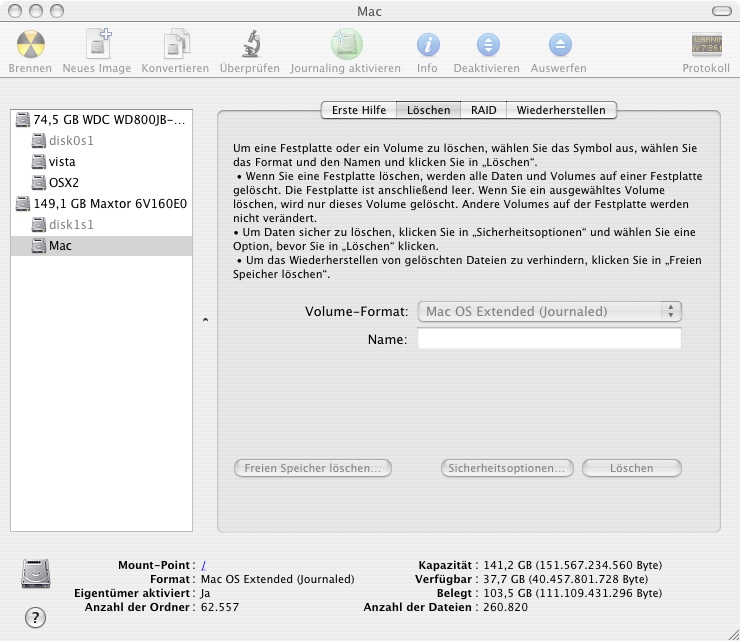

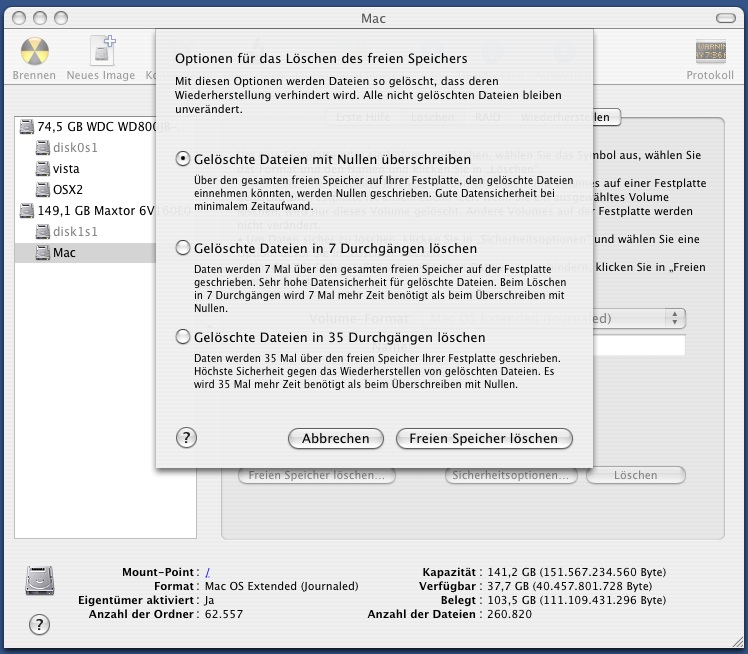

Zero out free space:













For your interist:



tried today



1. copy a hole OSX-Partition sector by sector using DiskDirector, o.k.

had to fix the bootsector with fdisk, boot works



2. made a backup using Acronis TrueImage Rescue Disk

prepared the partiton optimal as I said before (incl. full defragmentation).

Unfortunaly it did not work (not anymore?) as mentioned.

Or I was wrong to remind the results got some weeks before.



TI mades a backup consumpting the same size the source has. (due to RAW-disk without filesystem)

But you can split the backup-files into chunks of i.e. 4,5 GB. Store them to DVD.

Edited by tuxuser33
Link to comment
Share on other sites

  • 2 weeks later...
  • 2 years later...
  • 2 months later...

Hello to all.



A-To make clones of your start up hard disks from your Hackintosh desktop:

CloneTool Hatchery H1

This tool allows you to make perfect clones using different approaches. Hatchery uses 3 different scripts, one of them specially designed for running in a Hackintosh environment. And It's free.







B-To make clones of your start up hard disks from your Windows XP desktop:

Avanquest Perfect Image

This tool makes a perfect image of your hard disk, cloning by clusters. It's commercial but won't make you a forcloser.





I've been using these tools for 2 years and I have no problem at all, using a Tiger 10.4.10 and XP Pro SP2. See my signature.



Hope this helps anyone.
