[Release] macOS Tahoe 26.2

MakAsrock · January 13

57 minutes ago, vamose said:

Thanks a lot @MakAsrock & @LockDown

I am using gigbyte MOBO if that makes any difference.
Tried no luck.

This is so annoying, Tahoe 26.0 worked flawlessly, then 26.1 and 26.2 have become nightmare.

Any other solution?

RX580 GPU has 2 display port and 2 HDMI port, if that helps.

Don't try to use my configuration directly. You'll need to adapt it to your needs, especially the ACPI patch section. I've provided it as an example only.
My card has Outputs: 1x DVI-D, 2x HDMI, 2x DisplayPort. But I don't use DVI-D.
If you have an AMD Radeon RX 580 2048SP, it won't work in Mac OS without flashing the correct vBios. It's not really an RX 580, but an AMD Radeon RX 570 or even an RX 480.
I also had an ASUS DUAL RX 580 8 GB, which also wouldn't work.

The Gigbyte MOBO was a great platform for Hackintosh, but it's long since become obsolete. It has its own unique features, unlike the Asus, which was a real headache for me due to its BIOS until I flashed it with a programator. But it was problem-free in terms of USB ports (less than 15 and only Intel).

Edited January 13 by MakAsrock

Slice · January 13

1 hour ago, vamose said:

Thanks a lot @MakAsrock & @LockDown

I am using gigbyte MOBO if that makes any difference.
Tried no luck.

This is so annoying, Tahoe 26.0 worked flawlessly, then 26.1 and 26.2 have become nightmare.

Any other solution?

RX580 GPU has 2 display port and 2 HDMI port, if that helps.

My RX570 worked in 26.1 but had a problem in 26.2. The problem was somehow resolved after reinstallation.

Try also flash vBios by newer version with UEFI GOP, it may influence.

vamose · January 13

Thanks @Slice

any link to - Flash vBios by newer version with UEFI GOP

& @MakAsrock
I think I did the video flash (the card is XFX Rx580), and it was working till Tahoe 26.0. So if I need to flash with something newer, please share the link to the FW..

Edited January 13 by vamose

MakAsrock · January 13

1 hour ago, vamose said:

Thanks @Slice

any link to - Flash vBios by newer version with UEFI GOP

& @MakAsrock
I think I did the video flash (the card is XFX Rx580), and it was working till Tahoe 26.0. So if I need to flash with something newer, please share the link to the FW..

The card is the XFX Rx580, one of the best cards for Hackintosh and runs macOS 26.2 out of the box, just like the Sapphire Rx580. There's only one problem: It doesn't work with all MOBOs. But it does work with yours. It requires precise alignment of PCIe lanes.
UEFI GOP may need an update, but I doubt there is a newer one than yours.

You can search here. But be careful, you can make a brick out of your card.

In any case, I advise you to save the stock vBIOS in a safe place.
So the problem is in the config. Try updating and adapting this one.

Edited January 13 by MakAsrock

Slice · January 13

4 hours ago, vamose said:

Thanks @Slice

any link to - Flash vBios by newer version with UEFI GOP

Переделка видеобиоса в UEFI-видеобиос

vamose · January 14

@MakAsrock

I have no clue what needs to be done

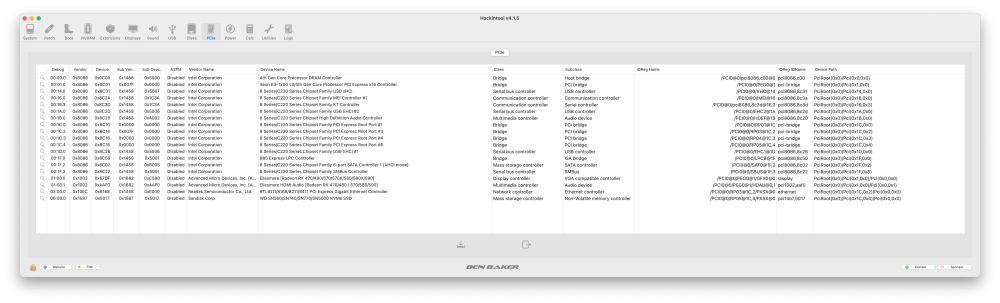

From Hackintool, the info is as below

01:00.0 1002 67DF 1682 C580 Disabl Advanced Micro Devices, Inc. [ Ellesmere [Radeon RX 470/480/570/570X/580/580X/590 Display controller VGA compatible contr 0/PEG0@1/GFX0@0 display PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)

In my config file I have the following

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
   <key>Add</key>
   <dict>
       <key>PciRoot(0x0)/Pci(0x1b,0x0)</key>
       <dict>
           <key>layout-id</key>
           <integer>7</integer>
       </dict>
       <key>PciRoot(0x0)/Pci(0x2,0x0)</key>
       <dict>
           <key>disable-gpu</key>
           <true/>
       </dict>
   </dict>
   <key>Delete</key>
   <dict/>
</dict>
</plist>

I do not understand the instructions and do not know what to do next. Can you guide me?

@Slice

Переделка видеобиоса в UEFI-видеобиос

Произошла неожиданная ошибка. Пожалуйста, попробуйте позже ещё раз.

This is all I get to see. Request if you can share the download link instead. please.

Edited January 14 by vamose

Matgen84 · January 14

@vamose

According to @MakAsrock, your XFX Rx580 works fine (like my MSI Radeon RX580 8Go OC). Update vBios seems to be unnecessary.

PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) is correct instead fo your entry in config.plist. Why this incorrect entry is setting to disable ???

vamose · January 14

@Matgen84

help me what needs to be done. I have followed guides blindly, so I do not know the logical reasoning behind.

Help is needed..

MakAsrock · January 14

57 minutes ago, vamose said:

@Matgen84

help me what needs to be done. I have followed guides blindly, so I do not know the logical reasoning behind.

Help is needed..

Send me output from gfxutil in any macOS where everything works for you.

Usage:

path/to/gfxutil -f IGPU
path/to/gfxutil -f PEGP
path/to/gfxutil -f GFX0

gfxutil.zip

Edited January 14 by MakAsrock

vamose · January 14

@MakAsrock - Attached output.

/Users/xoxo/Downloads/gfxutil ; exit;

xoxo@xoxos-Mac-Pro ~ % /Users/xoxo/Downloads/gfxutil ; exit;

00:00.0 8086:0c00 /PCI0@0/pci8086,c00@0 = PciRoot(0x0)/Pci(0x0,0x0)

00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)

00:14.0 8086:8c31 /PCI0@0/XHC@14 = PciRoot(0x0)/Pci(0x14,0x0)

00:16.0 8086:8c3a /PCI0@0/IMEI@16 = PciRoot(0x0)/Pci(0x16,0x0)

00:16.3 8086:8c3d /PCI0@0/pci8086,8c3d@16,3 = PciRoot(0x0)/Pci(0x16,0x3)

00:1a.0 8086:8c2d /PCI0@0/EHC2@1A = PciRoot(0x0)/Pci(0x1A,0x0)

00:1b.0 8086:8c20 /PCI0@0/HDEF@1B = PciRoot(0x0)/Pci(0x1B,0x0)

00:1c.0 8086:8c10 /PCI0@0/RP01@1C = PciRoot(0x0)/Pci(0x1C,0x0)

00:1c.2 8086:8c14 /PCI0@0/RP03@1C,2 = PciRoot(0x0)/Pci(0x1C,0x2)

00:1c.3 8086:8c16 /PCI0@0/RP04@1C,3 = PciRoot(0x0)/Pci(0x1C,0x3)

00:1c.4 8086:8c18 /PCI0@0/RP05@1C,4 = PciRoot(0x0)/Pci(0x1C,0x4)

00:1d.0 8086:8c26 /PCI0@0/EHC1@1D = PciRoot(0x0)/Pci(0x1D,0x0)

00:1f.0 8086:8c50 /PCI0@0/LPCB@1F = PciRoot(0x0)/Pci(0x1F,0x0)

00:1f.2 8086:8c02 /PCI0@0/SAT0@1F,2 = PciRoot(0x0)/Pci(0x1F,0x2)

00:1f.3 8086:8c22 /PCI0@0/SBUS@1F,3 = PciRoot(0x0)/Pci(0x1F,0x3)

01:00.0 1002:67df /PCI0@0/PEG0@1/GFX0@0 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)

01:00.1 1002:aaf0 /PCI0@0/PEG0@1/HDAU@0,1 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x1)

03:00.0 10ec:8168 /PCI0@0/RP03@1C,2/PXSX@0 = PciRoot(0x0)/Pci(0x1C,0x2)/Pci(0x0,0x0)

06:00.0 15b7:5017 /PCI0@0/RP05@1C,4/PXSX@0 = PciRoot(0x0)/Pci(0x1C,0x4)/Pci(0x0,0x0)

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.

pcidevices.plist pcidevices.json pcidevices.dsl

[Process completed]

Slice · January 14

4 hours ago, vamose said:

@Slice

Переделка видеобиоса в UEFI-видеобиос

Произошла неожиданная ошибка. Пожалуйста, попробуйте позже ещё раз.

This is all I get to see. Request if you can share the download link instead. please.

https://dropmefiles.com/rmdtn

Hope the link is still alive

MakAsrock · January 14

2 hours ago, vamose said:

@MakAsrock - Attached output.

/Users/xoxo/Downloads/gfxutil ; exit;

xoxo@xoxos-Mac-Pro ~ % /Users/xoxo/Downloads/gfxutil ; exit;

00:00.0 8086:0c00 /PCI0@0/pci8086,c00@0 = PciRoot(0x0)/Pci(0x0,0x0)

00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)

00:14.0 8086:8c31 /PCI0@0/XHC@14 = PciRoot(0x0)/Pci(0x14,0x0)

00:16.0 8086:8c3a /PCI0@0/IMEI@16 = PciRoot(0x0)/Pci(0x16,0x0)

00:16.3 8086:8c3d /PCI0@0/pci8086,8c3d@16,3 = PciRoot(0x0)/Pci(0x16,0x3)

00:1a.0 8086:8c2d /PCI0@0/EHC2@1A = PciRoot(0x0)/Pci(0x1A,0x0)

00:1b.0 8086:8c20 /PCI0@0/HDEF@1B = PciRoot(0x0)/Pci(0x1B,0x0)

00:1c.0 8086:8c10 /PCI0@0/RP01@1C = PciRoot(0x0)/Pci(0x1C,0x0)

00:1c.2 8086:8c14 /PCI0@0/RP03@1C,2 = PciRoot(0x0)/Pci(0x1C,0x2)

00:1c.3 8086:8c16 /PCI0@0/RP04@1C,3 = PciRoot(0x0)/Pci(0x1C,0x3)

00:1c.4 8086:8c18 /PCI0@0/RP05@1C,4 = PciRoot(0x0)/Pci(0x1C,0x4)

00:1d.0 8086:8c26 /PCI0@0/EHC1@1D = PciRoot(0x0)/Pci(0x1D,0x0)

00:1f.0 8086:8c50 /PCI0@0/LPCB@1F = PciRoot(0x0)/Pci(0x1F,0x0)

00:1f.2 8086:8c02 /PCI0@0/SAT0@1F,2 = PciRoot(0x0)/Pci(0x1F,0x2)

00:1f.3 8086:8c22 /PCI0@0/SBUS@1F,3 = PciRoot(0x0)/Pci(0x1F,0x3)

01:00.0 1002:67df /PCI0@0/PEG0@1/GFX0@0 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)

01:00.1 1002:aaf0 /PCI0@0/PEG0@1/HDAU@0,1 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x1)

03:00.0 10ec:8168 /PCI0@0/RP03@1C,2/PXSX@0 = PciRoot(0x0)/Pci(0x1C,0x2)/Pci(0x0,0x0)

06:00.0 15b7:5017 /PCI0@0/RP05@1C,4/PXSX@0 = PciRoot(0x0)/Pci(0x1C,0x4)/Pci(0x0,0x0)

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.

pcidevices.plist 5.79 kB · 0 downloads pcidevices.json 14.75 kB · 0 downloads pcidevices.dsl 7.2 kB · 0 downloads

[Process completed]

So, you need to disable this:
00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)
And try the new Lilu-1.7.2-RELEASE fix, which enables the use of WhateverGreen.
I hope it works out for you. 😉

Lilu.kext.zip

MakAsrock · January 14

3 hours ago, MakAsrock said:

So, you need to disable this:
00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)
And try the new Lilu-1.7.2-RELEASE fix, which enables the use of WhateverGreen.
I hope it works out for you. 😉

Lilu.kext.zip 185.63 kB · 4 downloads

I'm sorry, but I was mistaken.
You don't need to disable anything.
The integrated video controller isn't showing up in the device list, which means, like mine, the RX580 automatically disables it when installed in the first slot.
Just update WhateverGreen and Lilu.
Later, I'll edit pcidevices.plist for you.

And yes, all 8GB RX580 cards already include GOP. RX580 4GB cards may not.
So don't flash anything.

pcidevices.plist

Edited January 14 by MakAsrock

vamose · January 15

Thanks @Slice for the link

@MakAsrock

thanks for the guide. Update .kext as per latest available, no go.

in regards to PCIDEVICES.plist, where & how to use it?

MakAsrock · January 15

7 hours ago, vamose said:

Thanks @Slice for the link

@MakAsrock

thanks for the guide. Update .kext as per latest available, no go.

in regards to PCIDEVICES.plist, where & how to use it?

Just copy the "add" section and paste it into your config. 😉
But before that, I would do RX580 init first in the BIOS and reduce the shared memory for the integrated card to 0 and disable CSM compatibility.
At the same time, the PCIe bus number for RX580 may change.
Everything works the same for me, I just deleted the partition with Tahoe because of the very slowdown.

Edited January 15 by MakAsrock

Thebes Knossos · January 16

Hi, I still have problem for full or delta updates on both computers for Tahoe (no dev releases need only regular ones)

Example here on the Haswell PC, it was installed without problem with SMBIOS MacbookPro16,1 .

Attached my actual Opencore EFI, config.plist is cleaned with latest with OCAT

Tested with Opencore 1.0.5 and 1.0.6 (actual 1.0.5)

OCLP is removed, so no Audio, no Wi-Fi nor metal lib but I don't think that's the problem for updates..

It's same EFI for Sonoma and Sequoia and for them I get delta updates.

If someone can have a look, would be nice!

Thanks

OC.zip

Edited January 16 by Thebes Knossos

kaoskinkae · January 16

On 1/14/2026 at 9:16 PM, MakAsrock said:

So, you need to disable this:
00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)
And try the new Lilu-1.7.2-RELEASE fix, which enables the use of WhateverGreen.
I hope it works out for you. 😉

Lilu.kext.zip 185.63 kB · 13 downloads

Let's see how the issue of the Taboe error in updates or beta installations when using Radeon is being addressed. Currently, there's a modified kext, which is the one I use, WhateverGreen.kext v1.7.1d7, that works perfectly. However, an unofficial kext, Lilu.kext v1.9.7, has appeared that claims to work and use the official WhateverGreen. This problem hasn't been mentioned in the official betas yet, and I'm not sure if it will be resolved, even though it's listed as the release date for OpenCore version 1.0.7 this January.

vamose · January 16

@Slice
Excuse me for delayed response, was busy with office.

ok so no go, what I did.

Removed:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
   <key>Add</key>
   <dict>
       <key>PciRoot(0x0)/Pci(0x1b,0x0)</key>
       <dict>
           <key>layout-id</key>
           <integer>7</integer>
       </dict>
       <key>PciRoot(0x0)/Pci(0x2,0x0)</key>
       <dict>
           <key>disable-gpu</key>
           <true/>
       </dict>
   </dict>
</dict>
</plist>

Added

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
   <key>Add</key>
   <dict>
       <key>PciRoot(0x0)/Pci(0x0,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,0,0</string>
           <key>device_type</key>
           <string>Host bridge</string>
           <key>model</key>
           <string>4th Gen Core Processor DRAM Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,1,0</string>
           <key>device_type</key>
           <string>PCI bridge</string>
           <key>model</key>
           <string>Xeon E3-1200 v3/4th Gen Core Processor PCI Express x16 Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)</key>
       <dict>
           <key>ATY,EFIVersion</key>
           <string></string>
           <key>PP_WorkLoadPolicyMask</key>
           <integer>32</integer>
           <key>model</key>
           <string>Ellesmere Radeon RX 580</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x1)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,1,0/0,1</string>
           <key>device_type</key>
           <string>Audio device</string>
           <key>model</key>
           <string>Ellesmere HDMI Audio</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x14,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,20,0</string>
           <key>device_type</key>
           <string>USB controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family USB xHCI</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x16,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,22,0</string>
           <key>device_type</key>
           <string>Communication controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family MEI Controller #1</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x16,0x3)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,22,3</string>
           <key>device_type</key>
           <string>Serial controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family KT Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1A,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,26,0</string>
           <key>device_type</key>
           <string>USB controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family USB EHCI #2</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1B,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,27,0</string>
           <key>device_type</key>
           <string>Audio device</string>
           <key>layout-id</key>
           <data>BwAAAA==</data>
           <key>model</key>
           <string>8 Series/C220 Series Chipset High Definition Audio Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,0</string>
           <key>device_type</key>
           <string>PCI bridge</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family PCI Express Root Port #1</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x2)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,2</string>
           <key>device_type</key>
           <string>PCI bridge</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family PCI Express Root Port #3</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x2)/Pci(0x0,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,2/0,0</string>
           <key>device_type</key>
           <string>Ethernet controller</string>
           <key>model</key>
           <string>RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x3)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,3</string>
           <key>device_type</key>
           <string>PCI bridge</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family PCI Express Root Port #4</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x4)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,4</string>
           <key>device_type</key>
           <string>PCI bridge</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family PCI Express Root Port #5</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1C,0x4)/Pci(0x0,0x0)</key>
       <dict>
           <key>AAPL,ig-platform-id</key>
           <data>CQClPg==</data>
           <key>AAPL,slot-name</key>
           <string>Internal@0,28,4/0,0</string>
           <key>device_type</key>
           <string>Non-Volatile memory controller</string>
           <key>model</key>
           <string>WD SN560/SN740/SN770/SN5000 NVMe SSD</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1D,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,29,0</string>
           <key>device_type</key>
           <string>USB controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family USB EHCI #1</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1F,0x0)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,31,0</string>
           <key>device_type</key>
           <string>ISA bridge</string>
           <key>model</key>
           <string>B85 Express LPC Controller</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1F,0x2)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,31,2</string>
           <key>device_type</key>
           <string>SATA controller</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode]</string>
       </dict>
       <key>PciRoot(0x0)/Pci(0x1F,0x3)</key>
       <dict>
           <key>AAPL,slot-name</key>
           <string>Internal@0,31,3</string>
           <key>device_type</key>
           <string>SMBus</string>
           <key>model</key>
           <string>8 Series/C220 Series Chipset Family SMBus Controller</string>
       </dict>
   </dict>
</dict>
</plist>

Issue persists.

Log after running gfxutil

00:00.0 8086:0c00 /PCI0@0/pci8086,c00@0 = PciRoot(0x0)/Pci(0x0,0x0)

00:01.0 8086:0c01 /PCI0@0/PEG0@1 = PciRoot(0x0)/Pci(0x1,0x0)

00:02.0 8086:0412 /PCI0@0/IGPU@2 = PciRoot(0x0)/Pci(0x2,0x0)
