trulyspinach Posted November 5, 2023 Share Posted November 5, 2023 (edited) Hi folks, I just got myself a Xeon W-3365 on X12SPL. Long story short, I tried tweaking my own setting as well as the EFI from here. But all I get is stuck on EXITBS:START. So I hooked up a serial port and got the following logs right after exiting boot service: ... version = Darwin Kernel Version 22.6.0: Wed Oct 4 21:25:26 PDT 2023; root:xnu-8796.141.3.701.17~4/RELEASE_X86_64 i386_vm_init KASLR slide: 0x0000000018400000 dynamic Hiding local relocations WARNING: ignoring first page in [0x0:0x9d] mem_actual: 0x4000000000 legacy sane_size: 0x3ff0000000 Physical memory 262144 MB avail_remaining = 0x3fe7858 PMAP: PCID enabled PMAP: Supervisor Mode Execute Protection enabled PMAP: Supervisor Mode Access Protection enabled Kernel virtual space from 0xffffff8000000000 to 0xffffffffffffefff. Available physical space from 0x21256000 to 0x407ffff000 initialize_screen: b=A4000000, w=00000400, h=00000300, r=00001000, d=00000001 power_management_init Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80189d30dd, CR2: 0x0 CPU 0 panic trap number 0xd, rip 0xffffff80189d30dd cr0 0x0000000080010013 cr2 0x0000000000000000 cr3 0x000000002114d000 cr4 0x00000000003200e0 Kernel trap at 0x%016llx, type %d=%s, registers: CR0: 0x%016llx, CR2: 0x%016llx, CR3: 0x%016llx, CR4: 0x%016llx RAX: 0x%016llx, RBX: 0x%016llx, RCX: 0x%016llx, RDX: 0x%016llx RSP: 0x%016llx, RBP: 0x%016llx, RSI: 0x%016llx, RDI: 0x%016llx R8: 0x%016llx, R9: 0x%016llx, R10: 0x%016llx, R11: 0x%016llx R12: 0x%016llx, R13: 0x%016llx, R14: 0x%016llx, R15: 0x%016llx RFL: 0x%016llx, RIP: 0x%016llx, CS: 0x%016llx, SS: 0x%016llx Fault CR2: 0x%016llx, Error code: 0x%016llx, Fault CPU: 0x%x%s%s%s%s, PL: %d, VF: %d I definitely have the XCPM quirks enabled and CFG was not unlocked. If anyone can share some insight would be much appreciated. Meanwhile I am trying look into the code, and swap for a debug kernel. I think worse case I will have to compile a kernel with added debug prints, or create some patches to find out what happened. Thanks! Edited November 6, 2023 by trulyspinach add help with to title 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/ Share on other sites More sharing options...
Slice Posted November 5, 2023 Share Posted November 5, 2023 Physical memory 262144 MB Is not too much? Try to use boot-arg slide=0 and see what will change. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813151 Share on other sites More sharing options...
trulyspinach Posted November 6, 2023 Author Share Posted November 6, 2023 @Slice Thanks for the help. Quote Physical memory 262144 MB Is not too much? The system have 256GB memory installed so I think that should be correct. I've tried adding slide=0 and also disabling C-States in BIOS but nothing changed, still stuck at the same place. Here I've attached the full serial capture including those from OpenCore: BS: Starting OpenCore application... BS: Booter path - \EFI\BOOT\BOOTX64.EFI OCFS: Trying to locate filesystem on 5CCF2F98 5FA01B18 OCFS: Filesystem DP - \EFI\BOOT\BOOTX64.EFI BS: Trying to load OpenCore image... BS: Relative path - EFI BS: Startup path - EFI\OpenCore.efi (0) BS: Fallback to absolute path - EFI\OC\OpenCore.efi BS: Read OpenCore image of 835584 bytes OCM: Loaded image at 5FA07398 handle OCM: Loaded image has DeviceHandle 5CCF2F98 FilePath 5F649F98 ours DevicePath 5D456E98 OCCPU: TSC Adjust 0 OCCPU: Core Crystal Clock Frequency from TSC 24999963Hz = 2699996011Hz * 2 / 216 OCCPU: CPUFrequencyFromART 2700000000Hz 2700MHz = 24999963 * 216 / 2 OC: Starting OpenCore... OC: Booter path - EFI\OC\OpenCore.efi OCFS: Trying to locate filesystem on 5CCF2F98 5F649F98 OCFS: Filesystem DP - EFI\OC\OpenCore.efi OC: Absolute booter path - EFI\OC\OpenCore.efi OC: Storage root EFI\OC\OpenCore.efi OCST: Missing vault data, ignoring... OC: OcMiscEarlyInit... OC: Loaded configuration of 34183 bytes OCS: Missing key ClockRate, context <Custom>! OCS: Missing key DetectCable, context <Custom>! OCS: Missing key ExtendedTxFifoSize, context <Custom>! OCS: Missing key FifoControl, context <Custom>! OCS: Missing key LineControl, context <Custom>! OCS: Missing key PciDeviceInfo, context <Custom>! OCS: Missing key RegisterAccessWidth, context <Custom>! OCS: Missing key RegisterBase, context <Custom>! OCS: Missing key RegisterStride, context <Custom>! OCS: Missing key UseHardwareFlowControl, context <Custom>! OCS: Missing key UseMmio, context <Custom>! OC: Got 10 drivers OC: Watchdog status is 1 00:000 00:000 BS: Starting OpenCore application... 00:004 00:004 BS: Booter path - \EFI\BOOT\BOOTX64.EFI 00:009 00:005 OCFS: Trying to locate filesystem on 5CCF2F98 5FA01B18 00:016 00:006 OCFS: Filesystem DP - \EFI\BOOT\BOOTX64.EFI 00:021 00:005 BS: Trying to load OpenCore image... 00:027 00:005 BS: Relative path - EFI 00:031 00:003 BS: Startup path - EFI\OpenCore.efi (0) 00:036 00:005 BS: Fallback to absolute path - EFI\OC\OpenCore.efi 00:043 00:006 BS: Read OpenCore image of 835584 bytes 00:048 00:004 OCM: Loaded image at 5FA07398 handle 00:053 00:005 OCM: Loaded image has DeviceHandle 5CCF2F98 FilePath 5F649F98 ours DevicePath 5D456E98 00:063 00:009 OCCPU: TSC Adjust 0 00:067 00:003 OCCPU: Core Crystal Clock Frequency from TSC 24999963Hz = 2699996011Hz * 2 / 216 00:077 00:009 OCCPU: CPUFrequencyFromART 2700000000Hz 2700MHz = 24999963 * 216 / 2 00:085 00:008 OC: Starting OpenCore... 00:089 00:003 OC: Booter path - EFI\OC\OpenCore.efi 00:094 00:005 OCFS: Trying to locate filesystem on 5CCF2F98 5F649F98 00:101 00:006 OCFS: Filesystem DP - EFI\OC\OpenCore.efi 00:106 00:005 OC: Absolute booter path - EFI\OC\OpenCore.efi 00:112 00:005 OC: Storage root EFI\OC\OpenCore.efi 00:118 00:006 OCST: Missing vault data, ignoring... 00:123 00:005 OC: OcMiscEarlyInit... 00:126 00:003 OC: Loaded configuration of 34183 bytes 00:132 00:005 OCS: Missing key ClockRate, context <Custom>! 00:137 00:005 OCS: Missing key DetectCable, context <Custom>! 00:145 00:007 OCS: Missing key ExtendedTxFifoSize, context <Custom>! 00:151 00:006 OCS: Missing key FifoControl, context <Custom>! 00:158 00:006 OCS: Missing key LineControl, context <Custom>! 00:164 00:006 OCS: Missing key PciDeviceInfo, context <Custom>! 00:170 00:006 OCS: Missing key RegisterAccessWidth, context <Custom>! 00:176 00:006 OCS: Missing key RegisterBase, context <Custom>! 00:183 00:006 OCS: Missing key RegisterStride, context <Custom>! 00:189 00:006 OCS: Missing key UseHardwareFlowControl, context <Custom>! 00:196 00:006 OCS: Missing key UseMmio, context <Custom>! 00:202 00:005 OC: Got 10 drivers 00:206 00:004 OC: Watchdog status is 1 00:213 00:006 OC: OpenCore DBG-095-2023-09-11 is loading in Optional mode (0/0)... 00:223 00:010 OC: Boot timestamp - 2023.11.05 22:11:17 00:228 00:005 OCCPU: MP services threads 64 (enabled 64) - Success 00:235 00:006 OCCPU: MP services Pkg 1 Cores 32 Threads 2 - Success 00:241 00:006 OCCPU: Found Intel(R) Xeon(R) W-3365 CPU @ 2.70GHz 00:248 00:006 OCCPU: Signature 606A6 Stepping 6 Model 6A Family 6 Type 0 ExtModel 6 ExtFamily 0 uCode D000390 CPUID MAX (1B/80000008) 00:261 00:012 OCCPU: EIST CFG Lock 1 00:265 00:003 OCCPU: TSC Adjust 0 00:375 00:110 OCCPU: Core Crystal Clock Frequency from TSC 25000001Hz = 2700000151Hz * 2 / 216 00:384 00:009 OCCPU: CPUFrequencyFromART 2700000000Hz 2700MHz = 25000001 * 216 / 2 00:393 00:008 OCCPU: Timer address is 508 from PMC ACPI 00:398 00:005 OCCPU: Failed to get FSBFrequency data using Apple Platform Info - Not Found 00:511 00:112 OCCPU: Intel TSC: 2700000000Hz, 2700MHz; FSB: 100000000Hz, 100MHz; MaxBusRatio: 27 00:520 00:009 OCCPU: Detected Apple Processor Type: 0F -> 0605 00:527 00:007 OCCPU: CPUFrequencyFromTSC 2700001545Hz 2700MHz 00:533 00:006 OCCPU: CPUFrequency 2700000000Hz 2700MHz 00:538 00:004 OCCPU: FSBFrequency 100000000Hz 100MHz 00:546 00:007 OCCPU: Pkg 1 Cores 32 Threads 64 00:552 00:005 OC: OcLoadNvramSupport... 00:555 00:003 OCVAR: Locate emulated NVRAM protocol - Not Found 00:562 00:007 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found 00:571 00:009 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add 00:582 00:010 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Not Found 00:590 00:008 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI, matches add 00:606 00:015 OCVAR: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success 00:615 00:009 OCVAR: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found 00:626 00:010 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:bootercfg - Success 00:634 00:007 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI - ignored, exists 00:646 00:012 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists 00:659 00:013 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success 00:668 00:008 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists 00:679 00:010 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Success 00:689 00:010 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists 00:699 00:009 OC: Current version is DBG-095-2023-09-11 00:705 00:005 OC: OcMiscMiddleInit... 00:711 00:005 OC: StorageHandle 5CCF2F98 with Disabled LauncherOption pointing to Default 00:719 00:008 OC: OcLoadUefiSupport... 00:723 00:003 OCAU: OcAudioInstallProtocols (0, 0) 00:729 00:005 OCAU: 4B228577-6274-4A48-82AE-0713A1171987 protocol - Not Found 00:737 00:008 OCAU: C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol - Not Found 00:745 00:007 OCAU: F4CB0B78-243B-11E7-A524-B8E8562CBAFA protocol - Not Found 00:753 00:007 OCAU: 3224B169-EC34-46D2-B779-E1B1687F525F protocol - Not Found 00:760 00:007 OCAE: Builtin installed 00:766 00:005 OCRTC: Wake log is 0x1F 0xFE 143 0xFC 00:771 00:005 OCEG: Discovered rotate NVRAM override to 0 00:776 00:005 OC: Automatic SB model j160 from model MacPro7,1 00:784 00:007 OC: Loading Apple Secure Boot with j160 (level 1) 00:793 00:009 OCII: AIFTimerBoostInit Current timer is 549254 00:803 00:009 OCII: AIFTimerBoostInit changed period 549254 to 50000 00:809 00:006 OC: Installing KeySupport... 00:813 00:003 OCII: gST->ConIn 63F3AFA0 vs found 63F3AFA0 00:821 00:008 AIK: Using 5 (50ms) 00:828 00:007 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 1 NOSU 1 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 0 WRUNPROT 1 00:843 00:014 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 0 ARBAR -1 RBIO 0 00:858 00:015 OCABC: Firmware has 66964058 free pages (379482 in lower 4 GB) 00:868 00:009 OCABC: Awaiting rendezvous with OpenRuntime r12 00:878 00:009 OC: RequestBootVarRouting 1 00:881 00:003 OCDM: Found 0x20050/0x20050 UEFI version (376 bytes, 0 rebuilding to 376) gST 6BDFE018 gBS 6C756A90 gBS->CreateEventEx 6C74847C &gBS 5B79C1D0 00:901 00:019 OC: AVX enabled - 1 00:908 00:007 OC: Got 10 drivers 00:911 00:003 OC: Driver OpenVariableRuntimeDxe.efi at 0 () is skipped! 00:921 00:009 OC: Driver OpenRuntime.efi at 1 () is being loaded... 00:943 00:021 OCABC: EfiBootRt candidate - <nil> 00:950 00:007 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 00:958 00:007 OCB: Arch filtering 0(36864)->5D2B3018(36864) caps 4 - Success 00:969 00:011 OCABC: Got rendezvous with OpenRuntime r12 00:974 00:004 OCABC: MAT support is 1 00:982 00:007 OC: Driver OpenRuntime.efi at 1 is successfully loaded! 00:991 00:009 OC: Driver OpenHfsPlus.efi at 2 (HFS+ Driver) is being loaded... 01:009 00:017 OCABC: EfiBootRt candidate - <nil> 01:016 00:007 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 01:021 00:004 OCB: Arch filtering 0(53248)->5D2AF018(53248) caps 4 - Success 01:032 00:011 OC: Driver OpenHfsPlus.efi at 2 is successfully loaded! 01:041 00:008 OC: Driver OpenHfsPlus.efi at 2 needs connection. 01:051 00:010 OC: Driver OpenCanopy.efi at 3 () is skipped! 01:058 00:006 OC: Driver AudioDxe.efi at 4 () is skipped! 01:066 00:008 OC: Driver OpenPartitionDxe.efi at 5 () is skipped! 01:076 00:010 OC: Driver NvmExpressDxe.efi at 6 () is being loaded... 01:088 00:011 OCABC: EfiBootRt candidate - <nil> 01:092 00:004 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 01:099 00:007 OCB: Arch filtering 0(61440)->5D2AD018(61440) caps 4 - Success 01:111 00:011 OC: Driver NvmExpressDxe.efi at 6 is successfully loaded! 01:119 00:008 OC: Driver NvmExpressDxe.efi at 6 needs connection. 01:129 00:010 OC: Driver XhciDxe.efi at 7 () is being loaded... 01:142 00:012 OCABC: EfiBootRt candidate - <nil> 01:149 00:007 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 01:156 00:006 OCB: Arch filtering 0(73728)->5D2AA018(73728) caps 4 - Success 01:168 00:011 OC: Driver XhciDxe.efi at 7 is successfully loaded! 01:176 00:008 OC: Driver XhciDxe.efi at 7 needs connection. 01:181 00:005 OC: Driver ResetNvramEntry.efi at 8 () is skipped! 01:191 00:009 OC: Driver ToggleSipEntry.efi at 9 () is skipped! 01:199 00:008 OC: Connecting drivers... 01:530 00:330 OC: Connecting drivers done... 01:536 00:006 OC: Found 2 pointer devices - Success 01:541 00:005 OCJS: PartitionInfo is Success 01:548 00:006 OCC: Installing GOP (Unsupported) on ConsoleOutHandle... 01:558 00:009 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max 01:568 00:010 OCC: Requesting 0x0@0 (max: 1) resolution, curr 3, total 4 01:578 00:009 OCC: Current FB at 0xA4000000 (0x300000), format 1, res 1024x768 scan 1024 01:590 00:011 OCC: Mode 0 - 640x480:1 01:596 00:006 OCC: Mode 1 - 800x600:1 01:600 00:003 OCC: Mode 2 - 800x600:1 01:606 00:006 OCC: Mode 3 - 1024x768:1 01:610 00:003 OCC: Current mode matches desired mode 3 01:618 00:007 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started 01:630 00:011 OC: Selected UIScale 1 based on 1024x768 resolution 01:640 00:010 OC: Setting UIScale to 1 - Success 01:648 00:008 OCC: Using builtin text renderer with 1 scale 01:653 00:004 OCC: Install console control (5B789F18/6C73F0B0/0), current - Success 01:760 00:106 OCC: Setup ASCII Output - Success 01:766 00:006 OC: Requested console mode is 0x0 (max: 0) from 01:773 00:006 OC: Requested not to use audio 01:779 00:006 OC: OcMiscLoadSystemReport... 01:786 00:007 OC: OcLoadAcpiSupport... 01:791 00:004 OCA: Found 27 ACPI tables 01:798 00:007 OCA: Detected table FACP (50434146) (OEM 424D2D2D49434D53) at 678FC000 of 276 bytes at index 0 01:811 00:013 OCA: Detected DSDT at 67893000 of 422354 bytes at index 0 01:821 00:009 OCA: Detected table SPMI (494D5053) (OEM 424D2D2D49434D53) at 678FB000 of 65 bytes at index 1 01:836 00:015 OCA: Detected table FIDT (54444946) (OEM 424D2D2D49434D53) at 67892000 of 156 bytes at index 2 01:850 00:013 OCA: Detected table SSDT (54445353) (OEM 495043415F534152) at 678FE000 of 1796 bytes at index 3 01:866 00:016 OCA: Detected table ERST (54535245) (OEM 424D2D2D49434D53) at 678FD000 of 560 bytes at index 4 01:878 00:011 OCA: Detected table BERT (54524542) (OEM 424D2D2D49434D53) at 67891000 of 48 bytes at index 5 01:891 00:013 OCA: Detected table SSDT (54445353) (OEM 54414C5852444441) at 67890000 of 1861 bytes at index 6 01:908 00:016 OCA: Detected table MCFG (4746434D) (OEM 424D2D2D49434D53) at 6788F000 of 60 bytes at index 7 01:920 00:011 OCA: Detected table BDAT (54414442) (OEM 424D2D2D49434D53) at 6788E000 of 48 bytes at index 8 01:933 00:013 OCA: Detected table HMAT (54414D48) (OEM 424D2D2D49434D53) at 6788D000 of 288 bytes at index 9 01:948 00:015 OCA: Detected table HPET (54455048) (OEM 424D2D2D49434D53) at 6788C000 of 56 bytes at index 10 01:961 00:013 OCA: Detected table MIGT (5447494D) (OEM 424D2D2D49434D53) at 6788B000 of 64 bytes at index 11 01:976 00:015 OCA: Detected table MSCT (5443534D) (OEM 424D2D2D49434D53) at 6788A000 of 144 bytes at index 12 01:991 00:014 OCA: Detected table WDDT (54444457) (OEM 424D2D2D49434D53) at 67889000 of 64 bytes at index 13 02:003 00:011 OCA: Detected table APIC (43495041) (OEM 424D2D2D49434D53) at 67887000 of 606 bytes at index 14 02:019 00:016 OCA: Detected table SLIT (54494C53) (OEM 424D2D2D49434D53) at 67886000 of 45 bytes at index 15 02:031 00:011 OCA: Detected table SRAT (54415253) (OEM 424D2D2D49434D53) at 6787F000 of 25648 bytes at index 16 02:048 00:016 OCA: Detected table OEM4 (344D454F) (OEM 5453432020555043) at 676F7000 of 1604193 bytes at index 17 02:061 00:013 OCA: Detected table OEM1 (314D454F) (OEM 5453494520555043) at 675E3000 of 1127561 bytes at index 18 02:078 00:016 OCA: Detected table SSDT (54445353) (OEM 4D50202054445353) at 6756C000 of 484517 bytes at index 19 02:093 00:014 OCA: Detected table SSDT (54445353) (OEM 424D2D2D49434D53) at 6756B000 of 2483 bytes at index 20 02:109 00:016 OCA: Detected table HEST (54534548) (OEM 424D2D2D49434D53) at 6756A000 of 316 bytes at index 21 02:123 00:013 OCA: Detected table DMAR (52414D44) (OEM 424D2D2D49434D53) at 67569000 of 348 bytes at index 22 02:138 00:015 OCA: Detected table SSDT (54445353) (OEM 2020206D4E737053) at 67560000 of 30906 bytes at index 23 02:151 00:013 OCA: Detected table BGRT (54524742) (OEM 424D2D2D49434D53) at 67568000 of 56 bytes at index 24 02:163 00:011 OCA: Detected table SSDT (54445353) (OEM 20204E4443434D53) at 6755E000 of 6619 bytes at index 25 02:179 00:016 OCA: Detected table WSMT (544D5357) (OEM 424D2D2D49434D53) at 67888000 of 40 bytes at index 26 02:191 00:011 OCA: FACS signature is 0 (0) 02:198 00:006 OC: Applying 5 byte ACPI patch (TMR IRQ 0 Patch) at 0, skip 0, count 0 02:210 00:011 OCA: Patching DSDT of 422354 bytes with 0000000000000000 ID replaced 1 of 0 02:221 00:011 OCA: Refreshed DSDT checksum to D0 02:229 00:008 OCA: Patching FACP (50434146) (OEM 424D2D2D49434D53) of 276 bytes with 424D2D2D49434D53 ID at 0 replaced 0 of 0 02:246 00:016 OCA: Patching SPMI (494D5053) (OEM 424D2D2D49434D53) of 65 bytes with 424D2D2D49434D53 ID at 1 replaced 0 of 0 02:259 00:013 OCA: Patching FIDT (54444946) (OEM 424D2D2D49434D53) of 156 bytes with 424D2D2D49434D53 ID at 2 replaced 0 of 0 02:278 00:018 OCA: Patching SSDT (54445353) (OEM 495043415F534152) of 1796 bytes with 495043415F534152 ID at 3 replaced 0 of 0 02:293 00:014 OCA: Patching ERST (54535245) (OEM 424D2D2D49434D53) of 560 bytes with 424D2D2D49434D53 ID at 4 replaced 0 of 0 02:310 00:016 OCA: Patching BERT (54524542) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 5 replaced 0 of 0 02:323 00:013 OCA: Patching SSDT (54445353) (OEM 54414C5852444441) of 1861 bytes with 54414C5852444441 ID at 6 replaced 0 of 0 02:341 00:018 OCA: Patching MCFG (4746434D) (OEM 424D2D2D49434D53) of 60 bytes with 424D2D2D49434D53 ID at 7 replaced 0 of 0 02:356 00:015 OCA: Patching BDAT (54414442) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 8 replaced 0 of 0 02:371 00:014 OCA: Patching HMAT (54414D48) (OEM 424D2D2D49434D53) of 288 bytes with 424D2D2D49434D53 ID at 9 replaced 0 of 0 02:389 00:018 OCA: Patching HPET (54455048) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 10 replaced 0 of 0 02:406 00:016 OCA: Patching MIGT (5447494D) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 11 replaced 0 of 0 02:421 00:014 OCA: Patching MSCT (5443534D) (OEM 424D2D2D49434D53) of 144 bytes with 424D2D2D49434D53 ID at 12 replaced 0 of 0 02:438 00:016 OCA: Patching WDDT (54444457) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 13 replaced 0 of 0 02:453 00:014 OCA: Patching APIC (43495041) (OEM 424D2D2D49434D53) of 606 bytes with 424D2D2D49434D53 ID at 14 replaced 0 of 0 02:469 00:016 OCA: Patching SLIT (54494C53) (OEM 424D2D2D49434D53) of 45 bytes with 424D2D2D49434D53 ID at 15 replaced 0 of 0 02:486 00:016 OCA: Patching SRAT (54415253) (OEM 424D2D2D49434D53) of 25648 bytes with 424D2D2D49434D53 ID at 16 replaced 0 of 0 02:502 00:016 OCA: Patching OEM4 (344D454F) (OEM 5453432020555043) of 1604193 bytes with 5453432020555043 ID at 17 replaced 0 of 0 02:520 00:018 OCA: Patching OEM1 (314D454F) (OEM 5453494520555043) of 1127561 bytes with 5453494520555043 ID at 18 replaced 0 of 0 02:538 00:017 OCA: Patching SSDT (54445353) (OEM 4D50202054445353) of 484517 bytes with 4D50202054445353 ID at 19 replaced 0 of 0 02:556 00:018 OCA: Patching SSDT (54445353) (OEM 424D2D2D49434D53) of 2483 bytes with 424D2D2D49434D53 ID at 20 replaced 0 of 0 02:573 00:016 OCA: Patching HEST (54534548) (OEM 424D2D2D49434D53) of 316 bytes with 424D2D2D49434D53 ID at 21 replaced 0 of 0 02:591 00:018 OCA: Patching DMAR (52414D44) (OEM 424D2D2D49434D53) of 348 bytes with 424D2D2D49434D53 ID at 22 replaced 0 of 0 02:608 00:016 OCA: Patching SSDT (54445353) (OEM 2020206D4E737053) of 30906 bytes with 2020206D4E737053 ID at 23 replaced 0 of 0 02:623 00:014 OCA: Patching BGRT (54524742) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 24 replaced 0 of 0 02:641 00:018 OCA: Patching SSDT (54445353) (OEM 20204E4443434D53) of 6619 bytes with 20204E4443434D53 ID at 25 replaced 0 of 0 02:658 00:016 OCA: Patching WSMT (544D5357) (OEM 424D2D2D49434D53) of 40 bytes with 424D2D2D49434D53 ID at 26 replaced 0 of 0 02:673 00:014 OC: Applying 5 byte ACPI patch (RTC IRQ 8 Patch) at 1, skip 0, count 0 02:686 00:013 OCA: Patching DSDT of 422354 bytes with 0000000000000000 ID replaced 1 of 0 02:697 00:010 OCA: Refreshed DSDT checksum to D1 02:702 00:005 OCA: Patching FACP (50434146) (OEM 424D2D2D49434D53) of 276 bytes with 424D2D2D49434D53 ID at 0 replaced 0 of 0 02:719 00:017 OCA: Patching SPMI (494D5053) (OEM 424D2D2D49434D53) of 65 bytes with 424D2D2D49434D53 ID at 1 replaced 0 of 0 02:733 00:013 OCA: Patching FIDT (54444946) (OEM 424D2D2D49434D53) of 156 bytes with 424D2D2D49434D53 ID at 2 replaced 0 of 0 02:751 00:018 OCA: Patching SSDT (54445353) (OEM 495043415F534152) of 1796 bytes with 495043415F534152 ID at 3 replaced 0 of 0 02:768 00:016 OCA: Patching ERST (54535245) (OEM 424D2D2D49434D53) of 560 bytes with 424D2D2D49434D53 ID at 4 replaced 0 of 0 02:783 00:014 OCA: Patching BERT (54524542) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 5 replaced 0 of 0 02:798 00:015 OCA: Patching SSDT (54445353) (OEM 54414C5852444441) of 1861 bytes with 54414C5852444441 ID at 6 replaced 0 of 0 02:816 00:018 OCA: Patching MCFG (4746434D) (OEM 424D2D2D49434D53) of 60 bytes with 424D2D2D49434D53 ID at 7 replaced 0 of 0 02:829 00:013 OCA: Patching BDAT (54414442) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 8 replaced 0 of 0 02:846 00:016 OCA: Patching HMAT (54414D48) (OEM 424D2D2D49434D53) of 288 bytes with 424D2D2D49434D53 ID at 9 replaced 0 of 0 02:863 00:016 OCA: Patching HPET (54455048) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 10 replaced 0 of 0 02:879 00:016 OCA: Patching MIGT (5447494D) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 11 replaced 0 of 0 02:896 00:016 OCA: Patching MSCT (5443534D) (OEM 424D2D2D49434D53) of 144 bytes with 424D2D2D49434D53 ID at 12 replaced 0 of 0 02:911 00:014 OCA: Patching WDDT (54444457) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 13 replaced 0 of 0 02:928 00:016 OCA: Patching APIC (43495041) (OEM 424D2D2D49434D53) of 606 bytes with 424D2D2D49434D53 ID at 14 replaced 0 of 0 02:943 00:014 OCA: Patching SLIT (54494C53) (OEM 424D2D2D49434D53) of 45 bytes with 424D2D2D49434D53 ID at 15 replaced 0 of 0 02:960 00:016 OCA: Patching SRAT (54415253) (OEM 424D2D2D49434D53) of 25648 bytes with 424D2D2D49434D53 ID at 16 replaced 0 of 0 02:978 00:018 OCA: Patching OEM4 (344D454F) (OEM 5453432020555043) of 1604193 bytes with 5453432020555043 ID at 17 replaced 0 of 0 02:997 00:019 OCA: Patching OEM1 (314D454F) (OEM 5453494520555043) of 1127561 bytes with 5453494520555043 ID at 18 replaced 0 of 0 03:016 00:019 OCA: Patching SSDT (54445353) (OEM 4D50202054445353) of 484517 bytes with 4D50202054445353 ID at 19 replaced 0 of 0 03:031 00:014 OCA: Patching SSDT (54445353) (OEM 424D2D2D49434D53) of 2483 bytes with 424D2D2D49434D53 ID at 20 replaced 0 of 0 03:050 00:018 OCA: Patching HEST (54534548) (OEM 424D2D2D49434D53) of 316 bytes with 424D2D2D49434D53 ID at 21 replaced 0 of 0 03:066 00:016 OCA: Patching DMAR (52414D44) (OEM 424D2D2D49434D53) of 348 bytes with 424D2D2D49434D53 ID at 22 replaced 0 of 0 03:081 00:014 OCA: Patching SSDT (54445353) (OEM 2020206D4E737053) of 30906 bytes with 2020206D4E737053 ID at 23 replaced 0 of 0 03:098 00:016 OCA: Patching BGRT (54524742) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 24 replaced 0 of 0 03:113 00:014 OCA: Patching SSDT (54445353) (OEM 20204E4443434D53) of 6619 bytes with 20204E4443434D53 ID at 25 replaced 0 of 0 03:130 00:016 OCA: Patching WSMT (544D5357) (OEM 424D2D2D49434D53) of 40 bytes with 424D2D2D49434D53 ID at 26 replaced 0 of 0 03:146 00:016 OC: Applying 5 byte ACPI patch (HPET _CRS to XCRS Rename) at 2, skip 0, count 0 03:158 00:011 OCA: Patching DSDT of 422354 bytes with 0000000000000000 ID replaced 1 of 0 03:168 00:009 OCA: Refreshed DSDT checksum to D8 03:176 00:008 OCA: Patching FACP (50434146) (OEM 424D2D2D49434D53) of 276 bytes with 424D2D2D49434D53 ID at 0 replaced 0 of 0 03:191 00:014 OCA: Patching SPMI (494D5053) (OEM 424D2D2D49434D53) of 65 bytes with 424D2D2D49434D53 ID at 1 replaced 0 of 0 03:206 00:015 OCA: Patching FIDT (54444946) (OEM 424D2D2D49434D53) of 156 bytes with 424D2D2D49434D53 ID at 2 replaced 0 of 0 03:223 00:016 OCA: Patching SSDT (54445353) (OEM 495043415F534152) of 1796 bytes with 495043415F534152 ID at 3 replaced 0 of 0 03:240 00:016 OCA: Patching ERST (54535245) (OEM 424D2D2D49434D53) of 560 bytes with 424D2D2D49434D53 ID at 4 replaced 0 of 0 03:256 00:016 OCA: Patching BERT (54524542) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 5 replaced 0 of 0 03:270 00:013 OCA: Patching SSDT (54445353) (OEM 54414C5852444441) of 1861 bytes with 54414C5852444441 ID at 6 replaced 0 of 0 03:288 00:018 OCA: Patching MCFG (4746434D) (OEM 424D2D2D49434D53) of 60 bytes with 424D2D2D49434D53 ID at 7 replaced 0 of 0 03:301 00:013 OCA: Patching BDAT (54414442) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 8 replaced 0 of 0 03:318 00:016 OCA: Patching HMAT (54414D48) (OEM 424D2D2D49434D53) of 288 bytes with 424D2D2D49434D53 ID at 9 replaced 0 of 0 03:336 00:018 OCA: Patching HPET (54455048) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 10 replaced 0 of 0 03:351 00:014 OCA: Patching MIGT (5447494D) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 11 replaced 0 of 0 03:368 00:016 OCA: Patching MSCT (5443534D) (OEM 424D2D2D49434D53) of 144 bytes with 424D2D2D49434D53 ID at 12 replaced 0 of 0 03:383 00:014 OCA: Patching WDDT (54444457) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 13 replaced 0 of 0 03:400 00:016 OCA: Patching APIC (43495041) (OEM 424D2D2D49434D53) of 606 bytes with 424D2D2D49434D53 ID at 14 replaced 0 of 0 03:416 00:016 OCA: Patching SLIT (54494C53) (OEM 424D2D2D49434D53) of 45 bytes with 424D2D2D49434D53 ID at 15 replaced 0 of 0 03:431 00:014 OCA: Patching SRAT (54415253) (OEM 424D2D2D49434D53) of 25648 bytes with 424D2D2D49434D53 ID at 16 replaced 0 of 0 03:449 00:018 OCA: Patching OEM4 (344D454F) (OEM 5453432020555043) of 1604193 bytes with 5453432020555043 ID at 17 replaced 0 of 0 03:467 00:017 OCA: Patching OEM1 (314D454F) (OEM 5453494520555043) of 1127561 bytes with 5453494520555043 ID at 18 replaced 0 of 0 03:487 00:019 OCA: Patching SSDT (54445353) (OEM 4D50202054445353) of 484517 bytes with 4D50202054445353 ID at 19 replaced 0 of 0 03:501 00:014 OCA: Patching SSDT (54445353) (OEM 424D2D2D49434D53) of 2483 bytes with 424D2D2D49434D53 ID at 20 replaced 0 of 0 03:520 00:018 OCA: Patching HEST (54534548) (OEM 424D2D2D49434D53) of 316 bytes with 424D2D2D49434D53 ID at 21 replaced 0 of 0 03:536 00:016 OCA: Patching DMAR (52414D44) (OEM 424D2D2D49434D53) of 348 bytes with 424D2D2D49434D53 ID at 22 replaced 0 of 0 03:551 00:014 OCA: Patching SSDT (54445353) (OEM 2020206D4E737053) of 30906 bytes with 2020206D4E737053 ID at 23 replaced 0 of 0 03:568 00:016 OCA: Patching BGRT (54524742) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 24 replaced 0 of 0 03:583 00:014 OCA: Patching SSDT (54445353) (OEM 20204E4443434D53) of 6619 bytes with 20204E4443434D53 ID at 25 replaced 0 of 0 03:600 00:016 OCA: Patching WSMT (544D5357) (OEM 424D2D2D49434D53) of 40 bytes with 424D2D2D49434D53 ID at 26 replaced 0 of 0 03:616 00:016 OC: Applying 7 byte ACPI patch (HPET _STA to XSTA Rename) at 3, skip 0, count 0 03:628 00:012 OCA: Patching DSDT of 422354 bytes with 0000000000000000 ID replaced 1 of 0 03:638 00:010 OCA: Refreshed DSDT checksum to DF 03:646 00:007 OCA: Patching FACP (50434146) (OEM 424D2D2D49434D53) of 276 bytes with 424D2D2D49434D53 ID at 0 replaced 0 of 0 03:661 00:014 OCA: Patching SPMI (494D5053) (OEM 424D2D2D49434D53) of 65 bytes with 424D2D2D49434D53 ID at 1 replaced 0 of 0 03:676 00:015 OCA: Patching FIDT (54444946) (OEM 424D2D2D49434D53) of 156 bytes with 424D2D2D49434D53 ID at 2 replaced 0 of 0 03:693 00:016 OCA: Patching SSDT (54445353) (OEM 495043415F534152) of 1796 bytes with 495043415F534152 ID at 3 replaced 0 of 0 03:710 00:016 OCA: Patching ERST (54535245) (OEM 424D2D2D49434D53) of 560 bytes with 424D2D2D49434D53 ID at 4 replaced 0 of 0 03:726 00:016 OCA: Patching BERT (54524542) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 5 replaced 0 of 0 03:740 00:013 OCA: Patching SSDT (54445353) (OEM 54414C5852444441) of 1861 bytes with 54414C5852444441 ID at 6 replaced 0 of 0 03:758 00:018 OCA: Patching MCFG (4746434D) (OEM 424D2D2D49434D53) of 60 bytes with 424D2D2D49434D53 ID at 7 replaced 0 of 0 03:771 00:013 OCA: Patching BDAT (54414442) (OEM 424D2D2D49434D53) of 48 bytes with 424D2D2D49434D53 ID at 8 replaced 0 of 0 03:788 00:016 OCA: Patching HMAT (54414D48) (OEM 424D2D2D49434D53) of 288 bytes with 424D2D2D49434D53 ID at 9 replaced 0 of 0 03:806 00:018 OCA: Patching HPET (54455048) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 10 replaced 0 of 0 03:821 00:014 OCA: Patching MIGT (5447494D) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 11 replaced 0 of 0 03:838 00:016 OCA: Patching MSCT (5443534D) (OEM 424D2D2D49434D53) of 144 bytes with 424D2D2D49434D53 ID at 12 replaced 0 of 0 03:853 00:014 OCA: Patching WDDT (54444457) (OEM 424D2D2D49434D53) of 64 bytes with 424D2D2D49434D53 ID at 13 replaced 0 of 0 03:870 00:016 OCA: Patching APIC (43495041) (OEM 424D2D2D49434D53) of 606 bytes with 424D2D2D49434D53 ID at 14 replaced 0 of 0 03:886 00:016 OCA: Patching SLIT (54494C53) (OEM 424D2D2D49434D53) of 45 bytes with 424D2D2D49434D53 ID at 15 replaced 0 of 0 03:901 00:014 OCA: Patching SRAT (54415253) (OEM 424D2D2D49434D53) of 25648 bytes with 424D2D2D49434D53 ID at 16 replaced 0 of 0 03:919 00:018 OCA: Patching OEM4 (344D454F) (OEM 5453432020555043) of 1604193 bytes with 5453432020555043 ID at 17 replaced 0 of 0 03:937 00:018 OCA: Patching OEM1 (314D454F) (OEM 5453494520555043) of 1127561 bytes with 5453494520555043 ID at 18 replaced 0 of 0 03:957 00:019 OCA: Patching SSDT (54445353) (OEM 4D50202054445353) of 484517 bytes with 4D50202054445353 ID at 19 replaced 0 of 0 03:971 00:014 OCA: Patching SSDT (54445353) (OEM 424D2D2D49434D53) of 2483 bytes with 424D2D2D49434D53 ID at 20 replaced 0 of 0 03:989 00:018 OCA: Patching HEST (54534548) (OEM 424D2D2D49434D53) of 316 bytes with 424D2D2D49434D53 ID at 21 replaced 0 of 0 04:006 00:016 OCA: Patching DMAR (52414D44) (OEM 424D2D2D49434D53) of 348 bytes with 424D2D2D49434D53 ID at 22 replaced 0 of 0 04:021 00:014 OCA: Patching SSDT (54445353) (OEM 2020206D4E737053) of 30906 bytes with 2020206D4E737053 ID at 23 replaced 0 of 0 04:038 00:016 OCA: Patching BGRT (54524742) (OEM 424D2D2D49434D53) of 56 bytes with 424D2D2D49434D53 ID at 24 replaced 0 of 0 04:053 00:014 OCA: Patching SSDT (54445353) (OEM 20204E4443434D53) of 6619 bytes with 20204E4443434D53 ID at 25 replaced 0 of 0 04:069 00:016 OCA: Patching WSMT (544D5357) (OEM 424D2D2D49434D53) of 40 bytes with 424D2D2D49434D53 ID at 26 replaced 0 of 0 04:098 00:028 OCA: Allocated new table SSDT at 67DA3000 04:102 00:004 OCA: Inserted table SSDT (54445353) (OEM 7465736552627355) of 110 bytes into ACPI at index 27 04:118 00:015 OCA: Allocated new table SSDT at 67DA2000 04:126 00:008 OCA: Inserted table SSDT (54445353) (OEM 7862735574647353) of 216 bytes into ACPI at index 28 04:140 00:013 OCA: Allocated new table SSDT at 67DA1000 04:148 00:008 OCA: Inserted table SSDT (54445353) (OEM 0000434574647353) of 125 bytes into ACPI at index 29 04:161 00:013 OCA: Allocated new table SSDT at 67DA0000 04:170 00:008 OCA: Inserted table SSDT (54445353) (OEM 0000000054455048) of 318 bytes into ACPI at index 30 04:183 00:013 OCA: Exposing XSDT table table FACP (50434146) (OEM 424D2D2D49434D53) at 678FC000 of 276 bytes at index 0 04:200 00:016 OCA: Exposing XSDT table table SPMI (494D5053) (OEM 424D2D2D49434D53) at 678FB000 of 65 bytes at index 1 04:216 00:016 OCA: Exposing XSDT table table FIDT (54444946) (OEM 424D2D2D49434D53) at 67892000 of 156 bytes at index 2 04:231 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 495043415F534152) at 678FE000 of 1796 bytes at index 3 04:248 00:016 OCA: Exposing XSDT table table ERST (54535245) (OEM 424D2D2D49434D53) at 678FD000 of 560 bytes at index 4 04:263 00:014 OCA: Exposing XSDT table table BERT (54524542) (OEM 424D2D2D49434D53) at 67891000 of 48 bytes at index 5 04:280 00:016 OCA: Exposing XSDT table table SSDT (54445353) (OEM 54414C5852444441) at 67890000 of 1861 bytes at index 6 04:296 00:016 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 424D2D2D49434D53) at 6788F000 of 60 bytes at index 7 04:311 00:014 OCA: Exposing XSDT table table BDAT (54414442) (OEM 424D2D2D49434D53) at 6788E000 of 48 bytes at index 8 04:328 00:016 OCA: Exposing XSDT table table HMAT (54414D48) (OEM 424D2D2D49434D53) at 6788D000 of 288 bytes at index 9 04:343 00:014 OCA: Exposing XSDT table table HPET (54455048) (OEM 424D2D2D49434D53) at 6788C000 of 56 bytes at index 10 04:360 00:016 OCA: Exposing XSDT table table MIGT (5447494D) (OEM 424D2D2D49434D53) at 6788B000 of 64 bytes at index 11 04:376 00:016 OCA: Exposing XSDT table table MSCT (5443534D) (OEM 424D2D2D49434D53) at 6788A000 of 144 bytes at index 12 04:391 00:014 OCA: Exposing XSDT table table WDDT (54444457) (OEM 424D2D2D49434D53) at 67889000 of 64 bytes at index 13 04:408 00:016 OCA: Exposing XSDT table table APIC (43495041) (OEM 424D2D2D49434D53) at 67887000 of 606 bytes at index 14 04:423 00:014 OCA: Exposing XSDT table table SLIT (54494C53) (OEM 424D2D2D49434D53) at 67886000 of 45 bytes at index 15 04:440 00:016 OCA: Exposing XSDT table table SRAT (54415253) (OEM 424D2D2D49434D53) at 6787F000 of 25648 bytes at index 16 04:456 00:016 OCA: Exposing XSDT table table OEM4 (344D454F) (OEM 5453432020555043) at 676F7000 of 1604193 bytes at index 17 04:471 00:014 OCA: Exposing XSDT table table OEM1 (314D454F) (OEM 5453494520555043) at 675E3000 of 1127561 bytes at index 18 04:488 00:016 OCA: Exposing XSDT table table SSDT (54445353) (OEM 4D50202054445353) at 6756C000 of 484517 bytes at index 19 04:503 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 424D2D2D49434D53) at 6756B000 of 2483 bytes at index 20 04:520 00:016 OCA: Exposing XSDT table table HEST (54534548) (OEM 424D2D2D49434D53) at 6756A000 of 316 bytes at index 21 04:536 00:016 OCA: Exposing XSDT table table DMAR (52414D44) (OEM 424D2D2D49434D53) at 67569000 of 348 bytes at index 22 04:551 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 2020206D4E737053) at 67560000 of 30906 bytes at index 23 04:568 00:016 OCA: Exposing XSDT table table BGRT (54524742) (OEM 424D2D2D49434D53) at 67568000 of 56 bytes at index 24 04:583 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 20204E4443434D53) at 6755E000 of 6619 bytes at index 25 04:600 00:016 OCA: Exposing XSDT table table WSMT (544D5357) (OEM 424D2D2D49434D53) at 67888000 of 40 bytes at index 26 04:616 00:016 OCA: Exposing XSDT table table SSDT (54445353) (OEM 7465736552627355) at 67DA3000 of 110 bytes at index 27 04:631 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 7862735574647353) at 67DA2000 of 216 bytes at index 28 04:648 00:016 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000434574647353) at 67DA1000 of 125 bytes at index 29 04:663 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000000054455048) at 67DA0000 of 318 bytes at index 30 04:680 00:016 OCA: Exposing RSDT table table FACP (50434146) (OEM 424D2D2D49434D53) at 678FC000 of 276 bytes at index 0 04:696 00:016 OCA: Exposing RSDT table table SPMI (494D5053) (OEM 424D2D2D49434D53) at 678FB000 of 65 bytes at index 1 04:711 00:014 OCA: Exposing RSDT table table FIDT (54444946) (OEM 424D2D2D49434D53) at 67892000 of 156 bytes at index 2 04:728 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 495043415F534152) at 678FE000 of 1796 bytes at index 3 04:743 00:014 OCA: Exposing RSDT table table ERST (54535245) (OEM 424D2D2D49434D53) at 678FD000 of 560 bytes at index 4 04:760 00:016 OCA: Exposing RSDT table table BERT (54524542) (OEM 424D2D2D49434D53) at 67891000 of 48 bytes at index 5 04:776 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 54414C5852444441) at 67890000 of 1861 bytes at index 6 04:791 00:014 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 424D2D2D49434D53) at 6788F000 of 60 bytes at index 7 04:808 00:016 OCA: Exposing RSDT table table BDAT (54414442) (OEM 424D2D2D49434D53) at 6788E000 of 48 bytes at index 8 04:823 00:014 OCA: Exposing RSDT table table HMAT (54414D48) (OEM 424D2D2D49434D53) at 6788D000 of 288 bytes at index 9 04:840 00:016 OCA: Exposing RSDT table table HPET (54455048) (OEM 424D2D2D49434D53) at 6788C000 of 56 bytes at index 10 04:856 00:016 OCA: Exposing RSDT table table MIGT (5447494D) (OEM 424D2D2D49434D53) at 6788B000 of 64 bytes at index 11 04:871 00:014 OCA: Exposing RSDT table table MSCT (5443534D) (OEM 424D2D2D49434D53) at 6788A000 of 144 bytes at index 12 04:888 00:016 OCA: Exposing RSDT table table WDDT (54444457) (OEM 424D2D2D49434D53) at 67889000 of 64 bytes at index 13 04:903 00:014 OCA: Exposing RSDT table table APIC (43495041) (OEM 424D2D2D49434D53) at 67887000 of 606 bytes at index 14 04:920 00:016 OCA: Exposing RSDT table table SLIT (54494C53) (OEM 424D2D2D49434D53) at 67886000 of 45 bytes at index 15 04:936 00:016 OCA: Exposing RSDT table table SRAT (54415253) (OEM 424D2D2D49434D53) at 6787F000 of 25648 bytes at index 16 04:951 00:014 OCA: Exposing RSDT table table OEM4 (344D454F) (OEM 5453432020555043) at 676F7000 of 1604193 bytes at index 17 04:968 00:016 OCA: Exposing RSDT table table OEM1 (314D454F) (OEM 5453494520555043) at 675E3000 of 1127561 bytes at index 18 04:983 00:014 OCA: Exposing RSDT table table SSDT (54445353) (OEM 4D50202054445353) at 6756C000 of 484517 bytes at index 19 05:000 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 424D2D2D49434D53) at 6756B000 of 2483 bytes at index 20 05:016 00:016 OCA: Exposing RSDT table table HEST (54534548) (OEM 424D2D2D49434D53) at 6756A000 of 316 bytes at index 21 05:031 00:014 OCA: Exposing RSDT table table DMAR (52414D44) (OEM 424D2D2D49434D53) at 67569000 of 348 bytes at index 22 05:048 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 2020206D4E737053) at 67560000 of 30906 bytes at index 23 05:063 00:014 OCA: Exposing RSDT table table BGRT (54524742) (OEM 424D2D2D49434D53) at 67568000 of 56 bytes at index 24 05:080 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 20204E4443434D53) at 6755E000 of 6619 bytes at index 25 05:096 00:016 OCA: Exposing RSDT table table WSMT (544D5357) (OEM 424D2D2D49434D53) at 67888000 of 40 bytes at index 26 05:111 00:014 OCA: Exposing RSDT table table SSDT (54445353) (OEM 7465736552627355) at 67DA3000 of 110 bytes at index 27 05:128 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 7862735574647353) at 67DA2000 of 216 bytes at index 28 05:143 00:014 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000434574647353) at 67DA1000 of 125 bytes at index 29 05:160 00:016 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000000054455048) at 67DA0000 of 318 bytes at index 30 05:176 00:016 OC: OcLoadPlatformSupport... 05:181 00:004 OCSMB: Found DMI Anchor 6B8F5000 v3.3 Table Address 6B8EE000 Length 11EF 05:193 00:012 OCSMB: Found DMI Anchor 6B8F4000 v3.3 Table Address 6B8EE000 Length 11EF 05:206 00:013 OCSMB: Current SMBIOS Super Server (X12SPL-F made by Supermicro) 05:218 00:011 OC: PlatformInfo auto 1 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success 05:228 00:010 OC: New SMBIOS: Acidanthera model MacPro7,1 05:236 00:008 OCSMB: Post-override BIOS vendor Acidanthera 0 05:242 00:005 OCSMB: Number of CPU cache entries is 3 05:251 00:008 OCSMB: Number of CPU cache entries is 3 05:260 00:008 OCSMB: Number of CPU cache entries is 3 05:268 00:008 OCSMB: CPU1 display frequency is 2700MHz 05:277 00:008 OCSMB: Applying 3237 (1) prev 6B8F5000 (4591/31), 6B8F4000 (4591/24) 05:288 00:011 OCSMB: Patched 65EBB000 v3.2 Table Address 65EBC000 Length 0CA5 1E 47 05:300 00:011 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success 05:311 00:011 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (20) - Success 05:327 00:015 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success 05:338 00:011 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success 05:351 00:013 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success 05:367 00:015 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success 05:378 00:011 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success 05:390 00:011 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success 05:403 00:013 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success 05:418 00:015 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:ARTFrequency (8) - Success 05:431 00:013 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success 05:447 00:015 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success 05:458 00:011 OC: Setting HW_BID Mac-27AD2F918AE68F61 - Success 05:468 00:009 OC: Setting HW_ROM CC:29:F5:D0:A1:02 - Success 05:477 00:008 OC: Setting ROM CC:29:F5:D0:A1:02 - Success 05:481 00:004 OC: Setting HW_MLB F5K916600J9K3F7JA - Success 05:490 00:008 OC: Setting MLB F5K916600J9K3F7JA - Success 05:498 00:008 OC: Setting HW_SSN F5KYL3YJP7QM - Success 05:507 00:008 OC: Setting SSN F5KYL3YJP7QM - Success 05:512 00:005 OC: Setting system-id 4908373F-E600-BB4A-9046-1A15BD6C80E6 - Success 05:526 00:014 OC: Setting FirmwareFeatures FDAFF066 - Success 05:533 00:006 OC: Setting ExtendedFirmwareFeatures 00000008FDAFF066 - Success 05:543 00:010 OC: Setting FirmwareFeaturesMask FFFFFF7F - Success 05:551 00:008 OC: Setting ExtendedFirmwareFeaturesMask 00000008FFFFFF7F - Success 05:563 00:011 OC: OcLoadDevPropsSupport... 05:569 00:006 OC: OcMiscLateInit... 05:576 00:007 OC: Translated HibernateMode None to 0 05:582 00:005 OC: Hibernation activation - Invalid Parameter, hibernation wake - no 05:593 00:011 OC: Panic log does not exist 05:599 00:006 OC: OcLoadKernelSupport... 05:606 00:007 OC: All green, starting boot management... 05:612 00:005 OC: Ready for takeoff in 0 us 05:619 00:007 OCB: Adding fs 5CCF2F98 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(1,GPT,0DA1583C-9ED9-4642-AA5A-BF513CCD1DA1,0x28,0x64000) 05:641 00:021 OCB: Adding fs 5BFD6998 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000) 05:666 00:025 OCB: Adding fs 5CCF2598 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70) 05:688 00:021 OCB: Found 3 potentially bootable filesystems 05:697 00:008 OCB: Found 1 BootOrder entries with BootNext excluded 05:706 00:009 OCB: efi-boot-device-data - Not Found 05:712 00:005 OCB: efi-boot-next-data - Not Found 05:720 00:007 OCB: efi-backup-boot-device-data - Not Found 05:728 00:008 OCB: efi-apple-recovery-data - Not Found 05:736 00:008 OCB: Dumping BootOrder 05:740 00:003 OCB: 0 -> Boot0000 = HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 05:758 00:017 OCB: Parsing predefined list... 05:766 00:008 OCB: Adding fs 2007C5F5 for 0 custom entries and BEP (aux hidden) 05:776 00:009 OCB: Building entry from Boot0000 05:781 00:004 OCB: Assuming DP is short-form (prefix) 05:788 00:006 OCB: Expanded DP - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 05:813 00:024 OCB: Expanded DP remainder - \EFI\Microsoft\Boot\bootmgfw.efi 05:823 00:009 OCB: Matched fs 5BFD6998 05:847 00:024 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 05:898 00:050 OCB: Get visibility for boot entry <null string> - Not Found 05:928 00:030 OCB: Registering entry Windows [Windows] (T:32|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 05:958 00:030 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000) 05:987 00:028 OCBP: Blessed file is missing 05:990 00:003 OCBP: Blessed folder is missing 06:000 00:010 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 06:021 00:020 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi was found 06:037 00:015 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,E4-F2-8F-49-4A-44-1B-00)/HD(1,GPT,349879B5-0071-48E2-97E7-CC87F378FC3A,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 06:088 00:051 OCB: Get visibility for boot entry <null string> - Not Found 06:096 00:008 OCB: Discarding already present DP 06:102 00:005 OCB: Processing blessed list 06:110 00:007 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(1,GPT,0DA1583C-9ED9-4642-AA5A-BF513CCD1DA1,0x28,0x64000) 06:128 00:018 OCBP: Blessed file is missing 06:132 00:003 OCBP: Blessed folder is missing 06:160 00:028 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 06:171 00:011 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 06:183 00:011 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 06:193 00:009 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(1,GPT,0DA1583C-9ED9-4642-AA5A-BF513CCD1DA1,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 06:229 00:036 OCB: Get visibility for boot entry - Success 06:236 00:007 OCB: Discarding disabled entry by visibility 06:247 00:010 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70) 06:272 00:025 OCBP: BlessedFileHEX (1/3 150) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 14 03 05 06 00 13 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 70 CE 69 07 00 00 00 00 EB A4 9B FA E8 A0 5A 4B 9C 16 B9 78 ED 8E BB 21 06:303 00:030 OCBP: BlessedFileHEX (2/3 150) - 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 06:333 00:030 OCBP: BlessedFileHEX (3/3 150) - 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 06:348 00:015 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70)/\System\Library\CoreServices\boot.efi 06:370 00:021 OCBP: Blessed file is valid 06:376 00:006 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70)/\System\Library\CoreServices\boot.efi 06:401 00:024 OCB: Get visibility for boot entry <null string> - Not Found 06:411 00:010 OCB: Registering entry Install macOS Ventura [Apple] (T:2|F:0|G:0|E:1|B:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70)/\System\Library\CoreServices\boot.efi 06:441 00:029 OCB: Showing menu... 06:448 00:007 OCHK: InitHotKeys 06:452 00:003 OCKM: Allocated key repeat context 5D2A4698 5D2A5518 5D2A4398 06:461 00:009 OCAE: Set screen resolution to 1024x768 - Success 06:471 00:009 OCTY: Registered handler 09:088 02:616 OCHK: FreeHotKeys 09:091 00:003 OCTY: Unregistered handler 09:096 00:005 OCKM: Freeing key repeat context 5D2A4698 5D2A5518 5D2A4398 09:106 00:010 OCB: Should boot from 2. Install macOS Ventura (T:2|F:0|G:0|E:1|DEF:0) 09:118 00:011 OCB: Saved mode 0/0/3 - Success 09:126 00:008 OCB: Perform boot Install macOS Ventura to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70)/\System\Library\CoreServices\boot.efi (0/0) 09:151 00:024 OCABC: EfiBootRt candidate - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x13,0x0)/HD(2,GPT,FA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21,0x64028,0x769CE70)/\System\Library\CoreServices\boot.efi 09:176 00:025 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 09:282 00:105 OCI4: Manifest (2800) for 65666962 parse fail with code 1 09:297 00:014 OCI4: Verifying digest 48 (4CDB0B58) override 0 48 (00000000) 09:308 00:011 OCSB: Verified IMG4 without issues 09:313 00:004 OCB: Arch filtering 5B5DA018(723512)->5B5DA018(723512) caps 4 - Success 09:327 00:013 OCB: Matching <>/0[0] args on type 2 09:332 00:005 OCABC: VMware Mac installed on 5D29E598 - Success 09:342 00:009 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:357 00:014 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:370 00:013 AAPL: #[EB|H:IS] 0 09:377 00:006 AAPL: #[EB|LOG:INIT] 2023-11-05T22:11:26 09:381 00:004 AAPL: #[EB|VERSION] <"bootbase.efi 577.140.2~15 (Official), built 2023-06-23T21:54:27-0700"> 09:397 00:015 AAPL: #[EB|BUILD] <"BUILD-INFO[410]:{"DisplayName":"bootbase.efi","DisplayVersion":"577.140.2~15","RecordUuid":"EEBDCC86-79C4-402C-8B4A-0486E4BCED17","BuildTime":"2023-06-23T21:54:27-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"577.140.2","BuildVersion":"15","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1403.0.22.11","SdkVersion":"13.5","SdkBuild":"22G62","TargetArchitectures":"x86_64"}"> 09:457 00:059 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:470 00:013 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 09:477 00:007 AAPL: #[EB|H:IS] 0 09:481 00:004 AAPL: #[EB|WL:MODE] 0 09:487 00:005 AAPL: #[EB|CFG:VAR] bootercfg <"serial=4\0"> 09:492 00:005 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 09:510 00:017 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 09:527 00:016 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 09:541 00:014 AAPL: #[EB|CFG:ARG] serial 0x0000000000000000 (0x0000000000000004 < 0x0000000000000000) set 09:558 00:016 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 09:571 00:013 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 09:588 00:016 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 09:603 00:014 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 09:620 00:016 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 09:637 00:016 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 09:651 00:014 AAPL: #[EB|H:IS] 0 09:658 00:006 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 09:666 00:008 AAPL: #[EB|BRD:NV] Mac-27AD2F918AE68F61 09:671 00:004 OCOS: OS set: <null> macOS 11.0 09:680 00:008 OCOS: OS set: Apple Inc. macOS 11.0 09:687 00:006 AAPL: #[EB|B:VAw] 09:690 00:003 AAPL: #[EB|B:IAw] 09:696 00:006 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 09:701 00:004 AAPL: #[EB.BST.IDT|+] 09:708 00:006 AAPL: #[EB|BM] J160AP 09:717 00:009 AAPL: #[EB.BST.IDT|-] 09:720 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 09:728 00:007 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 09:737 00:008 AAPL: #[EB|BRD:NV] Mac-27AD2F918AE68F61 09:742 00:005 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 09:750 00:007 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 09:758 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:771 00:013 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 09:780 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:793 00:013 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 09:801 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:817 00:015 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:830 00:013 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:846 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 09:858 00:011 AAPL: #[EB|H:NOT] 09:862 00:003 AAPL: #[EB|SB:P] 0x1 09:868 00:006 AAPL: #[EB.B.MN|BM:+SB] 09:872 00:003 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(14|0)/Usb(13, 0)/HD(Part2,SigFA9BA4EB-A0E8-4B5A-9C16-B978ED8EBB21) 09:888 00:016 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 09:898 00:009 AAPL: #[EB|LIMG:OPT] 09:902 00:004 AAPL: #[EB|RPS] 0 0 0 09:910 00:007 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 09:921 00:011 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 09:933 00:011 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 09:948 00:015 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 09:957 00:008 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 09:968 00:011 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 09:988 00:019 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 09:997 00:008 AAPL: #[EB|MBA:CL] <""> 10:001 00:004 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x12a serial=5 msgbuf=1048576 slide=0"> 10:016 00:015 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 10:027 00:010 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x12a serial=5 msgbuf=1048576 slide=0 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 10:041 00:014 AAPL: #[EB|LOG:VERBOSE] 2023-11-05T22:11:27 10:050 00:008 AAPL: #[EB.CSR.S|VAR] 0x00000000 10:058 00:008 AAPL: #[EB|OPT:BM] 0x200082 10:061 00:003 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 10:077 00:015 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 10:090 00:013 AAPL: #[EB|P:CPR] N 10:093 00:003 AAPL: #[EB|P:MPI] N 10:099 00:006 AAPL: #[EB|P:BPI] N 10:103 00:003 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF 10:117 00:013 OCABC: MMIO devirt start 10:121 00:004 OCABC: MMIO devirt 0x80000000 (0x10000 pages, 0x8000000000000001) skip 0 10:133 00:011 OCABC: MMIO devirt 0xFD000000 (0x1800 pages, 0x800000000000100D) skip 0 10:147 00:013 OCABC: MMIO devirt 0xFED20000 (0x25 pages, 0x800000000000100D) skip 0 10:158 00:011 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x800000000000100D) skip 0 10:170 00:011 OCABC: MMIO devirt end, saved 303252 KB 10:178 00:008 AAPL: #[EB|KMR] 273784832 10:182 00:003 AAPL: #[EB.CS.CSKSD|+] 10:188 00:006 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 10:203 00:014 AAPL: #[EB.G.CS|-?] Ok(0) 10:209 00:006 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 10:308 00:099 AAPL: #[EB.B.SBS|SZ] 723512 10:322 00:013 AAPL: #[EB|B:SHA] <36dee66960fb4346e7a2eb09e1b64e14161a81ed> 10:333 00:011 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 10:349 00:015 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 10:357 00:008 AAPL: #[EB|WL:DT] 0x1ffe8ffc 10:363 00:005 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 10:379 00:015 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 10:401 00:022 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 10:418 00:017 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 10:431 00:013 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 10:499 00:067 OC: Kext reservation size info 505000 exe CC000 10:508 00:008 OC: Trying 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc 27:021 16:513 OC: Result of 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc (B350D7D4) is Success 27:053 00:032 OCAK: Read kernel version 22.6.0 (220600) 27:063 00:009 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (76) 27:072 00:009 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (406416) 27:083 00:011 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (540672) 27:094 00:011 OCAK: 64-bit XcpmCfgLockRel replace count - 2 27:102 00:007 OCAK: [OK] Success XcpmCfgLock patch 27:112 00:010 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1A0 applicable CPUs (947164) 27:123 00:010 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1FC applicable CPUs (947164) 27:133 00:009 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1AA applicable CPUs (422876) 27:143 00:009 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x620 applicable CPUs (947164) 27:153 00:009 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x64C applicable CPUs (947164) 27:163 00:010 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x63A applicable CPUs (406492) 27:173 00:010 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x642 applicable CPUs (406492) 27:184 00:011 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x2E applicable CPUs (947164) 27:195 00:010 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1A0 applicable CPUs (947164) 27:207 00:011 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (400) 27:218 00:011 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (401996) 27:232 00:013 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (544768) 27:243 00:011 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x609 applicable CPUs (406416) 27:346 00:102 OCAK: 64-bit MiscPwrMgmtRel replace count - 3 27:353 00:007 OCAK: [OK] Success XcpmExtraMsrs patch 27:362 00:008 OC: Aborting patching PciSerialDevice because RegisterBase is zero/default value! 27:412 00:050 OCAK: 64-bit PanicKextDump replace count - 1 27:417 00:004 OCAK: [OK] Patch success kext dump 27:425 00:008 OCAK: [OK] Patch success CPUID release 27:434 00:009 OCAK: [OK] Found jettisoning fileset 27:443 00:008 OC: Kernel patcher result 3 for kernel (Send panic string to serial port) - Success 27:456 00:013 OC: Kernel patcher result 4 for kernel (Send early prints to serial port) - Success 27:472 00:016 OC: Kernel patcher result 5 for kernel (Enable early serial output on RELEASE kernel) - Success 27:575 00:102 OCAK: Local relocs 689 on FFFFFF8004365000 27:584 00:009 OC: Prelinked injection Lilu.kext (Patch engine) - Success 27:592 00:008 OC: Prelinked injection Lilu.kext v1.6.7 27:602 00:010 OCAK: Patching invalid size 2000 with 1929000 for com.apple.iokit.IOACPIFamily 27:625 00:022 OCAK: Local relocs 515 on FFFFFF8004394000 27:635 00:009 OC: Prelinked injection VirtualSMC.kext (SMC emulator) - Success 27:645 00:010 OC: Prelinked injection VirtualSMC.kext v1.3.2 27:653 00:008 OCAK: Patching invalid size 32000 with 14B9000 for com.apple.iokit.IOPCIFamily 27:682 00:028 OCAK: Local relocs 1922 on FFFFFF80043AE000 27:698 00:015 OC: Prelinked injection WhateverGreen.kext (Video patches) - Success 27:708 00:010 OC: Prelinked injection WhateverGreen.kext v1.6.6 27:718 00:009 OC: Prelink size 70455296 kext offset 69619712 reserved 835584 27:727 00:008 OCAK: KC TEXT is 65536 bytes with 62328 Mach-O headers need 392 27:797 00:070 OCAK: Failed to pk find com.apple.driver.AppleIntelCPUPowerManagement - Not Found 27:812 00:014 OCAK: [OK] Skipping PatchAppleCpuPmCfgLock on NULL Patcher on kernel version 220600 27:825 00:012 OCAK: Patching invalid size 75FF4 with 1113000 for com.apple.iokit.IOUSBHostFamily 27:837 00:011 OCAK: 64-bit RemoveUsbLimitIoP1 part 1 replace count - 1 27:845 00:008 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 1 27:857 00:011 OCAK: 64-bit RemoveUsbLimitIoP1 part 2 replace count - 1 27:867 00:009 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 2 27:883 00:016 OCAK: Patching invalid size 3CFF8 with FEC000 for com.apple.driver.usb.AppleUSBXHCI 27:895 00:012 OCAK: 64-bit RemoveUsbLimitV2 replace count - 1 27:905 00:009 OCAK: [OK] Patch success com.apple.driver.usb.AppleUSBXHCI 27:915 00:009 OCAK: Patching invalid size 24FF5 with FA5000 for com.apple.driver.usb.AppleUSBXHCIPCI 27:927 00:011 OCAK: [OK] Skipping legacy port patch AppleUSBXHCIPCI on 220600 27:942 00:015 OCAK: 64-bit AppleIoMapper replace count - 1 27:946 00:004 OCAK: [OK] Patch success com.apple.iokit.IOPCIFamily AppleIoMapper 27:985 00:039 OC: Prelinked status - Success 28:189 00:203 AAPL: #[EB|SB:P] 0x1 28:192 00:003 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m 28:202 00:009 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j160ap.im4m 28:219 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j160ap.im4m"> <"0"> 28:239 00:020 OCI4: Verifying digest 48 (B350D7D4) override 1 48 (B350D7D4) 28:432 00:193 OCI4: Matching override 5C873D3D with 5C873D3D - success 28:439 00:006 AAPL: #[EB|SB:MKRN] 28:460 00:021 AAPL: #[EB.LD.LKFS|-?] Ok(0) 28:463 00:003 AAPL: #[EB.LD.LKC|-?] Ok(0) 28:471 00:007 AAPL: #[EB|BST:REV1] 28:477 00:006 AAPL: #[EB|CSR:OUT] 0x00000000 28:482 00:004 AAPL: #[EB.BST.FBS|+] 28:489 00:006 AAPL: #[EB.BST.FBS|ADSZ] 0 28:492 00:003 AAPL: #[EB.BST.FBS|KSSZ] 0 28:499 00:006 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m 28:508 00:008 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 28:518 00:010 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j160ap.im4m"> 28:530 00:011 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 28:543 00:012 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 28:557 00:014 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 28:563 00:005 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 28:570 00:007 OCSMC: SmcReadValue Key 4D535463 Size 1 28:578 00:008 OCSMC: SmcReadValue Key 4D534163 Size 2 28:588 00:009 AAPL: #[EB|LOG:DT] 2023-11-05T22:11:45 28:593 00:005 AAPL: #[EB|LOG:EXITBS:START] 2023-11-05T22:11:45 EFI_get_frequency: read InitialTSC: 0 EFI_get_frequency: read ARTFrequency value: 25000001 ART: Frequency = 25.000001MHz, N/M = 216/2 BUS: Frequency = 2700.000108MHz, cvtt2n = 00000000.5ED09774, cvtn2t = 00000002.B3333506 TSC: Frequency = 2700.000108MHz, cvtt2n = 00000000.5ED09774, cvtn2t = 00000002.B3333506, gran = 1 Longterm timer threshold: 1000 ms kprintf initialized Serial mode specified: 00000005 WARNING: Forcing uart driver to output synchronously.printf()s/IOLogs will impact kernel performance. You are advised to avoid using 'drain_uart_sync' boot-arg. version_variant = 0 version = Darwin Kernel Version 22.6.0: Wed Oct 4 21:25:26 PDT 2023; root:xnu-8796.141.3.701.17~4/RELEASE_X86_64 i386_vm_init KASLR slide: 0x000000000f600000 dynamic Hiding local relocations WARNING: ignoring first page in [0x0:0x9d] mem_actual: 0x4000000000 legacy sane_size: 0x3ff0000000 Physical memory 262144 MB avail_remaining = 0x3fe7857 PMAP: PCID enabled PMAP: Supervisor Mode Execute Protection enabled PMAP: Supervisor Mode Access Protection enabled Kernel virtual space from 0xffffff8000000000 to 0xffffffffffffefff. Available physical space from 0x18456000 to 0x407ffff000 initialize_screen: b=A4000000, w=00000400, h=00000300, r=00001000, d=00000001 power_management_init Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff800fbd30dd, CR2: 0x0 CPU 0 panic trap number 0xd, rip 0xffffff800fbd30dd cr0 0x0000000080010013 cr2 0x0000000000000000 cr3 0x000000001834d000 cr4 0x00000000003200e0 Kernel trap at 0x%016llx, type %d=%s, registers: CR0: 0x%016llx, CR2: 0x%016llx, CR3: 0x%016llx, CR4: 0x%016llx RAX: 0x%016llx, RBX: 0x%016llx, RCX: 0x%016llx, RDX: 0x%016llx RSP: 0x%016llx, RBP: 0x%016llx, RSI: 0x%016llx, RDI: 0x%016llx R8: 0x%016llx, R9: 0x%016llx, R10: 0x%016llx, R11: 0x%016llx R12: 0x%016llx, R13: 0x%016llx, R14: 0x%016llx, R15: 0x%016llx RFL: 0x%016llx, RIP: 0x%016llx, CS: 0x%016llx, SS: 0x%016llx Fault CR2: 0x%016llx, Error code: 0x%016llx, Fault CPU: 0x%x%s%s%s%s, PL: %d, VF: %d Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813183 Share on other sites More sharing options...
trulyspinach Posted November 6, 2023 Author Share Posted November 6, 2023 Update: Output from the KASAN debug kernel: revision 0x1 version 0x2 command line -v keepsyms=1 debug=0x12a serial=5 msgbuf=1048576 kcsuffix=kasan memory map 0xd239000 memory map sz 0xc30 kaddr 0x2300000 ksize 0xaf3b000 physfree 0xd23b000 bootargs: 0x8e22000, &ksize: 0x8e2243c &kaddr: 0x8e22438 SMBIOS mem sz 0x4000000000 KC_hdrs_vaddr 0xffffff8002400000 [MH] Sliding new-style KC: 35651584 i386_init(0x8e22000) kernelBootArgs=0xffffff8008e22000 Physical address map base: 0xfffffe8380000000 Physical map idlepml4[509]: 0x800000000d435003 Double map base: 0xfffff6b980000000 double map idlepml4[493]: 0xd53a023 EFI_get_frequency: read InitialTSC: 0 EFI_get_frequency: read ARTFrequency value: 25000035 ART: Frequency = 25.000035MHz, N/M = 216/2 BUS: Frequency = 2700.003780MHz, cvtt2n = 00000000.5ED08F01, cvtn2t = 00000002.B333729F TSC: Frequency = 2700.003780MHz, cvtt2n = 00000000.5ED08F01, cvtn2t = 00000002.B333729F, gran = 1 i386_init kernel_startup_bootstrap tunables locks_early Longterm timer threshold: 1000 ms kprintf kprintf initialized Serial mode specified: 00000005 WARNING: Forcing uart driver to output synchronously.printf()s/IOLogs will impact kernel performance. You are advised to avoid using 'drain_uart_sync' boot-arg. PE_init_printf version_variant = 0 version = Darwin Kernel Version 20.6.0: Thu Jul 6 22:13:30 PDT 2023; root:xnu_kasan-7195.141.49.702.12~1/KASAN_X86_64 EST: Comparing GUIDs for entry 0 EST: Comparing GUIDs for entry 1 EST: Comparing GUIDs for entry 2 EST: Comparing GUIDs for entry 3 EST: Comparing GUIDs for entry 4 EST: Comparing GUIDs for entry 5 EST: Comparing GUIDs for entry 6 EST: Comparing GUIDs for entry 7 EST: Comparing GUIDs for entry 8 EST: Comparing GUIDs for entry 9 GUID match: returning 0x67db5014 Ignoring MADT entry type 0x1 length 0xc Ignoring MADT entry type 0x2 length 0xa Ignoring MADT entry type 0x2 length 0xa Ignoring MADT entry type 0x4 length 0x6 Ignoring MADT entry type 0xa length 0xc i386_vm_init KASLR slide: 0x0000000002200000 dynamic Hiding local relocations WARNING: ignoring first page in [0x0:0x9d] mem_actual: 0x4000000000 legacy sane_size: 0x2ff0000000 Physical memory 262144 MB avail_remaining = 0x2fe2e51 PMAP: PCID enabled PMAP: Supervisor Mode Execute Protection enabled PMAP: Supervisor Mode Access Protection enabled Kernel virtual space from 0xffffff8000000000 to 0xffffffffffffefff. Available physical space from 0xd53d000 to 0x307b5f6000 initialize_screen: b=A4000000, w=00000400, h=00000300, r=00001000, d=00000001 power_management_init Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80028b9f3f, CR2: 0x0 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 Debugger: Unexpected kernel trap number: 0xd, RIP: 0xffffff80026a8dfc, CR2: 0x90 ... Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813185 Share on other sites More sharing options...
trulyspinach Posted November 6, 2023 Author Share Posted November 6, 2023 Update: After some patching I figured _xcpm_init is where it stuck, got a lot further after patching the _xcpm_init call in _i386_init to a bunch of nops. Still seems to stuck with some ACPI configurations: AppleKeyStore:491:0: _kernel_relay_enable = 0 AppleKeyStore:545:0: _sep_enabled = 0 AppleSSE::start called AssertMacros: value (value: 0x0), file: /System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/AppleSSE/AppleSSE-212.120.1/AppleSSE/AppleSSE.cpp, line: 47 AppleSSE::start returning, result = 1 virtual bool CoreAnalyticsHub::start(IOService *)::105:CoreAnalyticsHub start ACPI: ACPI: OEM4 0x00000000676F7000 187A61 (v02 INTEL CPU CST 00003000 INTL 20200925)OEM4 0x00000000676F7000 187A61 (v02 INTEL CPU CST 00003000 INTL 20200925) ACPI: ACPI: OEM1 0x00000000675E3000 113489 (v02 INTEL CPU EIST 00003000 INTL 20200925)OEM1 0x00000000675E3000 113489 (v02 INTEL CPU EIST 00003000 INTL 20200925) ACPI: ACPI: SSDT 0x000000006756C000 0764A5 (v02 INTEL SSDT PM 00004000 INTL 20200925)SSDT 0x000000006756C000 0764A5 (v02 INTEL SSDT PM 00004000 INTL 20200925) ACPI: ACPI: SSDT 0x000000006756B000 0009B3 (v02 SUPERM SMCI--MB 00000000 INTL 20091013)SSDT 0x000000006756B000 0009B3 (v02 SUPERM SMCI--MB 00000000 INTL 20091013) ACPI: ACPI: HEST 0x000000006756A000 00013C (v01 SUPERM SMCI--MB 00000001 INTL 00000001)HEST 0x000000006756A000 00013C (v01 SUPERM SMCI--MB 00000001 INTL 00000001) ACPI: ACPI: DMAR 0x0000000067569000 00015C (v01 SUPERM SMCI--MB 00000001 INTL 20091013)DMAR 0x0000000067569000 00015C (v01 SUPERM SMCI--MB 00000001 INTL 20091013) ACPI: ACPI: BGRT 0x0000000067568000 000038 (v01 SUPERM SMCI--MB 01072009 AMI 00010013)BGRT 0x0000000067568000 000038 (v01 SUPERM SMCI--MB 01072009 AMI 00010013) ACPI: ACPI: SSDT 0x0000000067560000 0078BA (v02 INTEL SpsNm 00000002 INTL 20200925)SSDT 0x0000000067560000 0078BA (v02 INTEL SpsNm 00000002 INTL 20200925) ACPI: ACPI: SSDT 0x000000006755E000 0019DB (v01 SUPERM SMCCDN 00000000 INTL 20181221)SSDT 0x000000006755E000 0019DB (v01 SUPERM SMCCDN 00000000 INTL 20181221) ACPI: ACPI: WSMT 0x0000000067888000 000028 (v01 SUPERM SMCI--MB 01072009 AMI 00010013)WSMT 0x0000000067888000 000028 (v01 SUPERM SMCI--MB 01072009 AMI 00010013) ACPI: ACPI: SSDT 0x0000000067DA3000 00006E (v02 CORP UsbReset 00001000 INTL 20230628)SSDT 0x0000000067DA3000 00006E (v02 CORP UsbReset 00001000 INTL 20230628) ACPI: ACPI: SSDT 0x0000000067DA2000 0000D8 (v02 CORP SsdtUsbx 00001000 INTL 20230628)SSDT 0x0000000067DA2000 0000D8 (v02 CORP SsdtUsbx 00001000 INTL 20230628) ACPI: ACPI: SSDT 0x0000000067DA1000 00007D (v02 CORP SsdtEC 00001000 INTL 20230628)SSDT 0x0000000067DA1000 00007D (v02 CORP SsdtEC 00001000 INTL 20230628) ACPI: ACPI: SSDT 0x0000000067DA0000 00013E (v02 CORP HPET 00000000 INTL 20230628)SSDT 0x0000000067DA0000 00013E (v02 CORP HPET 00000000 INTL 20230628) ACPI: ACPI: 11 ACPI AML tables successfully acquired and loaded11 ACPI AML tables successfully acquired and loaded But now I need to find out what went wrong inside _xcpm_init. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813191 Share on other sites More sharing options...
Slice Posted November 6, 2023 Share Posted November 6, 2023 Are you sure macOS supported such memory? Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813197 Share on other sites More sharing options...
etorix Posted November 6, 2023 Share Posted November 6, 2023 MacPro7,1 supports 1.5 TB RAM. @trulyspinach, I suppose you have already read the thread about hackintoshing the X12SPA-TF. Your X12SPL-F should not be very different. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813202 Share on other sites More sharing options...
trulyspinach Posted November 7, 2023 Author Share Posted November 7, 2023 (edited) @Slice yeah I think that should be ok, as the kernel spinned up for a bit after bypassing xcpm_init. @etorix thanks for your reply! Yes I did read through that thread, in fact I even tried the EFI that was working for him but it hang in xcpm_init for me. I’m currently trying the create a patch to enable xcpm_assert and xcpm_assert_trace hoping that will make it print out more useful logs. Do you think w-3365 could require a different CPUID1 to be spoofed? I think likely not since the eax we are spoofing doesn’t tell how many cores and the rest should be identical. Edited November 7, 2023 by trulyspinach Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813210 Share on other sites More sharing options...
trulyspinach Posted November 7, 2023 Author Share Posted November 7, 2023 (edited) Update for today: Still trying to figure out why is xcpm causing panic, but I managed to get even further with a patch in _xcpm_bootstrap and force it to set _xcpm_mode = 0. I suspect it might have something to do with cpuid.. But finally, XNU was able to boot enough to actually print some useful panic message: 02:480 00:019 AAPL: #[EB|LOG:EXITBS:START] 2023-11-07T01:36:17 #[EB|LOG:EXITBS:END] _ #[EB.BST.FBS|-] #[EB|B:BOOT] #[EB|LOG:HANDOFF TO XNU] _ ======== End of efiboot serial output. ======== revision 0x1 version 0x2 command line -v keepsyms=1 npci=0x2000 debug=0x15f kdp_match_name=en0 serial=5 msgbuf=1048576 kcsuffix=kasan -xcpm_assert -xcpm_assert_trace memory map 0x1c80c000 memory map sz 0xc30 kaddr 0x11700000 ksize 0xb10e000 physfree 0x1c80e000 bootargs: 0x183f5000, &ksize: 0x183f543c &kaddr: 0x183f5438 SMBIOS mem sz 0x4000000000 KC_hdrs_vaddr 0xffffff8011800000 [MH] Sliding new-style KC: 291504128 i386_init(0x183f5000) kernelBootArgs=0xffffff80183f5000 Physical address map base: 0xfffffe9c40000000 Physical map idlepml4[509]: 0x800000001ca08003 Double map base: 0xfffff68a40000000 double map idlepml4[493]: 0x1cb0d023 EFI_get_frequency: read InitialTSC: 0 EFI_get_frequency: read ARTFrequency value: 25000005 ART: Frequency = 25.000005MHz, N/M = 216/2 BUS: Frequency = 2700.000540MHz, cvtt2n = 00000000.5ED09676, cvtn2t = 00000002.B3333C42 TSC: Frequency = 2700.000540MHz, cvtt2n = 00000000.5ED09676, cvtn2t = 00000002.B3333C42, gran = 1 i386_init kernel_startup_bootstrap tunables locks_early Longterm timer threshold: 1000 ms kprintf kprintf initialized Serial mode specified: 00000005 WARNING: Forcing uart driver to output synchronously.printf()s/IOLogs will impact kernel performance. You are advised to avoid using 'drain_uart_sync' boot-arg. PE_init_printf version_variant = 0 version = Darwin Kernel Version 20.6.0: Thu Jul 6 22:13:30 PDT 2023; root:xnu_kasan-7195.141.49.702.12~1/KASAN_X86_64 EST: Comparing GUIDs for entry 0 EST: Comparing GUIDs for entry 1 EST: Comparing GUIDs for entry 2 EST: Comparing GUIDs for entry 3 EST: Comparing GUIDs for entry 4 EST: Comparing GUIDs for entry 5 EST: Comparing GUIDs for entry 6 EST: Comparing GUIDs for entry 7 EST: Comparing GUIDs for entry 8 EST: Comparing GUIDs for entry 9 GUID match: returning 0x67db5014 Ignoring MADT entry type 0x1 length 0xc Ignoring MADT entry type 0x2 length 0xa Ignoring MADT entry type 0x2 length 0xa Ignoring MADT entry type 0x4 length 0x6 Ignoring MADT entry type 0xa length 0xc i386_vm_init KASLR slide: 0x0000000011600000 dynamic Hiding local relocations WARNING: ignoring first page in [0x0:0x9d] mem_actual: 0x4000000000 legacy sane_size: 0x2ff0000000 Physical memory 262144 MB avail_remaining = 0x2fe2e51 PMAP: PCID enabled PMAP: Supervisor Mode Execute Protection enabled PMAP: Supervisor Mode Access Protection enabled Kernel virtual space from 0xffffff8000000000 to 0xffffffffffffefff. Available physical space from 0x1cb10000 to 0x307b5f6000 initialize_screen: b=A4000000, w=00000400, h=00000300, r=00001000, d=00000001 power_management_init machine_startup Darwin Kernel Version 20.6.0: Thu Jul 6 22:13:30 PDT 2023; root:xnu_kasan-7195.141.49.702.12~1/KASAN_X86_64 vm_mem_bootstrap vm_page_bootstrap pmap_steal Idle_PTs_release 268 pages from PFN 0x1c8f6 vm_page_buckets vm_page_bucket_locks pmap_startup pmap_high_used_top 0x307b5f6 pmap_high_used_bottom 0x307b43c pmap_middle_used_top 0x307b3ff pmap_middle_used_bottom 0x2fc4400 pmap_startup() delaying init/free of page nums > 0x200000 page_frame_init pmap_startup() init/release time: 43580 microsec pmap_startup() delayed init/release of 48106404 pages vm_page_bootstrap: 1323249 free pages, 65752847 wired pages, (up to 48106404 of which are delayed free) vm_page_bootstrap complete zone_bootstrap vm_object_bootstrap vm_kernel vm_map_init kmem_init kmem pmap_init kmem_alloc vm_fault_init "vm_compressor_mode" is 4 kext_alloc_init kext submap [0xffffff7f82010000 - 0xffffff7feea00000], kernel text [0xffffff8000210000 - 0xffffff8002010000] zalloc NOTE: zonemap size reduced from 0x1800000000 to 0x1000000000 zone_init: submap[0] 0xffffff8159058000:0xffffff8c03af8000 (43690M) zone_init: submap[1] 0xffffff8c03b08000:0xffffffa159048000 (87381M) zone_init: metadata0 0xffffffdd86cd9000:0xffffffdd86cda000 (4K) zone_init: metadata1 0xffffffdd8809b000:0xffffffdda809c000 (524292K) zone_init: metabits 0xffffffdda809c000:0xffffffdde809c000 (1048576K) zone leak detection enabled IOKit IOMD setownership ENABLED percpu locks codesigning oslog oslog_init completed, 16 chunks, 8 io pages kasan_late_init KASan: found (__DATA,__asan_globals) at 0xffffff8013b38000 + 2873728 KASan: poisoning redzone for 44902 globals telemetry_init Telemetry: Sampling all tasks once per 1 second console_init stackshot_init sched_init Scheduler: Default of dualq Setting scheduler priority decay band limit 18 standard timeslicing quantum is 10000 us standard background quantum is 2500 us waitq_bootstrap WQ[wql_init]: init linktable with max:262144 elements (8388608 bytes) WQ[wqp_init]: init prepost table with max:262144 elements (8388608 bytes) mac_policy_init mach_ipc mig_table_max_displ = 53 mach_kobj_count = 372 PMAP_ACTIVATE_KERNEL mapping_free_prime machine_init Reallocated master cpu data: 0xffffff8013eac900, interrupt stack: 0xffffffa35da47000, fault stack: 0xffffff8011767800 CPU identification: Intel(R) Xeon(R) W-3365 CPU @ 2.70GHz CPU features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX SMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C RDWRFSGS TSC_THREAD_OFFSET BMI1 HLE AVX2 FDPEO SMEP BMI2 ERMS INVPCID RTM PQM FPU_CSDS PQE AVX512F AVX512DQ RDSEED ADX SMAP AVX512IFMA CLFSOPT CLWB IPT AVX512CD SHA AVX512BW AVX512VL AVX512VBMI UMIP PKU GFNI VAES VPCLMULQDQ AVX512VNNI AVX512BITALG AVX512VPOPCNTDQ RDPID FSREPMOV MDCLEAR IBRS STIBP L1DF ACAPMSR SSBD HTT: 64 cores per package; 128 logical cpus per package CPU extended features: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI Initializing EFI runtime services efi_init() kernel base: 0x11700000 size: 0xb10e000 efiSystemTable physical: 0x1c800000 virtual: 0xffffff801c800000 efiRuntimeServicesPageStart: 0x18400 efiRuntimeServicesPageCount: 0x440c efiRuntimeServicesVirtualPageStart: 0x000ffffff8018400 Type: 6 phys: 0x1c800000 EFIv: 0xffffff801c800000 kv: 0xffffff801c800000 size: 0x1000 Type: 6 phys: 0x67dff000 EFIv: 0xffffff8018400000 kv: 0xffffff8018400000 size: 0x4000000 Type: 5 phys: 0x6bdff000 EFIv: 0xffffff801c400000 kv: 0xffffff801c400000 size: 0x400000 Boot args version 2 revision 1 mode 64 Processing 64-bit EFI tables at 0xffffff801c800000 Header: Signature: 0x5453595320494249 Revision: 0x00020050 HeaderSize: 0x00000078 CRC32: 0xc6ddbad7 RuntimeServices: 0xffffff801c3ffb98 System table calculated CRC32 = 0xc6ddbad7, header = 0xc6ddbad7 RuntimeServices table at 0xffffff801c3ffb98 Checking runtime services table 0xffffff801c3ffb98 Runtime table calculated CRC32 = 0x18c2bcc3, header = 0x18c2bcc3 MSR_IA32_APIC_BASE 0xfee00000 enabled legacy mode BSP x2APIC supported but will not be enabled ID: 0x0 LDR: 0x0 Boot cpu local APIC id 0x0 AVX512 supported and enabled fpu_state: AVX512, state_size: 2688 Kernel text 0xffffff8011810000-0xffffff8013610000 to be write-protected Marking (0xffffff8013628000, 0xffffff8013784000) as rwx Marking (0xffffff801428d000, 0xffffff801428e000) as rwx Marking (0xffffff801428e000, 0xffffff801428f000) as rwx Marking (0xffffff8013610000, 0xffffff8013628000) as rwx Marking (0xffffff801428f000, 0xffffff8014298000) as rwx Marking (0xffffff8013784000, 0xffffff8013785000) as rwx Marking (0xffffff8014298000, 0xffffff8014298000) as rwx Marking (0xffffff8013628000, 0xffffff8013628000) as rwx Marking (0xffffff801806a000, 0xffffff80183f5000) as rwx Marking (0xffffff8016bd0000, 0xffffff8016c16000) as rwx Marking (0xffffff8011810000, 0xffffff8011810000) as rwx Marking (0xffffff8016c60000, 0xffffff8017b5a000) as rwx thread_machine_init_template clock_init [RTCLOCK] frequency 2700000000 (2700000540) TSC Deadline Timer supported and enabled coalitions_init task_init thread_init restartable_init workq_init turnstiles_init atm_init ATM subsystem is initialized mach_init_activity_id bank_init BANK subsystem is initialized ipc_pthread_priority_init IPC_PTHREAD_PRIORITY subsystem is initialized exception_init sfi_init kernel_thread_create load_context - done idle_thread_create sched_startup thread_daemon_init thread_call_initialize work_interval_initialize thread_bind ipc_thread_call_init mapping_adjust clock_service_create kdp_init kdp_core zlib memory 0x7000 Registered coredump handler for kernel hv_support_init bootprofile_init sysctl PE_init_iokit Kernel boot args: '-v keepsyms=1 npci=0x2000 debug=0x15f kdp_match_name=en0 serial=5 msgbuf=1048576 kcsuffix=kasan -xcpm_assert -xcpm_assert_trace' corecrypto_kext_start called FIPSPOST_KEXT [2979357584] fipspost_post:157: [FIPSPOST][Module-ID] Apple corecrypto Module v11.1 [Intel, Kernel, Software] FIPSPOST_KEXT [2991498858] fipspost_post:168: PASSED: (0 ms) - fipspost_post_hmac FIPSPOST_KEXT [3001772961] fipspost_post:169: PASSED: (2 ms) - fipspost_post_integrity FIPSPOST_KEXT [3010175807] fipspost_post:175: PASSED: (0 ms) - fipspost_post_indicator FIPSPOST_KEXT [3018745296] fipspost_post:176: PASSED: (0 ms) - fipspost_post_aes_ecb FIPSPOST_KEXT [3027130608] fipspost_post:177: PASSED: (0 ms) - fipspost_post_aes_cbc FIPSPOST_KEXT [3039034605] fipspost_post:178: PASSED: (3 ms) - fipspost_post_rsa_sig FIPSPOST_KEXT [3054237252] fipspost_post:179: PASSED: (7 ms) - fipspost_post_ecdsa FIPSPOST_KEXT [3062482811] fipspost_post:180: PASSED: (0 ms) - fipspost_post_ecdh FIPSPOST_KEXT [3070388904] fipspost_post:181: PASSED: (0 ms) - fipspost_post_aes_ccm FIPSPOST_KEXT [3078775758] fipspost_post:182: PASSED: (0 ms) - fipspost_post_aes_cmac FIPSPOST_KEXT [3096938539] fipspost_post:184: PASSED: (9 ms) - fipspost_post_pbkdf FIPSPOST_KEXT [3104948207] fipspost_post:185: PASSED: (0 ms) - fipspost_post_kdf_ctr FIPSPOST_KEXT [3113327698] fipspost_post:186: PASSED: (0 ms) - fipspost_post_aes_gcm FIPSPOST_KEXT [3121715395] fipspost_post:187: PASSED: (0 ms) - fipspost_post_aes_xts FIPSPOST_KEXT [3130152343] fipspost_post:188: PASSED: (0 ms) - fipspost_post_tdes_cbc FIPSPOST_KEXT [3138584497] fipspost_post:189: PASSED: (0 ms) - fipspost_post_drbg_ctr FIPSPOST_KEXT [3147121108] fipspost_post:190: PASSED: (0 ms) - fipspost_post_drbg_hmac FIPSPOST_KEXT [3155640558] fipspost_post:213: all tests PASSED (176 ms) early_boot ACPI: ACPI: RSDP 0x0000000067DB5014 000024 (v02 SUPERM)RSDP 0x0000000067DB5014 000024 (v02 SUPERM) ACPI: ACPI: XSDT 0x0000000067D9B000 000134 (v01 SUPERM SMCI--MB 01072009 AMI 01000013)XSDT 0x0calling mpo_policy_init for AMFI Security policy loaded: Apple Mobile File Integrity (AMFI) calling mpo_policy_init for Sandbox 000000067D9B000 000134 (v01 SUPERM SMCI--MB 01072009 AMI 01000013) ACPI: ACPI: FACP 0x00000000678FC000 000114 (v06 SUPERM SMCI--MB 01072009 INTL 20091013)Security policy loaded: Seatbelt sandbox policy (Sandbox) calling mpo_policy_init for Quarantine Security policy loaded: Quarantine policy (Quarantine) FACP 0x00000000678FC000 000114 (v06 SUPERM SMCI--MB 01072009 INTL 20091013) calling mpo_policy_init for RestrictEvents Security policy loaded: RestrictEvents Kernel Extension 1.0.9 (RestrictEvents) AppleCredentialManager: init: called, instance = 0xffffffa158c2d210. AssertMacros: value (value: 0x0), ---, file: /System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/AppleCredentialManager/AppleCredentialManACPI: ager-417.140.2/AppleCredentialManager/Services/ACMKernelService.cpp:182 ACPI: AppleCredentialManager: init: EOSDevice: 0 [SEP over: KernelRelay=NO SEPManager=NO] [booted into: BaseSystem=NO InternalSystem=NO]. DSDT 0x0000000067893000 0671D2 (v02 SUPERM SMCI--MB 01072009 INTL 20091013)ACM: Env_SetVariableWithParams: set var[6]. ACM: Env_SetVariableWithParams (len=1): new data: 00 ACM: InitCredentialEngine: Global credential set created, CS[10]. DSDT 0x0000000067893000 0671D2 (v02 SUPERM SMCI--MB 01072009 INTL 20091013)ACM: Env_SetVariableWithParams: set var[5]. ACM: Env_SetVariableWithParams (len=1): new data: ACPI: ACPI: FACS 0x0000000067DFD000 000040FACS 0x0000000067DFD000 000040 ACPI: 00 ACM: Env_SetVariableWithParams: set var[23]. ACM: Env_SetVariableWithParams (len=1): new data: 01 ACPI: SPMI 0x00000000678FB000 000041 (v05 SUPERM SMCI--MB 00000000 AMI. 00000000)SPMI 0x00000000678FB000 000041 (v05 SUPERM SMCI--MB 00000000 AMI. 00000000) ACM: Env_SetVariableWithParams: set var[24]. ACM: Env_SetVariableWithParams (len=22): new data: ACPI: ACPI: FIDT 0x0000000067892000 00009C (v01 SUPERM SMCI--MB 01072009 AMI 00010013)4a 75 6c 20 20 36 20 32 30 32 33 2c 20 32 32 3a 30 37 3a 30 34 00 ACM: Env_SetDataProvider: data provider *set* for var[25]. FIDT 0x0000000067892000 00009C (v01 SUPERM SMCI--MB 01072009 AMI 00010013) ACPI: ACM: Env_SetDataProvider: data provider *set* for var[27]. ACM: Env_SetDataProvider: data provider *set* for var[22]. ACPI: SSDT 0x00000000678FE000 000704 (v02 INTEL RAS_ACPI 00000001 INTL 20200925)SSDT 0x00000000678FE000 000704 (v02 INTEL RAS_ACPI 00000001 INTL 20200925)ACM: Env_SetDataProvider: data provider *set* for var[29]. ACPI: ACPI: ERST 0x00000000678FD000 000230 (v01 SUPERM SMCI--MB 00000001 INTL 00000001)ACM: Env_SetVariableWithParams: set var[7]. ACM: Env_SetVariableWithParams (len=1): new data: 00 ACM: Env_SetVariableWithParams: set var[26]. ERST 0x00000000678FD000 000230 (v01 SUPERM SMCI--MB 00000001 INTL 00000001)ACM: Env_SetVariableWithParams (len=1): new data: 00 ACMFirstResponderKernelService: init: called, . ACPI: ACPI: BERT 0x0000000067891000 000030 (v01 SUPERM SMCI--MB 00000001 INTL 00000001)BERT 0x0000000067891000 000030 (v01 SUPERM SMCI--MB 00000001 INTL 00000001)ACMRM-S: init: called, starting PersistentStore service. ACPI: ACPI: SSDT 0x0000000067890000 000745 (v02 INTEL ADDRXLAT 00000001 INTL 20200925)ACMRM-C: init: called, starting AccessoryCache service. ACMKernelService: initValueFromBootArgAliasesUInt32: acc-cache size = 16 (default). SSDT 0x0000000067890000 000745 (v02 INTEL ADDRXLAT 00000001 INTL 20200925)ACMKernelService: initValueFromBootArgAliasesUInt32: acc-cache expiration = 2592000 (default). ACPI: ACPI: MCFG 0x000000006788F000 00003C (v01 SUPERM SMCI--MB 01072009 MSFT 00000097)MCFG 0x000000006788F000 00003C (v01 SUPERM SMCI--MB 01072009 MSFT 00000097)ACMRM: init: called, starting TRM service. ACPI: ACPI: BDAT 0x000000006788E000 000030 (v01 SUPERM SMCI--MB 00000000 INTL 20091013)BDAT 0x000000006788E000 000030 (v01 SUPERM SMCI--MB 00000000 INTL 20091013)ACMRM-A: init: called, starting TRM Analytics service. ACPI: ACPI: HMAT 0x000000006788D000 000120 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)HMAT 0x000000006788D000 000120 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)ACMKernelService: initValueFromBootArgAliasesUInt32: analytics collection period = 86400 (default). ACPI: ACPI: HPET 0x000000006788C000 000038 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)ACMKernelService: initValueFromBootArgAliasesUInt32: policy mode timeout = 259200 (default). ACMRM-A: notifyStandardModeTimeoutChanged: called, value = 259200 (modified = YES). HPET 0x000000006788C000 000038 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)ACMKernelService: initValueFromBootArgAliasesUInt32: (bounded) grace period timeout = 172800 (default). ACPI: ACPI: MIGT 0x000000006788B000 000040 (v01 SUPERM SMCI--MB 00000000 INTL 20091013)ACMRM-A: notifyGracePeriodTimeoutChanged: called, value = 172800 (modified = YES). ACMKernelService: initValueFromBootArgAliasesUInt32: enabled = 0 (default). MIGT 0x000000006788B000 000040 (v01 SUPERM SMCI--MB 00000000 INTL 20091013)ACMRM: _disableBy: [TRM ENABLED=NO] (mask=2, DISABLED BY: Def=YES* BtArg=NO LegHW=NO OSEnv=NO | MngCo=NO DwnOS=NO ChkBd=NO coGSw=NO). ACPI: ACPI: MSCT 0x000000006788A000 000090 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)ACMRM: _disableBy: [TRM ENABLED=NO] (mask=2, DISABLED BY: Def=YES BtArg=NO* LegHW=NO OSEnv=NO | MngCo=NO DwnOS=NO ChkBd=NO coGSw=NO). MSCT 0x000000006788A000 000090 (v01 SUPERM SMCI--MB 00000001 INTL 20091013)AssertMacros: value (value: 0x0), ---, file: /System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/AppleCredentialManager/AppleCredentialManager-417.140.2/AppleCredentialManager/Services/ACMKernelService.cpp:182 ACMRM: _disableBy: [TRM ENABLED=NO] (mask=a, DISABLED BY: Def=YES BtArg=NO LegHW=YES* OSEnv=NO | MngCo=NO DwnOS=NO ChkBd=NO coGSw=NO). ACPI: ACPI: WDDT 0x0000000067889000 000040 (v01 SUPERM SMCI--MB 00000000 INTL 20091013)AssertMacros: data (value: 0x0), 'disable-transport-rm' property not found, file: /System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/AppleCredentialManager/AppleCredentialManager-417.140.2/AppleCredentialManager/ServWDDT 0x0000000067889000 000040 (v01 SUPERM SMCI--MB 00000000 INTL 20091013) ACPI: ACPI: APIC 0x0000000067887000 00025E (v04 SUPERM SMCI--MB 00000000 INTL 20091013)ices/ACMRestrictedModeKernelService.cpp:1146 ACMRM: _loadDisabledByOSEnvironment: disabled by OSEnvironment: NO. APIC 0x0000000067887000 00025E (v04 SUPERM SMCI--MB 00000000 INTL 20091013) ACPI: ACPI: SLIT 0x0000000067886000 00002D (v01 SUPERM SMCI--MB 00000001 AMI 01000013)ACMRM: _disableBy: [TRM ENABLED=NO] (mask=a, DISABLED BY: Def=YES BtArg=NO LegHW=YES OSEnv=NO* | MngCo=NO DwnOS=NO ChkBd=NO coGSw=NO). SLIT 0x0000000067886000 00002D (v01 SUPERM SMCI--MB 00000001 AMI 01000013)ACMRM: _publishIOResource: AppleUSBRestrictedModeWithReason = 0. ACMRM: _mapAndPublishTRM: set TRM_PolicyTimeout = 259200. ACPI: ACPI: SRAT 0x000000006787F000 006430 (v03 SUPERM SMCI--MB 00000002 AMI 01000013)ACMRM: _mapAndPublishTRM: set TRM_PolicyReason = Unrestricted(0). ACMRM: _mapAndPublishTRM: sending kIOMessageServicePropertyChange(n=2) while DISABLED, TRM: 259200 U/0 4294967295 -/ff miss=ff (CUR: 259200 U/0 4294967295 -/ff). SRAT 0x000000006787F000 006430 (v03 SUPERM SMCI--MB 00000002 AMI 01000013)AppleCredentialManager: init: returning, result = true, instance = 0xffffffa158c2d210. IntelCPUMonitor: Based on code by mercurysquad, superhai (C)2008. Turbostates measurement added by Navi User defined TjMax=0 AppleCredentialManager: start: called, instance = 0xffffffa158c2d210. ACMRM: _publishIOResource: AppleUSBRestrictedModeTimeout = 259200. AppleCredentialManager: start: started, instance = 0xffffffa158c2d210. AppleCredentialManager: start: returning, result = true, instance = 0xffffffa158c2d210. IOGetBootKeyStoreData: data at address 0 size 0 AICPM::start: calling i386_pmRegister() Registering Virtual Processor Unknown CPU: family = 0x6, model = 0x55, stepping = 0x7 AICPM::start: back from i386_pmRegister() AICPM::start: calling i386_pmThreadInit() ACPI: ACPI: OEM4 0x00000000676F7000 187A61 (v02 INTEL CPU CST 00003000 INTL 20200925)OEM4 0x00000000676F7000 187A61 (v02 INTEL CPU CST 00003000 INTL 20200925) ACPI: ACPI: OEM1 0x00000000675E3000 113489 (v02 INTEL CPU EIST 00003000 INTL 20200925)OEM1 0x00000000675E3000 113489 (v02 INTEL CPU EIST 00003000 INTL 20200925) ACPI: ACPI: SSDT 0x000000006756C000 0764A5 (v02 INTEL SSDT PM 00004000 INTL 20200925)SSDT 0x000000006756C000 0764A5 (v02 INTEL SSDT PM 00004000 INTL 20200925) ACPI: ACPI: SSDT 0x000000006756B000 0009B3 (v02 SUPERM SMCI--MB 00000000 INTL 20091013)SSDT 0x000000006756B000 0009B3 (v02 SUPERM SMCI--MB 00000000 INTL 20091013) ACPI: ACPI: HEST 0x000000006756A000 00013C (v01 SUPERM SMCI--MB 00000001 INTL 00000001)HEST 0x000000006756A000 00013C (v01 SUPERM SMCI--MB 00000001 INTL 00000001) ACPI: ACPI: DMAR 0x0000000067569000 00015C (v01 SUPERM SMCI--MB 00000001 INTL 20091013)DMAR 0x0000000067569000 00015C (v01 SUPERM SMCI--MB 00000001 INTL 20091013) ACPI: ACPI: BGRT 0x0000000067568000 000038 (v01 SUPERM SMCI--MB 01072009 AMI 00010013)BGRT 0x0000000067568000 000038 (v01 SUPERM SMCI--MB 01072009 AMI 00010013) ACPI: ACPI: SSDT 0x0000000067560000 0078BA (v02 INTEL SpsNm 00000002 INTL 20200925)SSDT 0x0000000067560000 0078BA (v02 INTEL SpsNm 00000002 INTL 20200925) ACPI: ACPI: SSDT 0x000000006755E000 0019DB (v01 SUPERM SMCCDN 00000000 INTL 20181221)SSDT 0x000000006755E000 0019DB (v01 SUPERM SMCCDN 00000000 INTL 20181221) ACPI: ACPI: WSMT 0x0000000067888000 000028 (v01 SUPERM SMCI--MB 01072009 AMI 00010013)WSMT 0x0000000067888000 000028 (v01 SUPERM SMCI--MB 01072009 AMI 00010013) ACPI: ACPI: SSDT 0x0000000067DA2000 0017C2 (v02 ETRX CPUWRAP 00000000 INTL 20200925)SSDT 0x0000000067DA2000 0017C2 (v02 ETRX CPUWRAP 00000000 INTL 20200925) ACPI: ACPI: SSDT 0x0000000067DA1000 000064 (v02 KGP DTPG 00001000 INTL 20180427)SSDT 0x0000000067DA1000 000064 (v02 KGP DTPG 00001000 INTL 20180427) ACPI: ACPI: SSDT 0x0000000067DA0000 0000D2 (v02 ACDT SsdtEC 00000000 INTL 20200925)SSDT 0x0000000067DA0000 0000D2 (v02 ACDT SsdtEC 00000000 INTL 20200925) ACPI: ACPI: SSDT 0x0000000067D9F000 00007D (v02 CORP SsdtEC 00001000 INTL 20200925)SSDT 0x0000000067D9F000 00007D (v02 CORP SsdtEC 00001000 INTL 20200925) ACPI: ACPI: SSDT 0x0000000067D9E000 00008B (v02 LOLO CpuPlug 00003000 INTL 20200925)SSDT 0x0000000067D9E000 00008B (v02 LOLO CpuPlug 00003000 INTL 20200925) ACPI: ACPI: SSDT 0x0000000067D9D000 00008F (v02 ACDT PMCR 00001000 INTL 20200925)SSDT 0x0000000067D9D000 00008F (v02 ACDT PMCR 00001000 INTL 20200925) ACPI: ACPI: SSDT 0x0000000067D9C000 0000CE (v02 ACDT RtcRange 00000000 INTL 20200925)SSDT 0x0000000067D9C000 0000CE (v02 ACDT RtcRange 00000000 INTL 20200925) ACPI: ACPI: 14 ACPI AML tables successfully acquired and loaded14 ACPI AML tables successfully acquired and loaded AppleACPICPU: ProcessorId=0 LocalApicId=0 Enabled AppleACPICPU: ProcessorId=1 LocalApicId=2 Enabled cpu_data_alloc(1) 0xffffff8013eadf80 desc_table: 0xffffff8011787320 ldt: 0xffffffa37f2e1000 int_stack: 0xffffffa37ddc3000-0xffffffa37ddd3000 AppleACPICPU: ProcessorId=2 LocalApicId=4 Enabled cpu_data_alloc(2) 0xffffff8013eaf600 desc_table: 0xffffff8011787640 ldt: 0xffffffa37f2f1000 int_stack: 0xffffffa37e2ed000-0xffffffa37e2fd000 AppleACPICPU: ProcessorId=3 LocalApicId=6 Enabled cpu_data_alloc(3) 0xffffff8013eb0c80 desc_table: 0xffffff8011787960 ldt: 0xffffffa37f301000 int_stack: 0xffffffa37f6d1000-0xffffffa37f6e1000 AppleACPICPU: ProcessorId=4 LocalApicId=8 Enabled cpu_data_alloc(4) 0xffffff8013eb2300 desc_table: 0xffffff8011787c80 ldt: 0xffffffa37f311000 int_stack: 0xffffffa37f6e1000-0xffffffa37f6f1000 AppleACPICPU: ProcessorId=5 LocalApicId=10 Enabled cpu_data_alloc(5) 0xffffff8013eb3980 desc_table: 0xffffff8011787fa0 ldt: 0xffffffa37f321000 int_stack: 0xffffffa37f6f1000-0xffffffa37f701000 AppleACPICPU: ProcessorId=6 LocalApicId=12 Enabled cpu_data_alloc(6) 0xffffff8013eb5000 desc_table: 0xffffff80117882c0 ldt: 0xffffffa37f331000 int_stack: 0xffffffa37f701000-0xffffffa37f711000 AppleACPICPU: ProcessorId=7 LocalApicId=14 Enabled cpu_data_alloc(7) 0xffffff8013eb6680 desc_table: 0xffffff80117885e0 ldt: 0xffffffa37f341000 int_stack: 0xffffffa37f711000-0xffffffa37f721000 AppleACPICPU: ProcessorId=8 LocalApicId=16 Enabled cpu_data_alloc(8) 0xffffff8013eb7d00 desc_table: 0xffffff8011788900 ldt: 0xffffffa37f351000 int_stack: 0xffffffa37f721000-0xffffffa37f731000 AppleACPICPU: ProcessorId=9 LocalApicId=18 Enabled cpu_data_alloc(9) 0xffffff8013eb9380 desc_table: 0xffffff8011788c20 ldt: 0xffffffa37f361000 int_stack: 0xffffffa37f731000-0xffffffa37f741000 AppleACPICPU: ProcessorId=10 LocalApicId=20 Enabled cpu_data_alloc(10) 0xffffff8013ebaa00 desc_table: 0xffffff8011788f40 ldt: 0xffffffa37f371000 int_stack: 0xffffffa37f741000-0xffffffa37f751000 AppleACPICPU: ProcessorId=11 LocalApicId=22 Enabled cpu_data_alloc(11) 0xffffff8013ebc080 desc_table: 0xffffff8011789260 ldt: 0xffffffa37f381000 int_stack: 0xffffffa37f751000-0xffffffa37f761000 AppleACPICPU: ProcessorId=12 LocalApicId=24 Enabled cpu_data_alloc(12) 0xffffff8013ebd700 desc_table: 0xffffff8011789580 ldt: 0xffffffa37f391000 int_stack: 0xffffffa37f761000-0xffffffa37f771000 AppleACPICPU: ProcessorId=13 LocalApicId=26 Enabled cpu_data_alloc(13) 0xffffff8013ebed80 desc_table: 0xffffff80117898a0 ldt: 0xffffffa37f3a1000 int_stack: 0xffffffa37f771000-0xffffffa37f781000 AppleACPICPU: ProcessorId=14 LocalApicId=28 Enabled cpu_data_alloc(14) 0xffffff8013ec0400 desc_table: 0xffffff8011789bc0 ldt: 0xffffffa37f3b1000 int_stack: 0xffffffa37f781000-0xffffffa37f791000 AppleACPICPU: ProcessorId=15 LocalApicId=30 Enabled cpu_data_alloc(15) 0xffffff8013ec1a80 desc_table: 0xffffff8011789ee0 ldt: 0xffffffa37f3c1000 int_stack: 0xffffffa37f791000-0xffffffa37f7a1000 AppleACPICPU: ProcessorId=16 LocalApicId=32 Enabled cpu_data_alloc(16) 0xffffff8013ec3100 desc_table: 0xffffff801178a200 ldt: 0xffffffa37f3d1000 int_stack: 0xffffffa37f7a1000-0xffffffa37f7b1000 AppleACPICPU: ProcessorId=17 LocalApicId=34 Enabled cpu_data_alloc(17) 0xffffff8013ec4780 desc_table: 0xffffff801178a520 ldt: 0xffffffa37f3e1000 int_stack: 0xffffffa37f7b1000-0xffffffa37f7c1000 AppleACPICPU: ProcessorId=18 LocalApicId=36 Enabled cpu_data_alloc(18) 0xffffff8013ec5e00 desc_table: 0xffffff801178a840 ldt: 0xffffffa37f3f1000 int_stack: 0xffffffa37f7c1000-0xffffffa37f7d1000 AppleACPICPU: ProcessorId=19 LocalApicId=38 Enabled cpu_data_alloc(19) 0xffffff8013ec7480 desc_table: 0xffffff801178ab60 ldt: 0xffffffa37f401000 int_stack: 0xffffffa37f7d1000-0xffffffa37f7e1000 AppleACPICPU: ProcessorId=20 LocalApicId=40 Enabled cpu_data_alloc(20) 0xffffff8013ec8b00 desc_table: 0xffffff801178ae80 ldt: 0xffffffa37f411000 int_stack: 0xffffffa37f7e1000-0xffffffa37f7f1000 AppleACPICPU: ProcessorId=21 LocalApicId=42 Enabled cpu_data_alloc(21) 0xffffff8013eca180 desc_table: 0xffffff801178b1a0 ldt: 0xffffffa37f421000 int_stack: 0xffffffa37f7f1000-0xffffffa37f801000 AppleACPICPU: ProcessorId=22 LocalApicId=44 Enabled cpu_data_alloc(22) 0xffffff8013ecb800 desc_table: 0xffffff801178b4c0 ldt: 0xffffffa37f431000 int_stack: 0xffffffa37f801000-0xffffffa37f811000 AppleACPICPU: ProcessorId=23 LocalApicId=46 Enabled cpu_data_alloc(23) 0xffffff8013ecce80 desc_table: 0xffffff801178b7e0 ldt: 0xffffffa37f441000 int_stack: 0xffffffa37f811000-0xffffffa37f821000 AppleACPICPU: ProcessorId=24 LocalApicId=48 Enabled cpu_data_alloc(24) 0xffffff8013ece500 desc_table: 0xffffff801178bb00 ldt: 0xffffffa37f451000 int_stack: 0xffffffa37f821000-0xffffffa37f831000 AppleACPICPU: ProcessorId=25 LocalApicId=50 Enabled cpu_data_alloc(25) 0xffffff8013ecfb80 desc_table: 0xffffff801178be20 ldt: 0xffffffa37f461000 int_stack: 0xffffffa37f831000-0xffffffa37f841000 AppleACPICPU: ProcessorId=26 LocalApicId=52 Enabled cpu_data_alloc(26) 0xffffff8013ed1200 desc_table: 0xffffff801178c140 ldt: 0xffffffa37f471000 int_stack: 0xffffffa37f841000-0xffffffa37f851000 AppleACPICPU: ProcessorId=27 LocalApicId=54 Enabled cpu_data_alloc(27) 0xffffff8013ed2880 desc_table: 0xffffff801178c460 ldt: 0xffffffa37f481000 int_stack: 0xffffffa37f851000-0xffffffa37f861000 AppleACPICPU: ProcessorId=28 LocalApicId=56 Enabled cpu_data_alloc(28) 0xffffff8013ed3f00 desc_table: 0xffffff801178c780 ldt: 0xffffffa37f491000 int_stack: 0xffffffa37f861000-0xffffffa37f871000 AppleACPICPU: ProcessorId=29 LocalApicId=58 Enabled cpu_data_alloc(29) 0xffffff8013ed5580 desc_table: 0xffffff801178caa0 ldt: 0xffffffa37f4a1000 int_stack: 0xffffffa37f871000-0xffffffa37f881000 AppleACPICPU: ProcessorId=30 LocalApicId=60 Enabled cpu_data_alloc(30) 0xffffff8013ed6c00 desc_table: 0xffffff801178cdc0 ldt: 0xffffffa37f4b1000 int_stack: 0xffffffa37f881000-0xffffffa37f891000 AppleACPICPU: ProcessorId=31 LocalApicId=62 Enabled cpu_data_alloc(31) 0xffffff8013ed8280 desc_table: 0xffffff801178d0e0 ldt: 0xffffffa37f4c1000 int_stack: 0xffffffa37f891000-0xffffffa37f8a1000 AppleACPICPU: ProcessorId=32 LocalApicId=1 Enabled cpu_data_alloc(32) 0xffffff8013ed9900 desc_table: 0xffffff801178d400 ldt: 0xffffffa37f4d1000 int_stack: 0xffffffa37f8a1000-0xffffffa37f8b1000 AppleACPICPU: ProcessorId=33 LocalApicId=3 Enabled cpu_data_alloc(33) 0xffffff8013edaf80 desc_table: 0xffffff801178d720 ldt: 0xffffffa37f4e1000 int_stack: 0xffffffa37f8b1000-0xffffffa37f8c1000 AppleACPICPU: ProcessorId=34 LocalApicId=5 Enabled cpu_data_alloc(34) 0xffffff8013edc600 desc_table: 0xffffff801178da40 ldt: 0xffffffa37f4f1000 int_stack: 0xffffffa37f8c1000-0xffffffa37f8d1000 AppleACPICPU: ProcessorId=35 LocalApicId=7 Enabled cpu_data_alloc(35) 0xffffff8013eddc80 desc_table: 0xffffff801178dd60 ldt: 0xffffffa37f501000 int_stack: 0xffffffa37f8d1000-0xffffffa37f8e1000 AppleACPICPU: ProcessorId=36 LocalApicId=9 Enabled cpu_data_alloc(36) 0xffffff8013edf300 desc_table: 0xffffff801178e080 ldt: 0xffffffa37f511000 int_stack: 0xffffffa37f8e1000-0xffffffa37f8f1000 AppleACPICPU: ProcessorId=37 LocalApicId=11 Enabled cpu_data_alloc(37) 0xffffff8013ee0980 desc_table: 0xffffff801178e3a0 ldt: 0xffffffa37f521000 int_stack: 0xffffffa37f8f1000-0xffffffa37f901000 AppleACPICPU: ProcessorId=38 LocalApicId=13 Enabled cpu_data_alloc(38) 0xffffff8013ee2000 desc_table: 0xffffff801178e6c0 ldt: 0xffffffa37f531000 int_stack: 0xffffffa37f901000-0xffffffa37f911000 AppleACPICPU: ProcessorId=39 LocalApicId=15 Enabled cpu_data_alloc(39) 0xffffff8013ee3680 desc_table: 0xffffff801178e9e0 ldt: 0xffffffa37f541000 int_stack: 0xffffffa37f911000-0xffffffa37f921000 AppleACPICPU: ProcessorId=40 LocalApicId=17 Enabled cpu_data_alloc(40) 0xffffff8013ee4d00 desc_table: 0xffffff801178ed00 ldt: 0xffffffa37f551000 int_stack: 0xffffffa37f921000-0xffffffa37f931000 AppleACPICPU: ProcessorId=41 LocalApicId=19 Enabled cpu_data_alloc(41) 0xffffff8013ee6380 desc_table: 0xffffff801178f020 ldt: 0xffffffa37f561000 int_stack: 0xffffffa37f931000-0xffffffa37f941000 AppleACPICPU: ProcessorId=42 LocalApicId=21 Enabled cpu_data_alloc(42) 0xffffff8013ee7a00 desc_table: 0xffffff801178f340 ldt: 0xffffffa37f571000 int_stack: 0xffffffa37f941000-0xffffffa37f951000 AppleACPICPU: ProcessorId=43 LocalApicId=23 Enabled cpu_data_alloc(43) 0xffffff8013ee9080 desc_table: 0xffffff801178f660 ldt: 0xffffffa37f581000 int_stack: 0xffffffa37f951000-0xffffffa37f961000 AppleACPICPU: ProcessorId=44 LocalApicId=25 Enabled cpu_data_alloc(44) 0xffffff8013eea700 desc_table: 0xffffff801178f980 ldt: 0xffffffa37f591000 int_stack: 0xffffffa37f961000-0xffffffa37f971000 AppleACPICPU: ProcessorId=45 LocalApicId=27 Enabled cpu_data_alloc(45) 0xffffff8013eebd80 desc_table: 0xffffff801178fca0 ldt: 0xffffffa37f5a1000 int_stack: 0xffffffa37f971000-0xffffffa37f981000 AppleACPICPU: ProcessorId=46 LocalApicId=29 Enabled cpu_data_alloc(46) 0xffffff8013eed400 desc_table: 0xffffff801178ffc0 ldt: 0xffffffa37f5b1000 int_stack: 0xffffffa37f981000-0xffffffa37f991000 AppleACPICPU: ProcessorId=47 LocalApicId=31 Enabled cpu_data_alloc(47) 0xffffff8013eeea80 desc_table: 0xffffff80117902e0 ldt: 0xffffffa37f5c1000 int_stack: 0xffffffa37f991000-0xffffffa37f9a1000 AppleACPICPU: ProcessorId=48 LocalApicId=33 Enabled cpu_data_alloc(48) 0xffffff8013ef0100 desc_table: 0xffffff8011790600 ldt: 0xffffffa37f5d1000 int_stack: 0xffffffa37f9a1000-0xffffffa37f9b1000 AppleACPICPU: ProcessorId=49 LocalApicId=35 Enabled cpu_data_alloc(49) 0xffffff8013ef1780 desc_table: 0xffffff8011790920 ldt: 0xffffffa37f5e1000 int_stack: 0xffffffa37f9b1000-0xffffffa37f9c1000 AppleACPICPU: ProcessorId=50 LocalApicId=37 Enabled cpu_data_alloc(50) 0xffffff8013ef2e00 desc_table: 0xffffff8011790c40 ldt: 0xffffffa37f5f1000 int_stack: 0xffffffa37f9c1000-0xffffffa37f9d1000 AppleACPICPU: ProcessorId=51 LocalApicId=39 Enabled cpu_data_alloc(51) 0xffffff8013ef4480 desc_table: 0xffffff8011790f60 ldt: 0xffffffa37f601000 int_stack: 0xffffffa37f9d1000-0xffffffa37f9e1000 AppleACPICPU: ProcessorId=52 LocalApicId=41 Enabled cpu_data_alloc(52) 0xffffff8013ef5b00 desc_table: 0xffffff8011791280 ldt: 0xffffffa37f611000 int_stack: 0xffffffa37f9e1000-0xffffffa37f9f1000 AppleACPICPU: ProcessorId=53 LocalApicId=43 Enabled cpu_data_alloc(53) 0xffffff8013ef7180 desc_table: 0xffffff80117915a0 ldt: 0xffffffa37f621000 int_stack: 0xffffffa37f9f1000-0xffffffa37fa01000 AppleACPICPU: ProcessorId=54 LocalApicId=45 Enabled cpu_data_alloc(54) 0xffffff8013ef8800 desc_table: 0xffffff80117918c0 ldt: 0xffffffa37f631000 int_stack: 0xffffffa37fa01000-0xffffffa37fa11000 AppleACPICPU: ProcessorId=55 LocalApicId=47 Enabled cpu_data_alloc(55) 0xffffff8013ef9e80 desc_table: 0xffffff8011791be0 ldt: 0xffffffa37f641000 int_stack: 0xffffffa37fa11000-0xffffffa37fa21000 AppleACPICPU: ProcessorId=56 LocalApicId=49 Enabled cpu_data_alloc(56) 0xffffff8013efb500 desc_table: 0xffffff8011791f00 ldt: 0xffffffa37f651000 int_stack: 0xffffffa37fa21000-0xffffffa37fa31000 AppleACPICPU: ProcessorId=57 LocalApicId=51 Enabled cpu_data_alloc(57) 0xffffff8013efcb80 desc_table: 0xffffff8011792220 ldt: 0xffffffa37f661000 int_stack: 0xffffffa37fa31000-0xffffffa37fa41000 AppleACPICPU: ProcessorId=58 LocalApicId=53 Enabled cpu_data_alloc(58) 0xffffff8013efe200 desc_table: 0xffffff8011792540 ldt: 0xffffffa37f671000 int_stack: 0xffffffa37fa41000-0xffffffa37fa51000 AppleACPICPU: ProcessorId=59 LocalApicId=55 Enabled cpu_data_alloc(59) 0xffffff8013eff880 desc_table: 0xffffff8011792860 ldt: 0xffffffa37f681000 int_stack: 0xffffffa37fa51000-0xffffffa37fa61000 AppleACPICPU: ProcessorId=60 LocalApicId=57 Enabled cpu_data_alloc(60) 0xffffff8013f00f00 desc_table: 0xffffff8011792b80 ldt: 0xffffffa37f691000 int_stack: 0xffffffa37fa61000-0xffffffa37fa71000 AppleACPICPU: ProcessorId=61 LocalApicId=59 Enabled cpu_data_alloc(61) 0xffffff8013f02580 desc_table: 0xffffff8011792ea0 ldt: 0xffffffa37f6a1000 int_stack: 0xffffffa37fa71000-0xffffffa37fa81000 AppleACPICPU: ProcessorId=62 LocalApicId=61 Enabled cpu_data_alloc(62) 0xffffff8013f03c00 desc_table: 0xffffff80117931c0 ldt: 0xffffffa37f6b1000 int_stack: 0xffffffa37fa81000-0xffffffa37fa91000 AppleACPICPU: ProcessorId=63 LocalApicId=63 Enabled cpu_data_alloc(63) 0xffffff8013f05280 desc_table: 0xffffff80117934e0 ldt: 0xffffffa37f6c1000 int_stack: 0xffffffa37fa91000-0xffffffa37faa1000 mac_policy_initmach Darwin Image4 Validator Version 3.1.0: Sun Sep 3 16:21:36 PDT 2023; root:AppleImage4-106.100.3~1896/AppleImage4/RELEASE_X86_64 vnguard_policy_init dtrace_early_init trust_cache_init OSKextRemoveKextBootstrap cpu_datap(1):0xffffff8013ed9900 local apic id 0x1 remapped from 32 cpu_datap(2):0xffffff8013eadf80 local apic id 0x2 remapped from 1 cpu_datap(3):0xffffff8013edaf80 local apic id 0x3 remapped from 33 cpu_datap(4):0xffffff8013eaf600 local apic id 0x4 remapped from 2 cpu_datap(5):0xffffff8013edc600 local apic id 0x5 remapped from 34 cpu_datap(6):0xffffff8013eb0c80 local apic id 0x6 remapped from 3 cpu_datap(7):0xffffff8013eddc80 local apic id 0x7 remapped from 35 cpu_datap(8):0xffffff8013eb2300 local apic id 0x8 remapped from 4 cpu_datap(9):0xffffff8013edf300 local apic id 0x9 remapped from 36 cpu_datap(10):0xffffff8013eb3980 local apic id 0xa remapped from 5 cpu_datap(11):0xffffff8013ee0980 local apic id 0xb remapped from 37 cpu_datap(12):0xffffff8013eb5000 local apic id 0xc remapped from 6 cpu_datap(13):0xffffff8013ee2000 local apic id 0xd remapped from 38 cpu_datap(14):0xffffff8013eb6680 local apic id 0xe remapped from 7 cpu_datap(15):0xffffff8013ee3680 local apic id 0xf remapped from 39 cpu_datap(16):0xffffff8013eb7d00 local apic id 0x10 remapped from 8 cpu_datap(17):0xffffff8013ee4d00 local apic id 0x11 remapped from 40 cpu_datap(18):0xffffff8013eb9380 local apic id 0x12 remapped from 9 cpu_datap(19):0xffffff8013ee6380 local apic id 0x13 remapped from 41 cpu_datap(20):0xffffff8013ebaa00 local apic id 0x14 remapped from 10 cpu_datap(21):0xffffff8013ee7a00 local apic id 0x15 remapped from 42 cpu_datap(22):0xffffff8013ebc080 local apic id 0x16 remapped from 11 cpu_datap(23):0xffffff8013ee9080 local apic id 0x17 remapped from 43 cpu_datap(24):0xffffff8013ebd700 local apic id 0x18 remapped from 12 cpu_datap(25):0xffffff8013eea700 local apic id 0x19 remapped from 44 cpu_datap(26):0xffffff8013ebed80 local apic id 0x1a remapped from 13 cpu_datap(27):0xffffff8013eebd80 local apic id 0x1b remapped from 45 cpu_datap(28):0xffffff8013ec0400 local apic id 0x1c remapped from 14 cpu_datap(29):0xffffff8013eed400 local apic id 0x1d remapped from 46 cpu_datap(30):0xffffff8013ec1a80 local apic id 0x1e remapped from 15 cpu_datap(31):0xffffff8013eeea80 local apic id 0x1f remapped from 47 cpu_datap(32):0xffffff8013ec3100 local apic id 0x20 remapped from 16 cpu_datap(33):0xffffff8013ef0100 local apic id 0x21 remapped from 48 cpu_datap(34):0xffffff8013ec4780 local apic id 0x22 remapped from 17 cpu_datap(35):0xffffff8013ef1780 local apic id 0x23 remapped from 49 cpu_datap(36):0xffffff8013ec5e00 local apic id 0x24 remapped from 18 cpu_datap(37):0xffffff8013ef2e00 local apic id 0x25 remapped from 50 cpu_datap(38):0xffffff8013ec7480 local apic id 0x26 remapped from 19 cpu_datap(39):0xffffff8013ef4480 local apic id 0x27 remapped from 51 cpu_datap(40):0xffffff8013ec8b00 local apic id 0x28 remapped from 20 cpu_datap(41):0xffffff8013ef5b00 local apic id 0x29 remapped from 52 cpu_datap(42):0xffffff8013eca180 local apic id 0x2a remapped from 21 cpu_datap(43):0xffffff8013ef7180 local apic id 0x2b remapped from 53 cpu_datap(44):0xffffff8013ecb800 local apic id 0x2c remapped from 22 cpu_datap(45):0xffffff8013ef8800 local apic id 0x2d remapped from 54 cpu_datap(46):0xffffff8013ecce80 local apic id 0x2e remapped from 23 cpu_datap(47):0xffffff8013ef9e80 local apic id 0x2f remapped from 55 cpu_datap(48):0xffffff8013ece500 local apic id 0x30 remapped from 24 cpu_datap(49):0xffffff8013efb500 local apic id 0x31 remapped from 56 cpu_datap(50):0xffffff8013ecfb80 local apic id 0x32 remapped from 25 cpu_datap(51):0xffffff8013efcb80 local apic id 0x33 remapped from 57 cpu_datap(52):0xffffff8013ed1200 local apic id 0x34 remapped from 26 cpu_datap(53):0xffffff8013efe200 local apic id 0x35 remapped from 58 cpu_datap(54):0xffffff8013ed2880 local apic id 0x36 remapped from 27 cpu_datap(55):0xffffff8013eff880 local apic id 0x37 remapped from 59 cpu_datap(56):0xffffff8013ed3f00 local apic id 0x38 remapped from 28 cpu_datap(57):0xffffff8013f00f00 local apic id 0x39 remapped from 60 cpu_datap(58):0xffffff8013ed5580 local apic id 0x3a remapped from 29 cpu_datap(59):0xffffff8013f02580 local apic id 0x3b remapped from 61 cpu_datap(60):0xffffff8013ed6c00 local apic id 0x3c remapped from 30 cpu_datap(61):0xffffff8013f03c00 local apic id 0x3d remapped from 62 cpu_datap(62):0xffffff8013ed8280 local apic id 0x3e remapped from 31 allocated state structure for package 0 allocated state structure for die 0 allocated state structure for core 31 allocated state structure for core 30 allocated state structure for core 29 allocated state structure for core 28 allocated state structure for core 27 allocated state structure for core 26 allocated state structure for core 25 allocated state structure for core 24 allocated state structure for core 23 allocated state structure for core 22 allocated state structure for core 21 allocated state structure for core 20 allocated state structure for core 19 allocated state structure for core 18 allocated state structure for core 17 allocated state structure for core 16 allocated state structure for core 15 allocated state structure for core 14 allocated state structure for core 13 allocated state structure for core 12 allocated state structure for core 11 allocated state structure for core 10 allocated state structure for core 9 allocated state structure for core 8 allocated state structure for core 7 allocated state structure for core 6 allocated state structure for core 5 allocated state structure for core 4 allocated state structure for core 3 allocated state structure for core 2 allocated state structure for core 1 allocated state structure for core 0 allocated state structure for CPU 63 allocated state structure for CPU 61 allocated state structure for CPU 59 allocated state structure for CPU 57 allocated state structure for CPU 55 allocated state structure for CPU 53 allocated state structure for CPU 51 allocated state structure for CPU 49 allocated state structure for CPU 47 allocated state structure for CPU 45 allocated state structure for CPU 43 allocated state structure for CPU 41 allocated state structure for CPU 39 allocated state structure for CPU 37 allocated state structure for CPU 35 allocated state structure for CPU 33 allocated state structure for CPU 31 allocated state structure for CPU 29 allocated state structure for CPU 27 allocated state structure for CPU 25 allocated state structure for CPU 23 allocated state structure for CPU 21 allocated state structure for CPU 19 allocated state structure for CPU 17 allocated state structure for CPU 15 allocated state structure for CPU 13 allocated state structure for CPU 11 allocated state structure for CPU 9 allocated state structure for CPU 7 allocated state structure for CPU 5 allocated state structure for CPU 3 allocated state structure for CPU 1 allocated state structure for CPU 62 allocated state structure for CPU 60 allocated state structure for CPU 58 allocated state structure for CPU 56 allocated state structure for CPU 54 allocated state structure for CPU 52 allocated state structure for CPU 50 allocated state structure for CPU 48 allocated state structure for CPU 46 allocated state structure for CPU 44 allocated state structure for CPU 42 allocated state structure for CPU 40 allocated state structure for CPU 38 allocated state structure for CPU 36 allocated state structure for CPU 34 allocated state structure for CPU 32 allocated state structure for CPU 30 allocated state structure for CPU 28 allocated state structure for CPU 26 allocated state structure for CPU 24 allocated state structure for CPU 22 allocated state structure for CPU 20 allocated state structure for CPU 18 allocated state structure for CPU 16 allocated state structure for CPU 14 allocated state structure for CPU 12 allocated state structure for CPU 10 allocated state structure for CPU 8 allocated state structure for CPU 6 allocated state structure for CPU 4 allocated state structure for CPU 2 allocated state structure for CPU 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 CPU Data: size = 4, alignment = 1 Pkg Data: size = 0 AICPM::start: back from i386_pmThreadInit() AICPM::start: calling registerService() AICPM::start: back from registerService() i386_init_slave() CPU2: phys (2) active. TSC sync for cpu 2: 0x000000331b2ae07b delta 0xa0 (160) AppleIntelCPUPowerManagement: ready ApartedyStore:(lapic start00000BUILT: Ji386_init_slave() CPU4: phys (4) active. TSC sync for cpu 4: 0x000000331f4411a5 delta 0x7c (124) Sl 6 d cpu 2:08:0ic id 0A00000eyStori386_init_slave() CPU6: phys (6) active. TSC sync for cpu 6: 0x0000003322bd084b delta 0xa4 (164) Star1:0: pu 6 (l_rel id 0able 06) Interi386_init_slave() CPU8: phys (8) active. TSC sync for cpu 8: 0x00000033265d8c63 delta 0x98 (152) Star watcpu 8 cpu: id 0errupt8) de ti386_init_slave() CPU10: phys (10) active. TSC sync for cpu 10: 0x0000003329e23cd5 delta 0xffffffffffffff9a (-102) ime: ed cpu5257..apic i9894 0000a)xfffffi386_init_slave() CPU12: phys (12) active. TSC sync for cpu 12: 0x000000332daa003b delta 0x76 (118) f8arted d29 2 (leKeySid 00045:0: ep_ei386_init_slave() CPU14: phys (14) active. TSC sync for cpu 14: 0x000000333133b305 delta 0x8a (138) Stbled cpu Appllapic start00000ed Assei386_init_slave() CPU16: phys (16) active. TSC sync for cpu 16: 0x0000003334bf4d9f delta 0xffffffffffffffa0 (-96) StMacro cpu 1ue (vpic id0x0), 010) : /Syi386_init_slave() CPU18: phys (18) active. TSC sync for cpu 18: 0x0000003338a37253 delta 0xffffffffffffff9c (-100) Stem/Vo cpu /Data/pic idcOS/B0012) ots/5f3i386_init_slave() CPU20: phys (20) active. TSC sync for cpu 20: 0x000000333c8a95e9 delta 0x7c (124) Sd454bd cpurary/Capic icom.ap0014)bs/Soui386_init_slave() CPU22: phys (22) active. TSC sync for cpu 22: 0x00000033401677af delta 0xffffffffffffff9a (-102) Sces/Ap cpu 2/Applpic id12.120016) pleSSEi386_init_slave() CPU24: phys (24) active. TSC sync for cpu 24: 0x000000334402f151 delta 0x82 (130) StppleSScpu 24 line:c id Interr18) atchi386_init_slave() CPU26: phys (26) active. TSC sync for cpu 26: 0x000000334797fe95 delta 0xffffffffffffff96 (-106) Star cpu: u 26 (rrupt id 0e timea) 761042i386_init_slave() CPU28: phys (28) active. TSC sync for cpu 28: 0x000000334b700c75 delta 0x90 (144) 44..92d cpu758 RIapic ifffff0001c)7da4 i386_init_slave() CPU30: phys (30) active. TSC sync for cpu 30: 0x000000334f14fa63 delta 0xffffffffffffff8a (-118) StarteSE::st30 (leturnid 000esult 1 i386_init_slave() CPU32: phys (32) active. TSC sync for cpu 32: 0x0000003352e0c105 delta 0x7e (126) virrted bool 2 (lapalytic00000:start(IOSeri386_init_slave() CPU34: phys (34) active. TSC sync for cpu 34: 0x00000033568fcf19 delta 0x86 (134) vtarte)::10534 (lAnalyid 00ub st2) i386_init_slave() CPU36: phys (36) active. TSC sync for cpu 36: 0x000000335a44f6ad delta 0x6c (108) Started cpu 36 (lapic id 00000024) i386_init_slave() CPU38: phys (38) active. TSC sync for cpu 38: 0x000000335dd5c889 delta 0xffffffffffffffa4 (-92) Started cpu 38 (lapic id 00000026) i386_init_slave() CPU40: phys (40) active. TSInsync ft watc 40: cpu: 00336erruptf delt timee (110505Sta..954cpu 407 RIP:c id ffff8028) da4 i386_init_slave() CPU42: phys (42) active. TSC sync for cpu 42: 0x000000336540166f delta 0xffffffffffffffa0 (-96) Started cpu 42 (lapic id 0000002a) i386_init_slave() CPU44: phys (44) active. TSC sync for cpu 44: 0x000000336920f543 delta 0x98 (152) Started cpu 44 (lapic id 0000002c) i386_init_slave() CPU46: phys (46) active. TSC sync for cpu 46: 0x000000336cb6e001 delta 0xffffffffffffffa4 (-92) Started cpu 46 (lapic id 0000002e) i386_init_slave() CPU48: phys (48) active. TSC sync for cpu 48: 0x00000033708e3e79 delta 0xffffffffffffffa2 (-94) Started cpu 48 (lapic id 00000030) i386_init_slave() CPU50: phys (50) active. TSC sync for cpu 50: 0x00000033744ef2c3 delta 0xffffffffffffffa0 (-96) Started cpu 50 (lapic id 00000032) i386_init_slave() CPU52: phys (52) active. TSC sync for cpu 52: 0x000000337819a9f3 delta 0x72 (114) Started cpu 52 (lapic id 00000034) i386_init_slave() CPU54: phys (54) active. TSC sync for cpu 54: 0x000000337bc37cf1 delta 0x7e (126) Started cpu 54 (lapic id 00000036) i386_init_slave() CPU56: phys (56) active. TSC sync for cpu 56: 0x000000337f5b3093 delta 0xffffffffffffffa0 (-96) Started cpu 56 (lapic id 00000038) i386_init_slave() CPU58: phys (58) active. TSC sync for cpu 58: 0x0000003383312421 delta 0x8a (138) Started cpu 58 (lapic id 0000003a) i386_init_slave() CPU60: phys (60) active. TSC sync for cpu 60: 0x0000003386e04cf5 delta 0x94 (148) Started cpu 60 (lapic id 0000003c) i386_init_slave() CPU62: phys (62) active. TSInterc for atchdo: 0x0u: 0 i38a9e4pt: 0xlta 0me: 9738) 36arted9901372 (laP: 0xf 00000011c9 da4 i386_init_slave() CPU1: phys (1) active. TSC sync for cpu 1: 0x000000338e4d7277 delta 0x86 (134) Started cpu 1 (lapic id 00000001) i386_init_slave() CPU3: phys (3) active. TSC sync for cpu 3: 0x0000003391e4f9b1 delta 0x8a (138) Started cpu 3 (lapic id 00000003) i386_init_slave() CPU5: phys (5) active. TSC sync for cpu 5: 0x00000033956f36bd delta 0xffffffffffffffa2 (-94) Started cpu 5 (lapic id 00000005) i386_init_slave() CPU7: phys (7) active. TSC sync for cpu 7: 0x00000033992cdeb3 delta 0x86 (134) Started cpu 7 (lapic id 00000007) i386_init_slave() CPU9: phys (9) active. TSC sync for cpu 9: 0x000000339ccb6581 delta 0xffffffffffffff90 (-112) Started cpu 9 (lapic id 00000009) i386_init_slave() CPU11: phys (11) active. TSC sync for cpu 11: 0x00000033a08fb865 delta 0x72 (114) Started cpu 11 (lapic id 0000000b) i386_init_slave() CPU13: phys (13) active. TSC sync for cpu 13: 0x00000033a421c69b delta 0xffffffffffffff9a (-102) Started cpu 13 (lapic id 0000000d) i386_init_slave() CPU15: phys (15) active. TSC sync for cpu 15: 0x00000033a7edbab5 delta 0x9c (156) Started cpu 15 (lapic id 0000000f) i386_init_slave() CPU17: phys (17) active. TSC sync for cpu 17: 0x00000033ab7acf49 delta 0x92 (146) Started cpu 17 (lapic id 00000011) i386_init_slave() CPU19: phys (19) active. TSC sync for cpu 19: 0x00000033af27ba21 delta 0x98 (152) Started cpu 19 (lapic id 00000013) i386_init_slave() CPU21: phys (21) active. TSC sync for cpu 21: 0x00000033b2d8b17f delta 0x7c (124) Started cpu 21 (lapic id 00000015) i386_init_slave() CPU23: phys (23) active. TSC sync for cpu 23: 0x00000033b66b6c2b delta 0x12 (18) Started cpu 23 (lapic id 00000017) i386_init_slave() CPU25: phys (25) active. TSC sync for cpu 25: 0x00000033ba1be549 delta 0xffffffffffffff86 (-122) Started cpu 25 (lapic id 00000019) i386_init_slave() CPU27: phys (27) active. TSC sync for cpu 27: 0x00000033bdeda783 delta 0xffffffffffffff9a (-102) Started cpu 27 (lapic id 0000001b) i386_init_slave() CPU29: phys (29) active. TSC sync for cpu 29: 0x00000033c1c0449b delta 0x8e (142) Started cpu 29 (lapic id 0000001d) i386_init_slave() CPU31: phys (31) active. TSC sync for cpu 31: 0x00000033c5732755 delta 0x92 (146) Started cpu 31 (lapic id 0000001f) i386_init_slave() CPU33: phys (33) active. TSC sync for cpu 33: 0x00000033c90e977d delta 0x76 (118) Started cpu 33 (lapic id 00000021) i386_init_slave() CPU35: phys (35) active. TSC sync for cpu 35: 0x00000033ccb5e7f3 delta 0x90 (144) Started cpu 35 (lapic id 00000023) i386_init_slave() CPU37: phys (37) active. TSC sync for cpu 37: 0x00000033d06e0867 delta 0x8c (140) Started cpu 37 (lapic id 00000025) i386_init_slave() CPU39: phys (39) active. TSC sync for cpu 39: 0x00000033d401447b delta 0x8c (140) Started cpu 39 (lapic id 00000027) i386_init_slave() CPU41: phys (41) active. TSC sync for cpu 41: 0x00000033d79bfb09 delta 0x6e (110) Started cpu 41 (lapic id 00000029) i386_init_slave() CPU43: phys (43) active. TSC sync for cpu 43: 0x00000033db3e6b93 delta 0x8c (140) Started cpu 43 (lapic id 0000002b) i386_init_slave() CPU45: phys (45) active. TSC sync for cpu 45: 0x00000033deeba741 delta 0x86 (134) Started cpu 45 (lapic id 0000002d) i386_init_slave() CPU47: phys (47) active. TSC sync for cpu 47: 0x00000033e27a17c9 delta 0x88 (136) Started cpu 47 (lapic id 0000002f) i386_init_slave() CPU49: phys (49) active. TSC sync for cpu 49: 0x00000033e621e39f delta 0xffffffffffffff9c (-100) Started cpu 49 (lapic id 00000031) i386_init_slave() CPU51: phys (51) active. TSC sync for cpu 51: 0x00000033e9ef2c43 delta 0x7a (122) Started cpu 51 (lapic id 00000033) i386_init_slave() CPU53: phys (53) active. TSC sync for cpu 53: 0x00000033ed80d033 delta 0x8a (138) Started cpu 53 (lapic id 00000035) i386_init_slave() CPU55: phys (55) active. TSC sync for cpu 55: 0x00000033f12d7675 delta 0x78 (120) Started cpu 55 (lapic id 00000037) i386_init_slave() CPU57: phys (57) active. TSC sync for cpu 57: 0x00000033f4c441d1 delta 0x96 (150) Started cpu 57 (lapic id 00000039) i386_init_slave() CPU59: phys (59) active. TSC sync for cpu 59: 0x00000033f85dff87 delta 0x84 (132) Started cpu 59 (lapic id 0000003b) i386_init_slave() CPU61: phys (61) active. TSC sync for cpu 61: 0x00000033fc09c995 delta 0x7e (126) Started cpu 61 (lapic id 0000003d) i386_init_slave() CPU63: phys (63) active. TSC sync for cpu 63: 0x00000033ffc323d9 delta 0x7a (122) Started cpu 63 (lapic id 0000003f) ""%%"ss:" :%dAssddA dAdstAA%ea nrifdriAtttoo: i:s"tio -fnon Ne1nnaof d adtetnddcsla m:ehsd:a sas%:a-a , t "o nlsb Ntoxnn - tnnannoooniuottynooememlaotsim?xdylDol io@tVep?adtciis/Be cad ?c ti/ ifp/smd/nS oc/f?tBad rdt lotx/xcntla5al,pab0t9opllbe0fxaasuscol4xc9elp ib .blaalSxSl p xts0Saxtreeel/m/0 p s4oat0@nb0/nlam7x"e5Dc/lt/ls"umt@selsm1xeWSs2/se/al.mcna1SVlel/mRyt.mit.e0l:a/tplEfaVeaeEscSat5WVdoS/o5tcBdSSd45o//ati/iWO4/mmdiiaaarbdLadyaub/C4a/ftb3ra/cea/c/leecms/s/pcopc4cysse/huba._/oussc/S/Sucu-x/_/.k.S1x//u.4lnua7b72xsexuo5u/951/u4_snx49m.n7c4.1001oi100fcs.9k59/5-sife/kc4sce/7.p3/f9.1r1cd:o0c1mr5/ me _eemmim.pc 3:hee3n_0hed_3 cmmc::333 3 ACPI Error: ACPI Error: Could not map memory at 0x0000200FFFF55004, size 12Could not map memory at 0x0000200FFFF55004, size 12 (20160930/exregion-297) (20160930/exregion-297) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, Returned by Handler for [SystemMemory]Returned by Handler for [SystemMemory] (20160930/evregion-388) (20160930/evregion-388) [HWAK] @0000A #0070: [HWAK] @0000A #0070: HHRRDD = = 0x010x01 No Local Variables are initialized for method [HWAK] No Local Variables are initialized for method [HWAK] No Arguments are initialized for method [HWAK] No Arguments are initialized for method [HWAK] ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2.HWAK] (Node ffffffa1571b6470)[\_SB.PC00.HEC2.HWAK] (Node ffffffa1571b6470), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2._INI] (Node ffffffa1571b6920)[\_SB.PC00.HEC2._INI] (Node ffffffa1571b6920), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, during \_SB.PC00.HEC2._INI executionduring \_SB.PC00.HEC2._INI execution (20160930/nsinit-770) (20160930/nsinit-770) ACPI: sleep states S5 "IPIMachinut, uck capnsive ies: itmap:00000lx, NMc fcks: 0 6 mo now: 5 step dead 7 mic%llu,e: 218MIPI 0 s 0natur, curr0657 x%llxl(R) Xal: %) W-33stem/V @ 2.s/Data 28 macOS/reportoots/anks 54b9/Lsor 1y/Cac3es/comSTATUe.xbs000000es/xn00005 n/xnu-_MC4_141.49(0x4112/osffa0006_64/p5040c 2905 2_MC4_MISC(0x413): 0x0000004000000000 Processor 25: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 47: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 53: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 63: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 "%s at 0x%016llx, registers:\n" "CR0: 0x%016lx, CR2: 0x%016lx, CR3: 0x%016lx, CR4: 0x%016lx\n" "RAX: 0x%016llx, RBX: 0x%016llx, RCX: 0x%016llx, RDX: 0x%016llx\n" "RSP: 0x%016llx, RBP: 0x%016llx, RSI: 0x%016llx, RDI: 0x%016llx\n" "R8: 0x%016llx, R9: 0x%016llx, R10: 0x%016llx, R11: 0x%016llx\n" "R12: 0x%016llx, R13: 0x%016llx, R14: 0x%016llx, R15: 0x%016llx\n" "RFL: 0x%016llx, RIP: 0x%016llx, CS: 0x%016llx, SS: 0x%016llx\n" "Error code: 0x%016llx%s\n"@/System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/xnu_kasan/xnu-7195.141.49.702.12/osfmk/i386/trap_native.c:168 Two interesting points here: 1. CPU identification: Intel(R) Xeon(R) W-3365 CPU @ 2.70GHz CPU features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX SMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C RDWRFSGS TSC_THREAD_OFFSET BMI1 HLE AVX2 FDPEO SMEP BMI2 ERMS INVPCID RTM PQM FPU_CSDS PQE AVX512F AVX512DQ RDSEED ADX SMAP AVX512IFMA CLFSOPT CLWB IPT AVX512CD SHA AVX512BW AVX512VL AVX512VBMI UMIP PKU GFNI VAES VPCLMULQDQ AVX512VNNI AVX512BITALG AVX512VPOPCNTDQ RDPID FSREPMOV MDCLEAR IBRS STIBP L1DF ACAPMSR SSBD HTT: 64 cores per package; 128 logical cpus per package CPU extended features: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI I'm not sure how to interpret this but cpuid_feature_display seems to think that the cpu have 128 lcpus, while it only have 64 lcpu, and 32 physical cores per package, 1 package. Could this be the reason why xcpm_init was raising general protection? But later on other part of the kernel seems to correctly configured only 64 lcpus. 2. ACPI Error: ACPI Error: Could not map memory at 0x0000200FFFF55004, size 12Could not map memory at 0x0000200FFFF55004, size 12 (20160930/exregion-297) (20160930/exregion-297) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, Returned by Handler for [SystemMemory]Returned by Handler for [SystemMemory] (20160930/evregion-388) (20160930/evregion-388) [HWAK] @0000A #0070: [HWAK] @0000A #0070: HHRRDD = = 0x010x01 No Local Variables are initialized for method [HWAK] No Local Variables are initialized for method [HWAK] No Arguments are initialized for method [HWAK] No Arguments are initialized for method [HWAK] ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2.HWAK] (Node ffffffa1571b6470)[\_SB.PC00.HEC2.HWAK] (Node ffffffa1571b6470), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2._INI] (Node ffffffa1571b6920)[\_SB.PC00.HEC2._INI] (Node ffffffa1571b6920), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, during \_SB.PC00.HEC2._INI executionduring \_SB.PC00.HEC2._INI execution (20160930/nsinit-770) (20160930/nsinit-770) ACPI: sleep states S5 "IPIMachinut, uck capnsive ies: itmap:00000lx, NMc fcks: 0 6 mo now: 5 step dead 7 mic%llu,e: 218MIPI 0 s 0natur, curr0657 x%llxl(R) Xal: %) W-33stem/V @ 2.s/Data 28 macOS/reportoots/anks 54b9/Lsor 1y/Cac3es/comSTATUe.xbs000000es/xn00005 n/xnu-_MC4_141.49(0x4112/osffa0006_64/p5040c 2905 2_MC4_MISC(0x413): 0x0000004000000000 Processor 25: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 47: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 53: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 Processor 63: IA32_MCG_STATUS: 0x0000000000000005 IA32_MC4_STATUS(0x411): 0xfa0000000005040c IA32_MC4_MISC(0x413): 0x0000004000000000 "%s at 0x%016llx, registers:\n" "CR0: 0x%016lx, CR2: 0x%016lx, CR3: 0x%016lx, CR4: 0x%016lx\n" "RAX: 0x%016llx, RBX: 0x%016llx, RCX: 0x%016llx, RDX: 0x%016llx\n" "RSP: 0x%016llx, RBP: 0x%016llx, RSI: 0x%016llx, RDI: 0x%016llx\n" "R8: 0x%016llx, R9: 0x%016llx, R10: 0x%016llx, R11: 0x%016llx\n" "R12: 0x%016llx, R13: 0x%016llx, R14: 0x%016llx, R15: 0x%016llx\n" "RFL: 0x%016llx, RIP: 0x%016llx, CS: 0x%016llx, SS: 0x%016llx\n" "Error code: 0x%016llx%s\n"@/System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/xnu_kasan/xnu-7195.141.49.702.12/osfmk/i386/trap_native.c:168 CPU %d has no HPET assigned to it This ACPI error seems to be where it crash after xcpm being disabled, I'm not sure how to fix this. There's also: CPU %d has no HPET assigned to it ACPI: sleep states S5 "IPI timeout, unresponsive CPU bitmap: 0x%llx, NMIPI acks: 0x%lx, now: 0x%lx, deadline: %llu, pre-NMIPI time: 0x%llx, current: 0x%llx, global: %d"@/System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/xnu_kasan/xnu-7195.141.49.702.12/osfmk/x86_64/pmap.c:2905 Appreciate any helps! Edited November 7, 2023 by trulyspinach Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813212 Share on other sites More sharing options...
Slice Posted November 7, 2023 Share Posted November 7, 2023 Do you have HPET enabled in BIOS? Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813219 Share on other sites More sharing options...
trulyspinach Posted November 7, 2023 Author Share Posted November 7, 2023 @Slice I have that enabled. I believe enabling DummyPowerManagement solved the issue with HPET. It's maybe because I set _xcpm_enabled to false and somehow the old AppleIntelPM thing kicked in again. But this just get more and more interesting... it turns out Balamut's setup have the same ACPI errors(HEC2, and could not map memory etc etc) and they are not fatal. What's fatal was the IPI timeout, unresponsive CPU bitmap thing. And why did that happen? I have no idea.. But I disabled all 30 cores in BIOS, left only 2 cores on, it managed to boot much further again: ... AppleACPICPU: ProcessorId=0 LocalApicId=0 Enabled AppleACPICPU: ProcessorId=1 LocalApicId=2 Enabled cpu_data_alloc(1) 0xffffff8005cadf80 desc_table: 0xffffff8003587320 ldt: 0xffffffa370d01000 int_stack: 0xffffffa36fc23000-0xffffffa36fc33000 AppleACPICPU: ProcessorId=2 LocalApicId=54 Enabled cpu_data_alloc(2) 0xffffff8005caf600 desc_table: 0xffffff8003587640 ldt: 0xffffffa370d11000 int_stack: 0xffffffa3710f1000-0xffffffa371101000 AppleACPICPU: ProcessorId=3 LocalApicId=56 Enabled cpu_data_alloc(3) 0xffffff8005cb0c80 desc_table: 0xffffff8003587960 ldt: 0xffffffa370d21000 int_stack: 0xffffffa371101000-0xffffffa371111000 AppleACPICPU: ProcessorId=4 LocalApicId=58 Enabled cpu_data_alloc(4) 0xffffff8005cb2300 desc_table: 0xffffff8003587c80 ldt: 0xffffffa370d31000 int_stack: 0xffffffa371111000-0xffffffa371121000 AppleACPICPU: ProcessorId=5 LocalApicId=60 Enabled cpu_data_alloc(5) 0xffffff8005cb3980 desc_table: 0xffffff8003587fa0 ldt: 0xffffffa370d41000 int_stack: 0xffffffa371121000-0xffffffa371131000 AppleACPICPU: ProcessorId=6 LocalApicId=62 Enabled cpu_data_alloc(6) 0xffffff8005cb5000 desc_table: 0xffffff80035882c0 ldt: 0xffffffa370d51000 int_stack: 0xffffffa3716d1000-0xffffffa3716e1000 mac_policy_initmach Darwin Image4 Validator Version 3.1.0: Sun Sep 3 16:21:36 PDT 2023; root:AppleImage4-106.100.3~1896/AppleImage4/RELEASE_X86_64 vnguard_policy_init dtrace_early_init trust_cache_init OSKextRemoveKextBootstrap i386_init_slave() CPU1: phys (2) active. TSC sync for cpu 1: 0x00000077d918f079 delta 0x7a (122) Started cpu 1 (lapic id 00000002) i386_init_slave() CPU2: phys (54) active. TSC sync for cpu 2: 0x00000077dcb0a705 delta 0x88 (136) Started cpu 2 (lapic id 00000036) i386_init_slave() CPU3: phys (56) active. TSC sync for cpu 3: 0x00000077e032c5c5 delta 0xffffffffffffffa4 (-92) Started cpu 3 (lapic id 00000038) i386_init_slave() CPU4: phys (58) active. TSC sync for cpu 4: 0x00000077e3f52e3b delta 0x7e (126) Started cpu 4 (lapic id 0000003a) i386_init_slave() CPU5: phys (60) active. TSInterr for atchdo 0x000: 1 ie7936fpt: 0lta 0xme: 702) Sta6..701pu 5 (7 RIP id 0fffff8c) 736ei386_init_slave() CPU6: phys (62) active. TSC sync for cpu 6: 0x00000077eb4315b3 delta 0x8e (142) Started cpu 6 (lapic id 0000003e) IOAPIC: Version 0x20 Vectors 64:111 ACPI: ACPI: Executed 12 blocks of module-level executable AML codeExecuted 12 blocks of module-level executable AML code ACPI Error: ACPI Error: Could not map memory at 0x0000200FFFF55004, size 12Could not map memory at 0x0000200FFFF55004, size 12 (20160930/exregion-297) (20160930/exregion-297) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, Returned by Handler for [SystemMemory]Returned by Handler for [SystemMemory] (20160930/evregion-388) (20160930/evregion-388) [HWAK] @0000A #0070: [HWAK] @0000A #0070: HHRRDD = = 0x010x01 No Local Variables are initialized for method [HWAK] No Local Variables are initialized for method [HWAK] No Arguments are initialized for method [HWAK] No Arguments are initialized for method [HWAK] ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2.HWAK] (Node ffffffa149295f10)[\_SB.PC00.HEC2.HWAK] (Node ffffffa149295f10), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Error: ACPI Error: Method parse/execution failed Method parse/execution failed [\_SB.PC00.HEC2._INI] (Node ffffffa149295740)[\_SB.PC00.HEC2._INI] (Node ffffffa149295740), AE_NO_MEMORY, AE_NO_MEMORY (20160930/psparse-632) (20160930/psparse-632) ACPI Exception: AE_NO_MEMORY, ACPI Exception: AE_NO_MEMORY, during \_SB.PC00.HEC2._INI executionduring \_SB.PC00.HEC2._INI execution (20160930/nsinit-770) (20160930/nsinit-770) ACPI: sleep states S5 ACPI: breakpoint Executed AML Breakpoint opcode ACPI: breakpoint Executed AML Breakpoint opcode pci (build 22:07:20 Jul 6 2023), flags 0x20c1080 watchdogacy fiiur2 bykplMCf opecsourgerSMC ne ice smalatoo iy ning en(C) 2, SoC akeSMCog disins &, panins su watchmodifisablens halmozodSoC wasr-ssg explice (n: no10 FakeSMCDevice: 27 preconfiMuted dey(s) at SMC (started) Gdeer take MCoeviMe:rSMC Plasfo m: j160 FakeSMCDevice: successfully initialized Previous shutdown cause: 3 IntelCPUMonitor: CPU family 0x6, model 0x6a, stepping 0x6, cores 7, threads 7 IntelCPUMonitor: atmachine_lxE2 = n Mark8402 onst DelCPUMad-onr: UPing efdown_ielCPUkenitor:o_poslock=1ne Hz FSB=400MHzinitielize>tnitor_max=8 Tjma ull_h Intelcketsnitor: PU1 Tjmax 100 IntelCPUMonitor: CPU2 Tjmax 100 IntelCPUMonitor: CPU3ound R 100 rvice CRTC: itor: TimeOfjmax 182076ntelCPUMonitor: CPU5 Tjmax 100 IntelCPUMonitor: CPU6 Tjmax 100 000007.836370 AppleUSBLegacyRootSK: neleUSBt is eRoot:: by d enabl for egacy latfhin SK: neST bot is f set. isablrighDL(c) 1unning986, 1 self1991, ... PASSEDRegentS of thskmem_ersitn_initalifo All rg_sizereserv, md_ set ze 16m log rv_buto 104size 6ytes [eff 8_sets, usr_ew bueg_sizize = 4 8576, alk: um entg self16384s AC Falk: ork suy64_8fullyPAnitia Skywa using_copy4 buff.. PAaders Skywa0240 k_copyr IO ... PAheaDe sk wclch :k_ oPy(2)16 ...yPASSEPU cacwall:neksczp 6m_20it: dPASSED12 MB alk: poolpy64_2 (34. PA0)ED Skywallil_incopy6aiting.. PASll thekywalte dlicopy3nel th.. PASto geSkywalduled_copy6ast o... PAdlil_iSkywaAll th_copyated d ... eASSED hreadalk: s been 64_32uled aPASSEDt oncwalk: ceediny64_8x ... pci (build 22:07:20 Jul 6 2023), flags 0x20c1080 PASSE[ CI colk: skacopy64egin ]. kPEDisableScreen -1 PASSED Skywalk: sk_zero_16 ... PASSED Skywalk: sk_zero_32 ... PASSED Skywalk: sk_zero_48 ... PASSED Skywalk: sk_zero_128 ... PASSED Skywalk: memcmp mask ... PASSED bsd_autoconf: calling kminit initialize_screen: b=Aifne00attach:000400ernel000030ds cr000010for in00000ce lo0kPEve beeScreeeduled kt leaableSce. Pro1 ding. console relocated to 0xa4000000 [ PCI configuration end, bridges 8, devices 31 ] [ PCI configuration begin ] com.apple.AppleFSCompressionTypeDataless kmod start com.apple.AppleFSC[AHCI]sioL][00Zli000mod AtCIP com.apple.ApllealCo:IOAHCIPoTtMeDatalessGloba succeededb eomreen -.ApplHCI][Ppress000000eZlibAHCIPostMultded rGlobag mpo_AHCIPo_inittiplieSP cals k mpo_pbleScrinitb1 for ASP ASP: NVRAM pointer initialized ASP: No recovery key set bleSrreen olicy loadDisabpelc Syntem Policy (ASP) [ PCI configuration end, bridges 9, devices 105 ] [ PCI configEraaionScrein ] PCI configPEDisab end,een -1 s 10, devices 130 ] [ PCI configuration begin ] ApplkPEEelI210creenrt - Built J IORet2023 2NVMeCo3, fMler::C0 [ Pubmissfigureue(u end, t, uins 11,::2844es 134dex=0 PCI csize=6ratkoEDiegin ] Apn -1 e vsrtual IOReturn IONVMeController::CreateSubmissionQueue(uint16_t, uint8_t)::2844:SQ index=1 entrysize=64 sert faikPE:n( le!c den ) eleaseIDNode file: /System/Vokumes/DbleScrE/macO BuildRoots/af.ata54 i0xa60/Cache head.spple. 0x15c0s/ION IOSurily/IOoVMeinstallMemoryReg/Commo IOSurface rollerng p line lookups (wpleNVae Asgs) faid.d: ( 0xta8) Rel sead.aligfile: 0x1 alloclume[0].ta/rt cOS/BuildRoo s/5fsize Libra00000 [0/cond pple.x0xbb1urces/ ONVMeFamilignment Famil0000 120.] -----/IONeaeConaro cp2 line:00000 hepplsize ert f0il00000 =head.etus) 0x20e: /Sy0te0 olad.aligta/SWE0x1 allocsdRoots/5 ad454b9 Librar----c-----om.apple------ou-ces/IOheMeFsmirt VMeFamily00 .e20.1/Ce 0NVMeCo00r lerd.epdline: 018 vir0 leIdRelirn eOtV0e1onaloole:::Cre.startmi sionQu000000 10].siuint8_t):x1100000 i[0].endentr izeb6100[00 [0]naiguratnt 0x1000bridg[1 .startvices 13910000pp e1].siI210::stax2000Bui[1].en 6 20230xbb12:43, fMap.alignme PCI c0000 [etion b-g--- hvirtual t rn2IONVM000000 her::Cize issionQue000 nea6.end int8_t)::02000SQ index=ead.arigize=640x1 allconfig[ead] -end, brid------, -evice---------[ PCI------ ration bekPn ] le creen leIntelI210::setLinkStatus - not active 0, 0 AppleIntelI210::setLinkStatus - not active Load request for com.apple.nke.ppp failed: -603946991 Load request for com.apple.nke.l2tp failed: -603946991 AirPort_BrcmNIC::init AirPortFamily_kexts-1852.4 "AirPortFamily_kexts-1852.4" Jul 6 2023 22:02:50 Load request for com.apple.nke.pptp failed: -603946991 ARPT: 8.105468: AirPort_Brcm43XX:probe:, this[0xbc81154724479877] score[1400] g propertntrolsystem-idteIOR1po tetting 3r250709 subsyste CCFldos-id to CCLevel: 5 ConsoleFlags: 0x0, ConsoleLevel: -1 Not adding subscription due to missing bowl-arg wadcom BCubscripti.11 WiCCFlags:o0x3, CCL 7.775 Console) (r8527x0, ConsoleLevel: -1 CCFlags: 0x4, CCLevel: 5 ConsoleFlags: 0x0, ConsoleLevel: -1 IO80211Controller::findAndAttachToFaultReporter no pipe found, making it initWithController: Setting fWlanRanging80MHzBootArg to 0 IO80211Controller::start _controller is 0x23d250709adb155b, provider is 0x23d250709a218c5b apfs_module_start:2487: load: com.apple.filesystems.apfs, v1677.141.3, apfs-1677.141.3.7.2, 2023/07/06 [ PCI configuration end, bridges 16, devices 151 ] 000008.193868 H002@: AppleUSBXHCI::start: unable to get device memory ARPT: 8.219351: srom rev:11 ARPT: 8.219834: ChangeVCO => vco:960, xtalF:40, frac: 98, ndivMode: 3, ndivint: 24 ARPT: 8.219839: Data written into the PLL_CNTRL_ADDR2: 00000c31 ARPT: 8.219851: Data written into the PLL_CNTRL_ADDR3 (Fractional): 0000100e ARPT: 8.244003: Clear UC AER: 100000 ARPT: 8.244015: Clear Corr AER: 2000 ARPT: 8.244023: Clear DEV_STS: 192c34 init: error getting PHY_MODE; using MODE_UNKNOWN ARPT: 8.244240: BRCM tunables: ARPT: 8.244246: pullmode[1] txringsize[ 256] txsendqsize[0] reapmin[ 32] reapcount[ 128] ARPT: 8.252413: wl0: Broadcom BCM43a0, vendorID[0x14e4] BAR0[0xd0e00004] 7.77.111 (TOB) (r852736) ARPT: 8.252464: Set packet allocation type to 1 ifnet_attach: Waiting for all kernel threads created for interface gif0 to get scheduled at least once. ifnet_attach: All kernel threads created for interface gif0 have been scheduled at least once. Proceeding. skip attaching fsw to lo0 using legacy TX modelifnet_attach: Waiting for all kernel threads created for interface stf0 to get scheduled at least once. ifnet_attach: All kernel threads created for interface stf0 have been scheduled at least once. Proceeding. rooting via boot-uuid from /chosen: 76F79BB4-531F-4FD8-90A3-DD3A5AF5E1F9 Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict> 000008.450924 HS14@14d00000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x1d6b/0107/0100 (USB Virtual Hub) 000008.467272 SS02@14f00000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x152d/1561/0001 (Best USB Device) 000008.467334 SS04@14100000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x0781/5584/0100 (USB Flash Drive) USBMSC Identifier (non-unique): 4C530123191017117263 0x781 0x5584 0x100, 3 USBMSC Identifier (non-unique): 67030001701B 0x152d 0x1561 0x1, 3 000008.534635 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000008.645639 AppleUSB20HubPort@14d20000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x0b1f/03ee/0504 (RNDIS/Ethernet Gadget) RNDIS/Ethernet Gadget(0x1000006e4): matching deferred by AppleUSBCDCCompositeDevice 000008.696013 AppleUSB20HubPort@14d10000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x0557/9241/0504 (SMCI HID KM) HID Interface(0x1000006f4): matching deferred by AppleUserHIDDevice HID Interface(0x1000006f5): matching deferred by AppleUserHIDDevice cryptoAlloc:674: Using 64 buffers with size 16384, 512 buffers size 65536 swcrypto_threadpool_init:1542: Starting ThreadPool swcrypto_threadpool_init:1564: 4 threads would be used for the ThreadPool swcrypto_threadpool_worker_thread:1488: ThreadPool worker thread started swcrypto_threadpool_worker_thread:1488: ThreadPool worker thread started swcrypto_threadpool_worker_thread:1488: ThreadPool worker thread started swcrypto_threadpool_worker_thread:1488: ThreadPool worker thread started dev_init:297: disk2s2 device accelerated crypto: 0 (compiled @ Jul 6 2023 22:02:56) dev_init:300: disk2s2 device_handle block size 4096 block count 29253996 features 0 internal fletcher64_init:106: Selecting SSE2 implementation of fletcher64 nx_kernel_mount:1134: disk2s2 initializing cache w/hash_size 8192 and cache size 32768 000009.681914 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) nx_kernel_mount:1403: disk2s2 checkpoint search: largest xid 1958, best xid 1958 @ 275 nx_kernel_mount:1405: disk2s2 reloading after unclean unmount, checkpoint xid 1958, superblock xid 1871 nx_get_volume_group:6982: volume groups tree is not setup yet getVolumeGroupMountFrom:7216: disk2s2 nx_get_volume_group(76F79BB4-531F-4FD8-90A3-DD3A5AF5E1F9) failed with error 2 nx_get_volume_group:6982: volume groups tree is not setup yet getVolumeGroupMountFrom:7216: disk2s2 nx_get_volume_group(76F79BB4-531F-4FD8-90A3-DD3A5AF5E1F9) failed with error 2 apfs_sysctl_register:1251: done registering sysctls. authenticate_efi_forwarded_roothash:2671: evaluating authenticity of root hash IOGetARVRootHashData: data at address 169852928 size 229 IOGetARVRootHashData: memory descriptor 0xffffff8bf7115de0 populate_value_from_memory_descriptor:10154: populate_value_from_memory_descriptor boot_args arv blob size 229 populate_value_from_memory_descriptor:10161: populate_value_from_memory_descriptor copied into arv blob size 229 IOGetARVManifestData: data at address 169857024 size 3627 IOGetARVManifestData: memory descriptor 0xffffff8bf7115eb0 populate_value_from_memory_descriptor:10154: populate_value_from_memory_descriptor boot_args arv blob size 3627 populate_value_from_memory_descriptor:10161: populate_value_from_memory_descriptor copied into arv blob size 3627 root_hash_execution_cb:2343: img4_firmware_execute: successfully validated the payload and the manifest Got boot device = IOService:/AppleACPIPlatformExpert/PC00@0/AppleACPIPCI/XHCI@14/XHCI@14000000/SS02@14f00000/Best USB Device@14f00000/MSC Bulk-Only Transfer@0/IOUSBMassStorageInterfaceNub/IOUSBMassStorageDriverNub/IOUSBMassStorageDriver/IOSCSILogicalUnitNub@0/IOSCSIPeripheralDeviceType00/IOBlockStorageServices/IOBlockStorageDriver/Samsung SSD 840 EVO 120G Media/IOGUIDPartitionScheme/Untitled 2@2/AppleAPFSContainerScheme/AppleAPFSMedia/AppleAPFSContainer/Bench@5 BSD root: disk3s5, major 1, minor 17 bufattr_get_apfs:7022: Volume not mounted disk3s5: device is not readable. hfs_mountfs: buf_meta_bread failed with 13 hfs_mount: hfs_mountfs returned error=13 for device unknown-dev hfs_mountroot failed: 13 apfs_vfsop_mountroot:2251: apfs: mountroot called! dev_init:297: disk3 device accelerated crypto: 0 (compiled @ Jul 6 2023 22:02:56) dev_init:300: disk3 device_handle block size 4096 block count 29253996 features 0 internal nx_kernel_mount:1134: disk3 initializing cache w/hash_size 16384 and cache size 40960 nx_kernel_mount:1403: disk3 checkpoint search: largest xid 1958, best xid 1958 @ 275 nx_kernel_mount:1405: disk3 reloading after unclean unmount, checkpoint xid 1958, superblock xid 1871 er_state_obj_get_for_recovery:6301: No ER state object for volume Bench - rolling is not happening, nothing to recover. apfs_vfsop_mount:1952: Promoter has been locked for disk3 apfs_vfsop_mount:1989: disk3s5:0 failed to retrieve default root snapshot xid - No such file or directory (2) "Rooting from the live fs of a sealed volume is not allowed on a RELEASE build\n"@/System/Volumes/Data/SWE/macOS/BuildRoots/5f3ad454b9/Library/Caches/com.apple.xbs/Sources/apfs/apfs-1677.141.3.7.2/kext/apfs_vfsops.c:2047 000010.885282 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000012.163455 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000013.506995 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000014.915798 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000016.390103 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000017.929647 HS02@14200000: AppleUSBHostPort::createDevice: failed to create device (0xe00002bc) 000017.939125 HS02@14200000: AppleUSBHostPort::disconnect: persistent enumeration failures I don't know why it got stuck this time, seems like some issue with USB that's stopping it to mount root drive? It was booting from a snappy SATA USB dock, which I have the debug kernel installed on a small SSD. But besides that, it still seems that XNU is playing with 6 lcpus while I only have 2 enabled(hyper threading disabled)... Could the IPI timeout thing cause by XNU trying to boot a nonexistent cpu(>64)? and why does it think that there are 128 lcpus... Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813221 Share on other sites More sharing options...
etorix Posted November 7, 2023 Share Posted November 7, 2023 The issue with the number of cores/thread is totally puzzling… X12SPA-TF was successfully booted with the same non-blocking ACPI errors but the expected number of threads and no need for extra patching in _xcpm. Have you tried to boot other macOS versions, in case this is related to Ventura? It may be useful to have a look at the ACPI tables, and the EFI you're using. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813226 Share on other sites More sharing options...
trulyspinach Posted November 7, 2023 Author Share Posted November 7, 2023 @etorix I've tried Ventura and Big Sur, to be consistent with Balamut's thread. Didn't notice much different tho, I guess it's probably because the early boot part hasn't changed a lot. I had to disable xcpm with the patch to let it boot, otherwise it just crash in _xcpm_init for reasons I haven't figured out yet. I've attached the EFI which made most progress and a DSDT dump. The ACPI patches in the EFI were from the latest upload in Balamut's thread. I've only added few kernel patches to bypass xcpm, and tweaked some debug settings. Maybe is there any other CPUID emulate that I can try? I guess the one in Balamut's EFI was 2nd gen Xeon-W used in MacPro7,1, which should be the closest... EFI.zip DSDT.aml Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813229 Share on other sites More sharing options...
etorix Posted November 8, 2023 Share Posted November 8, 2023 The EFI folder could use a pruning of SSDTs and kexts which are not in use, and never will, or serve no purpose (SSDT-XOSI, SSDT-RTC0-RANGE for this board, and even SSDT-PLUG if you only target recent versions of macOS which no longer use "plugin-type" for power management). But I see no obvious issue. Maybe a different combination of quirks? It could be, however, that the X12SPL board is strictly intended for Xeon Scalable and has no BIOS support for Xeon W-3300. Compare All Skylake and Cascade Lake Xeon Scalable and Xeon-W CPUs share the same CPUID so there is no other value to try. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813265 Share on other sites More sharing options...

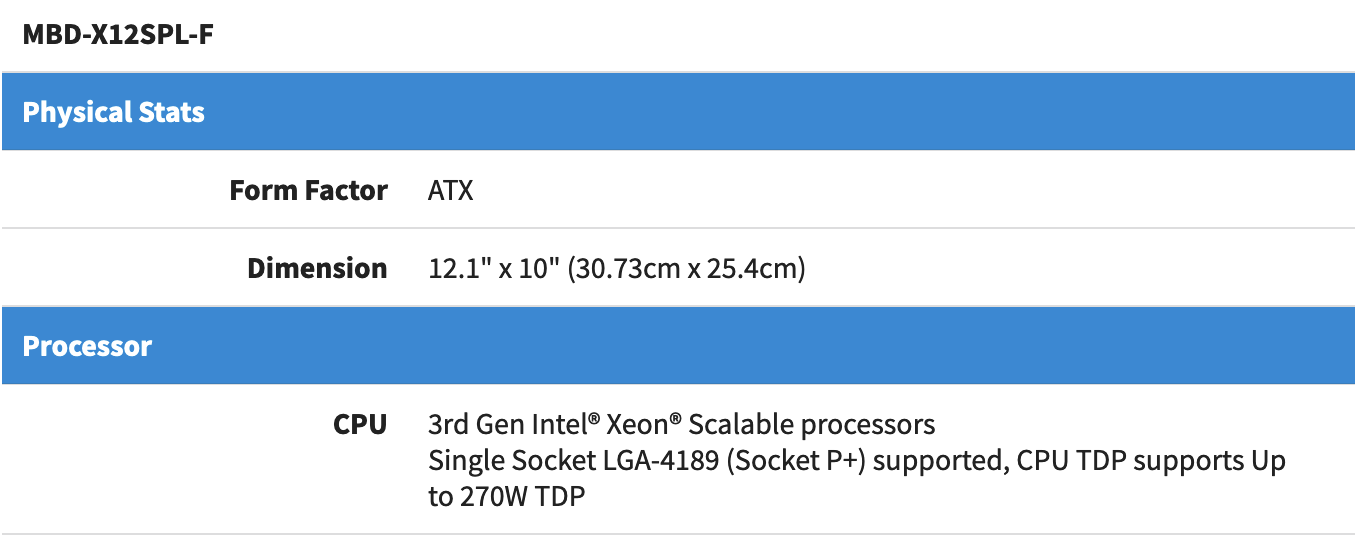

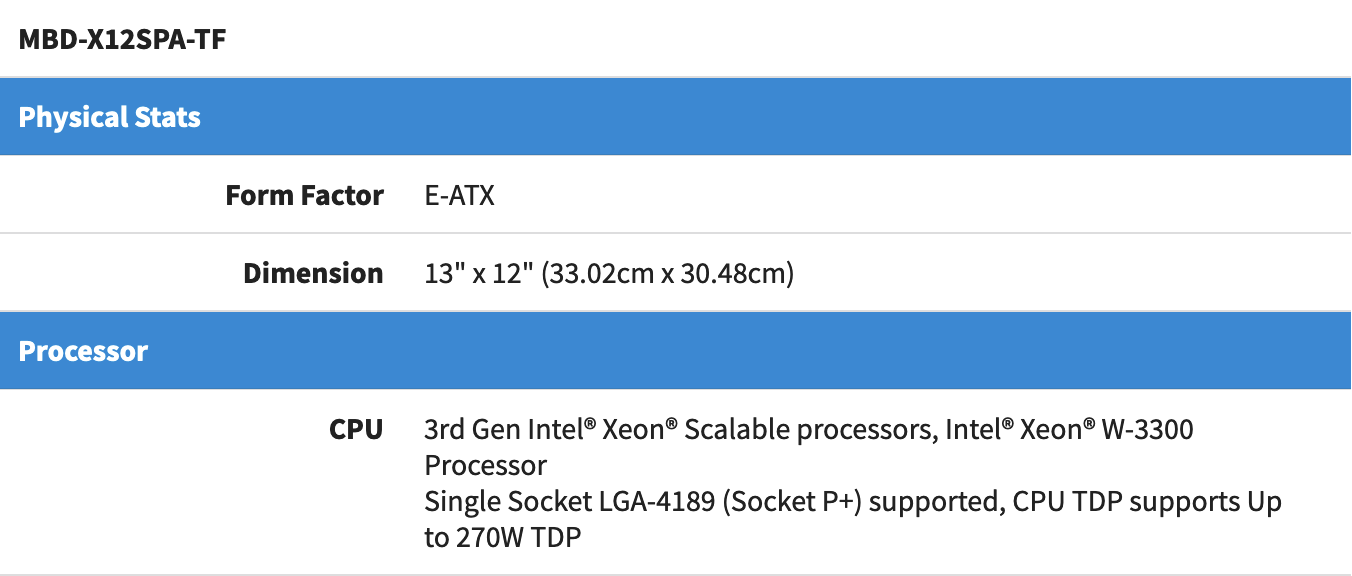

trulyspinach Posted November 8, 2023 Author Share Posted November 8, 2023 2 hours ago, etorix said: It could be, however, that the X12SPL board is strictly intended for Xeon Scalable and has no BIOS support for Xeon W-3300. Compare That's indeed interesting. I did remember I noticed that while I was purchasing the board. But I was convinced that W is a member of the 'Xeon Scalable' family.. Intel surely know how to confuse people with their naming. But Windows and Linux do works fine. And I suppose if the firmware decided to not support some model it wouldn't boot up in the first place. 2 hours ago, etorix said: All Skylake and Cascade Lake Xeon Scalable and Xeon-W CPUs share the same CPUID so there is no other value to try. Then I guess it's some other issues that's crashing xcpm.. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813272 Share on other sites More sharing options...
trulyspinach Posted November 8, 2023 Author Share Posted November 8, 2023 (edited) Update for today: With xcpm bypassed Ventura installer appear to boot just fine, all 64 lcpus correctly registered! That is, from the serial capture it passed libignition and launchd seems to run just fine. Although I don't have a GPU attached so unfortunately no graphic for today, will try to plug in some graphic card tomorrow. The IPI timeout thing seems to be related to KASAN kernel, maybe it was the debugger causing the timeout.. However, despite all the effort to stop xcpm, right before libignition kick in there's this "XCPM: registered". Well then, who printed this message when xcpm_init didn't even run... ... apfs_log_mount_unmount:2039: disk5s1 mounting volume macOS Base System, requested by: kernel_task (pid 0); parent: kernel_task (pid 0) handle_mount:765: disk5s1 vol-uuid: E1ED8A9F-020D-4A65-B710-B18AACF292E0 block size: 4096 block count: 285184 (unencrypted; flags: 0x1; features: 1.0.12) handle_mount:778: disk5s1 setting dev block size to 4096 from 512 nx_volume_group_update:7903: disk5s1 Volume macOS Base System is not in a volume group imageboot_setup_new: checking root image version imageboot_setup_new: root image version matches kernel XCPM: registered load_init_program: attempting to load /sbin/launchd ReadFileWrapper::open failed (errno 2) /System/Library/Security/OSLaunchPolicyData ReadFileWrapper::fileSize error, no file fetchPseudoTrustcacheData_locked: file not found shared_region: 0x25e5893cc40ad5f3 [1(launchd)] check_np(0x7ff7b689acc8) vm_shared_region_start_address() failed Darwin Ignition Sequence Version 1.0.0: Wed Jul 5 22:16:21 PDT 2023; root:libignition-51~1893/libignition_core/RELEASE_X86_64 libignition: 1: arguments : libignition: 1: ignition level : 0x5 libignition: 1: force dylib root : 0x0 ... Ventura Installer Boot.txt Edited November 8, 2023 by trulyspinach 2 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813275 Share on other sites More sharing options...
etorix Posted November 8, 2023 Share Posted November 8, 2023 This looks much better! I'm amazed that you tried first without any GPU. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813286 Share on other sites More sharing options...
Balamut Posted November 9, 2023 Share Posted November 9, 2023 Sorry guys I'll chime in next week, still out of the city for work. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813302 Share on other sites More sharing options...

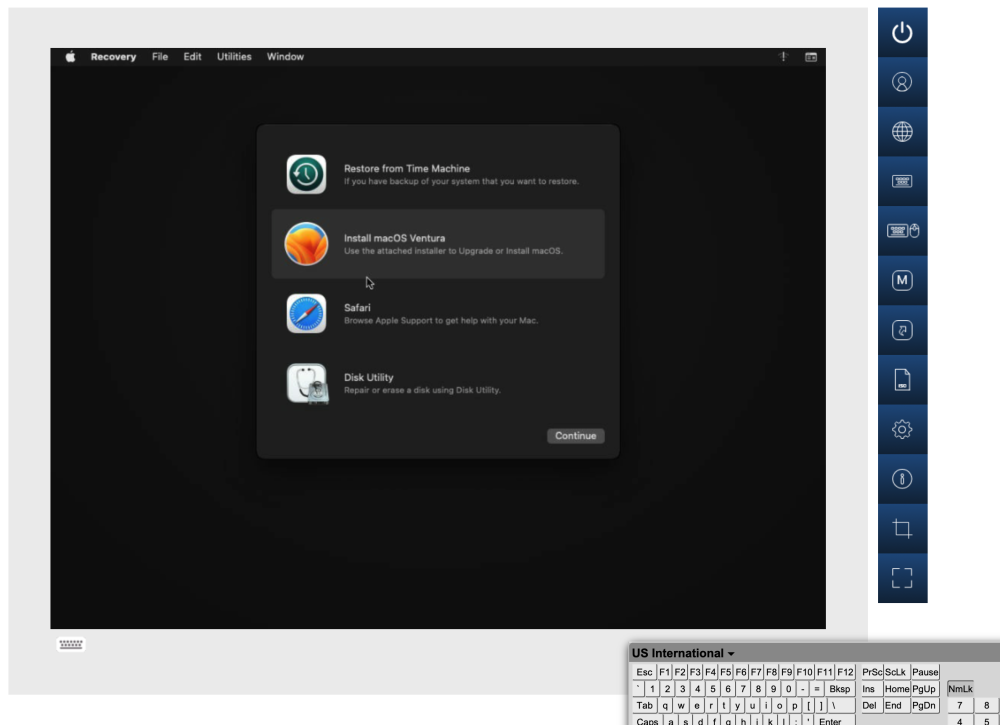

trulyspinach Posted November 9, 2023 Author Share Posted November 9, 2023 (edited) 23 hours ago, etorix said: I'm amazed that you tried first without any GPU. at first I just wanted to try how far I can go, but then it just stuck in EXITBS:START so I guessed GPU doesn't matter unless I can get the kernel to spin. Today's update: Plugged in a snappy RX580 and now it hang on PCI configuration begin.. I noticed if I do not connect any output to the GPU it boot up to launchd without issue. Well ok now here comes the surprise. I noticed I didn't have WhateverGreen enabled, so I had it enabled. Then macOS started to output graphic to the BMC's display! I would never had imagine that macOS will ever recognize the AST2600 thing, if not maybe even needed to have it disabled to prevent panic. Well, you'll never know. I'm gonna plug a 6800xt and see what happens -> Ok, tried the 6800xt and it's the same. As long as there are monitor plugged into gpu it will crash at PCI configuration. EDIT: just checked Balamut's thread again. Got pass the PCI configuration after having Above 4G decoding disabled.. But there seems to be some random panic after libignition. Also checked that there's nothing plugged into the NICs EDIT2: well it turns out I was using a debug kernel again. So with a normal kernel it boot into installer without issue, on an actual GPU output! Now it's just xcpm not working and that I have to turn Above 4G decoding off. Edited November 9, 2023 by trulyspinach 4 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813320 Share on other sites More sharing options...
etorix Posted November 9, 2023 Share Posted November 9, 2023 No need to disable the BMC But set BIOS to output from the PCIe slot. npci=0x2000 enables "above 4G decoding" anyway. That's why it's traditionally advised to only have one of these but not both. But workstation hacks do not go by the traditional desktop playbook, and may well use both settings. Try and settle on whatever works for you… Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813327 Share on other sites More sharing options...
Slice Posted November 10, 2023 Share Posted November 10, 2023 10 hours ago, etorix said: No need to disable the BMC But set BIOS to output from the PCIe slot. npci=0x2000 enables "above 4G decoding" anyway. That's why it's traditionally advised to only have one of these but not both. But workstation hacks do not go by the traditional desktop playbook, and may well use both settings. Try and settle on whatever works for you… First time I hear about a relation between npci=0x2000 and "above 4G decoding". Success with my X79 Hack came with npci=0x3000. I installed Monterey and all was good... except audio. Neither VoodooHDA nor AppleALC produced sound. The solution is TO DISABLE ABOVE 4G DECODING. Very strange but confirmed by me and other users of such motherboards. Now the audio is working. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813345 Share on other sites More sharing options...

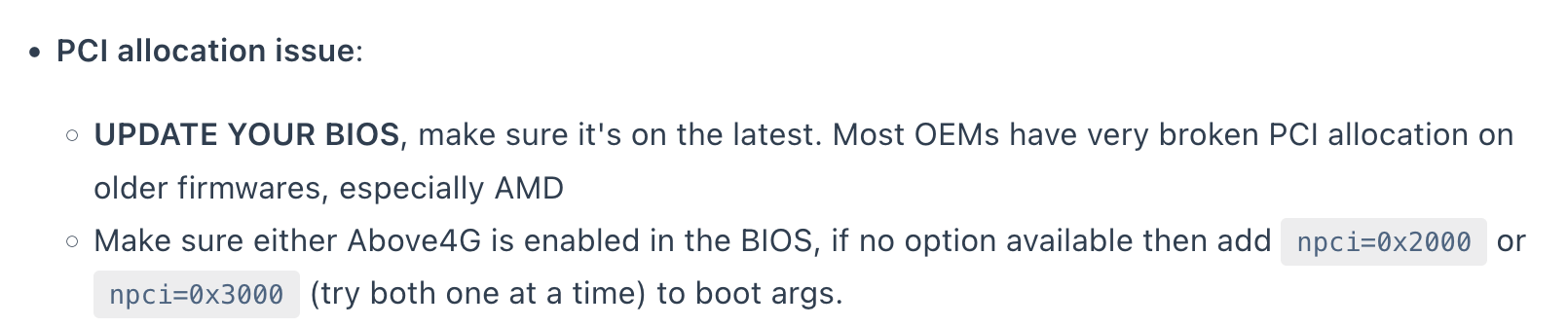

etorix Posted November 10, 2023 Share Posted November 10, 2023 Maybe this is another instance where Dortania is not to be trusted? https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#stuck-on-rtc-pci-configuration-begins-previous-shutdown-hpet-hid-legacy Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813358 Share on other sites More sharing options...
Slice Posted November 10, 2023 Share Posted November 10, 2023 Not true. 1. "Update your BIOS" is impossible as the motherboard is just from plant. No more recent BIOS exists. 2. "Make sure ... is enabled...". May be in some configuration it is good advice but this moment I said what I said. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813361 Share on other sites More sharing options...

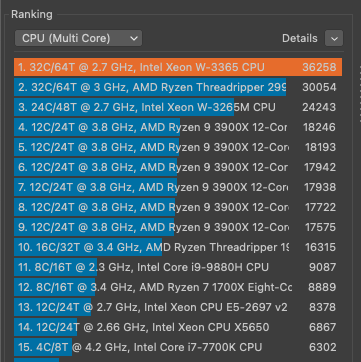

trulyspinach Posted November 17, 2023 Author Share Posted November 17, 2023 Sorry for MIA, was busy with works. Small update: adding npci=0x3000 now it works with above 4G decoding on, even resizable bar on. The build now seems to be working well, now im writing this post on it. Thanks very much for all the help and support. Both ethernet port works fine and I haven't experience the panic related to them. Here's Cinebench R23 running in macOS: Gonna love counting the bars here! 5 Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813610 Share on other sites More sharing options...
trulyspinach Posted November 19, 2023 Author Share Posted November 19, 2023 Had one interesting issue so far: displays won't turn back on after they turn off with the timer. Moved mouse and pressed random keys on the keyboard, but it just won't turn back on. The system is clearly running tho, I can ssh into it etc. Could this be some issue with GPU? I have used this 6800xt with my previous hack and it doesn't have this problem. Quote Link to comment https://www.insanelymac.com/forum/topic/357986-help-with-xeon-w-3365-power_management_init/#findComment-2813669 Share on other sites More sharing options...
