Monterrey Post-Install Issues

[MrPaulfpv]

Hi, to all of you



Im having little problems and i need a new perspective so i can solve them.



First of all, my Preferences Panel freezes, i can go into for example Screens or Net, but then i try to enter for example Region and Languajes and it freezes take like 5 minutes to load and then it show, a error loading the Preferences Panel or it load but as slow as letter by letter.

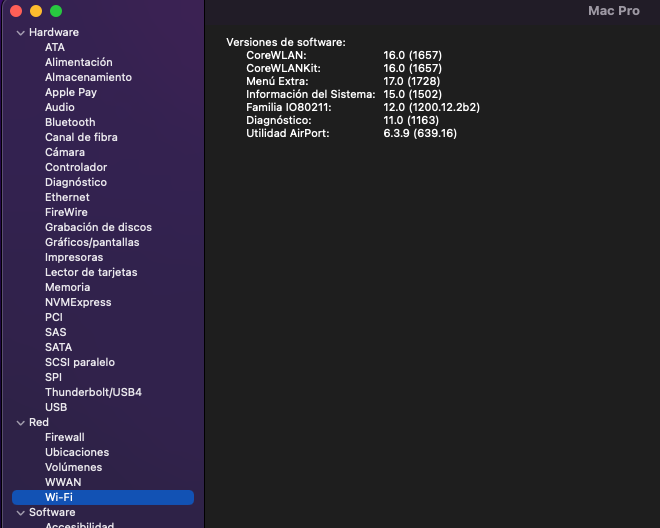

Second of the errors i´ve encountered its that my wifi card isn´t recogniced. I supose its because its an Intel one and not a Apple verified. Chip Model Intel 9560. If its a no go i will disable it.

My Componentes are:

Z390 Aorus Pro Wifi (All usb Mapped, all showing)

8700k (It Seems To be working Poperly Geekbench Its Ok)

Corsair 32gb 3200Mhz

Rx 6800 xt

OS --> Monterrey 12.5.1

Opencore Debug 0.8.4

Config.plist opencore-2022-09-10-134645.txt

[Cyberdevs]

@MrPaulfpv

Hi, I've almost had a similar issue with Monterey and the issue was the built-in bluetooth so I disabled it in the UTBMap.kext by removing the entry corresponding to the Bluetooth. About the WiFi you might be able to activate it using https://github.com/OpenIntelWireless/itlwm you can also try https://github.com/OpenIntelWireless/IntelBluetoothFirmware for the Bluetooth module but i'm not sure if it's gonna work. You're also gonna need BluetoolFixup.kext that can be found inside the https://github.com/acidanthera/BrcmPatchRAM/releases/tag/2.6.3 package.

[MrPaulfpv]

3 hours ago, Cyberdevs said:

@MrPaulfpv

Hi, I've almost had a similar issue with Monterey and the issue was the built-in bluetooth so I disabled it in the UTBMap.kext by removing the entry corresponding to the Bluetooth. About the WiFi you might be able to activate it using https://github.com/OpenIntelWireless/itlwm you can also try https://github.com/OpenIntelWireless/IntelBluetoothFirmware for the Bluetooth module but i'm not sure if it's gonna work. You're also gonna need BluetoolFixup.kext that can be found inside the https://github.com/acidanthera/BrcmPatchRAM/releases/tag/2.6.3 package.

Hi @CyberDevs, im gonna try out those kext for the wifi, i will keep an update here for more people to be aware of that.

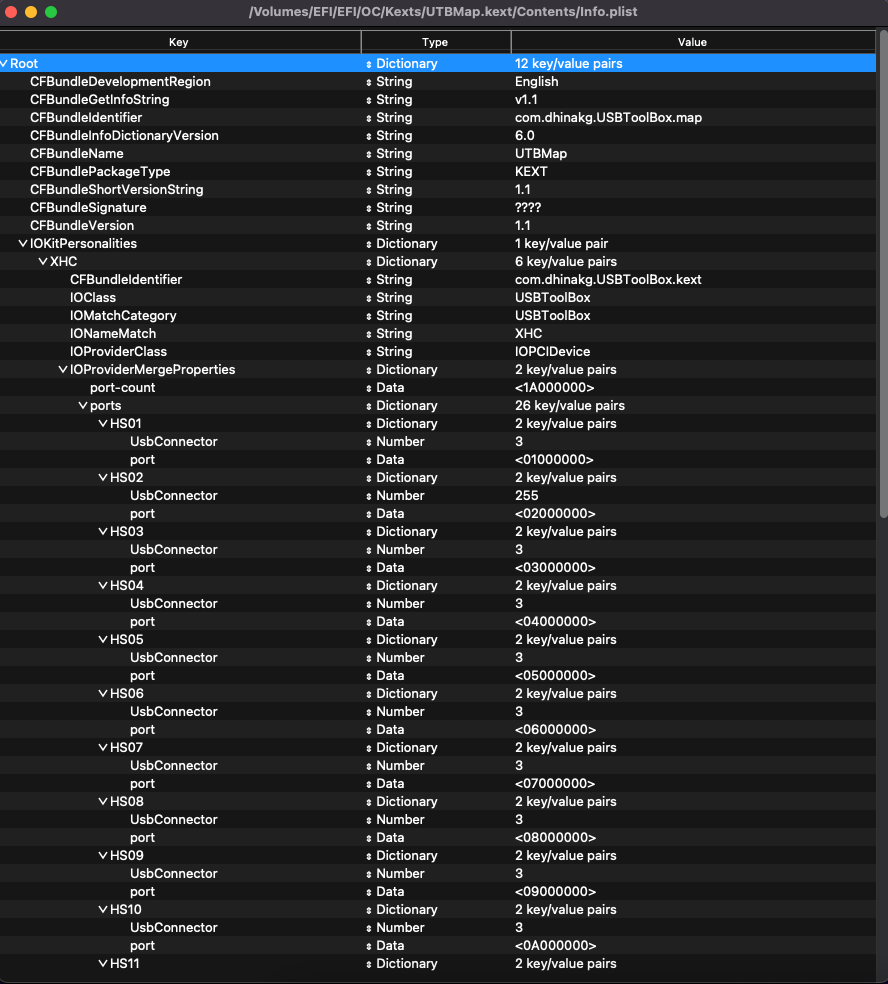

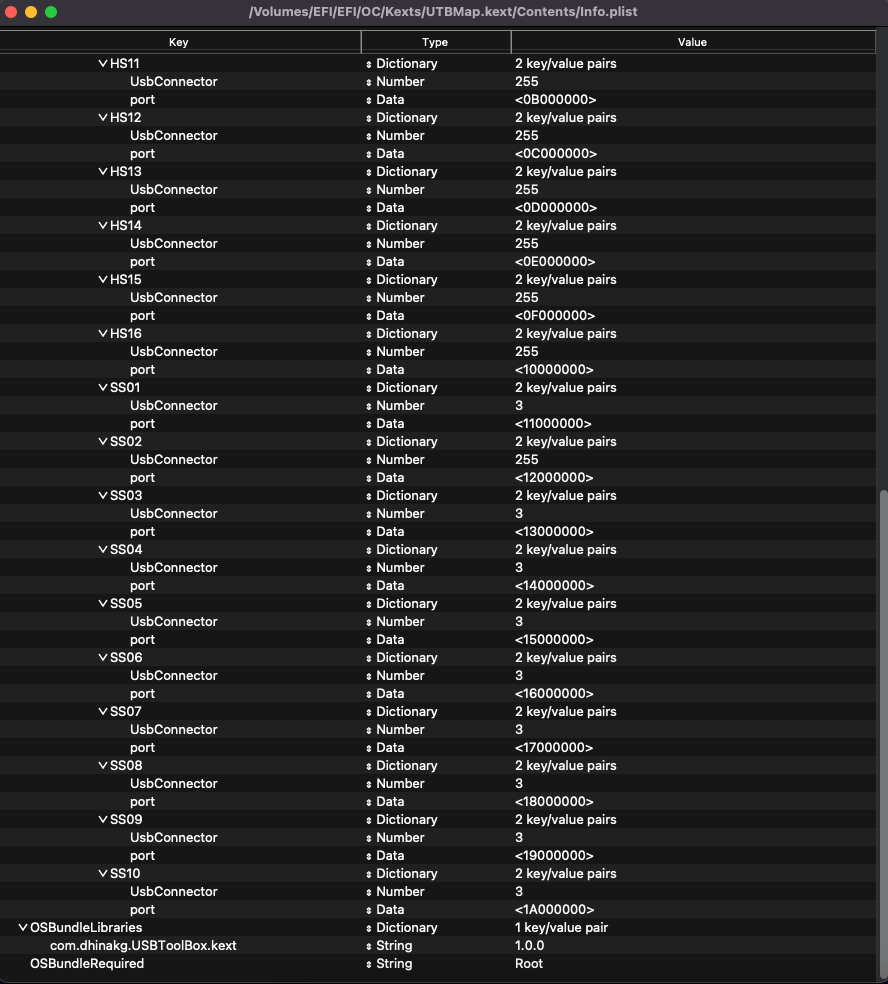

When you say disable the entry for bluetooth in UTPMap.kext, thats on info.plist but where, i´ve been searching for like a while now and im wasnt been able to locate it. I will post the info.plist and a screenshoot so its easier.



Thanks a lot. Its been a while since my first Hachintosh and im a little bit roasted.





Info.plist

[Slice]

10 hours ago, MrPaulfpv said:

Hi @CyberDevs, im gonna try out those kext for the wifi, i will keep an update here for more people to be aware of that.

When you say disable the entry for bluetooth in UTPMap.kext, thats on info.plist but where, i´ve been searching for like a while now and im wasnt been able to locate it. I will post the info.plist and a screenshoot so its easier.



Thanks a lot. Its been a while since my first Hachintosh and im a little bit roasted.





Info.plist 5.66 kB · 0 downloads

You should do the map so that HS** + SS** ports will be 15. Total number of HS and SS ports must not exceed 15.

[Cyberdevs]

@MrPaulfpv

I need to see your IOReg to be able to know which port is assigned to the bluetooth.

[MrPaulfpv]

@Slice Ok i will try to do only max 15 ports, in mu UTBMAP.kext ive got 24 more or less. I will disable front ports and internal motherboardports that i dont use, lets hope it will be fine.

@Cyberdevs Here is the full comand of IOREG. Lets hope i can disable it. Otherwise i can remap with only usbports i need to do research on that.

Here is the FIle IOREG

IOREG.txt

[Cyberdevs]

@MrPaulfpv

Can you save the ioreg file using ioregistryexplorer rather than the text file? I'm having hard time reading the text

[Slice]

11 hours ago, MrPaulfpv said:

@Slice Ok i will try to do only max 15 ports, in mu UTBMAP.kext ive got 24 more or less. I will disable front ports and internal motherboardports that i dont use, lets hope it will be fine.

@Cyberdevs Here is the full comand of IOREG. Lets hope i can disable it. Otherwise i can remap with only usbports i need to do research on that.

Here is the FIle IOREG

IOREG.txt 77.48 kB · 1 download

As I see last port is HS15 as expected. No SSxx ports because of that.

[MrPaulfpv]

On 9/12/2022 at 9:37 PM, Cyberdevs said:

@MrPaulfpv

Can you save the ioreg file using ioregistryexplorer rather than the text file? I'm having hard time reading the text

Ohh Sorry about that, im a noobie all relative to hachintosh.

In IORegistryExplorer, is there a way to export that file i suppose. FIle > Save or something liuke that??

[Cyberdevs]

3 minutes ago, MrPaulfpv said:

Ohh Sorry about that, im a noobie all relative to hachintosh.

In IORegistryExplorer, is there a way to export that file i suppose. FIle > Save or something liuke that??

It's ok no worries, yes file->Save

[MrPaulfpv]

On 9/14/2022 at 2:09 PM, Cyberdevs said:

It's ok no worries, yes file->Save

Sorry for not posting for a long time ive got on a trip, and i havent brougtht the hackintosh, while im here im testing it, and i dont know if it yust solv by it self, i did the repapoing and then it yust.

I dissabled the wifi and bluettoth, something wird was happening with it.

With all of those two thing all errores yust dessapeared.

Thanks a lot to all of you for youre help.
