Graphics Injection

[RobertX]

...hey all, I'm using clover5143 with an efi folder from MaLdOn, when I get to the clover bootloader screen, there is an entry for inject intel   under graphics... I can turn it off for the current boot...but it reappears next boot, I've disabled the inject in config.plist but it is still there when I get to the  clover GUI options at next boot...any ideas?...

Edited February 5, 2022 by RobertX

[Slice]

Show your config.plist and preboot.log (by F2 in Clover GUI).

[RobertX]

10 minutes ago, Slice said:

Show your config.plist and preboot.log (by F2 in Clover GUI).

...here you go, it's a mess, this config.plist, I've examined it and added personal touches...but a lot of entries not needed I'm sure....the config.plist came with the efi folder mentioned before...so it was originally without smbios , left blank to be filled by clover, kind of a generic one size fits all ...but it does work...clover is almost idiot proof, except me... 🙄





Asked4.zip

[Slice]

52 minutes ago, RobertX said:

...here you go, it's a mess, this config.plist, I've examined it and added personal touches...but a lot of entries not needed I'm sure....the config.plist came with the efi folder mentioned before...so it was originally without smbios , left blank to be filled by clover, kind of a generic one size fits all ...but it does work...clover is almost idiot proof, except me... 🙄





Asked4.zip 14.47 kB · 0 downloads

In your log I see

33:529  0:000  Intel GFX injection not set

What is your question?

[RobertX]

50 minutes ago, Slice said:

In your log I see

33:529  0:000  Intel GFX injection not set

What is your question?

...not set because I manually unchecked inject intel...I do this at every boot because the WEG manual says to, and I get to desktop a little quicker..

I'd just like to be able to turn inject intel off permanently...but can't seem to find where that option is hiding....

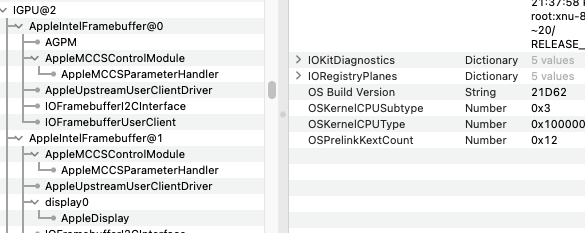

without intel inject I see this in ioreg...

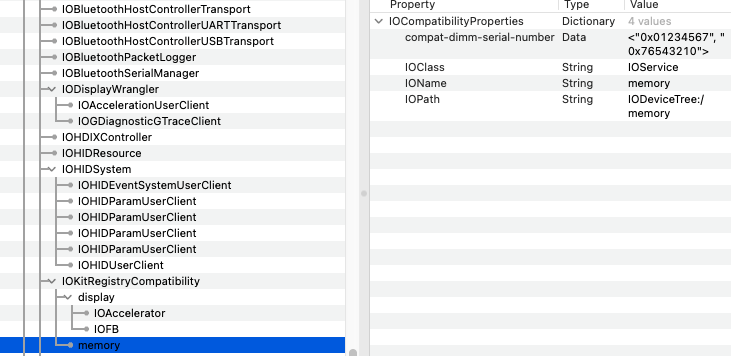

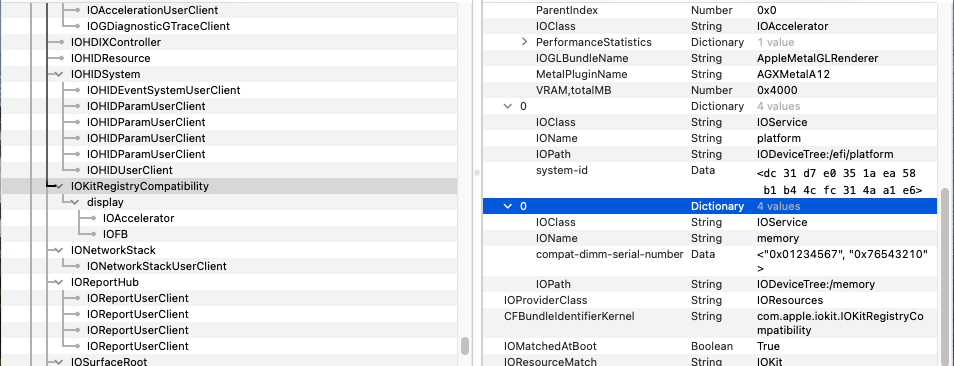

with intel injected I lose this entry, and gfx is a bit laggy...

Edited February 5, 2022 by RobertX

[RobertX]

...just thinking out loud...but, when i had a pci-e gfx card(nvidia), set to primary in motherboard bios...nvidia inject was always checked, with intelgfx set to primary in bios...I get this...are they connected? ...does clover have access to bios settings?

[SavageAUS]

To make permanent changes you need to edit your config.plist not change the options at the clover boot screen.


Sent from my iPhone using Tapatalk

[RobertX]

4 hours ago, SavageAUS said:

To make permanent changes you need to edit your config.plist not change the options at the clover boot screen.


Sent from my iPhone using Tapatalk

...precisely, which has led me here...

[Guest 5T33Z0]

You only need to add -wegnoigpu (to disable the iGPU) or -wegswitchgpu (disables iGPU if discrete GPU is detected) to the Boot > Arguments section of your Clover Config. Save and reboot.

Edited February 6, 2022 by 5T33Z0

[Slice]

12 hours ago, RobertX said:

...not set because I manually unchecked inject intel...I do this at every boot because the WEG manual says to, and I get to desktop a little quicker..

I'd just like to be able to turn inject intel off permanently...but can't seem to find where that option is hiding....

without intel inject I see this in ioreg...





with intel injected I lose this entry, and gfx is a bit laggy...

If you said that config.plist set the value inject->Intel=NO then you should provide preboot.log that proves your attempts.

I see no reason why you set NO but see YES somewhere.

[RobertX]









9 hours ago, Slice said:

If you said that config.plist set the value inject->Intel=NO then you should provide preboot.log that proves your attempts.

I see no reason why you set NO but see YES somewhere.



...sorry slice, to be clear...you'd like me to boot with config set to no intel inject, and leave the inject intel option set to yes,  in the Graphics options inside the running bootloader   ...before that boot hit f2 ...and then send another preboot.log?

Edited just now by RobertX

Edited February 6, 2022 by RobertX

[RobertX]



..here is my last preboot.log, nothing changed in config.plist...still set to no, in options/graphics inside running clover, set to inject intel... not by me, option is already checked when i boot, so that option over-rides the config setting... but again, how do I set it  to off by default...?

Spoiler

0:100  0:100  MemLog inited, TSC freq: 3792513420
0:100  0:000  CPU was calibrated with RTC
0:100  0:000  CloverX64 : Image base = 0xAE1B7000
0:100  0:000  Clover ImageHandle = b4222c58
0:149  0:049  === [ Starting Clover ] =========================
0:149  0:000  Now is 06.02.2022,  19:23:39 (GMT)
0:149  0:000  Starting Clover revision: 5143 (master, commit 43052771b) on American Megatrends EFI
0:149  0:000  Build id: 20211226092402-4305277
0:149  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC53 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/runner/work/CloverBootloader/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 4 | OS: 11.6.2]
0:149  0:000  === [ Get Smbios ] ==============================
0:149  0:000  Type 16 Index = 0
0:149  0:000  Total Memory Slots Count = 4
0:149  0:000  Type 17 Index = 0
0:149  0:000  SmbiosTable.Type17->SlotIndex = 0
0:149  0:000  SmbiosTable.Type17->ModuleSize = 8192MB
0:149  0:000  SmbiosTable.Type17->Type = 0
0:149  0:000  SmbiosTable.Type17->Frequency = 2133MHz
0:149  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:149  0:000  SmbiosTable.Type17->Vendor = 04CD
0:149  0:000  SmbiosTable.Type17->SerialNo = 00000000
0:149  0:000  SmbiosTable.Type17->PartNo = F4-2133C15-8GVR
0:149  0:000  Type 17 Index = 1
0:149  0:000  Ignoring insane frequency value 0MHz
0:149  0:000  Type 17 Index = 2
0:149  0:000  Ignoring insane frequency value 0MHz
0:149  0:000  Type 17 Index = 3
0:149  0:000  SmbiosTable.Type17->SlotIndex = 3
0:149  0:000  SmbiosTable.Type17->ModuleSize = 8192MB
0:149  0:000  SmbiosTable.Type17->Type = 0
0:149  0:000  SmbiosTable.Type17->Frequency = 2133MHz
0:149  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:149  0:000  SmbiosTable.Type17->Vendor = 04CD
0:149  0:000  SmbiosTable.Type17->SerialNo = 00000000
0:149  0:000  SmbiosTable.Type17->PartNo = F4-2133C15-8GVR
0:149  0:000  Boot status=0
0:149  0:000  Running on: 'Q170M-D3H' with board 'Q170M-D3H-CF'
0:149  0:000  === [ GetCPUProperties ] ========================
0:149  0:000  CPU Vendor = 756E6547 Model=506E3
0:149  0:000   The CPU supported SSE4.1
0:149  0:000   The CPU supported RDRAND
0:149  0:000  BrandString = Intel(R) Core(TM) i3-6300 CPU @ 3.80GHz
0:149  0:000   The CPU not supported turbo
0:149  0:000   Energy PerfBias is  not visible:
0:149  0:000  MSR 0x35               20004
0:149  0:000   TSC/CCC Information Leaf:
0:149  0:000    numerator     : 316
0:149  0:000    denominator   : 2
0:149  0:000   Calibrated ARTFrequency: 24003249
0:149  0:000   Rounded ARTFrequency: 24000000
0:149  0:000  MSR 0xE2 before patch 1E008006
0:149  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:149  0:000  MSR 0xCE              00080838_F1012600
0:149  0:000  corrected FLEX_RATIO = 0
0:149  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:149  0:000  MaxDiv/MinDiv: 38.0/8
0:149  0:000  Turbo: 38/38/38/38
0:149  0:000  Features: 0x77FAFBBFBFEBFBFF
0:149  0:000  Threads: 4
0:149  0:000  Cores: 2
0:149  0:000  FSB: 100 MHz
0:149  0:000  CPU: 3800 MHz
0:149  0:000  TSC: 3800 MHz
0:149  0:000  PIS: 100 MHz
0:149  0:000  ExternalClock: 25 MHz
0:149  0:000  === [ GetDevices ] ==============================
0:149  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80012310)
0:149  0:000  PCI (00|00:00.00) : 8086 190F class=060000
0:149  0:000  PCI (00|00:02.00) : 8086 1912 class=030000
0:149  0:000   - GFX: Model=Intel HD Graphics 530 (Intel)
0:149  0:000   - GOP: Provided by device
0:149  0:000  PCI (00|00:14.00) : 8086 A12F class=0C0330
0:149  0:000  PCI (00|00:16.00) : 8086 A13A class=078000
0:149  0:000  PCI (00|00:16.03) : 8086 A13D class=070002
0:149  0:000  PCI (00|00:17.00) : 8086 A102 class=010601
0:149  0:000  PCI (00|00:1B.00) : 8086 A167 class=060400
0:149  0:000  PCI (00|00:1B.02) : 8086 A169 class=060400
0:149  0:000  PCI (00|02:00.00) : 1B21 1080 class=060400
0:149  0:000  PCI (00|00:1B.03) : 8086 A16A class=060400
0:149  0:000  PCI (00|00:1C.00) : 8086 A110 class=060400
0:149  0:000  PCI (00|00:1C.02) : 8086 A112 class=060400
0:149  0:000  PCI (00|00:1C.04) : 8086 A114 class=060400
0:149  0:000  PCI (00|00:1D.00) : 8086 A118 class=060400
0:149  0:000  PCI (00|00:1F.00) : 8086 A146 class=060100
0:149  0:000  PCI (00|00:1F.02) : 8086 A121 class=058000
0:149  0:000  PCI (00|00:1F.03) : 8086 A170 class=040300
0:149  0:000  PCI (00|00:1F.04) : 8086 A123 class=0C0500
0:149  0:000  PCI (00|00:1F.06) : 8086 15B7 class=020000
0:149  0:000   - LAN: 1 Vendor=Intel
0:149  0:000  Legacy MAC address of LAN #0= 40:8D:5C:B6:8D:43:
0:170  0:020  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H--40-8D-5C-B6-8D-43'. Dir doesn't exist.
0:170  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF\UEFI'. Dir doesn't exist.
0:171  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H'. Dir doesn't exist.
0:172  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-3800'. Dir doesn't exist.
0:172  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF'. Dir doesn't exist.
0:173  0:000  _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Q170M-D3H-CF-3800'. Dir doesn't exist.
0:174  0:000  === [ GetUserSettings ] =========================
0:174  0:000  GetDefaultModel()=iMac17,1
0:186  0:011  Using config.plist at path: \EFI\CLOVER
0:187  0:001  Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found
0:187  0:000  '\EFI\CLOVER\smbios.plist' not loaded. Efi error Not Found
0:187  0:000  Using latest BiosVersion from config instead of default 'IM171.88Z.F000.B00.2106131747'
0:187  0:000  Using latest BiosReleaseDate from config instead of default '06/13/2021'
0:187  0:000  BiosVersion: IM171.88Z.F000.B00.2112121737
0:187  0:000  BiosReleaseDate: 12/12/2021
0:187  0:000  EfiVersion: 429.140.8.0.0
0:187  0:000  Calibrated TSC Frequency = 3792513420 = 3792MHz
0:187  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80012310)
0:192  0:004  === [ GetListOfThemes ] =========================
0:196  0:004  - [00]: Olarila
0:204  0:008  === [ Found config plists ] =====================
0:204  0:000  - config1.plist
0:204  0:000  - config.plist
0:204  0:000  - config2.plist
0:204  0:000  - config3.plist
0:204  0:000  === [ LoadDrivers ] =============================
0:208  0:003  Loading HFSPlus.efi status=Success
0:239  0:031   - driver needs connecting
0:239  0:000  Loading ApfsDriverLoader.efi status=Success
0:248  0:009   - driver needs connecting
0:251  0:002  2 drivers needs connecting ...
0:251  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:251  0:000  HFS+ driver loaded
0:251  0:000  APFS driver loaded
0:251  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:900  0:649  === [ InitScreen ] ==============================
0:900  0:000  Console modes reported: 6, available modes:
0:900  0:000   - [01]: 80x25 (current mode)
0:900  0:000   - [02]: 80x50
0:900  0:000   - [03]: 100x31
0:900  0:000   - [04]: 80x24
0:900  0:000   - [06]: 120x50
0:900  0:000  SetMaxResolution: found best mode 0: 1920x1080
0:942  0:041  Video mode change to mode #0: Success
0:942  0:000   - set
0:947  0:005  Using embedded font
0:948  0:000  === [ ScanSPD ] =================================
0:949  0:000  Scanning SMBus [8086:A123], mmio: 0xEF04A004, ioport: 0xF040, hostc: 0x11
0:965  0:016  Not using XMP because it is not present
0:965  0:000  Slot: 0 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000
0:982  0:016  Not using XMP because it is not present
0:982  0:000  Slot: 3 Type 26 8192MB 2132MHz Vendor=G Skill Intl PartNo=F4-2133C15-8GVR SerialNo=00000000
0:983  0:000  === [ GetAcpiTablesList ] =======================
0:987  0:003  Get Acpi Tables List from RSDT:
0:987  0:000   - [00]: FACP  A M I  len=132
0:987  0:000   - [01]: APIC  A M I  len=132
0:987  0:000   - [02]: FPDT  A M I  len=68
0:987  0:000   - [03]: MCFG  A M I  len=60
0:987  0:000   - [04]: SSDT  SataTabl len=956
0:987  0:000   - [05]: FIDT  A M I len=156
0:987  0:000   - [06]: SSDT  SaSsdt  len=12633
0:987  0:000   - [07]: SSDT  PegSsdt len=9567
0:987  0:000   - [08]: HPET  SKL len=56
0:987  0:000   - [09]: SSDT  Ther_Rvp len=3557
0:987  0:000   - [10]: SSDT  xh_rvp10 len=10967
0:987  0:000   - [11]: UEFI  EDK2     len=66
0:987  0:000   - [12]: SSDT  CpuSsdt len=3806
0:987  0:000   - [13]: LPIT  SKL len=148
0:987  0:000   - [14]: WSMT  SKL len=40
0:987  0:000   - [15]: SSDT  sensrhub len=671
0:987  0:000   - [16]: SSDT  PtidDevc len=12290
0:987  0:000   - [17]: DBGP   len=52
0:987  0:000   - [18]: DBG2   len=84
0:987  0:000   - [19]: BGRT  A M I  len=56
0:987  0:000   - [20]: ASF!   HCG len=160
0:987  0:000  Custom boot CUSTOM_BOOT_USER_DISABLED (0x0)
0:987  0:000  Default theme: Olarila
0:989  0:001  === [ Found DSDT tables ] =======================
0:989  0:000  - DSDT.aml
0:991  0:001  === [ InitKextList ] ============================
1:148  0:157  === [ ScanVolumes ] =============================
1:148  0:000  Found 10 volumes with blockIO
1:148  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x2,0xFFFF,0x0)
1:148  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)
1:158  0:009  - [02]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,C586A168-8896-4C22-A59F-81E40FCA810B,0x28,0x64000)
1:158  0:000          Result of bootcode detection: bootable unknown (legacy)
1:161  0:002            label : EFI
1:161  0:000          This is SelfVolume !!
1:161  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)
1:167  0:005          Result of bootcode detection: bootable unknown (legacy)
1:167  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)
1:167  0:000            apfsFileSystemUUID=F29B562C-AF82-4FAB-92FA-50860D7994BF, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0x10
1:180  0:013            label : Preboot
1:180  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D7196526F26AEA32817B7ED3B12B0391)
1:180  0:000            apfsFileSystemUUID=266519D7-6AF2-32EA-817B-7ED3B12B0391, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0x40
1:424  0:244            label : Untitled - Data
1:424  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9A32DEC28EF4D94EBCB8294EDD50E1BE)
1:424  0:000            apfsFileSystemUUID=C2DE329A-F48E-4ED9-BCB8-294EDD50E1BE, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0x4
1:425  0:000            label : Recovery
1:425  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,533382E7AB92C14690E8E2EFD662D362)
1:425  0:000            apfsFileSystemUUID=E7823353-92AB-46C1-90E8-E2EFD662D362, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0x8
1:425  0:000            label : VM
1:425  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6986E4FC219E69478461ADAB7B6BF322)
1:425  0:000            apfsFileSystemUUID=FCE48669-9E21-4769-8461-ADAB7B6BF322, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0x1
1:507  0:082            label : Untitled
1:507  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5D3F4888F714EC459DB3943B4E1DC066)
1:507  0:000            apfsFileSystemUUID=88483F5D-14F7-45EC-9DB3-943B4E1DC066, ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4, ApfsRole=0xc0
1:514  0:007            label : Update
1:514  0:000  No AudioIoProtocols, status=Not Found
1:515  0:000  === [ InitXTheme ] ==============================
1:515  0:000  use Daylight theme
1:557  0:042  Using theme 'Olarila' (Olarila)
1:557  0:000  chosen theme Olarila
1:557  0:000  OS main and drive as badge
1:877  0:320  sound play end with status=Device Error
1:882  0:005  theme inited
1:882  0:000  Chosen theme Olarila
1:883  0:000  after NVRAM boot-args=dart=0 alcid=1 agdpmod=pikera watchdog=0 -rev sbvmm -v igfxagdc=0
1:883  0:000  === [ Dump SMC keys from NVRAM ] ================
1:883  0:000  no AppleSMC protocol
1:922  0:039  === [ ScanLoader ] ==============================
1:922  0:000  - [02]: 'EFI'
1:944  0:021        AddLoaderEntry for Volume Name=EFI, idx=0
1:944  0:000        OSVersion=
1:944  0:000        IconName=unknown comma=-1 size=7
1:944  0:000        Full=unknown
1:944  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,C586A168-8896-4C22-A59F-81E40FCA810B,0x28,0x64000)\EFI\BOOT\BOOTX64.efi'
1:944  0:000        Menu entry added at index 0
1:944  0:000       hiding entry because DiskKind is DISK_KIND_INTERNAL: \EFI\BOOT\BOOTX64.efi
1:944  0:000  - [04]: 'Preboot'
1:944  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
1:944  0:000      ApfsFileSystemUUID=F29B562C-AF82-4FAB-92FA-50860D7994BF
1:944  0:000      APFSTargetUUID=266519D7-6AF2-32EA-817B-7ED3B12B0391
1:971  0:026        contentDetails name:Untitled
1:971  0:000        AddLoaderEntry for Volume Name=Preboot, idx=1
1:988  0:016        OSVersion=12.2
1:988  0:000      hibernated: set as never
1:988  0:000        IconName=monterey,mac comma=8 size=12
1:988  0:000        first=os_monterey
1:988  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
1:995  0:007        Menu entry added at index 1
1:995  0:000  - [05]: 'Untitled - Data'
1:995  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
1:995  0:000      ApfsFileSystemUUID=266519D7-6AF2-32EA-817B-7ED3B12B0391
2:022  0:026  - [06]: 'Recovery'
2:022  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
2:022  0:000      ApfsFileSystemUUID=C2DE329A-F48E-4ED9-BCB8-294EDD50E1BE
2:022  0:000      APFSTargetUUID=266519D7-6AF2-32EA-817B-7ED3B12B0391
2:023  0:000        contentDetails name:Untitled
2:027  0:003        AddLoaderEntry for Volume Name=Recovery, idx=2
2:041  0:013        OSVersion=12.2
2:041  0:000        IconName=monterey,mac comma=8 size=12
2:041  0:000        first=os_monterey
2:041  0:000        Loader entry created for 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,9A32DEC28EF4D94EBCB8294EDD50E1BE)\266519D7-6AF2-32EA-817B-7ED3B12B0391\BaseSystem.dmg'
2:049  0:007        Menu entry added at index 2
2:049  0:000  - [07]: 'VM'
2:049  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
2:049  0:000      ApfsFileSystemUUID=E7823353-92AB-46C1-90E8-E2EFD662D362
2:049  0:000  - [08]: 'Untitled'
2:049  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
2:049  0:000      ApfsFileSystemUUID=FCE48669-9E21-4769-8461-ADAB7B6BF322
2:233  0:184  - [09]: 'Update'
2:233  0:000      ApfsContainerUUID=B18FDCBA-7EDD-4CAC-A6D6-3C95D73617C4
2:233  0:000      ApfsFileSystemUUID=88483F5D-14F7-45EC-9DB3-943B4E1DC066
2:233  0:000  Entries list before ordering
2:233  0:000      Entry 0 : Boot UEFI internal from EFI (hidden)
2:233  0:000      Entry 1 : Boot Mac OS from Untitled via Preboot
2:233  0:000      Entry 2 : Boot Mac OS Recovery for Untitled via Recovery
2:233  0:000  Entries after before ordering
2:233  0:000    Entry 0 : Boot UEFI internal from EFI (hidden)
2:233  0:000    Entry 1 : Boot Mac OS from Untitled via Preboot
2:233  0:000    Entry 2 : Boot Mac OS Recovery for Untitled via Recovery
2:233  0:000  Scanning legacy ...
2:233  0:000  === [ AddCustomTool ] ===========================
2:244  0:010  === [ GetEfiBootDeviceFromNvram ] ===============
2:245  0:001  Got efi-boot-device-data size=264
2:245  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi
2:245  0:000    - Volume: 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)'
2:245  0:000    - LoaderPath: '\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
2:245  0:000    - Guid = 1B24951C-C476-4F8A-A693-74F4CEA78572
2:245  0:000  === [ FindStartupDiskVolume ] ===================
2:245  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)
2:245  0:000     - searching for that partition and loader '\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
2:245  0:000    checking 'PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)'
2:245  0:000     '\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
2:245  0:000      - found entry 0. 'Boot Mac OS from Untitled via Preboot', Volume 'Preboot', '\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
2:245  0:000  Boot redirected to Entry 0. 'Boot Mac OS from Untitled via Preboot'
2:245  0:000  BannerPlace at Clear Screen [759,288]
2:347  0:102  AnimeRun=0
2:384  0:036  GUI ready
12:558  10:173  Boot option Boot0000 not found
12:558  0:000  === [ StartLoader ] =============================
12:558  0:000  Starting PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,1B24951C-C476-4F8A-A693-74F4CEA78572,0x64028,0x3A2E1FE0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C569BF282AFAB4F92FA50860D7994BF)\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi
12:558  0:000  Finally: ExternalClock=25MHz BusSpeed=99803kHz CPUFreq=3793MHz PIS: hw.busfrequency=100000000Hz
12:558  0:000  Beginning OC
12:584  0:026  OCST: Missing vault data, ignoring...
12:584  0:000  config-oc.plist isn't used at all
12:586  0:001  AddKextsInArray from Other
12:586  0:000  ->Extra kext: Other\Lilu.kext (v.1.5.9)
12:586  0:000  ->Extra kext: Other\AppleALC.kext (v.1.6.8)
12:586  0:000  ->Extra kext: Other\IntelMausi.kext (v.1.0.7)
12:586  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.5.6)
12:586  0:000  ->Extra kext: Other\FakeSMC.kext (v.3.5.3)
12:586  0:000  ->Extra kext: Other\IntelCPUMonitor.kext (v.1.2.5)
12:586  0:000  ->Extra kext: Other\ITEIT87x.kext (v.1.0.7)
12:586  0:000  ->Extra kext: Other\USBPorts.kext (v.1.0)
12:586  0:000  ->Extra kext: Other\RestrictEvents.kext (v.1.0.6)
12:586  0:000  GetOtherKextsDir(false) return NULL
12:586  0:000  AddKextsInArray from 12
12:586  0:000  AddKextsInArray from 12_normal
12:586  0:000  AddKextsInArray from 12.2
12:586  0:000  AddKextsInArray from 12.2_normal
12:586  0:000  AddKextsInArray from 12.2.0
12:586  0:000  AddKextsInArray from 12.2.0_normal
12:586  0:000  Bridge kext to OC : Path=Lilu.kext
12:593  0:006  assign executable as 'Contents\MacOS\Lilu'
12:593  0:000  Bridge kext to OC : Path=WhateverGreen.kext
12:600  0:006  assign executable as 'Contents\MacOS\WhateverGreen'
12:600  0:000  Bridge kext to OC : Path=AppleALC.kext
12:630  0:030  assign executable as 'Contents\MacOS\AppleALC'
12:630  0:000  Bridge kext to OC : Path=IntelMausi.kext
12:636  0:006  assign executable as 'Contents\MacOS\IntelMausi'
12:636  0:000  Bridge kext to OC : Path=USBPorts.kext
12:641  0:004  Bridge kext to OC : Path=FakeSMC.kext
12:661  0:020  assign executable as 'Contents\MacOS\FakeSMC'
12:661  0:000  Bridge kext to OC : Path=IntelCPUMonitor.kext
12:667  0:006  assign executable as 'Contents\MacOS\IntelCPUMonitor'
12:667  0:000  Bridge kext to OC : Path=ITEIT87x.kext
12:676  0:008  assign executable as 'Contents\MacOS\ITEIT87x'
12:676  0:000  Bridge kext to OC : Path=RestrictEvents.kext
12:696  0:019  assign executable as 'Contents\MacOS\RestrictEvents'
12:714  0:017  Start 'OpenRuntime.efi' : Status Success
12:714  0:000  OC: OcMiscEarlyInit...
12:714  0:000  OC: OpenCore DBG-075-2021-12-26 is loading in Optional mode (0/0)...
12:714  0:000  OC: OcLoadNvramSupport...
12:714  0:000  OC: Current version is DBG-075-2021-12-26
12:714  0:000  OC: OcMiscMiddleInit...
12:714  0:000  OC: StorageHandle 0 with  LauncherOption pointing to
12:715  0:000  OC: OcLoadUefiSupport...
12:715  0:000  OC: Invalid AppleInput AppleEvent setting , using Auto
12:715  0:000  OcAppleEventInstallProtocol
12:715  0:000  OCAE: Illegal PointerSpeedDiv value 0, using 1
12:715  0:000  InternalCreateQueueEvent
12:715  0:000  EventCreateSimplePointerInstallNotifyEvent
12:715  0:000  InternalSimplePointerInstallNotifyFunction
12:715  0:000  InternalRegisterSimplePointerInterface
12:715  0:000  InternalRegisterSimplePointerInterface
12:715  0:000  InternalRegisterSimplePointerInterface
12:715  0:000  OCAE: Builtin installed
12:715  0:000  OcOSInfoInstallProtocol
12:715  0:000  OCRTC: OcAppleRtcRamInstallProtocol
12:715  0:000  OCRTC: Wake log is 0x00 0x00   0 0x00
12:716  0:000  OcAppleFbInfoInstallProtocol
12:716  0:000  OcAppleEg2InfoInstallProtocol
12:716  0:000  OC: Loading Apple Secure Boot with Disabled (level 0)
12:716  0:000  OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 1
12:716  0:000  OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 1 APPLOS 0 RTPERMS 0 ARBAR -1
12:716  0:000  OCABC: Got rendezvous with OpenRuntime r12
12:716  0:000  OCABC: MAT support is 0
12:716  0:000  OC: RequestBootVarRouting 0
12:716  0:000  OC: Increasing GPU BARs to 0
12:716  0:000  OCDM: PCI device 1/19 has class 6000007
12:716  0:000  OCDM: PCI device 2/19 has class 3000006
12:716  0:000  OCDM: Setting RBAR to 0 inc 1 on 2/19
12:717  0:000  OCDM: Capability I/O error - Unsupported
12:717  0:000  OCDM: RBAR is unsupported by device - Device Error
12:717  0:000  OCDM: PCI device 3/19 has class C033031
12:717  0:000  OCDM: PCI device 4/19 has class 7800031
12:717  0:000  OCDM: PCI device 5/19 has class 7000231
12:717  0:000  OCDM: PCI device 6/19 has class 1060131
12:717  0:000  OCDM: PCI device 7/19 has class 60400F1
12:717  0:000  OCDM: PCI device 8/19 has class 60400F1
12:717  0:000  OCDM: PCI device 9/19 has class 6040004
12:717  0:000  OCDM: PCI device 10/19 has class 60400F1
12:717  0:000  OCDM: PCI device 11/19 has class 60400F1
12:717  0:000  OCDM: PCI device 12/19 has class 60400F1
12:717  0:000  OCDM: PCI device 13/19 has class 60400F1
12:717  0:000  OCDM: PCI device 14/19 has class 60400F1
12:717  0:000  OCDM: PCI device 15/19 has class 6010031
12:717  0:000  OCDM: PCI device 16/19 has class 5800031
12:717  0:000  OCDM: PCI device 17/19 has class 4030031
12:717  0:000  OCDM: PCI device 18/19 has class C050031
12:717  0:000  OCDM: PCI device 19/19 has class 2000031
12:717  0:000  OC: Got 0 drivers
12:717  0:000  OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
12:831  0:114  OC: Requested resolution is 0x0@0 (max: 0, force: 0) from
12:831  0:000  OCC: Using builtin text renderer with 1 scale
12:860  0:028  OCC: Install console control (AE31DC40/0/0), current - Success
12:860  0:000  OCC: Setup ASCII Output - Success
12:860  0:000  OC: Requested console mode is 0x0 (max: 0) from
12:860  0:000  OC: Requested not to use audio
12:860  0:000  OC: OcLoadAcpiSupport...
12:860  0:000  OC: OcLoadAcpiSupport : nothing to do
12:860  0:000  OC: OcMiscLateInit...
12:860  0:000  OC: Invalid HibernateMode:
12:860  0:000  OC: Translated HibernateMode  to 0
12:861  0:000  OC: Hibernation activation - Invalid Parameter, hibernation wake - no
12:861  0:000  OC: OcLoadKernelSupport...
12:861  0:000  OC: All green, starting boot management...
12:878  0:017  OCB: Arch filtering B14A3018(727608)->B14A3018(727608) caps 4 - Success
12:878  0:000  ImageHandle = b15f9a98
12:907  0:028  GetOSVersion: 12.2 (21D49)
12:907  0:000  Will not patch boot.efi
12:907  0:000  === [ PatchSmbios ] =============================
12:907  0:000  UpdateSmbiosString : BiosVersion=EfiVersion=429.140.8.0.0
12:907  0:000  UpdateSmbiosString : ReleaseDate=12/12/2021
12:907  0:000  void PatchTableType1(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=iMac17,1
12:907  0:000  void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString ProductName=BoardNumber=Mac-DB15BD556843C820
12:907  0:000  void PatchTableType2(const SmbiosInjectedSettings&) : UpdateSmbiosString Version=BoardVersion=iMac17,1
12:907  0:000  insert table 9 for dev 1F:6
12:907  0:000  Table 11 present, but rewritten for us
12:908  0:000  Do not inject memory table
12:908  0:000  Trusting SMBIOS...
12:908  0:000  Channels: 1
12:908  0:000  Interleave: 0 1 2 3
12:908  0:000  trusted SMBIOS data, table index 0:
12:908  0:000    gRAM.SMBIOS[0]->ModuleSize = 8192
12:908  0:000    gRAM.SMBIOS[0]->Type = 0
12:908  0:000    gRAM.SMBIOS[0]->Frequency = 2133
12:908  0:000    gRAM.SMBIOS[0]->Vendor = 04CD
12:908  0:000    gRAM.SMBIOS[0]->PartNo = F4-2133C15-8GVR
12:908  0:000    gRAM.SMBIOS[0]->SerialNo = 00000000
12:908  0:000  SPD data in use:
12:908  0:000    gRAM.SPD[0]->ModuleSize = 8192
12:908  0:000    gRAM.SPD[0]->Type = 26
12:908  0:000    gRAM.SPD[0]->Frequency = 2132
12:908  0:000    gRAM.SPD[0]->Vendor = G Skill Intl
12:908  0:000    gRAM.SPD[0]->SerialNo = 00000000
12:908  0:000    gRAM.SPD[0]->PartNo = F4-2133C15-8GVR
12:908  0:000    SMBIOS Type 17 Index = 0 => SMBIOSIndex=0 SPDIndex=0:
12:908  0:000  BANK 0 DIMM0 2133MHz 8192MB(Ext:0MB)
12:908  0:000  !trusted SMBIOS data, Table index 1:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex)
12:908  0:000    SMBIOS Type 17 Index = 1 => SMBIOSIndex=1 SPDIndex=1:
12:908  0:000  BANK 0 DIMM1 EMPTY
12:908  0:000  !trusted SMBIOS data, Table index 2:!gRAM.SMBIOS.doesSlotForIndexExist(SMBIOSIndex)
12:908  0:000    SMBIOS Type 17 Index = 2 => SMBIOSIndex=2 SPDIndex=2:
12:908  0:000  BANK 0 DIMM2 EMPTY
12:908  0:000  trusted SMBIOS data, table index 3:
12:908  0:000    gRAM.SMBIOS[3]->ModuleSize = 8192
12:908  0:000    gRAM.SMBIOS[3]->Type = 0
12:908  0:000    gRAM.SMBIOS[3]->Frequency = 2133
12:908  0:000    gRAM.SMBIOS[3]->Vendor = 04CD
12:908  0:000    gRAM.SMBIOS[3]->PartNo = F4-2133C15-8GVR
12:908  0:000    gRAM.SMBIOS[3]->SerialNo = 00000000
12:908  0:000  SPD data in use:
12:908  0:000    gRAM.SPD[3]->ModuleSize = 8192
12:908  0:000    gRAM.SPD[3]->Type = 26
12:908  0:000    gRAM.SPD[3]->Frequency = 2132
12:908  0:000    gRAM.SPD[3]->Vendor = G Skill Intl
12:908  0:000    gRAM.SPD[3]->SerialNo = 00000000
12:908  0:000    gRAM.SPD[3]->PartNo = F4-2133C15-8GVR
12:908  0:000    SMBIOS Type 17 Index = 3 => SMBIOSIndex=3 SPDIndex=3:
12:908  0:000  BANK 0 DIMM3 2133MHz 8192MB(Ext:0MB)
12:908  0:000  mTotalSystemMemory = 16384
12:908  0:000  NumberOfMemoryDevices = 4
12:908  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 2000
12:908  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 6000
12:908  0:000  Table 131 is present, CPUType=31
12:908  0:000  Change to: 905
12:908  0:000  === [ PatchACPI ] ===============================
12:908  0:000  OCABC: AllocPages 1 0xB5A77000 (1) - Success
12:908  0:000  Xsdt reallocation done
12:908  0:000  OCABC: AllocPages 1 0xB5A76000 (1) - Success
12:908  0:000  old FADT length=114
12:908  0:000   SignatureFixup: 0x137F257 -> 0x0
12:908  0:000  Found OperationRegion(GNVS, SystemMemory, B5EA9000, ...)
12:908  0:000  Found OperationRegion(CPSB, SystemMemory, B5A07F98, ...)
12:908  0:000  Found OperationRegion(PNVA, SystemMemory, B5EDF018, ...)
12:908  0:000  Found OperationRegion(THBA, SystemMemory, FE200000, ...)
12:909  0:000  Found OperationRegion(ITSS, SystemMemory, FDC43100, ...)
12:909  0:000  Found OperationRegion(ABNV, SystemMemory, B5ED3000, ...)
12:909  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
12:909  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
12:909  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
12:909  0:000  Found OperationRegion(ATNV, SystemMemory, FFFF0000, ...)
12:910  0:001  DSDT found in Clover volume: \EFI\CLOVER\ACPI\patched\DSDT.aml
12:921  0:011  OCABC: AllocPages 1 0xB5A59000 (29) - Success
12:921  0:000  Apply DsdtFixMask=0x50000000
12:921  0:000  === [ FixBiosDsdt ] =============================
12:922  0:000  Patching DSDT:
12:922  0:000   - [_STA RTC]: pattern A00A9353, bin not found / already patched!
12:922  0:000    indirect name=PNVB
12:922  0:000  OperationRegion (THBA...) corrected from 0x0 to addr=0xFE200000
12:922  0:000    indirect name=TPMM
12:922  0:000    indirect name=FTPM
12:922  0:000    indirect name=PPIM
12:922  0:000  Start Mutex Fix
12:922  0:000  PreCleanup XSDT: count=21, length=204
12:922  0:000  PreCleanup XSDT, corrected XSDT: count=21, length=204
12:922  0:000  === [ ACPIPatchedAML ] ==========================
12:922  0:000  AutoMerge pass 1
12:922  0:000  Unsorted
12:922  0:000  Inserting SSDT-OLARILA.aml from \EFI\CLOVER\ACPI\patched: ignore on pass 1
12:922  0:000  === [ ACPIDropTables ] ==========================
12:922  0:000  OCABC: AllocPages 1 0xB5A57000 (2) - Success
12:922  0:000  OCABC: AllocPages 1 0xB5A57000 (2) - Success
12:922  0:000  OCABC: AllocPages 1 0xB5A57000 (2) - Success
12:922  0:000  OCABC: AllocPages 1 0xB5A55000 (2) - Success
12:922  0:000  Patching SSDTs: 1 patches each
12:922  0:000   pattern A00A9353, bin not found / already patched!
12:922  0:000  OCABC: AllocPages 1 0xB5A53000 (2) - Success
12:922  0:000  OCABC: AllocPages 1 0xB5A50000 (5) - Success
12:922  0:000  Patching SSDTs: 1 patches each
12:922  0:000   pattern A00A9353, bin not found / already patched!
12:922  0:000  Found OperationRegion(SANV, SystemMemory, B5EDC018, ...)
12:922  0:000  OCABC: AllocPages 1 0xB5A4C000 (4) - Success
12:922  0:000  Patching SSDTs: 1 patches each
12:922  0:000   pattern A00A9353, bin not found / already patched!
12:922  0:000  OCABC: AllocPages 1 0xB5A4A000 (2) - Success
12:922  0:000  OCABC: AllocPages 1 0xB5A4A000 (2) - Success
12:922  0:000  Patching SSDTs: 1 patches each
12:922  0:000   pattern A00A9353, bin not found / already patched!
12:922  0:000  OCABC: AllocPages 1 0xB5A46000 (4) - Success
12:922  0:000  Patching SSDTs: 1 patches each
12:922  0:000   pattern A00A9353, bin not found / already patched!
12:923  0:000  OCABC: AllocPages 1 0xB5A44000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xB5A44000 (2) - Success
12:923  0:000  Patching SSDTs: 1 patches each
12:923  0:000   pattern A00A9353, bin not found / already patched!
12:923  0:000  Found OperationRegion(PNVS, SystemMemory, AF71C000, ...)
12:923  0:000  OCABC: AllocPages 1 0xAF7E0000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xAF7E0000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xAF7E0000 (2) - Success
12:923  0:000  Patching SSDTs: 1 patches each
12:923  0:000   pattern A00A9353, bin not found / already patched!
12:923  0:000  OCABC: AllocPages 1 0xAF7DB000 (5) - Success
12:923  0:000  Patching SSDTs: 1 patches each
12:923  0:000   pattern A00A9353, bin not found / already patched!
12:923  0:000  OCABC: AllocPages 1 0xAF7D9000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xAF7D9000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xAF7D9000 (2) - Success
12:923  0:000  OCABC: AllocPages 1 0xAF7D9000 (2) - Success
12:923  0:000  === [ ACPIPatchedAML ] ==========================
12:923  0:000  AutoMerge pass 2
12:923  0:000  Unsorted
12:923  0:000  Inserting SSDT-OLARILA.aml from \EFI\CLOVER\ACPI\patched: size=2443 OCABC: AllocPages 1 0xAF7DA000 (1) - Success
... Success
12:925  0:002  ApicCPUNum=1
12:925  0:000  Cleanup XSDT: count=22, length=212
12:925  0:000  corrected XSDT count=22, length=212
12:925  0:000  === [ RestSetup macOS ] =========================
12:925  0:000  EdidDiscovered size=128
12:925  0:000  --- Discovered EDID Table size:128
12:925  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  4C  2D
12:925  0:000  010  |  C3  07  01  00  00  00  2E  14  01  03
12:925  0:000  020  |  80  66  39  78  0A  EE  91  A3  54  4C
12:925  0:000  030  |  99  26  0F  50  54  BD  EF  80  71  4F
12:925  0:000  040  |  81  00  81  40  81  80  95  00  95  0F
12:925  0:000  050  |  B3  00  A9  40  02  3A  80  18  71  38
12:925  0:000  060  |  2D  40  58  2C  45  00  A0  5A  00  00
12:925  0:000  070  |  00  1E  66  21  50  B0  51  00  1B  30
12:925  0:000  080  |  40  70  36  00  A0  5A  00  00  00  1E
12:925  0:000  090  |  00  00  00  FD  00  18  4B  1A  51  17
12:925  0:000  100  |  00  0A  20  20  20  20  20  20  00  00
12:925  0:000  110  |  00  FC  00  53  41  4D  53  55  4E  47
12:925  0:000  120  |  0A  20  20  20  20  20  01  46
12:925  0:000  Intel HD Graphics 530 [8086:1912] :: PciRoot(0x0)\Pci(0x2,0x0)
12:925  0:000  Intel GFX revision  = 0x6
12:925  0:000   RCBA disabled; cannot use it
12:925  0:000  stringlength = 1228
12:925  0:000  OCABC: AllocPages 1 0xAF7D9000 (1) - Success
12:925  0:000  CurrentMode: Width=1920 Height=1080
12:925  0:000  SetNvramVariable (system-id, guid, 0x2, 16): -> writing new (Success)
12:926  0:000  SetNvramVariable (MLB, guid, 0x6, 17): -> writing new (Success)
12:926  0:000  SetNvramVariable (ROM, guid, 0x6, 6): -> writing new (Success)
12:927  0:000  SetNvramVariable (FirmwareFeatures, guid, 0x6, 4): -> writing new (Success)
12:927  0:000  SetNvramVariable (FirmwareFeaturesMask, guid, 0x6, 4): -> writing new (Success)
12:928  0:000  SetNvramVariable (ExtendedFirmwareFeatures, guid, 0x6, 8): -> writing new (Success)
12:928  0:000  SetNvramVariable (ExtendedFirmwareFeaturesMask, guid, 0x6, 8): -> writing new (Success)
12:929  0:000  AddNvramVariable (HW_BID, guid, 0x6, 20): -> writing new (Success)
12:930  0:000  SetNvramVariable (prev-lang:kbd, guid, 0x6, 0): -> writing new (Not Found)
12:931  0:001  AddNvramVariable (security-mode, guid, 0x6, 5): -> writing new (Success)
12:932  0:000  DeleteNvramVariable (DefaultBackgroundColor, guid = Not Found):
12:932  0:000  SetNvramVariable (UIScale, guid, 0x6, 1): -> writing new (Success)
12:932  0:000  SetNvramVariable (EFILoginHiDPI, guid, 0x6, 4): -> writing new (Success)
12:933  0:000  SetNvramVariable (flagstate, guid, 0x6, 32): -> writing new (Success)
12:933  0:000  SetNvramVariable (csr-active-config, guid, 0x6, 4): -> writing new (Success)
12:934  0:000  DeleteNvramVariable (BridgeOSHardwareModel, guid = Not Found):
12:934  0:000  DeleteNvramVariable (bootercfg, guid = Not Found):
12:934  0:000  DeleteNvramVariable (nvda_drv, guid = Not Found):
12:935  0:000  DeleteNvramVariable (recovery-boot-mode, guid = Not Found):
12:935  0:000  AddNvramVariable (wake-failure, guid, 0x6, 5): -> writing new (Success)
12:935  0:000  DeleteNvramVariable (opencore-version, guid = Not Found):
12:935  0:000  Use origin smbios table type 1 guid.
12:942  0:006  SetStartupDiskVolume:
12:942  0:000    * Volume: 'Preboot'
12:942  0:000    * LoaderPath: '\266519D7-6AF2-32EA-817B-7ED3B12B0391\System\Library\CoreServices\boot.efi'
12:942  0:000    * DevPath: Preboot
12:942  0:000    * GUID = 1B24951C-C476-4F8A-A693-74F4CEA78572
12:942  0:000  SetNvramVariable (efi-boot-device-data, guid, 0x7, 264): exists(0x7, 264), equal -> not writing again.
12:942  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>1B24951C-C476-4F8A-A693-74F4CEA78572</string></dict></dict></dict></array>
12:942  0:000  SetNvramVariable (efi-boot-device, guid, 0x7, 216): exists(0x7, 216), equal -> not writing again.
12:943  0:000  Custom boot screen not used because entry has unset use graphics
12:943  0:000  DeleteNvramVariable (IOHibernateRTCVariables, guid = Not Found):
12:944  0:000  DeleteNvramVariable (boot-image, guid = Not Found):
12:944  0:000  Kernel quirks
12:944  0:000  ACPCL 1 AXCL 1 AXEM 0 AXFB 0 CSG 0 DIM 1 DLJ 1 DRC 1 DPM 0 EBTFF 0 EDI 0 IPBS 0 LKP 0 PNKD 1 PTKP 1 TPD 0 XPL 0
12:944  0:000  Closing log









...as you can see, memory entry no longer there under iokit/display



You only need to add -wegnoigpu (to disable the iGPU) or -wegswitchgpu (disables iGPU if discrete GPU is detected) to the Boot > Arguments section of your Clover Config. Save and reboot.

Edited 12 hours ago by 5T33Z0  ...not sure this applies as I want to use onboard hd 530, not disable it....just want to disable the apparently default setting of injecting intelgfx









Edited February 6, 2022 by RobertX

[RobertX]

...well, I'm just going to leave it for now, do some reading on whatevergreen and what it does...MaLdOn whipped me up a dsdt, an asset...maybe catch up on fake ids and such...maybe clean up that funky config.plist....thank you for your tolerance, slice and others...not even sure this topic belongs in Clover forum, move it if you must...May the Shwartz be with you

Edited February 7, 2022 by RobertX
Old Age

[RobertX]

...just wondering is it possible , or advisable, to have AGPM load on the framebuffer used for display, instead of first framebuffer?, which is DP...I am using HDMI
