BALDY_MAN Posted February 4, 2022 Share Posted February 4, 2022 (edited) Could someone tell me What The RealTek Lan chip ID is on the Z690 Gigabyte Gaming X and if the is a kext that could be used with a Monterey Install? in the EFI Folder I have tried to find it but I just find RealTek 2.5 gig lan. Edited February 11, 2022 by BALDY_MAN 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/ Share on other sites More sharing options...
Rocky12 Posted February 5, 2022 Share Posted February 5, 2022 "Realtek Gaming 2.5GbE Family Controller" Hardware IDs: PCI\VEN_10EC&DEV_8125&SUBSYS_E0001458&REV_05 PCI\VEN_10EC&DEV_8125&SUBSYS_E0001458 PCI\VEN_10EC&DEV_8125&CC_020000 PCI\VEN_10EC&DEV_8125&CC_0200 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776271 Share on other sites More sharing options...
BALDY_MAN Posted February 5, 2022 Author Share Posted February 5, 2022 (edited) I THINK The GIGABYTE Z690 UD Will have a easy lan fIX With Lucy kext. and sound ALC897 @Rocky12 thanks for your help PCI\VEN_10EC&DEV_8125&SUBSYS_E0001458&REV_05 = RTL8125B So I believe I could use the Lucy kext to fix LAN And sound ALC1220-VB on the Gigabyte Z690 Gaming X @eSaFyour comments cool Bro Edited February 5, 2022 by BALDY_MAN UPdated 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776287 Share on other sites More sharing options...
etorix Posted February 5, 2022 Share Posted February 5, 2022 13 hours ago, eSaF said: Hi Bro - I don't know but I think you'll be very lucky and hard pressed to find a fully working Hack build on the z690 platform as it is relatively new but I hope you find what you're looking for, sorry to put a damper on your quest. This motherboard is actually the first on which a successful boot of macOS was reported in mid-November, on a Forum-Which-Shall-Not-Be-Named-Here. And, for now, pretty much anything Z690 or B660 has been hacked rather painlessly by those who attempted. OpenCore 0.7.7 has brought support for using E-cores and hyperthreading together, and Clover 5144 has hopefully caught up (still waiting for someone to test and report). 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776298 Share on other sites More sharing options...

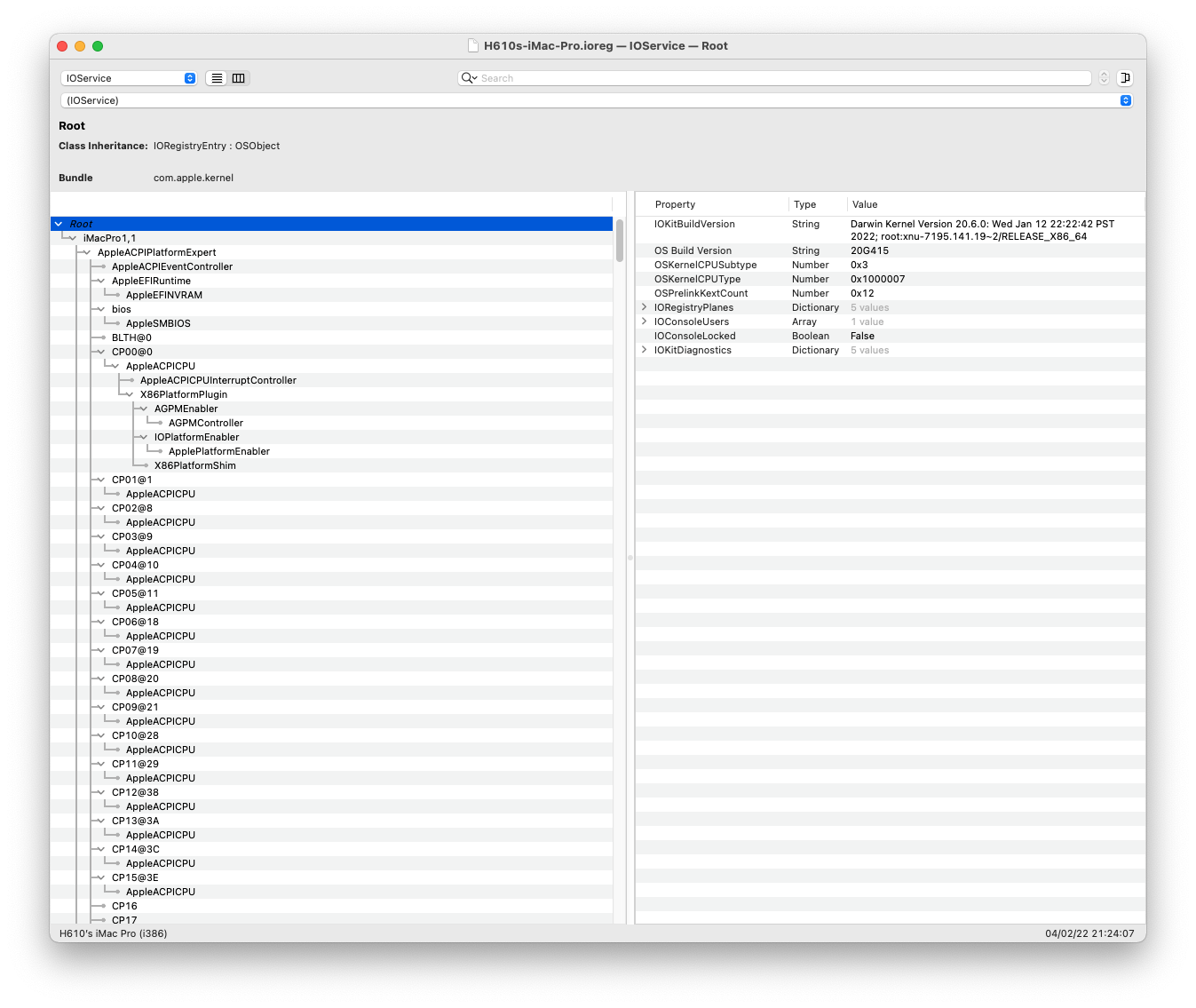

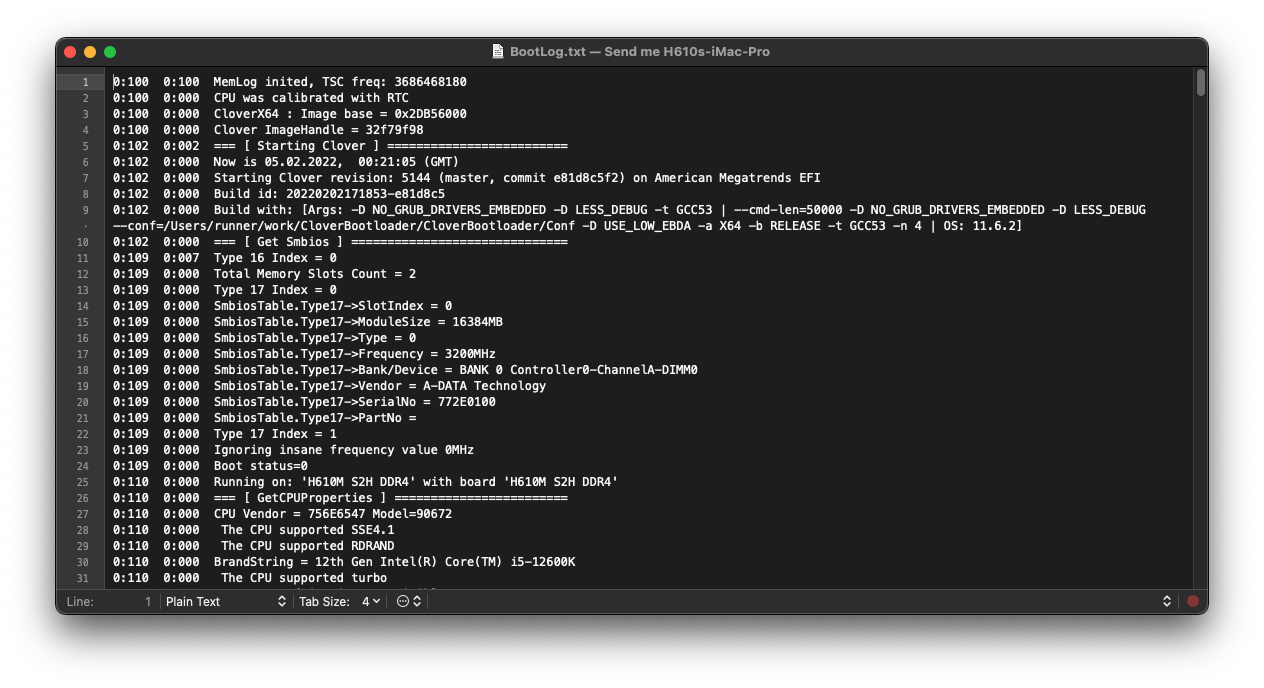

MaLd0n Posted February 5, 2022 Share Posted February 5, 2022 9 minutes ago, etorix said: (still waiting for someone to test and report). Just work very fine. Mobo H610M S2H. All Folders is updated here https://www.olarila.com/topic/5676-hackintosh-efi-folders-for-all-chipsets-clover-and-opencore/ @BALDY_MAN or RealtekRTL8111.kext or LucyRTL8125Ethernet.kext two kexts work for all Realtek lan cards after Skylake family 1 2 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776301 Share on other sites More sharing options...
BALDY_MAN Posted February 5, 2022 Author Share Posted February 5, 2022 35 minutes ago, MaLd0n said: Just work very fine. Mobo H610M S2H. All Folders is updated here https://www.olarila.com/topic/5676-hackintosh-efi-folders-for-all-chipsets-clover-and-opencore/ @BALDY_MAN or RealtekRTL8111.kext or LucyRTL8125Ethernet.kext two kexts work for all Realtek lan cards after Skylake family @MaLd0n thank you for sharing your knowledge 2 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776302 Share on other sites More sharing options...
BALDY_MAN Posted February 5, 2022 Author Share Posted February 5, 2022 @MaLd0n Thinking about getting the Z690 Gigabyte Gaming X. with a 12700k /12600k. I could use the hardware from my Z490 Hackintosh. I May leave it till next month. thanks again for your input 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776304 Share on other sites More sharing options...
etorix Posted February 5, 2022 Share Posted February 5, 2022 @MaLd0n Thanks indeed! It is also the first success report I've seen with H610 chipset. 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776305 Share on other sites More sharing options...
BALDY_MAN Posted February 5, 2022 Author Share Posted February 5, 2022 1 hour ago, eSaF said: for being single, I keep telling her we are only related by marriage so stop being a PITA about my spending. Hide contents I'm pissing my self laughing your a funny bloke. I will do you a good deal on my Z490 gigabyte master and 10700k if ya wish Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776314 Share on other sites More sharing options...
BALDY_MAN Posted February 5, 2022 Author Share Posted February 5, 2022 no bro I under stud it it made me LOL BIG Style. your cool bro Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776316 Share on other sites More sharing options...

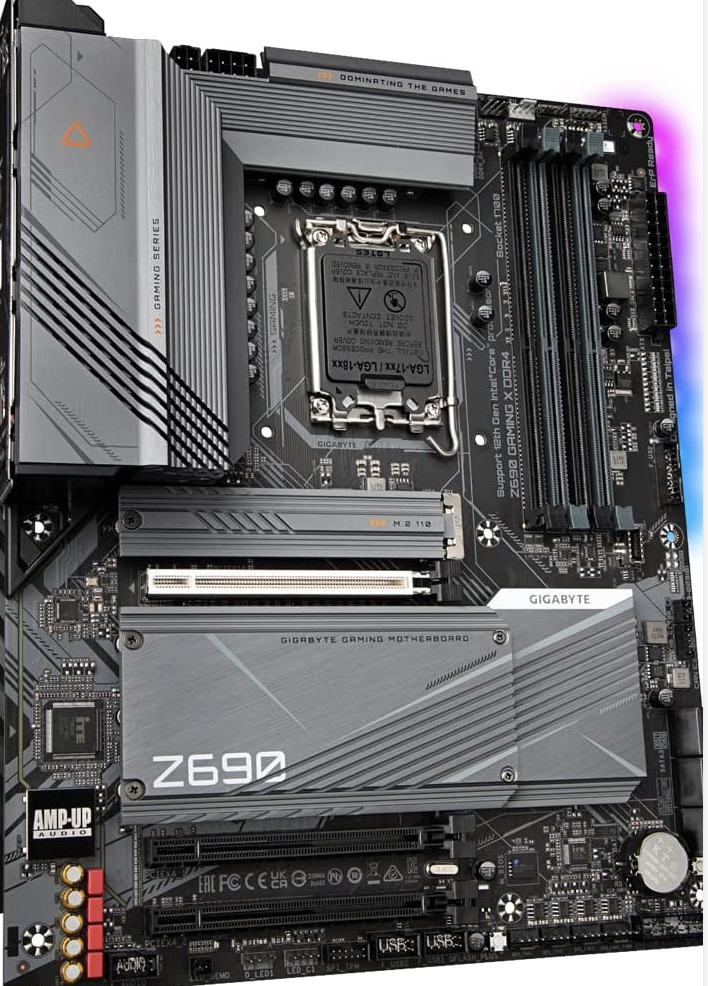

BALDY_MAN Posted February 7, 2022 Author Share Posted February 7, 2022 ive gone and bought it now Gigabyte z690 gaming X And a 12700k. Bit of fun for the weekend 3 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776411 Share on other sites More sharing options...
BALDY_MAN Posted February 7, 2022 Author Share Posted February 7, 2022 ok will do Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776416 Share on other sites More sharing options...

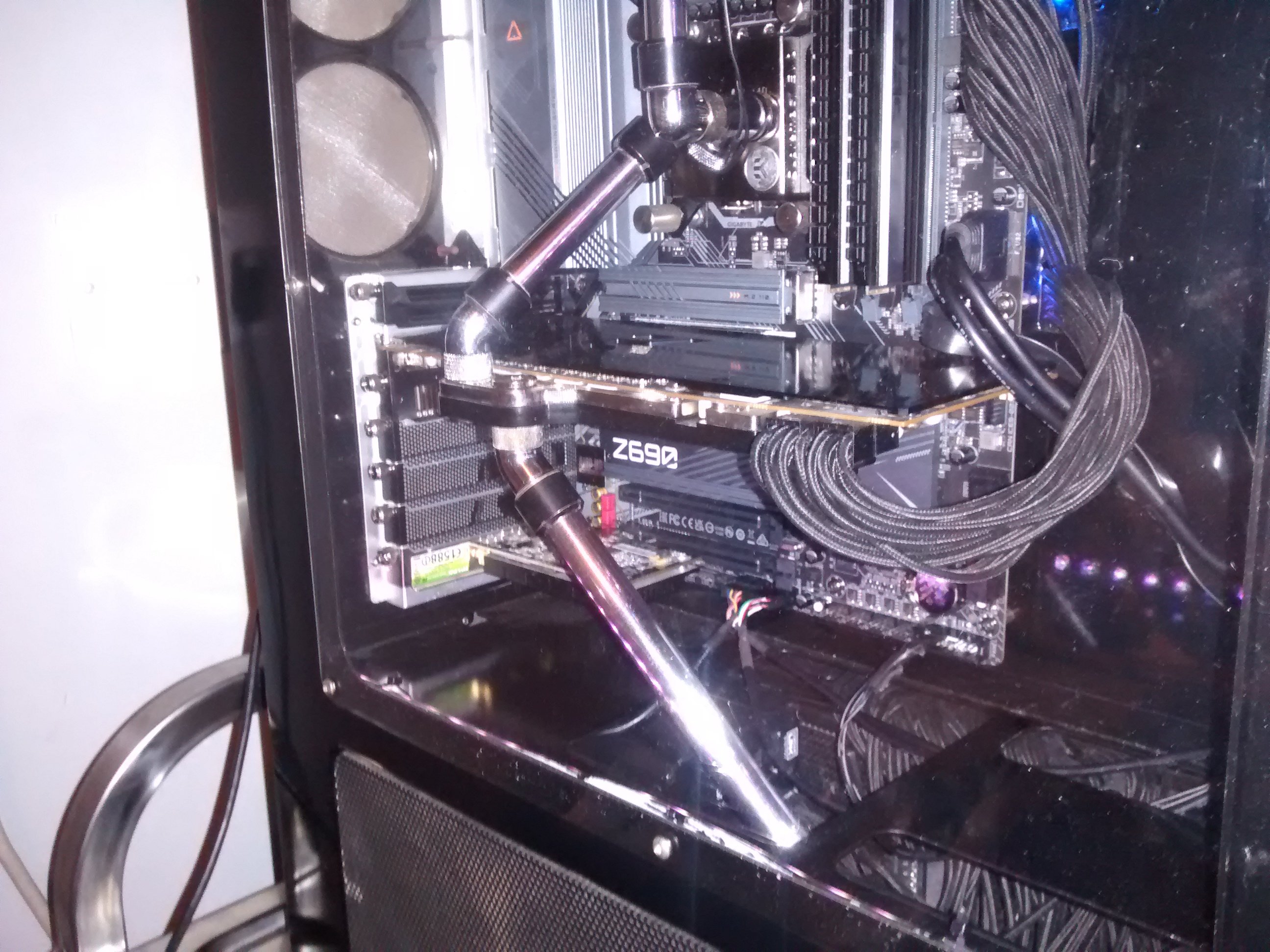

BALDY_MAN Posted February 10, 2022 Author Share Posted February 10, 2022 up date just build the new Gigabyte Z690 gaming X. pc hope to get it hackintosh soon. i had to mess about and Mod a waterblock back plate.so the block fitted the new LGA1700 socket. but when it went well with great Temps. room temps 24C CPU Package 26 C . so a good start 4 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776626 Share on other sites More sharing options...
MaLd0n Posted February 10, 2022 Share Posted February 10, 2022 Nice!!! 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776634 Share on other sites More sharing options...

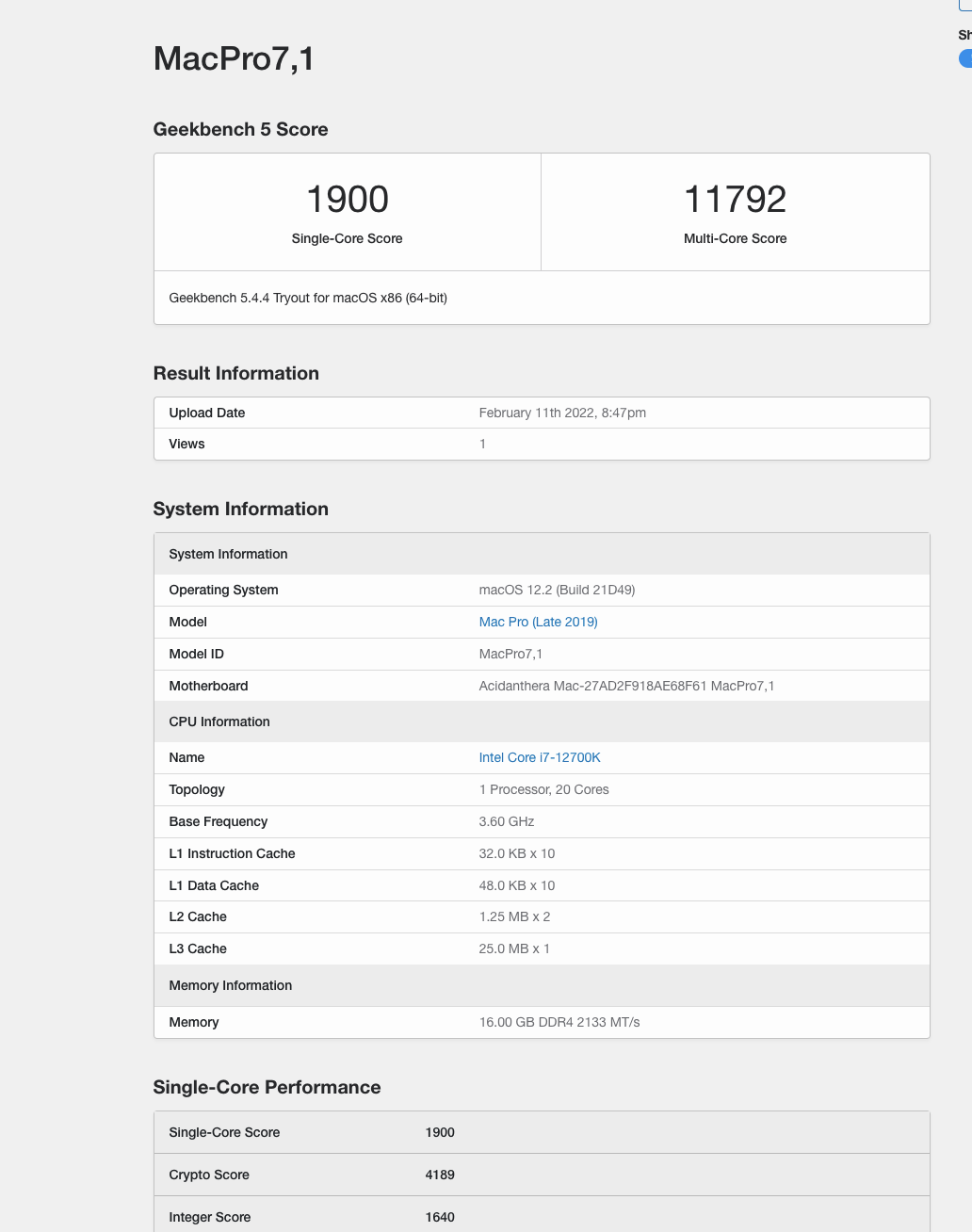

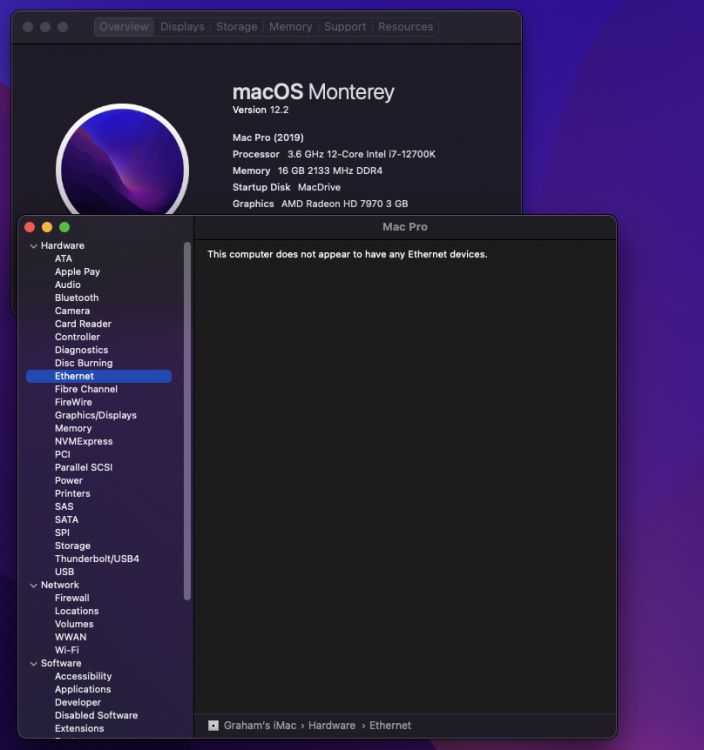

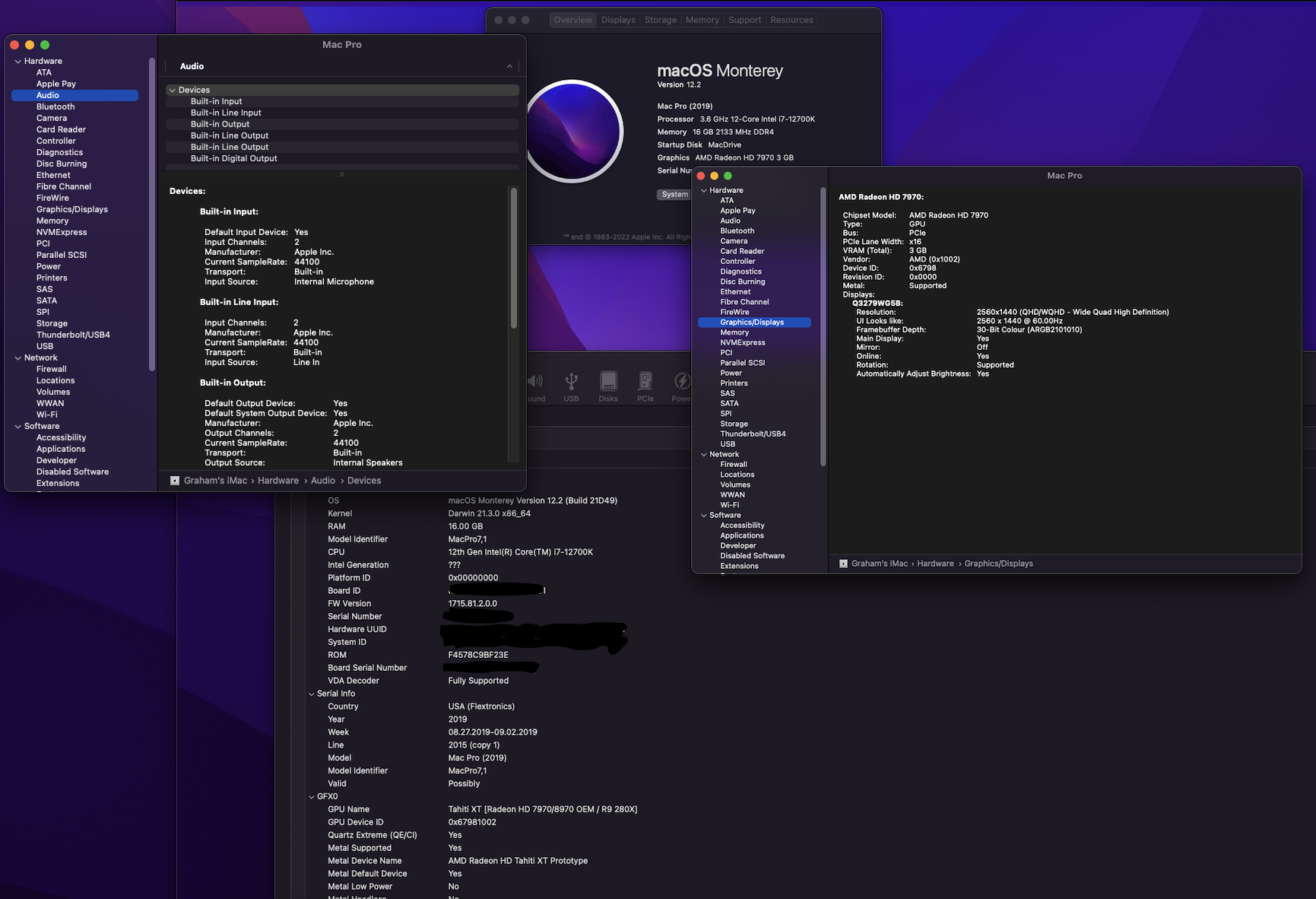

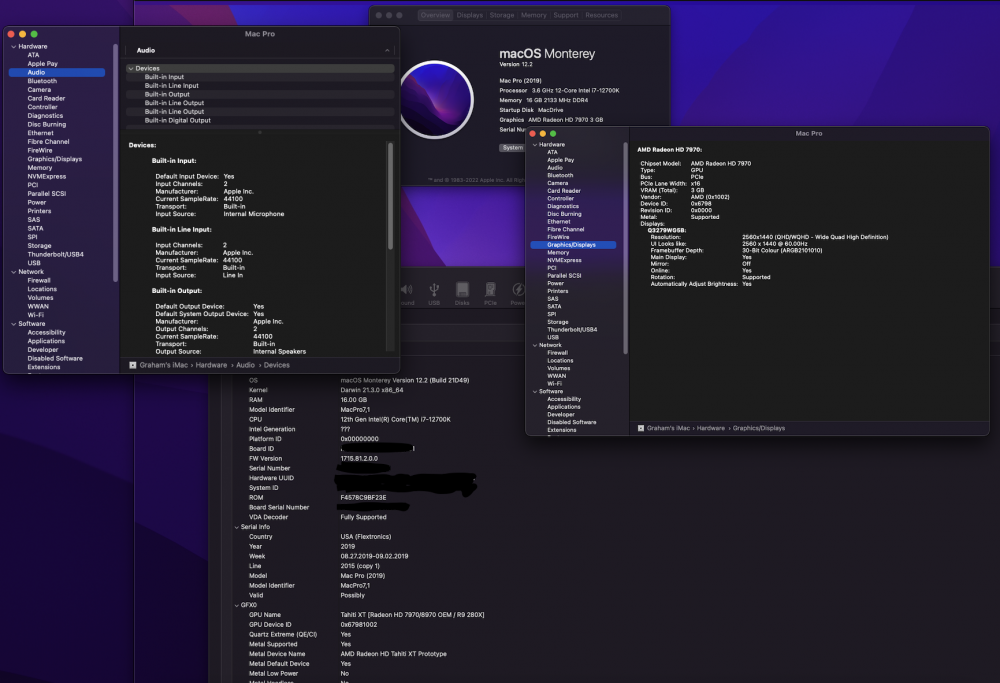

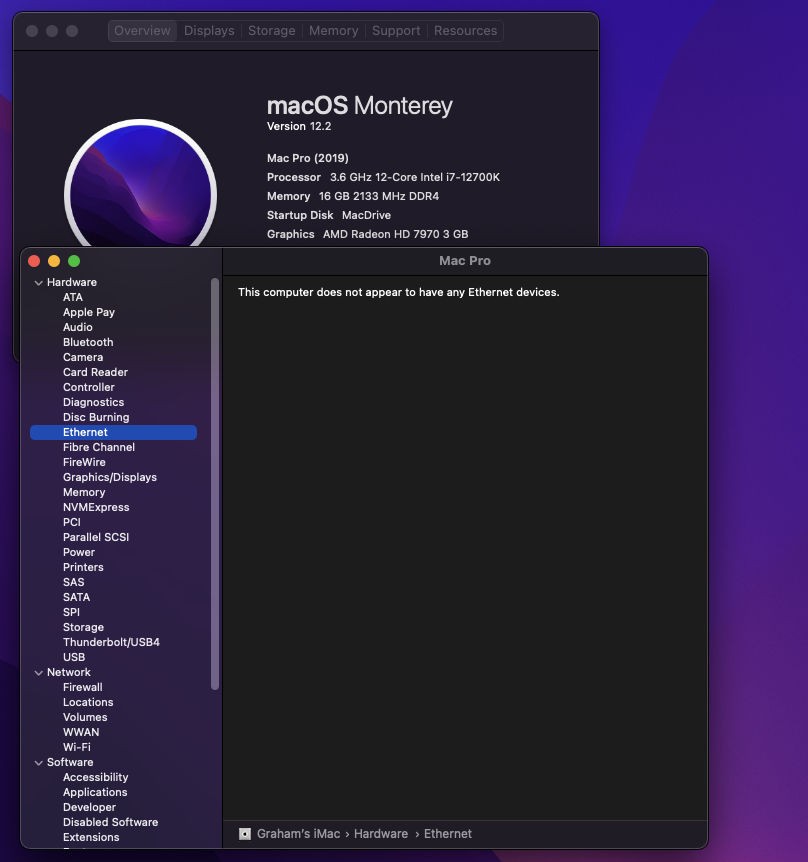

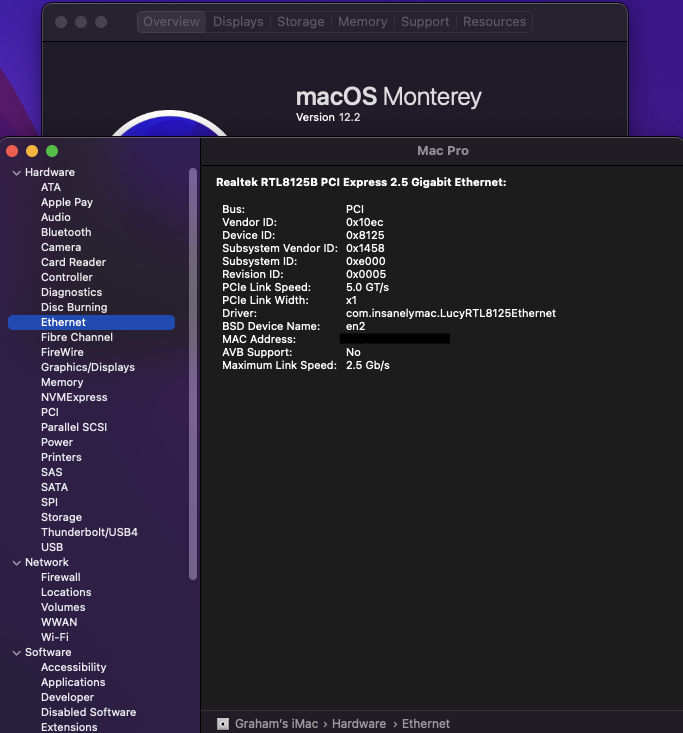

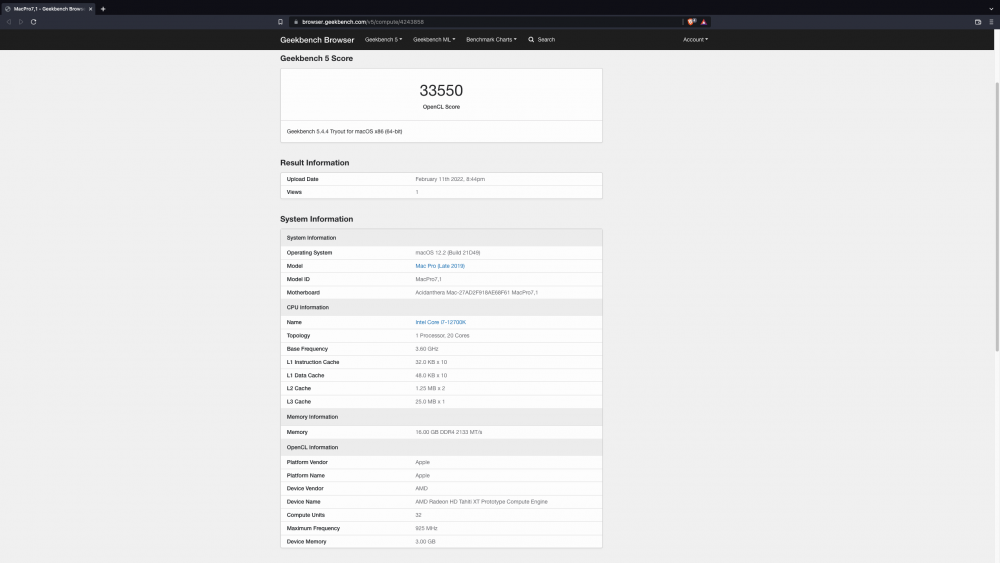

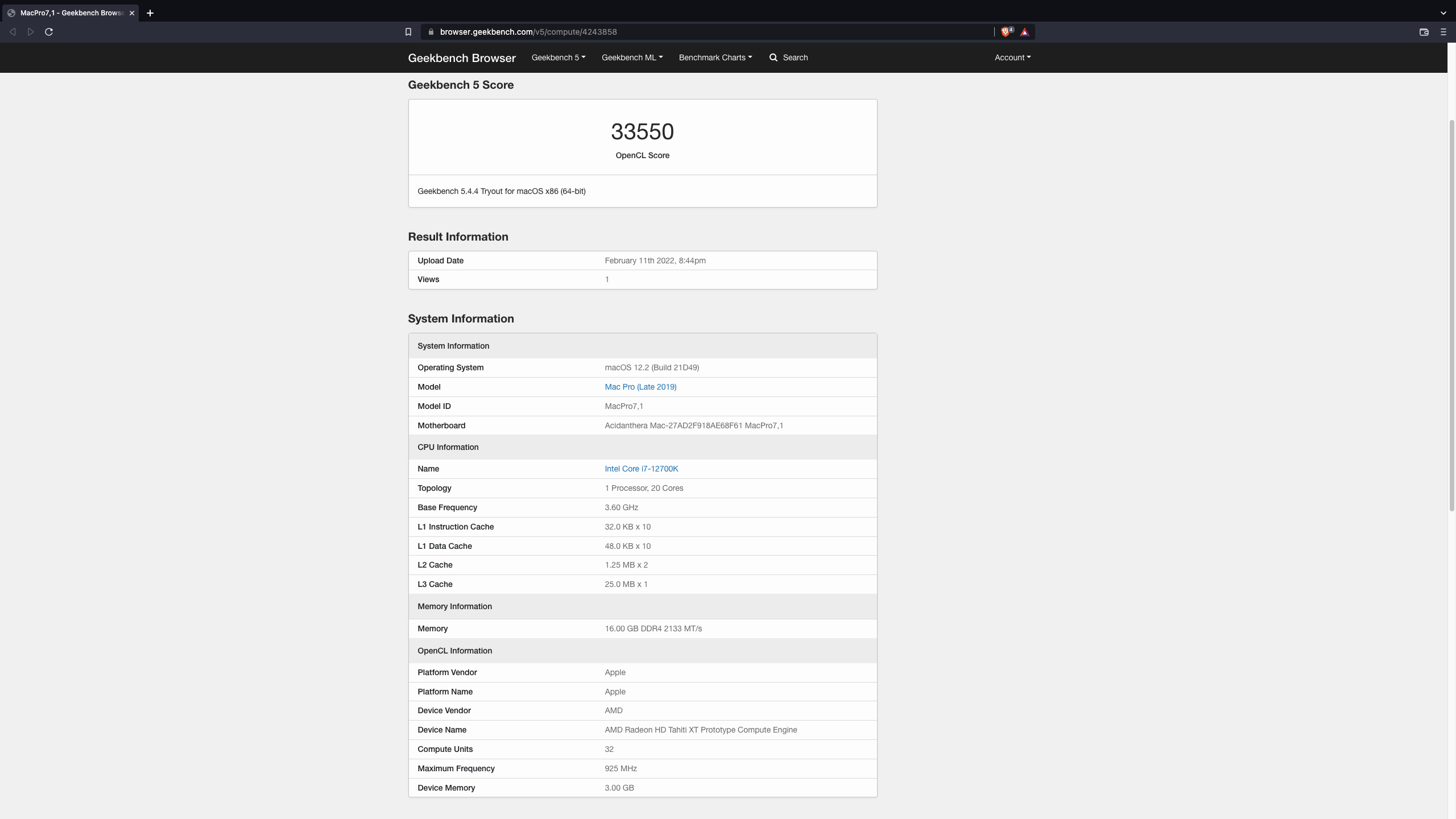

BALDY_MAN Posted February 11, 2022 Author Share Posted February 11, 2022 (edited) it is now up and running I just need help with DSDT and Wired Ethernet (now fixed) Edited February 11, 2022 by BALDY_MAN added screen shots 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776697 Share on other sites More sharing options...
MaLd0n Posted February 11, 2022 Share Posted February 11, 2022 post one sendme with this efi folder https://tinyurl.com/3n66vypa Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776702 Share on other sites More sharing options...
BALDY_MAN Posted February 13, 2022 Author Share Posted February 13, 2022 A very big Shout out and thanks to MaLd0n. for making EFI/DSDT File.for my Gigabyte Z690 Gaming X Hackintosh 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2776795 Share on other sites More sharing options...

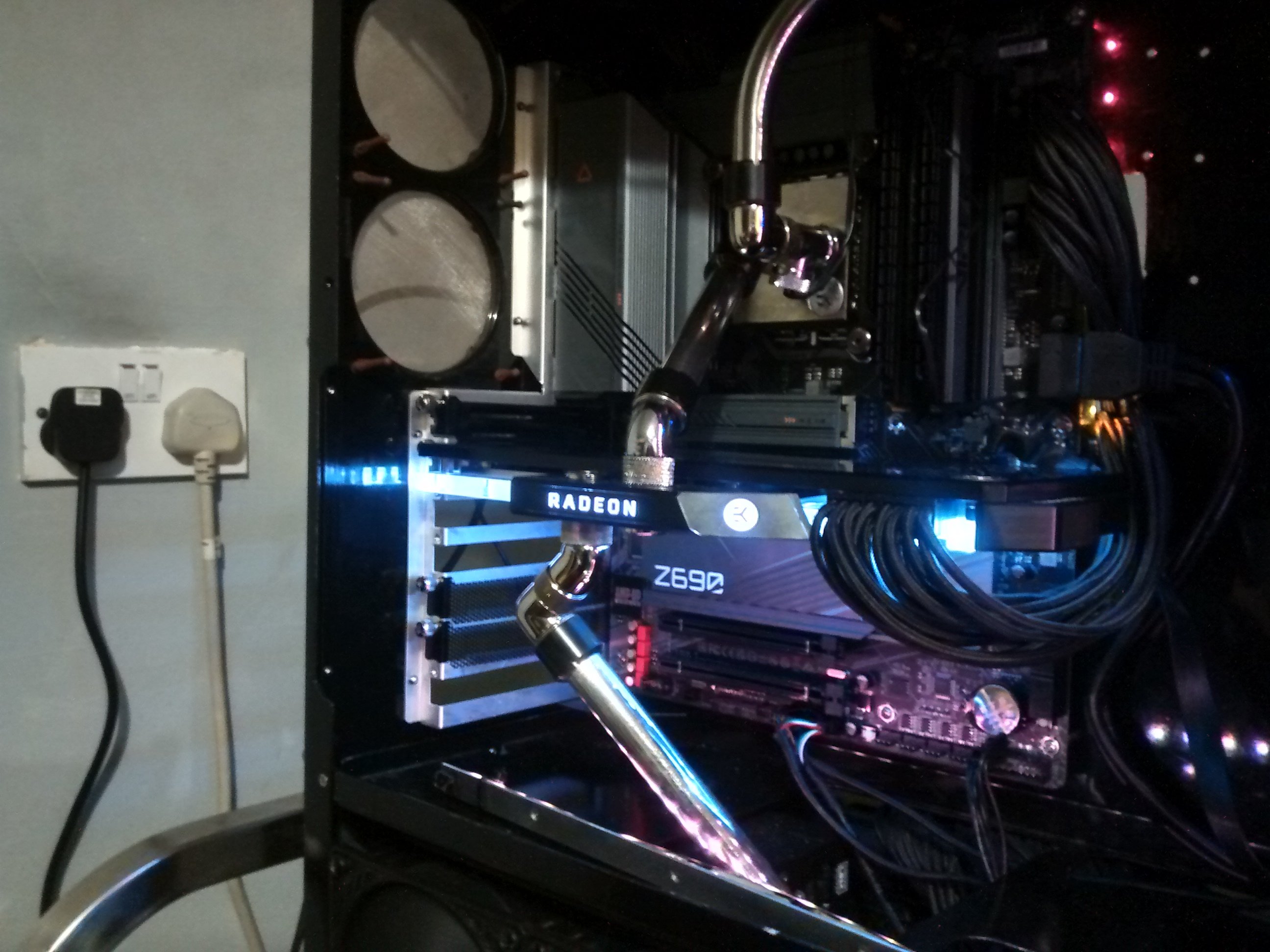

BALDY_MAN Posted March 18, 2022 Author Share Posted March 18, 2022 I Have just updated the Gpu to RX6800XT. EK waterblock 2 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2778520 Share on other sites More sharing options...
johncool Posted July 7, 2023 Share Posted July 7, 2023 Hi everyone,@MaLd0n and @BALDY_MAN I have this same Gigabyte Z690 Gaming X (but DDR 4 version), with a 12400F and an RX 560. I've just buided it a few hours ago but I still haven't been able to have a working EFI for this. Could you give me some tips to follow? Thanks! My previous hackintosh was based on an old Gigabyte H110-M and an i5 7500, so I'm really out-of-date with regards in Alder Lake. Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2807848 Share on other sites More sharing options...
MaLd0n Posted July 7, 2023 Share Posted July 7, 2023 u can use alder lake efi from link bellow https://olarila.com/files/OPENCORE.MOD1/EFI.Opencore.Desktop.AlderLake.MOD.zip *If you used SSDT instead DSDT uncheck RebaseRegions in Acpi tab *After installation you need remove unnecessary files like unused Lan kexts Bios/uefi in full default. Just enable xmp and vt-d 2 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2807856 Share on other sites More sharing options...
BALDY_MAN Posted July 7, 2023 Author Share Posted July 7, 2023 @johncool I used MaLd0n ,s Efi file to help you I have just updated the kext I use and the OCAuxillary toolGigabyte Gamng X .Z690 EFI.zip 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2807866 Share on other sites More sharing options...
johncool Posted July 7, 2023 Share Posted July 7, 2023 Thank you very much, gentlemen! Other than changing the mac serials and such, and adding the SSDT (that I missed with ignorance) boot was perfect. 1 Link to comment https://www.insanelymac.com/forum/topic/350701-z690-gigabyte-gaming-x-motherboard-help-is-now-a-hackintosh/#findComment-2807877 Share on other sites More sharing options...
