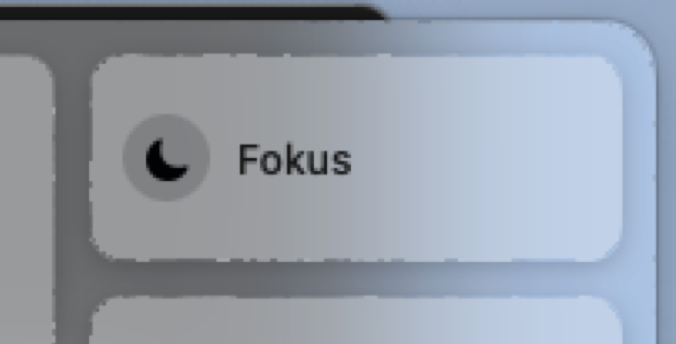

jota29 Posted January 22, 2022 Share Posted January 22, 2022 After upgrading macOS from Majove to Monterey on my HP EliteDesk 800 G1 I noticed a strange effect with the 3D borders of the control center and other elements (widgets, dock ...). It looks like some kind of (not good looking) dithering, that even worse changes when I move the mouse over the element. I'm wondering, if that is related to the Intel graphics driver (Intel HD Graphics 4600) and my configuration of it, or if that is a normal effect (which I cannot believe in view of Apples requirement for good looking GUIs). Did anyone see this effect on his/her hackintosh or even know how to fix it? Quote Link to comment Share on other sites More sharing options...
HmO Posted January 22, 2022 Share Posted January 22, 2022 <key>Properties</key> <dict> <key>PciRoot(0x0)/Pci(0x2,0x0)</key> <dict> <key>AAPL,ig-platform-id</key> <data> BgAmCg== </data> <key>device-id</key> <data> EgQAAA== </data> <key>framebuffer-con1-enable</key> <data> AQAAAA== </data> <key>framebuffer-con1-pipe</key> <data> EgAAAA== </data> <key>framebuffer-con1-type</key> <data> AAgAAA== </data> <key>framebuffer-con2-alldata</key> <data> /wAAAAEAAABAAAAA </data> <key>framebuffer-con2-enable</key> <data> AQAAAA== </data> <key>framebuffer-cursormem</key> <data> AACQAA== </data> <key>framebuffer-memorycount</key> <data> AgAAAA== </data> <key>framebuffer-patch-enable</key> <data> AQAAAA== </data> <key>framebuffer-portcount</key> <data> AgAAAA== </data> </dict> </dict> Quote Link to comment Share on other sites More sharing options...
jota29 Posted January 22, 2022 Author Share Posted January 22, 2022 (edited) Thanks a lot for the quick reply. As @Hervé stated, I use AAPL,ig-platform-id 0300220D DATA because the the HP EliteDesk 800 G1 is a desktop platform. Therefor the configuration of @HmO does not work for me. Even after changing APPL,ig-platform-id to 0300220D. Here is my config.plist config.plist Edited January 22, 2022 by jota29 Quote Link to comment Share on other sites More sharing options...
jota29 Posted January 22, 2022 Author Share Posted January 22, 2022 By the way: my configuration is based on the configuration from @Donw35 in the thread Monterey, Big Sur, Catalina, Mojave, High Sierra on HP 800 G1 USDT,SFF and Tower PC's. I had to apply some changes. In case of video configuration I made changes to support resolutions higher than 1920x1080 regarding framebuffer memory. But: Also with the original config from @Donw35 I see the issues with 3d border dithering. Quote Link to comment Share on other sites More sharing options...
Slice Posted January 23, 2022 Share Posted January 23, 2022 @jota29 I can propose you to experiment with some additional properties for the IGPU AAPL00,Dither - expected value 4 bytes zero. Set to <01 00 00 00>? AAPL,GfxYTile - same graphic-options - Clover set the property automatically, for example <0c 00 00 00> Quote Link to comment Share on other sites More sharing options...
jota29 Posted January 23, 2022 Author Share Posted January 23, 2022 1 hour ago, Hervé said: Some these patches/settings do raise questions @Hervé, I have to admit, that many of the values in the configuration came from the configs, I just copied from the the discussion in thread Monterey, Big Sur, Catalina, Mojave, High Sierra on HP 800 G1 USDT,SFF and Tower PC's. The framebuffer values are the only values, I have read about in the opencore documentation and changed to get the full resolution of my monitor. BUT: Thank you very much for the advice to try a minimalistic configuration. <key>AAPL,ig-platform-id</key> <data>AwAiDQ==</data> <key>hda-gfx</key> <data>b25ib2FyZC0xAA==</data> <- OpenCore 7.6 says, this has to be type DATA, not STRING With this configuration I get the same result, but now my feeling is much better knowing not to change things I don't really understand. Unfortunately, the dithering effects also stayed. I played around with different values for AAPL00,Dither AAPL,GfxYTile and graphic-options, as @Slice recommended, but without success. Thanks @Slice! Quote Link to comment Share on other sites More sharing options...
HmO Posted January 23, 2022 Share Posted January 23, 2022 (edited) @jota29 What about "9mb cursor bytes" patch? <key>framebuffer-cursormem</key> <data> AACQAA== </data> <key>framebuffer-memorycount</key> <data> AgAAAA== </data> <key>framebuffer-patch-enable</key> <data> AQAAAA== </data> Maybe this is help you. Edited January 23, 2022 by HmO Quote Link to comment Share on other sites More sharing options...
jota29 Posted January 23, 2022 Author Share Posted January 23, 2022 Thanks @HmO and @Hervé, framebuffer-patch-enable 01000000 DATA I tried that in my original configuration -> no success In combination with framebuffer-cursormem 00009000 DATA my computer even doesn't reach the second apple boot logo. Either stalled at the first apple logo (boot-args without -v) or does a reboot at once (boot-args with -v). Quote Link to comment Share on other sites More sharing options...
jota29 Posted April 20, 2022 Author Share Posted April 20, 2022 Glad to see that Apple fixed my problem with Monterey 12.3.1 😃 Quote Link to comment Share on other sites More sharing options...
